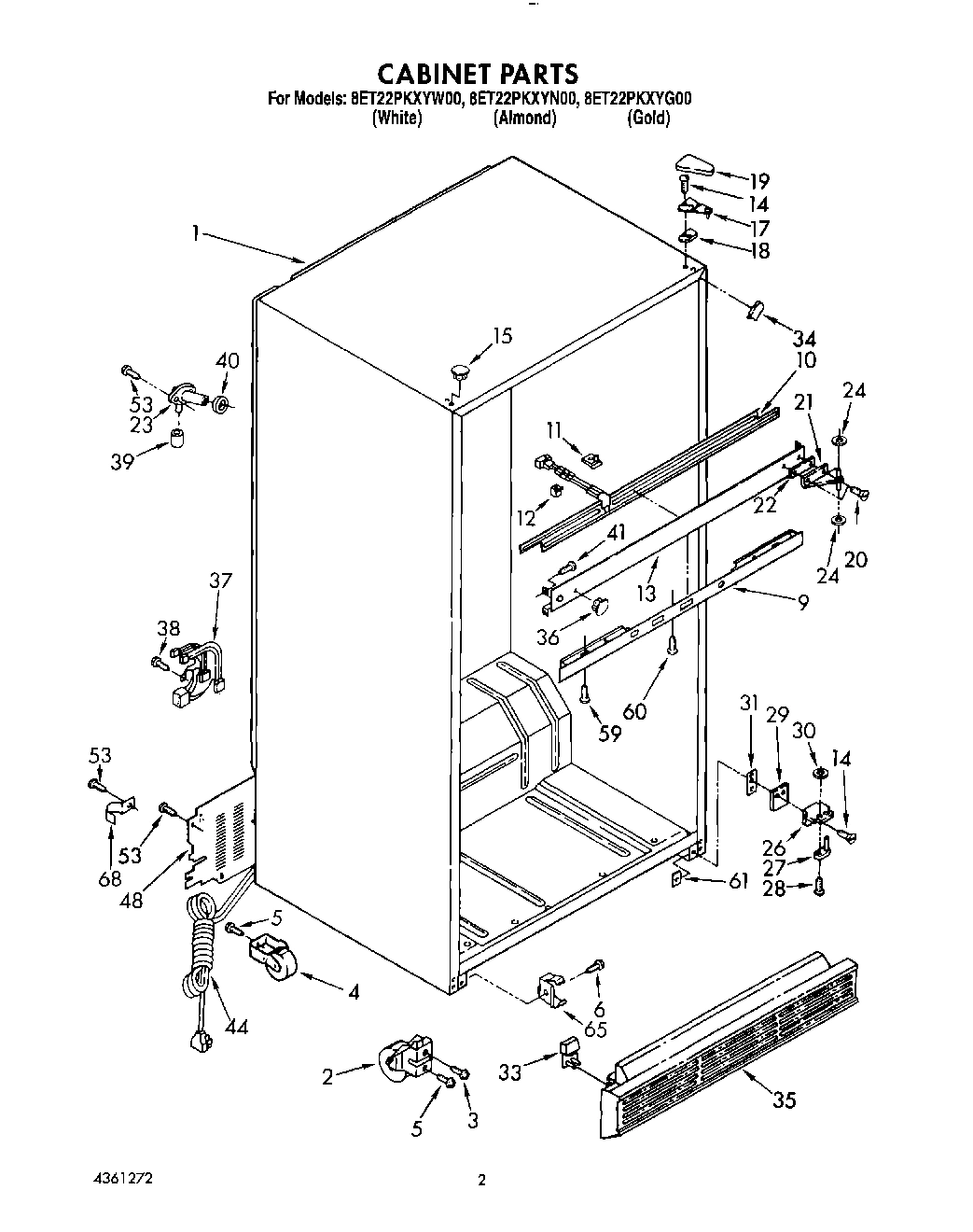

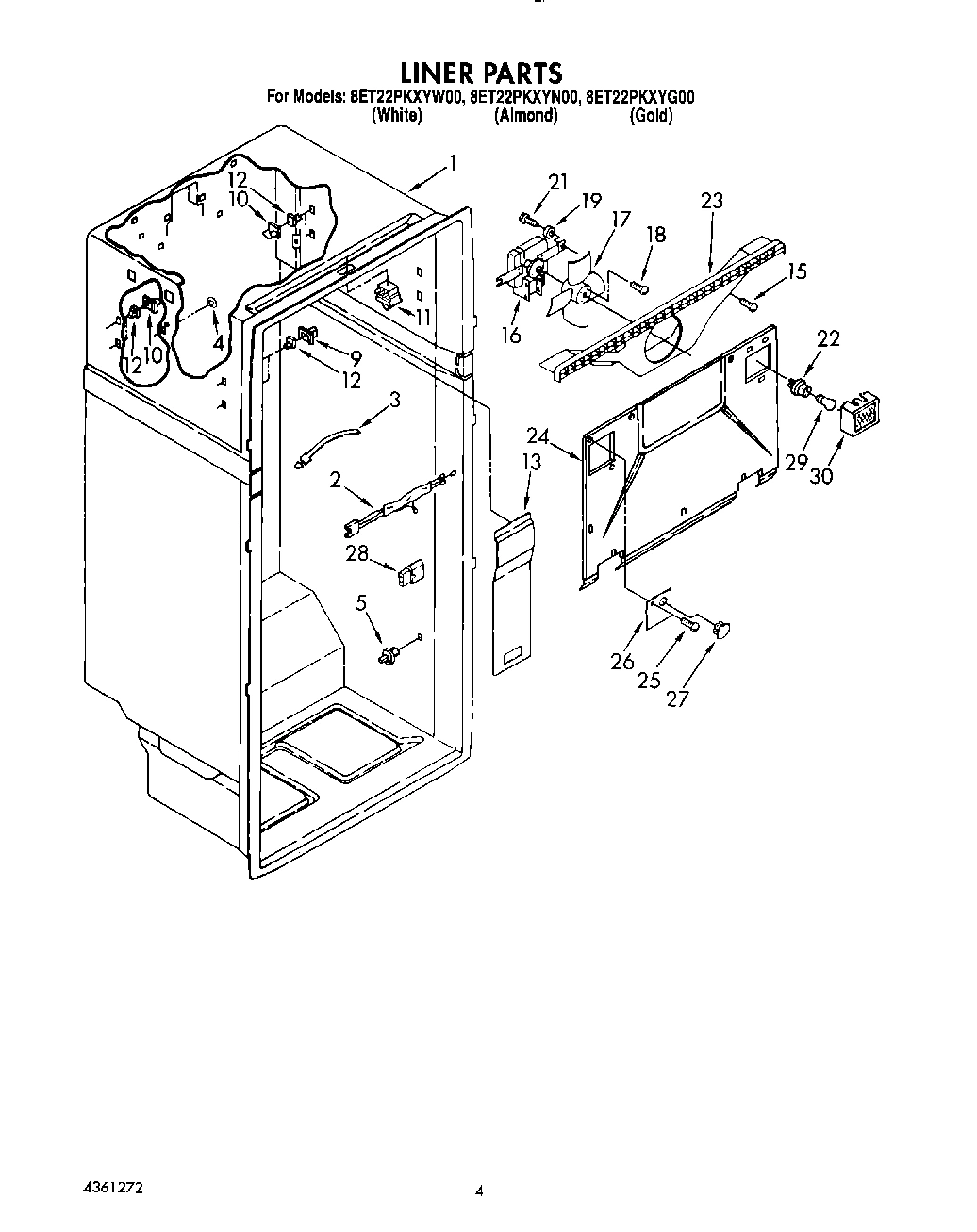

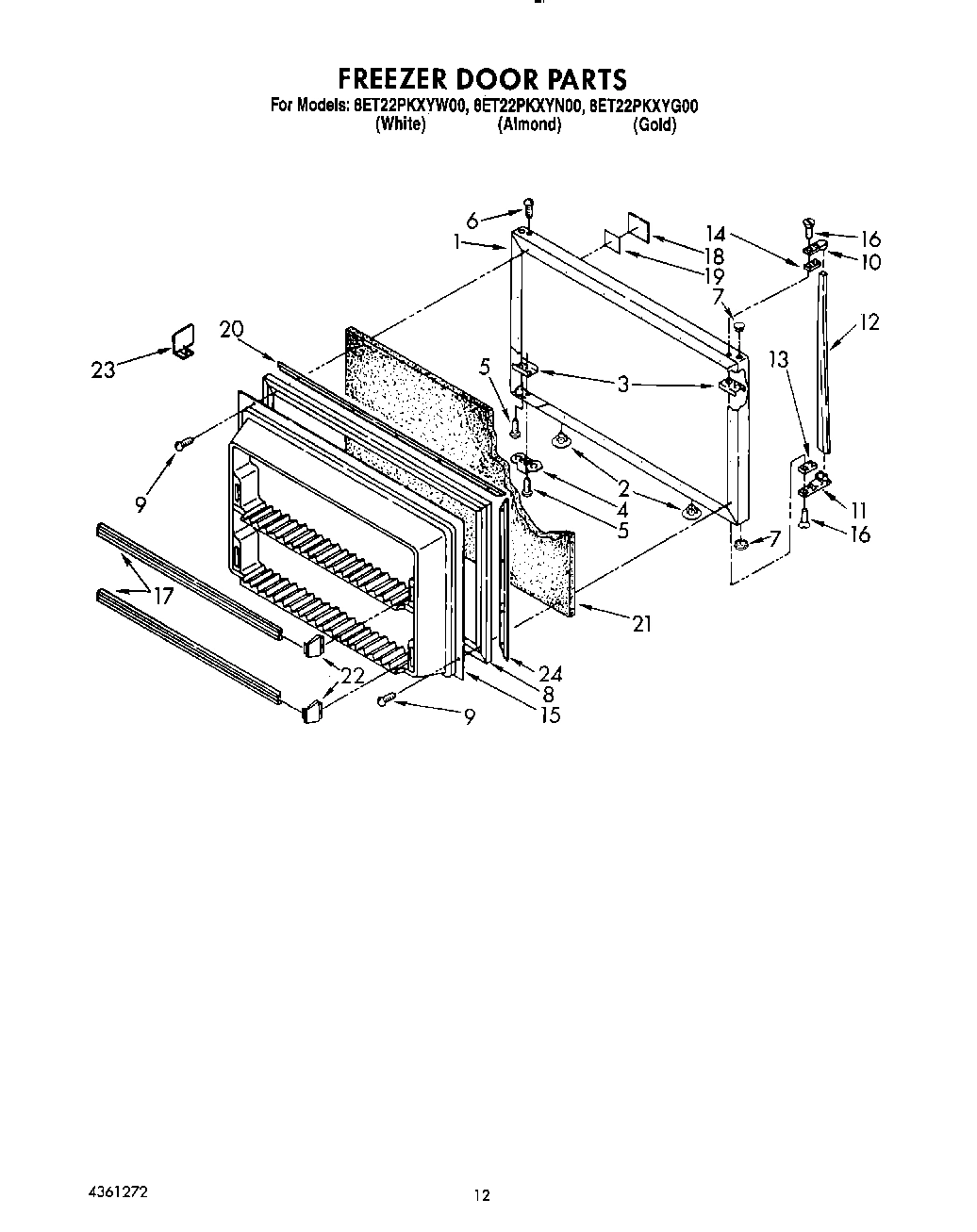

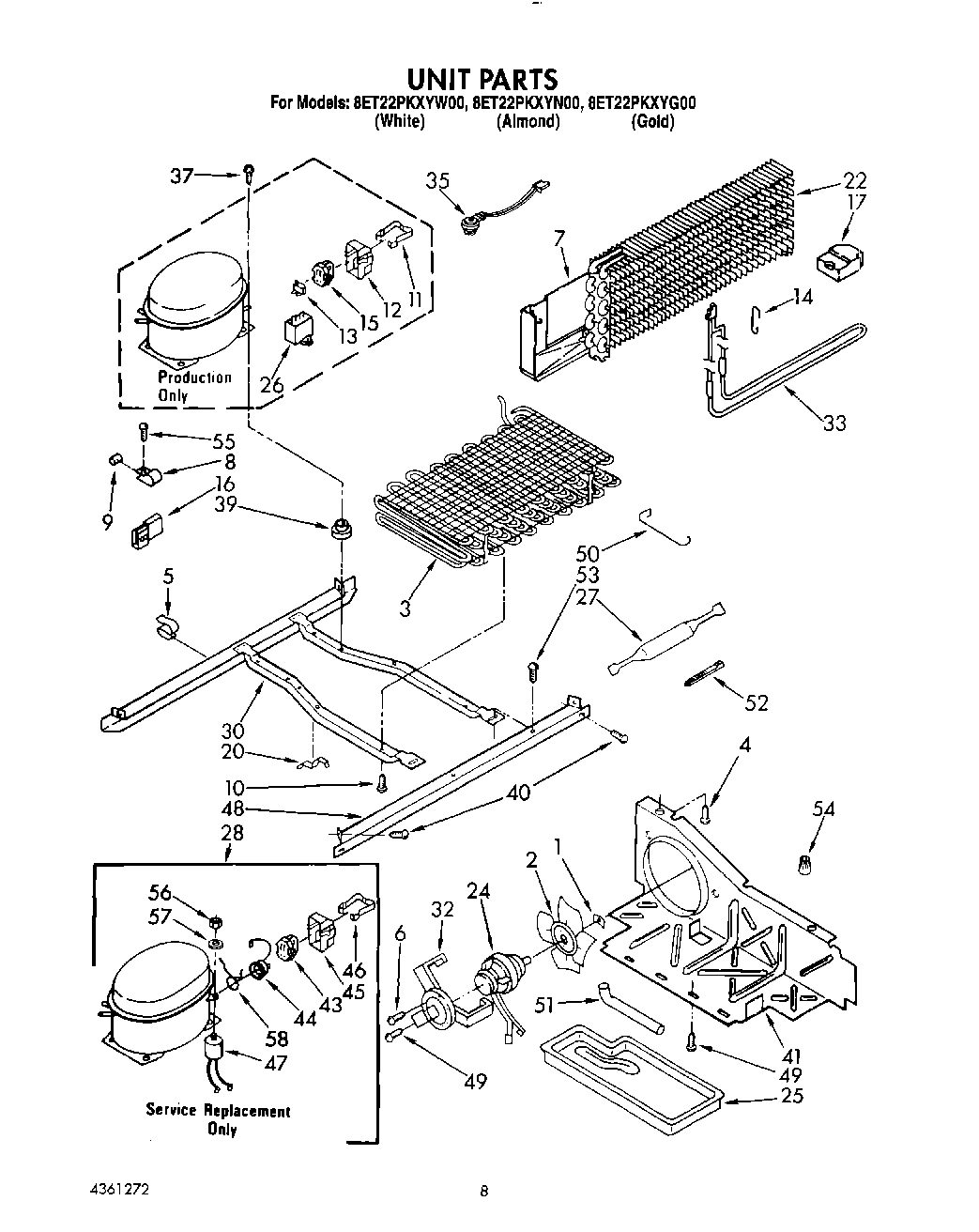

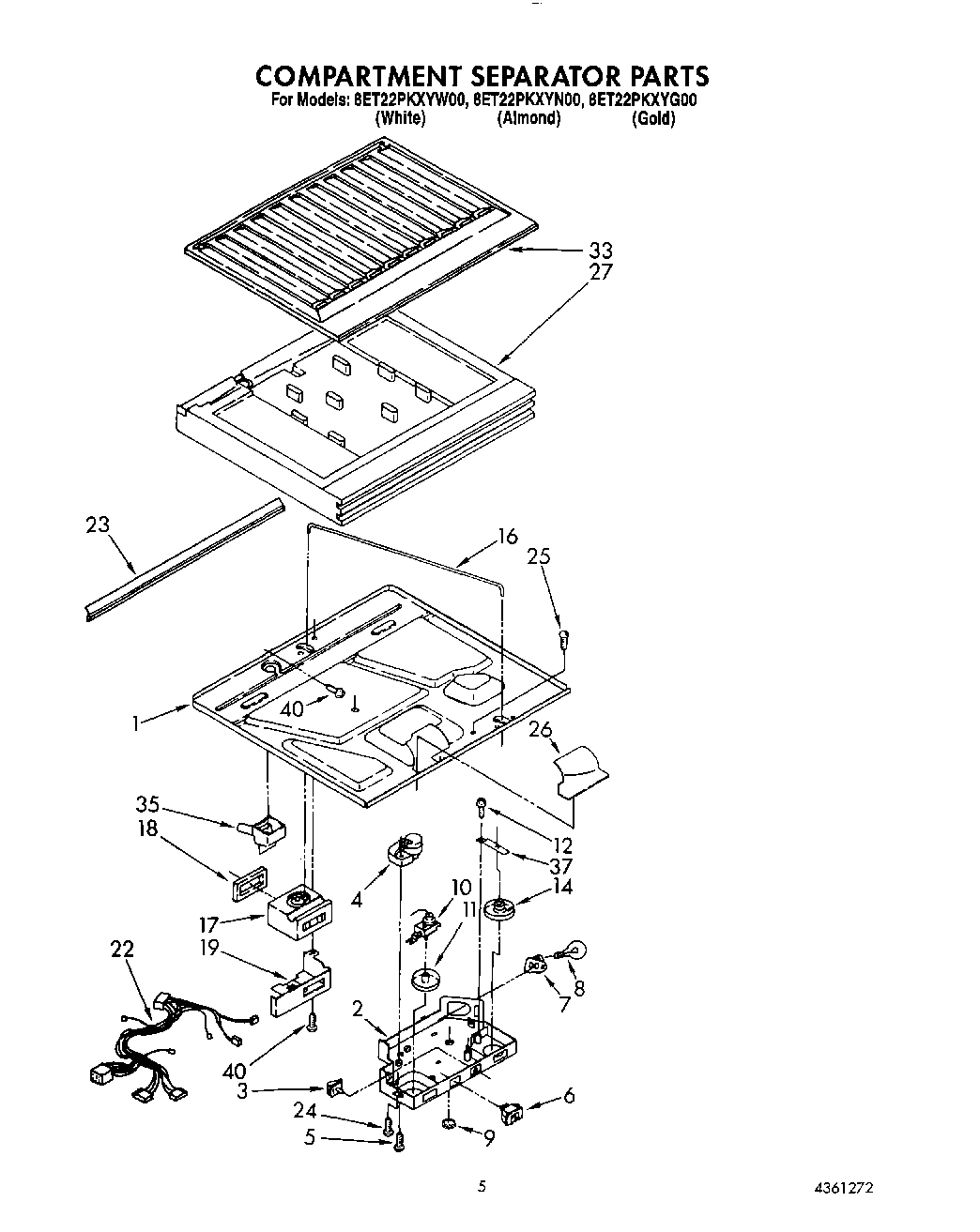

Model Whirlpool 8ET22PKXYG00 REFRIGERATOR – Common Parts &amp; Diagrams

WPL 1117510 WPL 1117510 Contact Us For Availability

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

1

Cabinet (Not A Serviceable Part) WPL ARI19223A9 Contact Us For Availability

1

Liner (Not A Serviceable Part) WPL ARI19224A7 Contact Us For Availability

1

Bottom, Compartment Separator WPL 1105452 Contact Us For Availability

1

Panel, Freezer Door (Also Order Item 21) (Whi WPL 1122550 Contact Us For Availability

1

Panel, Freezer Door (Also Order Item 21) (Har WPL 1122661 Contact Us For Availability

1

Panel, Freezer Door (Also Order Item 21) (Alm WPL 1122663 Contact Us For Availability

2

Fan, Blade WPL 1108179 Contact Us For Availability

2

Wiring, Fan Motor WPL 1127626 Contact Us For Availability

2

Roller, Front WPL 2152011 Contact Us For Availability

2

Box, Control WPL 1105455 Contact Us For Availability

2

Hole Plug (2) (White) WPL 534927 Contact Us For Availability

2

Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability

3

520965 Whirlpool Refrigerator Support Backorder WPL 520965 $10.14

3

W10833053 Whirlpool Refrigerator Plate Backorder WPL W10833053 $6.31

3

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $24.28

3

Condenser Assembly WPL 2154010 Contact Us For Availability

3

Screw, 5/16-24 x 1-1/4 WPL 489333 Contact Us For Availability

3

Strap, Mtg. WPL 1123230 Contact Us For Availability

4

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $4.52

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Timer, Defrost (10 Hour) WPL 1127570 Contact Us For Availability

4

Bracket, Door Stop WPL 944035 Contact Us For Availability

5

WP487353 Whirlpool Refrigerator Screw In Stock WPL WP487353 $2.51

5

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $2.51

5

Clip, Wire (2) WPL 548745 Contact Us For Availability

5

Screw (6) WPL 488454 Contact Us For Availability

6

681390 Whirlpool Refrigerator Screw Backorder WPL 681390 $9.13

6

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

6

WP8281206 Whirlpool Refrigerator Screw Backorder WPL WP8281206 $2.51

6

Switch, Toggle WPL 1106601 Contact Us For Availability

7

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $33.16

7

WP2212648 Whirlpool Refrigerator Hinge Sleeve In Stock WPL WP2212648 $3.70

7

Drain Pan/ Heat Shield WPL 2153974 Contact Us For Availability

7

Hole Plug (Almond) WPL 989196 Contact Us For Availability

8

2188460A Whirlpool Refrigerator Door Gasket Backorder WPL 2188460A $93.54

8

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $3.71

8

Tube Clamp WPL 510716 Contact Us For Availability

9

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

9

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $3.33

9

NLA:SCREW Backorder WPL WPW10141645 $3.70

9

Dampener WPL 2149670 Contact Us For Availability

9

Control, Front Cover WPL 2148990 Contact Us For Availability

9

Stud (3) WPL 946356 Contact Us For Availability

1123394 Whirlpool Refrigerator Cold Control T Backorder WPL 1123394 $90.52

819091 Whirlpool Refrigerator Shelf Stud In Stock WPL 819091 $13.89

WP2191882 Whirlpool Refrigerator Handle End C Backorder WPL WP2191882 $33.31

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $4.52

Heater, Mullion WPL 2154065 Contact Us For Availability

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $14.06

Spring, Relay Case WPL 943322 Contact Us For Availability

Clip, Center Rail (4) WPL 1129018 Contact Us For Availability

Knob, Thermostat WPL 2148150 Contact Us For Availability

WP2162555 Whirlpool Refrigerator White Door H In Stock WPL WP2162555 $101.12

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

Case, Relay WPL 1105055 Contact Us For Availability

Spacer (3) WPL 2149077 Contact Us For Availability

Support, Stud (6) WPL 946355 Contact Us For Availability

Handle, Center (Cherry) WPL 1108729 Contact Us For Availability

Handle, Center (Almond) WPL 2148069 Contact Us For Availability

Shim, Handle WPL 943187 Contact Us For Availability

Shim, Handle End (Side) WPL 992872 Contact Us For Availability

Overload WPL 2154140 Contact Us For Availability

Center Rail (White) WPL 1122566 Contact Us For Availability

Center Rail (Harvest Gold) WPL 1122568 Contact Us For Availability

Center Rail (Almond) WPL 1122569 Contact Us For Availability

Cover, Air Duct WPL 2157410 Contact Us For Availability

Spacer, Handle Door WPL 943188 Contact Us For Availability

Support, Heater WPL 2149120 Contact Us For Availability

Screw WPL 489327 Contact Us For Availability

Knob, Air Control WPL 2148151 Contact Us For Availability

2154436 Whirlpool Refrigerator Start Relay Backorder WPL 2154436 $55.71

WP2151652 Whirlpool Refrigerator Button Plug In Stock WPL WP2151652 $9.02

WP939101 Whirlpool Refrigerator Plate Backorder WPL WP939101 $3.70

Hole Plug (Almond) WPL 2151653 Contact Us For Availability

Hole Plug (Harvest Gold) WPL 2151654 Contact Us For Availability

Interior Door Panel WPL 1122575 Contact Us For Availability

482731 Whirlpool Refrigerator Evaporator Fan In Stock WPL 482731 $47.13

WP488920 Whirlpool Refrigerator Screw In Stock WPL WP488920 $2.51

Housing Plug WPL 1118850 Contact Us For Availability

Rod, Connecting WPL 1105460 Contact Us For Availability

WP1100938 Whirlpool Refrigerator Fan Blade Backorder WPL WP1100938 $28.95

Support, Evap. (R.S.) WPL 1118805 Contact Us For Availability

Support, Evap. (L.S.) WPL 1118806 Contact Us For Availability

Hinge, Top WPL 1123514 Contact Us For Availability

Air Diffuser Assembly WPL 2157256 Contact Us For Availability

Trim, Door Shelf (2) WPL 2148183 Contact Us For Availability

WP487887 Whirlpool Refrigerator Screw Backorder WPL WP487887 $3.70

Nameplate WPL 2152334 Contact Us For Availability

Shim, Hinge Top WPL 1123517 Contact Us For Availability

Gasket, Air Diffuser WPL 1114325 Contact Us For Availability

1119787 Whirlpool Refrigerator Hinge Cover Backorder WPL 1119787 $12.24

Hinge Cover (Harvest Gold) WPL 842013 Contact Us For Availability

Grommet (2) WPL 531933 Contact Us For Availability

Cover, Air Diffuser WPL 1108176 Contact Us For Availability

Strip, Tape WPL 991259 Contact Us For Availability

20

WP999367 Whirlpool Refrigerator Screw Backorder WPL WP999367 $2.51

20

Clip, Unit Cover (2) WPL 548744 Contact Us For Availability

20

Retainer, Gasket WPL 1122552 Contact Us For Availability

21

Hinge, Center WPL 2147335 Contact Us For Availability

21

Screw WPL 489168 Contact Us For Availability

4386917 Whirlpool Endcap Kit In Stock WPL 4386917 $6.84

WPW10119935 Whirlpool Refrigerator Socket In Stock WPL WPW10119935 $35.48

Evaporator WPL 2153978 Contact Us For Availability

Shim, Hinge Center WPL 836155 Contact Us For Availability

Wiring Assembly, Control Box WPL 2153995 Contact Us For Availability

WP2196157 Whirlpool Fill Tube In Stock WPL WP2196157 $5.65

Reflector, Shelf WPL 1110743 Contact Us For Availability

Scroll, Fan WPL 1127100 Contact Us For Availability

Gasket, Bottom Separator WPL 1114382 Contact Us For Availability

Divider WPL 1114380 Contact Us For Availability

833697 Whirlpool Condenser Fan Motor In Stock WPL 833697 $41.18

WP250830 Whirlpool Refrigerator Screw Backorder WPL WP250830 $2.51

WP488296 Whirlpool Washer Refrigerator In Stock WPL WP488296 $4.52

Retainer, Gasket Door Shelf WPL 1122553 Contact Us For Availability

Shelf, Full Cantilever WPL 1116350 Contact Us For Availability

Evaporator Cover WPL 2157427 Contact Us For Availability

25

W11233072 Whirlpool Screw In Stock WPL W11233072 $10.41

25

Trim, Shelf WPL 1114436 Contact Us For Availability

25

Tray, Evaporator WPL 2154114 Contact Us For Availability

WP1118001 Whirlpool Hinge Pin Backorder WPL WP1118001 $3.70

WP2217784 Whirlpool Refrigerator Cover In Stock WPL WP2217784 $16.78

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $29.06

Glass, Full Shelf WPL 1114434 Contact Us For Availability

Hinge Butt, Bottom WPL 1123378 Contact Us For Availability

Insulation, Filler WPL 1108196 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $29.35

285006 Whirlpool Spray In Stock WPL 285006 $29.65

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.94

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $20.04

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $27.52

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.25

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $100.80

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $38.32

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.99

WP72107 Whirlpool Touchup In Stock WPL WP72107 $6.62

Foam Insulation (Required When Replacing Exte WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Hinge Pin, Bottom WPL 654366 Contact Us For Availability

Reflector, Shelf WPL 1114435 Contact Us For Availability

Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

Hole Plug WPL 1103725 Contact Us For Availability

Insulation, Compartment Separator WPL 1105464 Contact Us For Availability

28

WP717253 Whirlpool Dishwasher Connector Backorder WPL WP717253 $3.51

28

Screw 10-32 x 5/16 WPL 488714 Contact Us For Availability

28

Compressor (Includes Items 43, 44, 45, 46, 47 WPL 4317959 Contact Us For Availability

29

Shim, Bottom WPL 1123379 Contact Us For Availability

30

2304903 Whirlpool Refrigerator Frame Backorder WPL 2304903 $100.60

30

Washer, 7/32 WPL 489200 Contact Us For Availability

30

Light Lens WPL 981365 Contact Us For Availability

31

Spacer WPL 1121117 Contact Us For Availability

32

Fan, Motor Bracket WPL 2162062 Contact Us For Availability

33

Heater, Defrost WPL 2154736 Contact Us For Availability

33

Corner Filler, Grille (Black) WPL 1118078 Contact Us For Availability

33

Separator, Compartment (Top) WPL 2151663 Contact Us For Availability

34

Filler, Wrap Corner (White) WPL 1118058 Contact Us For Availability

34

Filler, Wrap Corner (Almond) WPL 1118059 Contact Us For Availability

34

Filler, Wrap Corner (Harvest Gold) WPL 1118060 Contact Us For Availability

35

WP4387503 Whirlpool Refrigerator Bimetal Defr In Stock WPL WP4387503 $13.77

35

Grille (Black) WPL 1129001 Contact Us For Availability

35

Cup, Drain WPL 937065 Contact Us For Availability

36

Hole Plug (5) (White) WPL 1129062 Contact Us For Availability

36

Hole Plug (5) (Almond) WPL 1129063 Contact Us For Availability

36

Hole Plug (5) (Harvest Gold) WPL 1129064 Contact Us For Availability

37

Wiring Assy. Intermediate WPL 2158626 Contact Us For Availability

37

Bracket, Control Knob WPL 1105457 Contact Us For Availability

39

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

39

WP487996 Whirlpool Refrigerator Cap Tube Backorder WPL WP487996 $4.48

40

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

40

WP1106508 Whirlpool Refrigerator Gasket Backorder WPL WP1106508 $4.14

40

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

41

Air Baffle WPL 2155566 Contact Us For Availability

43

WP2262181 Whirlpool Refrigerator Start Relay In Stock WPL WP2262181 $53.86

44

Overload WPL 1118841 Contact Us For Availability

44

Cord, Service WPL 937360 Contact Us For Availability

45

Cover WPL 1108115 Contact Us For Availability

46

Strap WPL 938384 Contact Us For Availability

48

Unit Mounting Rail WPL 2149717 Contact Us For Availability

48

Cover, Unit WPL 1105531 Contact Us For Availability

49

Screw WPL 488624 Contact Us For Availability

50

1105612 Whirlpool Fan Guard Backorder WPL 1105612 $25.31

51

Drain Extension WPL 2154119 Contact Us For Availability

52

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $3.33

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

54

Wire Connector WPL 227991 Contact Us For Availability

55

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

56

Nut WPL 489142 Contact Us For Availability

57

Washer WPL 489143 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $34.75

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $28.02

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

Overload Spring WPL 1114190 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

60

WP489174 Whirlpool Refrigerator Screw Backorder WPL WP489174 $3.70

61

Tap-Plate, Bottom Hinge WPL 2147310 Contact Us For Availability

65

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $4.52

68

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94
