Model Whirlpool 8ET22DKXDG00 REFRIGERATOR – Common Parts & Diagrams

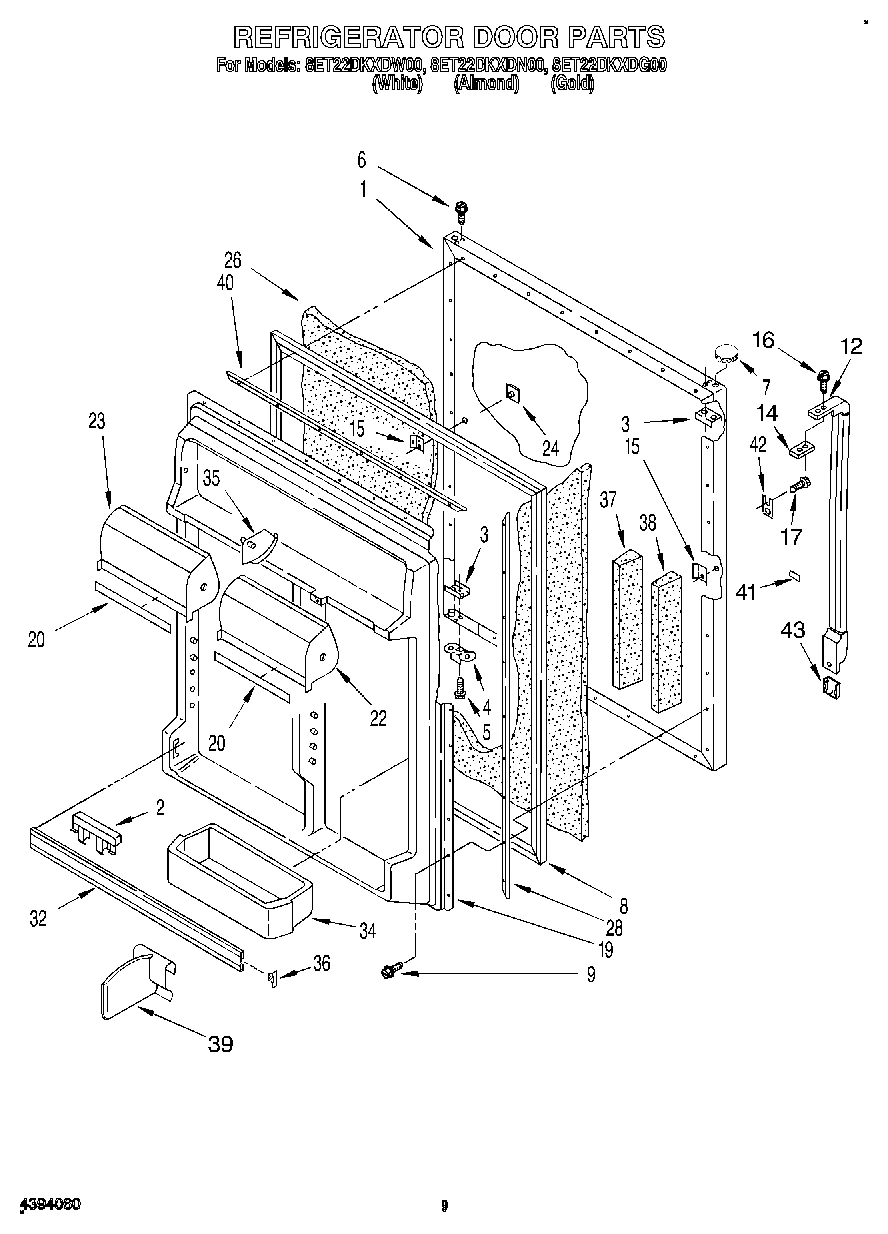

06 - REFRIGERATOR DOOR

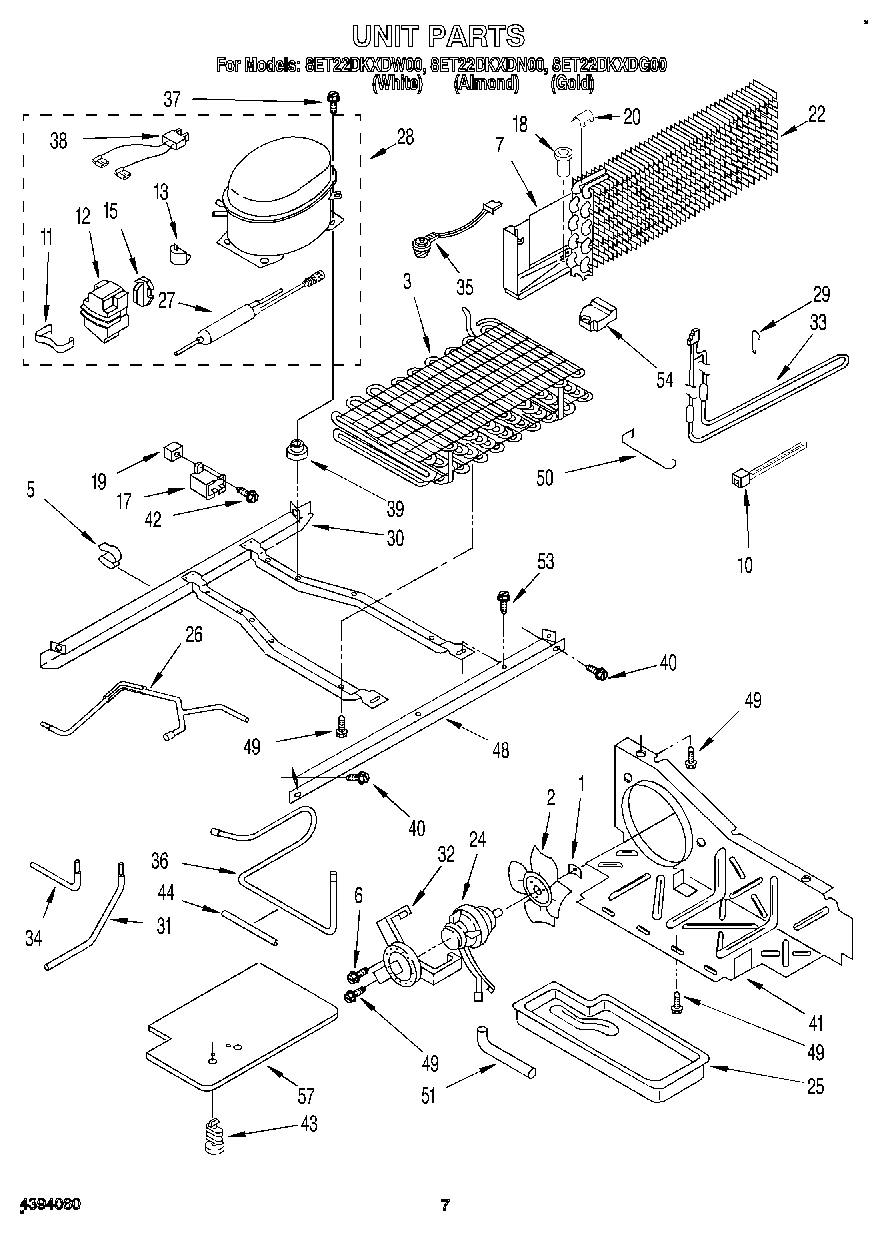

05 - UNIT
07 - FREEZER DOOR, LIT/OPTIONAL
01 - CABINET
03 - COMPARTMENT SEPARATOR
02 - LINER
04 - SHELF
Common parts from model Whirlpool 8ET22DKXDG00 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2170418 WPL LIT2170418 Contact Us For Availability
WPL LIT2174843 WPL LIT2174843 Contact Us For Availability
WPL LIT2179516 WPL LIT2179516 Contact Us For Availability
WPL LIT677969 WPL LIT677969 Contact Us For Availability
WPL LIT677971 WPL LIT677971 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Whi WPL 2159160 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Gol WPL 2159162 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Alm WPL 2159163 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI19184A7 Contact Us For Availability
1
Bottom, Compartment Separator WPL 2174810 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI19185A8 Contact Us For Availability
1
Shelf, Ladder (2) WPL 1114466 Contact Us For Availability
2
Wiring, Fan Motor WPL 1127626 Contact Us For Availability
2
Hole Plug (2) (White) WPL 534927 Contact Us For Availability
2
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
2
Hole Plug (2) (Gold) WPL 989879 Contact Us For Availability
2
Roller, Front WPL 2174748 Contact Us For Availability
2
Box, Control WPL 2174824 Contact Us For Availability
2
Shelf, Ladder Center WPL 1114465 Contact Us For Availability
4
Bracket, Door Stop WPL 944035 Contact Us For Availability
5
Floor, Pull-Out Freezer WPL 2174376 Contact Us For Availability
5
Screw, WPL 489345 Contact Us For Availability
6
Fence, Freezer Floor WPL 2174378 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
7
Trim, Freezer Floor WPL 2174323 Contact Us For Availability
7
Shelf, Cantilever (2) WPL 2174036 Contact Us For Availability
8
Insert, Air Baffle WPL 2176796 Contact Us For Availability
8
Track, Freezer Floor (2) WPL 2174370 Contact Us For Availability
8
Bucket, Ice WPL 2174616 Contact Us For Availability
9
Control, Front Cover WPL 2148533 Contact Us For Availability
9
Crisper Cover WPL 2179420 Contact Us For Availability
10
Plug, Hole (White) WPL 2174433 Contact Us For Availability
10
Plug, Hole (Almond) WPL 2174434 Contact Us For Availability
10
Plug, Hole (Black) WPL 2174435 Contact Us For Availability
10
Heater, Mullion WPL 2157307 Contact Us For Availability
10
Gasket, Crisper Cover WPL 2179392 Contact Us For Availability
11
Clip, Rail (4) WPL 1129018 Contact Us For Availability
11
Knob, Thermostat WPL 2174826 Contact Us For Availability
11
Glass, Crisper Cover WPL 2174143 Contact Us For Availability
12
Handle, Door (White Model) WPL 2179305 Contact Us For Availability
12
Handle, Door (Almond Model) WPL 2179306 Contact Us For Availability
12
Handle, Door (Black Model) WPL 2179307 Contact Us For Availability
12
Spacer (3) WPL 2149077 Contact Us For Availability
12
Shelf, Slide (Side to Side) WPL 2174224 Contact Us For Availability
13
Shim, Handle WPL 2151813 Contact Us For Availability
13
Center Rail WPL 2179453 Contact Us For Availability
13
Light, Bar WPL 2160639 Contact Us For Availability
13
Cover, Air Duct WPL 2157411 Contact Us For Availability
14
Knob, Air Control WPL 2174827 Contact Us For Availability
15
Interior Door Panel WPL 1122575 Contact Us For Availability
15
Deck Rail Cover WPL 2172708 Contact Us For Availability
15
Light, Bar WPL 2160638 Contact Us For Availability
16
Rod, Connecting WPL 1105460 Contact Us For Availability
16
Shelf Assembly, Spillguard WPL 2174035 Contact Us For Availability
17
Trim, Door Shelf (2) WPL 2171403 Contact Us For Availability
17
Air Diffuser Assembly WPL 2157253 Contact Us For Availability
17
Shelf, Freezer WPL 1125540 Contact Us For Availability
18
Nameplate (White Model) WPL 2175380 Contact Us For Availability
18
Nameplate (Almond Model) WPL 2175381 Contact Us For Availability
18
Nameplate (Black Model) WPL 2175382 Contact Us For Availability
18
Gasket, Air Diffuser WPL 2157255 Contact Us For Availability
19
Strip, Tape WPL 991259 Contact Us For Availability
19
Hinge Cover (Almond) WPL 2160404 Contact Us For Availability
19
Cover, Air Diffuser WPL 1108176 Contact Us For Availability
19
Grommet (2) WPL 531933 Contact Us For Availability
19
Pan, Crisper WPL 2179411 Contact Us For Availability
20
Retainer, Gasket WPL 1122552 Contact Us For Availability
20
Grommet (4) WPL 1110779 Contact Us For Availability
20
Pan, Meat WPL 2179412 Contact Us For Availability
21
Hinge, Center WPL 2151453 Contact Us For Availability
21
Screw WPL 489168 Contact Us For Availability
22
Shim, Hinge Center WPL 836194 Contact Us For Availability
22
Wiring Assembly, Control Box WPL 2174831 Contact Us For Availability
23
Gasket, Bottom Separator WPL 2159684 Contact Us For Availability
23
Scroll, Fan WPL 2160644 Contact Us For Availability
23
Trim, Ice Bucket WPL 2176360 Contact Us For Availability
24
Evaporator Cover WPL 2174325 Contact Us For Availability
24
Shelf, Freezer (Top) WPL 2179445 Contact Us For Availability
25
Tray, Evaporator WPL 2154114 Contact Us For Availability
25
Clip, Thermostat Tube Retention WPL 2172812 Contact Us For Availability
26
Tube, Discharge WPL 2162475 Contact Us For Availability
26
Divider, Door Shelf (2) WPL 1123293 Contact Us For Availability
26
Insulation, Filler WPL 1108196 Contact Us For Availability
26
Divider WPL 2179446 Contact Us For Availability
27
Retainer, Gasket WPL 1122553 Contact Us For Availability
27
Insulation, Compartment Separator WPL 2174366 Contact Us For Availability
27
Hook, Shelf WPL 2169608 Contact Us For Availability
28
WPL 876029 WPL 876029 Contact Us For Availability
28
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
28
Door Reversal Instructions WPL 2172761 Contact Us For Availability
28
WPL 542639 WPL 542639 Contact Us For Availability
28
WPL 799833 WPL 799833 Contact Us For Availability
28
WPL 978883 WPL 978883 Contact Us For Availability
29
Support, Heater WPL 851358 Contact Us For Availability
30
Light Lens WPL 2174443 Contact Us For Availability
31
Tube, Condenser To Heat Loop WPL 2154032 Contact Us For Availability
31
Spacer WPL 2172744 Contact Us For Availability
32
Fan, Motor Bracket WPL 548695 Contact Us For Availability
32
Hole Plug (Almond) WPL 2151653 Contact Us For Availability
32
Hole Plug (Gold) WPL 2151654 Contact Us For Availability
33
Heater, Defrost WPL 2162019 Contact Us For Availability
33
Corner Filler, Grille (Black) WPL 1118078 Contact Us For Availability
33
Corner Filler, Grille (White) WPL 1125665 Contact Us For Availability
33
Corner Filler, Grille (Almond) WPL 1125670 Contact Us For Availability
33
Separator, Compartment (Top) WPL 2174367 Contact Us For Availability
33
Screw WPL 489419 Contact Us For Availability
34
Filler, Wrap Corner (White) WPL 1118058 Contact Us For Availability
34
Filler, Wrap Corner (Almond) WPL 1118059 Contact Us For Availability
34
Filler, Wrap Corner (Black) WPL 2162679 Contact Us For Availability
34
Slide Track Assy., Shelf WPL 2169793 Contact Us For Availability
35
Grille (White) WPL 1125663 Contact Us For Availability
35
Grille (Almond) WPL 1125667 Contact Us For Availability
35
Grille (Black) WPL 1129001 Contact Us For Availability
35
Cup, Drain WPL 937065 Contact Us For Availability
36
Plug-Trim WPL 2159300 Contact Us For Availability
36
Tube, Suction WPL 2162472 Contact Us For Availability
36
Hole Plug WPL 1129062 Contact Us For Availability
37
Wiring Assy. Intermediate WPL 2158626 Contact Us For Availability
37
Bracket, Control Knob WPL 1105457 Contact Us For Availability
37
Cover WPL 2169935 Contact Us For Availability
38
Wire Asm. WPL 2159678 Contact Us For Availability
39
Shelf Stud WPL 946356 Contact Us For Availability
41
Air Baffle WPL 2162457 Contact Us For Availability
41
Support, Stud WPL 946355 Contact Us For Availability
43
Shelf, Ice Compartment WPL 1125543 Contact Us For Availability
44
Cord, Service WPL 937360 Contact Us For Availability
44
Shelf, Meat Pan WPL 2174043 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
48
Cover, Unit WPL 2183166 Contact Us For Availability
51
Tube, Drain WPL 2183033 Contact Us For Availability
54
Support, Evap. (R.S.) WPL 2174769 Contact Us For Availability
54
Support, Evap. (L.S.) WPL 2174770 Contact Us For Availability
57
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
57
Cover, Unit Bottom WPL 2160505 Contact Us For Availability
57
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
61
Tap-Plate, Bottom Hinge WPL 2157315 Contact Us For Availability
× ![]()
