Model Whirlpool 8ET20DKXXN00 REFRIGERATOR – Common Parts & Diagrams
01 - CABINET
04 - SHELF, LIT/OPTIONAL

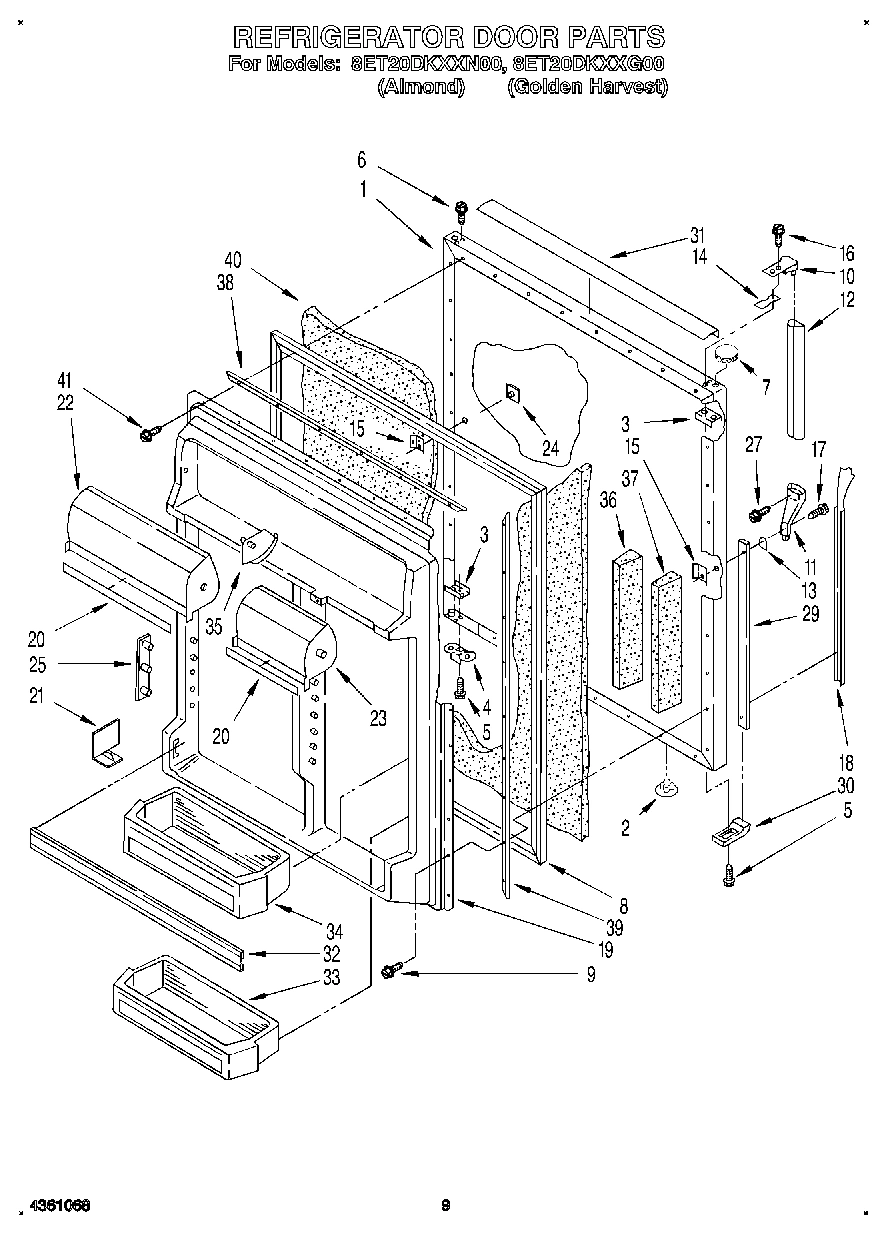

06 - REFRIGERATOR DOOR

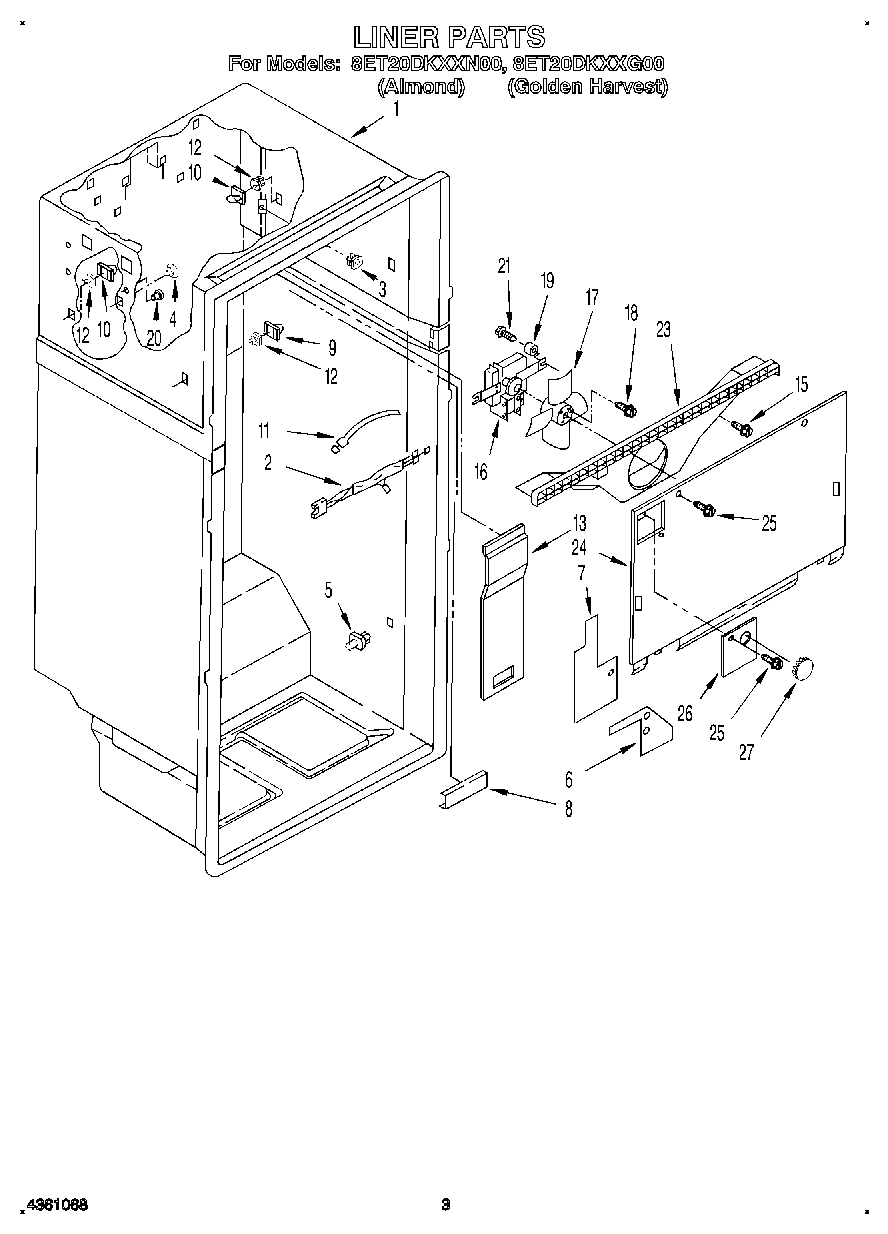

02 - LINER

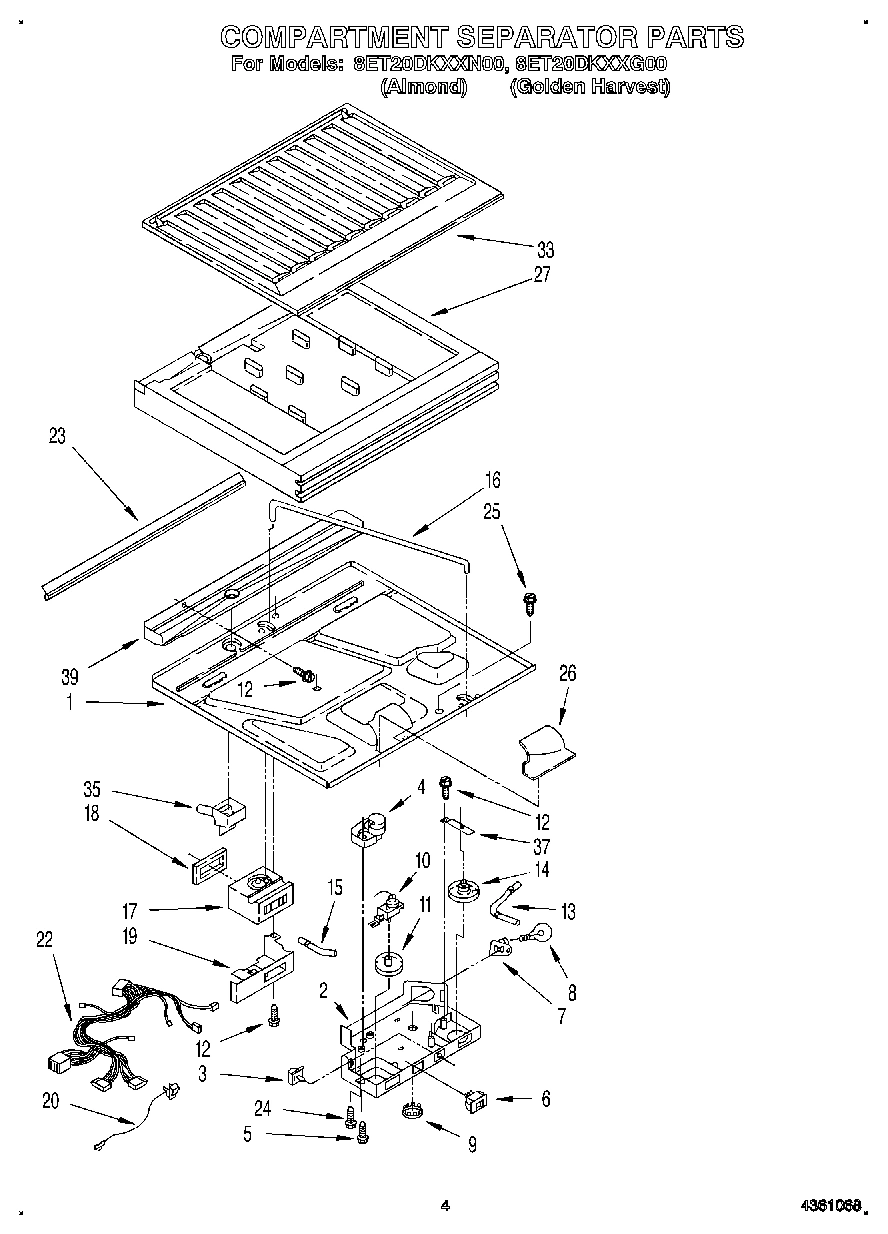

03 - COMPARTMENT SEPARATOR

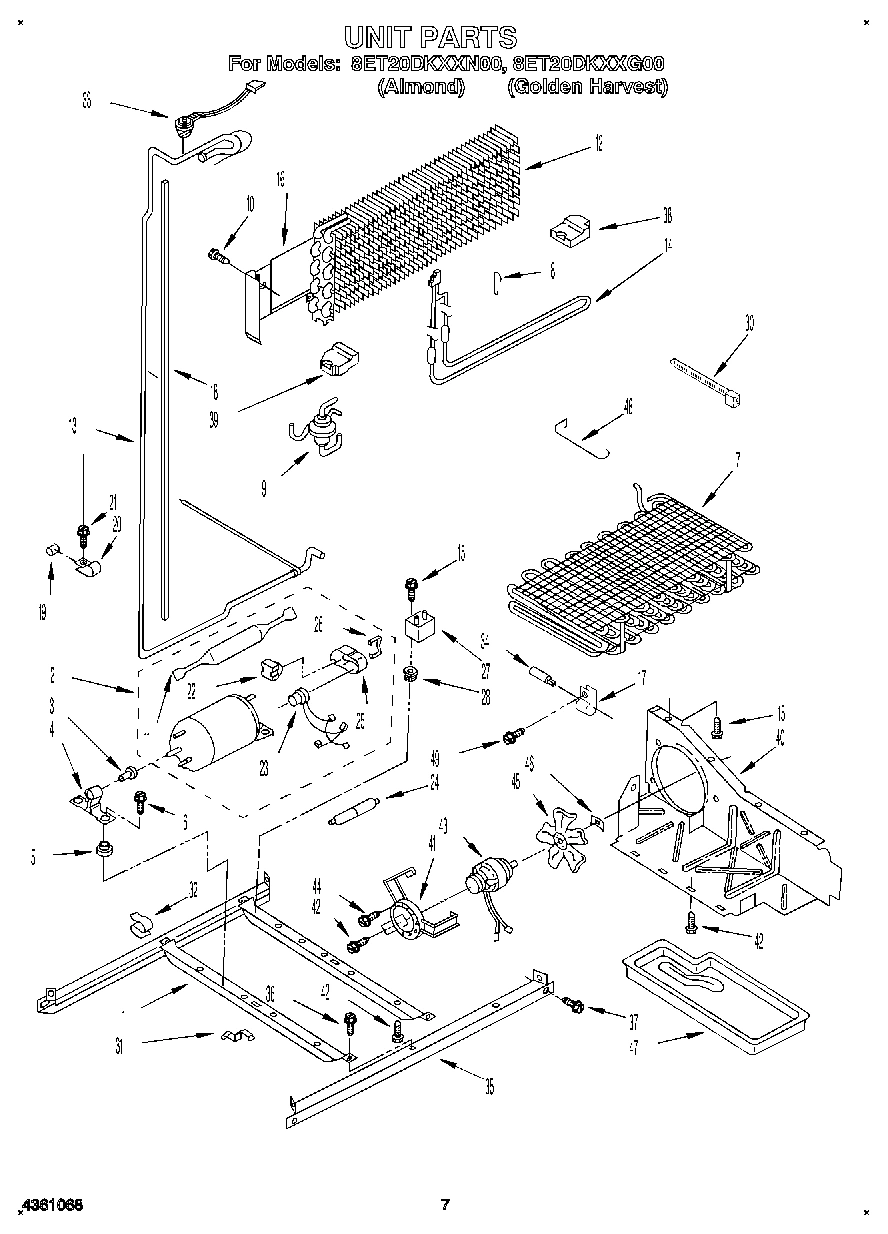

05 - UNIT

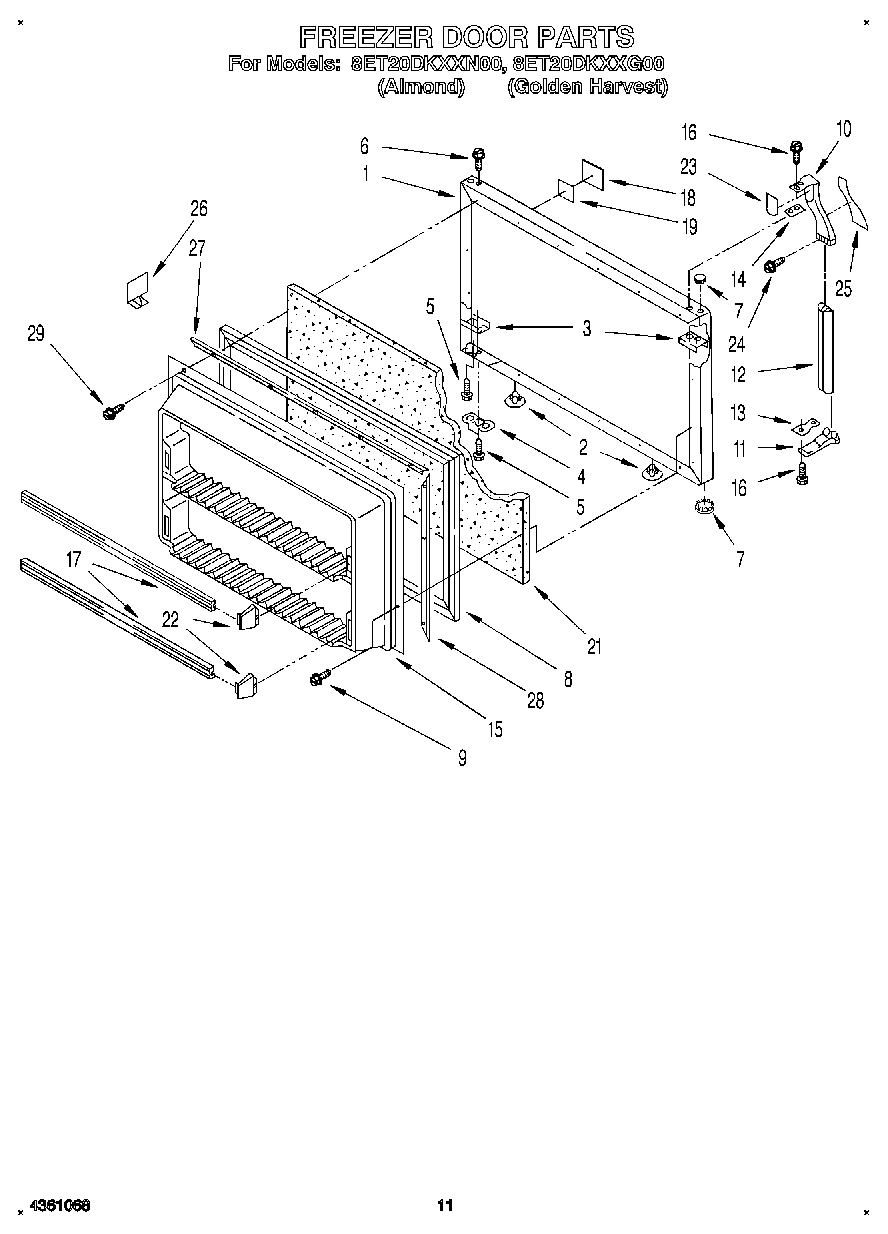

07 - FREEZER DOOR
Common parts from model Whirlpool 8ET20DKXXN00 REFRIGERATOR
WPL LIT1124256 WPL LIT1124256 Contact Us For Availability
WPL LIT2156521 WPL LIT2156521 Contact Us For Availability
WPL LIT4361068 WPL LIT4361068 Contact Us For Availability
1
Shelf, Ladder (2) WPL 1114466 Contact Us For Availability
1
Panel, Refrigerator Door (Also Order Item 40) WPL 1122657 Contact Us For Availability
1
Panel, Refrigerator Door (Also Order Item 40) WPL 1122658 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI143775A Contact Us For Availability
1
Bottom, Compartment Separator WPL 1122715 Contact Us For Availability
1
Unit, Frame WPL 2154451 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Gol WPL 1122662 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Alm WPL 1122663 Contact Us For Availability
2
Wiring, Fan Motor WPL 1127626 Contact Us For Availability
2
Shelf, Ladder Center WPL 1114465 Contact Us For Availability
2
Hole Plug (2) WPL 534927 Contact Us For Availability
2
Box, Control WPL 1106805 Contact Us For Availability
2
Compressor KIt Includes Items (11, 22, 23, 25 WPL 4318241 Contact Us For Availability
2
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
2
Hole Plug (2) (Golden Harvest) WPL 989879 Contact Us For Availability
3
Grommet (2) WPL 848445 Contact Us For Availability
3
Grommet, Compressor Bracket WPL 1105219 Contact Us For Availability
4
Bracket, Door Stop WPL 1115910 Contact Us For Availability
4
Timer, Defrost (10 Hour) WPL 1127570 Contact Us For Availability
4
Bracket, Mounting WPL 1105220 Contact Us For Availability
4
Bracket, Door Stop WPL 944035 Contact Us For Availability
5
Screw (3) WPL 489345 Contact Us For Availability
5
Grommet, Compressor (4) WPL 1105200 Contact Us For Availability
6
Electrical Shield WPL 2151521 Contact Us For Availability
6
Screw (4) WPL 489334 Contact Us For Availability
7
Shelf, Cantilever WPL 1120435 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
7
Electrical Shield WPL 1106696 Contact Us For Availability
7
Condenser Assembly WPL 2149613 Contact Us For Availability
8
Trim, Shelf WPL 1110741 Contact Us For Availability
8
Electrical, Shield WPL 1106892 Contact Us For Availability
8
Support, Heater WPL 2149120 Contact Us For Availability
9
Stud (2) WPL 946356 Contact Us For Availability
9
Valve, Fluid WPL 2154528 Contact Us For Availability
10
Handle End, Top WPL 944163 Contact Us For Availability
10
Trim, Crisper Cover WPL 1105649 Contact Us For Availability
11
Handle End, Side WPL 1109189 Contact Us For Availability
11
Glass, Crisper Cover WPL 1124553 Contact Us For Availability
11
Handle End WPL 944157 Contact Us For Availability
11
Strap, Mtg. WPL 1123230 Contact Us For Availability
11
Knob, Thermostat WPL 1114315 Contact Us For Availability
12
Pan Shelf, Cantilever WPL 1122729 Contact Us For Availability
12
Handle, Center WPL 1120781 Contact Us For Availability
12
support stud (8) WPL 946355 Contact Us For Availability
12
Evaporator Assembly WPL 1118548 Contact Us For Availability
12
Handle, Center WPL 1110382 Contact Us For Availability
13
Shim, Handle WPL 943187 Contact Us For Availability
13
Shim, Handle End (Side) WPL 935075 Contact Us For Availability
13
Cover, Air Duct WPL 2157410 Contact Us For Availability
13
Light, Bar WPL 1105475 Contact Us For Availability
13
Heat, Exchanger WPL 2149998 Contact Us For Availability
14
Spacer, Handle Door WPL 943188 Contact Us For Availability
14
Knob, Air Control WPL 1114314 Contact Us For Availability
14
Heater, Defrost WPL 2149645 Contact Us For Availability
15
Light, Bar WPL 1105476 Contact Us For Availability
15
Interior Door Panel WPL 1122575 Contact Us For Availability
16
Shelf, Glass WPL 1124551 Contact Us For Availability
16
Rod, Connecting WPL 1105459 Contact Us For Availability
16
Heat Shield WPL 1105545 Contact Us For Availability
17
Shelf, Freezer WPL 1106615 Contact Us For Availability
17
Air Diffuser Assembly WPL 2157416 Contact Us For Availability
17
Clamp WPL 1108033 Contact Us For Availability
17
Trim, Door Shelf (2) WPL 1124227 Contact Us For Availability
18
Trim, Shelf Front WPL 1106618 Contact Us For Availability
18
Insert, Handle WPL 1120830 Contact Us For Availability
18
Gasket, Air Diffuser WPL 1114325 Contact Us For Availability
18
Nameplate WPL 1111555 Contact Us For Availability
19
Pan, Crisper WPL 2148786 Contact Us For Availability
19
Interior Door Panel WPL 1126757 Contact Us For Availability
19
Grommet (2) WPL 531933 Contact Us For Availability
19
Cover, Air Diffuser WPL 1108176 Contact Us For Availability
19
Dampener (2) WPL 2149670 Contact Us For Availability
19
Strip, Tape WPL 991259 Contact Us For Availability
20
Pan, Meat WPL 2148787 Contact Us For Availability
20
Trim, Door Compartment (2) WPL 1124223 Contact Us For Availability
20
Grommet, (6) WPL 1110779 Contact Us For Availability
20
Ground Wire WPL 1114482 Contact Us For Availability
20
Tube Clamp (2) WPL 510716 Contact Us For Availability
21
Crisper Gasket, Front (2) WPL 1116512 Contact Us For Availability
21
Divider, Door Shelf WPL 2152336 Contact Us For Availability
21
Screw WPL 489168 Contact Us For Availability
22
Compartment Door, Left Side WPL 2148794 Contact Us For Availability
22
Wiring Assembly, Control Box WPL 2154411 Contact Us For Availability
22
Relay (See Overload) WPL ARI143776A Contact Us For Availability
23
Reflector, Shelf WPL 1110743 Contact Us For Availability
23
Compartment Door, Right Side WPL 2148792 Contact Us For Availability
23
Scroll, Fan WPL 1127100 Contact Us For Availability
23
Gasket, Bottom Separator WPL 1114382 Contact Us For Availability
23
Overload (Production (Includes Relay)) WPL 2154403 Contact Us For Availability
23
Overload (Service (Includes Relay)) WPL 2154945 Contact Us For Availability
23
Shim, EndCap (Top) WPL 935074 Contact Us For Availability
24
Shelf, Freezer (Top) WPL 1106822 Contact Us For Availability
24
Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability
24
Hole Plug, Handle (Golden Harvest) WPL 1122694 Contact Us For Availability
24
Screw, 6-20 x 3/8 (2) WPL 489022 Contact Us For Availability
24
Evaporator Cover WPL 1118711 Contact Us For Availability
24
Muffler WPL 2149995 Contact Us For Availability
25
Trim, Shelf WPL 2148451 Contact Us For Availability
25
Pin Plate (8) WPL 1116986 Contact Us For Availability
25
Terminal Cover WPL 2154452 Contact Us For Availability
25
Insert, Handle WPL 1114390 Contact Us For Availability
26
Divider WPL 1127416 Contact Us For Availability
26
Insulation, Filler WPL 942817 Contact Us For Availability
26
Strap, Cover WPL 1105222 Contact Us For Availability
26
Divider, Door Shelf (2) WPL 1114380 Contact Us For Availability
27
Hinge Pin, Bottom WPL 654366 Contact Us For Availability
27
Shelf, Ice Compartment (2) WPL 1106624 Contact Us For Availability
27
Gasket Retainer, Top & Bottom WPL 1122552 Contact Us For Availability
27
Hole Plug WPL 1103725 Contact Us For Availability
27
Insulation, Compartment Separator WPL 1105463 Contact Us For Availability
28
Gasket Retainer, Side (2) WPL 1122553 Contact Us For Availability
28
Screw 10-32 x 5/16 WPL 488714 Contact Us For Availability
28
Slide, Ice Compartment WPL 1106817 Contact Us For Availability
28
Screw Grommet WPL 509812 Contact Us For Availability
29
Retainer, Insert WPL 935871 Contact Us For Availability
30
Door, Ice Compartment WPL 2148731 Contact Us For Availability
30
Endcap, Insert Retainer WPL 1105804 Contact Us For Availability
30
Strap WPL 851095 Contact Us For Availability
31
Crisper Gasket, Rear (2) WPL 1105653 Contact Us For Availability
31
Trim, Door WPL 1106148 Contact Us For Availability
31
Clip, Unit Cover WPL 548744 Contact Us For Availability
32
Slide, Humidity Control WPL 1116718 Contact Us For Availability
32
Trim, Door Shelf WPL 1114376 Contact Us For Availability
32
Clip, Wire (2) WPL 548745 Contact Us For Availability
33
Bin, Door Shelf (2) WPL 1124208 Contact Us For Availability
33
Separator, Compartment (Top) WPL 1129022 Contact Us For Availability
34
Bin, Door Shelf (Deep) (2) WPL 1124209 Contact Us For Availability
34
Capacitor, Start WPL 1108065 Contact Us For Availability
35
Cup, Drain WPL 937065 Contact Us For Availability
35
Unit, Rail WPL 2149717 Contact Us For Availability
36
Crisper Pan, Front WPL 2148815 Contact Us For Availability
36
Door Dike, Center WPL 1122711 Contact Us For Availability
37
Door Dike, Side (2) WPL 1122709 Contact Us For Availability
37
Bracket, Control Knob WPL 1105457 Contact Us For Availability
38
Shelf, Full Cantilever WPL 1124283 Contact Us For Availability
38
Support (R.S.) WPL 1118805 Contact Us For Availability
39
Trim, Shelf WPL 1119562 Contact Us For Availability
39
Gasket Retainer, Side (2) WPL 1122551 Contact Us For Availability
39
Drain Pan WPL 1105521 Contact Us For Availability
39
Support (L.S.) WPL 1118806 Contact Us For Availability
40
Foam Insulation (Required When Replacing Exte WPL 876029 Contact Us For Availability
40
Glass, Shelf WPL 1124552 Contact Us For Availability
40
Air, Baffle WPL 1127938 Contact Us For Availability
41
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
41
Torx Key WPL 1117510 Contact Us For Availability
41
Reflector, Shelf WPL 1114435 Contact Us For Availability
41
Enamel, Golden Harvest (13 Oz. Spray Can) WPL 261890 Contact Us For Availability
41
Enamel, Golden Harvest (1 Qt. Uncut) WPL 261891 Contact Us For Availability
41
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
41
WPL 542639 WPL 542639 Contact Us For Availability
41
WPL 799833 WPL 799833 Contact Us For Availability
41
WPL 978883 WPL 978883 Contact Us For Availability
41
Fan, Mounting Bracket WPL 548695 Contact Us For Availability
42
Screw, 8 x 3/8 WPL 488624 Contact Us For Availability
45
Fan, Blade WPL 1108179 Contact Us For Availability
49
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
49
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
70
Sealing, Cover Gasket WPL 1114548 Contact Us For Availability
× ![]()
