Model Whirlpool 8ET18ZKXBW00 REFRIGERATOR – Common Parts &amp; Diagrams

WPL 1117510 WPL 1117510 Contact Us For Availability

WPL LIT2158683 WPL LIT2158683 Contact Us For Availability

WPL LIT2170407 WPL LIT2170407 Contact Us For Availability

1

Unit, Frame WPL 2159747 Contact Us For Availability

1

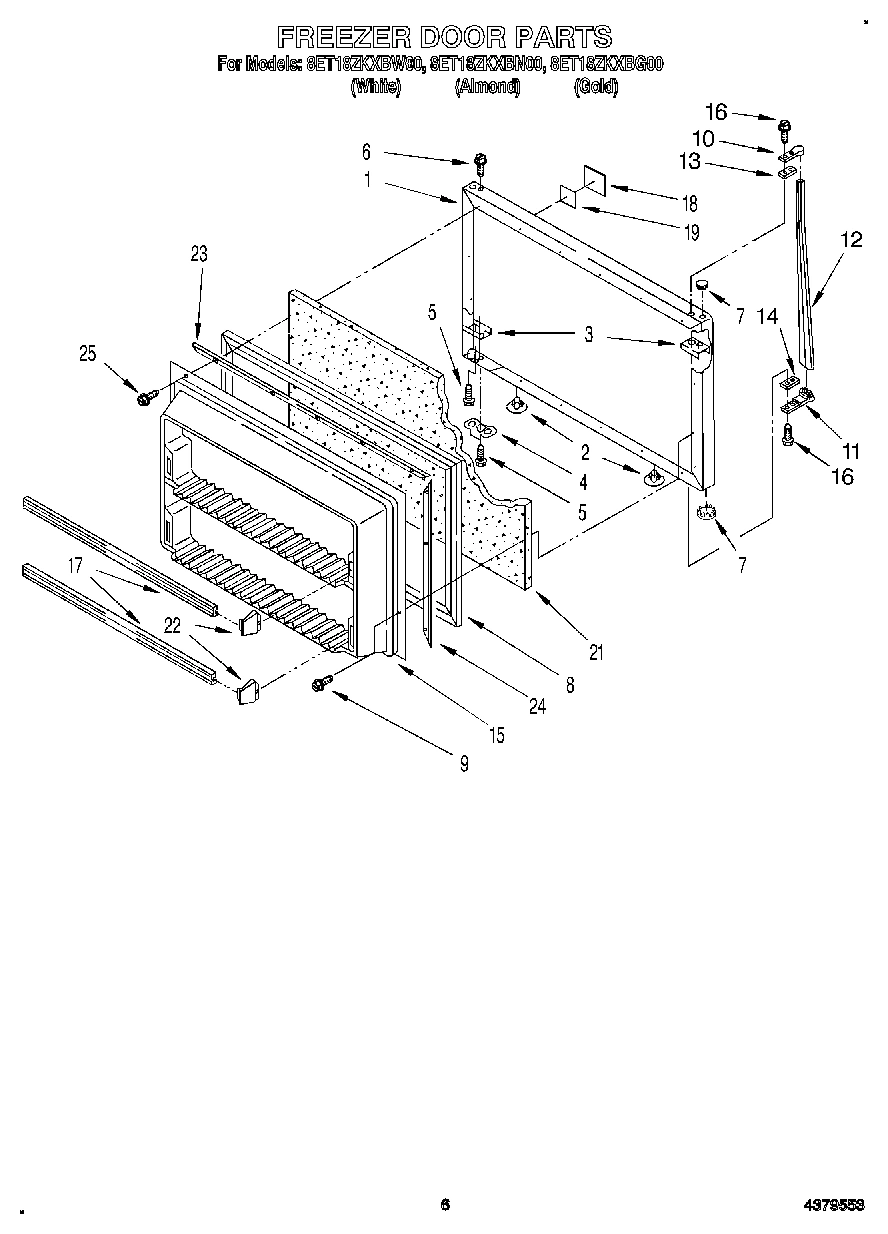

Panel, Freezer Door (Also Order Item 21) (Whi WPL 2157708 Contact Us For Availability

1

Panel, Freezer Door (Also Order Item 21) (Gol WPL 2157710 Contact Us For Availability

1

Panel, Freezer Door (Also Order Item 21) (Alm WPL 2157711 Contact Us For Availability

1

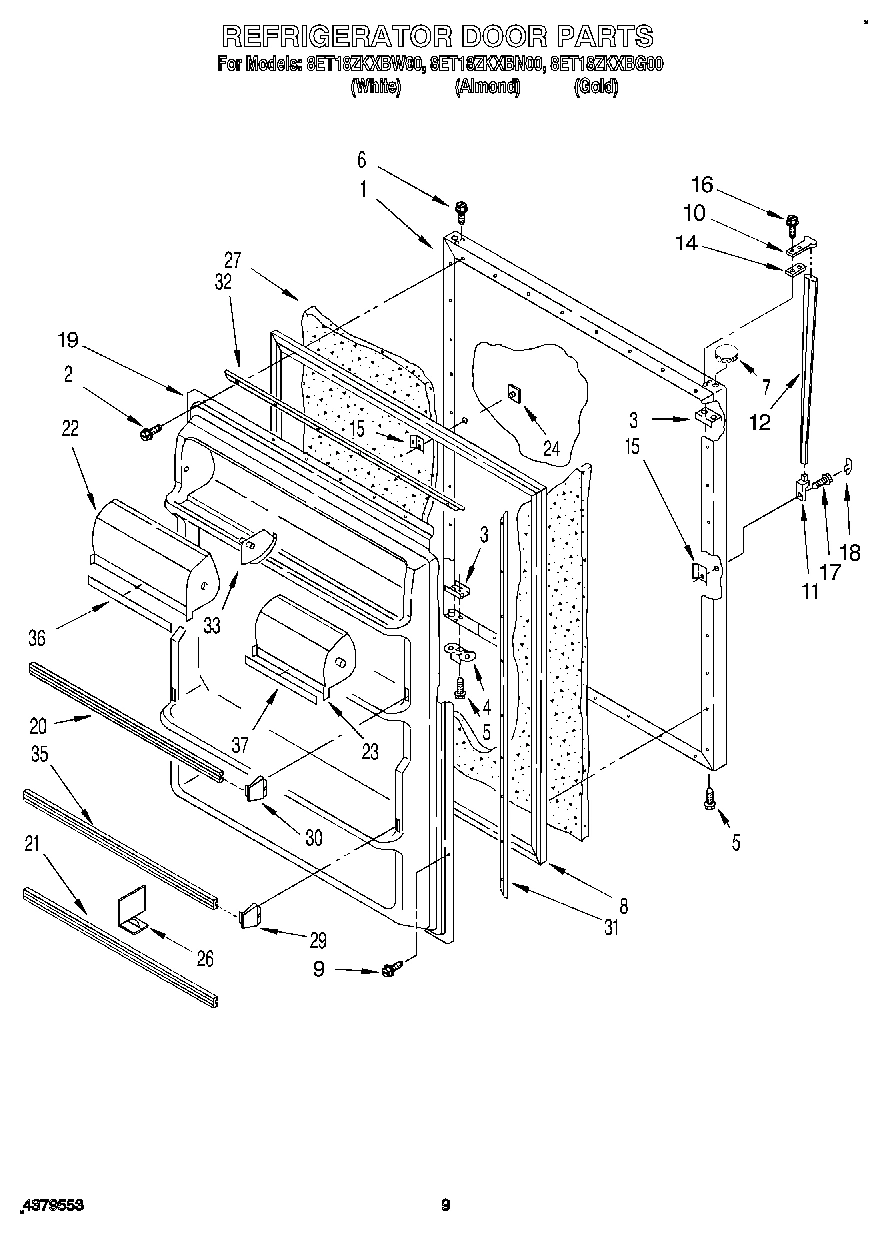

Panel, Refrigerator Door (Also Order Item 27) WPL 1116575 Contact Us For Availability

1

Panel, Refrigerator Door (Also Order Item 27) WPL 1116577 Contact Us For Availability

1

Panel, Refrigerator Door (Also Order Item 27) WPL 1116578 Contact Us For Availability

1

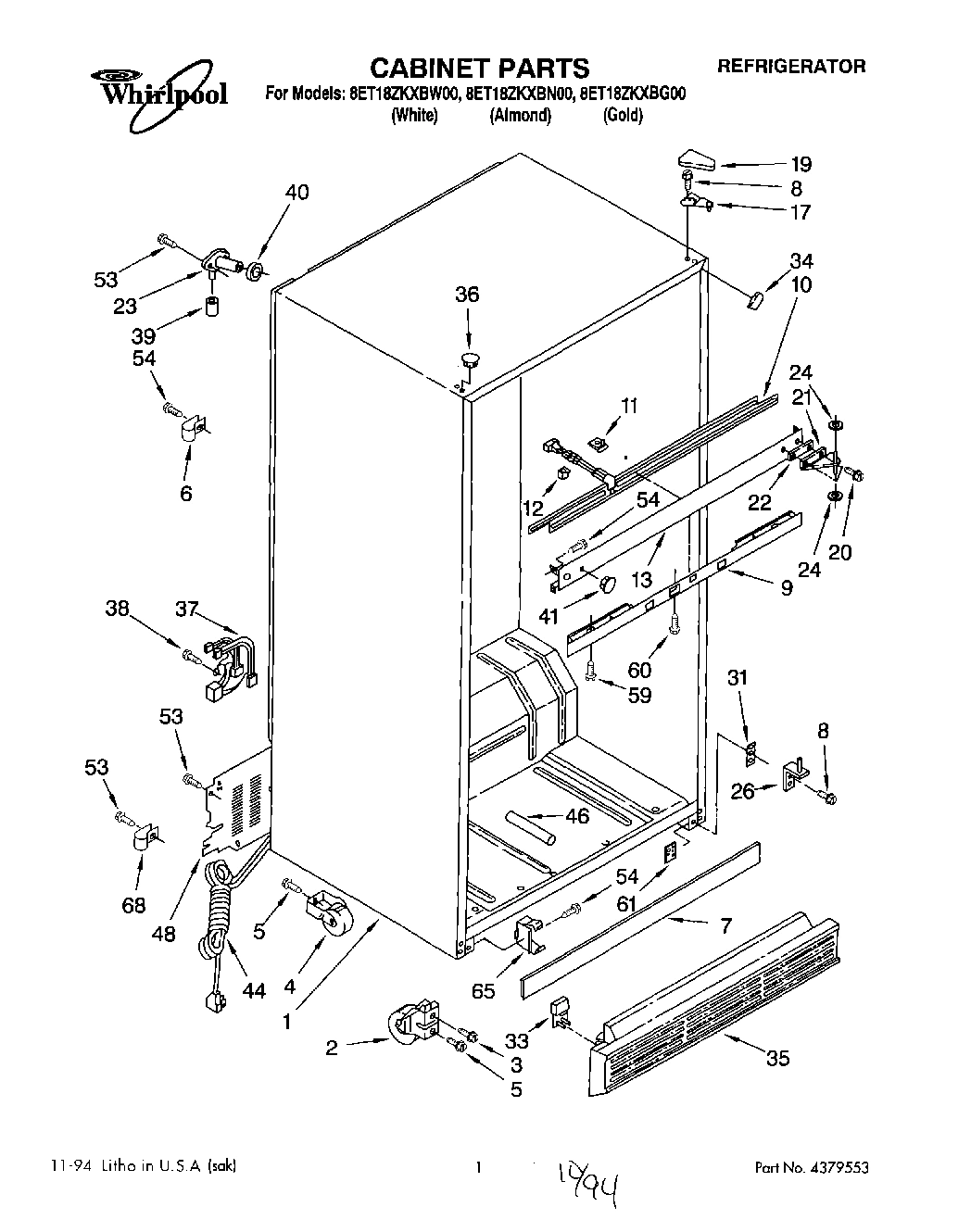

Cabinet (Not A Serviceable Part) WPL ARI18751A8 Contact Us For Availability

1

Liner (Not A Serviceable Part) WPL ARI18752A5 Contact Us For Availability

2

Wiring, Fan Motor WPL 1127626 Contact Us For Availability

2

Compressor KIt Includes Items 22 (23, 25, 26 WPL 2154564 Contact Us For Availability

2

Hole Plug (2) (White) WPL 534927 Contact Us For Availability

2

Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability

2

Roller, Front WPL 2152011 Contact Us For Availability

3

520965 Whirlpool Refrigerator Support Backorder WPL 520965 $10.14

3

W10833053 Whirlpool Refrigerator Plate Backorder WPL W10833053 $6.31

3

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $22.34

3

Grommet, Compressor Bracket WPL 1105219 Contact Us For Availability

3

Screw, 5/16-24 x 1-1/4 WPL 489393 Contact Us For Availability

4

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Bracket, Mounting WPL 1105220 Contact Us For Availability

4

Bracket, Door Stop WPL 944035 Contact Us For Availability

4

Bracket, Door Stop WPL 1115910 Contact Us For Availability

5

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $2.51

5

Grommet, Compressor WPL 1105200 Contact Us For Availability

6

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

6

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

6

WP8281206 Whirlpool Refrigerator Screw In Stock WPL WP8281206 $2.51

6

Screw WPL 489334 Contact Us For Availability

7

WP2212648 Whirlpool Refrigerator Hinge Sleeve Backorder WPL WP2212648 $3.70

7

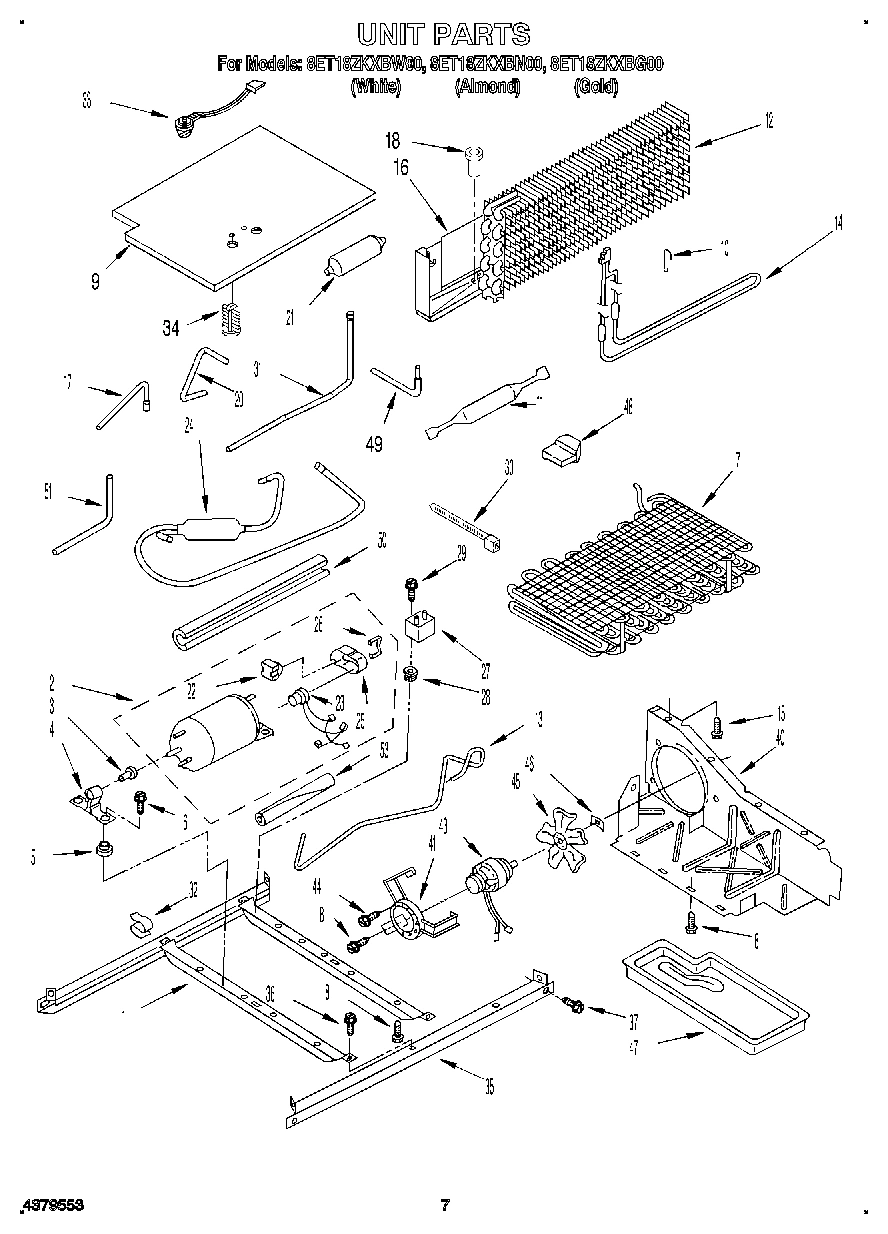

Condenser Assembly WPL 2154008 Contact Us For Availability

7

Hole Plug (Gold) WPL 989879 Contact Us For Availability

7

Hole Plug (Almond) WPL 989196 Contact Us For Availability

7

Deck Rail Cover WPL 2172703 Contact Us For Availability

8

Door Gasket Magnetic WPL 1116735 Contact Us For Availability

8

Door Gasket, Magnetic WPL 1116734 Contact Us For Availability

9

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

9

Cover, Unit Bottom WPL 2160517 Contact Us For Availability

9

Control, Front Cover WPL 2148582 Contact Us For Availability

WP2191882 Whirlpool Refrigerator Handle End C Backorder WPL WP2191882 $31.71

WP2191883 Whirlpool Refrigerator Handle Endca Backorder WPL WP2191883 $30.73

Support, Heater WPL 2149120 Contact Us For Availability

Heater, Mullion WPL 2154064 Contact Us For Availability

11

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

11

WP2183139 Whirlpool Refrigerator Handle End C Backorder WPL WP2183139 $24.12

11

Clip, Center Rail (6) WPL 1129018 Contact Us For Availability

WP2162555 Whirlpool Refrigerator White Door H In Stock WPL WP2162555 $123.32

Evaporator WPL 2153977 Contact Us For Availability

Handle, Center (Almond) WPL 2159623 Contact Us For Availability

Handle, Center (Black) WPL 2163255 Contact Us For Availability

Handle, Center (Black) WPL 1109166 Contact Us For Availability

Handle, Center (Almond) WPL 2148036 Contact Us For Availability

Spacer (3) WPL 2149077 Contact Us For Availability

Shim, Handle WPL 943187 Contact Us For Availability

Tube, Discharge WPL 2154028 Contact Us For Availability

Center Rail WPL 2172701 Contact Us For Availability

Cover, Air Duct WPL 1116558 Contact Us For Availability

14

Spacer, Handle Door WPL 943188 Contact Us For Availability

14

Heater, Defrost WPL 2162020 Contact Us For Availability

15

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

15

WP939101 Whirlpool Refrigerator Plate Backorder WPL WP939101 $3.70

15

Interior Door Panel WPL 1116610 Contact Us For Availability

16

482731 Whirlpool Refrigerator Evaporator Fan In Stock WPL 482731 $47.13

16

WP488920 Whirlpool Refrigerator Screw Backorder WPL WP488920 $2.51

16

Drain Pan & Heat Shield WPL 2153973 Contact Us For Availability

WP1100938 Whirlpool Refrigerator Fan Blade Backorder WPL WP1100938 $27.58

WP2189412 Whirlpool Refrigerator Door Hinge Backorder WPL WP2189412 $37.95

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

Tube, Process WPL 2154090 Contact Us For Availability

WP1101634 Whirlpool Refrigerator Cover In Stock WPL WP1101634 $4.50

Drain Fitting WPL 2172811 Contact Us For Availability

Nameplate (Almond And Gold Models) WPL 2165147 Contact Us For Availability

Nameplate (White) WPL 2165148 Contact Us For Availability

WP2213360 Whirlpool Refrigerator Cover Backorder WPL WP2213360 $11.95

Strip, Tape WPL 991259 Contact Us For Availability

Interior Door Panel WPL 1118123 Contact Us For Availability

Hinge Cover (Almond) WPL 2160404 Contact Us For Availability

Grommet (2) WPL 531933 Contact Us For Availability

WP999367 Whirlpool Refrigerator Screw Backorder WPL WP999367 $2.51

Pan, Meat WPL 2170929 Contact Us For Availability

Tube, Muffler & Reservoir WPL 2169348 Contact Us For Availability

Trim, Door Shelf WPL 2170590 Contact Us For Availability

Kit, Foam Slab (Required When Replacing Exter WPL 876029 Contact Us For Availability

Trim, Shelf Front WPL 2170595 Contact Us For Availability

Reservoir WPL 2169343 Contact Us For Availability

Trim, Door Shelf WPL 2170583 Contact Us For Availability

Hinge, Center WPL 2151453 Contact Us For Availability

Screw WPL 489168 Contact Us For Availability

WP841180A Whirlpool Microwave Glass Turntable In Stock WPL WP841180A $3.92

Start Relay WPL 1105209 Contact Us For Availability

Compartment Door (L.S.) WPL 2170941 Contact Us For Availability

Shim, Hinge Center WPL 836155 Contact Us For Availability

WP2196157 Whirlpool Fill Tube In Stock WPL WP2196157 $4.59

WP982704 Whirlpool Refrigerator Container Backorder WPL WP982704 $13.05

Overload (Service) WPL 2154945 Contact Us For Availability

Overload (Production) WPL 2159611 Contact Us For Availability

Compartment, Door (R.S.) WPL 2170942 Contact Us For Availability

Scroll, Fan WPL 1116598 Contact Us For Availability

819091 Whirlpool Refrigerator Shelf Stud Backorder WPL 819091 $13.89

WP2189000 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189000 $3.70

WP487802 Whirlpool Refrigerator Washer In Stock WPL WP487802 $2.51

Muffler WPL 2159588 Contact Us For Availability

Retainer, Gasket Side (2) WPL 1115138 Contact Us For Availability

Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability

Hole Plug, Handle (Gold) WPL 1122694 Contact Us For Availability

Evaporator Cover WPL 2151668 Contact Us For Availability

25

Terminal Cover WPL 2154452 Contact Us For Availability

W10136387A Whirlpool Refrigerator Egg Contain In Stock WPL W10136387A $5.98

WP2217784 Whirlpool Refrigerator Cover Backorder WPL WP2217784 $15.98

WP2254473 Whirlpool Refrigerator Door Hinge In Stock WPL WP2254473 $3.70

Strap, Cover WPL 1105222 Contact Us For Availability

Divider, Door Shelf WPL 2160050 Contact Us For Availability

27

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $28.24

27

Stud, Front (2) WPL 946356 Contact Us For Availability

27

Hole Plug WPL 1103725 Contact Us For Availability

28

W10854959 Whirlpool Refrigerator Shelf Stud Backorder WPL W10854959 $4.23

28

Screw Grommet WPL 509812 Contact Us For Availability

29

4318297 Whirlpool Refrigerator Shelf Bar Endc In Stock WPL 4318297 $10.39

29

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

30

4386917 Whirlpool Endcap Kit In Stock WPL 4386917 $6.84

30

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

31

Tube, Reservoir & Heat Exchanger WPL 2169346 Contact Us For Availability

31

Retainer, Gasket Side (2) WPL 1115136 Contact Us For Availability

31

Spacer WPL 2172745 Contact Us For Availability

32

Clip, Wire WPL 548745 Contact Us For Availability

32

Retainer, Gasket Top & Bottom (2) WPL 1115137 Contact Us For Availability

33

WP1118001 Whirlpool Hinge Pin Backorder WPL WP1118001 $3.70

33

WP4387503 Whirlpool Refrigerator Bimetal Defr In Stock WPL WP4387503 $16.40

33

Corner Filler, Grille WPL 1118078 Contact Us For Availability

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

Filler, Wrapper Corner (2) (White) WPL 1118058 Contact Us For Availability

Filler, Wrapper Corner (2) (Almond) WPL 1118059 Contact Us For Availability

Filler, Wrapper Corner (2) (Gold) WPL 1118060 Contact Us For Availability

35

Unit, Rail WPL 1116622 Contact Us For Availability

35

Trim, Door Shelf WPL 2170591 Contact Us For Availability

35

Grille WPL 1118079 Contact Us For Availability

WP2151652 Whirlpool Refrigerator Button Plug Backorder WPL WP2151652 $8.20

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

Trim, Compartment Door WPL 2157839 Contact Us For Availability

Hole Plug (6) (Almond) WPL 2151653 Contact Us For Availability

Hole Plug (6) (Gold) WPL 2151654 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $96.00

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPL 479502 WPL 479502 Contact Us For Availability

Trim, Compartment Door WPL 2157836 Contact Us For Availability

Door Reversal Instructions WPL 2172761 Contact Us For Availability

xEnamel, Gold (13 Oz. Spray Can) WPL 261890 Contact Us For Availability

Enamel WPL 261891 Contact Us For Availability

WPL 542639 WPL 542639 Contact Us For Availability

WPL 799833 WPL 799833 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

Wiring Assy. Intermediate WPL 2158626 Contact Us For Availability

38

WP250830 Whirlpool Refrigerator Screw Backorder WPL WP250830 $2.51

39

WP487996 Whirlpool Refrigerator Cap Tube Backorder WPL WP487996 $4.48

40

WP1106508 Whirlpool Refrigerator Gasket Backorder WPL WP1106508 $4.14

40

Air, Baffle WPL 2169432 Contact Us For Availability

41

Fan, Mounting Bracket WPL 2162060 Contact Us For Availability

41

Hole Plug WPL 1129062 Contact Us For Availability

43

833697 Whirlpool Condenser Fan Motor In Stock WPL 833697 $41.18

44

681390 Whirlpool Refrigerator Screw Backorder WPL 681390 $9.13

44

Cord, Service WPL 937360 Contact Us For Availability

45

Fan Blade WPL 2169191 Contact Us For Availability

46

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

46

Fitting, Drain WPL 2172888 Contact Us For Availability

47

Tray, Evaporator WPL 1116604 Contact Us For Availability

48

Wedge, Air Baffle WPL 1118017 Contact Us For Availability

48

Cover, Unit WPL 2160514 Contact Us For Availability

49

Tube, Process WPL 2154040 Contact Us For Availability

50

WP2002171 Whirlpool Refrigerator Sleeve Backorder WPL WP2002171 $10.19

51

Tube, Condenser To Heat Loop WPL 2154031 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

Sleeve WPL 2159751 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

60

WP489174 Whirlpool Refrigerator Screw Backorder WPL WP489174 $3.70

61

Tap-Plate, Bottom Hinge WPL 2157315 Contact Us For Availability

65

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

68

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94
