Model Whirlpool 8ET18ZKXAG00 REFRIGERATOR – Common Parts &amp; Diagrams

WPL LIT2158683 WPL LIT2158683 Contact Us For Availability

WPL LIT2160154 WPL LIT2160154 Contact Us For Availability

WPL LIT2166520 WPL LIT2166520 Contact Us For Availability

1

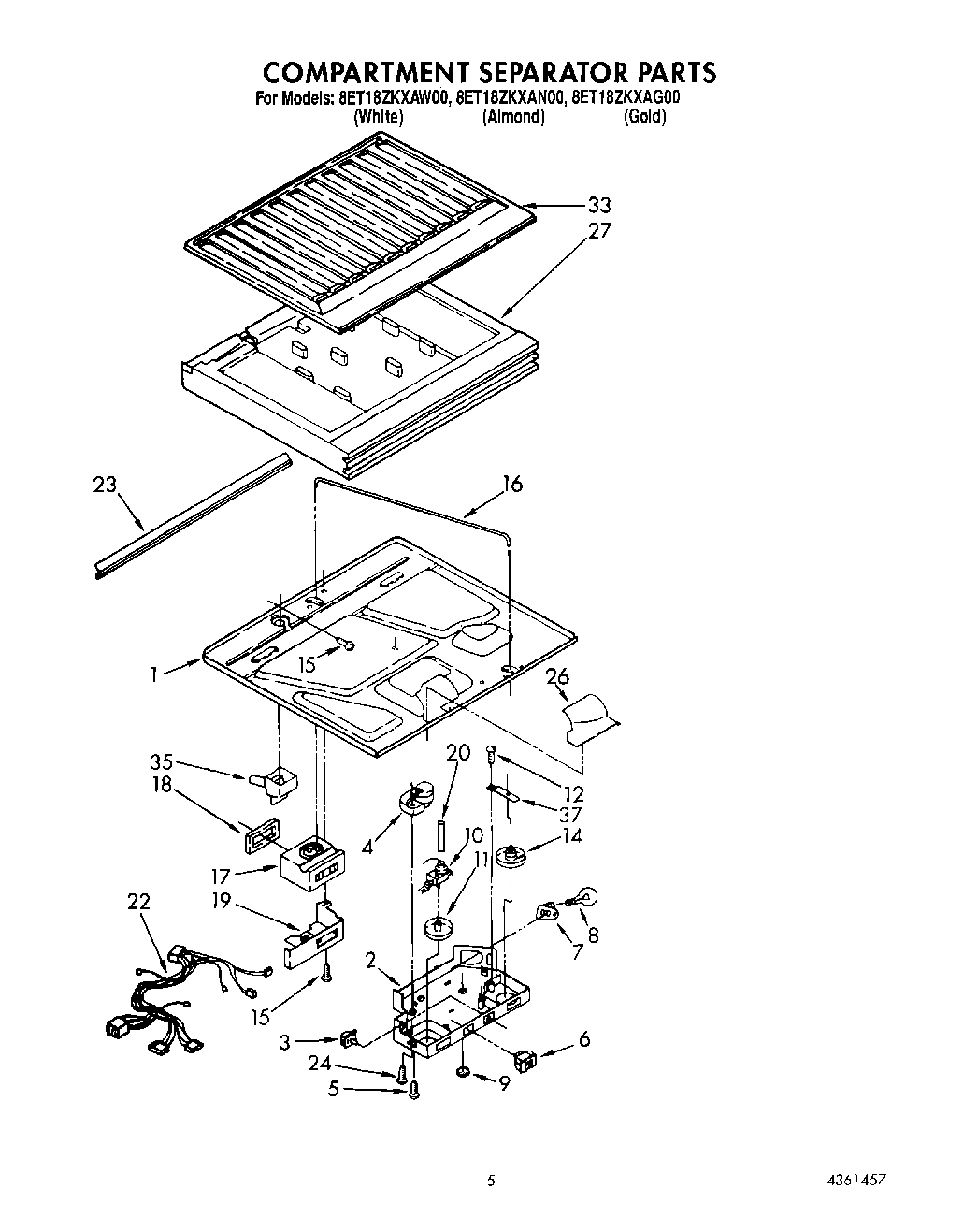

Bottom, Compartment Separator WPL 1116561 Contact Us For Availability

1

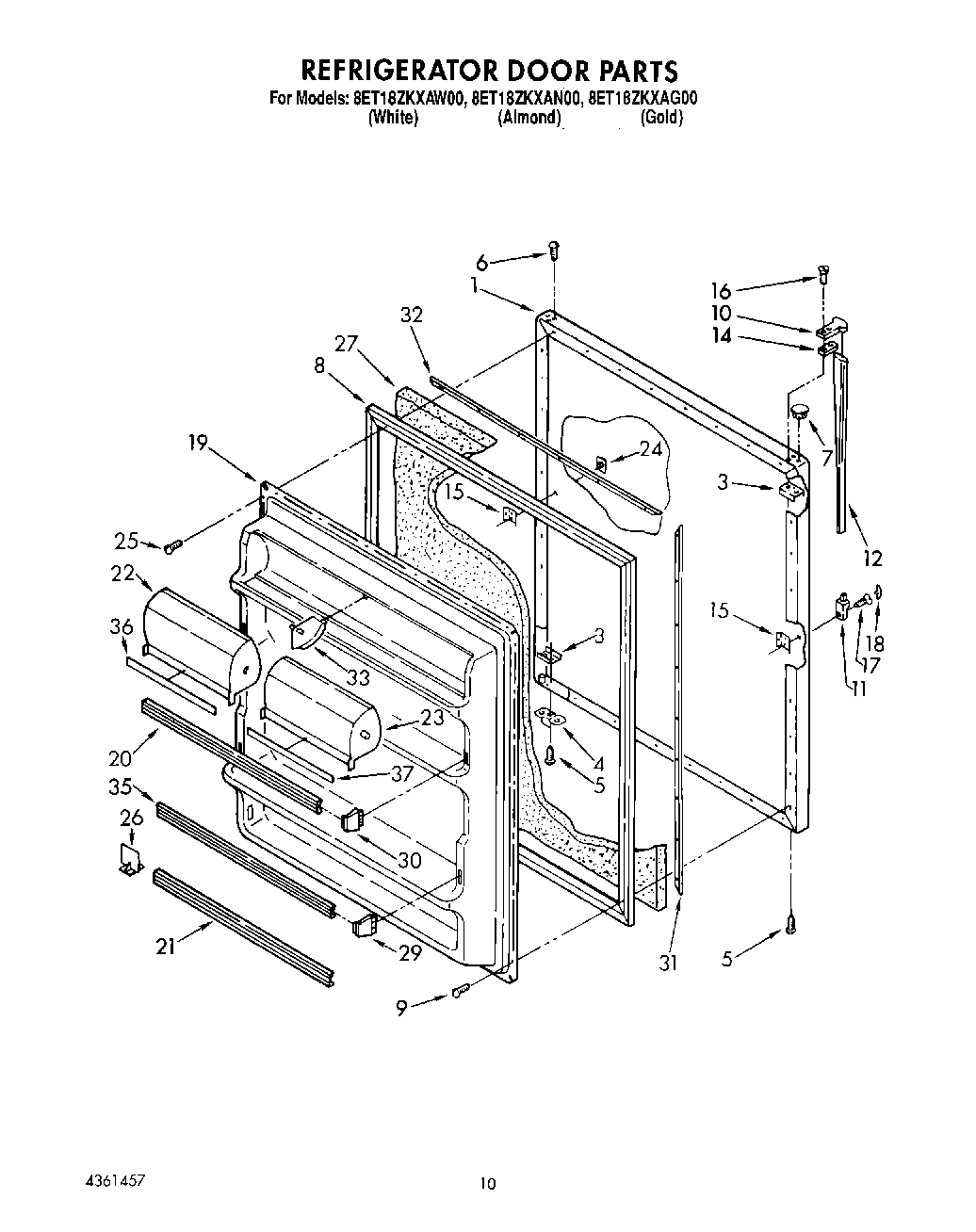

Panel, Refrigerator Door (Also Order Item 27) WPL 1116575 Contact Us For Availability

1

Panel, Refrigerator Door (Also Order Item 27) WPL 1116577 Contact Us For Availability

1

Panel, Refrigerator Door (Also Order Item 27) WPL 1116578 Contact Us For Availability

1

Unit, Frame WPL 2159747 Contact Us For Availability

1

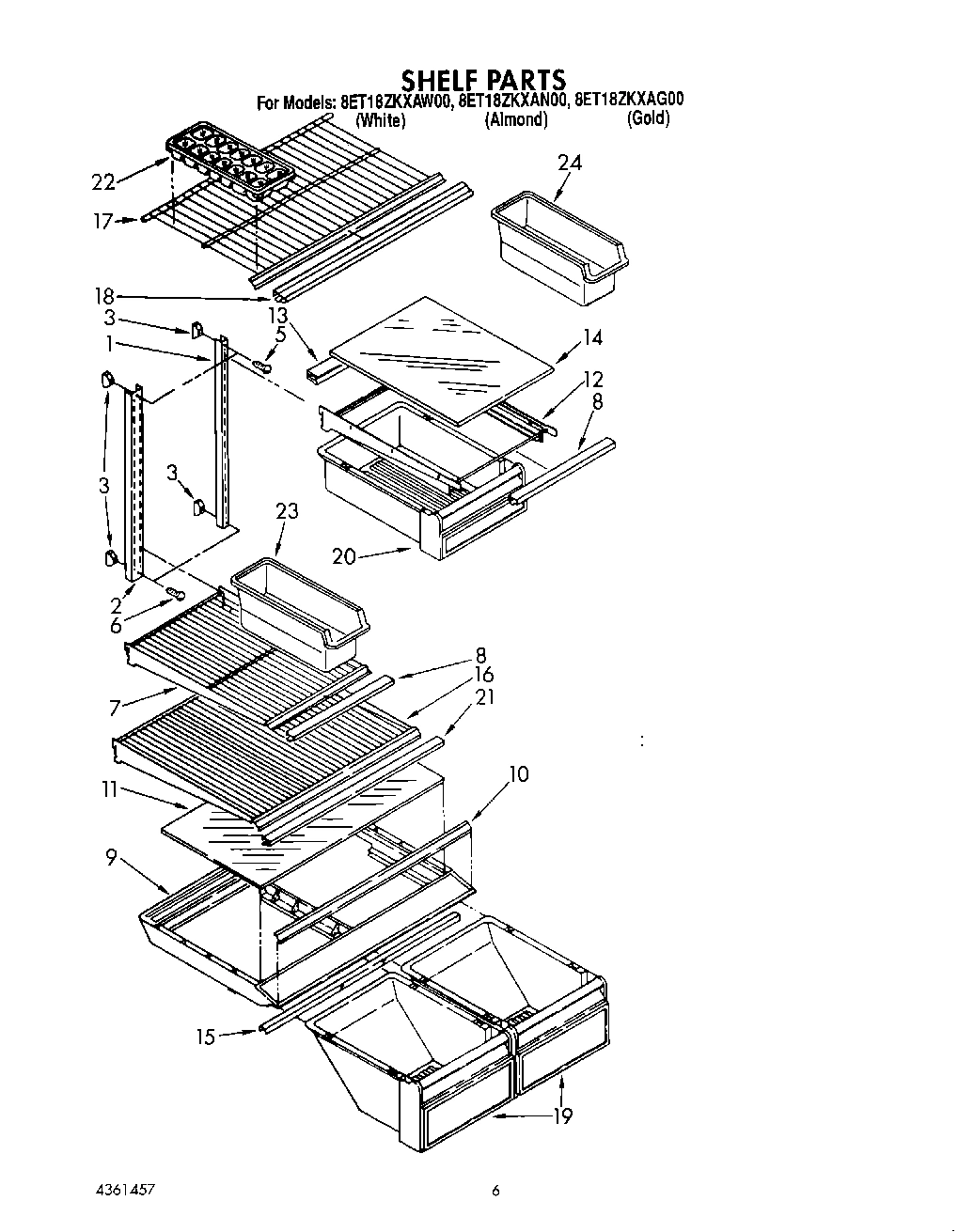

Shelf, Ladder WPL 1114466 Contact Us For Availability

1

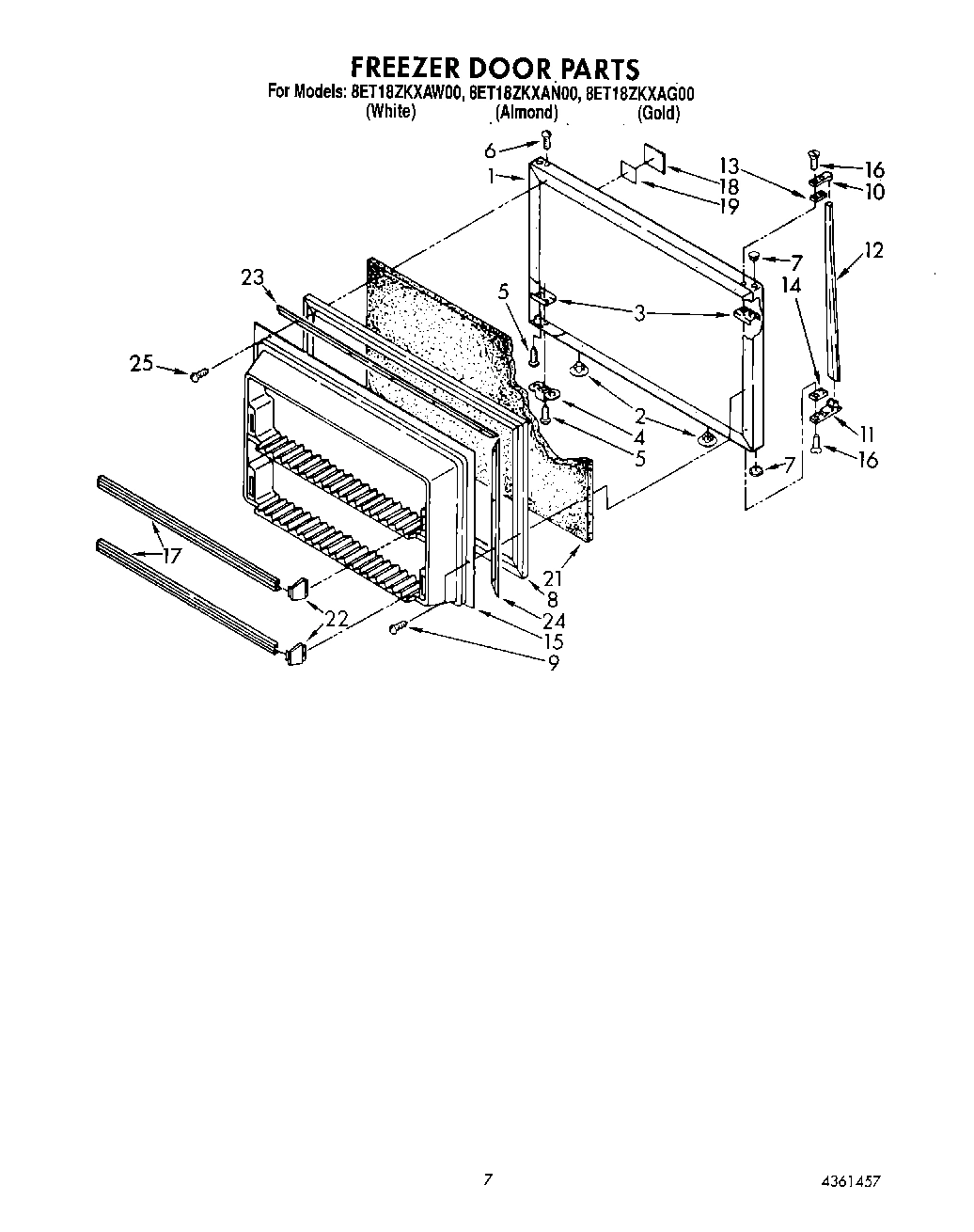

Panel, Freezer Door (Also Order Item 21) (Whi WPL 2157708 Contact Us For Availability

1

Panel, Freezer Door (Also Order Item 21) (Gol WPL 2157710 Contact Us For Availability

1

Panel, Freezer Door (Also Order Item 21) (Alm WPL 2157711 Contact Us For Availability

2

Wiring, Fan Motor WPL 1127626 Contact Us For Availability

2

Box, Control WPL 2151992 Contact Us For Availability

2

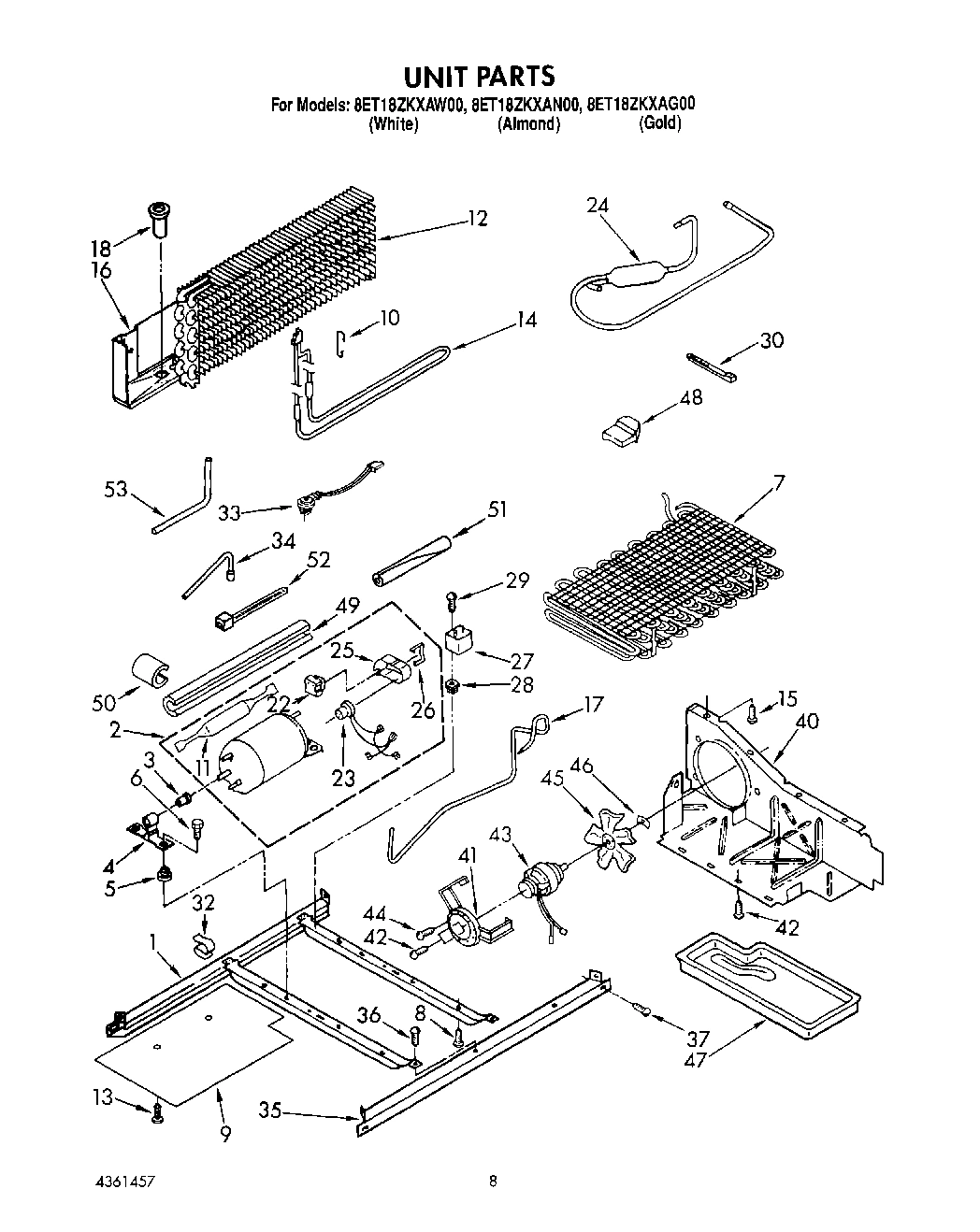

Compressor KIt Includes Items (11, 22, 23, 25 WPL 4318241 Contact Us For Availability

2

Shelf, Ladder Center WPL 1114465 Contact Us For Availability

2

Hole Plug (2) (White) WPL 534927 Contact Us For Availability

2

Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability

2

Hole Plug (2) (Gold) WPL 989879 Contact Us For Availability

3

520965 Whirlpool Refrigerator Support Backorder WPL 520965 $10.14

3

W10833053 Whirlpool Refrigerator Plate Backorder WPL W10833053 $6.31

3

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $22.34

3

Grommet, Compressor Bracket WPL 1105219 Contact Us For Availability

4

WP2183400 Whirlpool Defrost Timer In Stock WPL WP2183400 $46.85

4

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

4

Bracket, Door Stop WPL 1115910 Contact Us For Availability

4

Bracket, Mounting WPL 1105220 Contact Us For Availability

4

Bracket, Door Stop WPL 944035 Contact Us For Availability

5

W10854959 Whirlpool Refrigerator Shelf Stud Backorder WPL W10854959 $4.23

5

WP487353 Whirlpool Refrigerator Screw Backorder WPL WP487353 $2.51

5

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $2.51

5

Grommet, Compressor (4) WPL 1105200 Contact Us For Availability

5

Screw, 8-32 x 1-1/4 (3) WPL 489345 Contact Us For Availability

6

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

6

WP8281206 Whirlpool Refrigerator Screw In Stock WPL WP8281206 $2.51

6

WP938213 Whirlpool Refrigerator Power Switch Backorder WPL WP938213 $13.76

6

Screw (4) WPL 489334 Contact Us For Availability

7

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

7

WP2212648 Whirlpool Refrigerator Hinge Sleeve Backorder WPL WP2212648 $3.70

7

Hole Plug (Almond) WPL 989196 Contact Us For Availability

7

Condenser Assembly WPL 2154008 Contact Us For Availability

7

Shelf, Cantilever WPL 2163920 Contact Us For Availability

8

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $2.75

8

Door Gasket, Magnetic WPL 1116582 Contact Us For Availability

8

Trim, Shelf WPL 1118121 Contact Us For Availability

8

Door Gasket, Magnetic WPL 1116592 Contact Us For Availability

9

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

9

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

9

Cover-Unit Btm. WPL 2160517 Contact Us For Availability

9

Crisper Cover WPL 2148047 Contact Us For Availability

1123394 Whirlpool Refrigerator Cold Control T Backorder WPL 1123394 $89.70

WP2191882 Whirlpool Refrigerator Handle End C Backorder WPL WP2191882 $31.71

Support, Heater WPL 2149120 Contact Us For Availability

Trim, Crisper Cover WPL 1116712 Contact Us For Availability

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

WP2183139 Whirlpool Refrigerator Handle End C Backorder WPL WP2183139 $24.12

WP2191883 Whirlpool Refrigerator Handle Endca Backorder WPL WP2191883 $30.73

Knob, Thermostat WPL 1114315 Contact Us For Availability

Glass, Crisper Cover WPL 1116715 Contact Us For Availability

WP2162555 Whirlpool Refrigerator White Door H In Stock WPL WP2162555 $123.32

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

Handle, Center (Gold Model) WPL 1109166 Contact Us For Availability

Handle, Center (Almond Model) WPL 2148036 Contact Us For Availability

Evaporator WPL 2153977 Contact Us For Availability

Pan Shelf, Cantilever WPL 1116703 Contact Us For Availability

Handle, Center (Almond) WPL 2159623 Contact Us For Availability

Handle, Center (Gold Model) WPL 2163255 Contact Us For Availability

13

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

13

Shim, Handle WPL 943187 Contact Us For Availability

13

Retainer, Glass WPL 1118119 Contact Us For Availability

Spacer, Handle Door WPL 943188 Contact Us For Availability

Knob, Air Control WPL 1114314 Contact Us For Availability

Heater, Defrost WPL 2162020 Contact Us For Availability

Glass, Meat Cover WPL 1116699 Contact Us For Availability

WP2172748 Whirlpool Drawer Support Backorder WPL WP2172748 $50.82

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

WP939101 Whirlpool Refrigerator Plate Backorder WPL WP939101 $3.70

Interior Door Panel WPL 1116610 Contact Us For Availability

482731 Whirlpool Refrigerator Evaporator Fan In Stock WPL 482731 $47.13

WP488920 Whirlpool Refrigerator Screw Backorder WPL WP488920 $2.51

Rod, Connecting WPL 1116565 Contact Us For Availability

Drain Pan & Heat Shield WPL 2153973 Contact Us For Availability

Shelf, Full Cantilever WPL 2160873 Contact Us For Availability

WP1100938 Whirlpool Refrigerator Fan Blade Backorder WPL WP1100938 $27.58

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

Air Diffuser Assembly WPL 2157252 Contact Us For Availability

Trim, Door Shelf (2) WPL 2162574 Contact Us For Availability

Tube, Discharge WPL 2154028 Contact Us For Availability

Shelf, Freezer WPL 1116722 Contact Us For Availability

WP1101634 Whirlpool Refrigerator Cover In Stock WPL WP1101634 $4.50

WP487887 Whirlpool Refrigerator Screw Backorder WPL WP487887 $3.70

Gasket, Air Diffuser WPL 2157255 Contact Us For Availability

Drain Fitting WPL 981629 Contact Us For Availability

Trim, Shelf Front WPL 1118112 Contact Us For Availability

Nameplate (Almond And Gold Models) WPL 2165147 Contact Us For Availability

Nameplate (White Model) WPL 2165148 Contact Us For Availability

Grommet (2) WPL 531933 Contact Us For Availability

Cover, Air Diffuser WPL 1108176 Contact Us For Availability

Interior Door Panel WPL 1118123 Contact Us For Availability

Pan, Crisper WPL 2148977 Contact Us For Availability

Strip, Tape WPL 991259 Contact Us For Availability

20

WP2196003 Whirlpool Refrigerator Bar Riser Backorder WPL WP2196003 $3.70

20

Pan, Meat WPL 2148978 Contact Us For Availability

21

Screw WPL 489168 Contact Us For Availability

21

Trim, Door Shelf WPL 2162576 Contact Us For Availability

21

Trim, Full Shelf WPL 2148050 Contact Us For Availability

4386917 Whirlpool Endcap Kit In Stock WPL 4386917 $6.84

WP841180A Whirlpool Microwave Glass Turntable In Stock WPL WP841180A $3.92

Wiring Assembly, Control Box WPL 2153995 Contact Us For Availability

Compartment Door, Utility WPL 2148222 Contact Us For Availability

Relay (See Overload) WPL ARI18740A3 Contact Us For Availability

Scroll, Fan WPL 1116598 Contact Us For Availability

Gasket, Bottom Separator WPL 2159733 Contact Us For Availability

Compartment, Butter Door WPL 2148220 Contact Us For Availability

Retainer, Gasket Top & Bottom WPL 1115137 Contact Us For Availability

Overload (Service (Includes Relay)) WPL 2154945 Contact Us For Availability

Overload (Production (Includes Relay)) WPL 2159611 Contact Us For Availability

WP2189000 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189000 $3.70

WP250830 Whirlpool Refrigerator Screw Backorder WPL WP250830 $2.51

WP487802 Whirlpool Refrigerator Washer In Stock WPL WP487802 $2.51

WP982704 Whirlpool Refrigerator Container Backorder WPL WP982704 $13.05

Evaporator Cover WPL 2151668 Contact Us For Availability

Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability

Hole Plug, Handle (Gold) WPL 1122694 Contact Us For Availability

Muffler WPL 2154033 Contact Us For Availability

Retainer, Gasket Side (2) WPL 1115138 Contact Us For Availability

25

Terminal Cover WPL 2154452 Contact Us For Availability

WP2217784 Whirlpool Refrigerator Cover Backorder WPL WP2217784 $15.98

Insulation, Filler WPL 1108196 Contact Us For Availability

Divider, Door Shelf WPL 2160049 Contact Us For Availability

Strap, Cover WPL 1105222 Contact Us For Availability

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $28.24

Hinge Pin, Bottom WPL 654366 Contact Us For Availability

Hole Plug WPL 1103725 Contact Us For Availability

Insulation, Compartment Separator WPL 1116569 Contact Us For Availability

28

Screw 10-32 x 5/16 WPL 488714 Contact Us For Availability

28

Screw Grommet WPL 509812 Contact Us For Availability

29

4318297 Whirlpool Refrigerator Shelf Bar Endc In Stock WPL 4318297 $10.39

29

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

30

WP489200 Whirlpool Refrigerator Washer Backorder WPL WP489200 $4.61

30

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

31

Retainer, Gasket Side (2) WPL 1115136 Contact Us For Availability

32

Clip, Wire (2) WPL 548745 Contact Us For Availability

33

WP1118001 Whirlpool Hinge Pin Backorder WPL WP1118001 $3.70

33

WP4387503 Whirlpool Refrigerator Bimetal Defr In Stock WPL WP4387503 $16.40

33

Separator, Compartment (Top) WPL 2157398 Contact Us For Availability

34

Tube, Process WPL 2154090 Contact Us For Availability

35

Cup, Drain WPL 937065 Contact Us For Availability

35

Trim, Door Shelf WPL 2162575 Contact Us For Availability

35

Unit, Rail WPL 1116622 Contact Us For Availability

36

WP2151652 Whirlpool Refrigerator Button Plug Backorder WPL WP2151652 $8.20

36

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

36

Trim, Compartment Door WPL 1118006 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $96.00

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPL 876029 WPL 876029 Contact Us For Availability

WPL 479502 WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

Bracket, Control Knob WPL 1105457 Contact Us For Availability

Trim, Compartment Door WPL 1118014 Contact Us For Availability

Door Reversal WPL 2148984 Contact Us For Availability

WPL 261890 WPL 261890 Contact Us For Availability

WPL 261891 WPL 261891 Contact Us For Availability

WPL 350941 WPL 350941 Contact Us For Availability

WPL 542639 WPL 542639 Contact Us For Availability

WPL 799833 WPL 799833 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

40

WP1106508 Whirlpool Refrigerator Gasket Backorder WPL WP1106508 $4.14

40

Air, Baffle WPL 2154102 Contact Us For Availability

41

Fan, Mounting Bracket WPL 2162060 Contact Us For Availability

42

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

43

833697 Whirlpool Condenser Fan Motor In Stock WPL 833697 $41.18

44

681390 Whirlpool Refrigerator Screw Backorder WPL 681390 $9.13

45

Fan Blade WPL 1115135 Contact Us For Availability

46

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

47

Tray, Evaporator WPL 1116604 Contact Us For Availability

48

Wedge, Air Baffle WPL 1118017 Contact Us For Availability

49

WP2002171 Whirlpool Refrigerator Sleeve Backorder WPL WP2002171 $10.19

50

WP2158826 Whirlpool Refrigerator Dampener Backorder WPL WP2158826 $0.90

51

Sleeve WPL 2159751 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

Tube, Condenser To Heat Loop WPL 2154031 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

65

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70
