Model LG 89333 – Common Parts & Diagrams
Diagram 0
Diagram 1

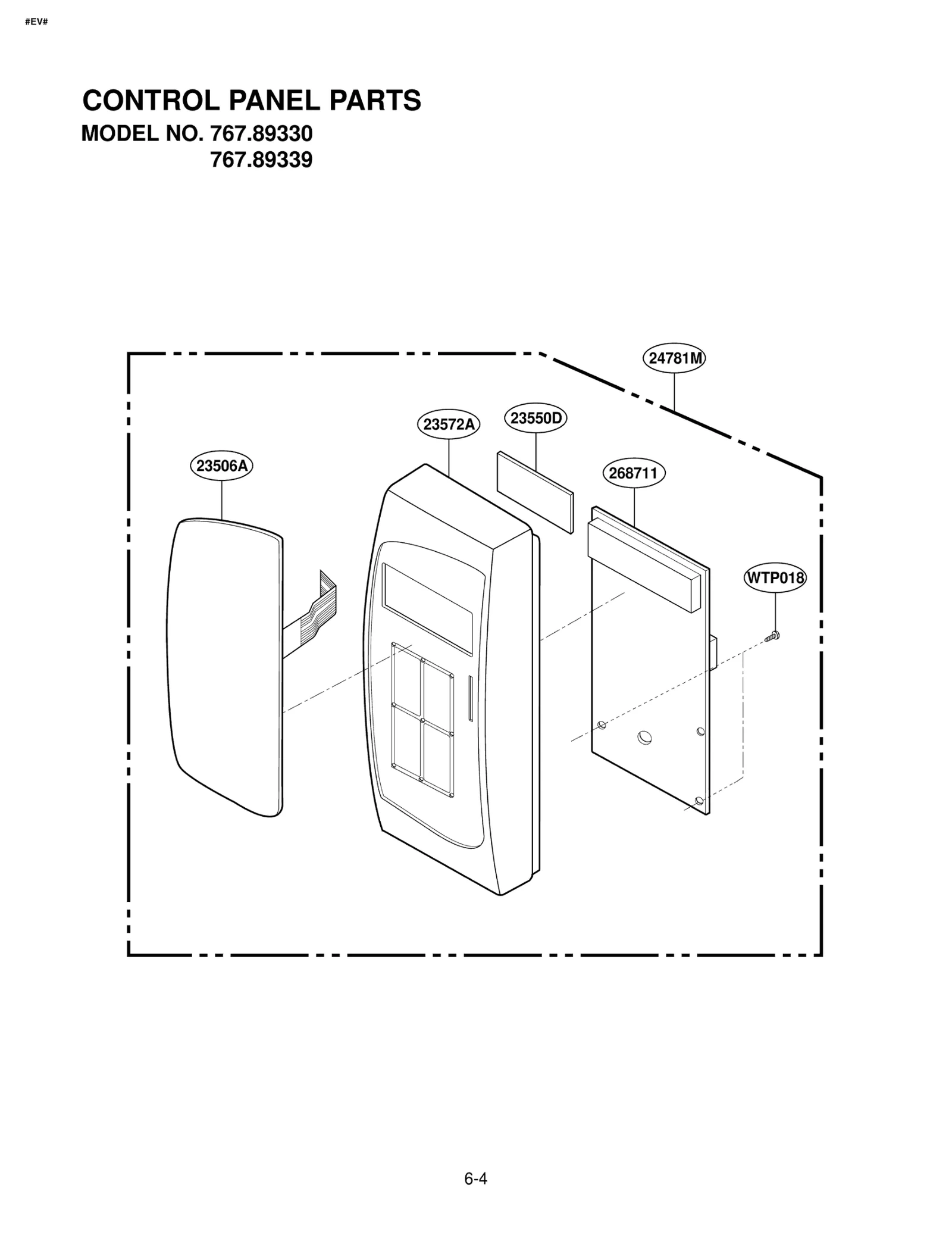

Diagram 2

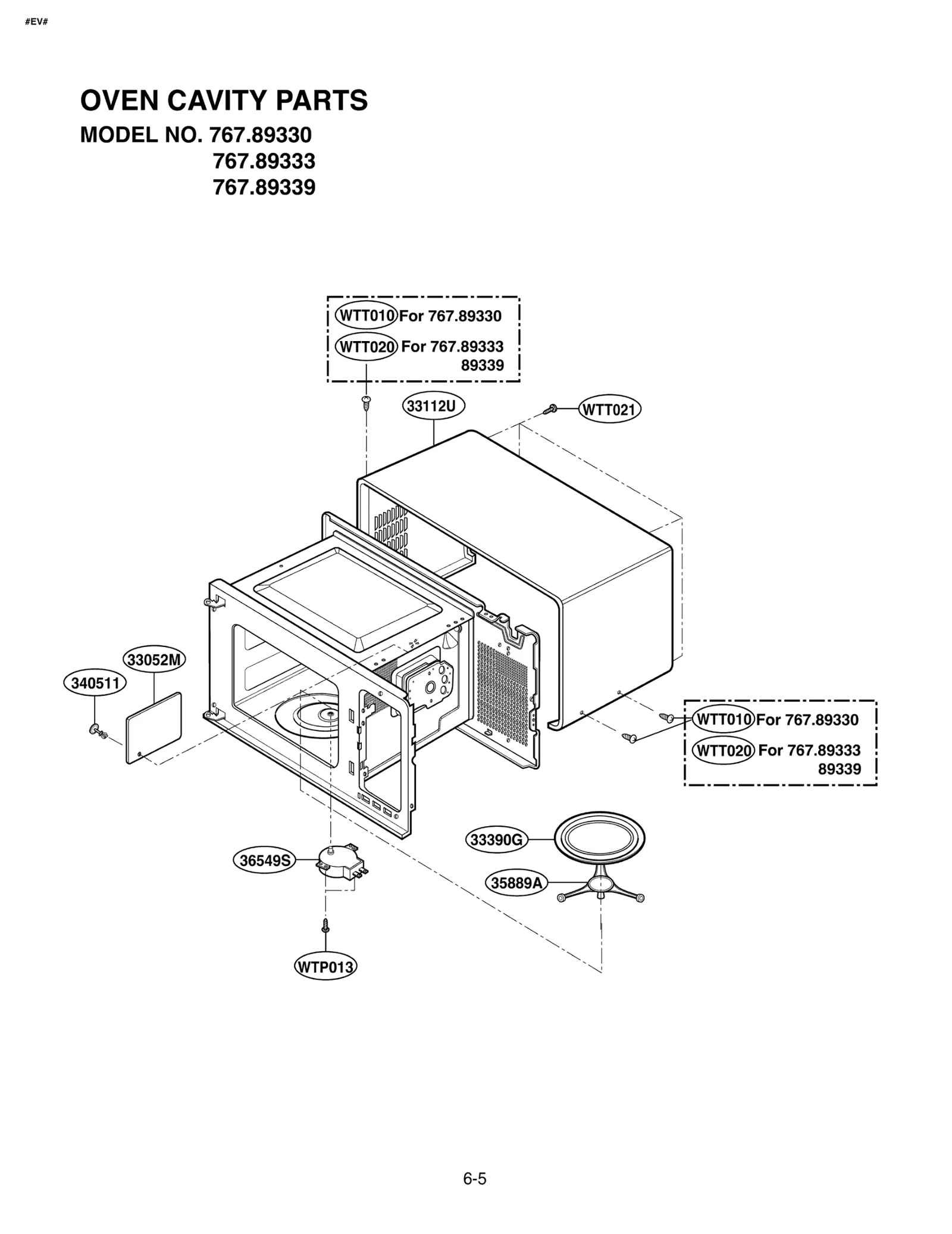

Diagram 3

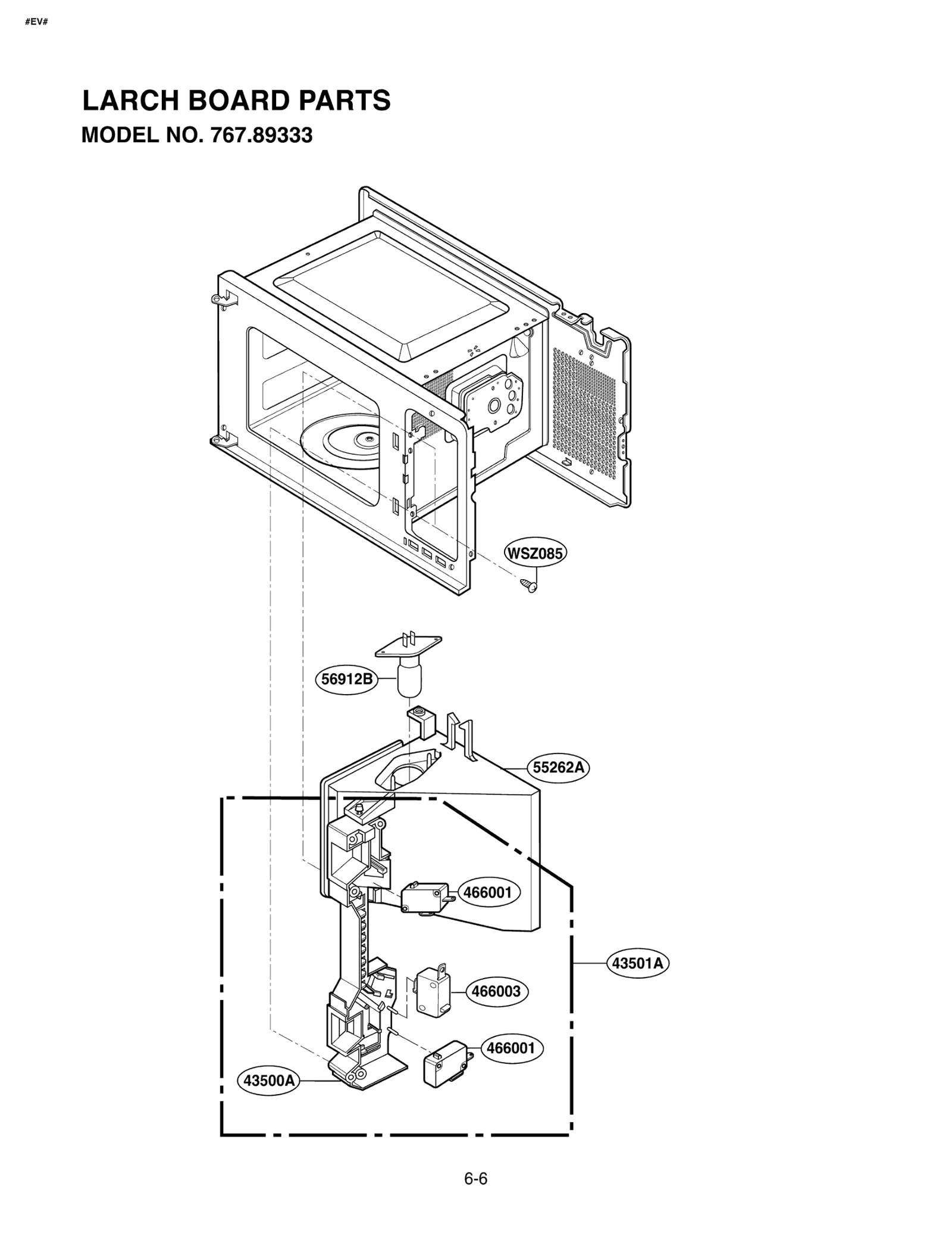

Diagram 4

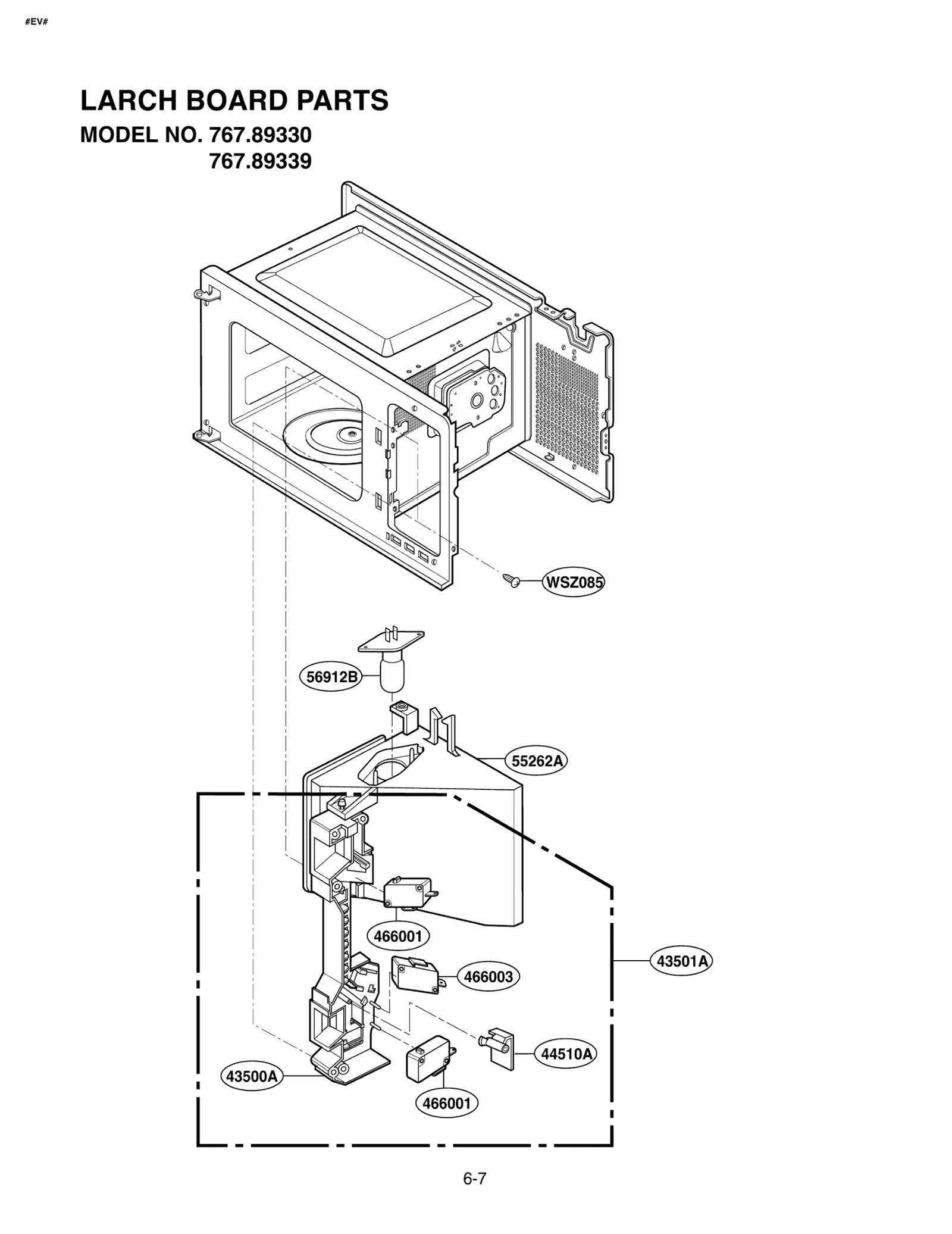

Diagram 5

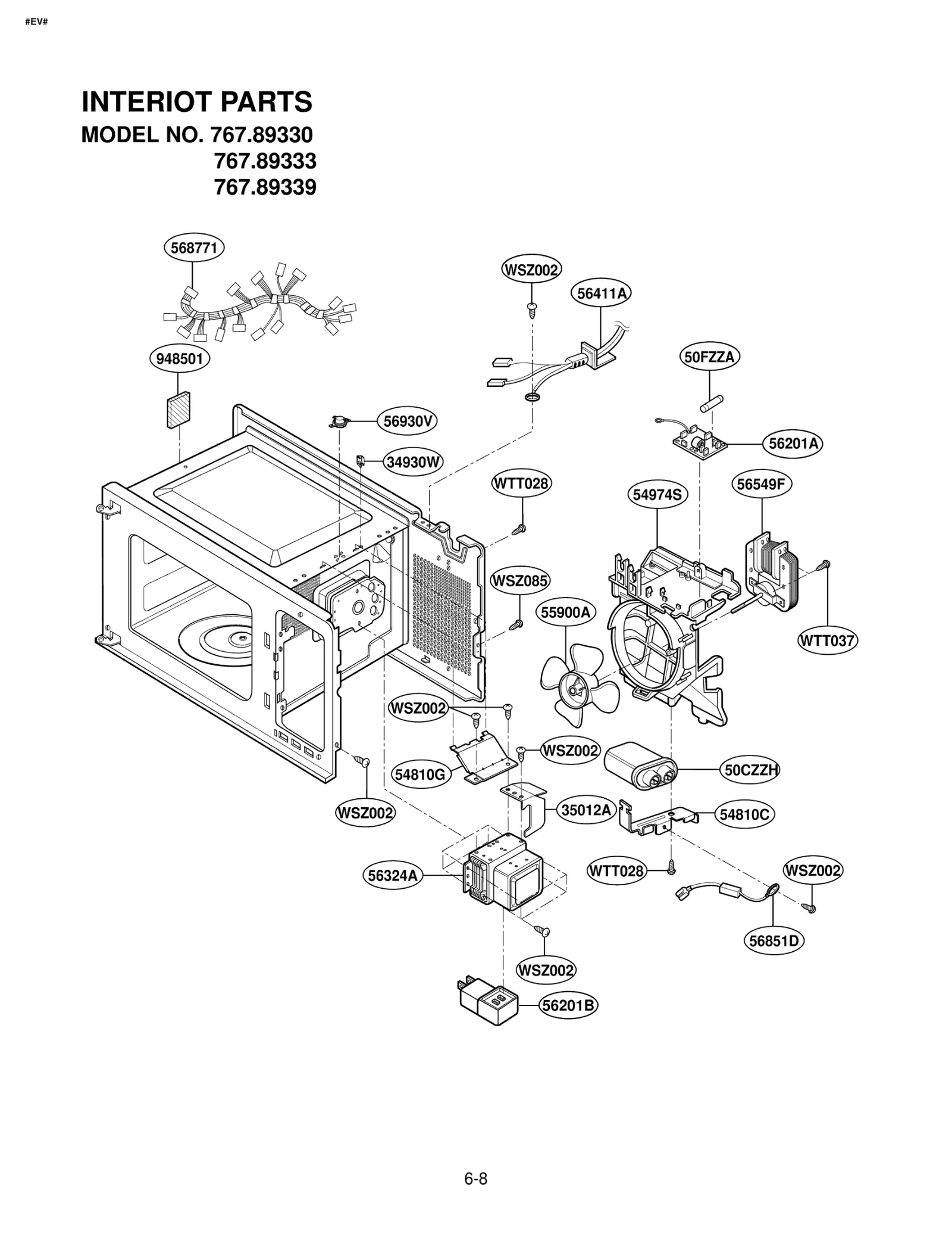

Diagram 6

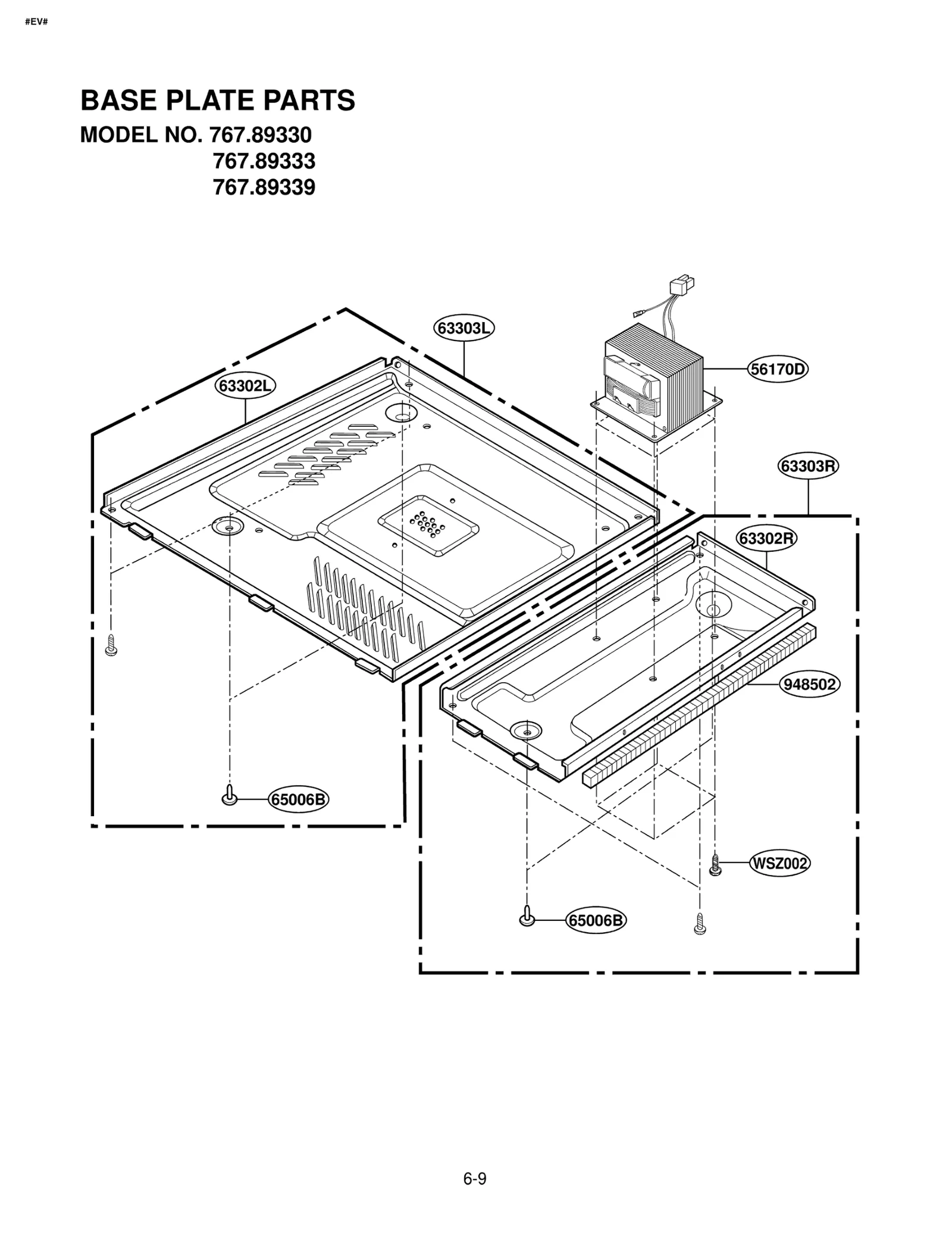

Diagram 7

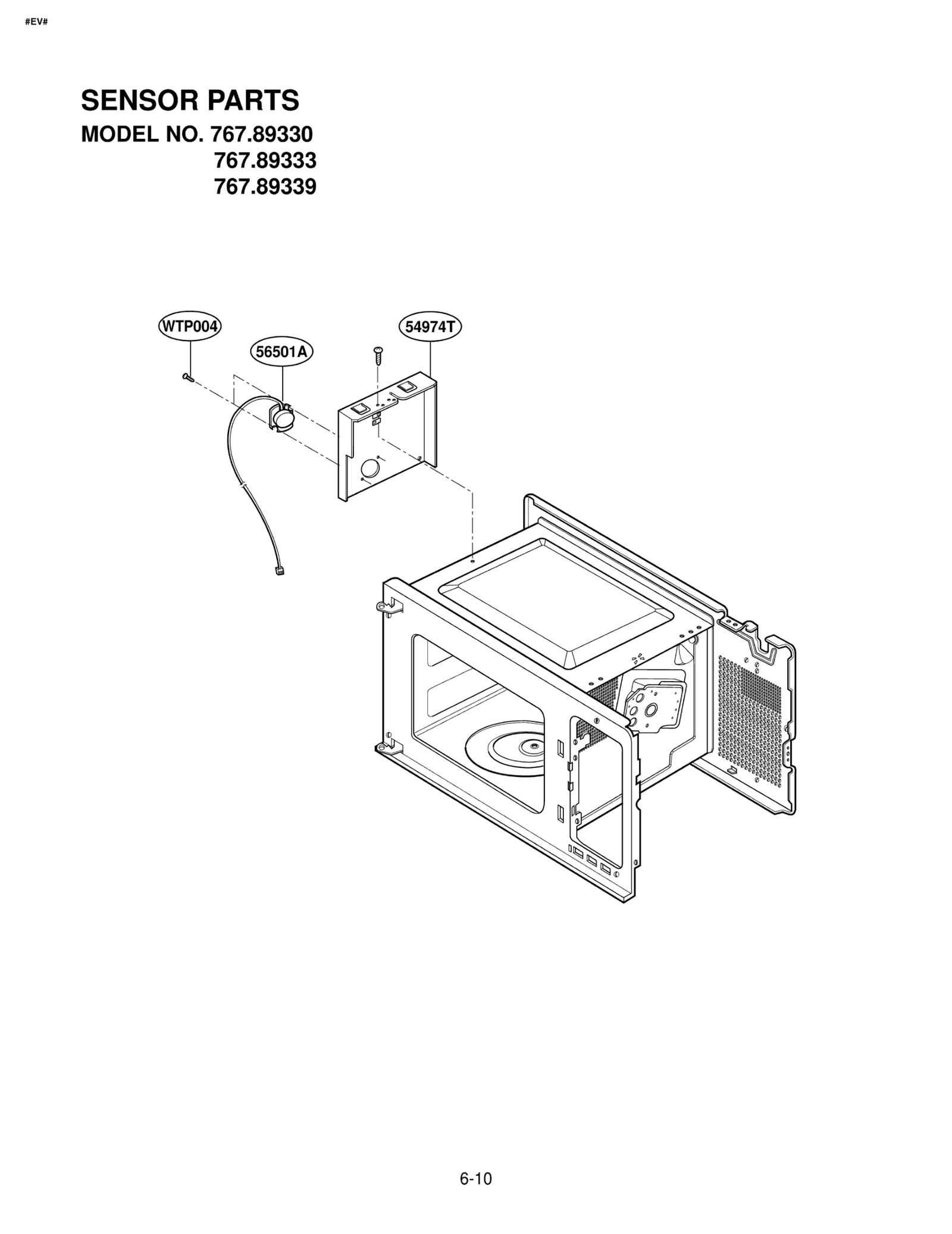

Diagram 8
Diagram 9
Common parts from model LG 89333
*01
MANUAL,OWNERS LGE 3828W5A3855 Contact Us For Availability
*02
MANUAL,SERVICE LGE 3828W5S3145 Contact Us For Availability
*05
LABEL,COOKING GUIDE LGE 3850W1D063N Contact Us For Availability
*10
BOX,YELLOW LGE 3890W3Y770C Contact Us For Availability
33390G
TRAY,GLASS LGE 3390W1G009D Contact Us For Availability
35889A
ROTATING RING ASSY M LGE 5889W2A014A Contact Us For Availability
54810G
BRACKET,MISC LGE 4810W2G052B Contact Us For Availability
54974S
GUIDE,SUCTION LGE 4974W1S048B Contact Us For Availability
56170D
TRANSFORMER,HIGH VOLTAGE LGE 6170W1D023J Contact Us For Availability
56201A
NOISE FILTER ASSY 100V 50/60HZ LGE 2B72130F Contact Us For Availability
56201B
FILTER ASSY,CHOKE LGE 6201W2A019B Contact Us For Availability
56411A
POWER CORD ASSEMBLY LGE 6411W1A031M Contact Us For Availability
56549F
MOTOR(CIRC),FAN LGE 6549W1F005B Contact Us For Availability
63302L
BASE PLATE LGE 3302W0A014B Contact Us For Availability
63302R
LGE 3302W1A046E LGE 3302W1A046E Contact Us For Availability
63303L
BASE PLATE ASSEMBLY LGE 3303W0A010C Contact Us For Availability
63303R
BASE PLATE ASSEMBLY LGE 3303W1A040E Contact Us For Availability
568771
Harness,Multi LGE 6877W1A540A Contact Us For Availability
BZ1
BUZZER,PIEZO CERAMIC LGE 6908W3YA01B Contact Us For Availability
C02
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE2276H638 Contact Us For Availability
C07
CAPACITOR ELECTROLYTIC 4.7M SM LGE 0CE4756K638 Contact Us For Availability
C11
CAPACITOR ELECTROLYTIC LGE 0CE1076K638 Contact Us For Availability
C13
CAPACITOR ELECTROLYTIC 10M SM LGE 0CE1066K638 Contact Us For Availability
C14
CHIP CAPA CERAMIC M/L H.D F/S LGE 0CH1104K946 Contact Us For Availability
C20
CAPACITOR CHIP[CERAMIC M/L HD LGE 0CH1223K566 Contact Us For Availability
CR1
RESONATOR,CERAMIC LGE 6212BA3811A Contact Us For Availability
D11
DIODE,RECTIFIERS LGE 0DRSB00093A Contact Us For Availability
D20
DIODE,SWITCHING LGE 0DSSB00023A Contact Us For Availability
D96
DIODE,SWITCHING LGE 0DSSB00083A Contact Us For Availability
PT1
TRANSFORMER POWER 120V/60HZ,14 LGE 6010W2P043A Contact Us For Availability
Q01
TRANSISTOR KTA1266-TP-Y(KTA101 LGE 0TR126609AA Contact Us For Availability
Q02
TRANSISTOR LGE 0TR150509AC Contact Us For Availability
Q32
TRANSISTOR CHIP KTC3875S-Y-T1( LGE 0TR387509AB Contact Us For Availability
Q78
TRANSISTOR LGE 0TR107009AC Contact Us For Availability
R02
RESISTOR,METAL GLAZED(CHIP) LGE 0RH4701L622 Contact Us For Availability
R10
RESISTOR,METAL GLAZED(CHIP) LGE 0RH1000L622 Contact Us For Availability
R12
RESISTOR,METAL GLAZED(CHIP) LGE 0RJ0102E672 Contact Us For Availability
R13
RESISTOR FIXED CARBON FILM AXJ LGE 0RD1003F609 Contact Us For Availability
R25
RESISTOR FIXED CARBON FILM LGE 0RD3901G609 Contact Us For Availability
R35
RESISTOR,CHIP LGE 0RH5601L622 Contact Us For Availability
R61
RESISTOR FIXED CARBON FILM KCN LGE 0RD2701F609 Contact Us For Availability
R63
R METAL FILM 1K 1/6W 1% SKN14V LGE 0RN1001F409 Contact Us For Availability
R67
RESISTOR,FIXED METAL FILM LGE 0RN1072F409 Contact Us For Availability
R76
RESISTOR,METAL GLAZED(CHIP) LGE 0RH5103L622 Contact Us For Availability
R77
RESISTOR,METAL GLAZED(CHIP) LGE 0RH2703L622 Contact Us For Availability
R78
RESISTOR,METAL GLAZED(CHIP) LGE 0RH1503L622 Contact Us For Availability
RY1
RELAY OJ-SS-112LM MA-693M MA-6 LGE 6920W2D010A Contact Us For Availability
RY2
RELAY LGE 6920W5A009A Contact Us For Availability
U01
IC,DRAWING LGE 0IZZW5A176J Contact Us For Availability
U06
IC KIA4558P(8DIP LIN OP-AMP/BI LGE 0IKE455800A Contact Us For Availability
ZD1
DIODE,ZENERS LGE 0DZSB00053B Contact Us For Availability
ZD2
DIODE,ZENERS LGE 0DZSB00073B Contact Us For Availability
× ![]()
