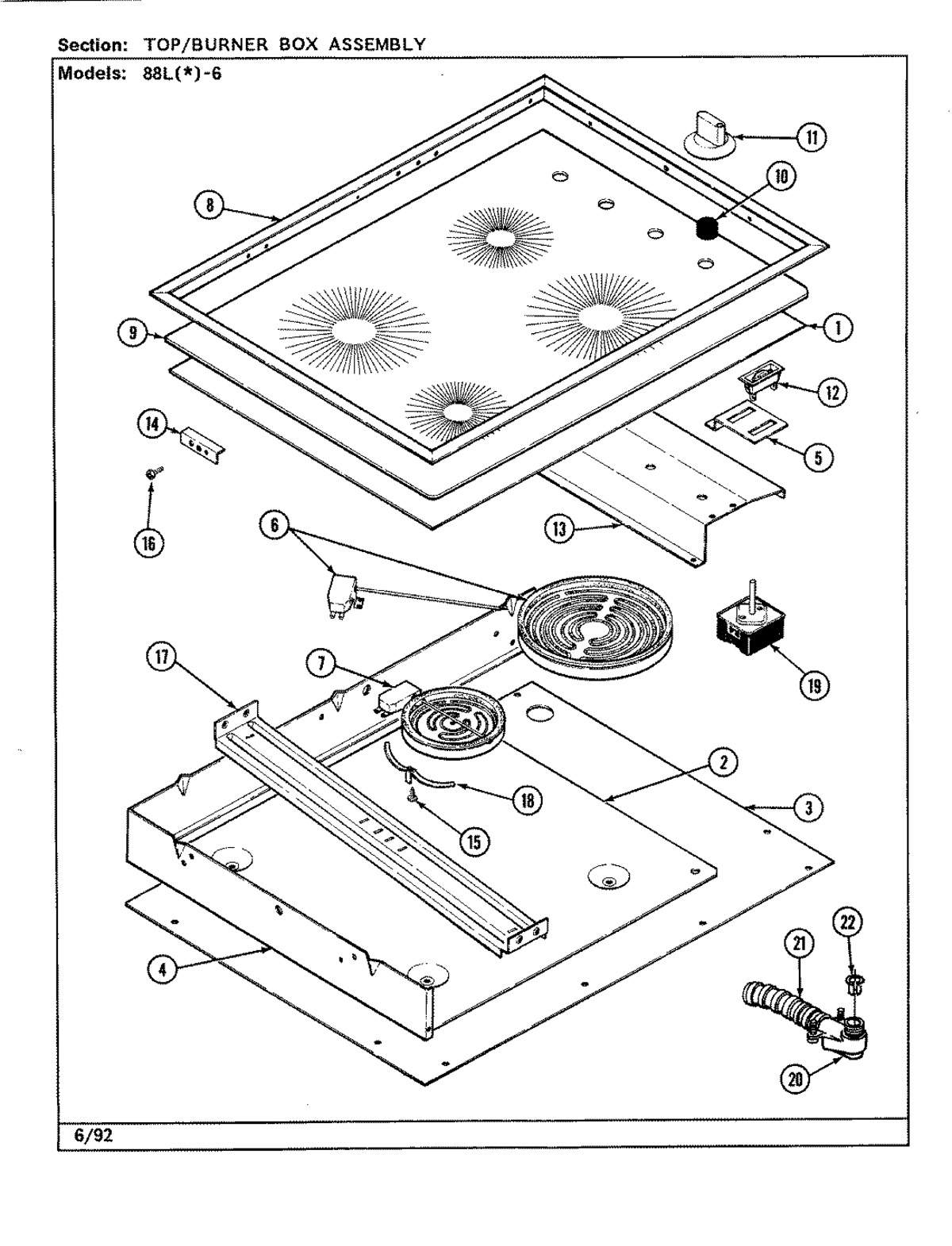

Model Whirlpool 88LK-6 ELECTRIC COOK-TOP – Common Parts & Diagrams

1
BAFFLE, CERAMIC TOP
BAFFLE, CERAMIC TOP WPL 3601F16480 Contact Us For Availability
View on Model
2
BAFFLE, HEAT----NA
BAFFLE, HEAT----NA WPL 3601F17351 Contact Us For Availability
View on Model
3
BOTTOM, BURNER BOX
BOTTOM, BURNER BOX WPL 4011F13680 Contact Us For Availability
View on Model
4
BOTTOM, BURNER BOX-SIDES
BOTTOM, BURNER BOX-SIDES WPL 4016F02345 Contact Us For Availability
View on Model
5
BRACKET, LIGHT INDICATOR
BRACKET, LIGHT INDICATOR WPL 3801F18845 Contact Us For Availability
View on Model
6
ELEMENT, GIANT
ELEMENT, GIANT WPL 7406P05760 Contact Us For Availability
View on Model
6
ELEMENT W/RECEPTACLE (8``)
ELEMENT W/RECEPTACLE (8``) WPL 7406P07360 Contact Us For Availability
View on Model
7
ELEMENT, STD
ELEMENT, STD WPL 7406P05860 Contact Us For Availability
View on Model
7
ELEMENT W/RECEPTACLE (6``)
ELEMENT W/RECEPTACLE (6``) WPL 7406P07460 Contact Us For Availability
View on Model
8
FRAME, MAIN TOP
FRAME, MAIN TOP WPL 7746P02360 Contact Us For Availability
View on Model
9
GLASS, MAIN TOP
GLASS, MAIN TOP WPL 7918P00860 Contact Us For Availability
View on Model
9
TOP, MAIN (GLASS-BLK)
TOP, MAIN (GLASS-BLK) WPL 7918P04660 Contact Us For Availability
View on Model
10
GROMMET
GROMMET WPL 8008P03360 Contact Us For Availability
View on Model
11
KNOB, SWITCH
KNOB, SWITCH WPL 7737P02660 Contact Us For Availability
View on Model
12
LIGHT, INDICATOR (HOT SURFACE)
LIGHT, INDICATOR (HOT SURFACE) WPL 7407P07460 Contact Us For Availability
View on Model
13
PLATE, SWITCH MOUNTING
PLATE, SWITCH MOUNTING WPL 3605F14345 Contact Us For Availability
View on Model
13
PLATE, SWITCH MTG
PLATE, SWITCH MTG WPL 3605F17545 Contact Us For Availability
View on Model
13
SCREW
SCREW WPL 7101P07260 Contact Us For Availability
View on Model
13
NUT 10-24
NUT 10-24 WPL 7103P07160 Contact Us For Availability
View on Model
14
RETAINER, MAIN TOP GLASS
RETAINER, MAIN TOP GLASS WPL 3804F09245 Contact Us For Availability
View on Model
15
SCREW
SCREW WPL 7101P04260 Contact Us For Availability
View on Model
16
SCREW
SCREW WPL 7101P05960 Contact Us For Availability
View on Model
17
SUPPORT, CERAMIC ELEMENT
SUPPORT, CERAMIC ELEMENT WPL 3807F32680 Contact Us For Availability
View on Model
18
SUPPORT, ELEMENT
SUPPORT, ELEMENT WPL 8004P01560 Contact Us For Availability
View on Model
19
SWITCH, INF. CONTROL
SWITCH, INF. CONTROL WPL 7403P18260 Contact Us For Availability
View on Model
19
SWITCH, INFINITE (1400W)
SWITCH, INFINITE (1400W) WPL 7403P26660 Contact Us For Availability
View on Model
19
SWITCH, INFINITE (2400W)
SWITCH, INFINITE (2400W) WPL 7403P26760 Contact Us For Availability
View on Model
20
CONNECTOR, RIGHT ANG
CONNECTOR, RIGHT ANG WPL 7417P00460 Contact Us For Availability
View on Model
21
TUBING, CONDUIT (FLEXIBLE)
TUBING, CONDUIT (FLEXIBLE) WPL 3414F03544 Contact Us For Availability
View on Model
22
SLEEVE, TUBE
SLEEVE, TUBE WPL 8018P00160 Contact Us For Availability
View on Model
23
BRACKET, CONDUIT
BRACKET, CONDUIT WPL 3801F07245 Contact Us For Availability
View on Model
23
CLEANER, ELCO
CLEANER, ELCO WPL 8308P00260 Contact Us For Availability
View on Model
23
SCRAPER, RAZOR
SCRAPER, RAZOR WPL 8312P00160 Contact Us For Availability
View on Model
