Model Whirlpool 88372 ELECTRIC RANGE – Common Parts & Diagrams
01 - BACKSPLASH
02 - BASE/FREESTANDING

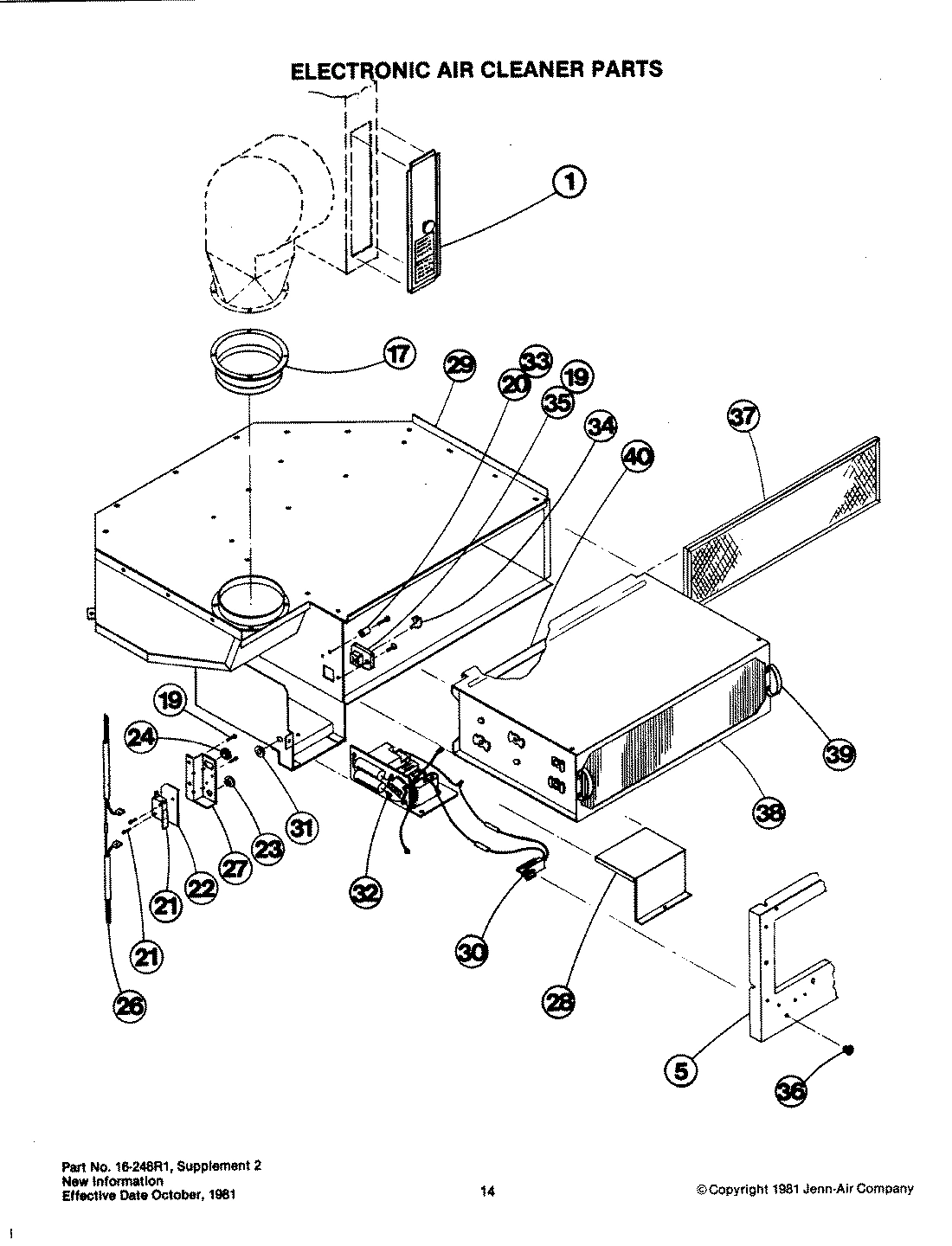

03 - ELECTRONIC AIR CLEANER PARTS

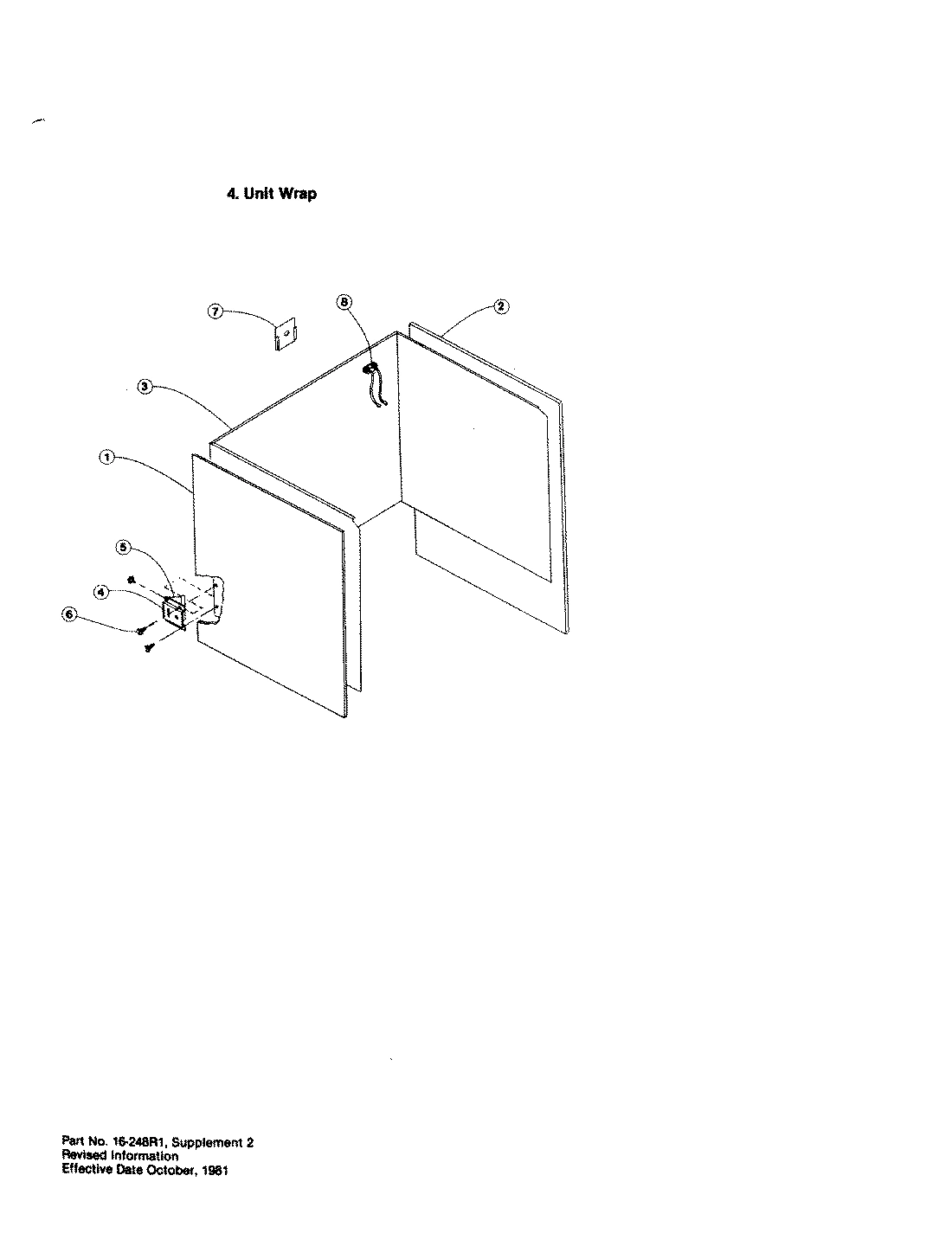

04 - UNIT WRAP
Common parts from model Whirlpool 88372 ELECTRIC RANGE
1
END CAP RH WPL 700921 Contact Us For Availability
1
SIDE TRIM WPL 700898 Contact Us For Availability
1
PLENUM DR AS WPL 701362 Contact Us For Availability
1
PANEL DECORATOR (AVOCADO) WPL 701996 Contact Us For Availability
2
END CAP LH WPL 700922 Contact Us For Availability
2
BASE FRNT CL WPL 700899 Contact Us For Availability
2
DR SW STUD WPL 701363 Contact Us For Availability
2
PANEL DECORATOR (BLACK) WPL 701997 Contact Us For Availability
3
BACKSPLASH WPL 700923 Contact Us For Availability
3
SIDE PAN RH WPL 700900 Contact Us For Availability
3
BUMPER, BUTTON WPL 708361 Contact Us For Availability
3
UNIT WRAP WPL 700008 Contact Us For Availability
4
BACKSPLASH EXTRUSION WPL 700924 Contact Us For Availability
4
SIDE PAN LH WPL 700901 Contact Us For Availability
4
6BX.312 FLHD WPL 715937 Contact Us For Availability
4
REAR ATT BKT WPL 700917 Contact Us For Availability
5
FRONT CLOSURE BASE WPL 701385 Contact Us For Availability
5
ATTCH GUSS WPL 700918 Contact Us For Availability
6
WASHER, LOCK WPL 715910 Contact Us For Availability
6
BASE DR ASSY WPL 701361 Contact Us For Availability
7
INSERT EXTRUSION WPL 700925 Contact Us For Availability
7
LEV HAT SEC WPL 700902 Contact Us For Availability
7
ROTISS ADAPT WPL 700919 Contact Us For Availability
8
LT SOCKET RH WPL 700926 Contact Us For Availability
8
ANCHOR LEVEL WPL 700903 Contact Us For Availability
8
BALL STUD WPL 701398 Contact Us For Availability
8
TOP 88372 WPL 700897 Contact Us For Availability
8
WIRE HARN WPL 700920 Contact Us For Availability
9
LT SOCKET LH WPL 700927 Contact Us For Availability
9
J TINNERMAN WPL 715389 Contact Us For Availability
10
SCREW, LT SOCKET TO BACKSPLASH WPL 700928 Contact Us For Availability
10
SPRING CLIP WPL 700904 Contact Us For Availability
10
CLIP----S WPL 708763 Contact Us For Availability
12
CABLE CLAMP WPL 700930 Contact Us For Availability
12
CORNER GUSS WPL 700905 Contact Us For Availability
12
HINGE WPL 715388 Contact Us For Availability
13
LIGHT SWITCH WPL Y700931 Contact Us For Availability
13
BASE DR FRAM WPL 700180 Contact Us For Availability
14
FLORESCENT LIGHT WPL Y700932 Contact Us For Availability
14
DOOR FRAME WPL 715360 Contact Us For Availability
15
WIRE COVER WPL 700933 Contact Us For Availability
15
SPACER WASH WPL 700907 Contact Us For Availability
15
PANEL, INNER DOOR WPL 700168 Contact Us For Availability
16
BASE TRAY WPL 700908 Contact Us For Availability
16
ANGLE BRKT WPL 708761 Contact Us For Availability
17
BALLAST WPL 700934 Contact Us For Availability
17
FLEX DUCT WPL 700909 Contact Us For Availability
17
VENT ADP WPL 701496 Contact Us For Availability
18
INSULATOR WPL 700935 Contact Us For Availability
18
SCREW WPL Y700584 Contact Us For Availability
19
TRIM PANEL WPL 700910 Contact Us For Availability
20
TAPE 76IN WPL 700911 Contact Us For Availability
20
SPACER WPL 701497 Contact Us For Availability
21
PLUG WPL 700936 Contact Us For Availability
21
BASE DOOR LINER WPL 715361 Contact Us For Availability
21
SWITCH, DOOR WPL 701360 Contact Us For Availability
22
WIRE RED WPL 700937 Contact Us For Availability
22
INSULATOR WPL 701503 Contact Us For Availability
23
WIRE, RED WPL 700938 Contact Us For Availability
23
HEYCO BSHG WPL 701504 Contact Us For Availability
24
STRAIN RLF WPL 701507 Contact Us For Availability
25
SCREW (No.4B PAN-PH HD) WPL 701508 Contact Us For Availability
26
SPR BRKT LH WPL 700912 Contact Us For Availability
26
WIRE ASSY WPL 701511 Contact Us For Availability
27
SPR BRKT RH WPL 700913 Contact Us For Availability
27
BRACKET, SWITCH WPL 701512 Contact Us For Availability
28
SPRING WPL 700914 Contact Us For Availability
28
PWR PACK COV WPL 701525 Contact Us For Availability
29
EAC CLOS AS WPL 701517 Contact Us For Availability
30
LIGHT, PILOT WPL 701518 Contact Us For Availability
31
BUSHING WPL 701519 Contact Us For Availability
32
STAND-OFF WPL 700940 Contact Us For Availability
32
PWR PACK AS WPL 701359 Contact Us For Availability
33
SCREW WPL 701526 Contact Us For Availability
34
CONTACT SPRG WPL 701527 Contact Us For Availability
35
BLOCK, TERMINAL WPL 701528 Contact Us For Availability
36
LENS, INDICATOR LIGHTS WPL Y700630 Contact Us For Availability
37
PRE FILTER WPL 701529 Contact Us For Availability
38
EAC MODULE WPL 701358 Contact Us For Availability
39
HANDLE WPL 701530 Contact Us For Availability
40
IONIZER WIRE WPL 701531 Contact Us For Availability
× ![]()
