Model LG 87790 – Common Parts & Diagrams
Diagram 0
Diagram 1

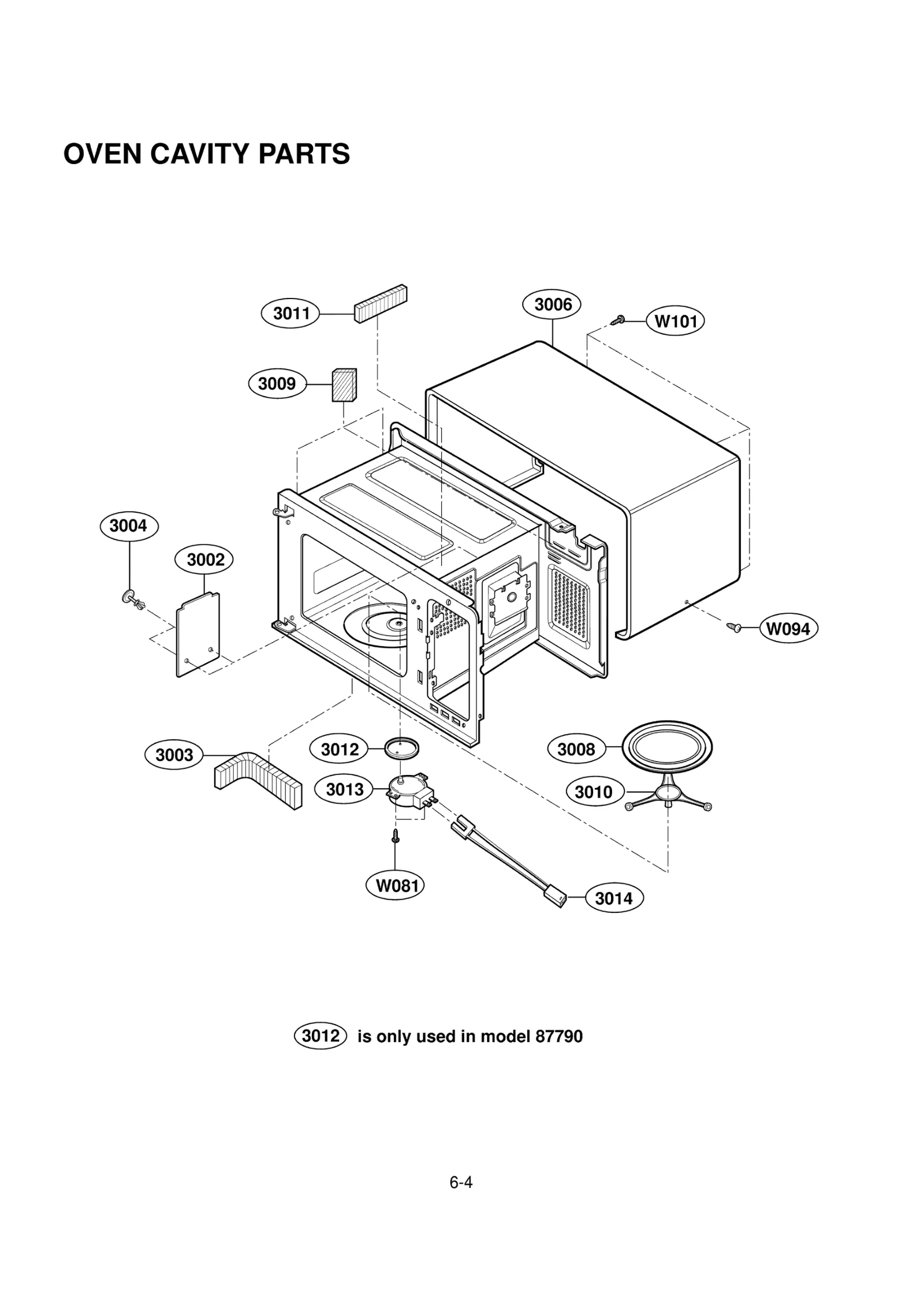

Diagram 2

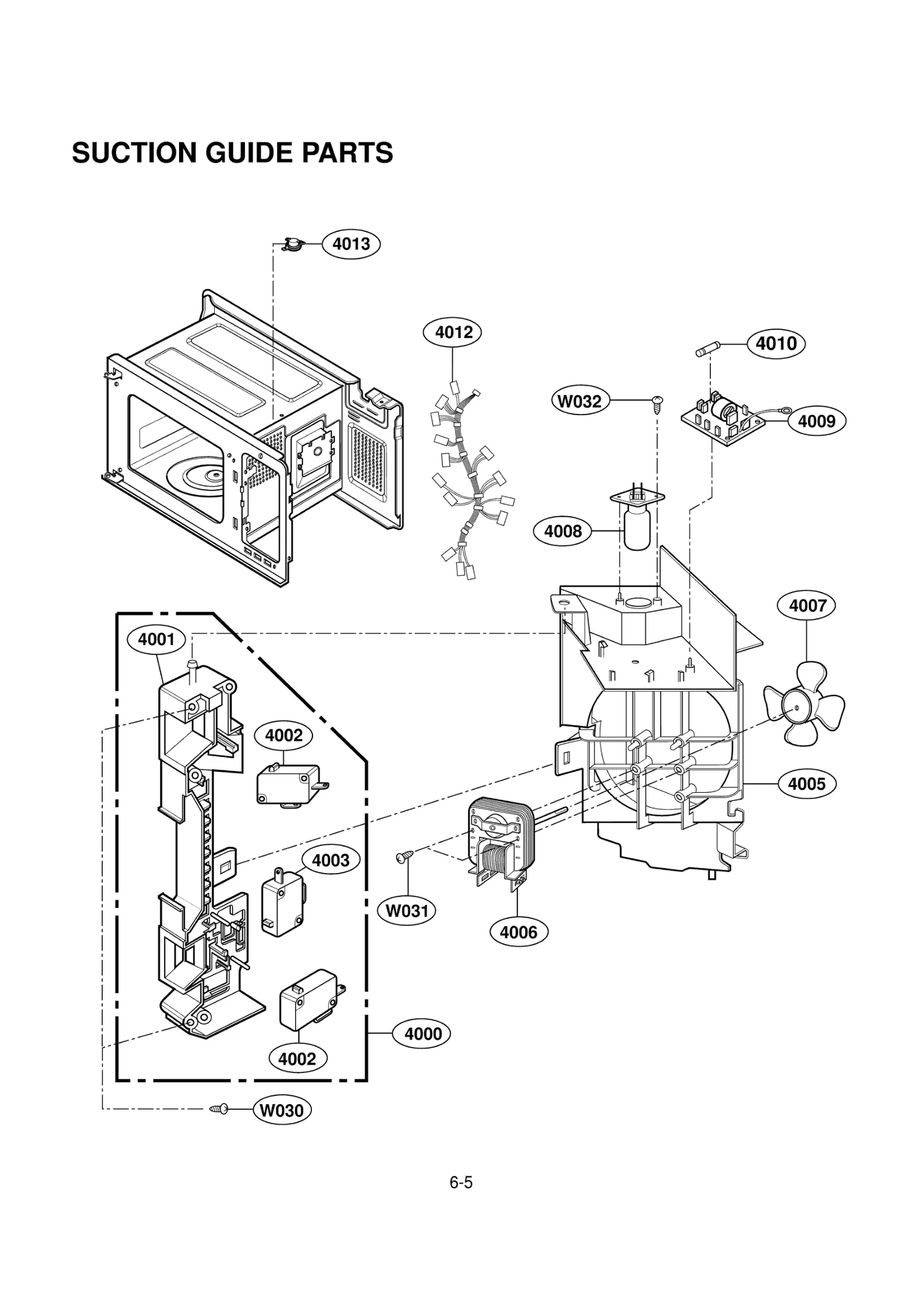

Diagram 3

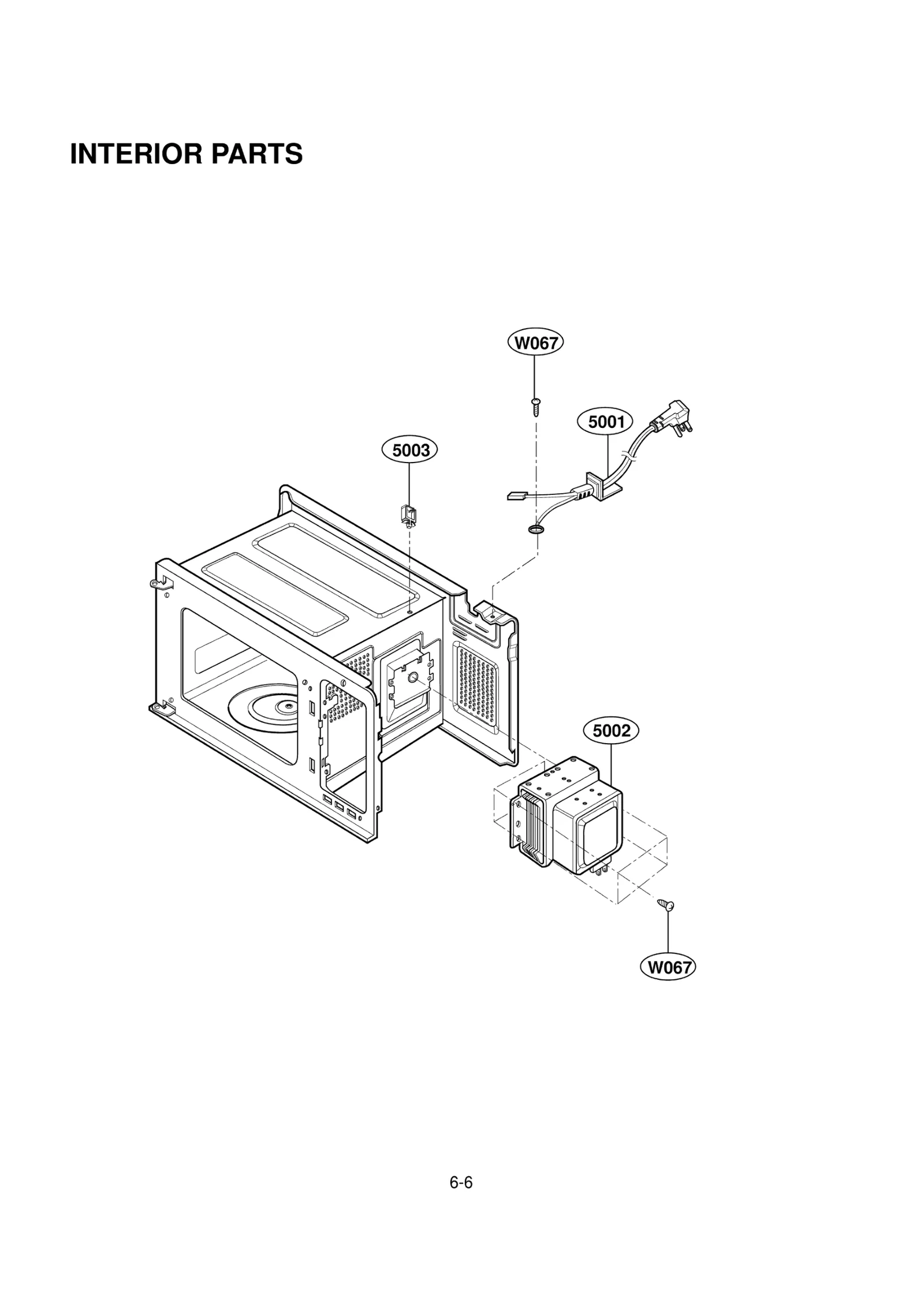

Diagram 4

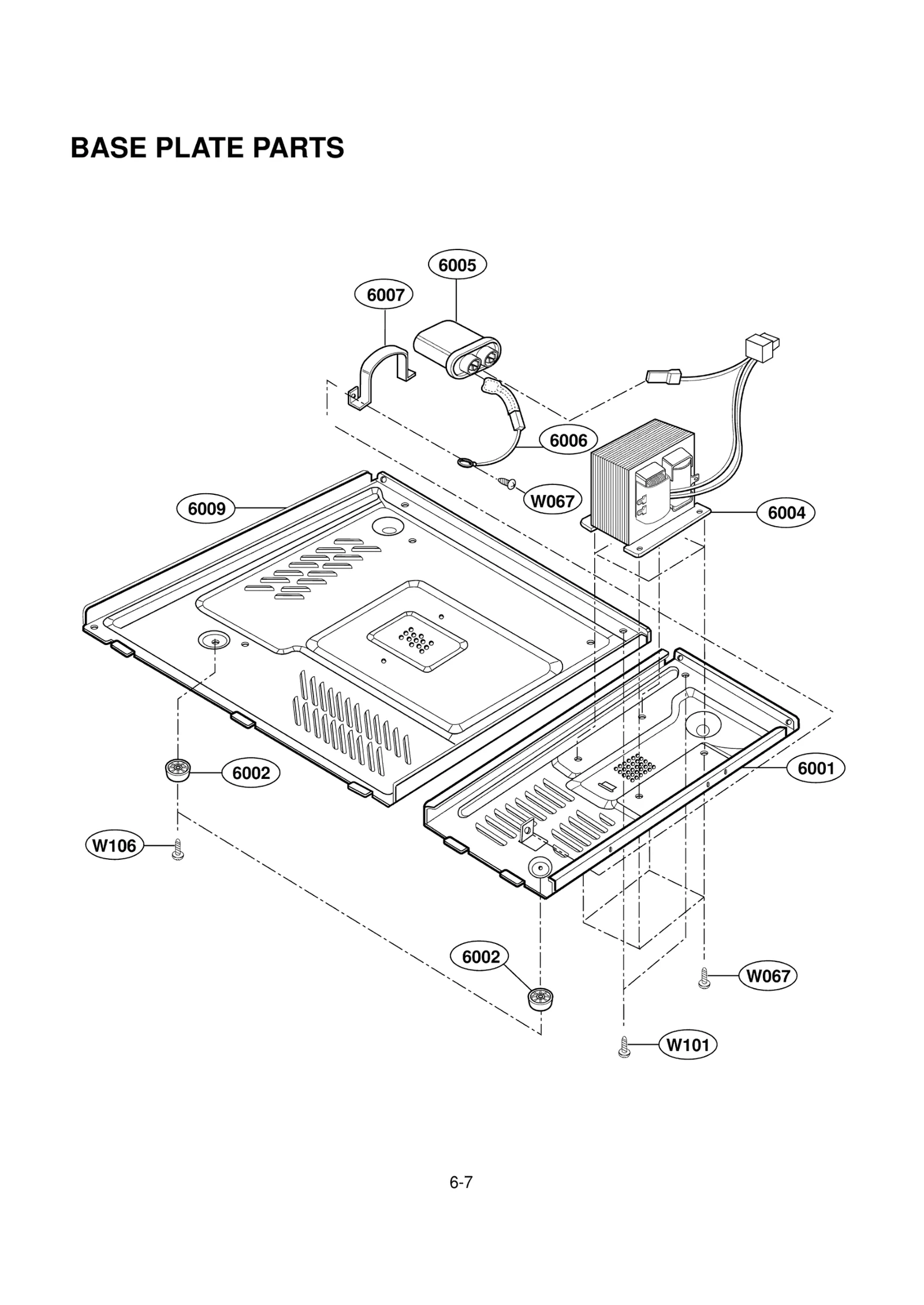

Diagram 5
Diagram 6
Common parts from model LG 87790
*01
LGE 3828W5A0626 LGE 3828W5A0626 Contact Us For Availability
*02
LGE 3828W5S0582 LGE 3828W5S0582 Contact Us For Availability
*05
LABEL,COOKING GUIDE LGE 3850W3A328A Contact Us For Availability
*10
BOX,YELLOW LGE 3890W2Y107F Contact Us For Availability
2004
CONTROL PANEL,ALL LGE 3572W1A121E Contact Us For Availability
2005
PCB SUB ASSY LGE 6871W2S020B Contact Us For Availability
2006
LEVER RELEASE MS-72CM MC-122MC LGE 4510W3L002A Contact Us For Availability
3002
CANOPY MICA LGE 3052W3M008A Contact Us For Availability
3006
OUTER CASE LGE 3112W1U015M Contact Us For Availability
3008
GLASS TRAY LGE 3390W1G003E Contact Us For Availability
3010
ROTATING RING ASSY A 0.9.1.0.1 LGE 5889W2A011A Contact Us For Availability
3012
MOUNT ALL LGE 4960W3G026A Contact Us For Availability
3013
MOTOR SYNCHRONOUS 120V,60HZ LGE 2B72754K Contact Us For Availability
3014
LEAD WIRE ASSY TT MS-71CM(T/T LGE 6877WRT007D Contact Us For Availability
4001
BOARD LATCH MS-101 S 121 S 151 LGE 3500W1A004A Contact Us For Availability
4002
SWITCH,MICRO LGE 6600W1K004C Contact Us For Availability
4005
LGE 4974W0S010A LGE 4974W0S010A Contact Us For Availability
4006
MOTOR(CIRC) FAN 120V/60HZ,10.5 LGE 6549W2F017B Contact Us For Availability
4009
NOISE FILTER ASSY 100V 50/60HZ LGE 2B72130F Contact Us For Availability
4012
POWER CORD ASSY A-2 LGE 6411W2A002H Contact Us For Availability
4012
LGE 6877W1T264B LGE 6877W1T264B Contact Us For Availability
5002
MAGNETRON LGE 6324W1A001A Contact Us For Availability
6001
LGE 3302W1A035A LGE 3302W1A035A Contact Us For Availability
6002
LEG LGE 4B73900A Contact Us For Availability
6004
TRANSFORMER HIGH VOL LGE 6170W1D007A Contact Us For Availability
6007
BRACKET HVC MS-72CM,HORIZON LGE 4810W3C001A Contact Us For Availability
6009
BASE PLATE ALL LGE 3302W1A036A Contact Us For Availability
7001
SENSOR ASSY ALL HUMIDITY SENSO LGE 6501W2A017A Contact Us For Availability
7002
DUCT INTER FLOW LGE 5208W1A001A Contact Us For Availability
C01
LGE 0CK2230K935 LGE 0CK2230K935 Contact Us For Availability
C02
CAPACITOR ELECTROLYTIC LGE 0CE1076K638 Contact Us For Availability
C03
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE2276H638 Contact Us For Availability
C06
CAPACITOR,FIXED CERAMIC(High d LGE 0CK2230K948 Contact Us For Availability
C07
CAPACITOR ELECTROLYTIC 4.7M SM LGE 0CE4756K638 Contact Us For Availability
C40
CAPACITOR,FIXED CERAMIC(High d LGE 0CK1040K948 Contact Us For Availability
C41
CAPACITOR ELECTROLYTIC CE,47MF LGE 0CE4766K638 Contact Us For Availability
C43
CAPACITOR ELECTROLYTIC 10M SM LGE 0CE1066K638 Contact Us For Availability
D03
DIODE IN4002,MA-1354P,1554M *N LGE 0DD400209AA Contact Us For Availability
D24
DIODE 1N4148M (ROHM KOREA) MA- LGE 0DD414809AB Contact Us For Availability
DP1
DIGITRON, ALL LGE 6302W5A002A Contact Us For Availability
PT1
TRANSFORMER POWER 120V/60HZ,14 LGE 6010W2P043A Contact Us For Availability
Q02
TRANSISTOR KTA1266-TP-Y(KTA101 LGE 0TR126609AA Contact Us For Availability
Q21
TRANSISTOR LGE 0TR319809AA Contact Us For Availability
R01
Resistor,Carbon Film LGE 0RD1501F608 Contact Us For Availability
R05
FIXED CARBON FILM 1M-J *NSP LGE 0RD1004F608 Contact Us For Availability
R22
Resistor,Carbon Film LGE 0RD1002F608 Contact Us For Availability
R23
Resistor,Carbon Film LGE 0RD5601F608 Contact Us For Availability
R30
LGE 0RN2003F408 LGE 0RN2003F408 Contact Us For Availability
R31
Resistor,Metal Film LGE 0RN1001F408 Contact Us For Availability
R33
LGE 0RN1002F408 LGE 0RN1002F408 Contact Us For Availability
R37
FIXED CARBON FILM 4.7K UG8*NSP LGE 0RD4701F608 Contact Us For Availability
R40
Resistor,Carbon Film LGE 0RD1000F608 Contact Us For Availability
R41
RESISTOR FIXED CARBON FILM 100 LGE 0RD1003F608 Contact Us For Availability
R43
RESISTOR FIXED CARBON FILM 10 LGE 0RD0102F608 Contact Us For Availability
R50
RESISTOR FIXED CARBON FILM 47K LGE 0RD4702F608 Contact Us For Availability
R51
Resistor,Carbon Film LGE 0RD2701F608 Contact Us For Availability
R55
Resistor,Carbon Film LGE 0RD1503F608 Contact Us For Availability
R56
RESISTOR FIXED CARBO LGE 0RD2004F608 Contact Us For Availability
R58
Resistor,Carbon Film LGE 0RD5103F608 Contact Us For Availability
R59
LGE 0RD2703F608 LGE 0RD2703F608 Contact Us For Availability
R72
Resistor,Carbon Film LGE 0RD2202F608 Contact Us For Availability
RY1
RELAY LGE 6920W2D010B Contact Us For Availability
RY2
Relay,Contact LGE 6920W2D014A Contact Us For Availability
U01
LGE 0IHI404339X LGE 0IHI404339X Contact Us For Availability
U04
IC KIA4558P(8DIP LIN OP-AMP/BI LGE 0IKE455800A Contact Us For Availability
U05
IC,SAMSUNG ELECTRONICS LGE 0ISS791500A Contact Us For Availability
ZD1
DIODE ZENER UZ5.1BS TP26 SM 0 LGE 0DZ510009AE Contact Us For Availability
ZD2
DIODE ZENER LGE 0DZ750009AC Contact Us For Availability
× ![]()
