Model LG 87020 – Common Parts & Diagrams
Diagram 0
Diagram 1

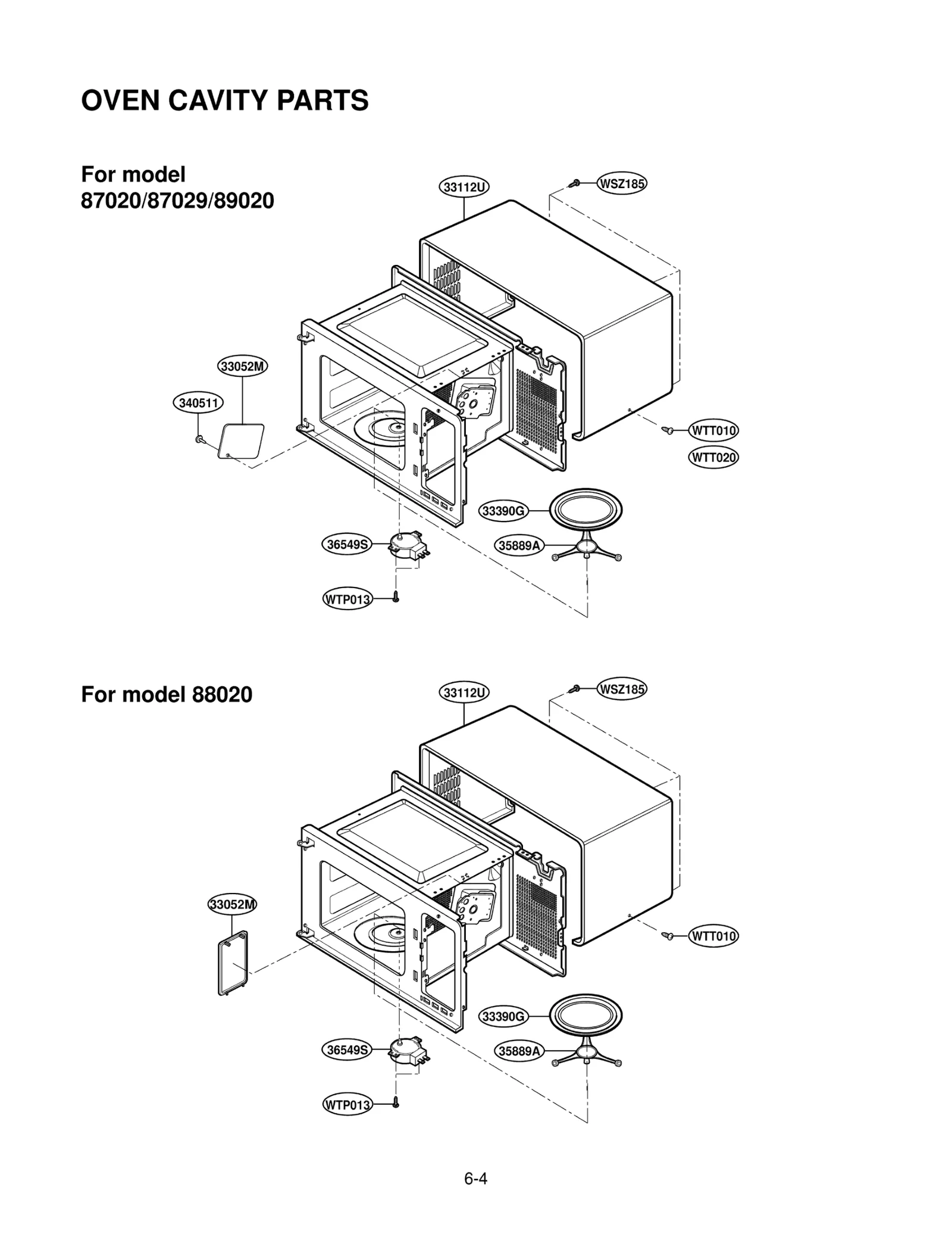

Diagram 2

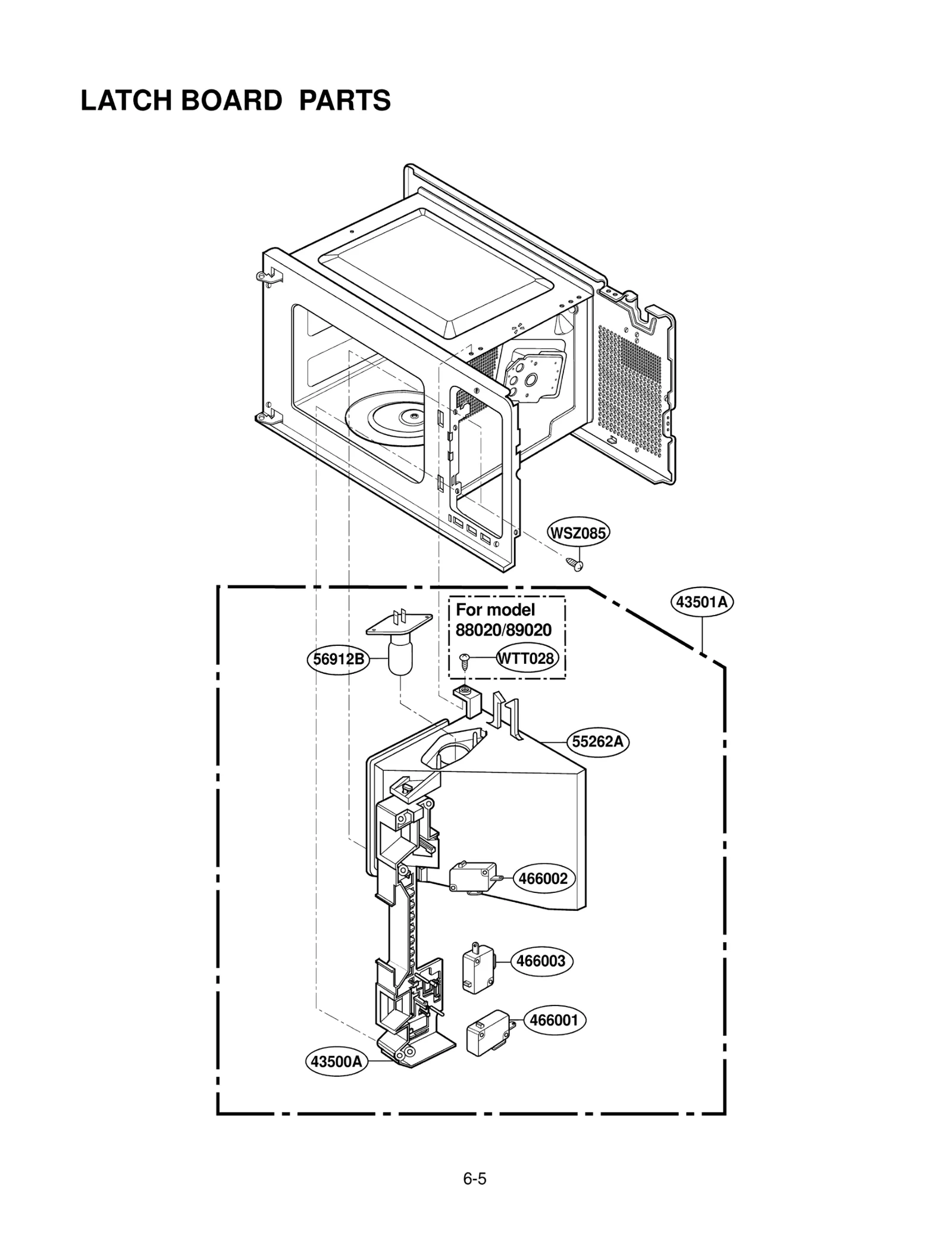

Diagram 3

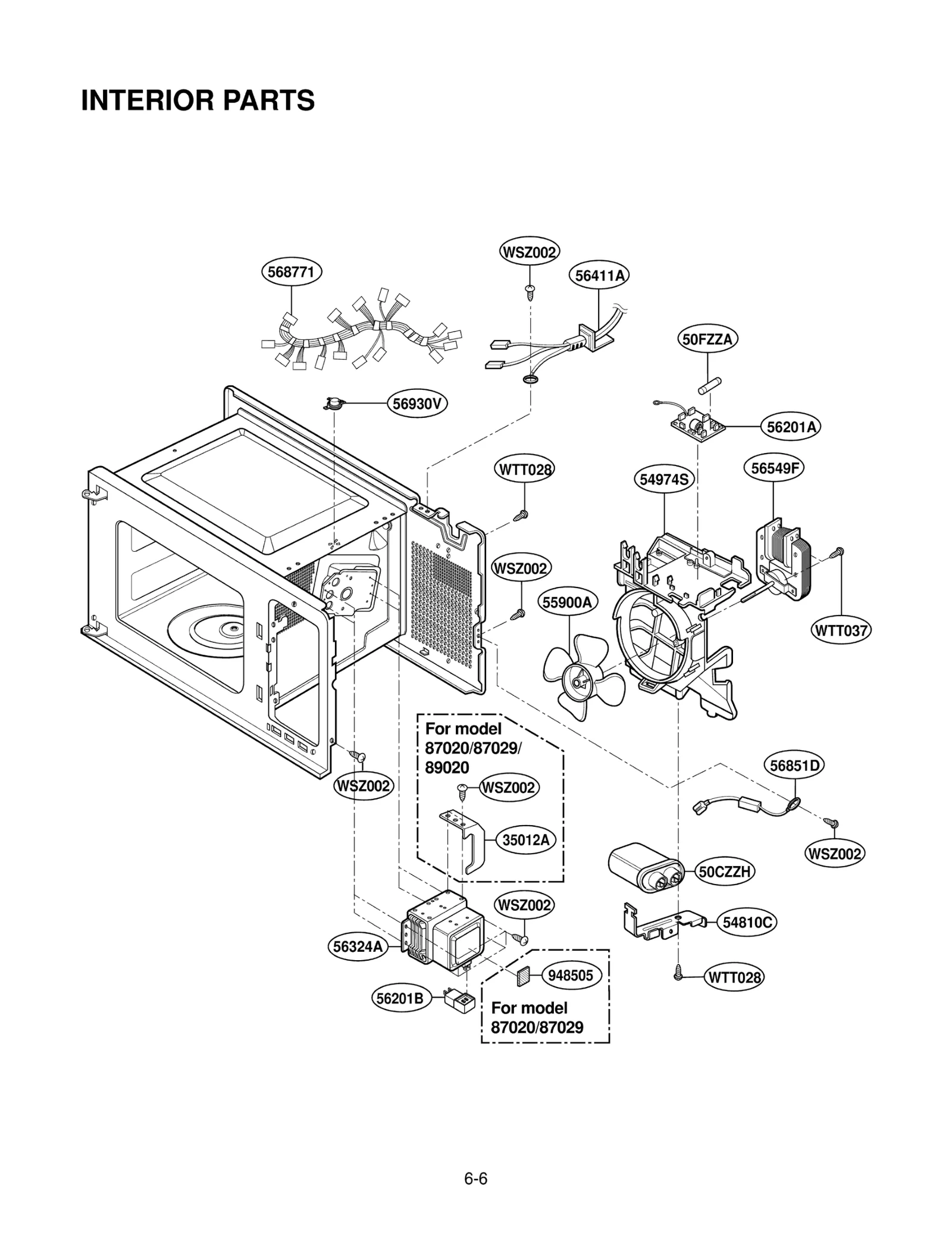

Diagram 4

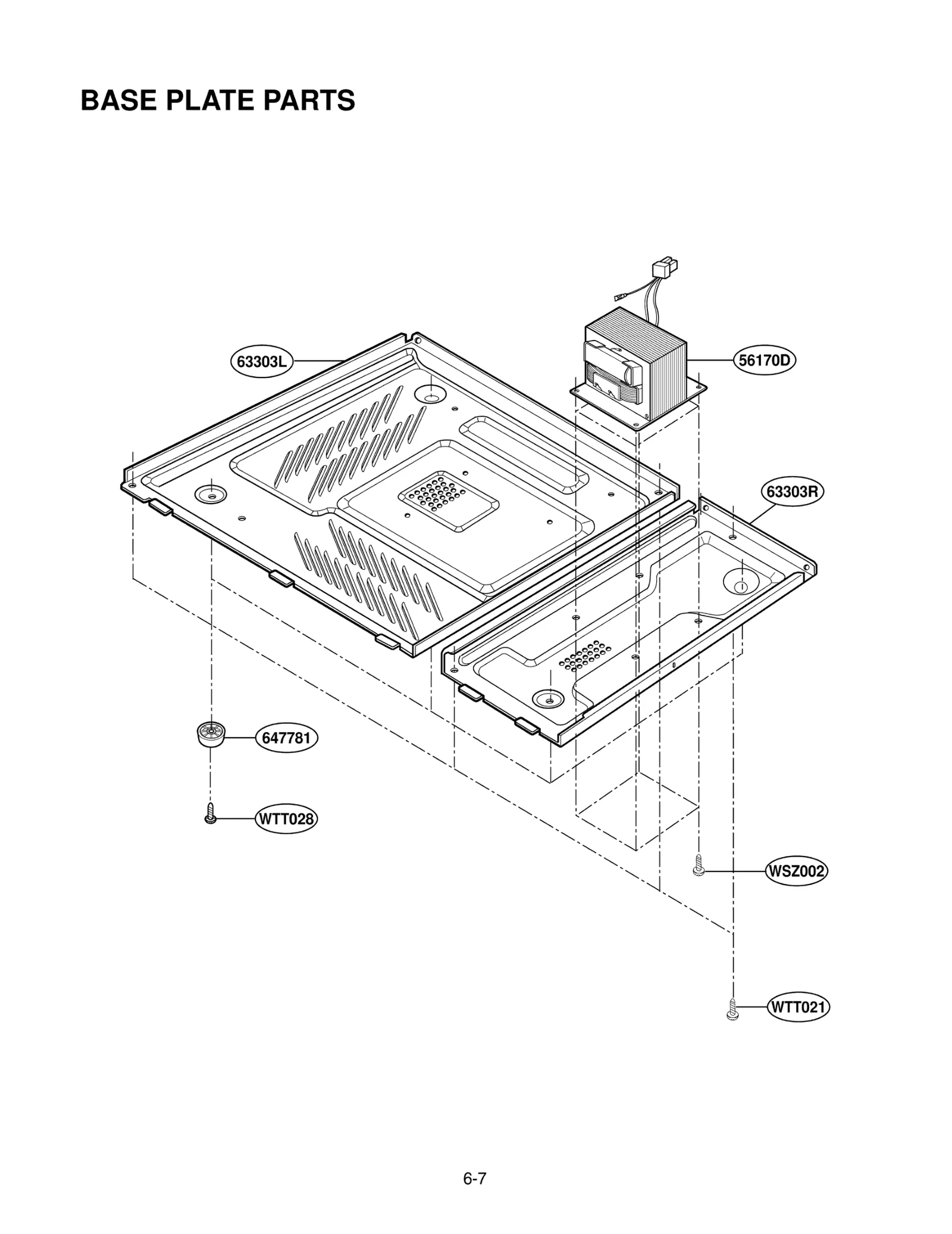

Diagram 5
Diagram 6
Common parts from model LG 87020
*01
LGE 3828W5A1506 LGE 3828W5A1506 Contact Us For Availability
*02
LGE 3828W5S1534 LGE 3828W5S1534 Contact Us For Availability
*05
LABEL,COOKING GUIDE LGE 3850W3D008D Contact Us For Availability
*10
BOX,[LABEL] LGE 3890W2L004P Contact Us For Availability
14760A
BAFFLE DOOR (SEARS) LGE 4760W1A011A Contact Us For Availability
24510L
LEVER,RELEASE LGE 4510W3L004A Contact Us For Availability
24781M
LGE 4781W1M157K LGE 4781W1M157K Contact Us For Availability
26638A
LGE 6638W2A372A LGE 6638W2A372A Contact Us For Availability
33052M
CANOPY,MICA LGE 3052W3M011C Contact Us For Availability
33112U
OUT CASE,[U-BENDING] LGE 3112W1U019N Contact Us For Availability
33390G
TRAY GLASS LGE 3390W1G003A Contact Us For Availability
34960A
MOUNT ALL LGE 4960W3G026A Contact Us For Availability
35889A
ROTATING RING ASSY A 0.9.1.0.1 LGE 5889W2A011A Contact Us For Availability
36549S
MOTOR(CIRC),SYNCHRONOUS LGE 6549W1S011C Contact Us For Availability
43500A
BOARD LATCH MS-101 S 121 S 151 LGE 3500W1A004A Contact Us For Availability
54810C
BRACKET HVC MA-690M,1190M,685M LGE 4810W4C003A Contact Us For Availability
54974S
GUIDE SUCTION LGE 4974W1S010A Contact Us For Availability
55262A
AIR DUCT LGE 5262W2A041C Contact Us For Availability
55900A
PROPELLER LGE 2B72125A Contact Us For Availability
56170D
TRANSFORMER,HIGH VOLTAGE LGE 6170W1D012H Contact Us For Availability
56201A
NOISE FILTER ASSY 100V 50/60HZ LGE 2B72130F Contact Us For Availability
56201B
CHOKE FILTER ASSY MS-100/120/1 LGE 6201W2A019A Contact Us For Availability
56324A
MAGNETRON LGE 6324W1A001A Contact Us For Availability
56411A
POWER CORD ASSY LGE 6411W1A019G Contact Us For Availability
56549F
MOTOR(CIRC),FAN LGE 6549W1F005B Contact Us For Availability
56930V
THERMOSTAT,BIMETAL LGE 6930W1A001J Contact Us For Availability
63302L
BASE PLATE ALL LGE 3302W1A036A Contact Us For Availability
63302R
BASE PLATE LGE 3302W1A035G Contact Us For Availability
63303L
BASE PLATE ASSY,ALL LGE 3303W1A028A Contact Us For Availability
63303R
BASE PLATE ASSY,MWO LGE 3303W2A004E Contact Us For Availability
250201
BUTTON,RELEASE LGE 5020W2G096F Contact Us For Availability
268711
LGE 6871W2S162D LGE 6871W2S162D Contact Us For Availability
568771
LGE 6877W1A270A LGE 6877W1A270A Contact Us For Availability
647781
LEG LGE 4B73900A Contact Us For Availability
948505
CUSHION (5*8*900) MV-1325S W/P LGE 3B72244Q Contact Us For Availability
AR1
RESISTOR ARRAY LGE 0RZ1503G610 Contact Us For Availability
BZ1
LGE 6908W3YA01A LGE 6908W3YA01A Contact Us For Availability
C02
CAPACITOR ELECTROLYTIC LGE 0CE2276K618 Contact Us For Availability
C03
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE2276H638 Contact Us For Availability
C04
CAPACITOR,FIXED CERAMIC(High d LGE 0CK1040K948 Contact Us For Availability
C25
CAPACITOR,FIXED CERAMIC(High d LGE 0CK2230K948 Contact Us For Availability
C84
CAPACITOR CERAMIC (HIGH DIELE) LGE 0CK2210K518 Contact Us For Availability
CN1
CONNECTOR (CIRC) WAF LGE 6630W5V021A Contact Us For Availability
CN3
LGE 6630W5V017C LGE 6630W5V017C Contact Us For Availability
D04
DIODE IN4002,MA-1354P,1554M *N LGE 0DD400209AA Contact Us For Availability
DP1
LGE 6304W5A009A LGE 6304W5A009A Contact Us For Availability
HD1
LGE 4930W3A015A LGE 4930W3A015A Contact Us For Availability
LED6
LGE 0DLZW5A010A LGE 0DLZW5A010A Contact Us For Availability
Q02
TRANSISTOR KTA1266-TP-Y(KTA101 LGE 0TR126609AA Contact Us For Availability
Q20
TRANSISTOR MA-885M SGESEA MA-1 LGE 0TR107009AD Contact Us For Availability
Q30
TRANSISTOR LGE 0TR319809AA Contact Us For Availability
R05
RESISTOR FIXED CARBON FILM 15 LGE 0RD1500F608 Contact Us For Availability
R25
RESISTOR FIXED CARBON FILM 3.9 LGE 0RD3901F608 Contact Us For Availability
R32
Resistor,Carbon Film LGE 0RD2700F608 Contact Us For Availability
R51
RESISTOR FIXED CARBON FILM /R LGE 0RD1000G608 Contact Us For Availability
R101
RESISTOR FIXED CARBON FILM 47K LGE 0RD4702F608 Contact Us For Availability
R102
LGE 0RD4700G608 LGE 0RD4700G608 Contact Us For Availability
R105
RESISTOR FIXED CARBON FILM 1.0 LGE 0RD1001G608 Contact Us For Availability
R110
Resistor,Carbon Film LGE 0RD1202F608 Contact Us For Availability
R111
Resistor,Carbon Film LGE 0RD1002F608 Contact Us For Availability
R112
Resistor,Carbon Film LGE 0RD3302F608 Contact Us For Availability
RY1
RELAY LGE 6920W5A008A Contact Us For Availability
RY2
RELAY LGE 6920W5A009A Contact Us For Availability
SH1
LGE 6091W3A002A LGE 6091W3A002A Contact Us For Availability
WSZ161
SPECIAL SCREW MV-1000M,1000T LGE 4B75675A Contact Us For Availability
ZD1
DIODE ZENER UZ5.1BS TP26 SM 0 LGE 0DZ510009AE Contact Us For Availability
× ![]()
