  • LG 86UT8000AUA Parts List

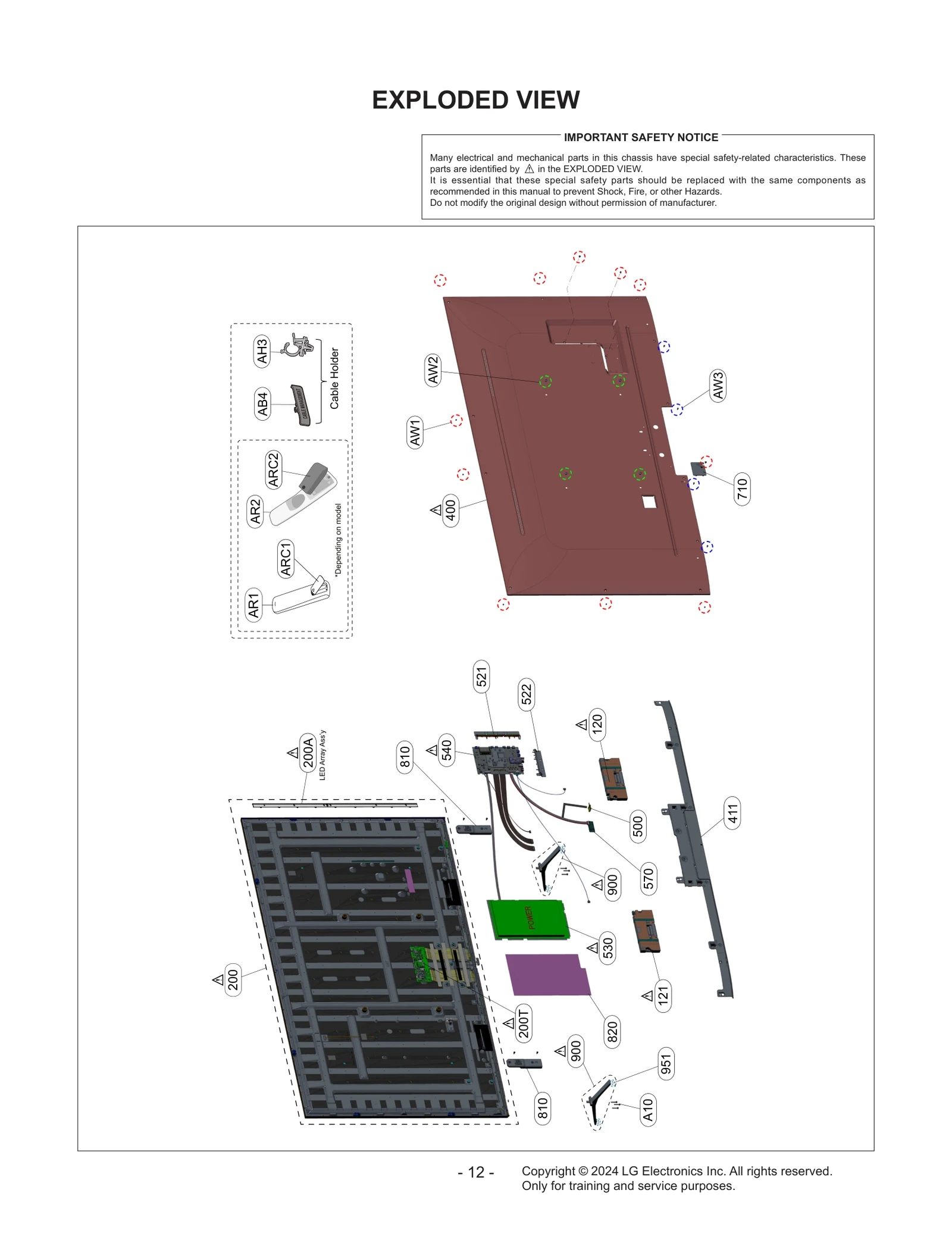

Model LG 86UT8000AUA – Common Parts & Diagrams

200
LCD,Module-TFT
LCD,Module-TFT LGE EAJ65829902 Contact Us For Availability
View on Model
400
Cover Assembly,Rear
Cover Assembly,Rear LGE ACQ30652918 Contact Us For Availability
View on Model
411
Cover Assembly,Bottom
Cover Assembly,Bottom LGE ACQ30214413 Contact Us For Availability
View on Model
522
Bracket
Bracket LGE MAZ67472275 Contact Us For Availability
View on Model
540
Mainboard,BPR Total Assembly,SVC
Mainboard,BPR Total Assembly,SVC LGE EBU67649599 Contact Us For Availability
View on Model
710
Bracket
Bracket LGE MAZ67457302 Contact Us For Availability
View on Model
810
Bracket
Bracket LGE MAZ67455001 Contact Us For Availability
View on Model
900
Base Assembly
Base Assembly LGE AAN77370117 Contact Us For Availability
View on Model
951
Damper
Damper LGE MCQ68894005 Contact Us For Availability
View on Model
AB4
Bracket
Bracket LGE MAZ66544701 Contact Us For Availability
View on Model
AW1
Screw,Machine
Screw,Machine LGE FAB31843211 Contact Us For Availability
View on Model
AW2
Screw,Machine
Screw,Machine LGE FAB32838809 Contact Us For Availability
View on Model
AW3
Screw,Taptite
Screw,Taptite LGE FAB31639801 Contact Us For Availability
View on Model

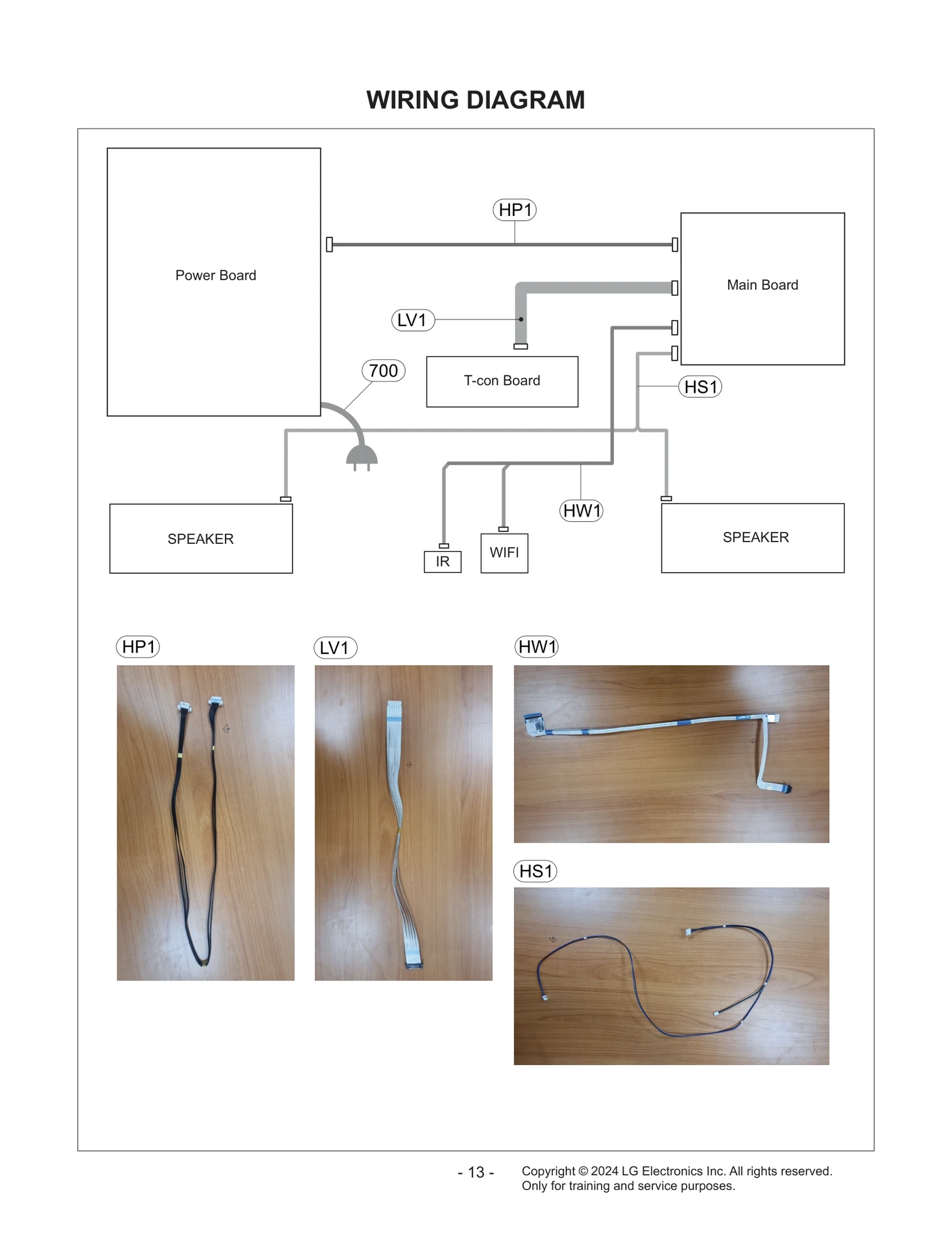

HP1
Harness,Single
Harness,Single LGE EAD64586006 Contact Us For Availability
View on Model
LV1
Cable,FFC
Cable,FFC LGE EAD63787870 Contact Us For Availability
View on Model
