Model LG 86UH7N-M – Common Parts & Diagrams

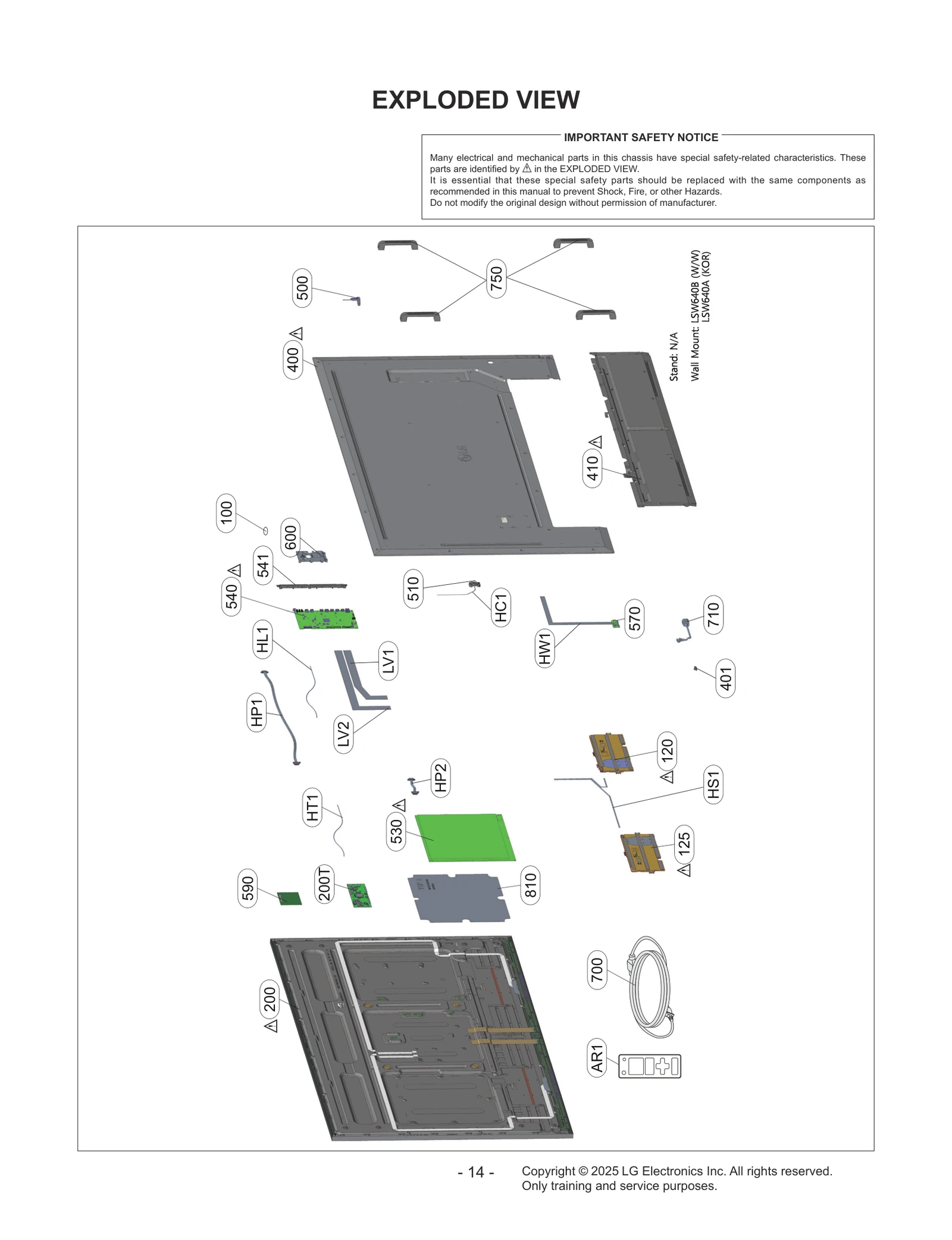

Diagram 0
Common parts from model LG 86UH7N-M
100
Primary Cell Battery,Lithium LGE EAC40458601 Contact Us For Availability
100
Primary Cell Battery,Lithium LGE EAC63418701 Contact Us For Availability
120
Speaker Assembly LGE EAB65836701 Contact Us For Availability
125
Speaker Assembly LGE EAB65836702 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ65913702 Contact Us For Availability
200T
Time Control LGE EAT65226301 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ30678215 Contact Us For Availability
401
Holder LGE 4930V00218C Contact Us For Availability
410
Cover Assembly,Bottom LGE ACQ30678401 Contact Us For Availability
500
Chassis Assembly LGE EBT67980505 Contact Us For Availability
500
Chassis Assembly LGE EBT67980503 Contact Us For Availability
500
Chassis Assembly LGE EBT67980502 Contact Us For Availability
510
PCB Assembly,Sub LGE EBR41760901 Contact Us For Availability
530
Power Supply Assembly LGE EAY65919001 Contact Us For Availability
540
Main Board,BPR Total Assembly,SVC LGE EBU30076801 Contact Us For Availability
590
PCB Assembly LGE EBR43423301 Contact Us For Availability
600
Plate,Shield LGE MGJ66243402 Contact Us For Availability
750
Handle LGE MEB65438701 Contact Us For Availability
810
Plate Assembly LGE AGU30105901 Contact Us For Availability
AR1
Remote Controller Assembly LGE AKB76039803 Contact Us For Availability
HC1
Harness,Single LGE EAD64145117 Contact Us For Availability
HL1
Harness,Single LGE EAD65850808 Contact Us For Availability
HP1
Harness,Single LGE EAD65305521 Contact Us For Availability
HP2
Harness,Single LGE EAD63026118 Contact Us For Availability
HS1
Harness,Multi LGE EAD63727384 Contact Us For Availability
HT1
Harness,Single LGE EAD62732519 Contact Us For Availability
LV2
Cable,FFC LGE EAD63285629 Contact Us For Availability
× ![]()
