Model LG 86UH5F-H – Common Parts & Diagrams

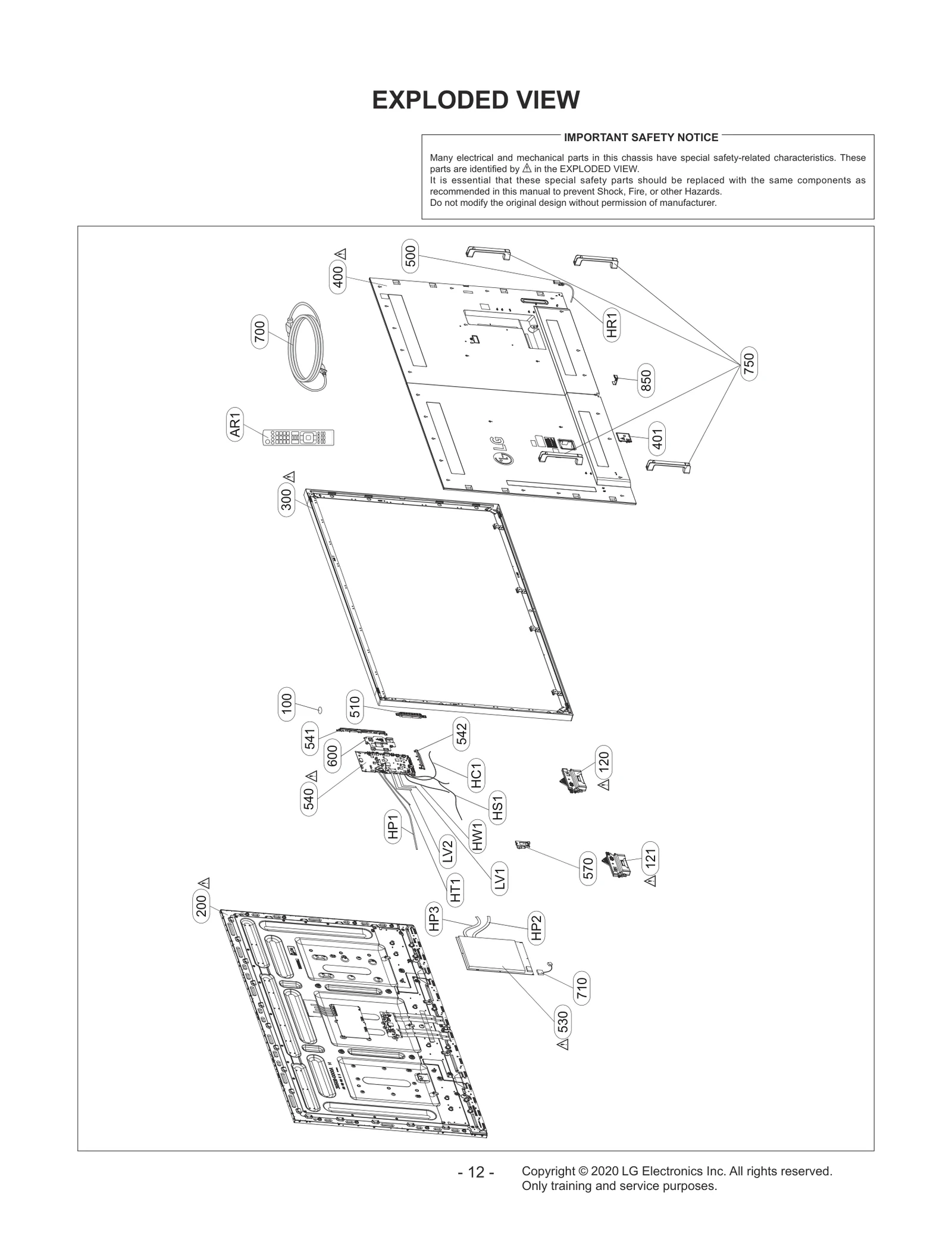

Diagram 0
Diagram 1
Common parts from model LG 86UH5F-H
100
Primary Cell Battery,Lithium LGE EAC40458601 Contact Us For Availability
100
Primary Cell Battery,Lithium LGE EAC63418701 Contact Us For Availability
120
Speaker Assembly LGE EAB64248203 Contact Us For Availability
120
Speaker Assembly LGE EAB64248201 Contact Us For Availability
121
Speaker Assembly LGE EAB64248202 Contact Us For Availability
121
Speaker Assembly LGE EAB64248204 Contact Us For Availability
200
LCD Module LGE EAJ63774606 Contact Us For Availability
300
Cabinet Assembly LGE ABJ75247602 Contact Us For Availability
500
Chassis Assembly LGE EBT63756604 Contact Us For Availability
530
Power Supply Assembly LGE EAY64289806 Contact Us For Availability
541
Cover LGE MCK69108107 Contact Us For Availability
542
Cover LGE MCK69108205 Contact Us For Availability
600
Heat Sink LGE MED64870902 Contact Us For Availability
750
Handle LGE MEB62895202 Contact Us For Availability
850
Bracket LGE MAZ65309302 Contact Us For Availability
AR1
Remote Controller Assembly LGE AKB75095363 Contact Us For Availability
HC1
Harness,Single LGE EAD60732910 Contact Us For Availability
HP2
Harness,Single LGE EAD63147304 Contact Us For Availability
HP3
Harness,Single LGE EAD63147104 Contact Us For Availability
HR1
Cable,Assembly LGE EAD63406601 Contact Us For Availability
HS1
Harness,Multi LGE EAD63727317 Contact Us For Availability
HT1
Harness,Single LGE EAD62732504 Contact Us For Availability
HW1
Harness,Single LGE EAD64126105 Contact Us For Availability
LV1
Cable,FFC LGE EAD63285706 Contact Us For Availability
N/A
Plate Assembly,Light Guide LGE AGU30088101 Contact Us For Availability
× ![]()
