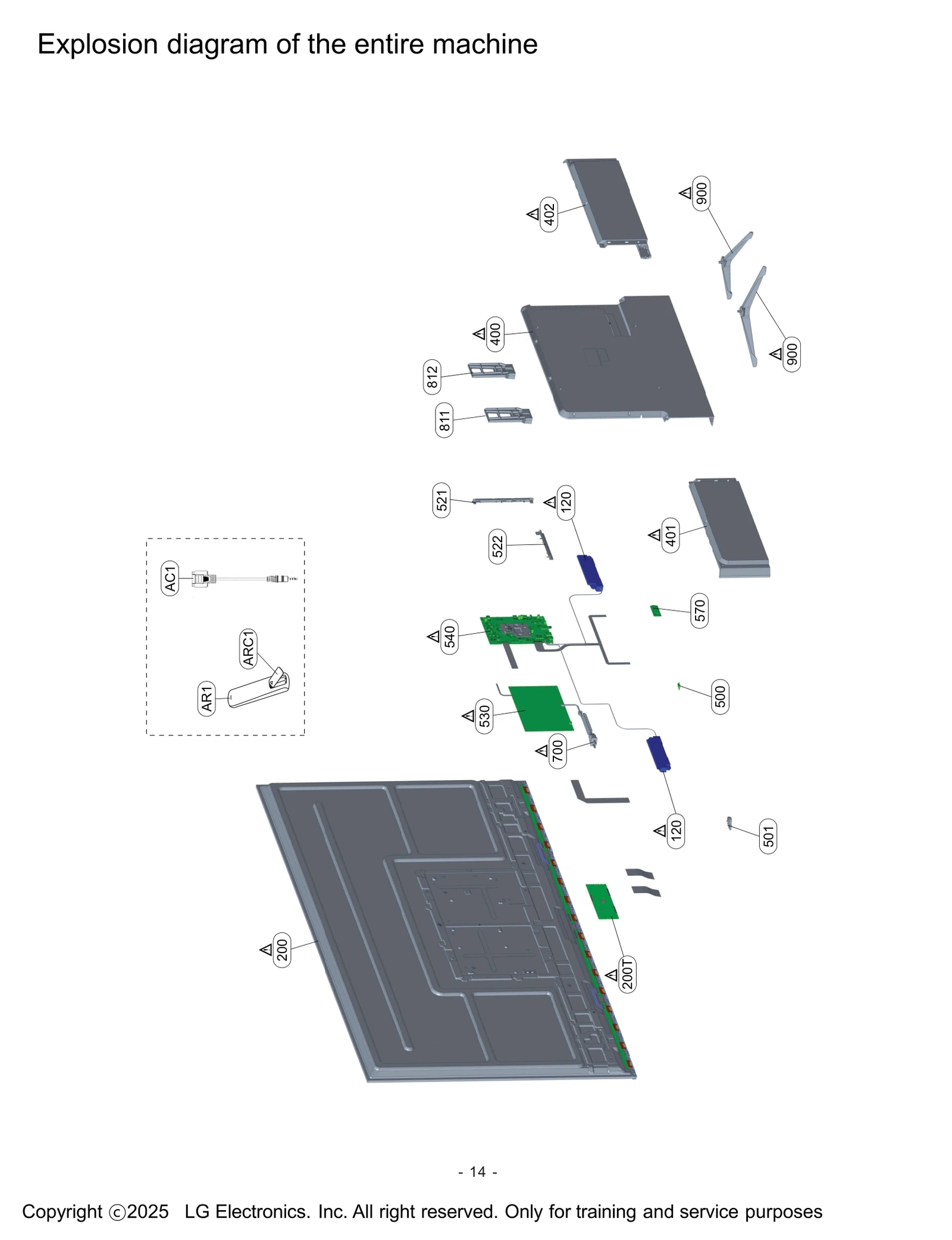

Model LG 86PK640S0UA – Common Parts & Diagrams

120
Speaker Assembly,Outsourcing
Speaker Assembly,Outsourcing LGE COV30211301 Contact Us For Availability
View on Model
200
Display Module,Outsourcing
Display Module,Outsourcing LGE COV30824201 Contact Us For Availability
View on Model
400
Cover,Outsourcing
Cover,Outsourcing LGE COV30584501 Contact Us For Availability
View on Model
402
Cover Assembly,Outsourcing
Cover Assembly,Outsourcing LGE COV30228002 Contact Us For Availability
View on Model
500
PCB Assembly,Sub,Outsourcing
PCB Assembly,Sub,Outsourcing LGE COV30824001 Contact Us For Availability
View on Model
501
Lens,Outsourcing
Lens,Outsourcing LGE COV30822901 Contact Us For Availability
View on Model
521
Cover,Outsourcing
Cover,Outsourcing LGE COV30824401 Contact Us For Availability
View on Model
522
Cover,Outsourcing
Cover,Outsourcing LGE COV30824301 Contact Us For Availability
View on Model
530
Power Supply Assembly,Outsourcing
Power Supply Assembly,Outsourcing LGE COV30218701 Contact Us For Availability
View on Model
540
Mainboard,ORP Total Assembly,SVC
Mainboard,ORP Total Assembly,SVC LGE EBU30377801 Contact Us For Availability
View on Model
700
Power Cord,Outsourcing
Power Cord,Outsourcing LGE COV30210901 Contact Us For Availability
View on Model
811
Bracket Assembly,Outsourcing
Bracket Assembly,Outsourcing LGE COV30229301 Contact Us For Availability
View on Model
812
Bracket Assembly,Outsourcing
Bracket Assembly,Outsourcing LGE COV30229302 Contact Us For Availability
View on Model
900
Base Assembly,Outsourcing
Base Assembly,Outsourcing LGE COV30229101 Contact Us For Availability
View on Model
AC1
Cable,Assembly
Cable,Assembly LGE EAD62707906 Contact Us For Availability
View on Model
AR1
Remote Controller Assembly
Remote Controller Assembly LGE AKB75095376 Contact Us For Availability
View on Model
ARC1
Cover
Cover LGE MCK67552801 Contact Us For Availability
View on Model

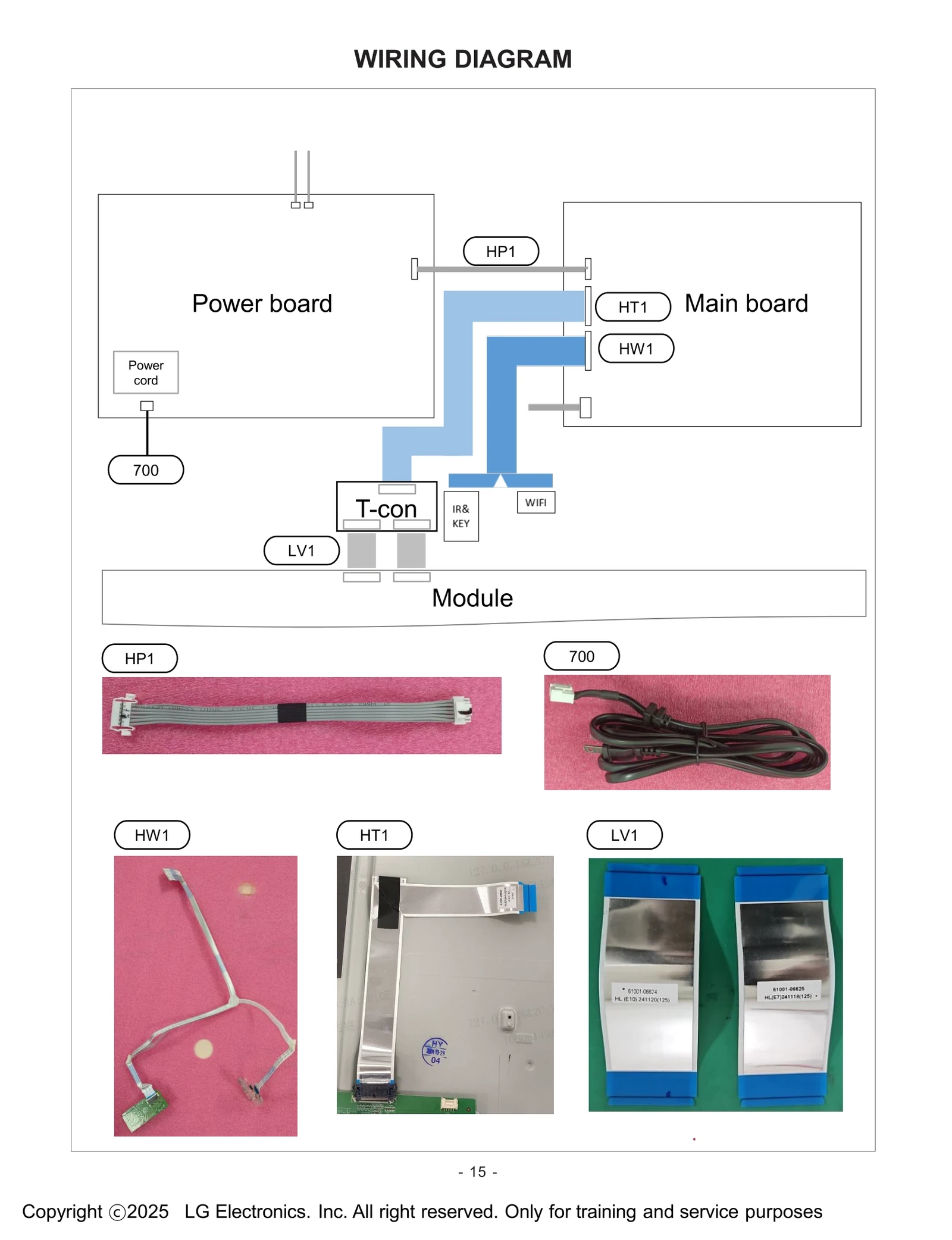

HP1
HARNESS,Outsourcing
HARNESS,Outsourcing LGE COV30212301 Contact Us For Availability
View on Model
HT1
FFC Cable,Outsourcing
FFC Cable,Outsourcing LGE COV30211701 Contact Us For Availability
View on Model
HW1
FFC Cable,Outsourcing
FFC Cable,Outsourcing LGE COV30211801 Contact Us For Availability
View on Model
LV1
FFC Cable,Outsourcing
FFC Cable,Outsourcing LGE COV30094301 Contact Us For Availability
View on Model
