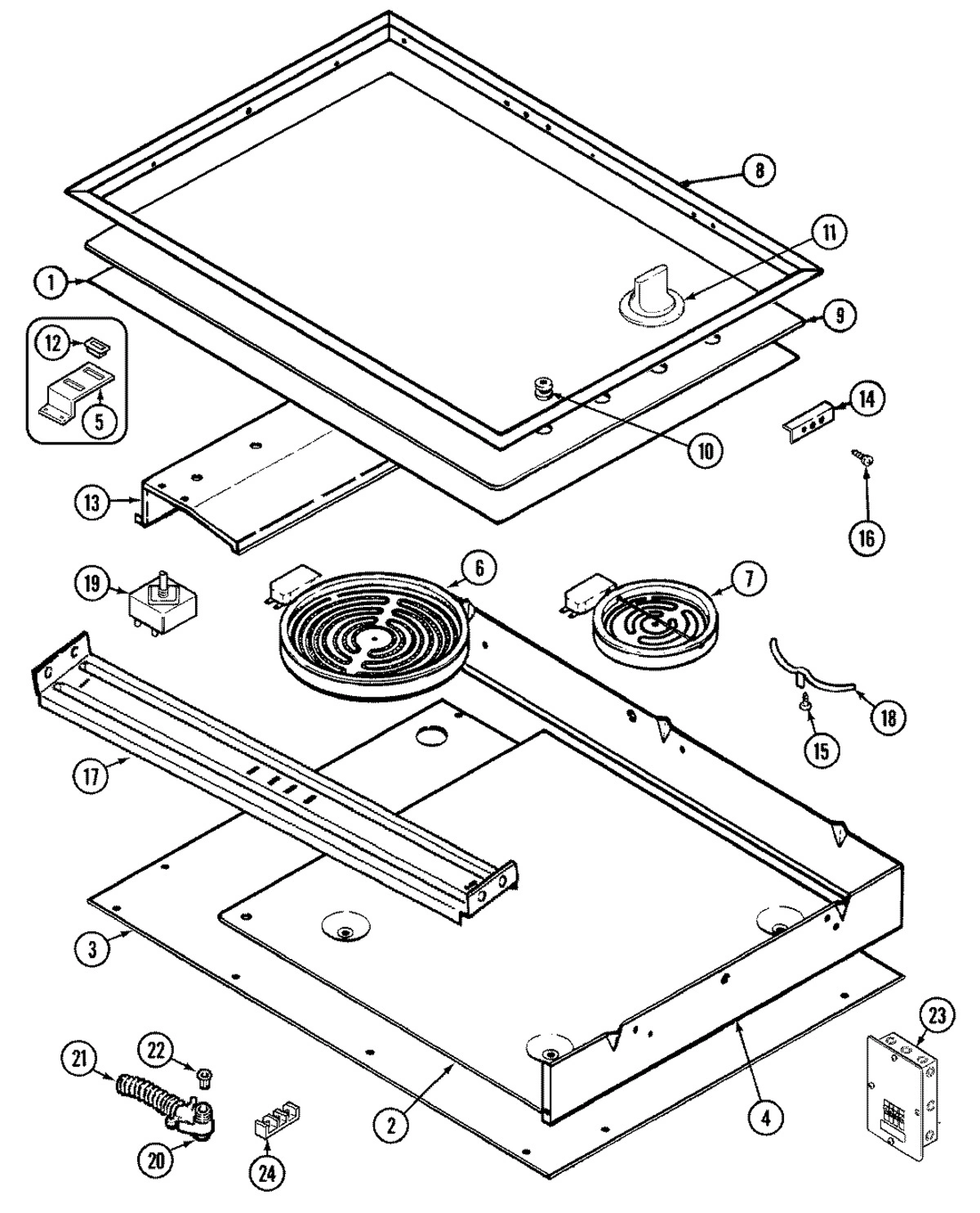

Model Whirlpool 8670RV ELECTRIC COOK-TOP – Common Parts & Diagrams

1
BAFFLE, CERAMIC TOP
BAFFLE, CERAMIC TOP WPL 74001490 Contact Us For Availability
View on Model
2
BAFFLE, HEAT----NA
BAFFLE, HEAT----NA WPL 3601F17351 Contact Us For Availability
View on Model
3
SCREW
SCREW WPL 7101P05960 Contact Us For Availability
View on Model
3
BOX, BURNER
BOX, BURNER WPL 74001491 Contact Us For Availability
View on Model
4
SIDES, BURNER BOX
SIDES, BURNER BOX WPL 74001430 Contact Us For Availability
View on Model
5
BRACKET
BRACKET WPL 3801F31345 Contact Us For Availability
View on Model
6
LIMITER KIT (8``)
LIMITER KIT (8``) WPL 12500040 Contact Us For Availability
View on Model
6
LIMITER (8``)
LIMITER (8``) WPL 74002652 Contact Us For Availability
View on Model
7
LIMITER
LIMITER WPL 74004494 Contact Us For Availability
View on Model
7
LIMITER KIT (6``)
LIMITER KIT (6``) WPL 12500041 Contact Us For Availability
View on Model
8
FRAME, MAIN TOP (WHT)
FRAME, MAIN TOP (WHT) WPL 74002255 Contact Us For Availability
View on Model
8
FRAME, MAIN TOP
FRAME, MAIN TOP WPL 7746P02960 Contact Us For Availability
View on Model
9
SPACER, RUBBER
SPACER, RUBBER WPL 74001497 Contact Us For Availability
View on Model
9
TOP, MAIN (GLASS-WHT)
TOP, MAIN (GLASS-WHT) WPL 7918P07060 Contact Us For Availability
View on Model
10
GROMMET
GROMMET WPL 8008P03360 Contact Us For Availability
View on Model
11
KNOB, SWITCH
KNOB, SWITCH WPL 7737P02960 Contact Us For Availability
View on Model
12
LIGHT, INDICATOR
LIGHT, INDICATOR WPL 7407P09860 Contact Us For Availability
View on Model
13
PLATE, SWITCH MTG
PLATE, SWITCH MTG WPL 3605F17545 Contact Us For Availability
View on Model
13
NUT 10-24
NUT 10-24 WPL 7103P07160 Contact Us For Availability
View on Model
13
SCREW
SCREW WPL 7118P00460 Contact Us For Availability
View on Model
14
RETAINER, MAIN TOP GLASS
RETAINER, MAIN TOP GLASS WPL 3804F09245 Contact Us For Availability
View on Model
14
RETAINER, MAIN TOP
RETAINER, MAIN TOP WPL 74002256 Contact Us For Availability
View on Model
16
SCREW
SCREW WPL 7101P05860 Contact Us For Availability
View on Model
17
SUPPORT, CERAMIC ELEMENT
SUPPORT, CERAMIC ELEMENT WPL 3807F32680 Contact Us For Availability
View on Model
17
SCREW (1/2``)
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
View on Model
18
SUPPORT, ELEMENT
SUPPORT, ELEMENT WPL 8004P01560 Contact Us For Availability
View on Model
19
SCREW
SCREW WPL 7101P30960 Contact Us For Availability
View on Model
19
SEAL, GASKET INF. SW.
SEAL, GASKET INF. SW. WPL 7212P03060 Contact Us For Availability
View on Model
19
SWITCH, INFINITE (1400W)
SWITCH, INFINITE (1400W) WPL 7403P26660 Contact Us For Availability
View on Model
19
SWITCH, INFINITE (2400W)
SWITCH, INFINITE (2400W) WPL 7403P26760 Contact Us For Availability
View on Model
20
CONNECTOR, TUBING
CONNECTOR, TUBING WPL 74003912 Contact Us For Availability
View on Model
21
BRACKET, CONDUIT
BRACKET, CONDUIT WPL 3801F07245 Contact Us For Availability
View on Model
21
TUBING, CONDUIT
TUBING, CONDUIT WPL 74005433 Contact Us For Availability
View on Model
22
SLEEVE, TUBE
SLEEVE, TUBE WPL 8018P00160 Contact Us For Availability
View on Model
24
HARNESS, WIRE
HARNESS, WIRE WPL 74004956 Contact Us For Availability
View on Model
24
BLOCK, TERMINAL
BLOCK, TERMINAL WPL 7401P01560 Contact Us For Availability
View on Model
25
NAMEPLATE, MAGIC CHEF (WHT)
NAMEPLATE, MAGIC CHEF (WHT) WPL 7719P06860 Contact Us For Availability
View on Model
26
CLEANER, ELCO
CLEANER, ELCO WPL 8308P00260 Contact Us For Availability
View on Model
26
SCRAPER, RAZOR
SCRAPER, RAZOR WPL 8312P00160 Contact Us For Availability
View on Model
27
MANUAL, USE & CARE
MANUAL, USE & CARE WPL 8112P10260 Contact Us For Availability
View on Model
NI

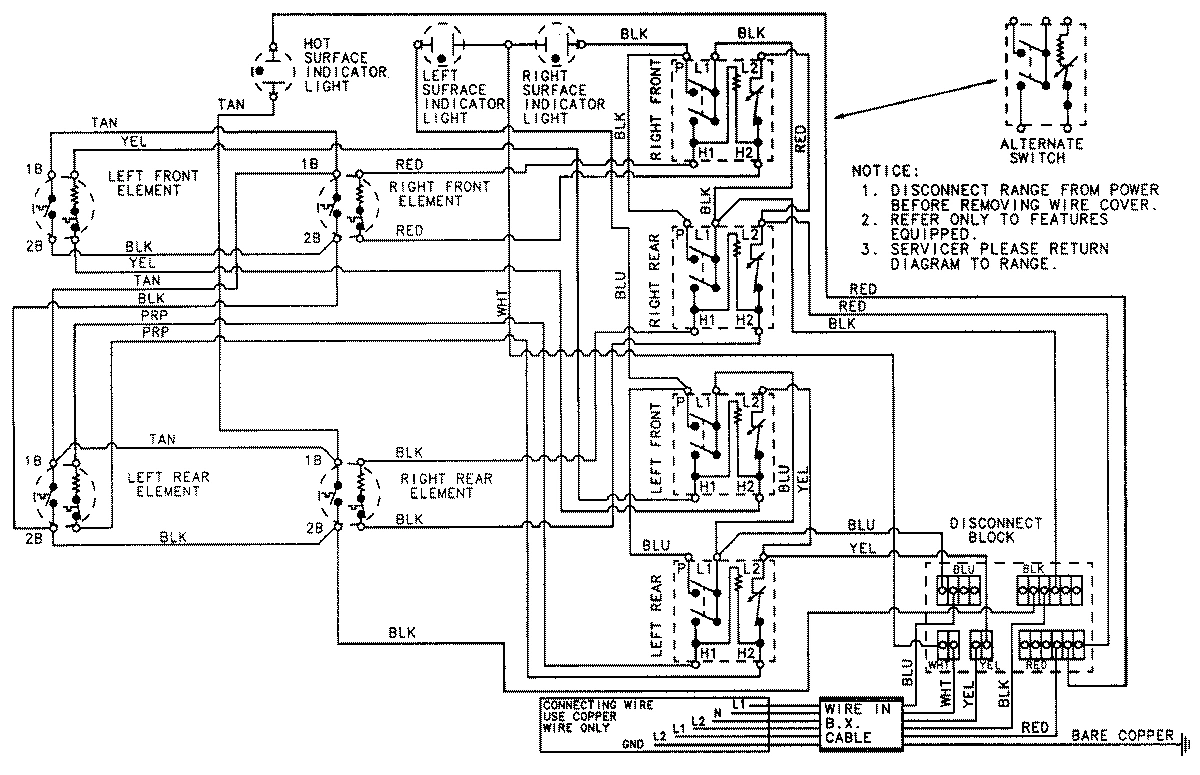

WIRING INFORMATION
WIRING INFORMATION WPL 15001149 Contact Us For Availability
View on Model
