Model Whirlpool 8617W0B REFRIGERATOR – Common Parts & Diagrams

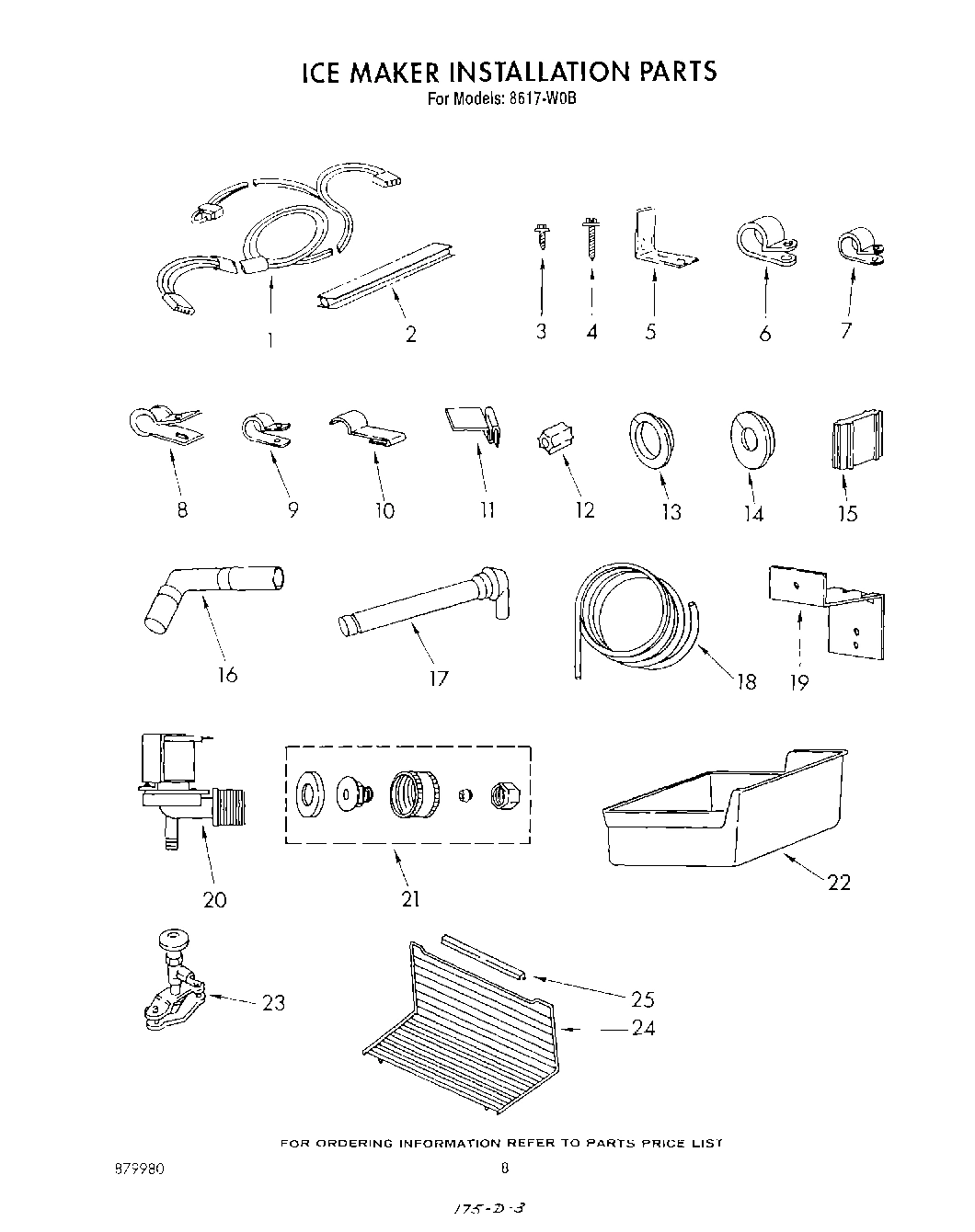

05 - ICE MAKER INSTALLATION

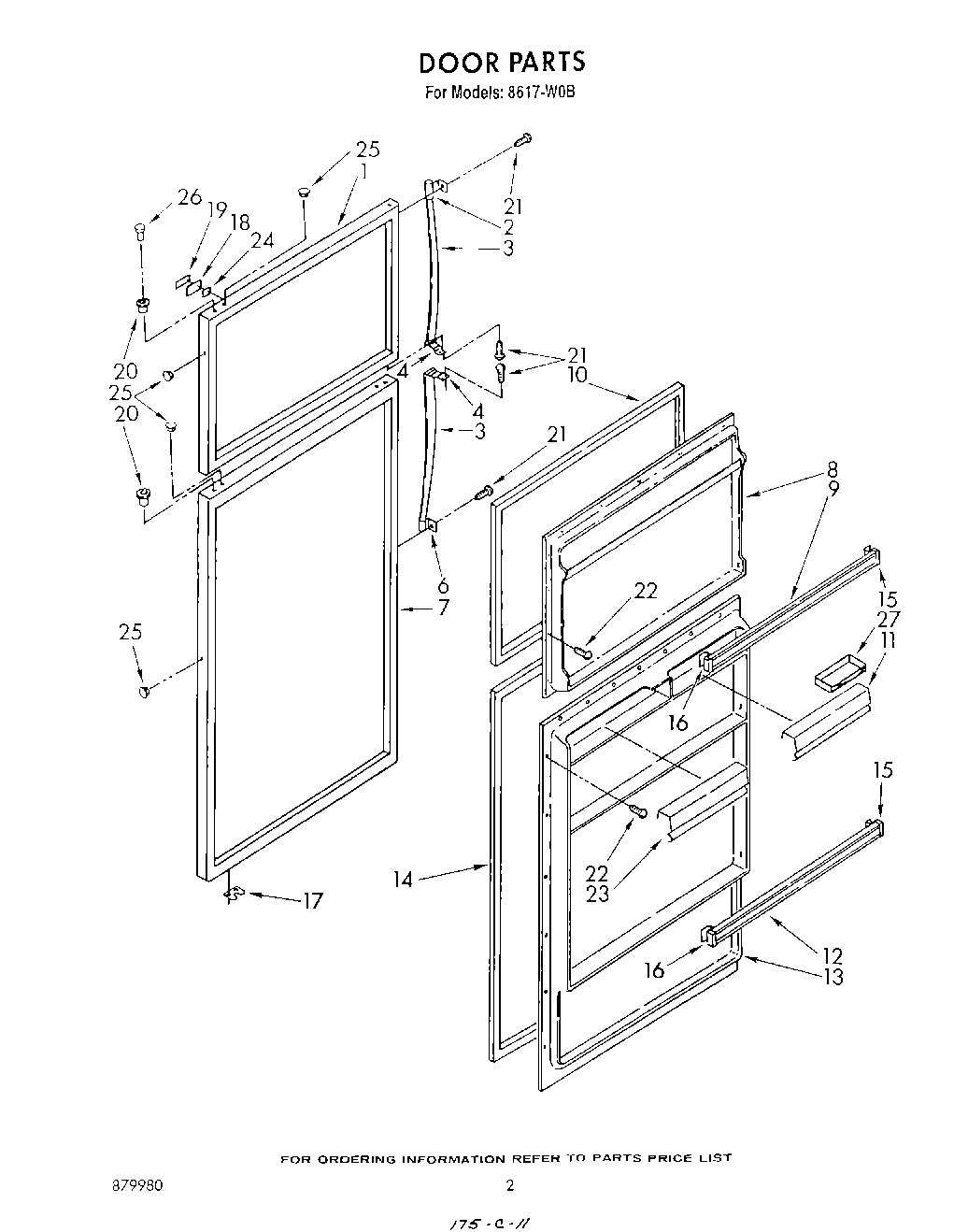

02 - DOOR

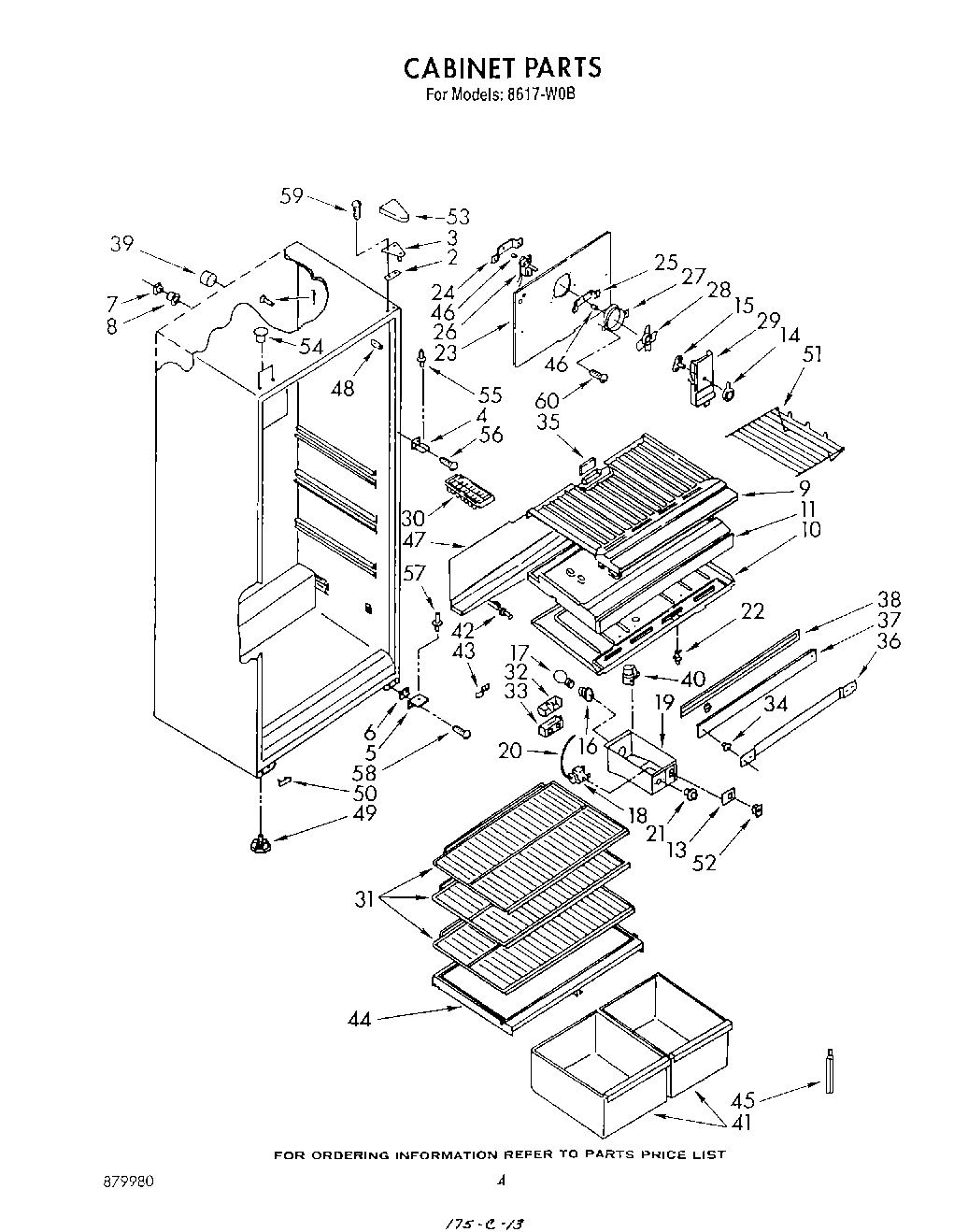

03 - CABINET

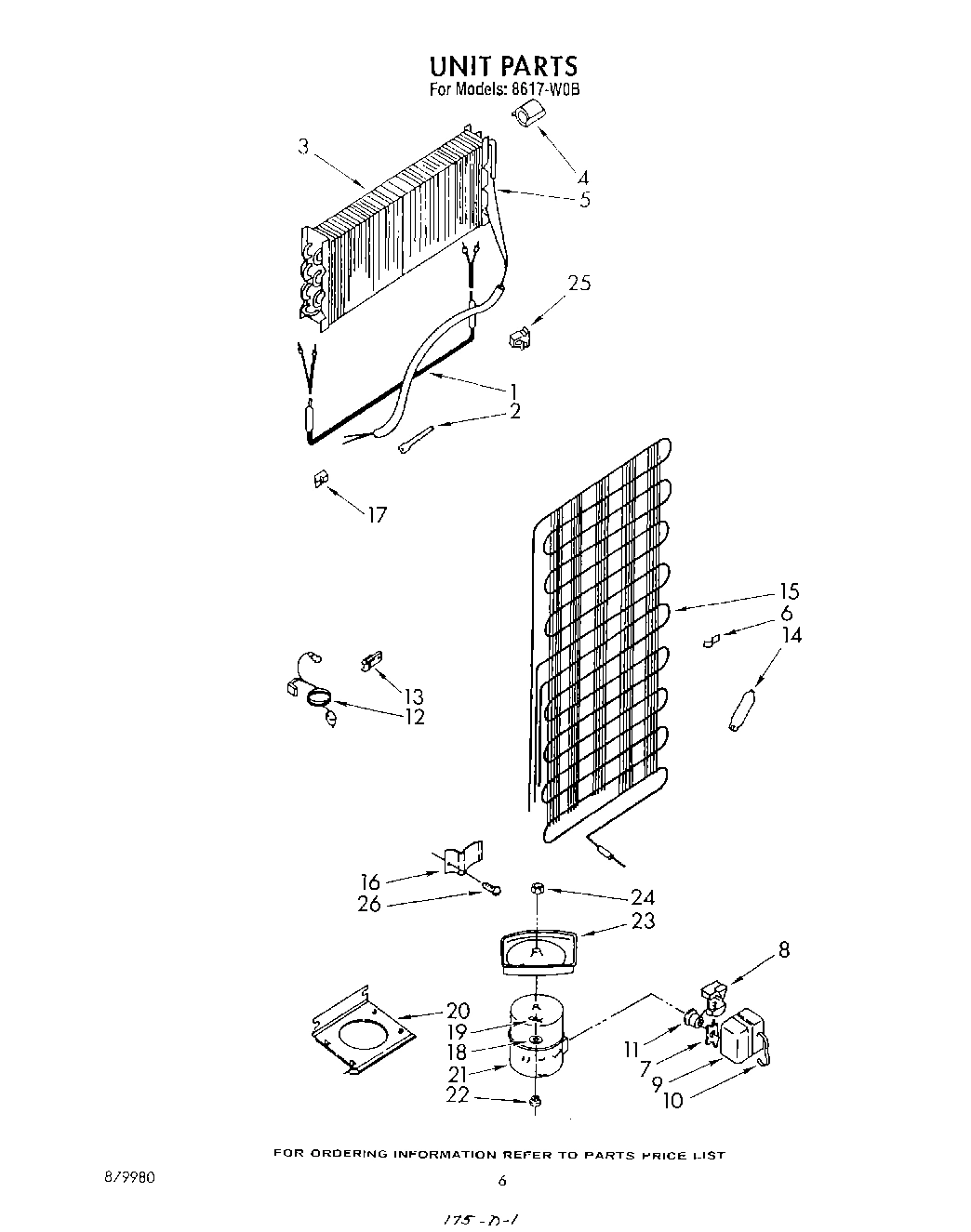

04 - UNIT

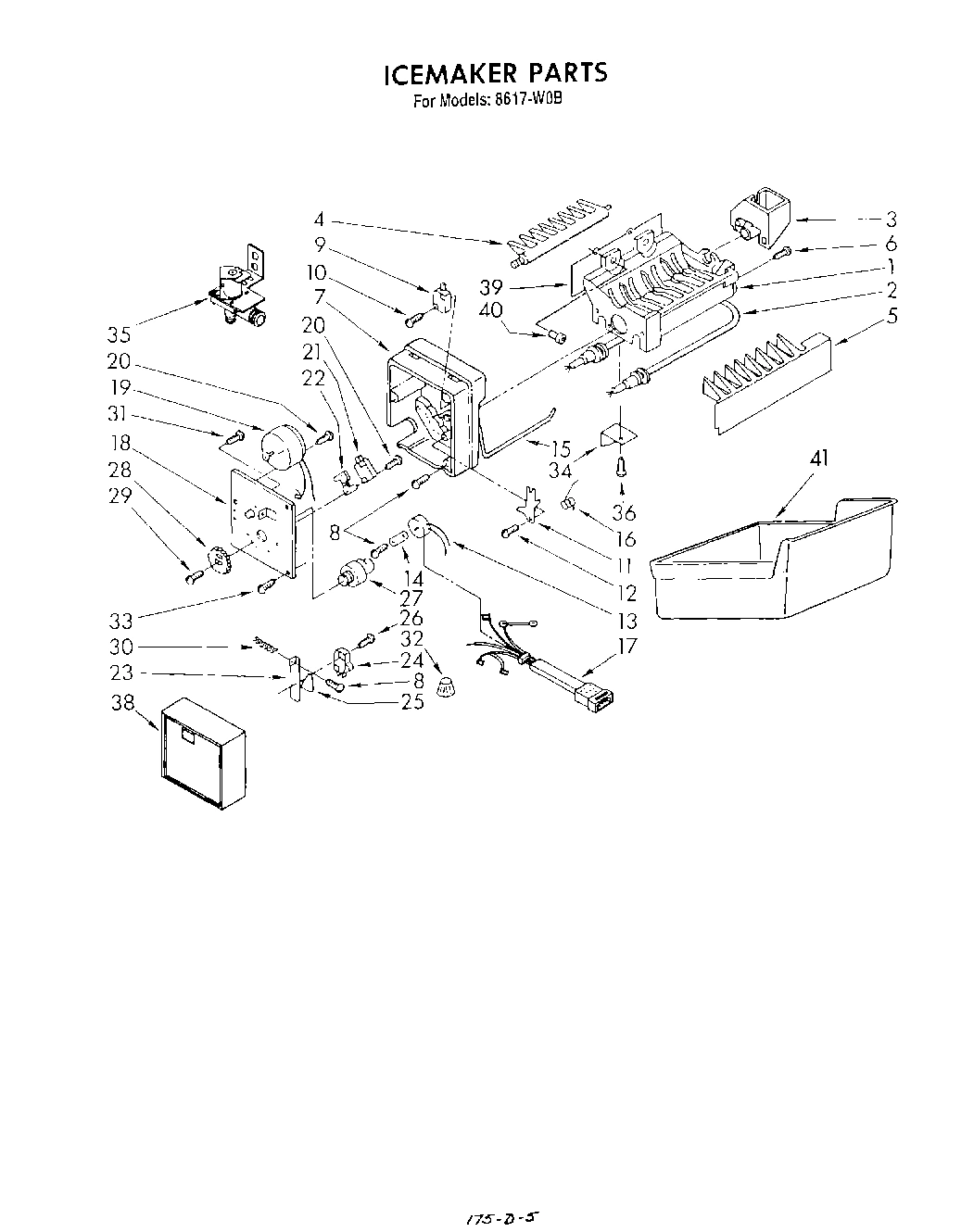

06 - ICE MAKER
Common parts from model Whirlpool 8617W0B REFRIGERATOR
Part List WPL LIT879980 Contact Us For Availability
1
Wiring Harness WPL 4339654 Contact Us For Availability
1
Freezer Door (White) WPL 4339561 Contact Us For Availability
1
Freezer Door (Avocado) WPL 4339616 Contact Us For Availability
1
Freezer Door (Harvest) WPL 4339617 Contact Us For Availability
1
Freezer Door (Coffee) WPL 4339618 Contact Us For Availability
1
Freezer Door (Almond) WPL 4339619 Contact Us For Availability
1
Freezer Door (Toast) WPL 4339620 Contact Us For Availability
1
Freezer Door (Platinum) WPL 4339621 Contact Us For Availability
1
Support, Coil Cover WPL 4339441 Contact Us For Availability
1
Heater, Defrost WPL 4339575 Contact Us For Availability
1
Mold & Heater Assembly WPL 4339679 Contact Us For Availability
2
Strip, Sealing WPL 4339655 Contact Us For Availability
2
End Cap (Top) WPL 4339562 Contact Us For Availability
2
Bracket, Hinge Top WPL 4339442 Contact Us For Availability
2
Clip, Heater WPL 4339518 Contact Us For Availability
2
Heater, Mold WPL 4339680 Contact Us For Availability
3
Handle Center Freezer WPL 4339424 Contact Us For Availability
3
Shim, Upper Hinge WPL 4339448 Contact Us For Availability
3
Evaporator WPL 4339576 Contact Us For Availability
3
Bearing & Inlet WPL 4339681 Contact Us For Availability
4
Screw, Ice Maker Mounting WPL 4339656 Contact Us For Availability
4
Center End Cap WPL 4339423 Contact Us For Availability
4
Bracket, Center Hinge WPL 4339449 Contact Us For Availability
4
Defrost, Bi-Metal WPL 4339520 Contact Us For Availability
5
Bracket, Lower Hinge WPL 4342850 Contact Us For Availability
5
Heat, Exchanger WPL 4339577 Contact Us For Availability
5
Ice Stripper WPL 4339683 Contact Us For Availability
6
Clamp, Wiring Harness WPL 4339657 Contact Us For Availability
6
End Cap (Bottom) WPL 4339563 Contact Us For Availability
6
Shim, Lower Hinge WPL 4339456 Contact Us For Availability
6
Clamp Tube WPL 4339522 Contact Us For Availability
7
Clamp, Harness & Inlet Tube WPL 4339501 Contact Us For Availability
7
Refrigerator Door (White) WPL 4339564 Contact Us For Availability
7
Refrigerator Door (Avocado) WPL 4339622 Contact Us For Availability
7
Refrigerator Door (Harvest) WPL 4339623 Contact Us For Availability
7
Refrigerator Door (Coffee) WPL 4339624 Contact Us For Availability
7
Refrigerator Door (Almond) WPL 4339625 Contact Us For Availability
7
Refrigerator Door (Toast) WPL 4339626 Contact Us For Availability
7
Refrigerator Door (Platinum) WPL 4339627 Contact Us For Availability
7
Ferrule, Inner WPL 4339457 Contact Us For Availability
7
Clip, Overload WPL 4339523 Contact Us For Availability
7
Support WPL 4339685 Contact Us For Availability
8
Clamp, Tube WPL 4339659 Contact Us For Availability
8
Interior Door Panel (Freezer) WPL 4339565 Contact Us For Availability
8
Ferrule, Outer WPL 4339458 Contact Us For Availability
8
Relay WPL 4342852 Contact Us For Availability
8
Screw, 8-32 X 1 WPL 4339686 Contact Us For Availability
9
Clamp, Inlet Tube WPL 4339660 Contact Us For Availability
9
Freezer Door Trim WPL 4339566 Contact Us For Availability
9
Bottom, Freezer WPL 4339542 Contact Us For Availability
9
Cover, Terminal WPL 4339525 Contact Us For Availability
9
Switch, S.P.D.T. WPL 4339687 Contact Us For Availability
10
Clip, Harness Location WPL 4339661 Contact Us For Availability
10
Top, Freezer WPL 4339543 Contact Us For Availability
10
Clamp Cover WPL 4339526 Contact Us For Availability
10
Screw, 4-24 X 3/4 WPL 4339688 Contact Us For Availability
11
Clip, Filler Tube WPL 4339662 Contact Us For Availability
11
Door, (Butter) WPL 4339567 Contact Us For Availability
11
Divider, Compartment WPL 4339544 Contact Us For Availability
11
Overload WPL 4342854 Contact Us For Availability
11
Lever Arm WPL 4339689 Contact Us For Availability
12
Refrigerator Door Trim WPL 4355119 Contact Us For Availability
12
Cord Service WPL 4339528 Contact Us For Availability
12
Shoulder Screw WPL 4339690 Contact Us For Availability
13
Clamp, Cable WPL 4339529 Contact Us For Availability
13
Bushing, Coil Cover WPL 4339664 Contact Us For Availability
13
Interior Door Panel Refrigerator WPL 4339569 Contact Us For Availability
13
Insert, Control Box WPL 4339464 Contact Us For Availability
13
Thermostat WPL 4339691 Contact Us For Availability
14
Plug, Rear Panel WPL 4339665 Contact Us For Availability
14
Refrigerator Door Gasket WPL 4339570 Contact Us For Availability
14
Knob, Damper Control WPL 4339465 Contact Us For Availability
14
Clamp WPL 4339692 Contact Us For Availability
15
Adapter, Plug WPL 4339666 Contact Us For Availability
15
End Cap Door Trim (L.H) WPL 4339571 Contact Us For Availability
15
Damper, Fan Cover WPL 4339466 Contact Us For Availability
15
Condenser WPL 4339531 Contact Us For Availability
15
Shut-Off Arm WPL 4339693 Contact Us For Availability
16
Tube, Water Fill WPL 4339667 Contact Us For Availability
16
End Cap Door Trim (R.H) WPL 4339572 Contact Us For Availability
16
Light Socket WPL 439468 Contact Us For Availability
16
Bracket, Condenser Mounting WPL 4339532 Contact Us For Availability
16
Spring, Shut-Off Arm WPL 4339694 Contact Us For Availability
17
Tube, Water Inlet WPL 4339668 Contact Us For Availability
17
Door Stop WPL 4339573 Contact Us For Availability
17
Bulb, Light WPL 4339469 Contact Us For Availability
17
Block, Evaporator (R.H) WPL 4339541 Contact Us For Availability
17
Wiring Harness WPL 4339695 Contact Us For Availability
18
Nameplate WPL 4339436 Contact Us For Availability
18
Thermostat WPL 4342851 Contact Us For Availability
18
Washer, Compressor Mounting WPL 4339534 Contact Us For Availability
18
Mounting Plate WPL 4339696 Contact Us For Availability
19
Bracket, Valve To Rear Panel WPL 4339670 Contact Us For Availability
19
Insert, Nameplate WPL 4339434 Contact Us For Availability
19
Control Box WPL 4339472 Contact Us For Availability
19
Clip, Compressor Mounting WPL 4339535 Contact Us For Availability
19
Motor WPL 4339697 Contact Us For Availability
20
Bearing Door Hinge (8) WPL 4339422 Contact Us For Availability
20
Tube, Plastic WPL 4339474 Contact Us For Availability
20
Plate, Compressor Mounting WPL 4339578 Contact Us For Availability
20
Screw, 4-40 x 1 WPL 4339698 Contact Us For Availability
21
Water Supply, Adapter WPL 4339672 Contact Us For Availability
21
Handle, Screw (8) WPL 4339425 Contact Us For Availability
21
Knob, Control WPL 4339475 Contact Us For Availability
21
Switch, S.P.D.T. WPL 4339699 Contact Us For Availability
22
Screw, No.8 x 1/2 WPL 4339429 Contact Us For Availability
22
Switch Light WPL 4342856 Contact Us For Availability
22
Grommet, Compressor WPL 4339539 Contact Us For Availability
22
Spacer, Holding Switch WPL 4339700 Contact Us For Availability
23
Saddle Valve Kit WPL 4339674 Contact Us For Availability
23
Door Compartment WPL 4339568 Contact Us For Availability
23
Evaporator Cover WPL 4339477 Contact Us For Availability
23
Defrost Pan WPL 4339579 Contact Us For Availability
23
Plate, Valve Switch WPL 4339701 Contact Us For Availability
24
Shelf, Ice Maker WPL 4339675 Contact Us For Availability
24
Support Shelf WPL 4339676 Contact Us For Availability
24
Tape WPL 4339435 Contact Us For Availability
24
Bracket, Rear Motor WPL 4339479 Contact Us For Availability
24
Nut, Lock WPL 4339540 Contact Us For Availability
24
Switch, S.P.S.T. WPL 4339702 Contact Us For Availability
25
Nut, Damper WPL 4339467 Contact Us For Availability
25
Screw, Thermostat WPL 4339471 Contact Us For Availability
25
Nut No.8 U Type WPL 4339483 Contact Us For Availability
25
Washer, Spacer Mullion Mounting WPL 4339491 Contact Us For Availability
25
Screw, Defrost Timer WPL 4339498 Contact Us For Availability
25
Button, Plug Water Tube Hole WPL 4339510 Contact Us For Availability
25
Button Plug, Harness Hole Ice Maker WPL 4339511 Contact Us For Availability
25
Button, Decorative Plug WPL 4339513 Contact Us For Availability
25
Button, Plug Liner Holes WPL 4339514 Contact Us For Availability
25
Wiring Harness WPL 4339515 Contact Us For Availability
25
Ring, Seal Defrost Drain Tube WPL 4339553 Contact Us For Availability
25
Nut, Leveling WPL 4339559 Contact Us For Availability
25
Hanger, Shelf WPL 4339678 Contact Us For Availability
25
Hole Plug, Handle Door (White) WPL 4339438 Contact Us For Availability
25
Hole Plug, Handle Door (Avocado) WPL 4339588 Contact Us For Availability
25
Hole Plug, Handle Door (Harvest) WPL 4339589 Contact Us For Availability
25
Hole Plug, Handle Door (Coffee) WPL 4339590 Contact Us For Availability
25
Hole Plug, Handle Door (Almond) WPL 4339591 Contact Us For Availability
25
Hole Plug, Handle Door (Toast) WPL 4339628 Contact Us For Availability
25
Hole Plug, Handle Door (Platinum) WPL 4339629 Contact Us For Availability
25
Bracket, Front Motor WPL 4339480 Contact Us For Availability
25
Block, Evaporator WPL 4339533 Contact Us For Availability
25
Insulator, Switch WPL 4339703 Contact Us For Availability
26
Hole Plug, Bearing Hinge (White) WPL 4339439 Contact Us For Availability
26
Hole Plug, Bearing WPL 4339592 Contact Us For Availability
26
WPL 4339593 WPL 4339593 Contact Us For Availability
26
WPL 4339594 WPL 4339594 Contact Us For Availability
26
WPL 4339595 WPL 4339595 Contact Us For Availability
26
WPL 4339630 WPL 4339630 Contact Us For Availability
26
WPL 4339631 WPL 4339631 Contact Us For Availability
26
Fan Motor WPL 4339481 Contact Us For Availability
26
Screw, 4-40 x 3/4 WPL 4339704 Contact Us For Availability
27
WPL 4339516 WPL 4339516 Contact Us For Availability
27
Ring, Motor Orfice WPL 4339482 Contact Us For Availability
27
Cam WPL 4339705 Contact Us For Availability
28
Fan Blade WPL 4339484 Contact Us For Availability
28
Gear WPL 4339706 Contact Us For Availability
29
Cover Fan WPL 4339547 Contact Us For Availability
29
Screw, Gear WPL 4339707 Contact Us For Availability
30
Spring WPL 4339708 Contact Us For Availability
31
Shelf, Sliding WPL 4339548 Contact Us For Availability
31
Screw, 8-32 x 1/4 WPL 4339709 Contact Us For Availability
32
Deflector, Air WPL 4339488 Contact Us For Availability
32
Connector Wire WPL 4339710 Contact Us For Availability
33
Cover, Air Deflector WPL 4339489 Contact Us For Availability
34
Spacer, Mullion Mounting WPL 4342855 Contact Us For Availability
35
Pan, Foam WPL 4339492 Contact Us For Availability
36
Clamp, Mullion Mounting WPL 4339493 Contact Us For Availability
36
Screw, 8-16 x 3/8 WPL 4339684 Contact Us For Availability
37
Mullion (White) WPL 4339550 Contact Us For Availability
37
Mullion (Avocado) WPL 4339642 Contact Us For Availability
37
Mullion (Harvest) WPL 4339643 Contact Us For Availability
37
Mullion (Coffee) WPL 4339644 Contact Us For Availability
37
Mullion (Almond) WPL 4339645 Contact Us For Availability
37
Mullion (Toast) WPL 4339646 Contact Us For Availability
37
Mullion (Platinum) WPL 4339647 Contact Us For Availability
38
Heater Mullion WPL 4339495 Contact Us For Availability
38
Cover WPL 4339658 Contact Us For Availability
39
Tube, In Ferrule WPL 4339496 Contact Us For Availability
39
Wiring Shield WPL 4339714 Contact Us For Availability
40
Timer Defrost WPL 4339497 Contact Us For Availability
40
Eyelet WPL 4339554 Contact Us For Availability
41
Pan Storage WPL 4339551 Contact Us For Availability
42
Tube, Defrost Drain WPL 4339552 Contact Us For Availability
44
Cover, Crisper WPL 4339555 Contact Us For Availability
45
Support, Crisper Cover WPL 4339556 Contact Us For Availability
46
Bushing, Motor Mounting WPL 4339504 Contact Us For Availability
47
Trough, Drain WPL 4339557 Contact Us For Availability
48
Corner Cabinet Trim (White) WPL 4339558 Contact Us For Availability
48
Corner Cabinet Trim (Avocado) WPL 4339648 Contact Us For Availability
48
Corner Cabinet Trim (Harvest) WPL 4339649 Contact Us For Availability
48
Corner Cabinet Trim (Coffee) WPL 4339650 Contact Us For Availability
48
Corner Cabinet Trim (Almond) WPL 4339651 Contact Us For Availability
48
Corner Cabinet Trim (Toas WPL 4339652 Contact Us For Availability
48
WPL 4339653 WPL 4339653 Contact Us For Availability
50
WPL 4339507 WPL 4339507 Contact Us For Availability
51
WPL 4339560 WPL 4339560 Contact Us For Availability
52
WPL 4339486 WPL 4339486 Contact Us For Availability
53
WPL 4339443 WPL 4339443 Contact Us For Availability
53
WPL 4339600 WPL 4339600 Contact Us For Availability
53
WPL 4339601 WPL 4339601 Contact Us For Availability
53
WPL 4339602 WPL 4339602 Contact Us For Availability
53
WPL 4339603 WPL 4339603 Contact Us For Availability
53
WPL 4339638 WPL 4339638 Contact Us For Availability
53
WPL 4339639 WPL 4339639 Contact Us For Availability
54
WPL 4339445 WPL 4339445 Contact Us For Availability
54
WPL 4339604 WPL 4339604 Contact Us For Availability
54
WPL 4339605 WPL 4339605 Contact Us For Availability
54
WPL 4339606 WPL 4339606 Contact Us For Availability
54
WPL 4339607 WPL 4339607 Contact Us For Availability
54
WPL 4339640 WPL 4339640 Contact Us For Availability
54
WPL 4339641 WPL 4339641 Contact Us For Availability
55
WPL 4339450 WPL 4339450 Contact Us For Availability
56
WPL 4339451 WPL 4339451 Contact Us For Availability
57
WPL 4339454 WPL 4339454 Contact Us For Availability
58
WPL 4339444 WPL 4339444 Contact Us For Availability
59
WPL 4339461 WPL 4339461 Contact Us For Availability
60
WPL 4339473 WPL 4339473 Contact Us For Availability
× ![]()
