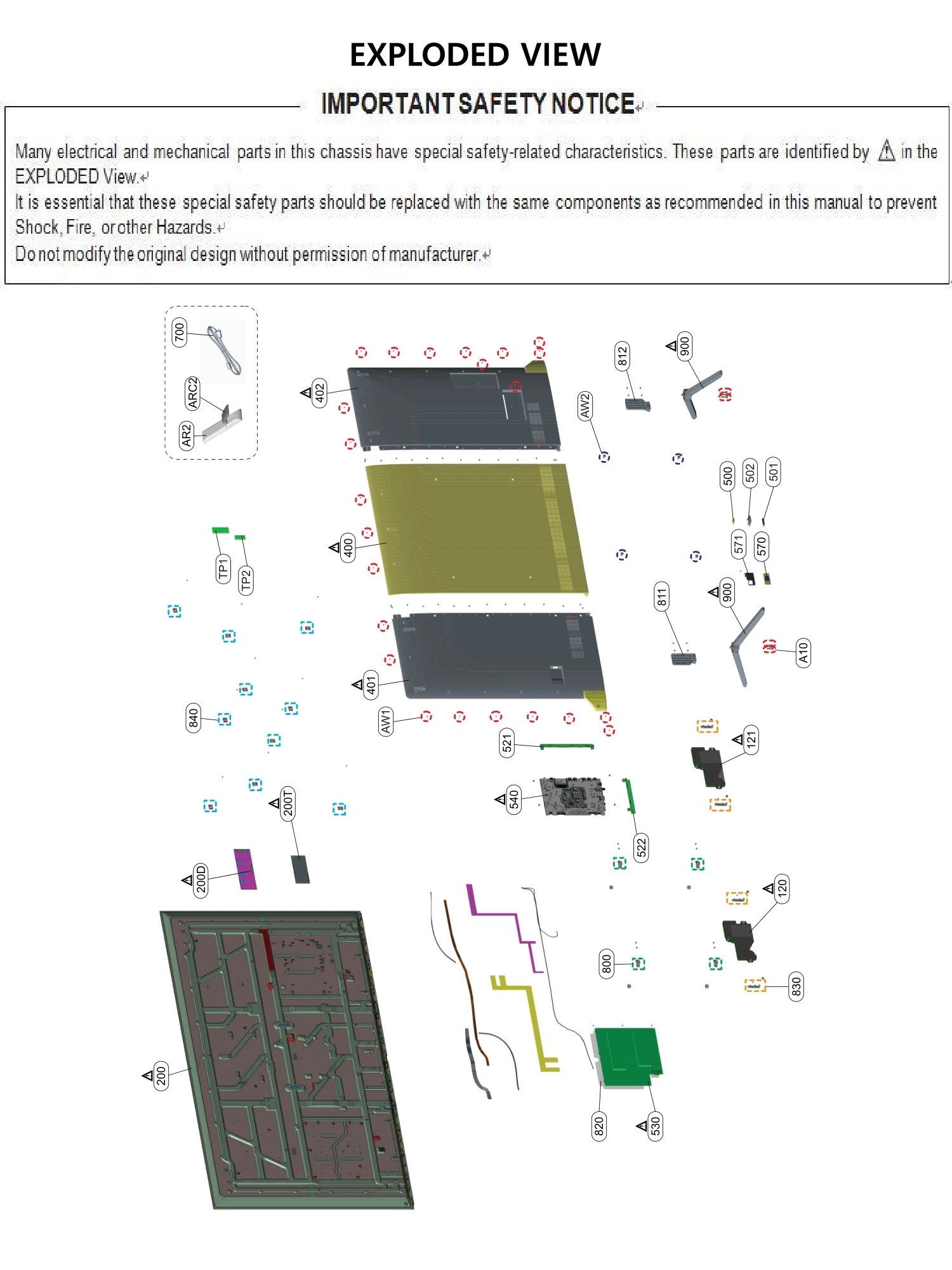

Model LG 85QNED92AUA – Common Parts & Diagrams

120
Speaker Assembly,Outsourcing
Speaker Assembly,Outsourcing LGE COV30253801 Contact Us For Availability
View on Model
200
Display Module,Outsourcing
Display Module,Outsourcing LGE COV30132801 Contact Us For Availability
View on Model
200D
PCB Assembly,Sub,Outsourcing
PCB Assembly,Sub,Outsourcing LGE COV30233801 Contact Us For Availability
View on Model
400
Cover Assembly,Outsourcing
Cover Assembly,Outsourcing LGE COV30280501 Contact Us For Availability
View on Model
401
Cover Assembly,Outsourcing
Cover Assembly,Outsourcing LGE COV30280401 Contact Us For Availability
View on Model
502
Bracket Assembly,Outsourcing
Bracket Assembly,Outsourcing LGE COV30281701 Contact Us For Availability
View on Model
521
Cover Assembly,Outsourcing
Cover Assembly,Outsourcing LGE COV30281001 Contact Us For Availability
View on Model
522
Cover Assembly,Outsourcing
Cover Assembly,Outsourcing LGE COV30281101 Contact Us For Availability
View on Model
530
Power Supply Assembly,Outsourcing
Power Supply Assembly,Outsourcing LGE COV30234201 Contact Us For Availability
View on Model
571
Bracket,Outsourcing
Bracket,Outsourcing LGE COV30281801 Contact Us For Availability
View on Model
811
Bracket Assembly,Outsourcing
Bracket Assembly,Outsourcing LGE COV30280901 Contact Us For Availability
View on Model
830
Supporter,Outsourcing
Supporter,Outsourcing LGE COV30281301 Contact Us For Availability
View on Model
840
Bracket Assembly,Outsourcing
Bracket Assembly,Outsourcing LGE COV30281401 Contact Us For Availability
View on Model
900
Base Assembly,Outsourcing
Base Assembly,Outsourcing LGE COV30280701 Contact Us For Availability
View on Model
A10
Screw Assembly,Outsourcing
Screw Assembly,Outsourcing LGE COV37883113 Contact Us For Availability
View on Model
AR2
Remote Controller Assembly
Remote Controller Assembly LGE AKB76046602 Contact Us For Availability
View on Model
ARC2
Part
Part LGE EBZ30385903 Contact Us For Availability
View on Model
AW1
Screw,Outsourcing
Screw,Outsourcing LGE COV36756303 Contact Us For Availability
View on Model
AW2
Screw,Outsourcing
Screw,Outsourcing LGE COV37884301 Contact Us For Availability
View on Model

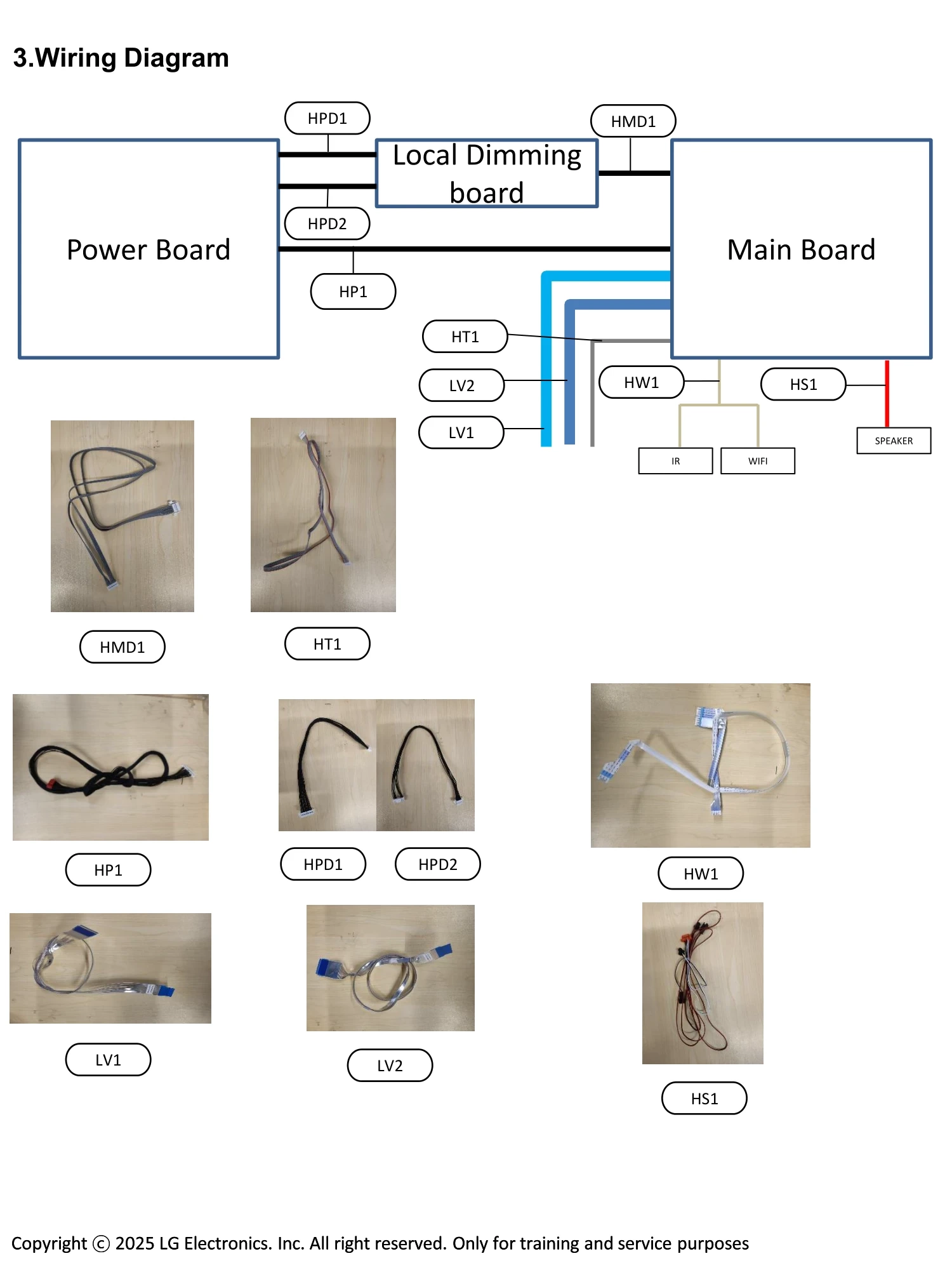

HMD1
HARNESS,Outsourcing
HARNESS,Outsourcing LGE COV30258501 Contact Us For Availability
View on Model
HP1
HARNESS,Outsourcing
HARNESS,Outsourcing LGE COV30256801 Contact Us For Availability
View on Model
HPD1
HARNESS,Outsourcing
HARNESS,Outsourcing LGE COV30257401 Contact Us For Availability
View on Model
HPD2
HARNESS,Outsourcing
HARNESS,Outsourcing LGE COV30257501 Contact Us For Availability
View on Model
HS1
HARNESS,Outsourcing
HARNESS,Outsourcing LGE COV30255901 Contact Us For Availability
View on Model
HW1
FFC Cable,Outsourcing
FFC Cable,Outsourcing LGE COV30256001 Contact Us For Availability
View on Model
LV1
FFC Cable,Outsourcing
FFC Cable,Outsourcing LGE COV30256301 Contact Us For Availability
View on Model
LV2
FFC Cable,Outsourcing
FFC Cable,Outsourcing LGE COV30256401 Contact Us For Availability
View on Model
TP1
Damper,Outsourcing
Damper,Outsourcing LGE COV30408501 Contact Us For Availability
View on Model
