Model LG 85955 – Common Parts & Diagrams
Diagram 0
Diagram 1

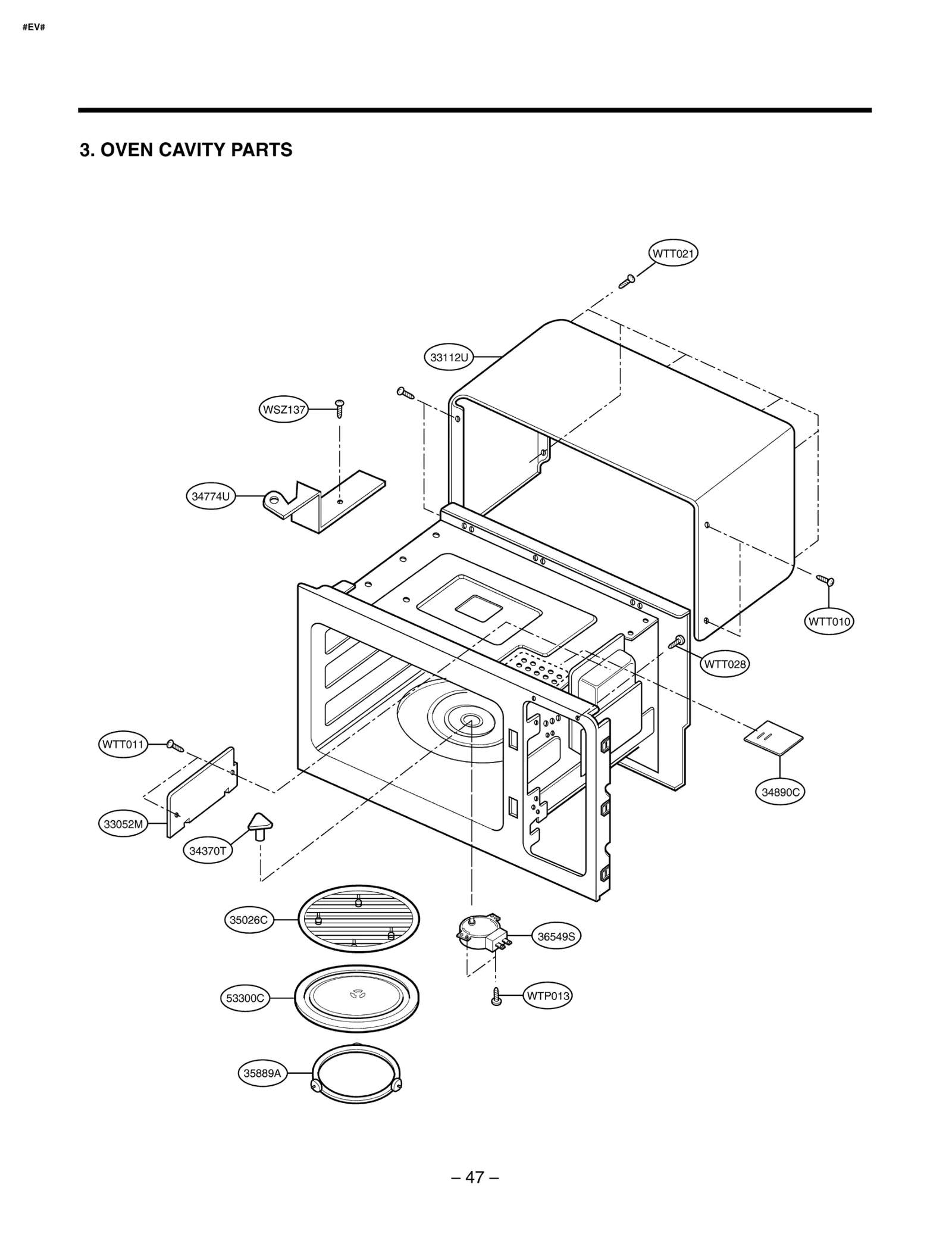

Diagram 2

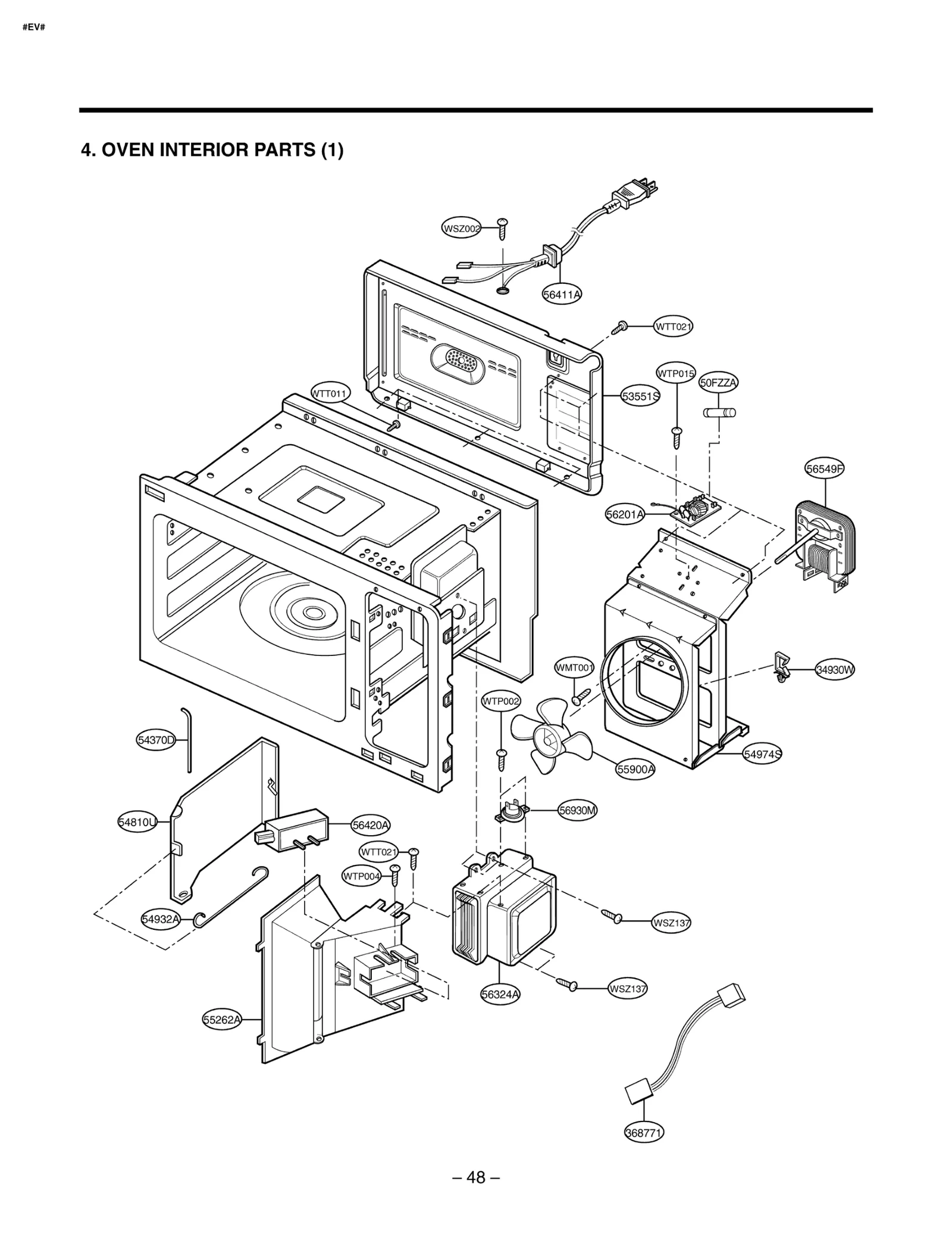

Diagram 3

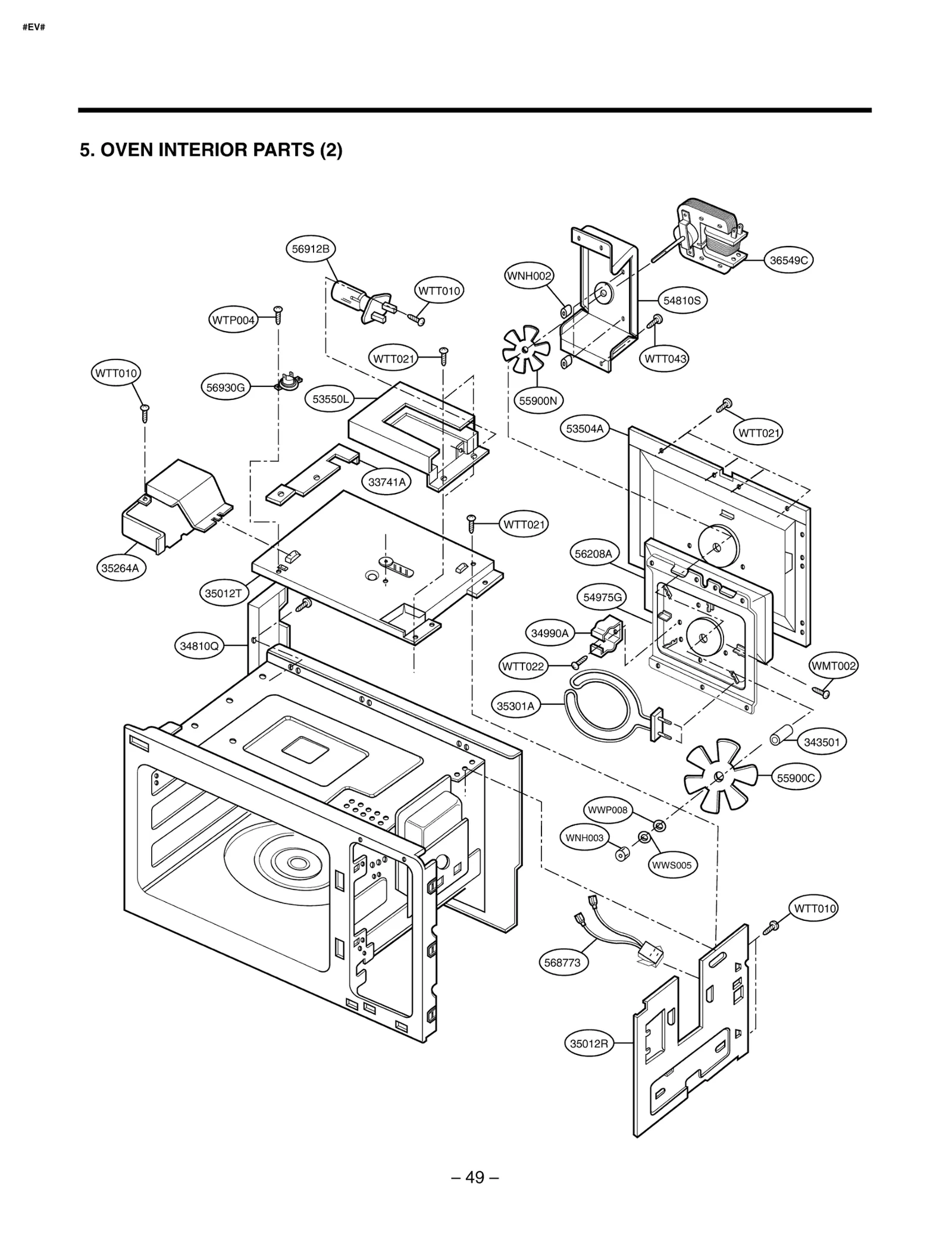

Diagram 4

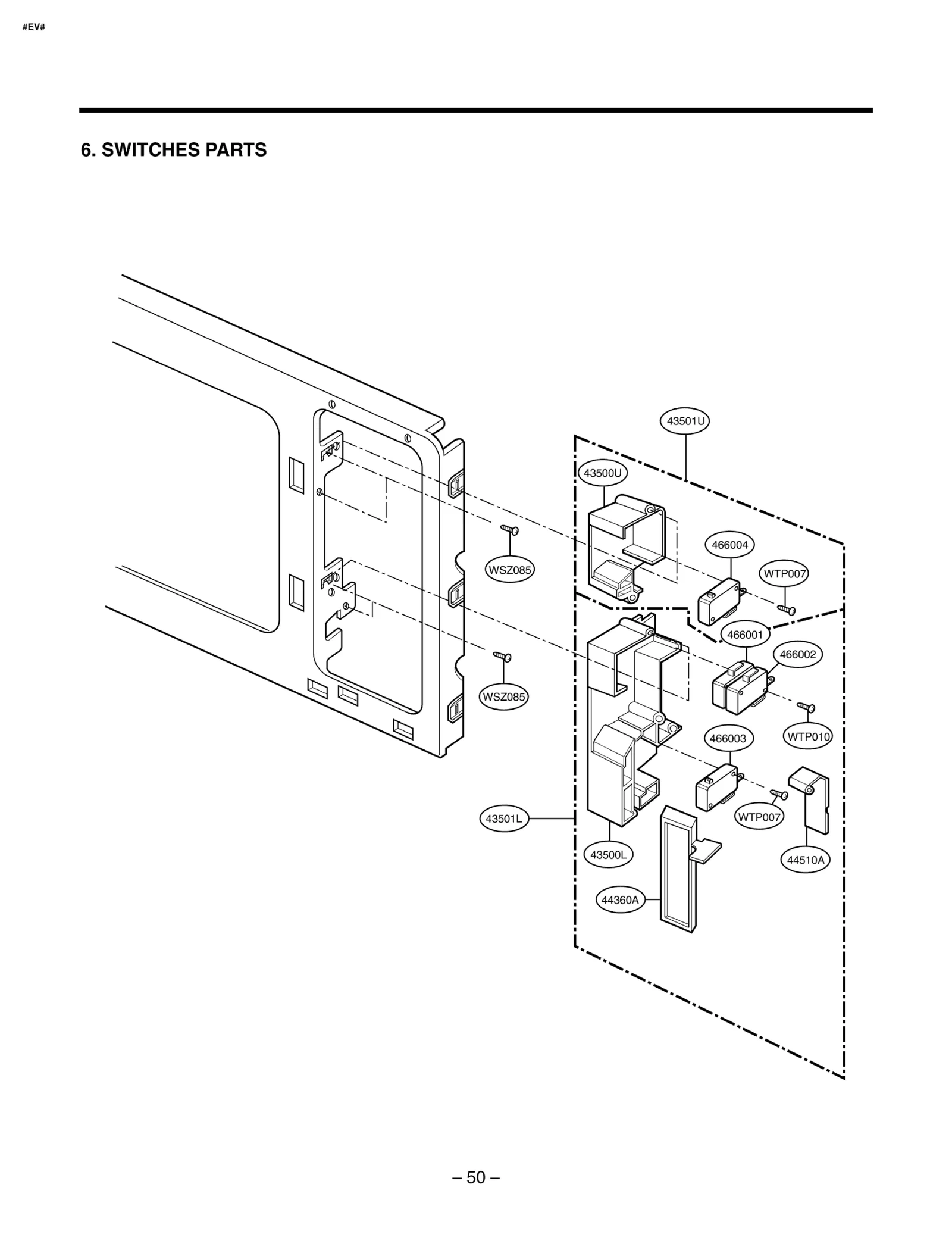

Diagram 5

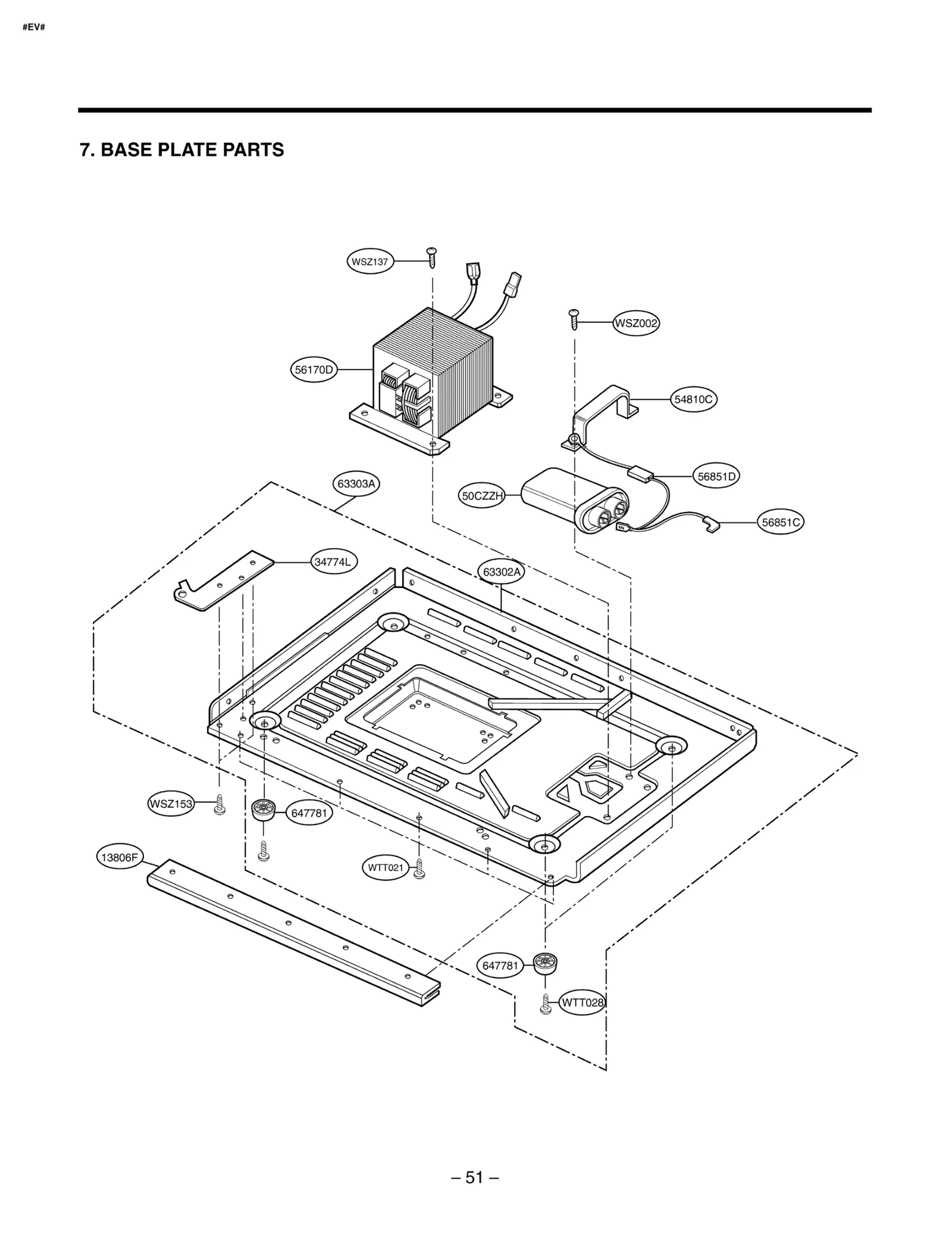

Diagram 6

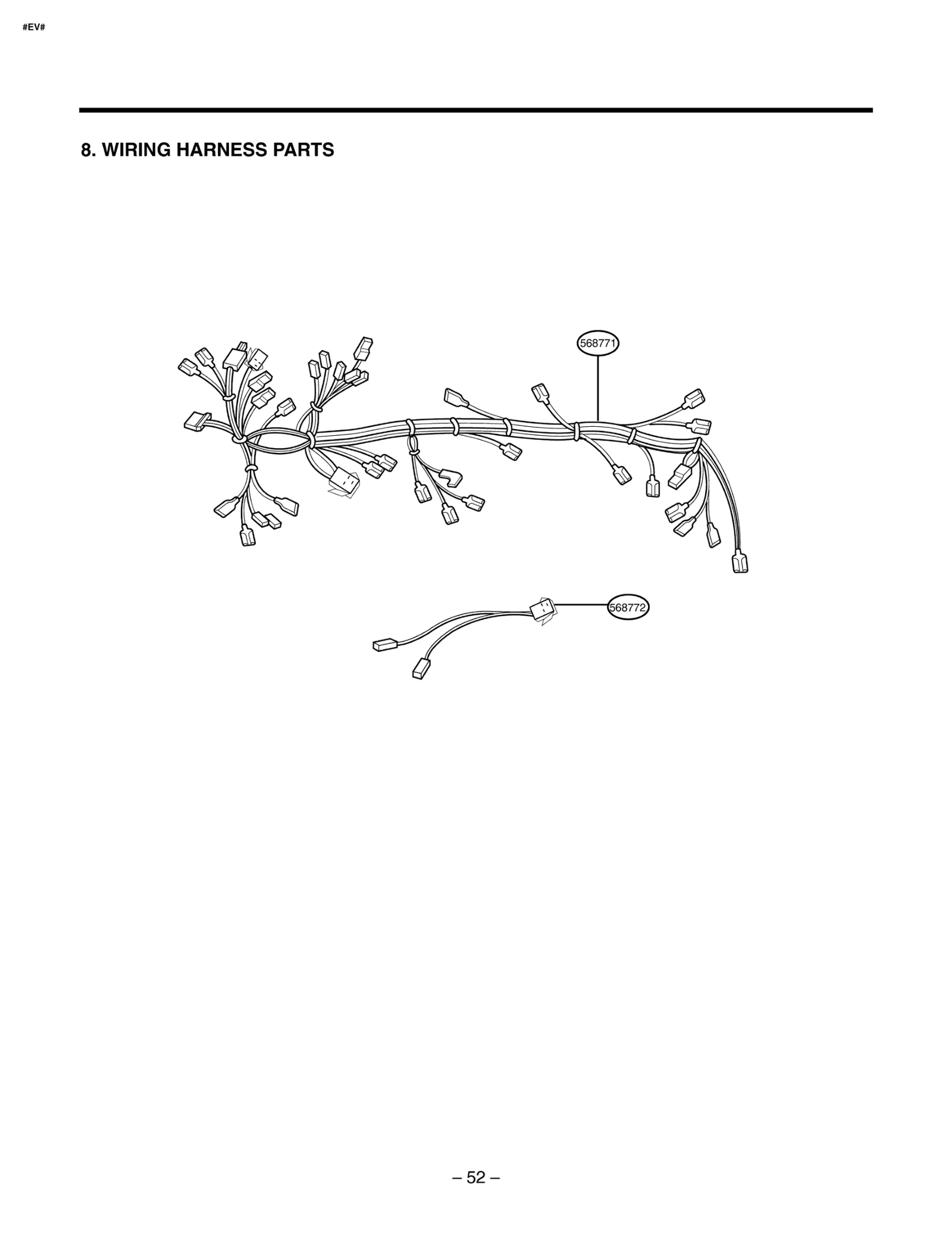

Diagram 7
Diagram 8
Common parts from model LG 85955
*01
LGE 3874W501050 LGE 3874W501050 Contact Us For Availability
*02
LGE 3828W5S6174 LGE 3828W5S6174 Contact Us For Availability
*10
BOX,[YELLOW] LGE 3890W2ZC16C Contact Us For Availability
50CZZH
CAPACITOR HIGH VOLTAGE MV-1121 LGE 6120W3H003F Contact Us For Availability
13806F
FRONT DECO PVC T1.2*L511(BR) LGE 3B70060C Contact Us For Availability
23572A
CONTROL PANEL MH-1355M LGE 3572W1A043C Contact Us For Availability
23790D
WINDOW-DIGITRON MH-135 S PMMA( LGE 3790W3D009B Contact Us For Availability
24510L
LGE 3B73251A LGE 3B73251A Contact Us For Availability
24781M
LGE 4781W1M160B LGE 4781W1M160B Contact Us For Availability
24970A
RELEASE BUTTON SPRING(4158808) LGE 4B72388A Contact Us For Availability
33052M
OUTLET COVER LGE 4B73904A Contact Us For Availability
33112U
LGE 0B71047J LGE 0B71047J Contact Us For Availability
33741A
LGE 3B73691A LGE 3B73691A Contact Us For Availability
34370T
TURN TABLE SHAFT MH-1354P LGE 4B75372A Contact Us For Availability
34774L
HINGE PLATE-L SCP T3.0 LGE 4B73895A Contact Us For Availability
34774U
HINGE PLATE-U LGE 4B73896A Contact Us For Availability
34810Q
SUPPORTER BRACKET SBHG-R T0.5 LGE 2B72369A Contact Us For Availability
34890C
LAMP GLASS MH-1354P BKEWRP/307 LGE 4B72492A Contact Us For Availability
34960A
MOTOR MOUNT SECC T0.6 MH-1358S LGE 1B71484B Contact Us For Availability
34990A
LGE 4B73754A LGE 4B73754A Contact Us For Availability
35012R
INSULATOR-R SBHG1-R, TO.5 LGE 1B72016A Contact Us For Availability
35012T
INSULATOR-T SBHG-R T0.5 LGE 1B71367C Contact Us For Availability
35026C
LGE 1B72025B LGE 1B72025B Contact Us For Availability
35264A
AIR TUNNEL STS-430, #3 T0.7 LGE 2B72122A Contact Us For Availability
35301A
HEATER-C ASSEMBLY LGE 1B71187C Contact Us For Availability
35889A
ROTATING RING ASSY A 285,H 17, LGE 5889W2A005P Contact Us For Availability
36549C
C-MOTOR 120V 60HZ LGE 2B72066A Contact Us For Availability
36549S
SYNCHRONOUS MOTOR M2CK5PZS59-H LGE 2B71932D Contact Us For Availability
43500L
LGE 3B71931A LGE 3B71931A Contact Us For Availability
43500U
LATCH BOARD-U LGE 3B71933A Contact Us For Availability
43501L
LATCH BOARD-L ASSY MH-1355M LGE 3B72278K Contact Us For Availability
43501U
LGE 3B72277G LGE 3B72277G Contact Us For Availability
44360A
LGE 4B74858A LGE 4B74858A Contact Us For Availability
44510A
LGE 4B70698A LGE 4B70698A Contact Us For Availability
53300C
CERAMIC TRAY 358 MM DIA, MH-1 LGE 1B72060A Contact Us For Availability
53504A
CHAMBER WALL SBHGI-R T0.5 LGE 1B71278A Contact Us For Availability
53550L
COVER,LAMP LGE 3B73601A Contact Us For Availability
53551S
BACK COVER ASM ER-946 S LGE 1B71586C Contact Us For Availability
54370D
DAMPER SHAFT STS-304 WPB D0.8 LGE 4B74088B Contact Us For Availability
54810C
CAPACITOR BRACKET SECC T0.8 LGE 4B75031A Contact Us For Availability
54810U
DAMPER BRACKET SBHG1-R T0.5 LGE 4B75026A Contact Us For Availability
54974S
GUIDE SUCTION MH-135 S MH-1358 LGE 4974W2S015A Contact Us For Availability
54975G
CHAMBER SUB ASSY CHAMBER +AIR LGE 1B71513A Contact Us For Availability
55262A
LGE 1B72015A LGE 1B72015A Contact Us For Availability
55900C
C-FAN GVLM T0.6 LGE 3B72561A Contact Us For Availability
56170D
TRANSFORMER HIGH VOL KTC 120V/ LGE 6010W2H070B Contact Us For Availability
56201A
NOISE FILTER ASSY 100V 50/60HZ LGE 2B72130F Contact Us For Availability
56208A
GLASS WOOL-C T10 LGE 2B72302A Contact Us For Availability
56324A
MAGNETRON 2M214-19F MV-1130SC LGE 2B71165E Contact Us For Availability
56411A
POWER CORD ASS Y MA-870RV 1161 LGE 6411W2A002B Contact Us For Availability
56420A
SOLENOID LGE 6420W3S001C Contact Us For Availability
56549F
FAN MOTOR 120V 60HZ LGE 2B72294A Contact Us For Availability
56851C
H.V. CABLE ASSY MA-880M/MW 884 LGE 6861W3A001B Contact Us For Availability
56851D
H.V. DIODE CABLE ASM MH-1355M LGE 6021W3B001C Contact Us For Availability
56912B
BASELESS LAMP 125V/25W DWE 187 LGE 3B71543J Contact Us For Availability
56930M
THERMOSTAT 160 V PW MA-1554M LGE 6930WRT003A Contact Us For Availability
63302A
BASE PLATE SBHGI-O T0.8 LGE 0B70792A Contact Us For Availability
63303A
BASE PLATE SUB ASM BASE PL+LEG LGE 0B70876A Contact Us For Availability
250201
BUTTON RELEASE MH-1355M LGE 5020W3G044D Contact Us For Availability
268711
LGE 5247W2YS25A LGE 5247W2YS25A Contact Us For Availability
368771
LGE 4B73008D LGE 4B73008D Contact Us For Availability
466002
MICRO SWITCH SZM-V01-FA-33 11 LGE 3B73362A Contact Us For Availability
466003
LGE 3B73360B LGE 3B73360B Contact Us For Availability
568771
LGE 6877W1T085B LGE 6877W1T085B Contact Us For Availability
568772
LEADWIRE ASSY-SEC. MA-880 S/11 LGE 6877W3T080A Contact Us For Availability
568773
C-MOTOR WIRE ASSY ER-946 S LGE 4B74175A Contact Us For Availability
647781
LEG LGE 4B73900A Contact Us For Availability
948506
LGE 3B72246C LGE 3B72246C Contact Us For Availability
AR4
RESISTOR ARRAY LGE 0RZ4702G610 Contact Us For Availability
C02
LGE 0CK2230K935 LGE 0CK2230K935 Contact Us For Availability
C04
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE2276H638 Contact Us For Availability
C06
CAPACITOR ELECTROLYTIC 10M SM LGE 0CE1066K638 Contact Us For Availability
C09
CAPACITOR ELECTROLYTIC LGE 0CE1076K638 Contact Us For Availability
C35
CAPACITOR ELECTROLYTIC 4.7M SM LGE 0CE4756K638 Contact Us For Availability
C41
CAPACITOR,FIXED CERAMIC(High d LGE 0CK2230K948 Contact Us For Availability
CN1
CONNECTOR WAFER YW396-05(2PIN LGE 6630W5YA10C Contact Us For Availability
CN2
CONNECTOR YW396-03, #3 VOID 8 LGE CQ52212A Contact Us For Availability
CN3
LGE 6630W5YA19C LGE 6630W5YA19C Contact Us For Availability
CN4
CONNECTOR WAFER YW396-03AVY,#2 LGE 6630WRYA01A Contact Us For Availability
D01
DIODE IN4002,MA-1354P,1554M *N LGE 0DD400209AA Contact Us For Availability
DP1
DIGITRON 6-BT-199GN(NEW DEMO) LGE 6302W5YA02A Contact Us For Availability
PT1
LGE 6010W2P003E LGE 6010W2P003E Contact Us For Availability
Q01
TRANSISTOR KTA1266-TP-Y(KTA101 LGE 0TR126609AA Contact Us For Availability
Q22
TRANSISTOR LGE 0TR319809AA Contact Us For Availability
R03
RESISTOR FIXED CARBON FILM 22 LGE 0RD2202G608 Contact Us For Availability
R04
RESISTOR FIXED CARBON FILM 1.0 LGE 0RD1001G608 Contact Us For Availability
R05
RESISTOR FIXED CARBON FILM MV- LGE 0RD2701G608 Contact Us For Availability
R07
LGE 0RD1003G608 LGE 0RD1003G608 Contact Us For Availability
R08
LGE 0RD1004G608 LGE 0RD1004G608 Contact Us For Availability
R09
Resistor,Carbon Film LGE 0RD4701G608 Contact Us For Availability
R27
Resistor,Carbon Film LGE 0RD2202F608 Contact Us For Availability
R37
RESISTOR FIXED CARBON FILM /R LGE 0RD1000G608 Contact Us For Availability
R39
LGE 0RD5601G608 LGE 0RD5601G608 Contact Us For Availability
R52
LGE 0RN1202G408 LGE 0RN1202G408 Contact Us For Availability
R53
LGE 0RN5002G408 LGE 0RN5002G408 Contact Us For Availability
RY2
RELAY G5J-1-TP-M-DT1 DC12V (MV LGE 6920WRD001A Contact Us For Availability
RY3
RELAY MA-885M SGESEA MA-1190M LGE 6920WRD005B Contact Us For Availability
U01
LGE 0IHI404338F LGE 0IHI404338F Contact Us For Availability
U02
LGE 0ITO200400A LGE 0ITO200400A Contact Us For Availability
VR1
VARISTOR LGE 6102W5V006A Contact Us For Availability
WMT001
TRUSS HEAD MACHINE SCREW + LGE 1MTC0402418 Contact Us For Availability
WTT022
TRUSS HEAD TP SCREW+2 CUT MV- LGE 1TTL0402422 Contact Us For Availability
WWZ012
WASHER 4X10 SK-5 MH-1358S LGE 4040WRA001A Contact Us For Availability
ZD1
LGE 0DZ510009AA LGE 0DZ510009AA Contact Us For Availability
× ![]()
