Model Whirlpool 8587L10 DISHWASHER – Common Parts & Diagrams
04 - TUB
11 - SECTION

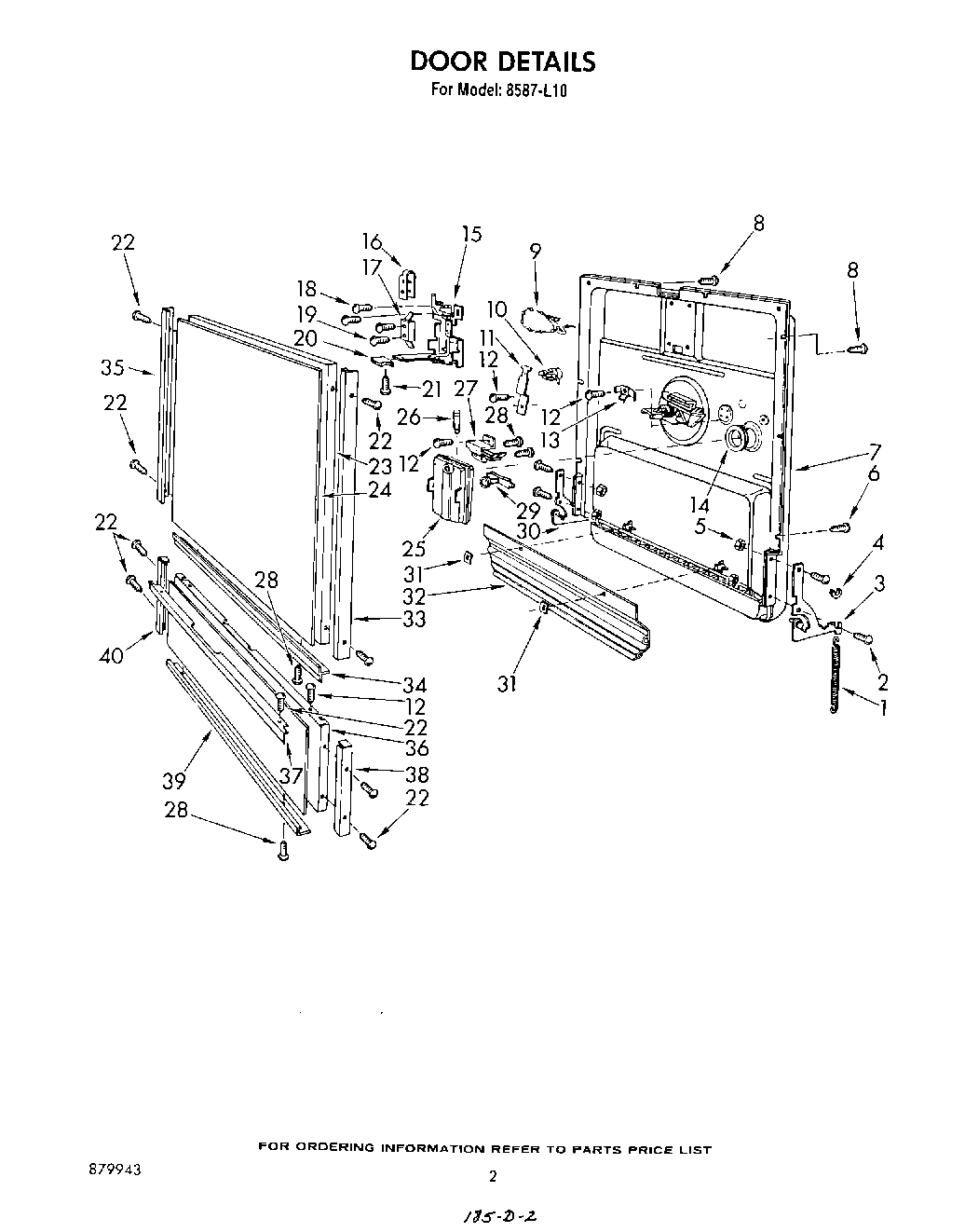

02 - DOOR

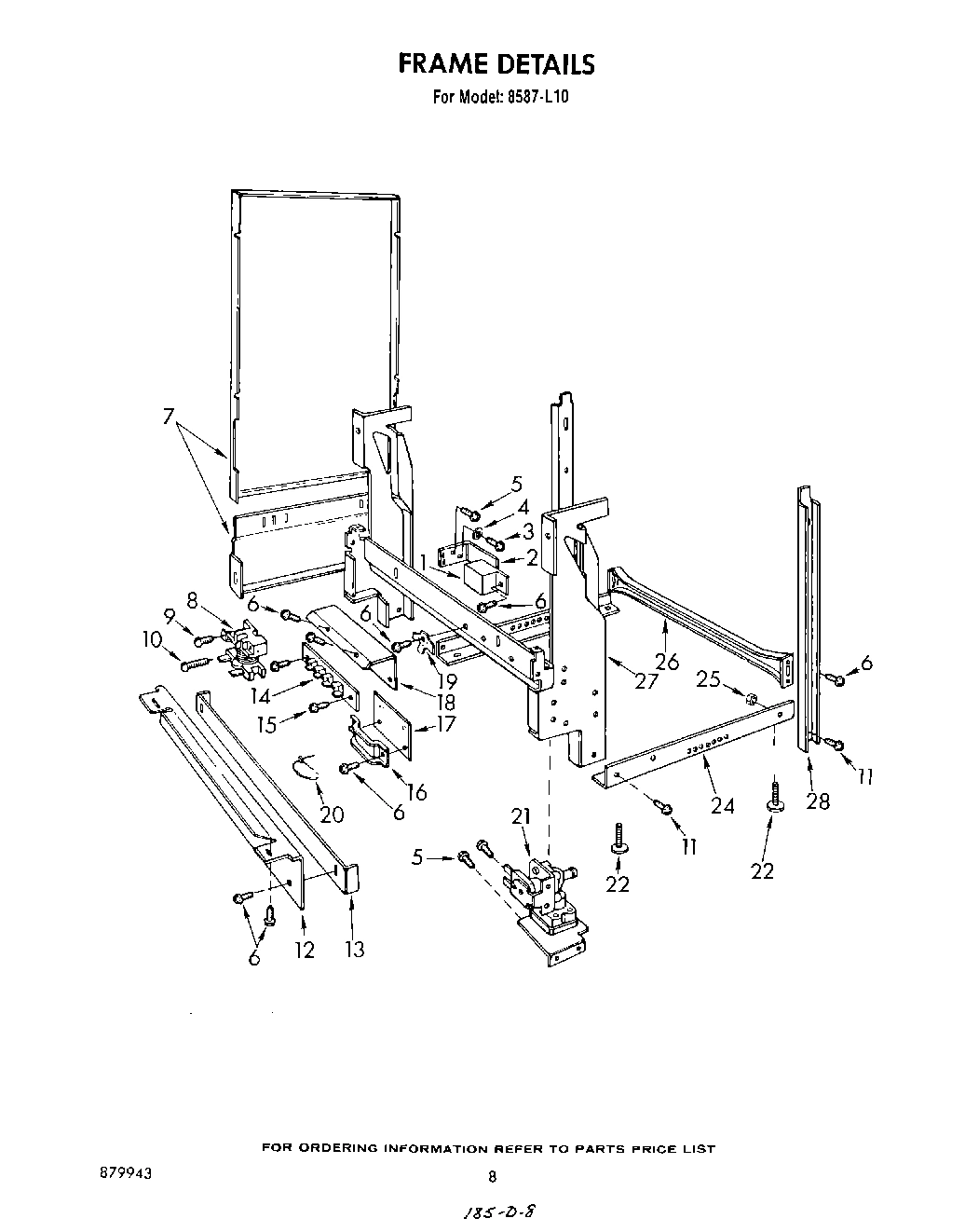

07 - FRAME , LITERATURE

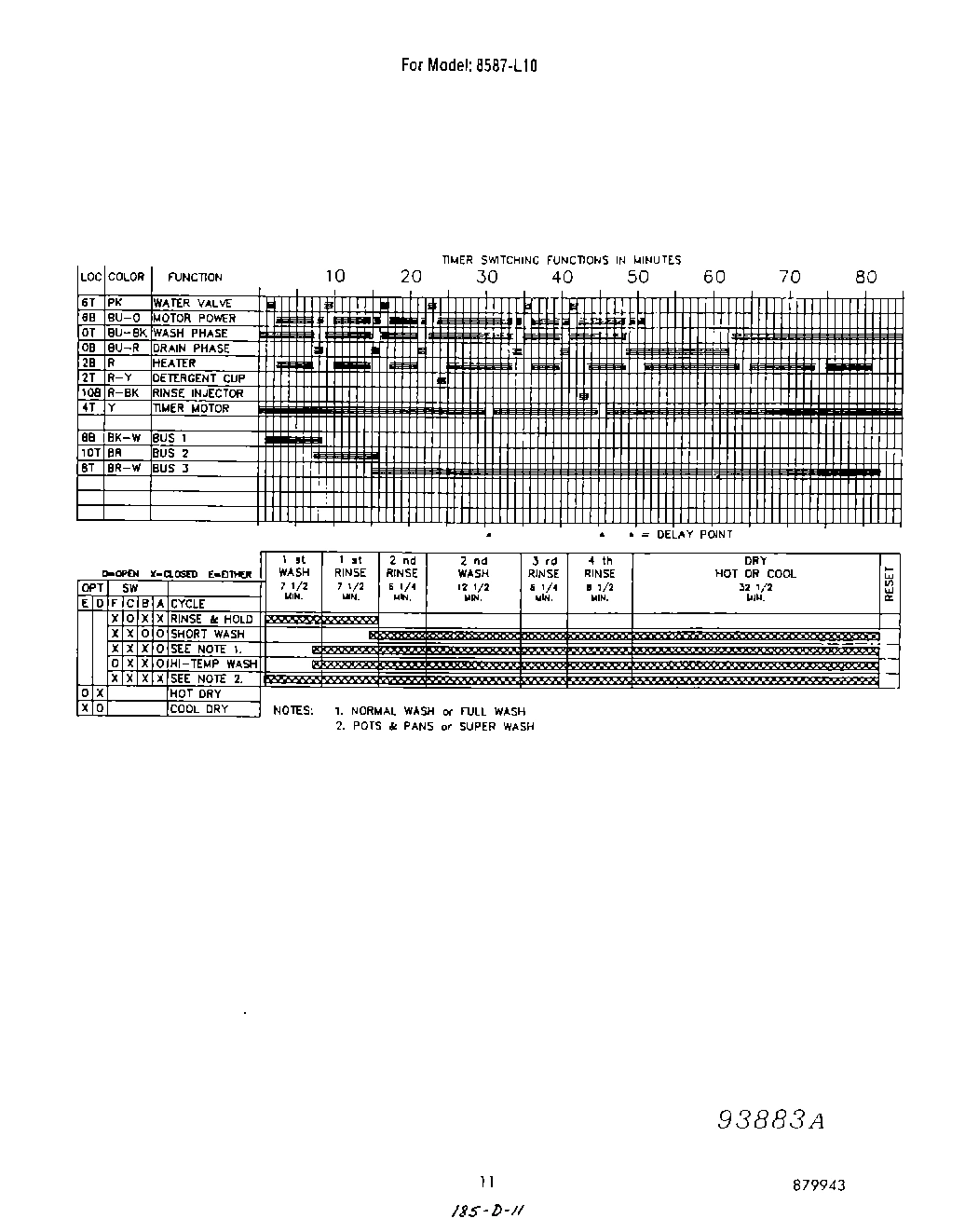

09 - WIRING DIAGRAMS

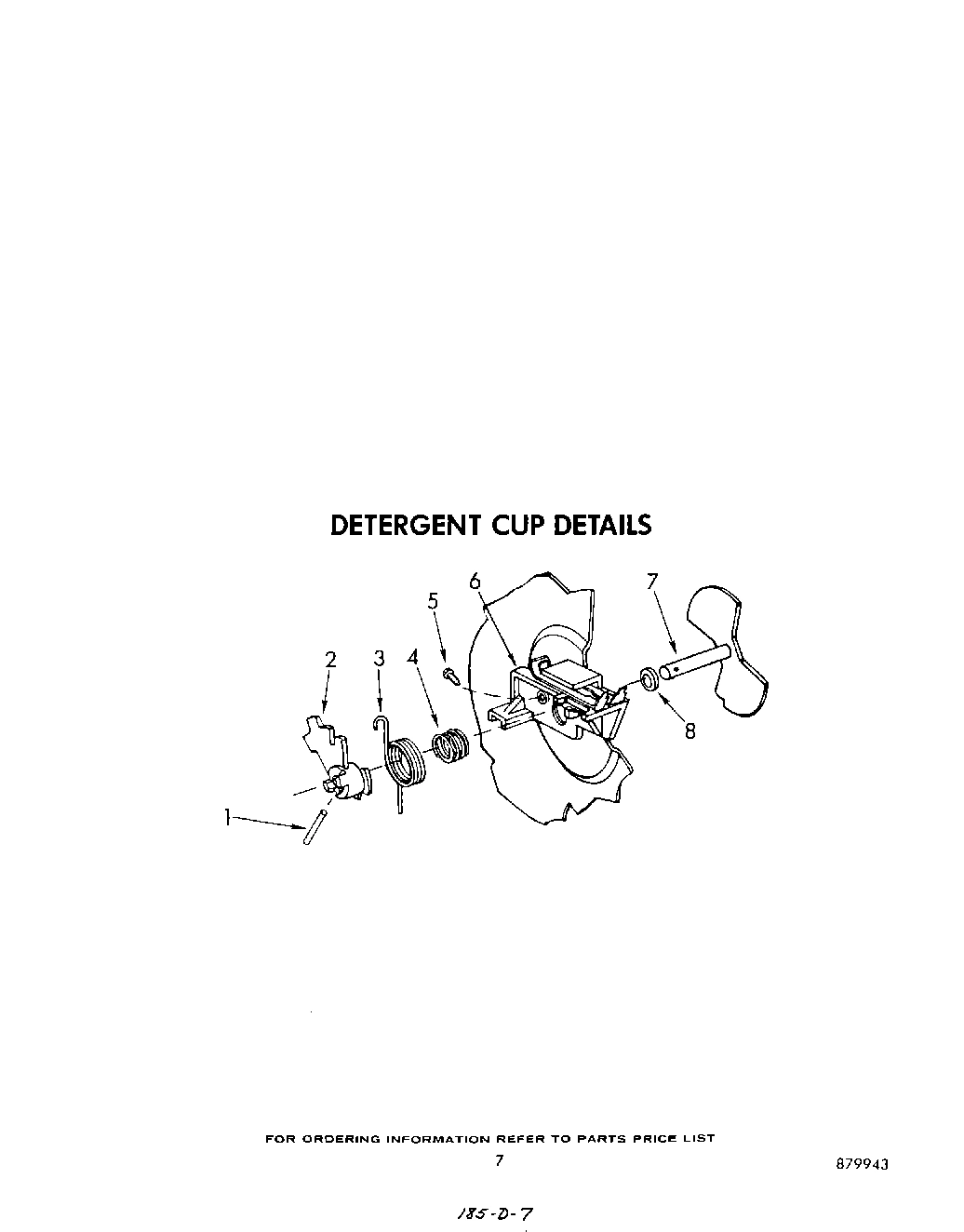

06 - DETERGENT CUP

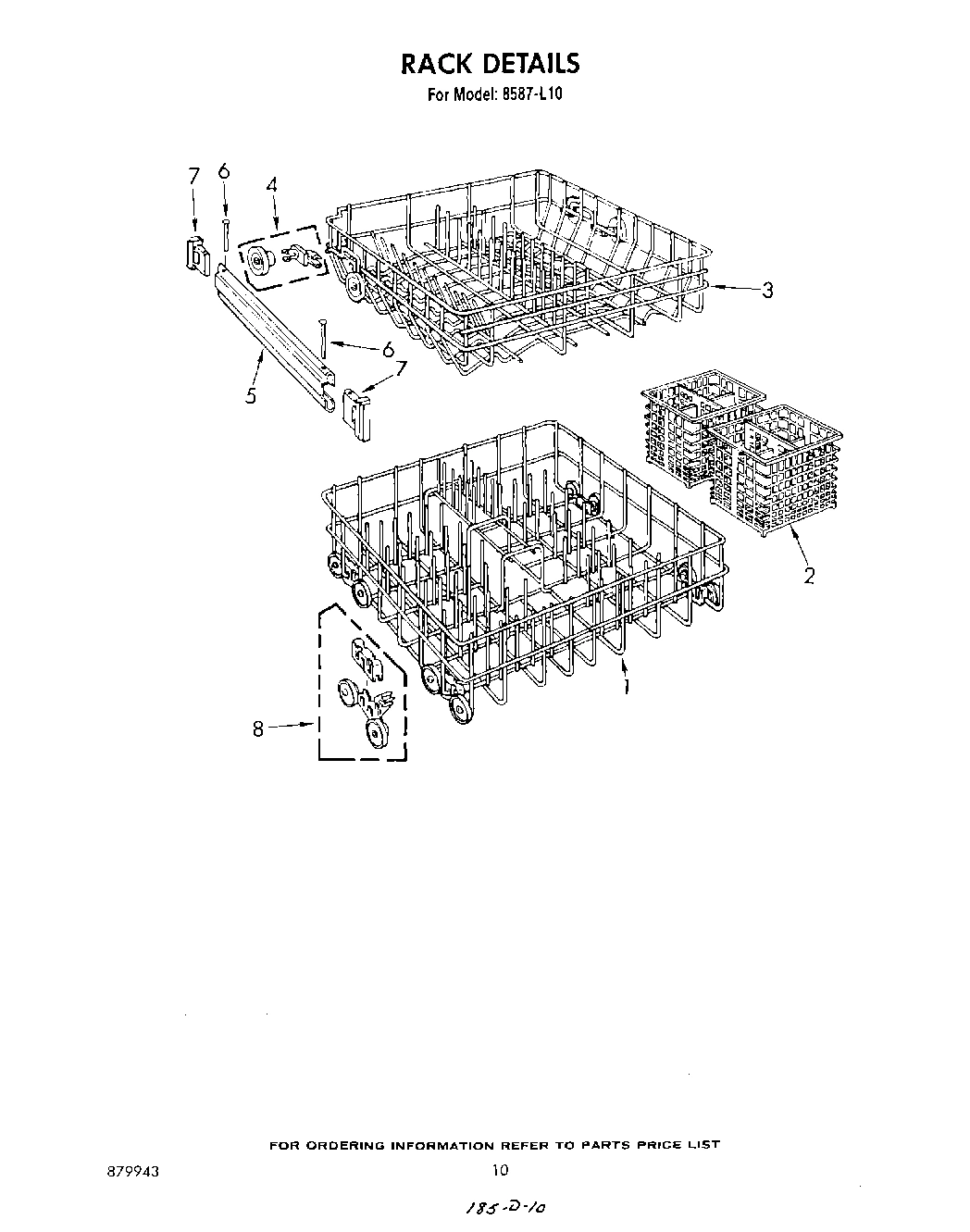

08 - RACK

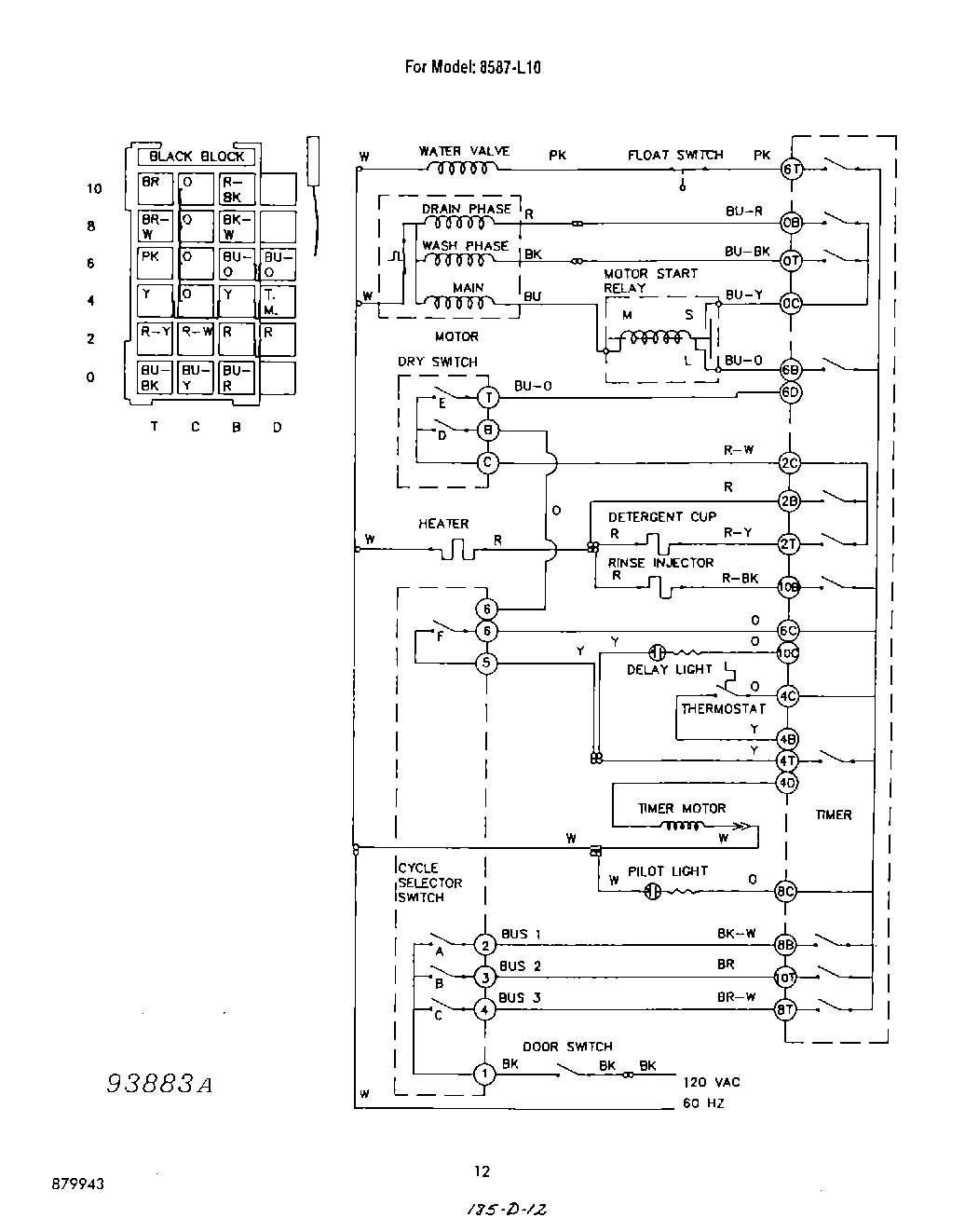

10 - SECTION

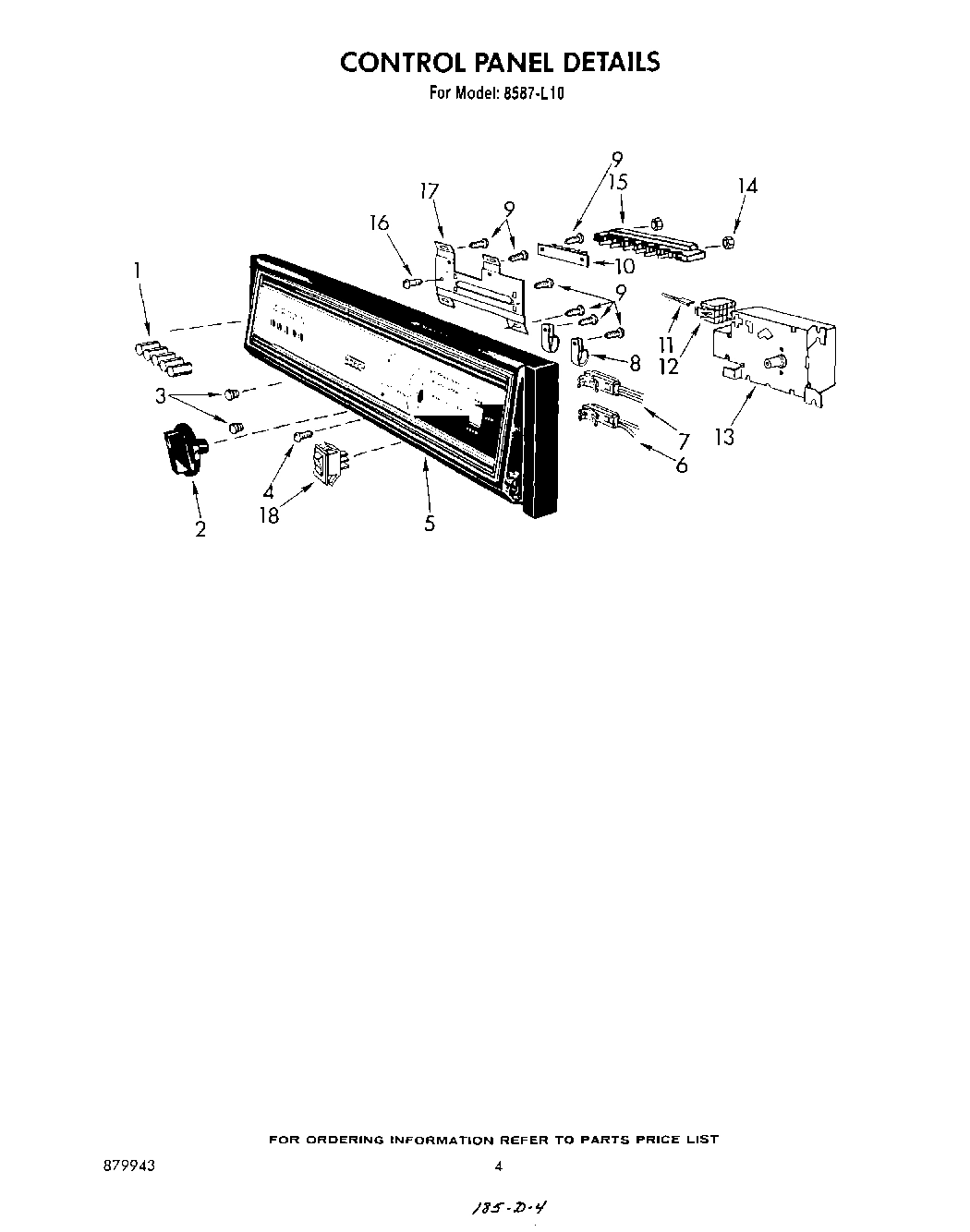

03 - CONTROL PANEL

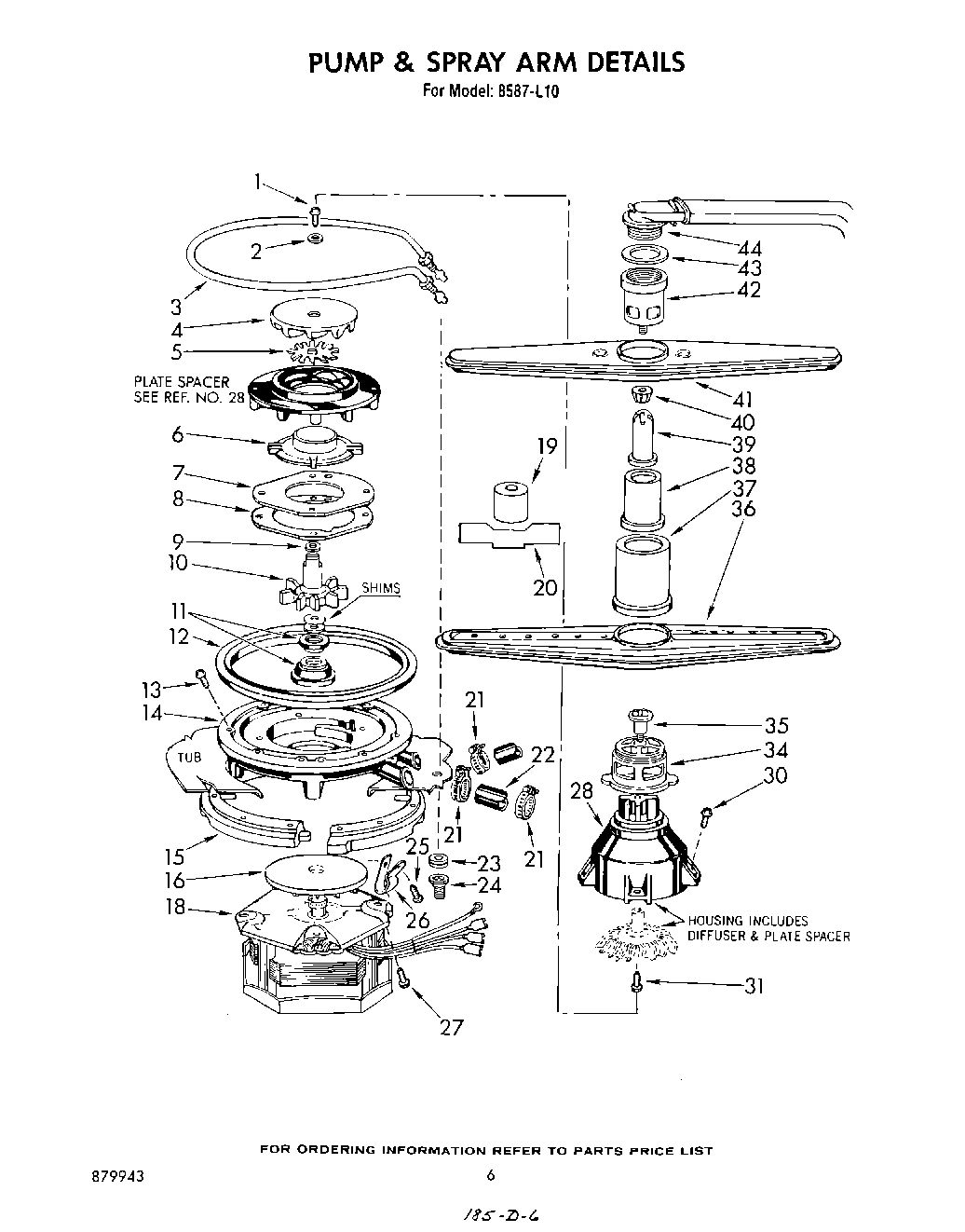

05 - PUMP AND SPRAY ARM
Common parts from model Whirlpool 8587L10 DISHWASHER
Parts List WPL LIT879943 Contact Us For Availability
1
Door Spring WPL 4340896 Contact Us For Availability
1
Junction Box Cover WPL 4340087 Contact Us For Availability
1
Spiral Pin WPL 4340752 Contact Us For Availability
1
Lower Rack Assembly WPL 4340902 Contact Us For Availability
1
Push Buttons WPL 4340899 Contact Us For Availability
1
Screw, No.10-32 x 2 1/4 WPL 4340235 Contact Us For Availability
2
Attach Clip WPL 4340595 Contact Us For Availability
2
Screw, No.10-24 x 5/8 WPL 4340094 Contact Us For Availability
2
Junction Box Bracket WPL 4340349 Contact Us For Availability
2
Cam WPL 4340260 Contact Us For Availability
2
Silverware Basket WPL 4340754 Contact Us For Availability
2
Cycle Indicator Knob WPL 4342579 Contact Us For Availability
2
Washer WPL 4340098 Contact Us For Availability
3
Drain Hose, Corrugated WPL 4340853 Contact Us For Availability
3
Counterbal Arm Assembly WPL 4340175 Contact Us For Availability
3
Screw, No.10-32 x 1/2 WPL 4340517 Contact Us For Availability
3
Cam Spring WPL 4340147 Contact Us For Availability
3
Upper Rack Assembly WPL 4342595 Contact Us For Availability
3
Lens WPL 4340835 Contact Us For Availability
3
Heater (Includes Keys 23 & 24) WPL 4340843 Contact Us For Availability
4
Clip Shim WPL 4340871 Contact Us For Availability
4
Spring Pad WPL 4340200 Contact Us For Availability
4
Washer WPL 4340414 Contact Us For Availability
4
Cam Compression Spring WPL 4340261 Contact Us For Availability
4
Wheel & Bracket Kit WPL 4342586 Contact Us For Availability
4
Screw, No.10-32 x 27/32 WPL 4340153 Contact Us For Availability
4
Upper Impeller WPL 4340815 Contact Us For Availability
5
Screw, No.8 x 7/6 WPL 4340330 Contact Us For Availability
5
Nut WPL 4340649 Contact Us For Availability
5
Screw, 8 x 5/8 WPL 4340832 Contact Us For Availability
5
Rack Slide WPL 4342589 Contact Us For Availability
5
Control Panel WPL 4340903 Contact Us For Availability
5
Macerator Blade WPL 4340535 Contact Us For Availability
6
Shim WPL 4340875 Contact Us For Availability
6
Screw, 8 x 7/16 WPL 4340841 Contact Us For Availability
6
Screw, No.8 x 3/8 WPL 4340701 Contact Us For Availability
6
Bi-Metal Assembly WPL 4340844 Contact Us For Availability
6
Pin, Slide Cap WPL 4342587 Contact Us For Availability
6
Light Assembly WPL 4340891 Contact Us For Availability
6
Impeller Shroud WPL 4340225 Contact Us For Availability
7
Door Strike WPL 4340346 Contact Us For Availability
7
Door Assembly WPL 4340840 Contact Us For Availability
7
Side Panel Kit (R.H) Or (L.H) (White) WPL 4340774 Contact Us For Availability
7
Side Panel Kit (R.H) Or (L.H) (Coffee) WPL 4340775 Contact Us For Availability
7
Side Panel Kit (R.H) Or (L.H) (Avocado) WPL 4340776 Contact Us For Availability
7
Side Panel Kit (R.H) Or (L.H) (Wheat) WPL 4340777 Contact Us For Availability
7
Side Panel Kit (R.H) Or (L.H) (Almond) WPL 4340778 Contact Us For Availability
7
Dispenser Lid WPL 4340831 Contact Us For Availability
7
Slide Cap WPL 4342588 Contact Us For Availability
7
Light Assembly WPL 4340888 Contact Us For Availability
7
Pump Plate WPL 4340510 Contact Us For Availability
8
Screw, No.10 x 3/4 WPL 4340308 Contact Us For Availability
8
Motor Relay WPL 4340148 Contact Us For Availability
8
O-Ring WPL 4340274 Contact Us For Availability
8
Wheel & Bracket Assembly WPL 4340343 Contact Us For Availability
8
Pump Gasket WPL 4340487 Contact Us For Availability
9
Tub Gasket Clip Kit (Includes Key No. 21) WPL 4340183 Contact Us For Availability
9
Screw, No.8 x 7/16 WPL 4340865 Contact Us For Availability
9
O-Ring WPL 4340254 Contact Us For Availability
10
Washer WPL 4340836 Contact Us For Availability
10
Thermostat WPL 4340807 Contact Us For Availability
10
Screw, No.8-32 x 1/4 WPL 4340123 Contact Us For Availability
10
Terminal Board Assembly WPL 4340654 Contact Us For Availability
10
Pump & Seal Kit (Includes Key Nos. 2, 4, 5, 9 WPL 4340852 Contact Us For Availability
11
Tub Roller WPL 4340379 Contact Us For Availability
11
Thermostat Retainer WPL 4340847 Contact Us For Availability
11
Screw, No.1/4-20 x 1/2 WPL 4340339 Contact Us For Availability
11
Housing Terminal WPL 4340607 Contact Us For Availability
11
Water Seal WPL 4340106 Contact Us For Availability
12
Screw & Washer Kit (Includes Key 10) WPL 4340681 Contact Us For Availability
12
Toeplate WPL 4340886 Contact Us For Availability
12
Timer Terminal Housing WPL 4340884 Contact Us For Availability
12
Gasket WPL 4340818 Contact Us For Availability
13
Counterbalance Arm Guide (L.H) WPL 4340426 Contact Us For Availability
13
Screw, 10 x 1 WPL 4340398 Contact Us For Availability
13
Adjustable Toeplate WPL 4340885 Contact Us For Availability
13
Timer WPL 4342594 Contact Us For Availability
14
Float WPL 4340124 Contact Us For Availability
14
Grommet, Dispenser WPL 4340168 Contact Us For Availability
14
Terminal Block Assembly WPL 4340434 Contact Us For Availability
14
Housing, Pump WPL 4340849 Contact Us For Availability
15
Latch Assembly WPL 4340347 Contact Us For Availability
15
Switch WPL 4340898 Contact Us For Availability
15
Clamp Ring (2) WPL 4340490 Contact Us For Availability
16
Float Tube Plate WPL 4340531 Contact Us For Availability
16
Switch Cover WPL 4340423 Contact Us For Availability
16
Wire Clamp WPL 4340283 Contact Us For Availability
16
Screw, No.8-32 x 3/8 WPL 4340367 Contact Us For Availability
16
Watershield Assembly WPL 4340897 Contact Us For Availability
17
Float Tube Gasket WPL 4340530 Contact Us For Availability
17
Switch WPL 4340356 Contact Us For Availability
17
Shield, Wire WPL 4340862 Contact Us For Availability
17
Switch Mounting Bracket WPL 4340892 Contact Us For Availability
18
Rocker, Switch WPL 4340895 Contact Us For Availability
18
Screw, No.10-24 x 7/8 WPL 4340255 Contact Us For Availability
18
Terminal Board Bracket WPL 4340503 Contact Us For Availability
18
Motor Assembly, (Includes Keys 1,9,16 & 20) WPL 4340848 Contact Us For Availability
19
Gasket & Wire Assembly (Includes Keys 9 & 20) WPL 4340834 Contact Us For Availability
19
Grounding Terminal WPL 4340385 Contact Us For Availability
19
Screw, No.6-32 x 1 WPL 4340692 Contact Us For Availability
19
Seal Installation Tool WPL 4340107 Contact Us For Availability
20
Gasket Junction Wire WPL 4340889 Contact Us For Availability
20
Latch Knob WPL 4340726 Contact Us For Availability
20
Wire Tie WPL 4342590 Contact Us For Availability
20
Seal Shim Gage WPL 4340362 Contact Us For Availability
21
Dam Clip WPL 4340545 Contact Us For Availability
21
Screw, No.8-32 x 5/16 WPL 4340864 Contact Us For Availability
21
Water inlet Valve WPL 4340877 Contact Us For Availability
21
Hose Clamp WPL 4340572 Contact Us For Availability
22
O-Ring WPL 4340497 Contact Us For Availability
22
Screw, No.6 x 1/4 WPL 4340403 Contact Us For Availability
22
Leveler WPL 4342591 Contact Us For Availability
22
Connector Hose WPL 4340561 Contact Us For Availability
23
Float Switch Kit (Includes Keys 16 17, 22, 24 WPL 4340476 Contact Us For Availability
23
Door Panel (White) WPL 4340395 Contact Us For Availability
23
Heater Grommet WPL 4340295 Contact Us For Availability
24
Float Switch WPL 4340477 Contact Us For Availability
24
Door & Access Panel Inserts (Almond) WPL 4340786 Contact Us For Availability
24
Door & Access Panel Inserts (Avocado) WPL 4340787 Contact Us For Availability
24
Door & Access Panel Inserts (Platinum) WPL 4340788 Contact Us For Availability
24
Door & Access Panel Inserts (Toast) WPL 4340789 Contact Us For Availability
24
Door & Access Panel Inserts (Wheat) WPL 4340790 Contact Us For Availability
24
Door & Access Panel Inserts (Black) WPL 4340791 Contact Us For Availability
24
Door & Access Panel Inserts (White) WPL 4340792 Contact Us For Availability
24
Door & Access Panel Inserts (Coffee) WPL 4340793 Contact Us For Availability
24
Side Angle Kit WPL 4342592 Contact Us For Availability
24
Heater Nut, 1/2 WPL 4340296 Contact Us For Availability
25
Screw, No.4-40 x 5/8 WPL 4342581 Contact Us For Availability
25
Body Assembly WPL 4340284 Contact Us For Availability
25
Nut WPL 4342593 Contact Us For Availability
26
Counterbalance Arm Guide (R.H) WPL 4340427 Contact Us For Availability
26
Plunger WPL 4340286 Contact Us For Availability
26
Rear Brace WPL 4340506 Contact Us For Availability
26
Clamp WPL 4340643 Contact Us For Availability
27
Screw, No.8-32 x 1/2 WPL 4340095 Contact Us For Availability
27
Bi-Metal Assembly WPL 4340851 Contact Us For Availability
27
Hinge Weld Assembly WPL 4340502 Contact Us For Availability
27
Screw, 10 x 1 WPL 4340828 Contact Us For Availability
28
Support Channel WPL 4340707 Contact Us For Availability
28
Impeller Housing Kit (Includes Keys 6 & 7) WPL 4340856 Contact Us For Availability
29
Tub & Gasket Assembly WPL 4340893 Contact Us For Availability
29
Dispenser Fill Cup WPL 4340473 Contact Us For Availability
30
Nut WPL 4340170 Contact Us For Availability
30
Counterbalance Arm Assembly (L.H) WPL 4340176 Contact Us For Availability
30
Screw, No.10 x 1 3/4 WPL 4340412 Contact Us For Availability
31
Water Inlet, Gasket WPL 4340103 Contact Us For Availability
31
Speednut WPL 4340830 Contact Us For Availability
31
Screw, No.8 x 3/4 WPL 4340857 Contact Us For Availability
32
Water Inlet, Assembly WPL 4340246 Contact Us For Availability
32
Baffle Seal WPL 4340829 Contact Us For Availability
33
Water Inlet Tubing (Includes Key 34) WPL 4340512 Contact Us For Availability
33
Door Panel Trim (R.H) WPL 4340808 Contact Us For Availability
34
Clamp WPL 4340499 Contact Us For Availability
34
Door Panel Trim (Bottom) WPL 4340409 Contact Us For Availability
34
Bearing WPL 4340838 Contact Us For Availability
35
Cage Nut WPL 4340231 Contact Us For Availability
35
Door Panel Trim (L.H) WPL 4340809 Contact Us For Availability
35
Spray Arm Bolt WPL 4340825 Contact Us For Availability
36
Tapping Plate WPL 4340352 Contact Us For Availability
36
Access Panel (White) WPL 4340850 Contact Us For Availability
36
Spray Arm Assembly WPL 4340564 Contact Us For Availability
37
Access Panel Trim (Top) WPL 4340617 Contact Us For Availability
37
Tower Base WPL 4340565 Contact Us For Availability
38
Access Panel Trim (R.H) WPL 4340525 Contact Us For Availability
38
Tower Section WPL 4340566 Contact Us For Availability
39
Access Panel Trim (Bottom) WPL 4340524 Contact Us For Availability
39
Tower Tip WPL 4340567 Contact Us For Availability
40
Access Panel Trim (L.H) WPL 4340526 Contact Us For Availability
40
Nut WPL 4340568 Contact Us For Availability
41
Spray Arm Assembly WPL 4340827 Contact Us For Availability
42
Distributor WPL 4340569 Contact Us For Availability
43
Gasket WPL 4340570 Contact Us For Availability
44
Elbow & Tube Assembly WPL 4340571 Contact Us For Availability
× ![]()
