Model Whirlpool 8585L30 DISHWASHER – Common Parts & Diagrams

Tub Touch-Up Kit
Tub Touch-Up Kit WPL 4340441 Contact Us For Availability
View on Model
Power Cord Kit (Use Only When Local Codes Per
Power Cord Kit (Use Only When Local Codes Per WPL 4340628 Contact Us For Availability
View on Model

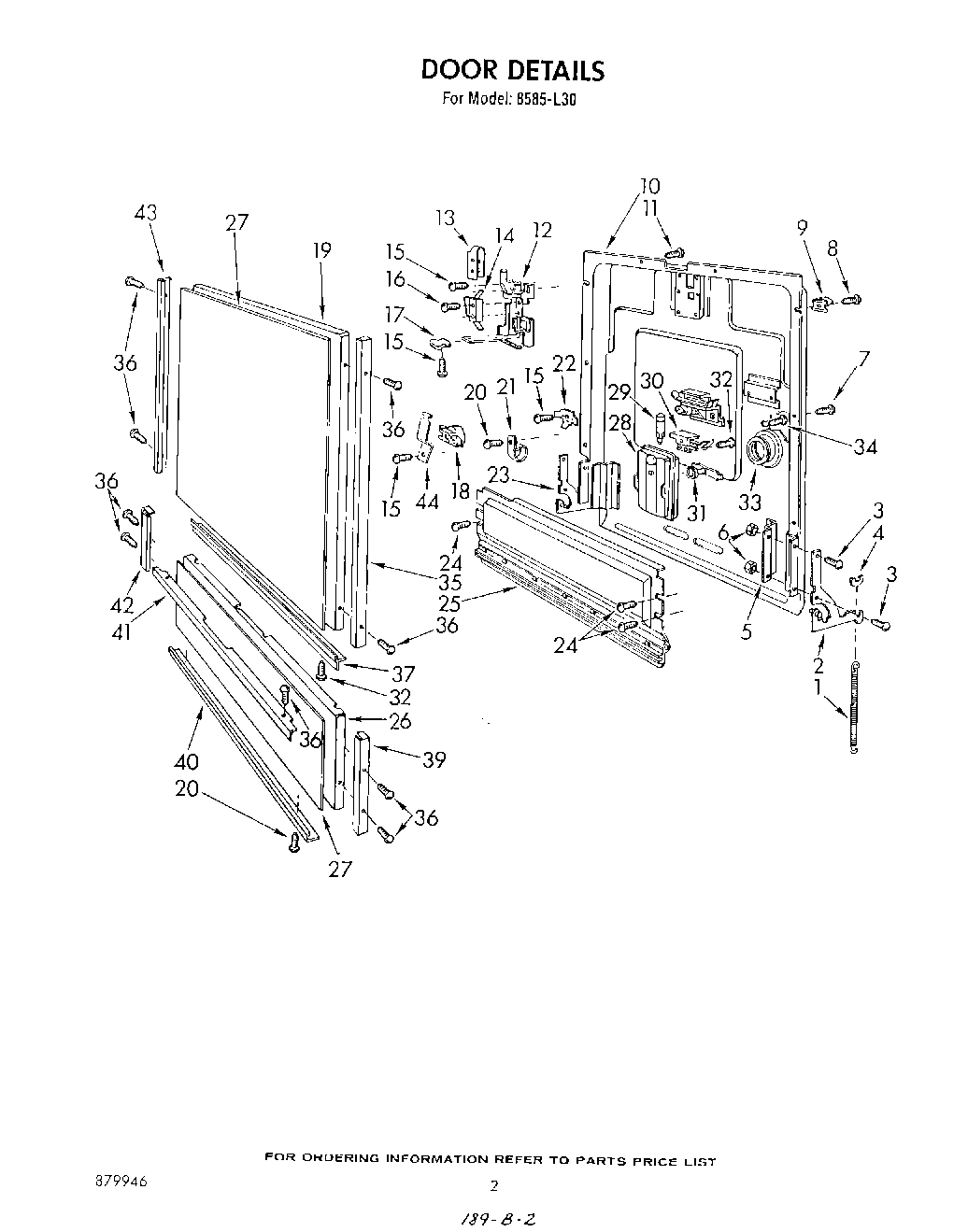

Black Acrylic Door Kit
Black Acrylic Door Kit WPL 4340802 Contact Us For Availability
View on Model
Parts List
Parts List WPL LIT879946 Contact Us For Availability
View on Model
1
Latch Tapping Plate
Latch Tapping Plate WPL 4340770 Contact Us For Availability
View on Model
1
Door Spring
Door Spring WPL 4340177 Contact Us For Availability
View on Model
1
Junction Box Cover
Junction Box Cover WPL 4340087 Contact Us For Availability
View on Model
1

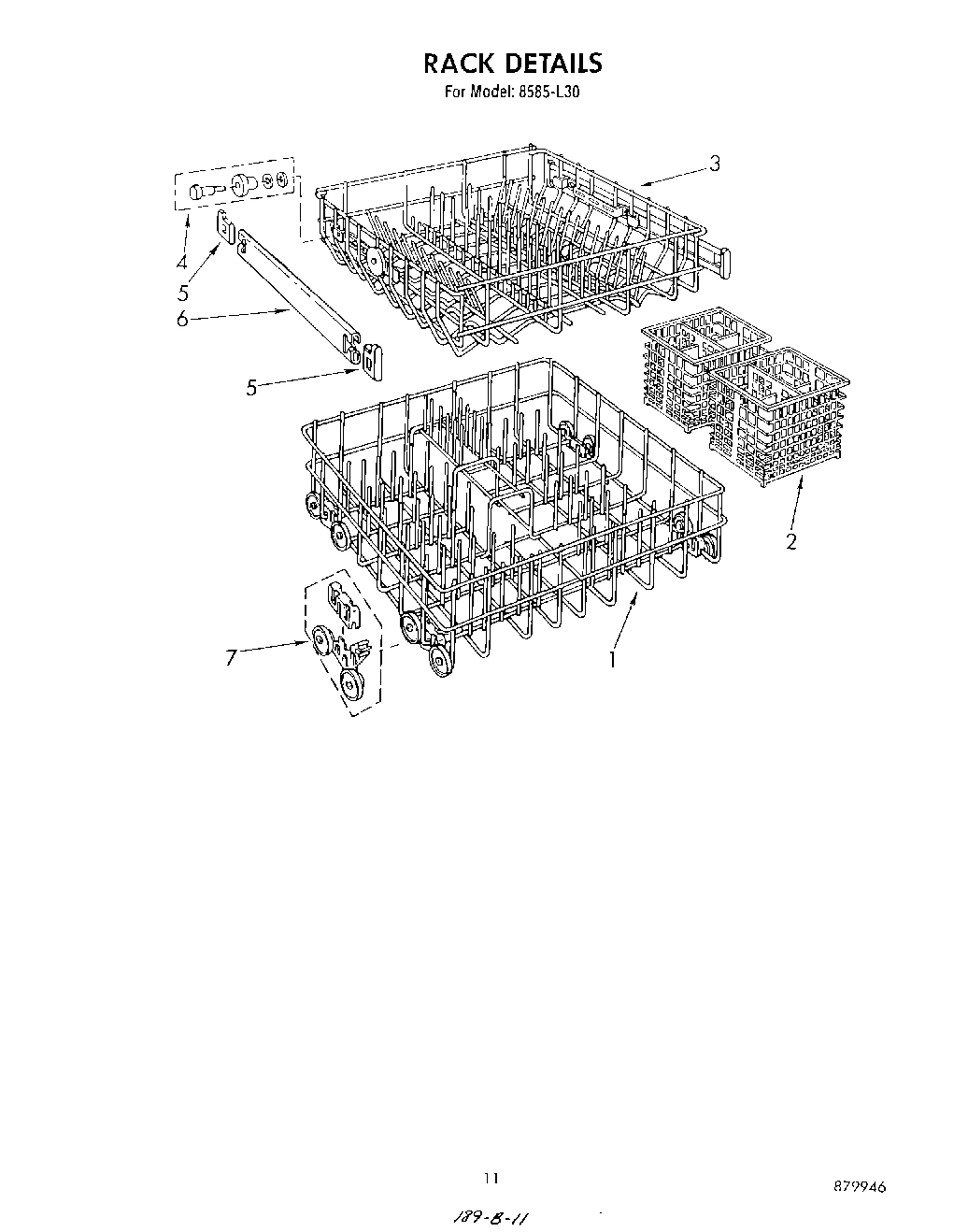

Lower Rack Assembly
Lower Rack Assembly WPL 4340772 Contact Us For Availability
View on Model
1
Screw, No.8 x 7/16
Screw, No.8 x 7/16 WPL 4340321 Contact Us For Availability
View on Model
1

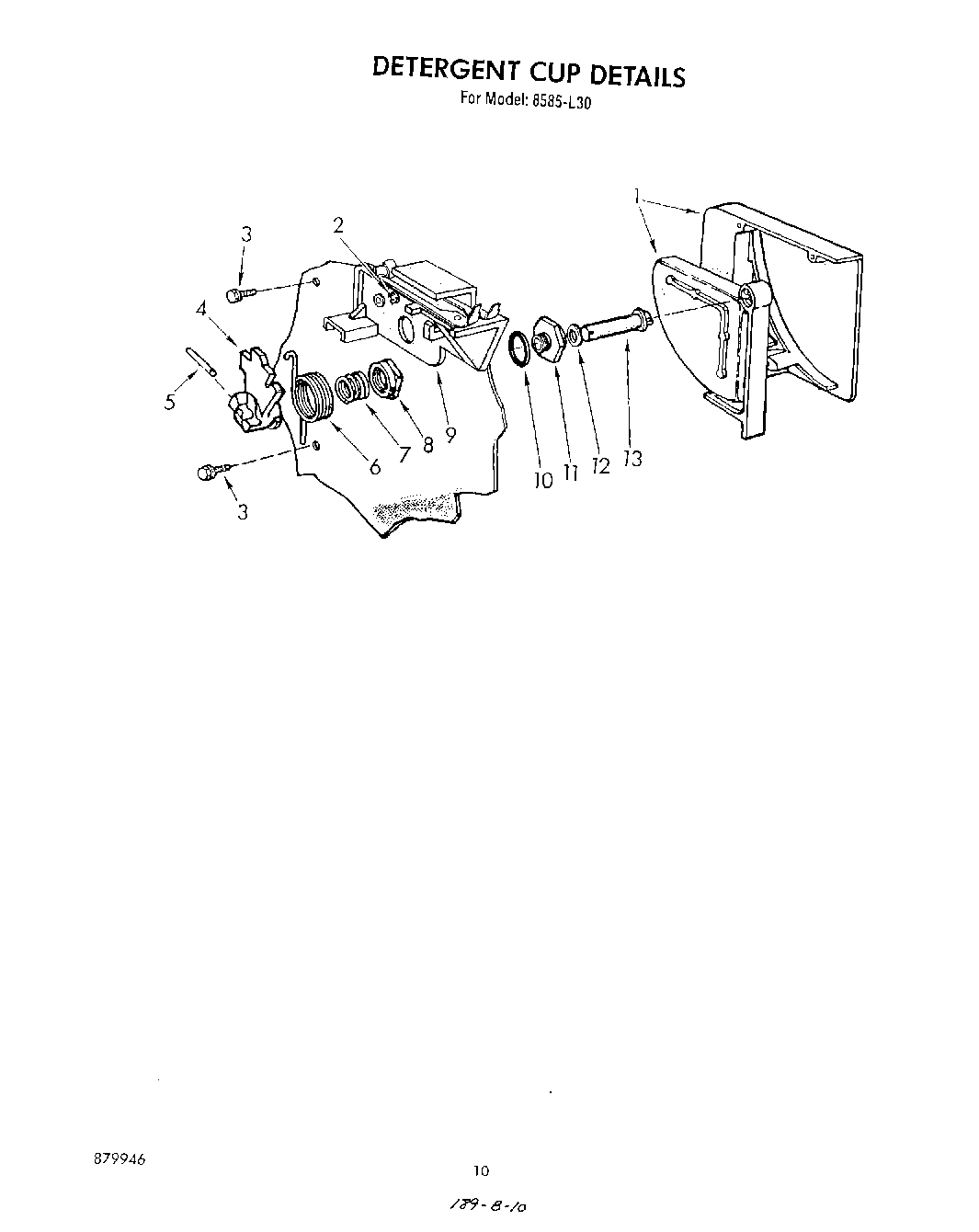

Detergent Cup & Cover
Detergent Cup & Cover WPL 4340394 Contact Us For Availability
View on Model
1
Screw, No.10-32 x 2 1/4
Screw, No.10-32 x 2 1/4 WPL 4340235 Contact Us For Availability
View on Model
2
Attach Clip
Attach Clip WPL 4340595 Contact Us For Availability
View on Model
2
Counterbalance Arm Assembly (R.H)
Counterbalance Arm Assembly (R.H) WPL 4340175 Contact Us For Availability
View on Model
2
Junction Box Bracket
Junction Box Bracket WPL 4340349 Contact Us For Availability
View on Model
2
Silverware Basket
Silverware Basket WPL 4340754 Contact Us For Availability
View on Model
2
End Cap (L.H)
End Cap (L.H) WPL 4340744 Contact Us For Availability
View on Model
2
O-Ring
O-Ring WPL 4340582 Contact Us For Availability
View on Model
2
Washer
Washer WPL 4340098 Contact Us For Availability
View on Model
3
Drain Hose
Drain Hose WPL 4340853 Contact Us For Availability
View on Model
3
Screw, No.10-24 x 5/8
Screw, No.10-24 x 5/8 WPL 4340094 Contact Us For Availability
View on Model
3
Screw, No.10-32 x 1/2
Screw, No.10-32 x 1/2 WPL 4340517 Contact Us For Availability
View on Model
3
Upper Rack Assembly
Upper Rack Assembly WPL 4340514 Contact Us For Availability
View on Model
3
Pushbutton
Pushbutton WPL 4340400 Contact Us For Availability
View on Model
3
Heater
Heater WPL 4340843 Contact Us For Availability
View on Model
4
Clip Shim
Clip Shim WPL 4340621 Contact Us For Availability
View on Model
4
Spring Pad
Spring Pad WPL 4340200 Contact Us For Availability
View on Model
4
Washer
Washer WPL 4340414 Contact Us For Availability
View on Model
4
Complete Wheel Assembly
Complete Wheel Assembly WPL 4340518 Contact Us For Availability
View on Model
4
Vent Grille
Vent Grille WPL 4340652 Contact Us For Availability
View on Model
4
Cam
Cam WPL 4340260 Contact Us For Availability
View on Model
4
Upper Impeller
Upper Impeller WPL 4340815 Contact Us For Availability
View on Model
5
Screw, No.10 x 3/4
Screw, No.10 x 3/4 WPL 4340330 Contact Us For Availability
View on Model
5
Counterbalance Mounting Bracket
Counterbalance Mounting Bracket WPL 4340282 Contact Us For Availability
View on Model
5
Rack Slide End Cap
Rack Slide End Cap WPL 4340507 Contact Us For Availability
View on Model
5
Speednut
Speednut WPL 4340651 Contact Us For Availability
View on Model
5
Spiral Pin
Spiral Pin WPL 4340752 Contact Us For Availability
View on Model
5
Macerator Blade
Macerator Blade WPL 4340535 Contact Us For Availability
View on Model
6
Shim
Shim WPL 4340359 Contact Us For Availability
View on Model
6
Nut
Nut WPL 4340649 Contact Us For Availability
View on Model
6
Screw, No.8 x 3/8
Screw, No.8 x 3/8 WPL 4340701 Contact Us For Availability
View on Model
6
Rack Slide
Rack Slide WPL 4340508 Contact Us For Availability
View on Model
6
Screw, No.10-32 x 1 17/64
Screw, No.10-32 x 1 17/64 WPL 4340636 Contact Us For Availability
View on Model
6
Cam Spring
Cam Spring WPL 4340147 Contact Us For Availability
View on Model
6
Impeller Shroud
Impeller Shroud WPL 4340225 Contact Us For Availability
View on Model
7
Door Strike
Door Strike WPL 4340346 Contact Us For Availability
View on Model
7
Screw, No.8 x 1/2
Screw, No.8 x 1/2 WPL 4340326 Contact Us For Availability
View on Model
7
Side Panel Kit (R.H) Or (L.H) (White)
Side Panel Kit (R.H) Or (L.H) (White) WPL 4340774 Contact Us For Availability
View on Model
7
Side Panel Kit (R.H) Or (L.H) (Coffee)
Side Panel Kit (R.H) Or (L.H) (Coffee) WPL 4340775 Contact Us For Availability
View on Model
7
Side Panel Kit (R.H) Or (L.H) (Avocado)
Side Panel Kit (R.H) Or (L.H) (Avocado) WPL 4340776 Contact Us For Availability
View on Model
7
Side Panel Kit (R.H) Or (L.H) (Wheat)
Side Panel Kit (R.H) Or (L.H) (Wheat) WPL 4340777 Contact Us For Availability
View on Model
7
Side Panel Kit (R.H) Or (L.H) (Almond)
Side Panel Kit (R.H) Or (L.H) (Almond) WPL 4340778 Contact Us For Availability
View on Model
7
Wheel & Bracket Assembly
Wheel & Bracket Assembly WPL 4340343 Contact Us For Availability
View on Model
7
Timer Knob
Timer Knob WPL 4340745 Contact Us For Availability
View on Model
7
Cam Compression Spring
Cam Compression Spring WPL 4340261 Contact Us For Availability
View on Model
7
Pump Plate
Pump Plate WPL 4340510 Contact Us For Availability
View on Model
8
Screw, No.10 x 3/4
Screw, No.10 x 3/4 WPL 4340308 Contact Us For Availability
View on Model
8

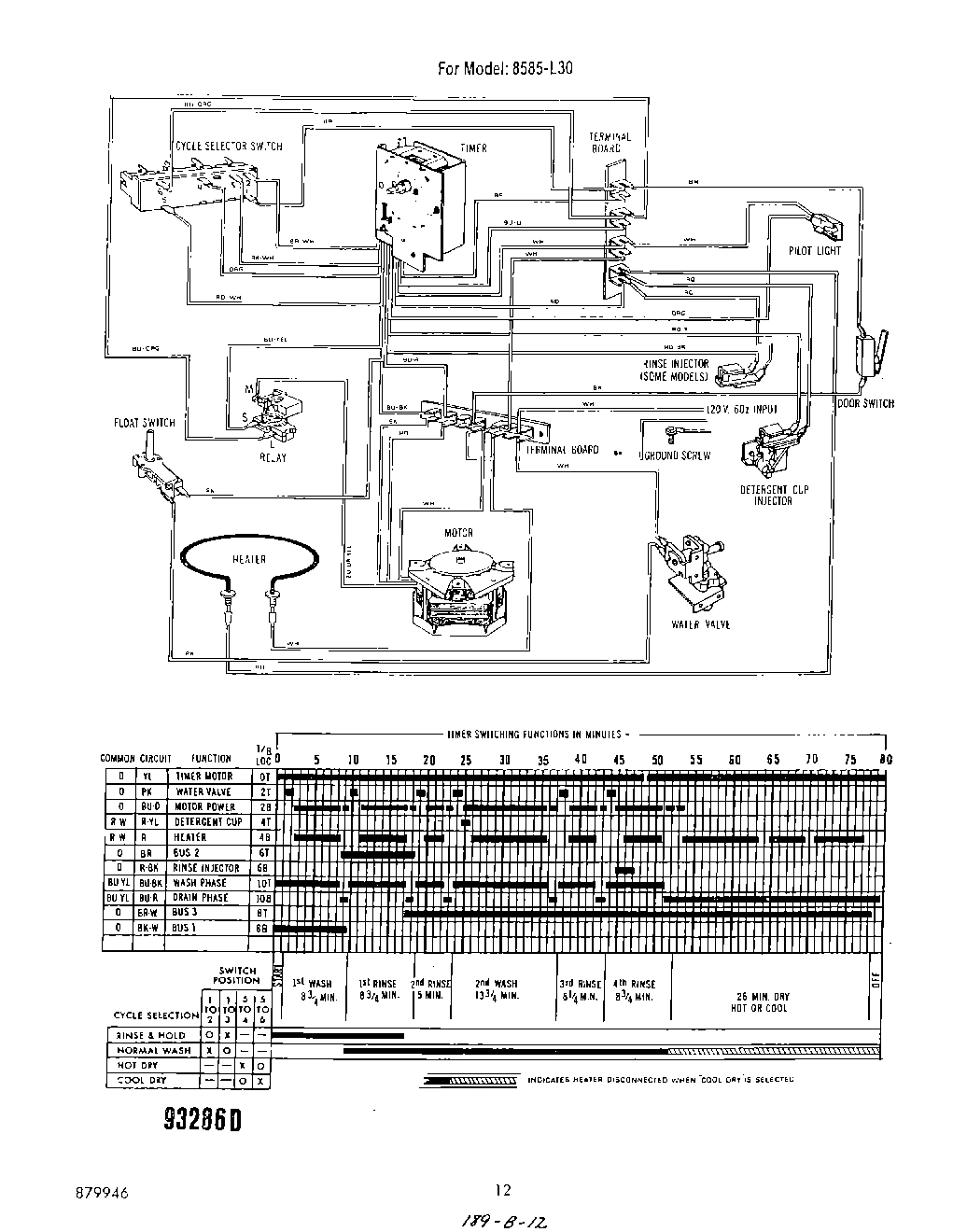

Motor Relay
Motor Relay WPL 4340148 Contact Us For Availability
View on Model
8
Detergent Cup Nut
Detergent Cup Nut WPL 4340262 Contact Us For Availability
View on Model
8
Pump Gasket
Pump Gasket WPL 4340487 Contact Us For Availability
View on Model
9
Tub Gasket Clip Kit (Includes Key No. 21)
Tub Gasket Clip Kit (Includes Key No. 21) WPL 4340183 Contact Us For Availability
View on Model
9
Door Guide
Door Guide WPL 4340422 Contact Us For Availability
View on Model
9
Lens-Red
Lens-Red WPL 4340169 Contact Us For Availability
View on Model
9
Bi-Metal Assembly Kit (Includes Key No. 11)
Bi-Metal Assembly Kit (Includes Key No. 11) WPL 4340660 Contact Us For Availability
View on Model
9
O-Ring
O-Ring WPL 4340254 Contact Us For Availability
View on Model
10
Washer
Washer WPL 4340836 Contact Us For Availability
View on Model
10
Porcelain Weld Assembly
Porcelain Weld Assembly WPL 4340382 Contact Us For Availability
View on Model
10
Screw, No.8-32 x 1 1/4
Screw, No.8-32 x 1 1/4 WPL 4340129 Contact Us For Availability
View on Model
10

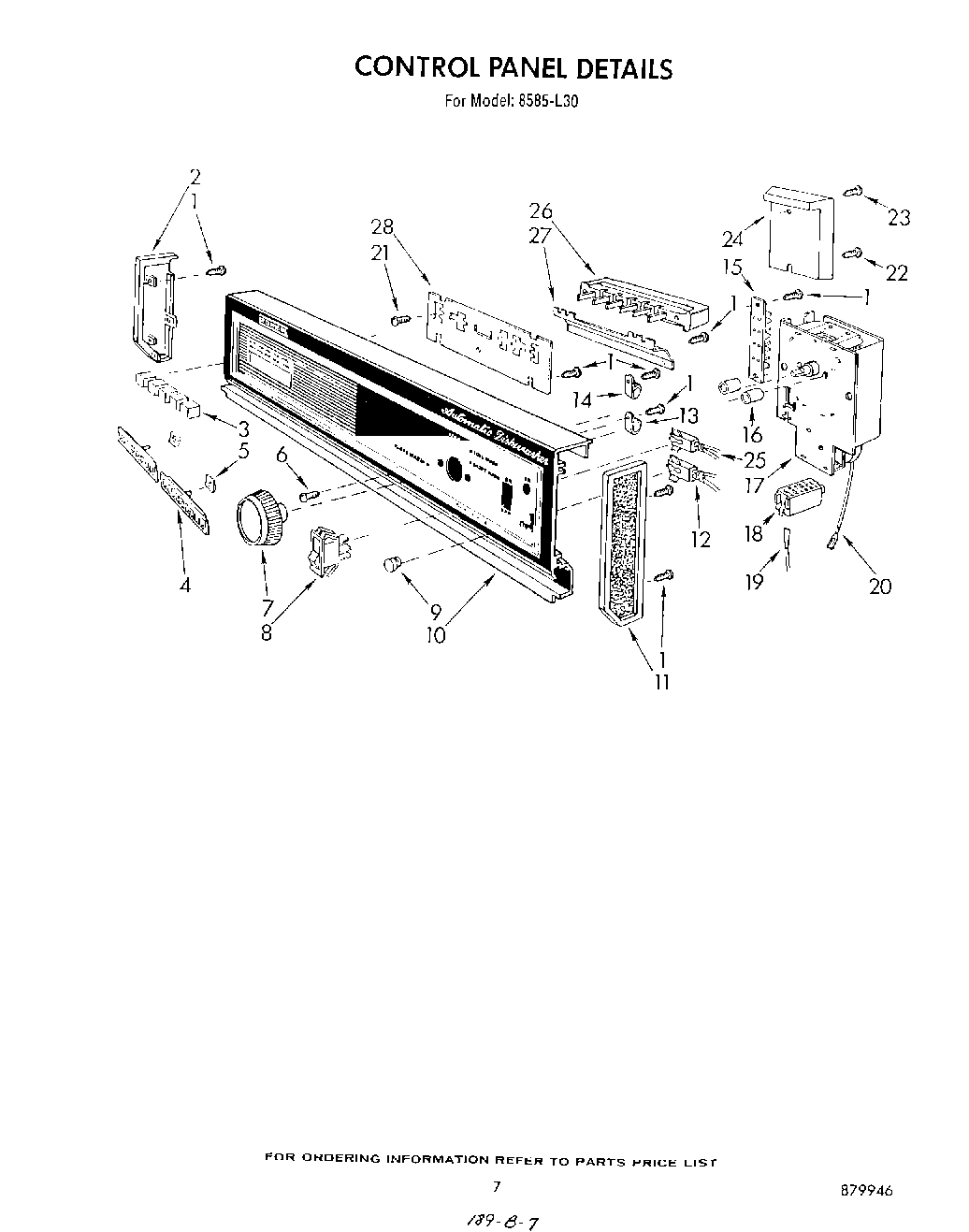

Control Panel (Includes Key Nos. 4 & 5)
Control Panel (Includes Key Nos. 4 & 5) WPL 4340863 Contact Us For Availability
View on Model
10
Washer
Washer WPL 4340092 Contact Us For Availability
View on Model
10

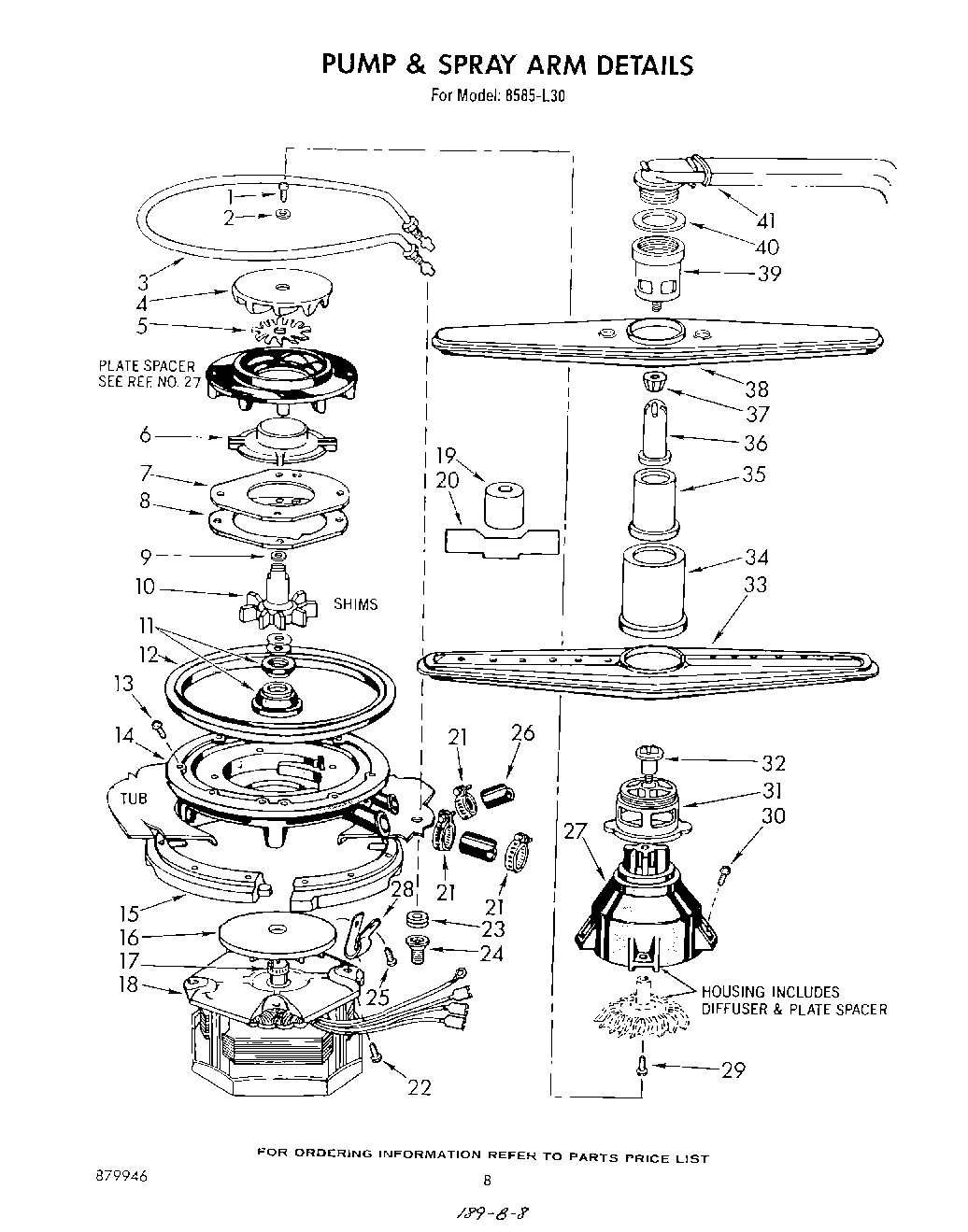

Pump & Seal Kit (Includes Key Nos. 2, 4, 5, 9
Pump & Seal Kit (Includes Key Nos. 2, 4, 5, 9 WPL 4340852 Contact Us For Availability
View on Model
11
Tub Roller
Tub Roller WPL 4340379 Contact Us For Availability
View on Model
11
Screw, No.1/4-20 x 1/2 (Black)
Screw, No.1/4-20 x 1/2 (Black) WPL 4340339 Contact Us For Availability
View on Model
11
End Cap (R.H)
End Cap (R.H) WPL 4340743 Contact Us For Availability
View on Model
11
Bushing
Bushing WPL 4340167 Contact Us For Availability
View on Model
11
Water Seal
Water Seal WPL 4340106 Contact Us For Availability
View on Model
12
Screw & Washer Kit (Includes Key No. 10)
Screw & Washer Kit (Includes Key No. 10) WPL 4340681 Contact Us For Availability
View on Model
12
Latch Assembly
Latch Assembly WPL 4340347 Contact Us For Availability
View on Model
12

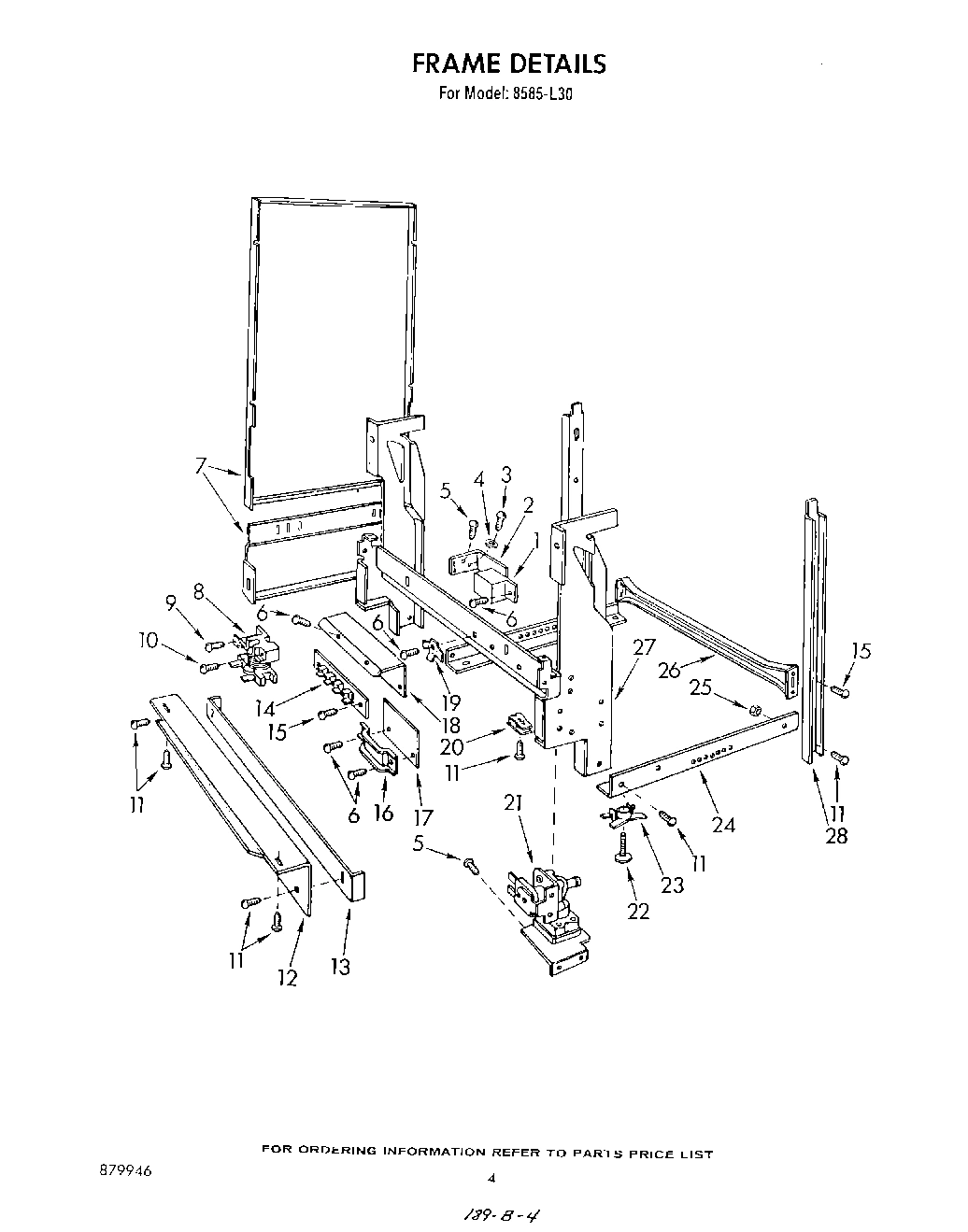

Toeplate
Toeplate WPL 4340504 Contact Us For Availability
View on Model
12
Light Assembly
Light Assembly WPL 4340731 Contact Us For Availability
View on Model
12
O-Ring
O-Ring WPL 4340274 Contact Us For Availability
View on Model
12
Gasket
Gasket WPL 4340818 Contact Us For Availability
View on Model
13
Counterbalance Arm Guide (L.H)
Counterbalance Arm Guide (L.H) WPL 4340426 Contact Us For Availability
View on Model
13
Screw, 10 x 1
Screw, 10 x 1 WPL 4340398 Contact Us For Availability
View on Model
13
Switch Cover
Switch Cover WPL 4340423 Contact Us For Availability
View on Model
13
Adjustable Toeplate
Adjustable Toeplate WPL 4340233 Contact Us For Availability
View on Model
13
Shaft Kit (Includes Keys 2 4, 5, 7, 8, 10, 11
Shaft Kit (Includes Keys 2 4, 5, 7, 8, 10, 11 WPL 4340278 Contact Us For Availability
View on Model
14
Float
Float WPL 4340124 Contact Us For Availability
View on Model
14
Switch
Switch WPL 4340356 Contact Us For Availability
View on Model
14
Terminal Block Assembly
Terminal Block Assembly WPL 4340434 Contact Us For Availability
View on Model
14
Clamp
Clamp WPL 4355186 Contact Us For Availability
View on Model
14
Housing, Pump
Housing, Pump WPL 4340849 Contact Us For Availability
View on Model
15
Terminal Board Assembly
Terminal Board Assembly WPL 4340654 Contact Us For Availability
View on Model
15
Clamp Ring (2)
Clamp Ring (2) WPL 4340490 Contact Us For Availability
View on Model
16
Float Tube Plate
Float Tube Plate WPL 4340531 Contact Us For Availability
View on Model
16
Screw, No.6-32 x 1
Screw, No.6-32 x 1 WPL 4340692 Contact Us For Availability
View on Model
16
Wire Clamp
Wire Clamp WPL 4340283 Contact Us For Availability
View on Model
16
Spacer
Spacer WPL 4340637 Contact Us For Availability
View on Model
16
Watershield Fan (Includes Key No. 17)
Watershield Fan (Includes Key No. 17) WPL 4340785 Contact Us For Availability
View on Model
17
Float Tube Gasket
Float Tube Gasket WPL 4340530 Contact Us For Availability
View on Model
17
Latch Knob
Latch Knob WPL 4355235 Contact Us For Availability
View on Model
17
Shield, Wire
Shield, Wire WPL 4340862 Contact Us For Availability
View on Model
17

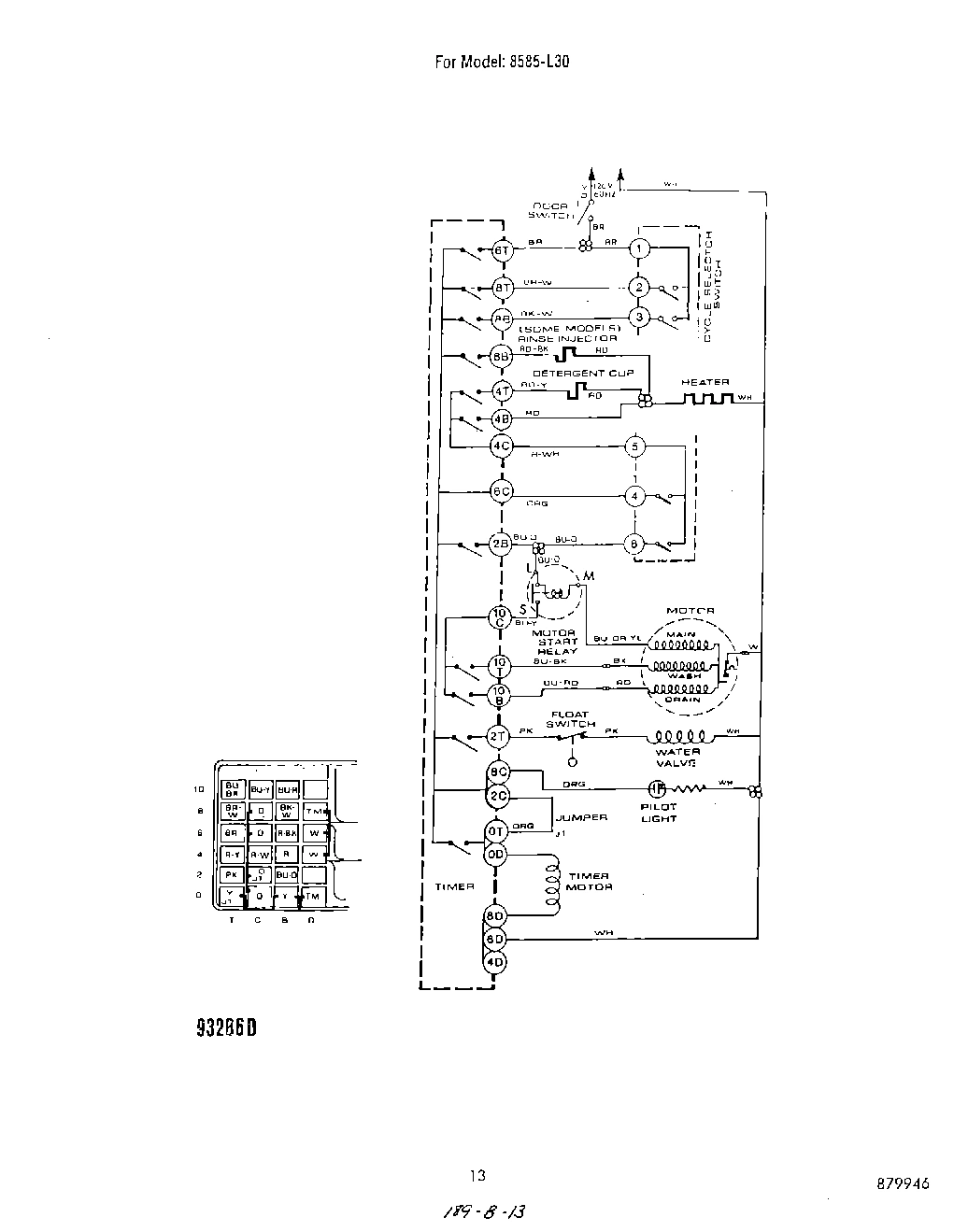

Timer
Timer WPL 4340708 Contact Us For Availability
View on Model
17
Tolerance Ring
Tolerance Ring WPL 4340784 Contact Us For Availability
View on Model
18
Screw, No.10-24 x 7/8
Screw, No.10-24 x 7/8 WPL 4340255 Contact Us For Availability
View on Model
18
Thermostat, (Water Heater)
Thermostat, (Water Heater) WPL 4340807 Contact Us For Availability
View on Model
18
Terminal Board Bracket
Terminal Board Bracket WPL 4340503 Contact Us For Availability
View on Model
18
Timer Housing
Timer Housing WPL 4340583 Contact Us For Availability
View on Model
18
Motor Assembly (Includes Key Nos. 1, 9, 16, &
Motor Assembly (Includes Key Nos. 1, 9, 16, & WPL 4340848 Contact Us For Availability
View on Model
19
Gasket & Wire Assembly (Includes Key Nos. 9 &
Gasket & Wire Assembly (Includes Key Nos. 9 & WPL 4340833 Contact Us For Availability
View on Model
19
Grounding Terminal
Grounding Terminal WPL 4340385 Contact Us For Availability
View on Model
19
Housing Terminal
Housing Terminal WPL 4340607 Contact Us For Availability
View on Model
19
Seal Installation Tool (Required When Install
Seal Installation Tool (Required When Install WPL 4340107 Contact Us For Availability
View on Model
20
Gasket Junction Wire
Gasket Junction Wire WPL 4340615 Contact Us For Availability
View on Model
20
Speednut
Speednut WPL 4340560 Contact Us For Availability
View on Model
20
Timer Terminal
Timer Terminal WPL 4340608 Contact Us For Availability
View on Model
20
Seal Shim Gage
Seal Shim Gage WPL 4340362 Contact Us For Availability
View on Model
21
Dam Clip
Dam Clip WPL 4340545 Contact Us For Availability
View on Model
21
Water inlet Valve
Water inlet Valve WPL 4340877 Contact Us For Availability
View on Model
21
Screw, 6-30 x 3/8
Screw, 6-30 x 3/8 WPL 4340369 Contact Us For Availability
View on Model
21
Hose Clamp
Hose Clamp WPL 4340572 Contact Us For Availability
View on Model
22
O-Ring
O-Ring WPL 4340497 Contact Us For Availability
View on Model
22
Leveler
Leveler WPL 4340472 Contact Us For Availability
View on Model
22
Screw, 10 x 1
Screw, 10 x 1 WPL 4340828 Contact Us For Availability
View on Model
23
Float Switch Kit (Includes Keys 16 17, 22, 24
Float Switch Kit (Includes Keys 16 17, 22, 24 WPL 4340476 Contact Us For Availability
View on Model
23
Heater Grommet
Heater Grommet WPL 4340295 Contact Us For Availability
View on Model
23
Counterbalance Arm Assembly (L.H)
Counterbalance Arm Assembly (L.H) WPL 4340176 Contact Us For Availability
View on Model
23
Snap-In Teenut
Snap-In Teenut WPL 4340471 Contact Us For Availability
View on Model
24
Float Switch
Float Switch WPL 4340477 Contact Us For Availability
View on Model
24
Side Angle
Side Angle WPL 4340505 Contact Us For Availability
View on Model
24
Splash Pan
Splash Pan WPL 4340420 Contact Us For Availability
View on Model
24
Heater Nut 1/2-20 Brass
Heater Nut 1/2-20 Brass WPL 4340296 Contact Us For Availability
View on Model
25
Screw, No.4-40 x 5/8
Screw, No.4-40 x 5/8 WPL 4355154 Contact Us For Availability
View on Model
25
Vent Plate Assembly
Vent Plate Assembly WPL 4340858 Contact Us For Availability
View on Model
25
Nut
Nut WPL 4355156 Contact Us For Availability
View on Model
25
Light Assembly
Light Assembly WPL 4340725 Contact Us For Availability
View on Model
26
Counterbalance Arm Guide (R.H)
Counterbalance Arm Guide (R.H) WPL 4340427 Contact Us For Availability
View on Model
26
Access Panel (White)
Access Panel (White) WPL 4340850 Contact Us For Availability
View on Model
26
Rear Brace
Rear Brace WPL 4340506 Contact Us For Availability
View on Model
26
Switch
Switch WPL 4340736 Contact Us For Availability
View on Model
26
Connector Hose
Connector Hose WPL 4340561 Contact Us For Availability
View on Model
27
Screw, No.8-32 x 1/2
Screw, No.8-32 x 1/2 WPL 4340095 Contact Us For Availability
View on Model
27
Door & Access Panel Inserts (Almond)
Door & Access Panel Inserts (Almond) WPL 4340786 Contact Us For Availability
View on Model
27
Door & Access Panel Inserts (Avocado)
Door & Access Panel Inserts (Avocado) WPL 4340787 Contact Us For Availability
View on Model
27
Door & Access Panel Inserts (Platinum)
Door & Access Panel Inserts (Platinum) WPL 4340788 Contact Us For Availability
View on Model
27
Door & Access Panel Inserts (Toast)
Door & Access Panel Inserts (Toast) WPL 4340789 Contact Us For Availability
View on Model
27
Door & Access Panel Inserts (Wheat)
Door & Access Panel Inserts (Wheat) WPL 4340790 Contact Us For Availability
View on Model
27
Door & Access Panel Inserts (Black)
Door & Access Panel Inserts (Black) WPL 4340791 Contact Us For Availability
View on Model
27
Door & Access Panel Inserts (White)
Door & Access Panel Inserts (White) WPL 4340792 Contact Us For Availability
View on Model
27
Door & Access Panel Inserts (Coffee)
Door & Access Panel Inserts (Coffee) WPL 4340793 Contact Us For Availability
View on Model
27
Hinge Weld Assembly
Hinge Weld Assembly WPL 4340502 Contact Us For Availability
View on Model
27
Vent Slot Shield
Vent Slot Shield WPL 4340629 Contact Us For Availability
View on Model
27
Impeller Housing Kit (Includes Keys 6 & 7)
Impeller Housing Kit (Includes Keys 6 & 7) WPL 4340856 Contact Us For Availability
View on Model
28
Clamp
Clamp WPL 4340643 Contact Us For Availability
View on Model
28
Body Assembly
Body Assembly WPL 4340284 Contact Us For Availability
View on Model
28
Support Channel
Support Channel WPL 4340707 Contact Us For Availability
View on Model
28
Switch Mounting Bracket
Switch Mounting Bracket WPL 4340267 Contact Us For Availability
View on Model
29

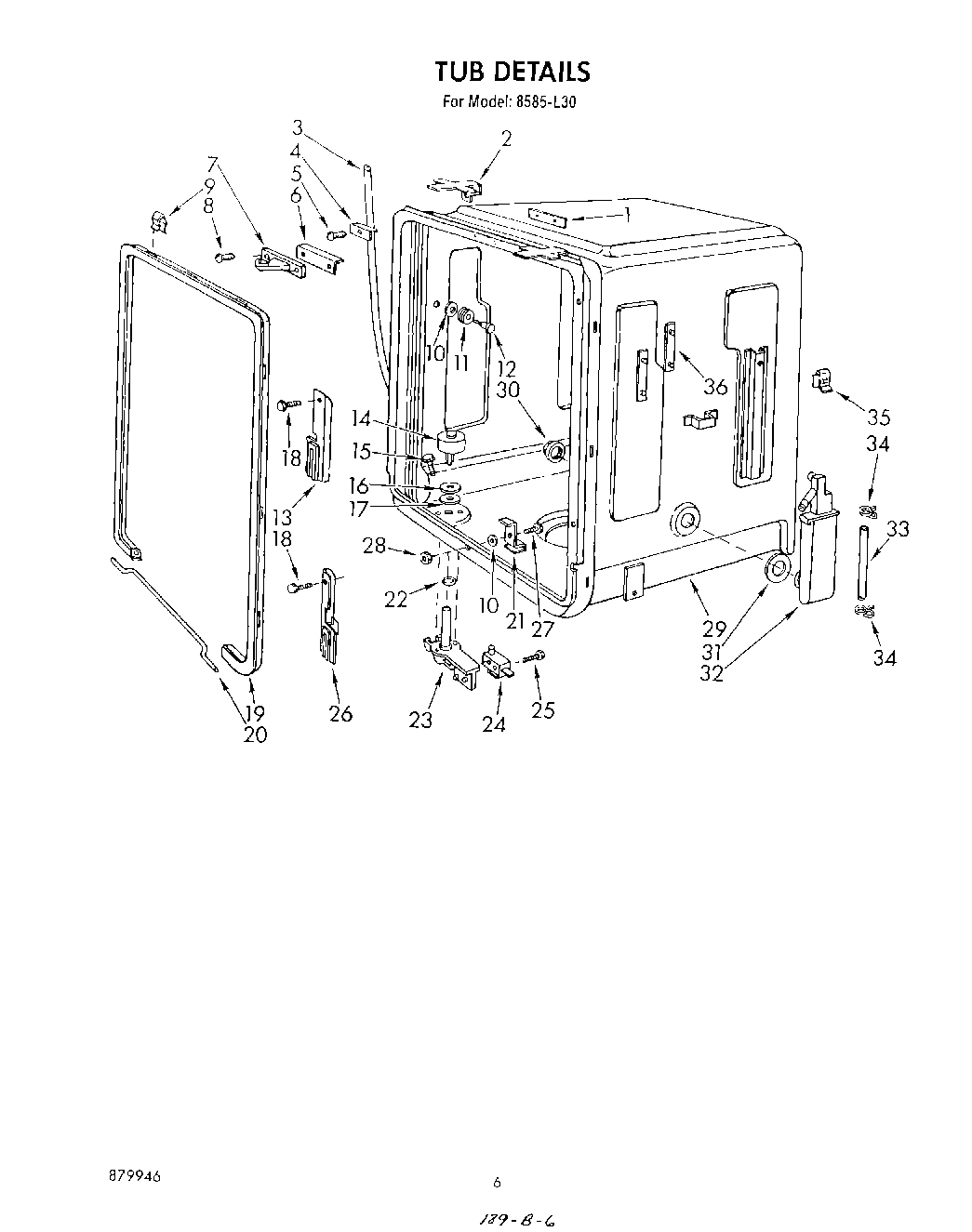

Tub & Gasket Assembly
Tub & Gasket Assembly WPL 4340880 Contact Us For Availability
View on Model
29
Plunger
Plunger WPL 4340286 Contact Us For Availability
View on Model
29
Screw, No.8 x 3/4
Screw, No.8 x 3/4 WPL 4340857 Contact Us For Availability
View on Model
30
Nut
Nut WPL 4340170 Contact Us For Availability
View on Model
30
Bi-Metal Assembly
Bi-Metal Assembly WPL 4340851 Contact Us For Availability
View on Model
30
Screw, No.10 x 1 3/4
Screw, No.10 x 1 3/4 WPL 4340412 Contact Us For Availability
View on Model
31
Water Inlet, Gasket
Water Inlet, Gasket WPL 4340103 Contact Us For Availability
View on Model
31
Fill Plug
Fill Plug WPL 4340473 Contact Us For Availability
View on Model
31
Bearing
Bearing WPL 4340838 Contact Us For Availability
View on Model
32
Water Inlet, Assembly
Water Inlet, Assembly WPL 4340246 Contact Us For Availability
View on Model
32
Spray Arm Bolt
Spray Arm Bolt WPL 4340825 Contact Us For Availability
View on Model
33
Water Inlet Tubing (Includes Key 34)
Water Inlet Tubing (Includes Key 34) WPL 4340512 Contact Us For Availability
View on Model
33
Spray Arm Assembly
Spray Arm Assembly WPL 4340564 Contact Us For Availability
View on Model
34
Clamp
Clamp WPL 4340499 Contact Us For Availability
View on Model
34
Screw, No.10 x 3/8
Screw, No.10 x 3/8 WPL 4340303 Contact Us For Availability
View on Model
34
Tower Base
Tower Base WPL 4340565 Contact Us For Availability
View on Model
35
Cage Nut
Cage Nut WPL 4340231 Contact Us For Availability
View on Model
35
Door Panel Trim (R.H)
Door Panel Trim (R.H) WPL 4340808 Contact Us For Availability
View on Model
35
Tower Section
Tower Section WPL 4340566 Contact Us For Availability
View on Model
36
Tapping Plate
Tapping Plate WPL 4340352 Contact Us For Availability
View on Model
36
Screw, No.6 x 1/4
Screw, No.6 x 1/4 WPL 4340403 Contact Us For Availability
View on Model
36
Tower Tip
Tower Tip WPL 4340567 Contact Us For Availability
View on Model
37
Door Panel Trim (Bottom)
Door Panel Trim (Bottom) WPL 4340409 Contact Us For Availability
View on Model
37
Nut
Nut WPL 4340568 Contact Us For Availability
View on Model
38
Spray Arm Assembly
Spray Arm Assembly WPL 4340827 Contact Us For Availability
View on Model
39
Access Panel Trim (R.H)
Access Panel Trim (R.H) WPL 4340525 Contact Us For Availability
View on Model
39
Distributor
Distributor WPL 4340569 Contact Us For Availability
View on Model
40
Access Panel Trim (Bottom)
Access Panel Trim (Bottom) WPL 4340524 Contact Us For Availability
View on Model
40
Gasket
Gasket WPL 4340570 Contact Us For Availability
View on Model
41
Access Panel Trim (Top)
Access Panel Trim (Top) WPL 4340617 Contact Us For Availability
View on Model
41
Elbow & Tube Assembly
Elbow & Tube Assembly WPL 4340571 Contact Us For Availability
View on Model
42
Access Panel
Access Panel WPL 4340526 Contact Us For Availability
View on Model
43
WPL  4340809
WPL 4340809 WPL 4340809 Contact Us For Availability
View on Model
44
WPL  4340847
WPL 4340847 WPL 4340847 Contact Us For Availability
View on Model
