Model Whirlpool 8515L10 DISHWASHER – Common Parts & Diagrams
04 - TUB
06 - RACK

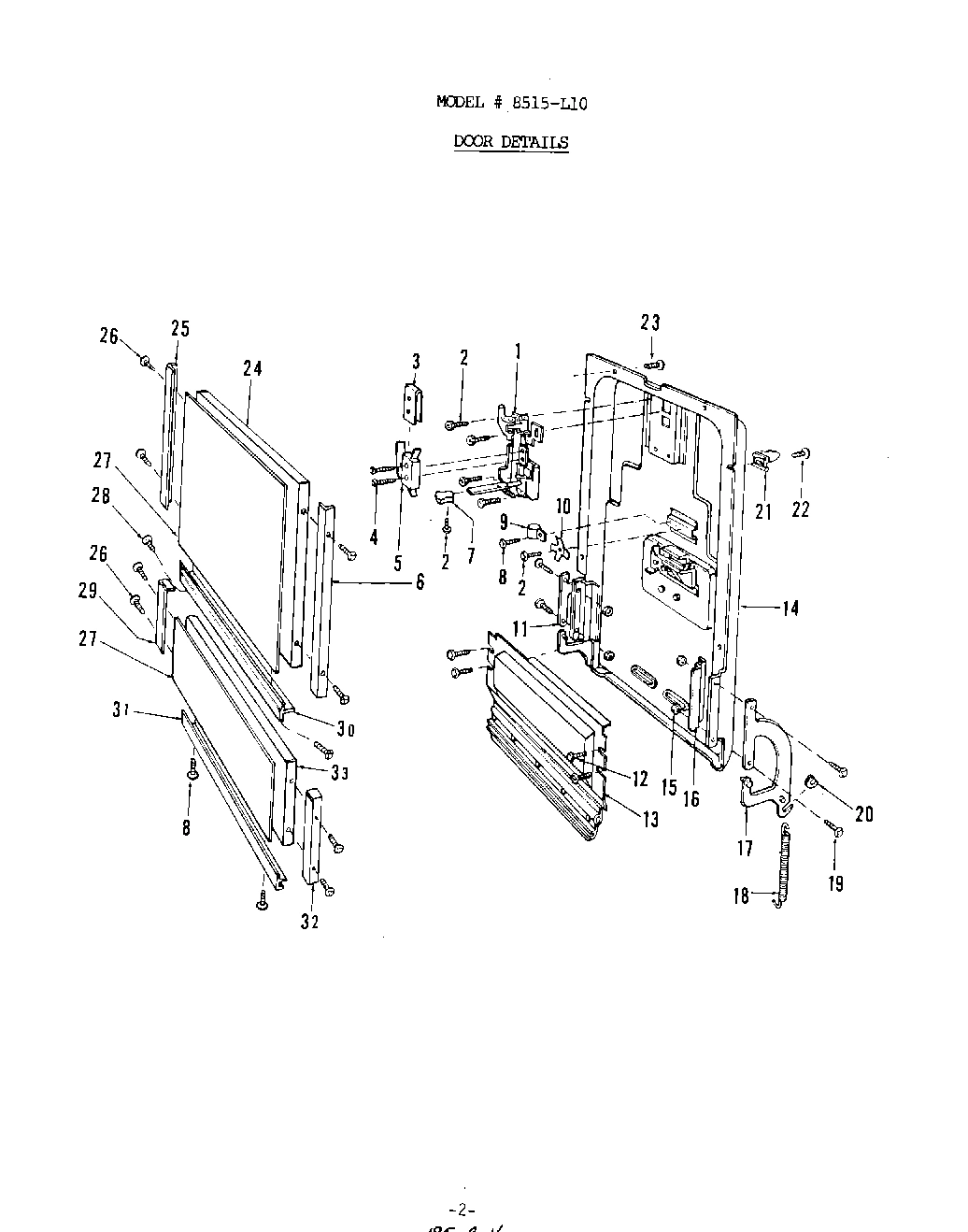

03 - DOOR

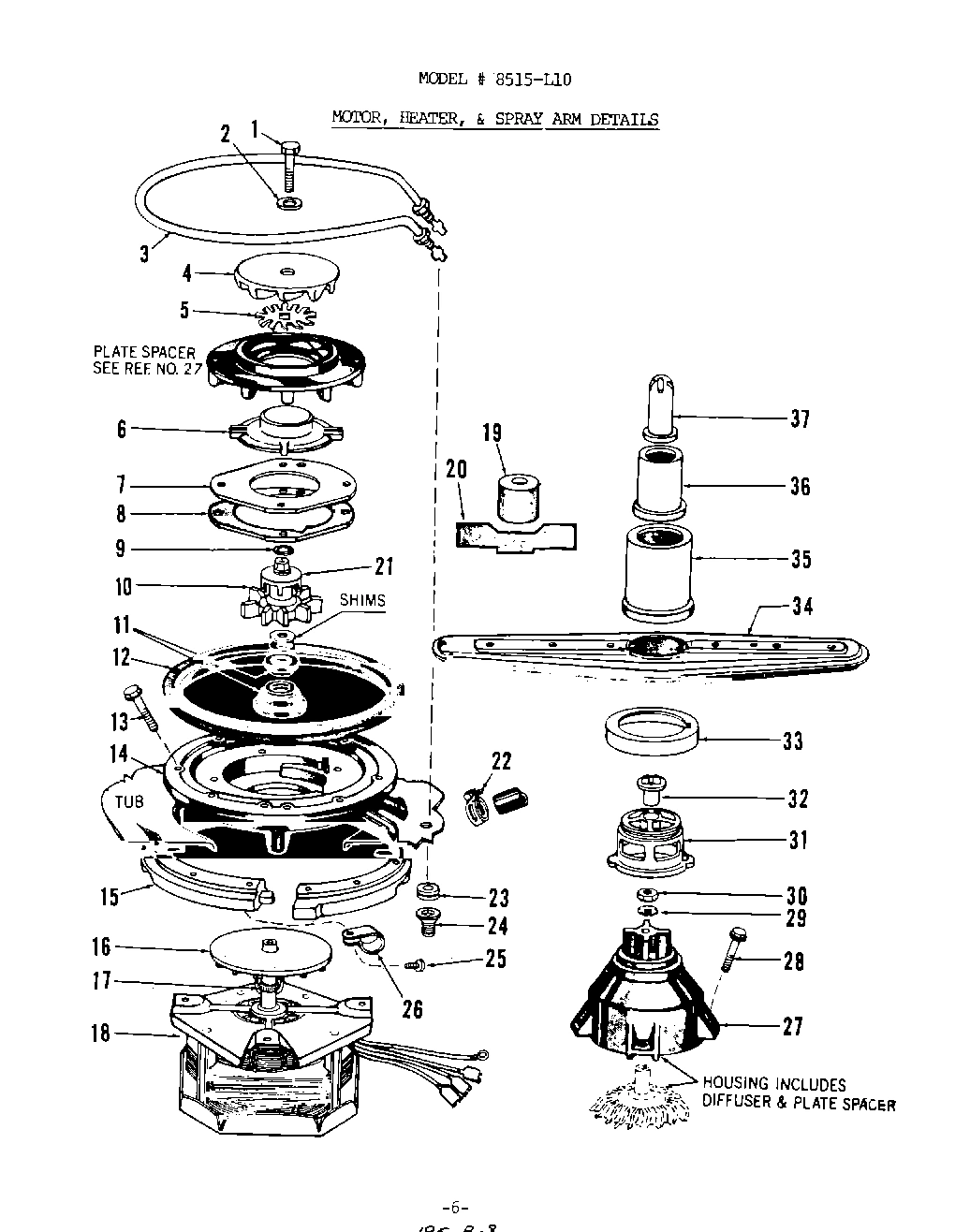

05 - MOTOR, HEATER AND SPRAY ARM

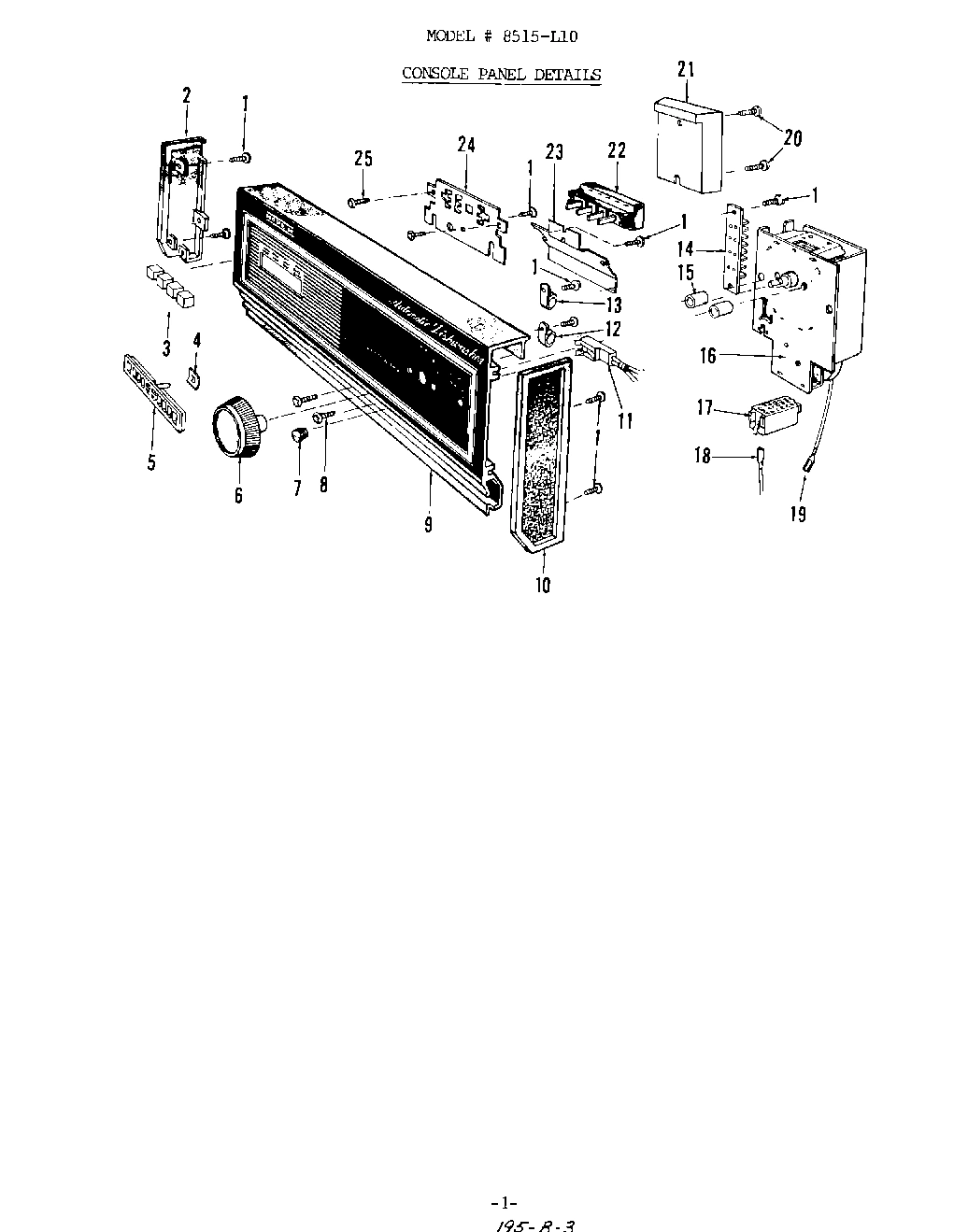

02 - CONSOLE PANEL

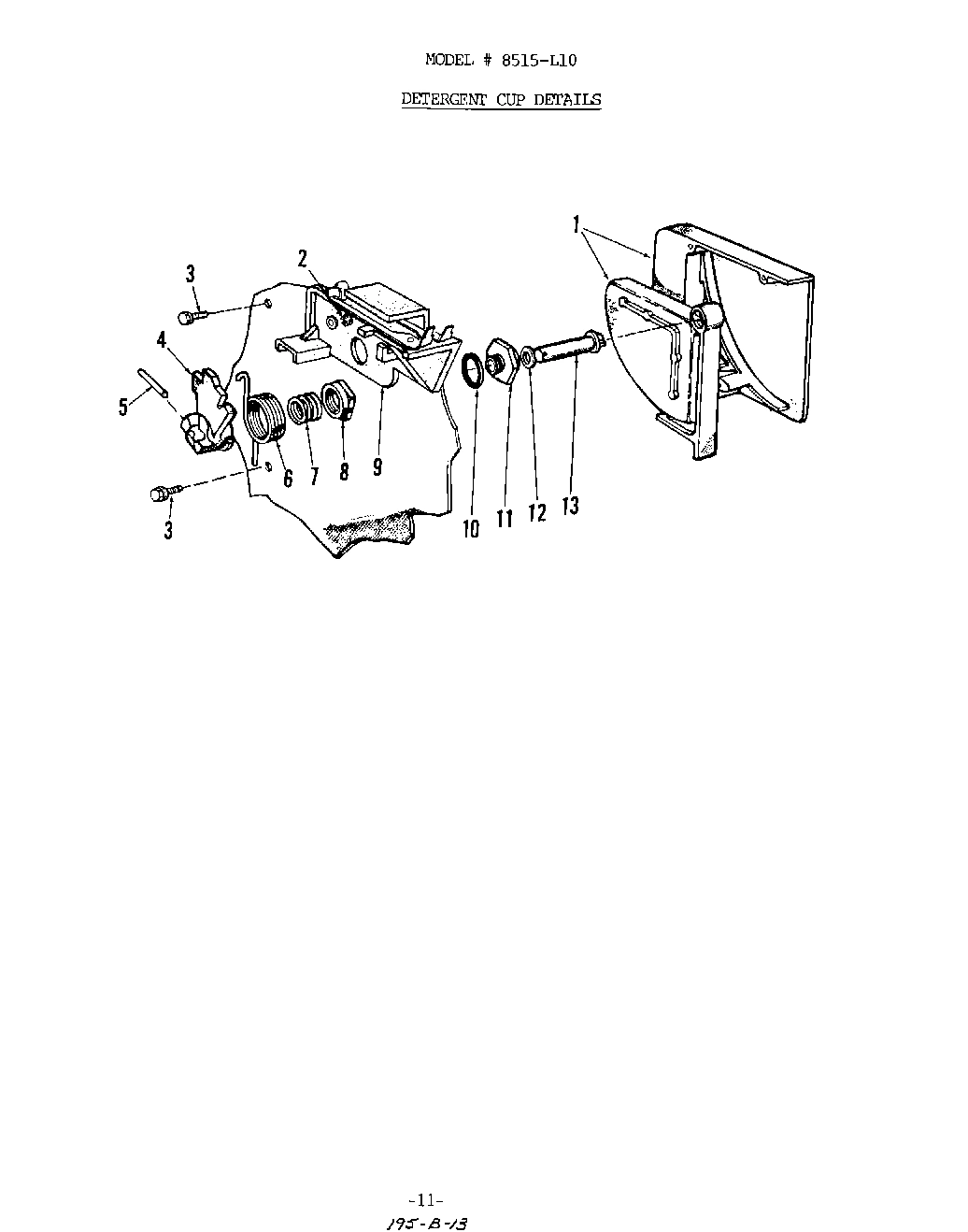

08 - DETERGENT CUP

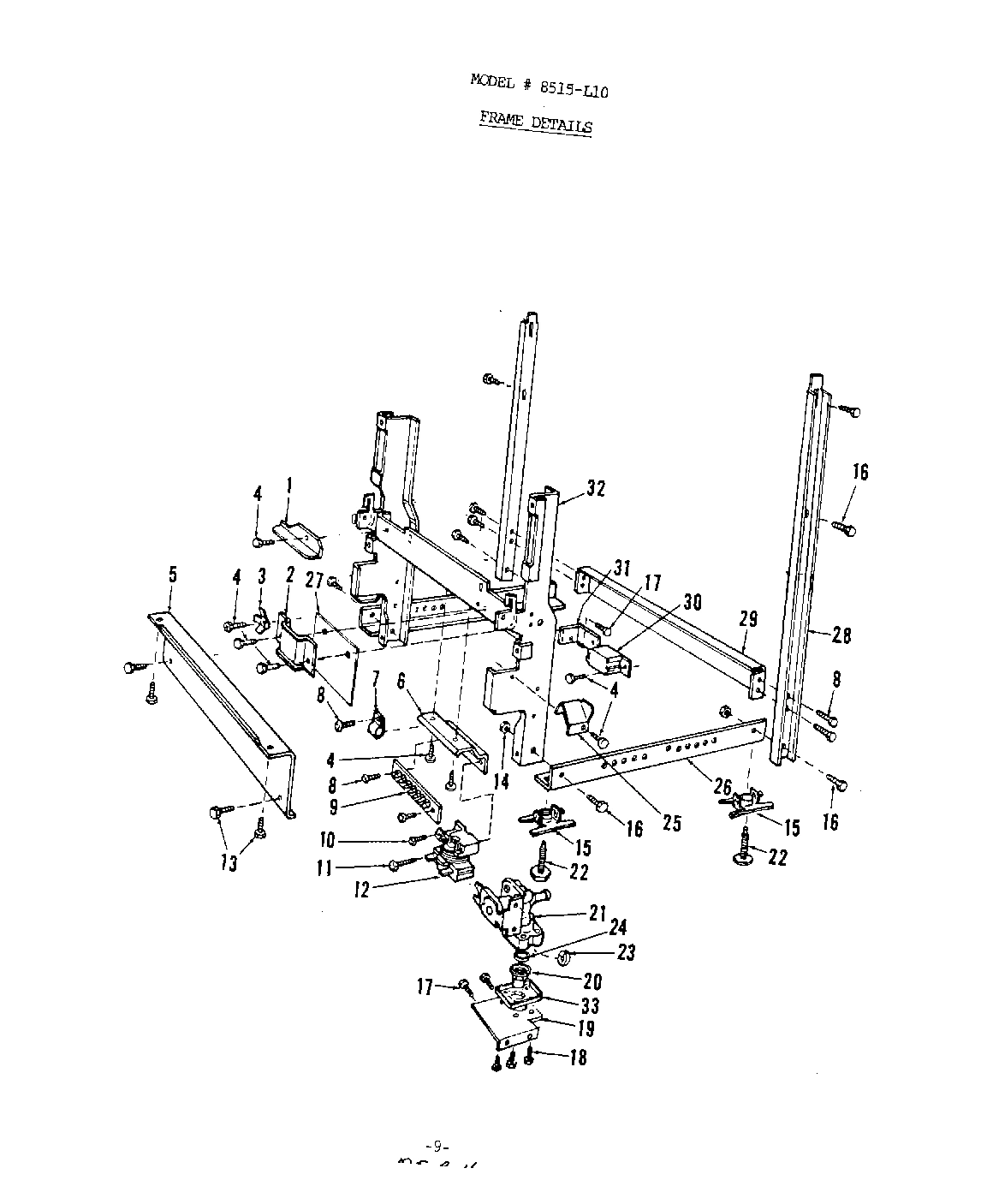

07 - FRAME

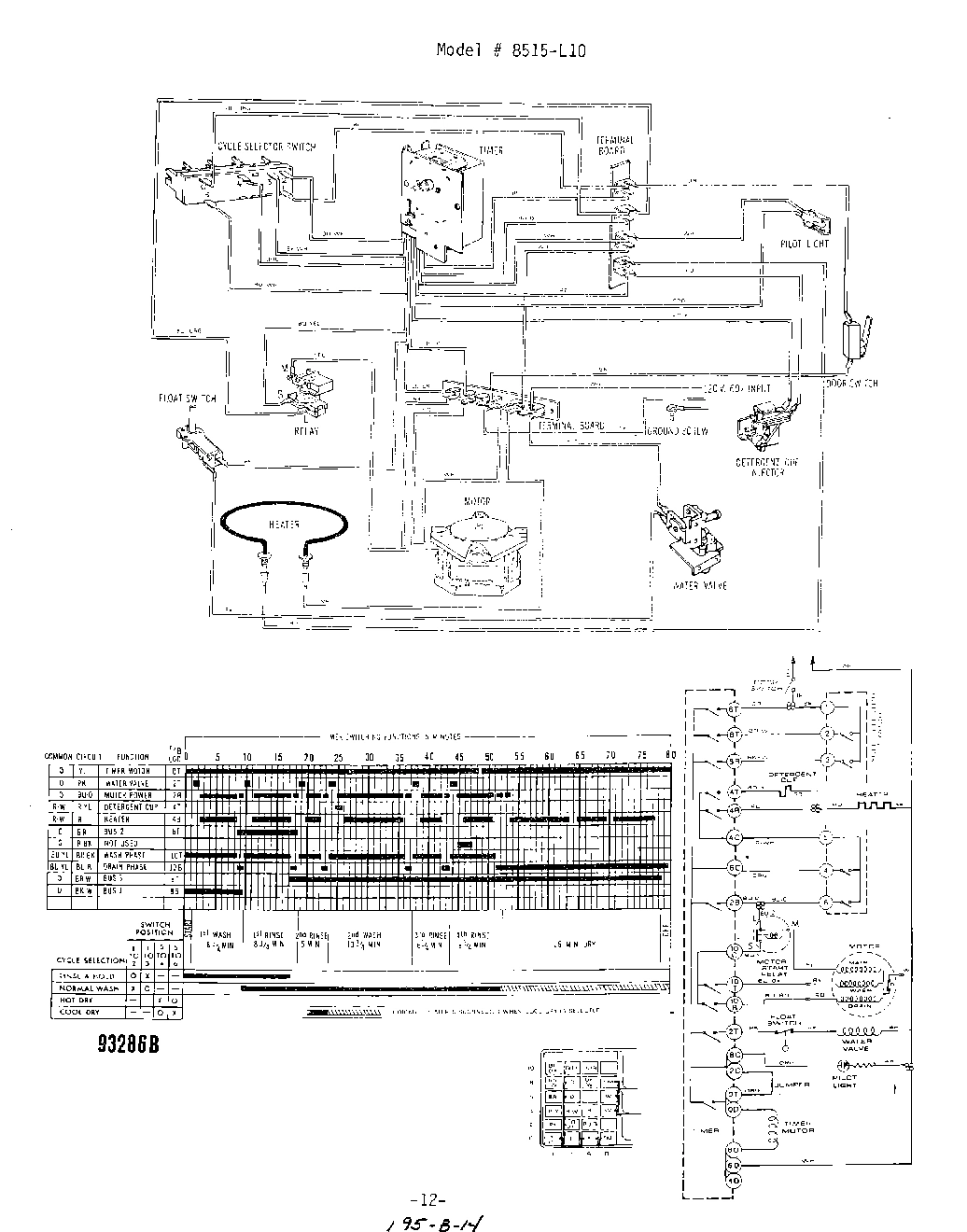

09 - WIRING DIAGRAM
Common parts from model Whirlpool 8515L10 DISHWASHER
1
Latch Tapping Plate WPL 808868 Contact Us For Availability
1
Rack Assembly-Lower WPL 807683 Contact Us For Availability
1
Latch Assembly WPL 807016 Contact Us For Availability
1
Screw 10-32x2 1/4 Lg. Hex Hd. St. St. WPL 806353 Contact Us For Availability
1
Screw 8x7/16 Lg. C.R. Pan Hd. Cad. Pl. WPL 806943 Contact Us For Availability
1
Detergent Cup & Cover WPL 807261 Contact Us For Availability
1
Suds Deflector L.H. WPL 807558 Contact Us For Availability
2
Attach Clip WPL 808289 Contact Us For Availability
2
Washer WPL 803367 Contact Us For Availability
2
Silverware Basket WPL 808845 Contact Us For Availability
2
Screw 8-32x5/16 Lg. C.R. Hex Hd. Cad. Pl. WPL 806830 Contact Us For Availability
2
End Cap-L.H. (Black) WPL 808694 Contact Us For Availability
2
``O`` Ring WPL 808210 Contact Us For Availability
2
Clamp - Wiring WPL 806723 Contact Us For Availability
3
Rack Assembly-Upper WPL 807684 Contact Us For Availability
3
Cover - Switch WPL 807450 Contact Us For Availability
3
Grounding Terminal WPL 807213 Contact Us For Availability
3
Heater (Includes Key Nos. 23 & 24) WPL 806864 Contact Us For Availability
3
Pushbutton WPL 807273 Contact Us For Availability
3
Screw 8x5/8 Lg. Hex Washer Hd. St. St. WPL 806565 Contact Us For Availability
4
Drain Hose WPL 807524 Contact Us For Availability
4
Wheel Assembly WPL 807245 Contact Us For Availability
4
Screw 6-32x1``Lg. Hex Hd. Cad. Pl. WPL 808618 Contact Us For Availability
4
Impeller - Upper WPL 808041 Contact Us For Availability
4
Speednut WPL 808475 Contact Us For Availability
4
Cam WPL 806566 Contact Us For Availability
5
Shim WPL 807073 Contact Us For Availability
5
Rack Slide - End Cap WPL 807234 Contact Us For Availability
5
Switch WPL 807043 Contact Us For Availability
5
Blade - Macerator WPL 808075 Contact Us For Availability
5
Vent Griddle WPL 808477 Contact Us For Availability
5
Spirol Pin WPL 808827 Contact Us For Availability
5
Toeplate WPL 807559 Contact Us For Availability
6
Door Strike WPL 807015 Contact Us For Availability
6
Rack Slide WPL 807568 Contact Us For Availability
6
Door Assembly Trim -RH WPL 808850 Contact Us For Availability
6
Shroud - Impeller WPL 806267 Contact Us For Availability
6
Timer Knob WPL 808812 Contact Us For Availability
6
Spring - Cam WPL 805227 Contact Us For Availability
6
Terminal Block Bracket WPL 807675 Contact Us For Availability
7
Wheel & Bracket Assembly (4) WPL 807008 Contact Us For Availability
7
Latch Knob WPL 806398 Contact Us For Availability
7
Clamp WPL 808442 Contact Us For Availability
7
Plate - Pump WPL 807884 Contact Us For Availability
7
Lens-Red WPL 805664 Contact Us For Availability
7
Spring-Cam Compression WPL 806567 Contact Us For Availability
8
Tub Gasket Clip Kit (Includes Key No. 20) WPL 805763 Contact Us For Availability
8
Screw 8x3/8 Lg. C.R. Binding Hd. Cad. Pl. WPL 803416 Contact Us For Availability
8
Screw 8x1/2 Lg. C.R. Truss Hd. Chrome Pl. WPL 807501 Contact Us For Availability
8
Gasket - Pump WPL 807709 Contact Us For Availability
8
Screw 10-32 x 1-17/64 LG.C.R. Truss Hd. Zinc WPL 808422 Contact Us For Availability
8
Detergent Cup Nut WPL 806568 Contact Us For Availability
9
Sealing Washer WPL 805776 Contact Us For Availability
9
``O`` Ring WPL 806521 Contact Us For Availability
9
Console Panel (Includes Key Nos 4 & 5) WPL 808978 Contact Us For Availability
9
Bi-Metal Assembly Kit (Includes Key No. 11) WPL 808507 Contact Us For Availability
9
Terminal Block Assembly WPL 807486 Contact Us For Availability
10
Pump Seal Kit (Includes Key Nos. 2,4,5,9,11,2 WPL 808722 Contact Us For Availability
10
End Cap-R.H. (Black) WPL 808693 Contact Us For Availability
10
Washer WPL 802836 Contact Us For Availability
11
Tub Roller WPL 807180 Contact Us For Availability
11
Counterbalance Arm Assembly - L.H. WPL 807539 Contact Us For Availability
11
Water Seal WPL 803903 Contact Us For Availability
11
Light Assembly WPL 808711 Contact Us For Availability
11
Bushing WPL 805626 Contact Us For Availability
11
Screw 8-32x1 1/4 Lg. C.R. Oval Hd. Cad. Pl. WPL 804672 Contact Us For Availability
12
Screw & Washer Kit (Includes Key Nos. 9 & 10) WPL 808564 Contact Us For Availability
12
Screw 8x3/8 Lg. C.R. Round Hd. St. St. WPL 806810 Contact Us For Availability
12
Pump Gasket WPL 807710 Contact Us For Availability
12
O-RING WPL 806647 Contact Us For Availability
12
Motor Relay WPL 805255 Contact Us For Availability
13
Float WPL 804630 Contact Us For Availability
13
Screw 10x1 Lg. Hex Washer Hd. St. St. WPL 807268 Contact Us For Availability
13
Vent Plate Assembly WPL 808370 Contact Us For Availability
13
Shaft Kit (Includes Key Nos. 2,4,5,7,8,10,11, WPL 806674 Contact Us For Availability
13
Screw 1/4-20x1/2 Lg. Hex Washer Slotted Hd.Bl WPL 807001 Contact Us For Availability
14
Porcelain Weld Assembly WPL 808578 Contact Us For Availability
14
Pump Housing WPL 808700 Contact Us For Availability
14
Terminal Board Assembly WPL 808483 Contact Us For Availability
15
Tub & Gasket Assembly WPL 808917 Contact Us For Availability
15
Clamp Ring (2) WPL 807712 Contact Us For Availability
15
Spacer WPL 808424 Contact Us For Availability
15
Teenut - Snap- in WPL 807671 Contact Us For Availability
16
Plate - Float Tube WPL 808064 Contact Us For Availability
16
Counterbalance Arm Mounting Bracket WPL 806717 Contact Us For Availability
16
Watershield Fan (Includes Key No. 17) WPL 808899 Contact Us For Availability
16
Timer WPL 808671 Contact Us For Availability
16
Screw 1/4-20x15/32 Lg. Hex Washer Hd. Black WPL 806889 Contact Us For Availability
17
Gasket - Float Tube WPL 808063 Contact Us For Availability
17
Counterbalance Arm Assembly - R.H. WPL 807538 Contact Us For Availability
17
Tolerance Ring WPL 808898 Contact Us For Availability
17
Timer Housing (Black) WPL 808231 Contact Us For Availability
17
Screw 10Bx1/2 Lg. Hex Slot Hd. Cad. Pl. WPL 807950 Contact Us For Availability
18
Counterbalane Arm Guide - L.H. WPL 807599 Contact Us For Availability
18
Door Spring WPL 807534 Contact Us For Availability
18
Motor Assembly (Includes Key Nos. 1,9,16, 20) WPL 806300 Contact Us For Availability
18
Housing Terminal WPL 808333 Contact Us For Availability
18
Screw 8-18Bx5/8 Lg. Hex Hd. Zinc Pl. WPL 808368 Contact Us For Availability
19
Nut WPL 803346 Contact Us For Availability
19
Screw 10-24x5/8 Lg. C.R. Truss Hd. Chr. Pl. WPL 803311 Contact Us For Availability
19
Seal Installation Tool WPL 803923 Contact Us For Availability
19
Terminal - Timer WPL 808334 Contact Us For Availability
19
Valve Mounting Bracket WPL 807613 Contact Us For Availability
20
Screw 8 x 5/16 Lg. C.R. Truss Hd. St. St. WPL 806894 Contact Us For Availability
20
Dam Clip WPL 808115 Contact Us For Availability
20
Spring Pad WPL 805884 Contact Us For Availability
20
Gage - Seal Shim WPL 807077 Contact Us For Availability
20
Inlet Fitting WPL 808337 Contact Us For Availability
21
Guide - Door WPL 807537 Contact Us For Availability
21
Impeller Ring WPL 808699 Contact Us For Availability
21
Splash Pan WPL 807425 Contact Us For Availability
21
Water Valve Kit (Includes Key Nos. 23 & 24) WPL 808668 Contact Us For Availability
22
``O`` Ring WPL 807759 Contact Us For Availability
22
Screw 8x5/8 Lg. C.R. Truss Hd. St. St. WPL 808749 Contact Us For Availability
22
Drain Hose Clamp WPL 806090 Contact Us For Availability
22
Switch WPL 808407 Contact Us For Availability
22
Leveler WPL 807672 Contact Us For Availability
23
Counterbalance Arm Guide R.H. WPL 807600 Contact Us For Availability
23
Grommet - Heater WPL 806833 Contact Us For Availability
23
Shield - Vent Slot WPL 808574 Contact Us For Availability
23
Flow Washer WPL 808469 Contact Us For Availability
24
Gasket Junction Wire WPL 808118 Contact Us For Availability
24
Door Panel (White) WPL 808298 Contact Us For Availability
24
Heater Nut 1/2 20 Brass WPL 806834 Contact Us For Availability
24
Switch Mounting Bracket WPL 806594 Contact Us For Availability
24
Gasket WPL 806100 Contact Us For Availability
25
Tub Gasket & Wire Assembly (Includes Key Nos. WPL 808117 Contact Us For Availability
25
Door Panel Trim - L.H. WPL 808851 Contact Us For Availability
25
Screw 8 x 5/8 Lg. C.R. Truss Hd. Cad. Pl. WPL 807270 Contact Us For Availability
25
Screw 6-30 x 3/8 Lg. Pan Hd Cad. Pl. WPL 807141 Contact Us For Availability
25
Suds Deflector R.H. WPL 807563 Contact Us For Availability
26
Float Switch Kit (Includes Key Nos. 16,17,22, WPL 807677 Contact Us For Availability
26
Angle Base WPL 807564 Contact Us For Availability
27
Float Switch WPL 807680 Contact Us For Availability
27
Door & Access Panel Inserts (Almond & G. Whea WPL 808299 Contact Us For Availability
27
Pump Housing Kit (Includes Key Nos. 6 & 7) WPL 806978 Contact Us For Availability
27
Wire Shield WPL 808013 Contact Us For Availability
28
Screw 4-40x5/8`` Lg. Hex Hd. Cad. Pl. WPL 804594 Contact Us For Availability
28
Screw 10 x 1 3/4 Lg. Hex Hd. St. St. WPL 807359 Contact Us For Availability
28
Support Channel WPL 808670 Contact Us For Availability
29
Screw 8 x 5/8 Lg. C.R. Hex Washer Hd. St. St. WPL 806901 Contact Us For Availability
29
Trim-Access Panel L.H. Side WPL 808104 Contact Us For Availability
29
Lockwasher WPL 804526 Contact Us For Availability
29
Rear Brace WPL 807566 Contact Us For Availability
30
Blower Housing Gasket WPL 806797 Contact Us For Availability
30
Door Panel Trim - Bottom WPL 808323 Contact Us For Availability
30
Nut WPL 804527 Contact Us For Availability
30
Junction Box Cover WPL 800222 Contact Us For Availability
31
Tapping Plate WPL 808705 Contact Us For Availability
31
Access Panel Trim - Bottom WPL 808303 Contact Us For Availability
31
Bearing WPL 808175 Contact Us For Availability
31
Junction Box Bracket WPL 807019 Contact Us For Availability
32
Vent Stack WPL 808706 Contact Us For Availability
32
Trim - Access Panel R.H. Side WPL 808103 Contact Us For Availability
32
Spray Arm Nut WPL 808176 Contact Us For Availability
32
Hinge Weld Assembly WPL 807674 Contact Us For Availability
33
Water Inlet Tubing (Includes Key No. 34) WPL 807891 Contact Us For Availability
33
Access Panel (White) WPL 808304 Contact Us For Availability
33
Shield Bearing WPL 808924 Contact Us For Availability
33
Inlet Fitting Retaining Plate WPL 808458 Contact Us For Availability
34
Clamp WPL 807813 Contact Us For Availability
34
Spray Arm Assembly WPL 808848 Contact Us For Availability
35
Water Inlet Nozzle WPL 808707 Contact Us For Availability
35
Tower Base WPL 808178 Contact Us For Availability
36
Screw 8 x 1/2 Lg. C.R. Flat Hd. Cad. Pl. WPL 808818 Contact Us For Availability
36
Tower Section WPL 808179 Contact Us For Availability
37
Cage Nut WPL 806291 Contact Us For Availability
37
Tower Tip WPL 808849 Contact Us For Availability
38
Tapping Plate WPL 807038 Contact Us For Availability
× ![]()
