Model Whirlpool 8515L00 DISHWASHER – Common Parts & Diagrams
03 - DOOR
04 - TUB

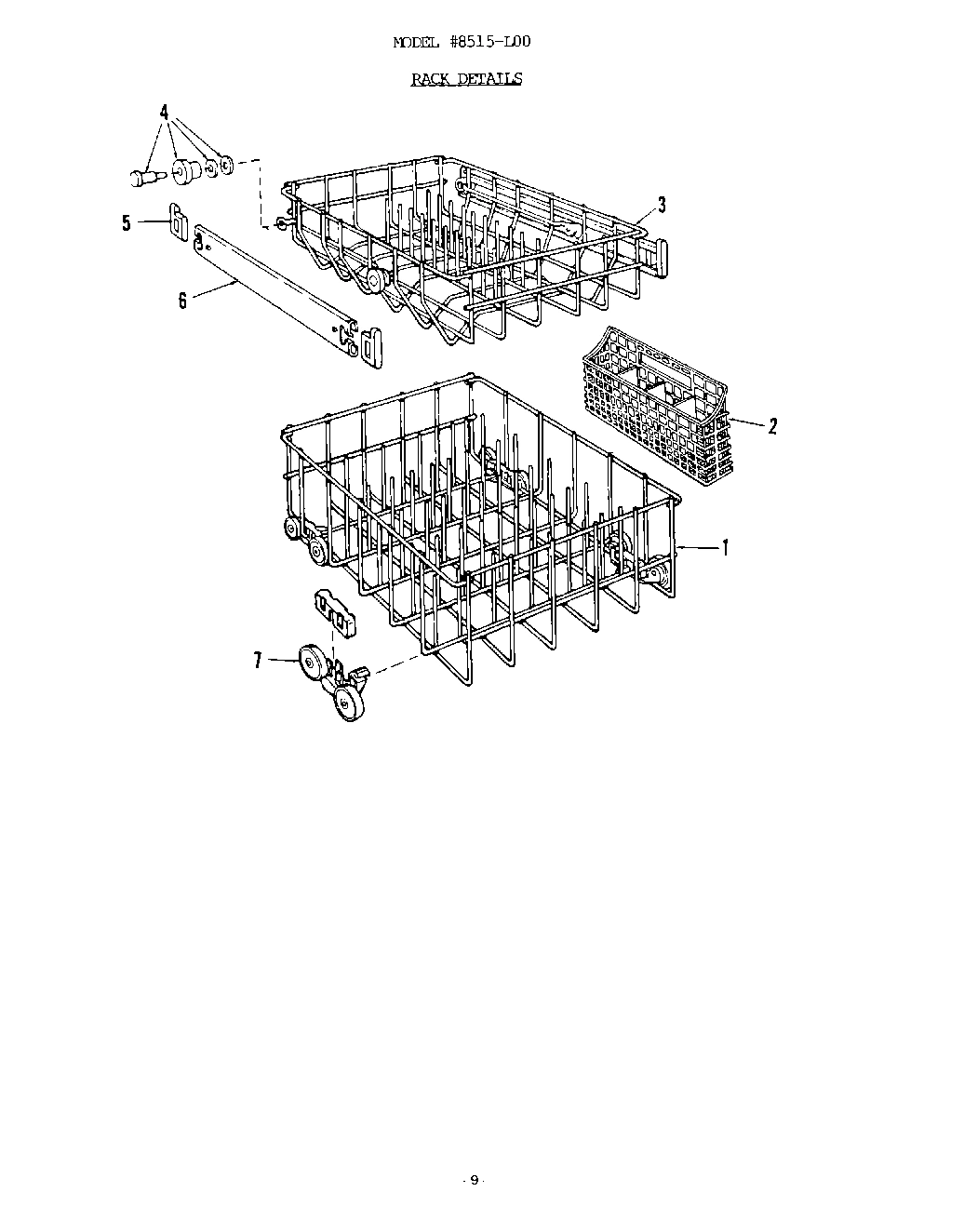

06 - RACKS

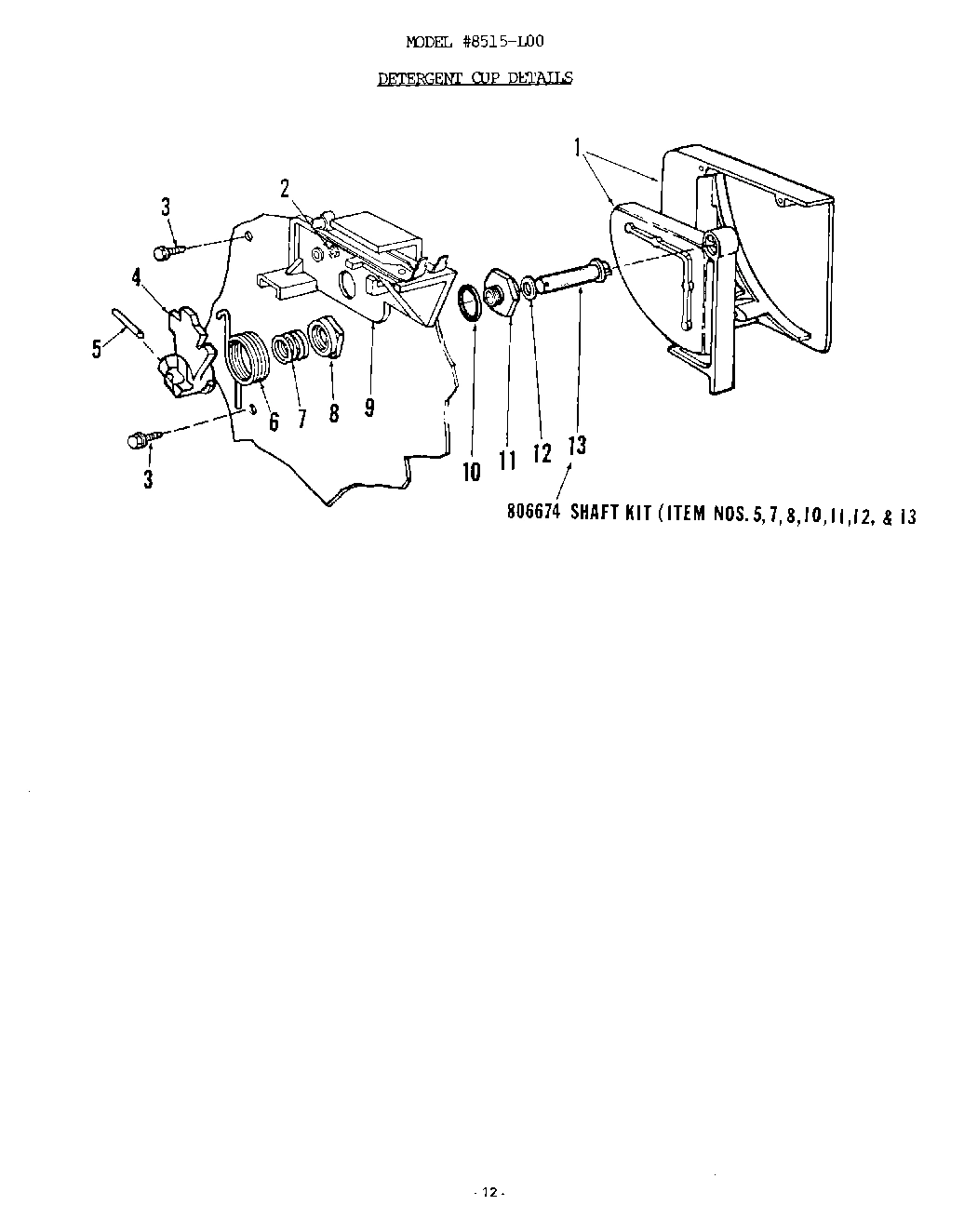

08 - DETERGENT CUP

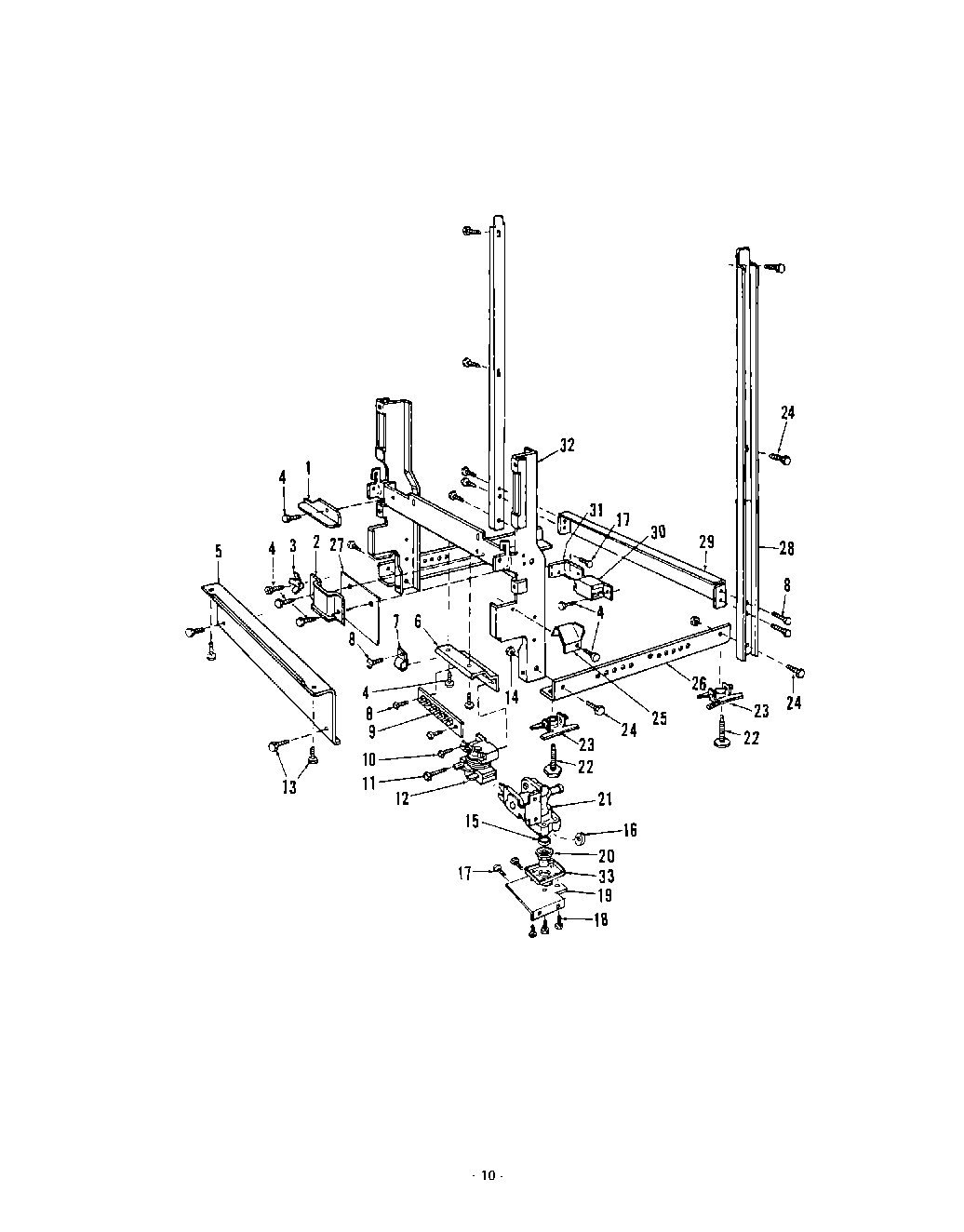

07 - FRAME

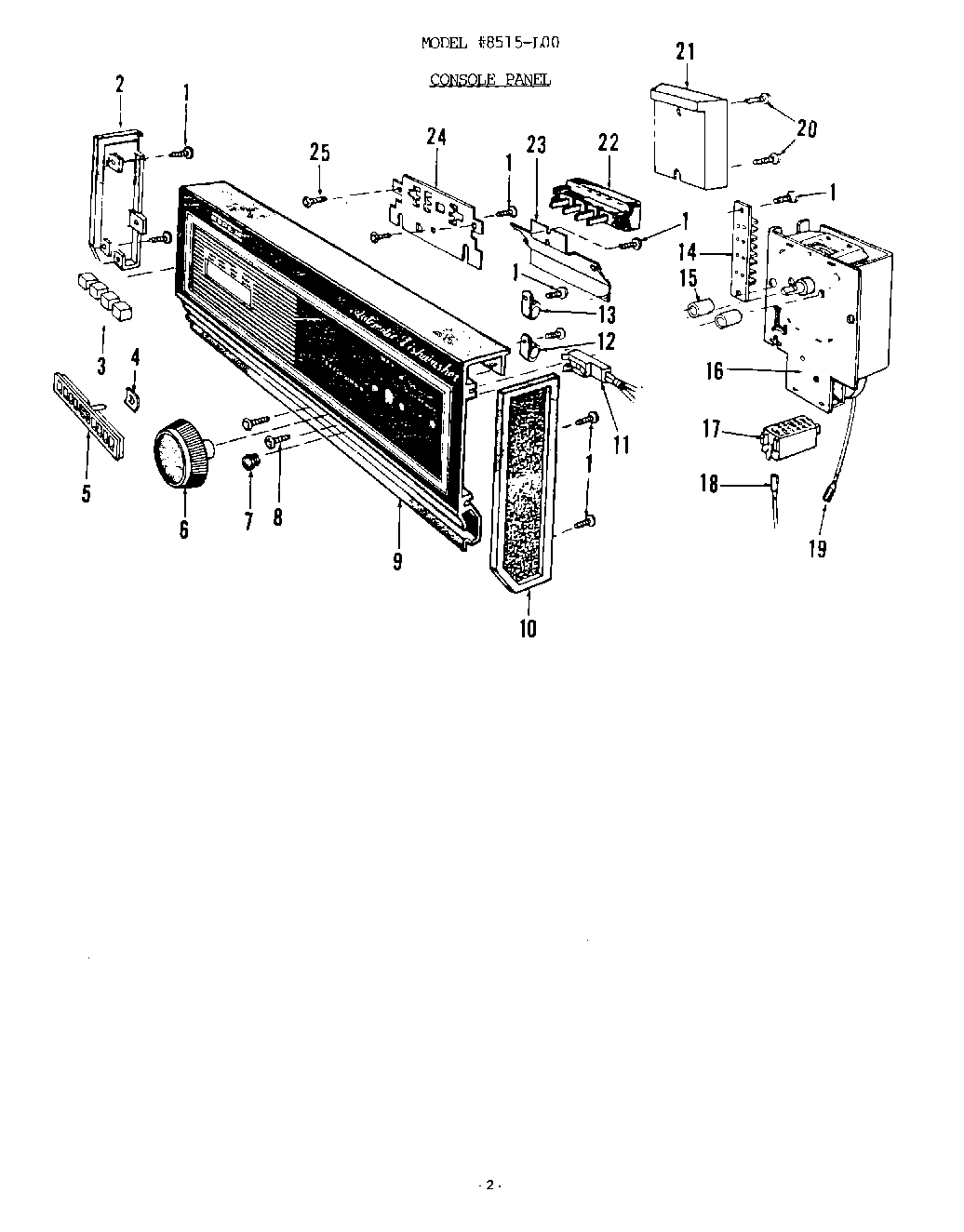

02 - CONSOLE PANEL

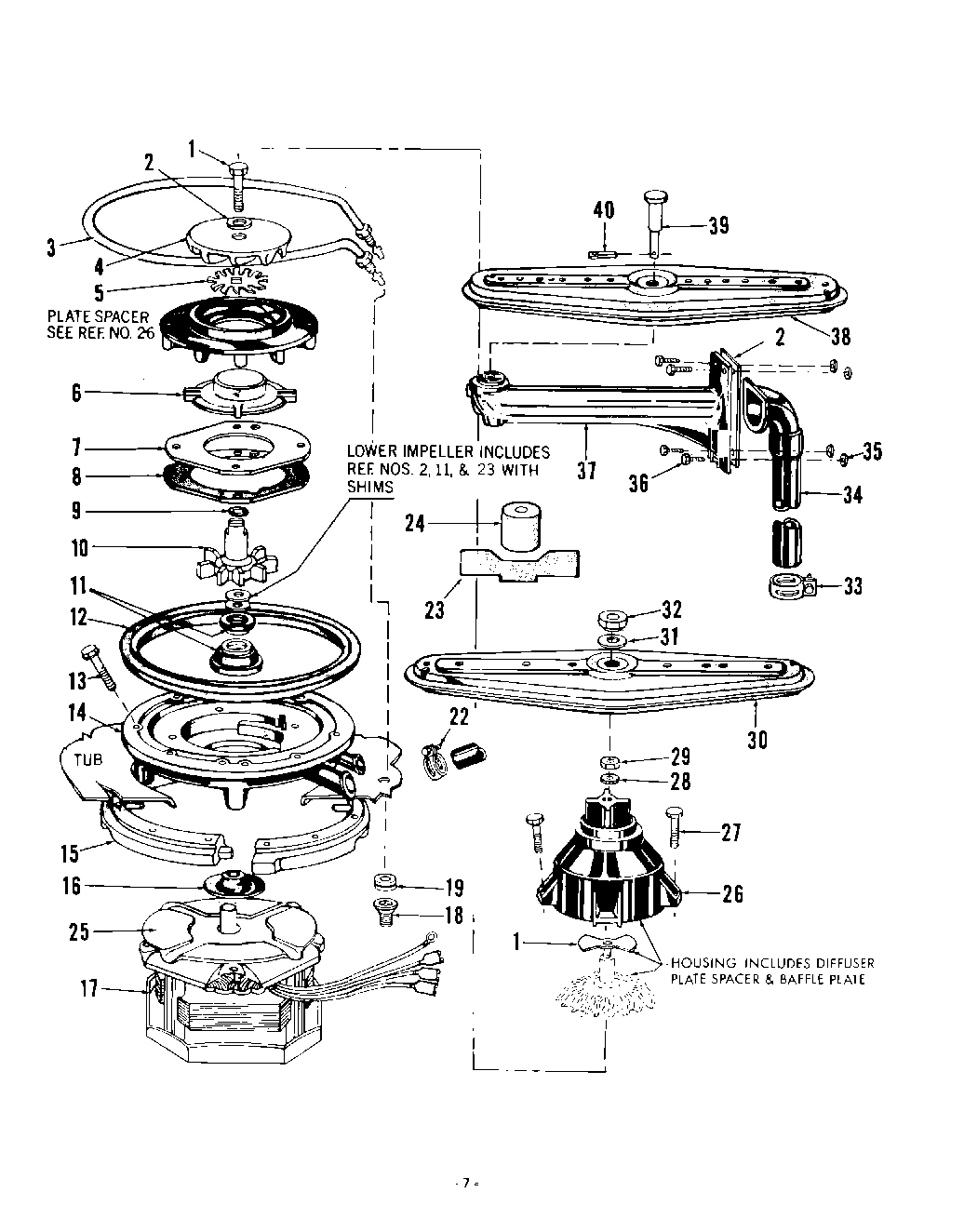

05 - MOTOR, HEATER AND SPRAY ARM

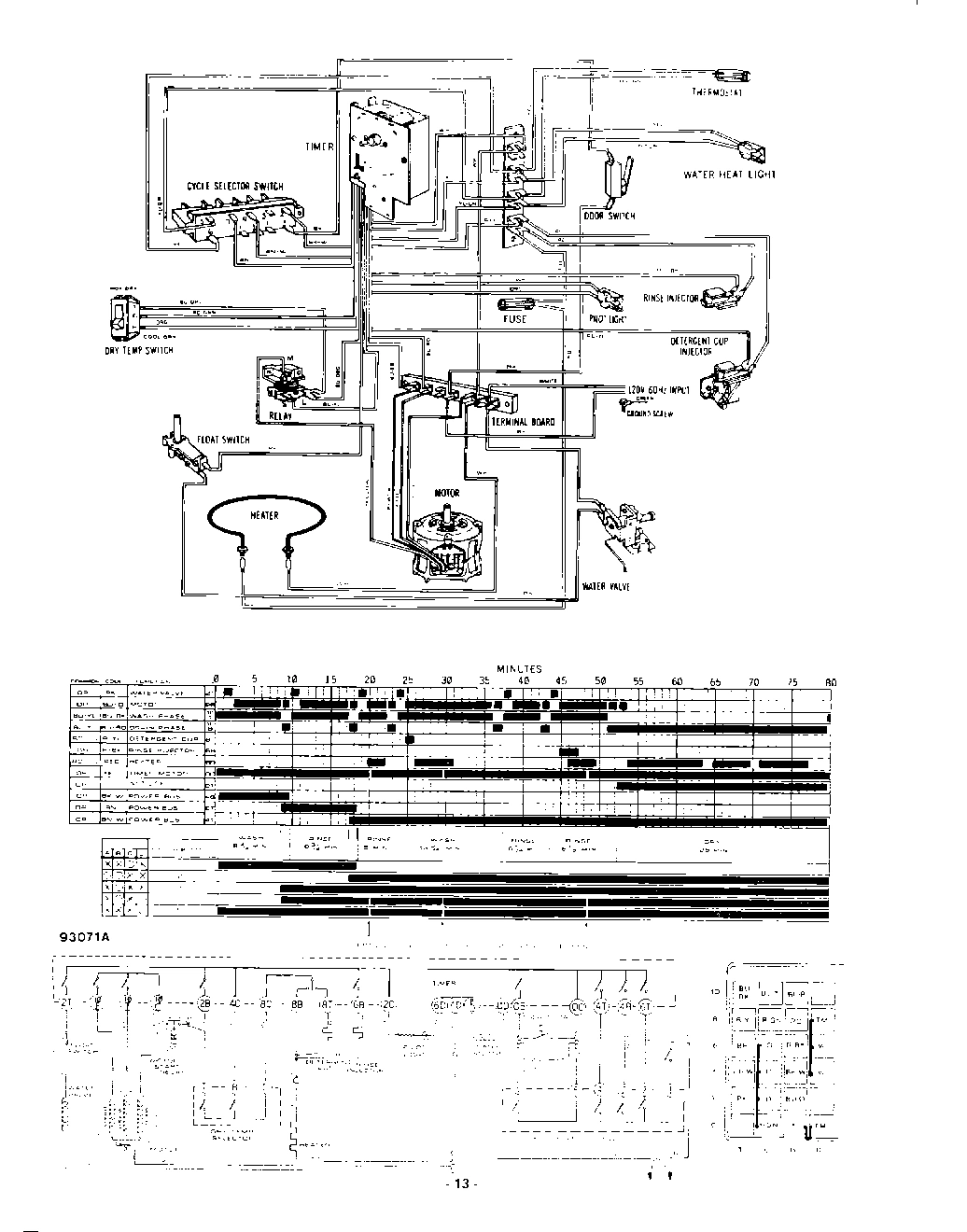

09 - WIRING DIAGRAM
Common parts from model Whirlpool 8515L00 DISHWASHER
1
Latch Assembly WPL 807016 Contact Us For Availability
1
Attach Clip WPL 808289 Contact Us For Availability
1
Lower Rack Assembly WPL 808683 Contact Us For Availability
1
Detergent Cup & Cover Kit WPL 807261 Contact Us For Availability
1
Suds Deflector L.H. WPL 807558 Contact Us For Availability
1
Screw No.8x7/16``Lg. C.R. Pan Hd. Cad. Pl. WPL 806943 Contact Us For Availability
1
Screw No.10-32x2``Lg. Hex Hd. St. St. WPL 806353 Contact Us For Availability
2
Screw No.8-32x5/16``Lg. C.R. Hex Hd. Cad. Pl. WPL 806830 Contact Us For Availability
2
Washer WPL 803367 Contact Us For Availability
2
Silverware Basket WPL 807512 Contact Us For Availability
2
Clamp - Wiring WPL 806723 Contact Us For Availability
2
End Cap L.H. WPL 808694 Contact Us For Availability
3
Cover - Switch WPL 807450 Contact Us For Availability
3
Terminal-Grounding WPL 807213 Contact Us For Availability
3
Drain Hose WPL 807524 Contact Us For Availability
3
Rack Assembly-Upper WPL 807684 Contact Us For Availability
3
Screw No.8x5/8`` Lg. Hex Washer Hd. St. St. WPL 808209 Contact Us For Availability
3
Pushbutton WPL 807273 Contact Us For Availability
3
Heater WPL 806836 Contact Us For Availability
4
Screw No.6-32x1``Lg. Hex Hd. Cad. Pl. WPL 808618 Contact Us For Availability
4
Shim WPL 807073 Contact Us For Availability
4
Wheel Assembly-Complete WPL 807245 Contact Us For Availability
4
Cam WPL 806566 Contact Us For Availability
4
Speednut WPL 808475 Contact Us For Availability
4
Impeller - Upper WPL 808041 Contact Us For Availability
5
Switch WPL 807043 Contact Us For Availability
5
Strike WPL 807015 Contact Us For Availability
5
Rack Slide - End Cap WPL 807234 Contact Us For Availability
5
Rollpin - Cam WPL 804734 Contact Us For Availability
5
Toeplate WPL 807559 Contact Us For Availability
5
Vent Grille WPL 808477 Contact Us For Availability
5
Blade - Macerator WPL 808075 Contact Us For Availability
6
Terminal - Insulator WPL 806846 Contact Us For Availability
6
Rack Slide WPL 807568 Contact Us For Availability
6
Spring - Cam WPL 805227 Contact Us For Availability
6
Terminal Bracket WPL 807675 Contact Us For Availability
6
Timer Knob WPL 808812 Contact Us For Availability
6
Shroud - Impeller WPL 806267 Contact Us For Availability
7
Latch Knob WPL 806398 Contact Us For Availability
7
Gasket Clip WPL 805763 Contact Us For Availability
7
Cap-Wheel Bracket (4) WPL 807008 Contact Us For Availability
7
Spring-Cam Compression WPL 806567 Contact Us For Availability
7
Lens WPL 805664 Contact Us For Availability
7
Plate - Pump WPL 807884 Contact Us For Availability
8
Screw No.8Ax1/2`` Lg. C.R. Truss Hd. Chrome P WPL 807501 Contact Us For Availability
8
Sealing Washer WPL 805776 Contact Us For Availability
8
Nut WPL 806568 Contact Us For Availability
8
Screw No.10-32x1-17/64``Lg. C.R. Truss Hd. Ca WPL 808422 Contact Us For Availability
8
Gasket - Pump WPL 807709 Contact Us For Availability
9
Trigger Assembly WPL 808507 Contact Us For Availability
9
Terminal Block Assembly WPL 807175 Contact Us For Availability
9
Console Panel WPL 808816 Contact Us For Availability
9
``O`` Ring WPL 806521 Contact Us For Availability
10
Roller WPL 807180 Contact Us For Availability
10
Washer WPL 802836 Contact Us For Availability
10
End Cap R.H. WPL 808693 Contact Us For Availability
10
Impeller-Lower Kit WPL 808042 Contact Us For Availability
11
Counterbalance Arm Assembly - L.H. WPL 807539 Contact Us For Availability
11
Shoulder Screw WPL 807181 Contact Us For Availability
11
Bushing WPL 805626 Contact Us For Availability
11
Screw No.8-32x1-1/4``Lg. C.R. Fillister Hd. C WPL 804672 Contact Us For Availability
11
Light Assembly-Pilot WPL 808711 Contact Us For Availability
11
Seal WPL 803903 Contact Us For Availability
12
Clamp WPL 808442 Contact Us For Availability
12
Screw No.8x3/8`` Lg. C.R. Binding Hd. Cad. Pl WPL 806810 Contact Us For Availability
12
Screw No.8x5/8``Lg. C.R. Hex Hd. St. St. WPL 806901 Contact Us For Availability
12
O-RING WPL 806647 Contact Us For Availability
12
Motor Relay WPL 806121 Contact Us For Availability
12
Gasket-Pump WPL 807710 Contact Us For Availability
13
Vent Plate WPL 808370 Contact Us For Availability
13
Float WPL 804630 Contact Us For Availability
13
Screw No.10-Type30x1``Lg. Hex Washer Hd. St. WPL 807268 Contact Us For Availability
13
Shaft WPL 806648 Contact Us For Availability
13
Screw 1/4-20x1/2``Lg.Hex Washer Slotted Hd.Ca WPL 807001 Contact Us For Availability
14
Porcelain Weld Assembly-Door WPL 808578 Contact Us For Availability
14
Shaft Kit (Includes Items 5, 8, 10, 11, 12 & WPL 806674 Contact Us For Availability
14
Terminal Board Assembly WPL 808483 Contact Us For Availability
14
Pump Housing WPL 807711 Contact Us For Availability
15
Tub Assembly WPL 808764 Contact Us For Availability
15
Gasket WPL 806100 Contact Us For Availability
15
Spacer - Timer WPL 808424 Contact Us For Availability
15
Clamp Ring (Includes Both Halves) WPL 807712 Contact Us For Availability
16
Counterbalance Arm Mounting Bracket WPL 806717 Contact Us For Availability
16
Plate - Float Tube WPL 808064 Contact Us For Availability
16
Flow Washer WPL 808469 Contact Us For Availability
16
Timer WPL 808681 Contact Us For Availability
16
Slinger WPL 808561 Contact Us For Availability
17
Counterbalance Arm R.H. WPL 807538 Contact Us For Availability
17
Gasket - Float Tube WPL 808063 Contact Us For Availability
17
Screw No.10 Type Zx1/2``Lg. Slotted Hex Hd. C WPL 804518 Contact Us For Availability
17
Housing - Timer Terminal WPL 808231 Contact Us For Availability
17
Motor (Includes Slinger, 3 Brass Shims, 4 Mot WPL 806300 Contact Us For Availability
18
Door Spring WPL 807534 Contact Us For Availability
18
Counterbalance Guide-L.H. WPL 807599 Contact Us For Availability
18
Screw WPL 808368 Contact Us For Availability
18
Housing Terminal WPL 808333 Contact Us For Availability
18
Nut 1/2`` 20 Brass WPL 806834 Contact Us For Availability
19
Nut WPL 803346 Contact Us For Availability
19
Mounting Bracket WPL 807613 Contact Us For Availability
19
Terminal - Timer WPL 808334 Contact Us For Availability
19
Grommet - Heater WPL 806833 Contact Us For Availability
20
Spring Pad WPL 805884 Contact Us For Availability
20
Screw No.8Bx5/16``Lg. C.R. Truss Hd. Cad. Pl. WPL 806894 Contact Us For Availability
20
Gasket Clip WPL 808115 Contact Us For Availability
20
Fitting - Inlet Valve WPL 808337 Contact Us For Availability
20
Gasket - Delivery Arm WPL 808014 Contact Us For Availability
21
Guide - Door WPL 807537 Contact Us For Availability
21
Valve Assembly - Inlet WPL 808468 Contact Us For Availability
21
Splash Pan WPL 807425 Contact Us For Availability
21
Baffle Plate WPL 808380 Contact Us For Availability
22
Screw No.8x5/8``Lg. C.R. Truss Hd. St. St. WPL 808749 Contact Us For Availability
22
``O`` Ring WPL 807759 Contact Us For Availability
22
Levelers WPL 807672 Contact Us For Availability
22
Switch WPL 808407 Contact Us For Availability
22
Clamp WPL 806090 Contact Us For Availability
23
Counterbalance Arm Guide R.H. WPL 807600 Contact Us For Availability
23
Teenut - Snap- in WPL 807671 Contact Us For Availability
23
Shield - Vent Slot WPL 808574 Contact Us For Availability
23
Gage - Seal Shim WPL 807077 Contact Us For Availability
24
Door Panel Assembly WPL 808298 Contact Us For Availability
24
Wire-Gasket Junction WPL 808118 Contact Us For Availability
24
Screw 1/4-20x1/2`` Lg Hex Washer Hd. Cad. Pl. WPL 806889 Contact Us For Availability
24
Switch Bracket WPL 806594 Contact Us For Availability
24
Seal Installation Tool WPL 803923 Contact Us For Availability
25
Trim - Door Side WPL 808106 Contact Us For Availability
25
Gasket & Wire Assembly (Includes Item 24) WPL 808117 Contact Us For Availability
25
Suds Deflector R.H. WPL 807563 Contact Us For Availability
25
Screw No.6-30Ax3/8``Lg. Pan Hd. Cad. Pl. WPL 807141 Contact Us For Availability
25
Water Shield WPL 808435 Contact Us For Availability
26
Float Assembly WPL 807677 Contact Us For Availability
26
Angle Base WPL 807564 Contact Us For Availability
26
Pump Housing (Includes Diffuser & Plate Space WPL 806978 Contact Us For Availability
27
Door Panel Insert (Almond & G. Wh) & Access I WPL 808299 Contact Us For Availability
27
Switch WPL 807680 Contact Us For Availability
27
Wire Shield WPL 808013 Contact Us For Availability
27
Screw No.10-30Ax1-3/4``Lg. Hex Hd. St. St. WPL 807359 Contact Us For Availability
28
Screw 4-40x5/8`` Lg. Hex Hd. Cad. Pl. WPL 804594 Contact Us For Availability
28
Side Channel WPL 808670 Contact Us For Availability
28
Lockwasher No.10 External Teeth WPL 804526 Contact Us For Availability
29
Trim-Access Panel L.H. Side WPL 808104 Contact Us For Availability
29
Tapping Plate WPL 807038 Contact Us For Availability
29
Rear Brace WPL 807566 Contact Us For Availability
29
Nut WPL 804527 Contact Us For Availability
30
Door Trim-Bottom WPL 808323 Contact Us For Availability
30
Gasket WPL 806797 Contact Us For Availability
30
Junction Box Cover WPL 800222 Contact Us For Availability
30
Spray Arm Assembly - Lower WPL 807589 Contact Us For Availability
31
Trim Access Bottom WPL 808303 Contact Us For Availability
31
Tapping Plate WPL 808705 Contact Us For Availability
31
Junction Box Bracket WPL 807019 Contact Us For Availability
31
Washer-Spray Arm WPL 807590 Contact Us For Availability
32
Trim - Access Panel R.H. Side WPL 808103 Contact Us For Availability
32
Vent Stack WPL 808706 Contact Us For Availability
32
Hinge Weld Assembly WPL 807674 Contact Us For Availability
32
Nut WPL 804473 Contact Us For Availability
33
Access Panel Assembly WPL 808304 Contact Us For Availability
33
Tubing - Inlet WPL 807891 Contact Us For Availability
33
Fitting - Retainer WPL 808336 Contact Us For Availability
33
Clamp WPL 805495 Contact Us For Availability
34
Screw No.8-32x7/32`` Lg. C.R. Truss Hd. Cad. WPL 808715 Contact Us For Availability
34
Clamp WPL 807813 Contact Us For Availability
34
Elbow & Tube Assembly WPL 807592 Contact Us For Availability
35
Trim-Top Access Panel WPL 808471 Contact Us For Availability
35
Inlet Nozzle WPL 808707 Contact Us For Availability
35
``O`` Ring WPL 808210 Contact Us For Availability
36
Screw Type ``A`` No.8x3/8`` Lg. C.R. Binding WPL 803416 Contact Us For Availability
36
Screw No.8Ax1/2``Lg. C.R. Flat Hd. Zinc Pl. WPL 808818 Contact Us For Availability
37
Cage Nut WPL 806291 Contact Us For Availability
37
Spray Arm Assembly WPL 807591 Contact Us For Availability
38
Spray Arm Assembly - Upper WPL 807593 Contact Us For Availability
39
Spindle - Spray Arm WPL 807598 Contact Us For Availability
40
Cotter Pin WPL 807386 Contact Us For Availability
× ![]()
