Model Whirlpool 82FN-1K GAS COOK-TOP – Common Parts & Diagrams

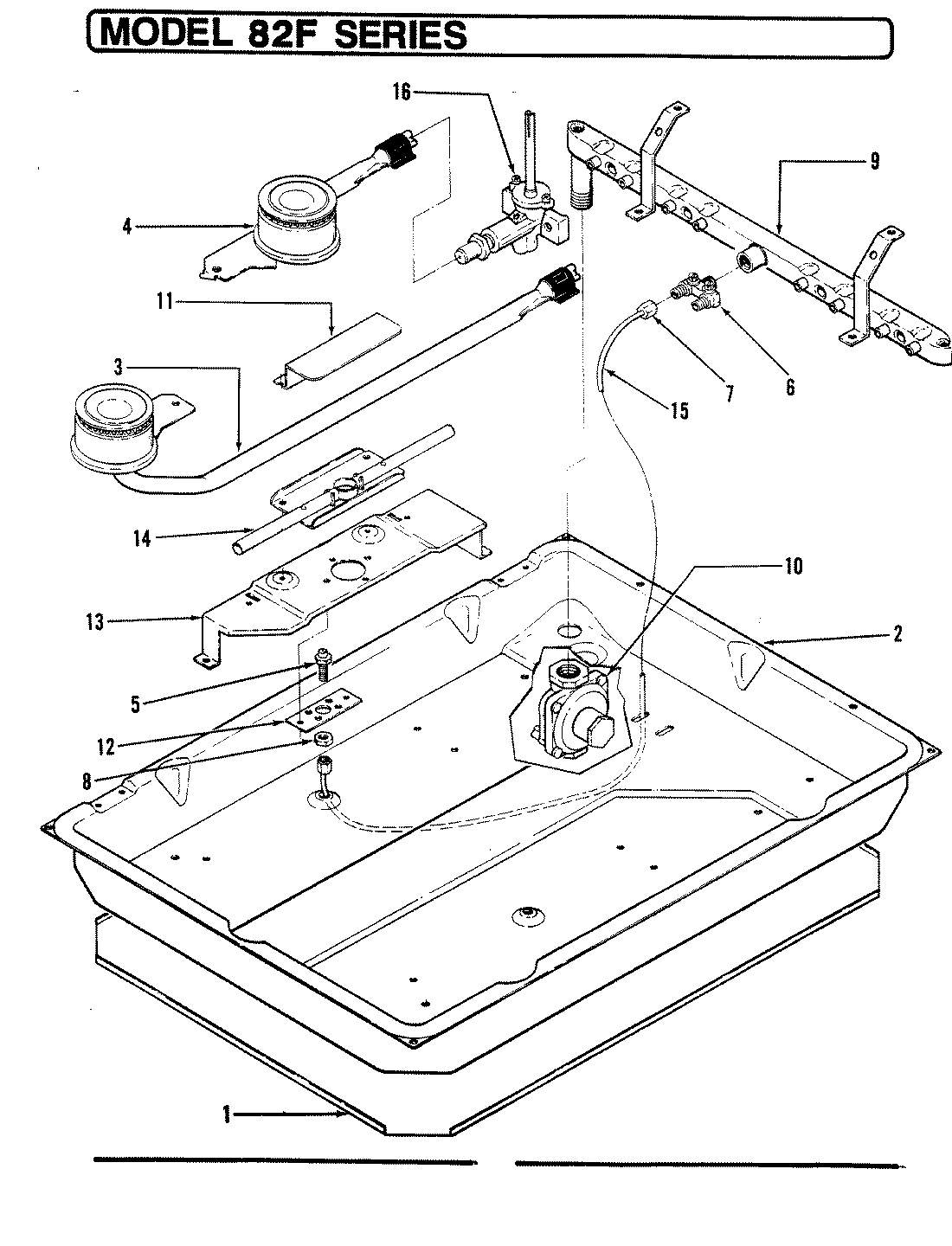

01 - MANIFOLD SECTION (ELECTRONIC IGNITION)

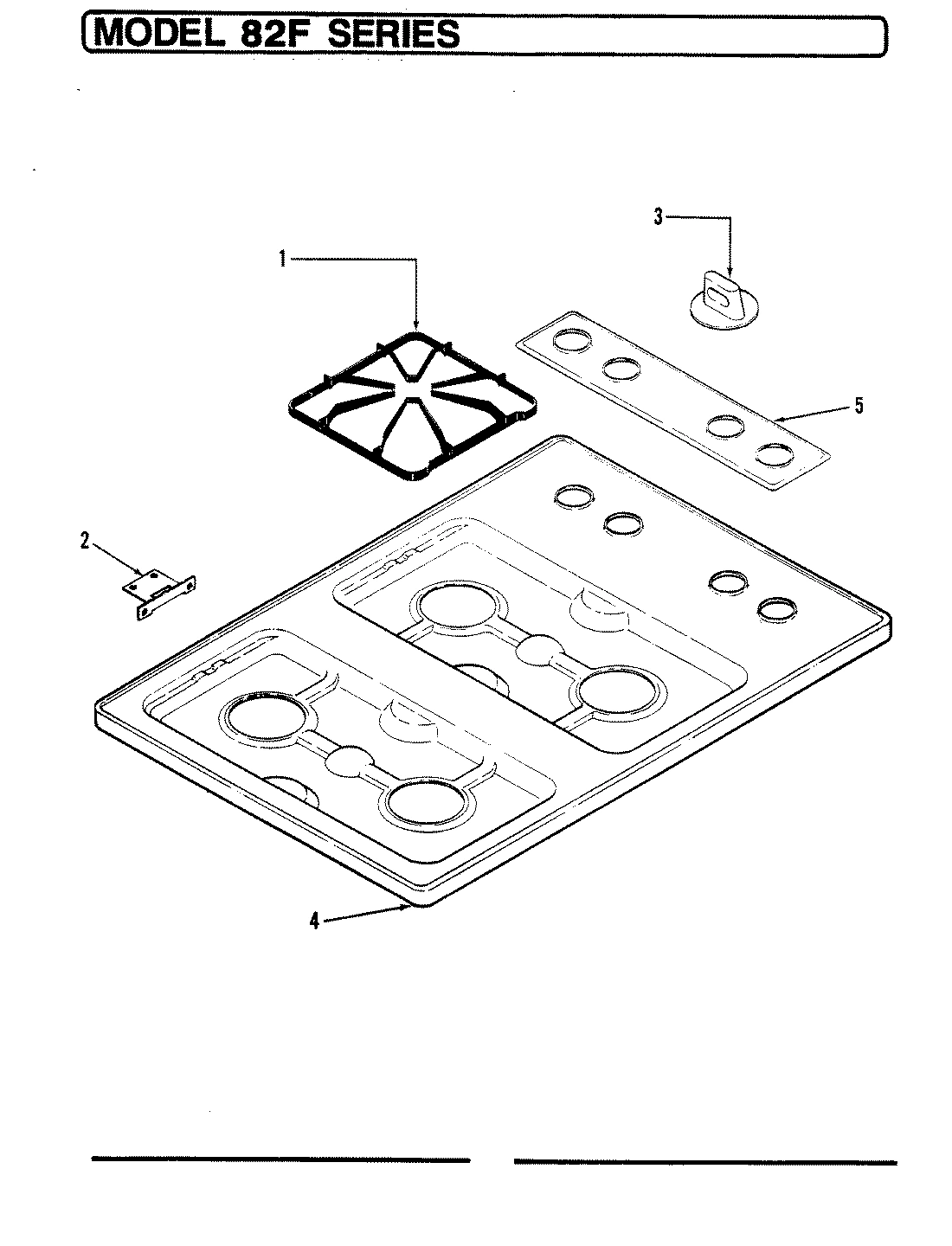

02 - TOP ASSY.
Common parts from model Whirlpool 82FN-1K GAS COOK-TOP
1
BAFFLE, BOTTOM WPL 4E61701341 Contact Us For Availability
1
GRATE, BURNER WPL Y0G00300912 Contact Us For Availability
2
BOTTOM, BURNER BOX WPL 4G10105253 Contact Us For Availability
2
HINGE, TOP WPL 0H01400511 Contact Us For Availability
3
BURNER, ASY TOP -L WPL Y0B06103222 Contact Us For Availability
3
KNOB, VALVE WPL 7733P02360 Contact Us For Availability
4
BURNER, ASY TOP -R WPL Y0B06103122 Contact Us For Availability
4
TOP, MAIN WPL 4G080091MW Contact Us For Availability
5
CLIP, RETAINER SWITC WPL 0C00102699 Contact Us For Availability
5
TRIM, CONTROL PANEL WPL Y0T00500916 Contact Us For Availability
6
SET, CORD WPL Y0S05300199 Contact Us For Availability
6
MANUAL, USE & CARE WPL 8110P00960 Contact Us For Availability
7
COVER, BURNER VALVE WPL Y0C03100499 Contact Us For Availability
7
MANUAL, USE & CARE WPL 8112P03060 Contact Us For Availability
8
COVER, TRANSFORMER WPL 4G27203045 Contact Us For Availability
9
MODULE, SPARK SURFAC WPL Y0M00700399 Contact Us For Availability
10
PIPE, MANIFOLD WPL 0P07502799 Contact Us For Availability
11
REGULATOR, PRESS LP WPL Y0R00302599 Contact Us For Availability
12
IGNITOR, SPARK WPL Y0I00504799 Contact Us For Availability
13
SUPPORT, BURNER WPL 4G55406326 Contact Us For Availability
15
TUBE, ASSY FLASH WPL Y0T02200716 Contact Us For Availability
16
VALVE, STD BNR HML WPL Y0V03012599 Contact Us For Availability
× ![]()
