Model Whirlpool 8241RS GAS COOK-TOP – Common Parts & Diagrams

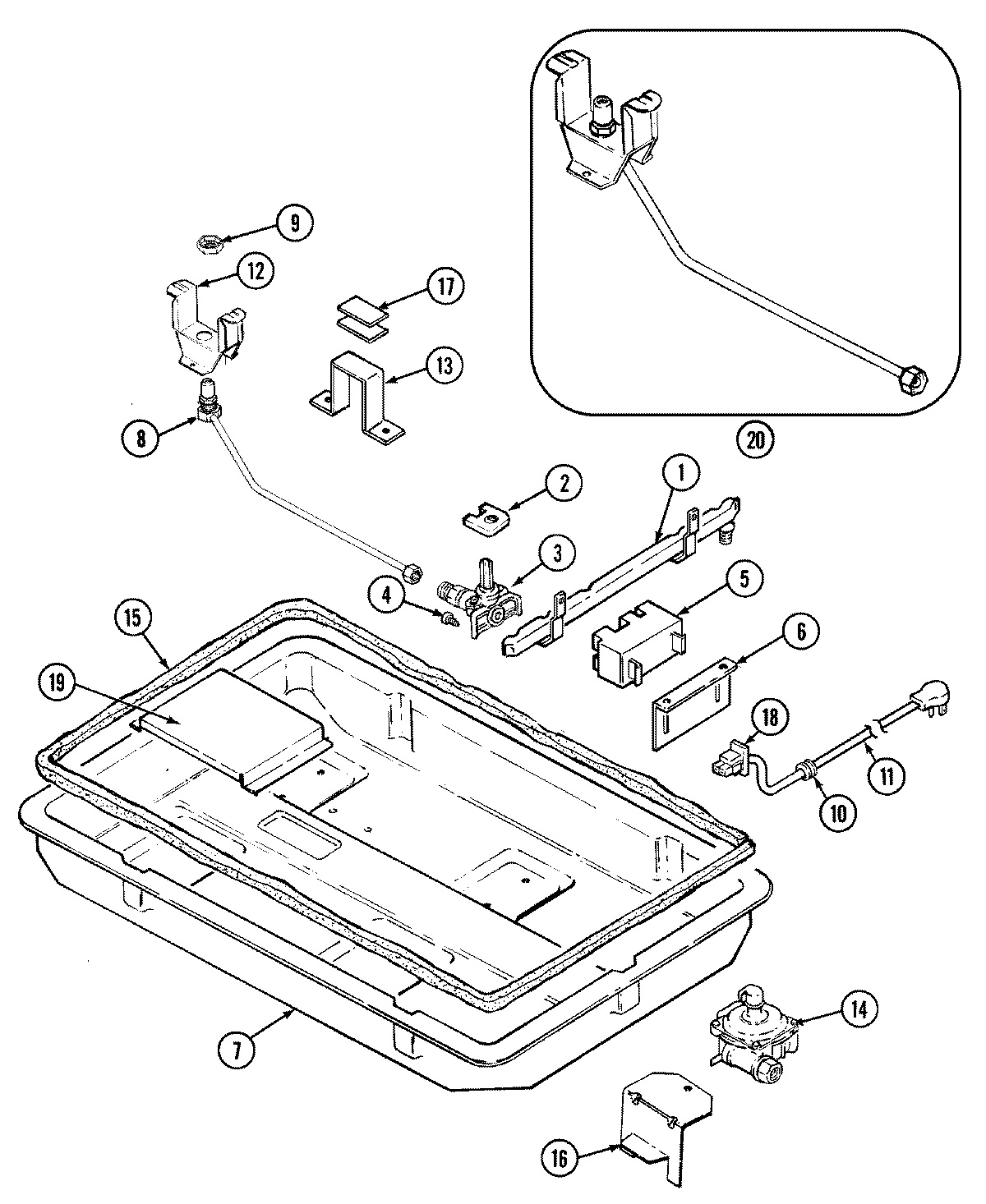

01 - BODY (RA, RB, RS, RV, RW)

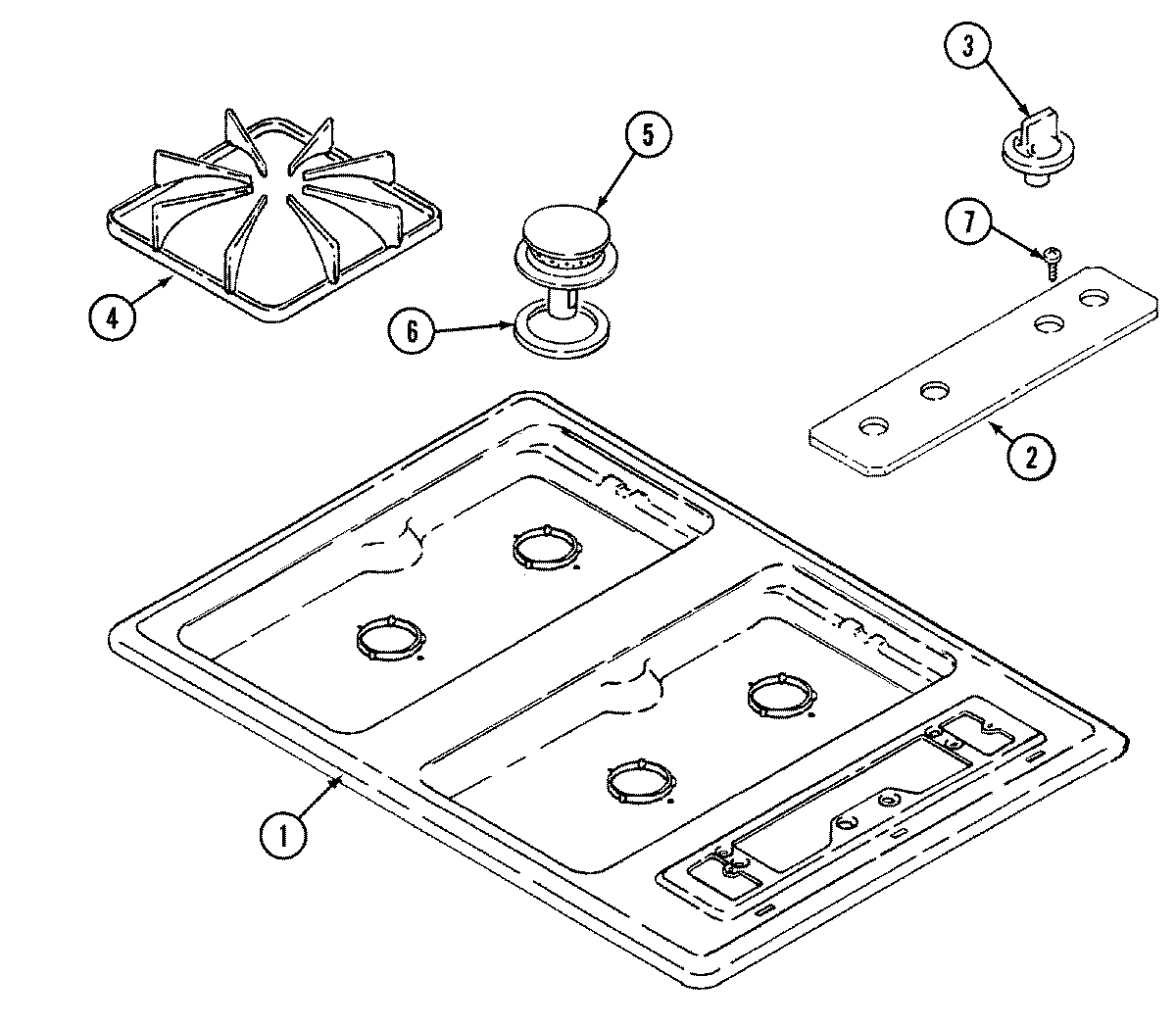

02 - TOP ASSEMBLY (RA, RB, RS, RV, RW)

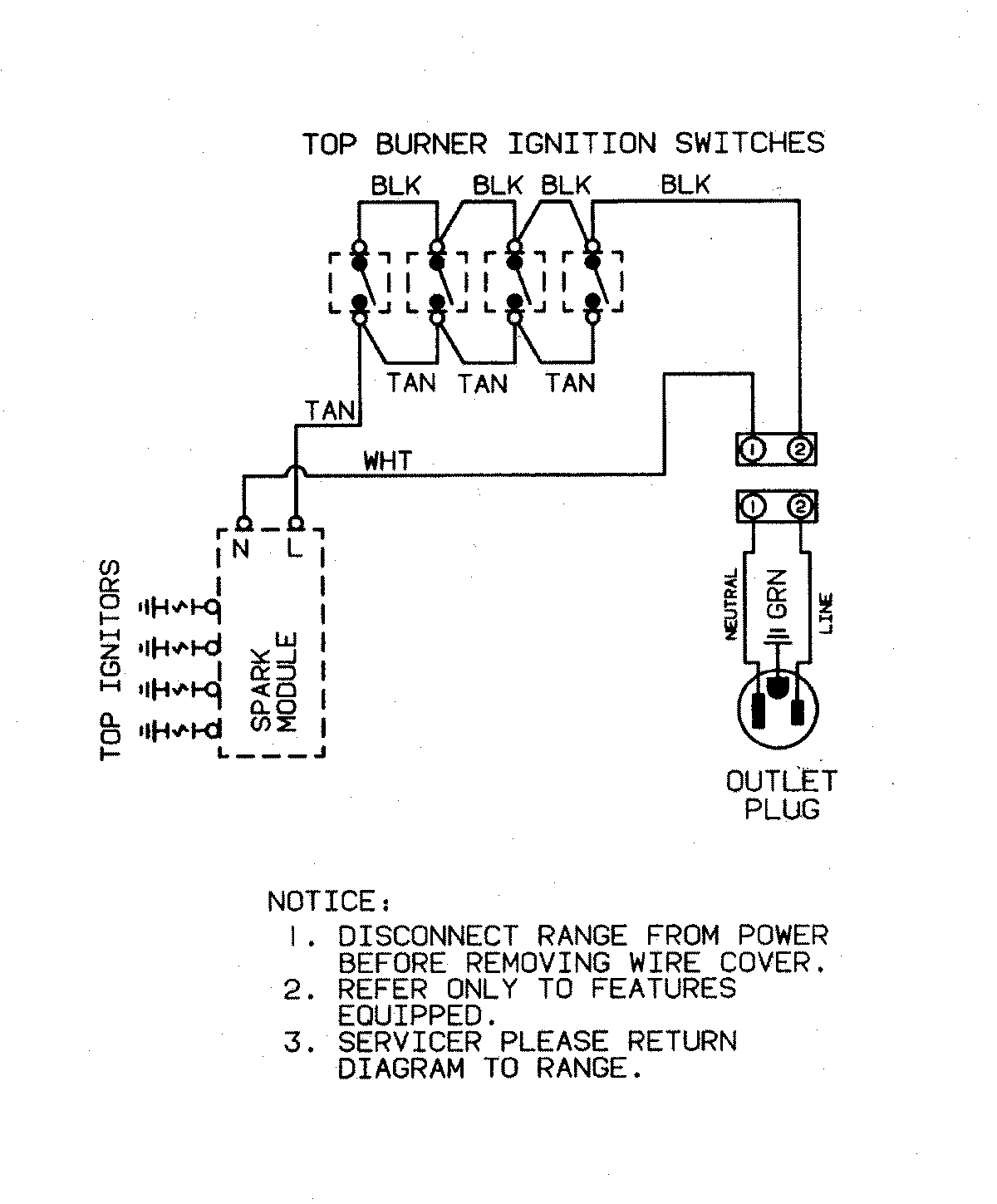

03 - WIRING INFORMATION (RA, RB, RS, RV, RW)
Common parts from model Whirlpool 8241RS GAS COOK-TOP
1
PIPE, MANIFOLD WPL 74001348 Contact Us For Availability
1
PIPE, MANIFOLD WPL 7513P08960 Contact Us For Availability
1
TOP, MAIN (CHROME) WPL 2001W08430 Contact Us For Availability
1
TOP, MAIN (STL)----NA WPL 2001W09230 Contact Us For Availability
2
SWITCH, BURNER WPL 7403P19060 Contact Us For Availability
2
SWITCH, BURNER WPL 7403P36760 Contact Us For Availability
2
PANEL, CONTROL (BLK) WPL 7720P14660 Contact Us For Availability
3
VALVE, BURNER WPL 74001382 Contact Us For Availability
3
VALVE, TOP BURNER WPL 7502P10660 Contact Us For Availability
3
VALVE, BURNER WPL 7502P25460 Contact Us For Availability
3
KNOB, BURNER (BLACK) WPL 7733P04560 Contact Us For Availability
4
SCREW, CONTROL VALVE WPL 7101P04360 Contact Us For Availability
4
GRATE (BLK) WPL 2003W02300 Contact Us For Availability
4
GRATE (BLK) WPL 74001653 Contact Us For Availability
5
MODULE, SPARK WPL 7431P02360 Contact Us For Availability
5
SEALED BURNER ASSY. (BLK) WPL 3412D01809 Contact Us For Availability
5
NOT REQUIRED PART OR SEE NOTE IGNITER NOT SOL WPL W10124350 Contact Us For Availability
6
BRACKET, SPARK MODULE WPL 3801F30445 Contact Us For Availability
6
BRACKET, SPARK MODULE WPL 3801F35745 Contact Us For Availability
6
SCREW WPL 7101P05960 Contact Us For Availability
6
GASKET, BURNER WPL 7201P05060 Contact Us For Availability
7
BOX, BURNER WPL 4011F20280 Contact Us For Availability
7
BOX, BURNER WPL 74001208 Contact Us For Availability
7
BOX, BURNER WPL 74001368 Contact Us For Availability
7
SCREW WPL 7101P07660 Contact Us For Availability
8
FITTING, ORIFICE (LT/REAR) WPL 74007255 Contact Us For Availability
8
FITTING, ORIFICE (RT/FRT) WPL 74007256 Contact Us For Availability
8
FITTING, ORIFICE (RT/REAR) WPL 74007257 Contact Us For Availability
8
FITTING, ORIFICE (LT/FRT) WPL 74007258 Contact Us For Availability
8
FITTING, ORIFICE WPL 7507P14160 Contact Us For Availability
8
FITTING, ORIFICE WPL 7507P14360 Contact Us For Availability
8
FITTING, ORIFICE WPL 7507P14460 Contact Us For Availability
8
FITTING, ORIFICE WPL 7507P14560 Contact Us For Availability
8
MANUAL, USE & CARE WPL 74001971 Contact Us For Availability
9
PALNUT WPL 7103P11960 Contact Us For Availability
10
SCREW, GROUND (GRN) WPL 7101P02760 Contact Us For Availability
10
BUSHING, SNAP WPL 8007P00360 Contact Us For Availability
11
CORD, POWER WPL 7402P01460 Contact Us For Availability
12
SUPPORT, ORIFICE FITTING WPL 3807F44151 Contact Us For Availability
12
SCREW WPL 7118P01860 Contact Us For Availability
13
BRACKET, MAIN TOP WPL 3801F29845 Contact Us For Availability
14
REGULATOR, PRESSURE WPL 74006983 Contact Us For Availability
14
REGULATOR, PRESSURE WPL 7510P00260 Contact Us For Availability
15
TAPE BURNER BOX SEAL 107`` WPL 12400021 Contact Us For Availability
16
SCREW (10ABX1.0-ZN) WPL 7101P06060 Contact Us For Availability
16
BRACKET, TIE DOWN WPL 3801F19245 Contact Us For Availability
17
TAPE, SEAL 112`` LONG WPL 12400008 Contact Us For Availability
18
BLOCK, DISCONNECT (PIN) WPL 7401P01760 Contact Us For Availability
18
BLOCK WPL 7401P01860 Contact Us For Availability
19
COVER, ACCESS WPL 4005F42751 Contact Us For Availability
20
ORIFICE TUBE ASSY. WPL 74001193 Contact Us For Availability
20
ORIFICE TUBE ASSY. WPL 74001194 Contact Us For Availability
20
ORIFICE TUBE ASSY. WPL 74001195 Contact Us For Availability
20
ORIFICE TUBE ASSY. WPL 74001196 Contact Us For Availability
20
ORIFICE ASSY. WPL 74001369 Contact Us For Availability
20
ORIFICE ASSY. WPL 74001370 Contact Us For Availability
20
ORIFICE ASSY. WPL 74001371 Contact Us For Availability
20
ORIFICE ASSY. WPL 74001372 Contact Us For Availability
21
WIRE, IGNITER - R WPL 5111A26160 Contact Us For Availability
21
WIRE, IGNITER - R WPL 5111A61060 Contact Us For Availability
22
WIRE, IGNITER SWITCH BLACK WPL 5110A41460 Contact Us For Availability
22
WIRE, IGNITER SWITCH TAN WPL 5110A42160 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001312 Contact Us For Availability
× ![]()
