Model Maytag 8241RB GAS COOK-TOP – Common Parts & Diagrams

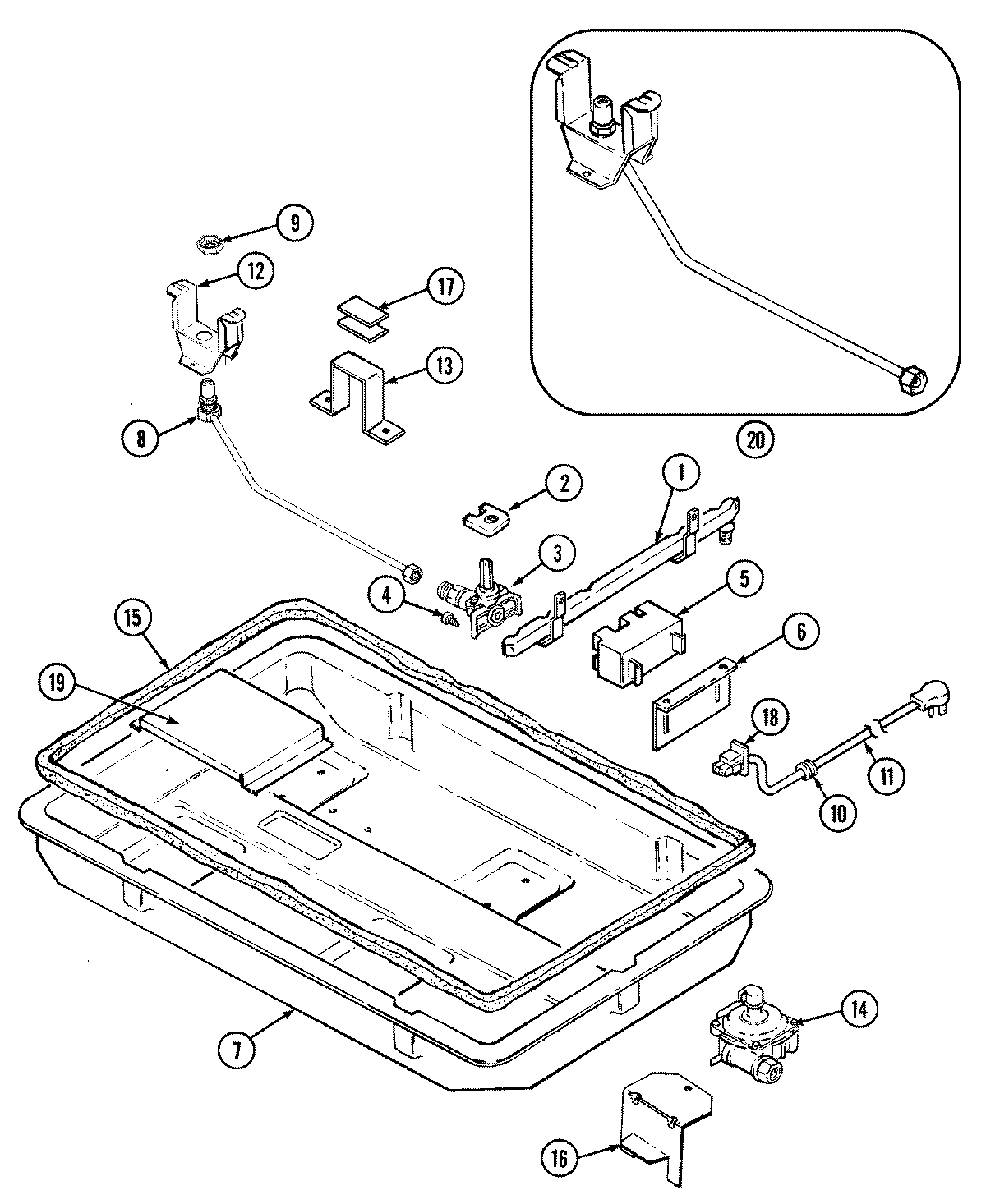

01 - BODY (RA, RB, RS, RV, RW)

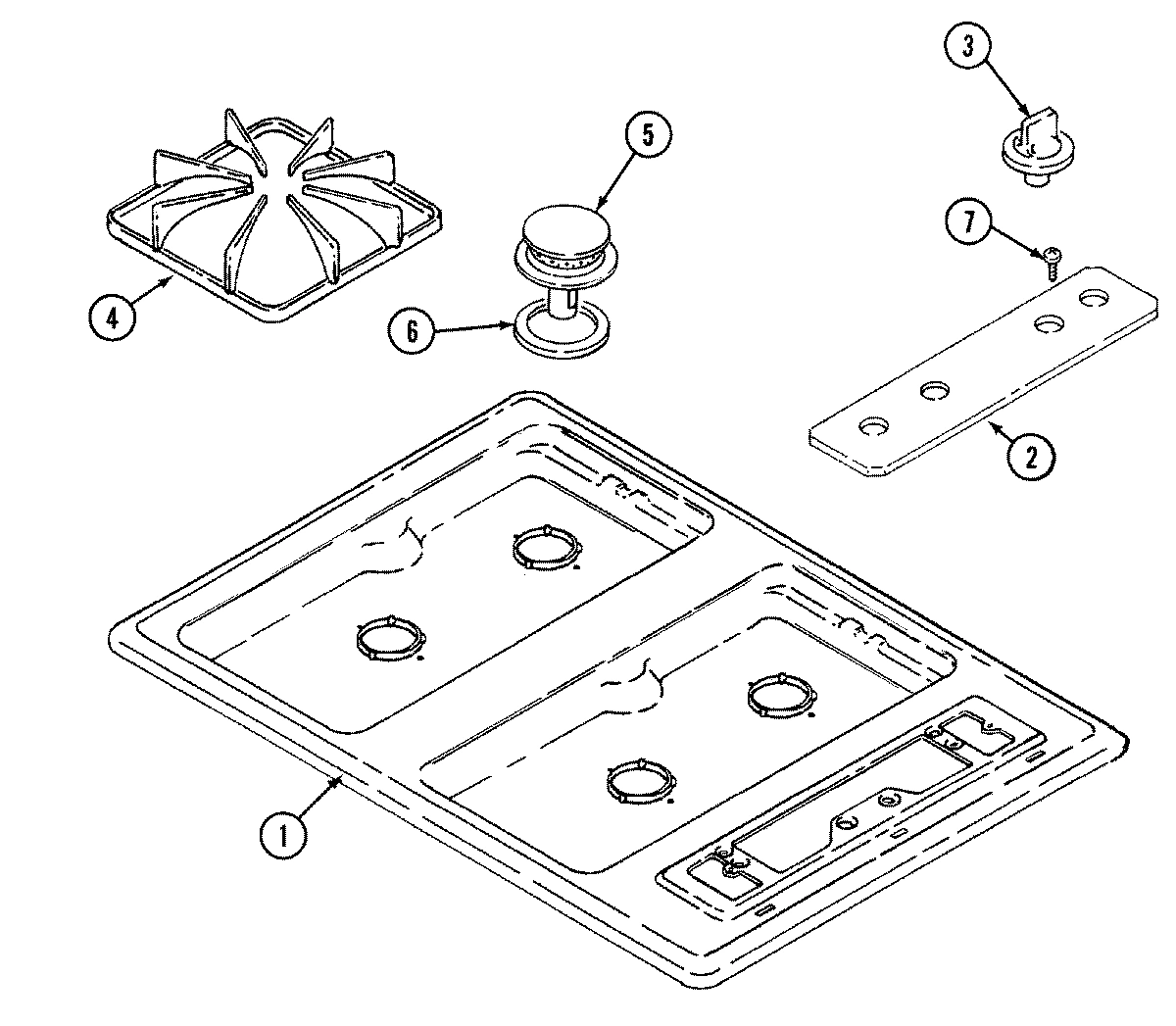

02 - TOP ASSEMBLY (RA, RB, RS, RV, RW)

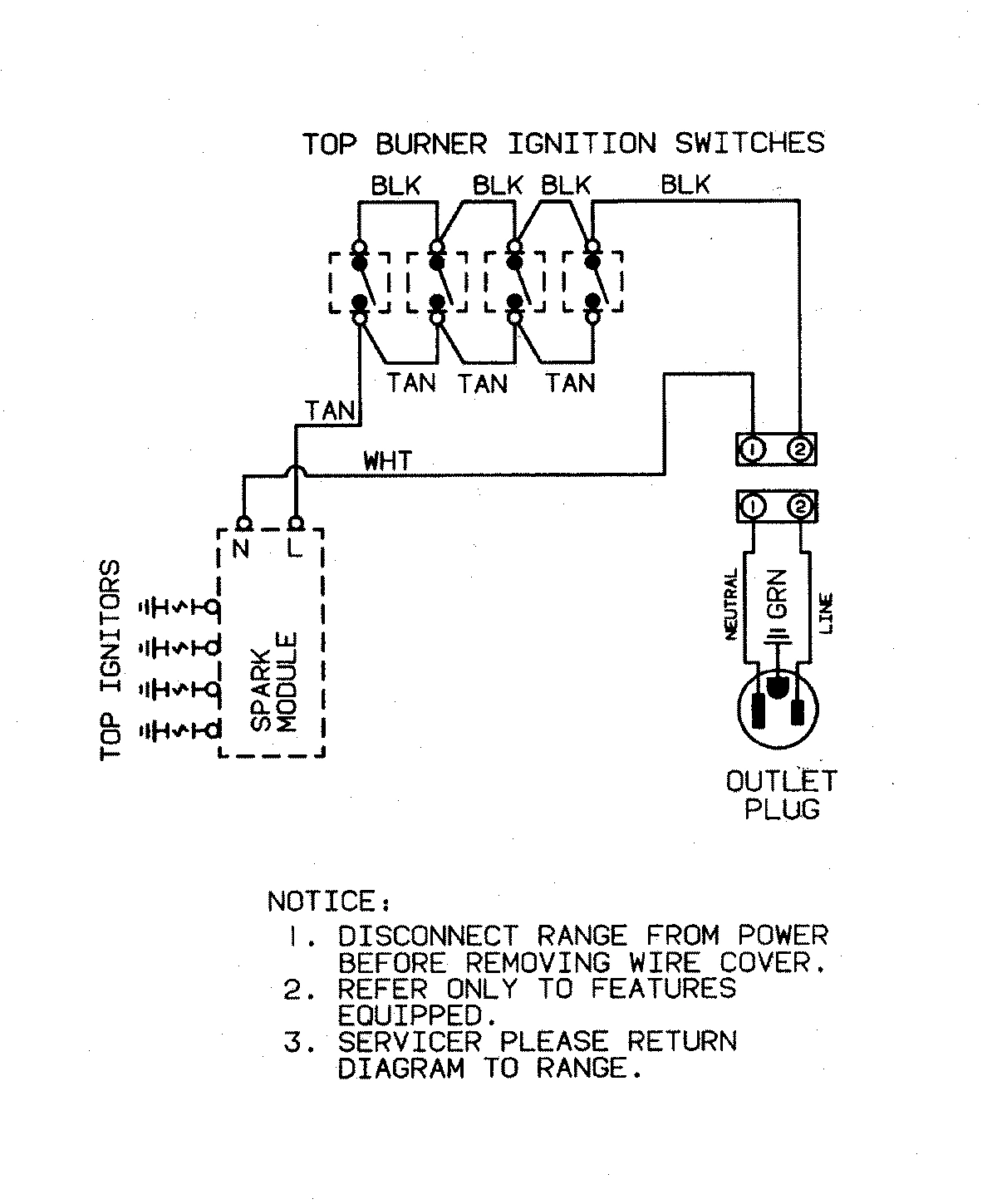

03 - WIRING INFORMATION (RA, RB, RS, RV, RW)
Common parts from model Maytag 8241RB GAS COOK-TOP
1
MAY 2001W083-90 MAY 2001W083-90 Contact Us For Availability
1
MAY 74001888 MAY 74001888 Contact Us For Availability
2
MAY 7720P146-60 MAY 7720P146-60 Contact Us For Availability
3
MAY 7502P106-60 MAY 7502P106-60 Contact Us For Availability
3
MAY 7502P254-60 MAY 7502P254-60 Contact Us For Availability
3
MAY 7733P045-60 MAY 7733P045-60 Contact Us For Availability
4
MAY 7101P043-60 MAY 7101P043-60 Contact Us For Availability
4
MAY 2003W023-00 MAY 2003W023-00 Contact Us For Availability
4
MAY 74001653 MAY 74001653 Contact Us For Availability
5
MAY 74003288 MAY 74003288 Contact Us For Availability
5
MAY 7431P023-60 MAY 7431P023-60 Contact Us For Availability
5
MAY 3412D018-09 MAY 3412D018-09 Contact Us For Availability
5
NOT REQUIRED PART OR SEE NOTE IGNITER NOT SOL MAY W10124350 Contact Us For Availability
6
MAY 3801F304-45 MAY 3801F304-45 Contact Us For Availability
6
MAY 3801F357-45 MAY 3801F357-45 Contact Us For Availability
6
MAY 7101P059-60 MAY 7101P059-60 Contact Us For Availability
6
MAY 7201P050-60 MAY 7201P050-60 Contact Us For Availability
7
MAY 4011F202-80 MAY 4011F202-80 Contact Us For Availability
7
MAY 74001208 MAY 74001208 Contact Us For Availability
7
MAY 74001368 MAY 74001368 Contact Us For Availability
7
MAY 7101P076-60 MAY 7101P076-60 Contact Us For Availability
8
MAY 74007255 MAY 74007255 Contact Us For Availability
8
MAY 74007256 MAY 74007256 Contact Us For Availability
8
MAY 74007257 MAY 74007257 Contact Us For Availability
8
MAY 74007258 MAY 74007258 Contact Us For Availability
8
MAY 7507P141-60 MAY 7507P141-60 Contact Us For Availability
8
MAY 7507P143-60 MAY 7507P143-60 Contact Us For Availability
8
MAY 7507P144-60 MAY 7507P144-60 Contact Us For Availability
8
MAY 7507P145-60 MAY 7507P145-60 Contact Us For Availability
8
MAY 74001971 MAY 74001971 Contact Us For Availability
9
MAY 7103P119-60 MAY 7103P119-60 Contact Us For Availability
10
SCREW, GROUND (GRN) MAY 7101P027-60 Contact Us For Availability
10
BUSHING, SNAP MAY 8007P003-60 Contact Us For Availability
11
MAY 7402P014-60 MAY 7402P014-60 Contact Us For Availability
12
MAY 3807F441-51 MAY 3807F441-51 Contact Us For Availability
12
MAY 7118P018-60 MAY 7118P018-60 Contact Us For Availability
13
MAY 3801F298-45 MAY 3801F298-45 Contact Us For Availability
14
MAY 74006983 MAY 74006983 Contact Us For Availability
14
MAY 7510P002-60 MAY 7510P002-60 Contact Us For Availability
15
MAY 12400021 MAY 12400021 Contact Us For Availability
16
SCREW (10ABX1.0-ZN) MAY 7101P060-60 Contact Us For Availability
16
MAY 3801F192-45 MAY 3801F192-45 Contact Us For Availability
17
MAY 12400008 MAY 12400008 Contact Us For Availability
18
MAY 7401P017-60 MAY 7401P017-60 Contact Us For Availability
18
MAY 7401P018-60 MAY 7401P018-60 Contact Us For Availability
19
MAY 4005F427-51 MAY 4005F427-51 Contact Us For Availability
20
MAY 74001193 MAY 74001193 Contact Us For Availability
20
MAY 74001194 MAY 74001194 Contact Us For Availability
20
MAY 74001195 MAY 74001195 Contact Us For Availability
20
MAY 74001196 MAY 74001196 Contact Us For Availability
20
MAY 74001369 MAY 74001369 Contact Us For Availability
20
MAY 74001370 MAY 74001370 Contact Us For Availability
20
MAY 74001371 MAY 74001371 Contact Us For Availability
20
MAY 74001372 MAY 74001372 Contact Us For Availability
21
MAY 5111A261-60 MAY 5111A261-60 Contact Us For Availability
21
MAY 5111A610-60 MAY 5111A610-60 Contact Us For Availability
22
MAY 5110A414-60 MAY 5110A414-60 Contact Us For Availability
22
MAY 5110A421-60 MAY 5110A421-60 Contact Us For Availability
NI
MAY 15001312 MAY 15001312 Contact Us For Availability
× ![]()
