Model LG 80592 MWO-OTR – Common Parts & Diagrams
Diagram 0
Diagram 1

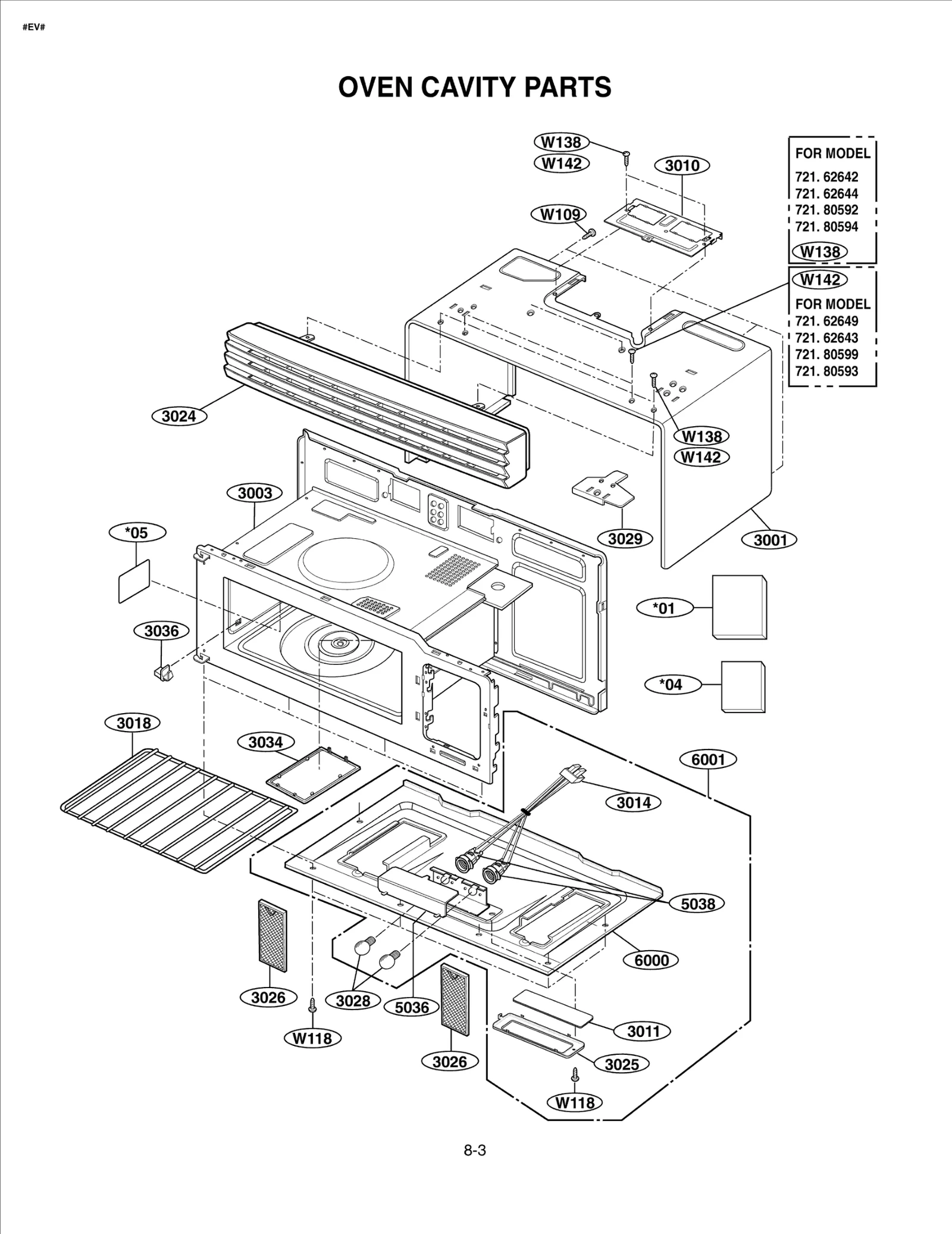

Diagram 2

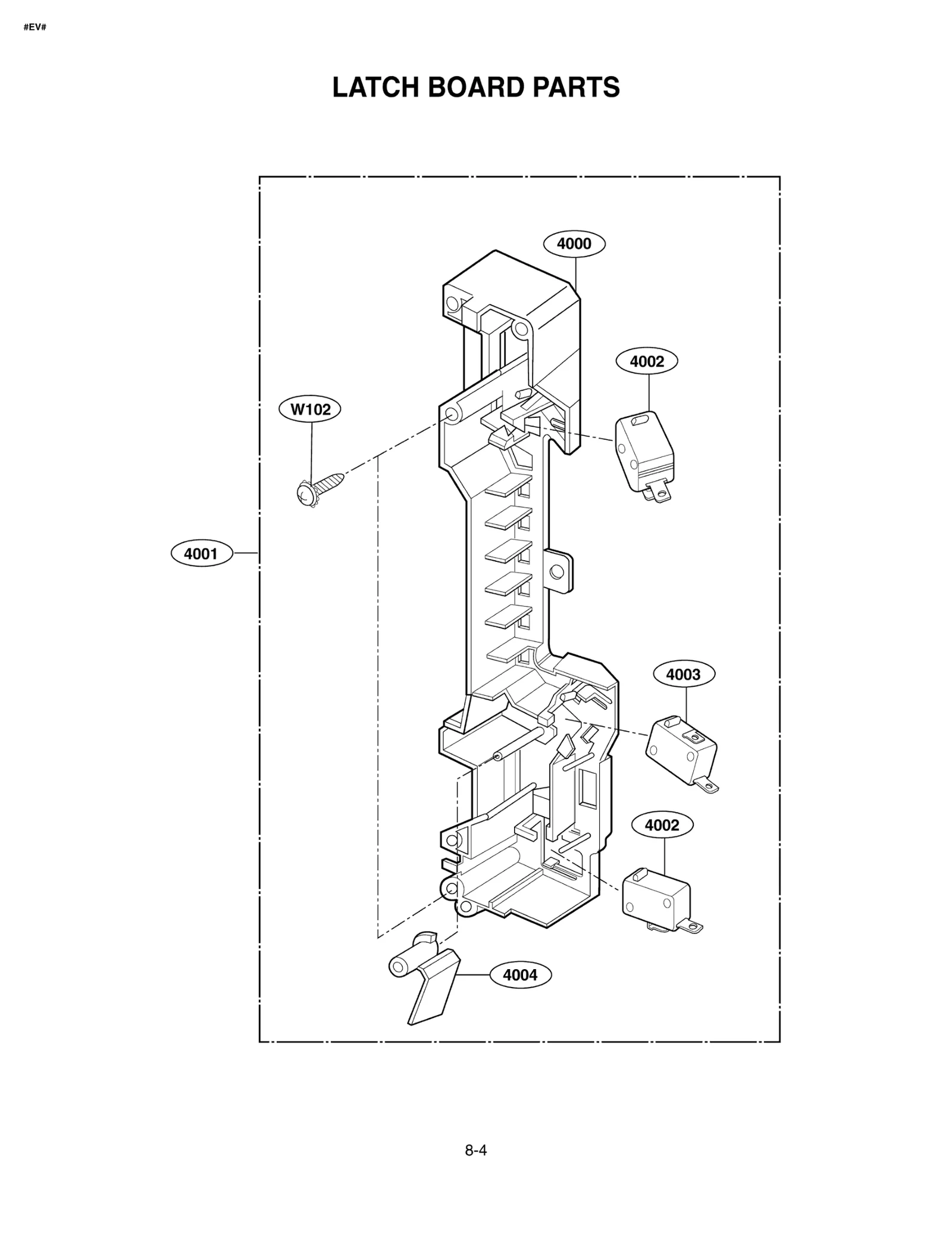

Diagram 3

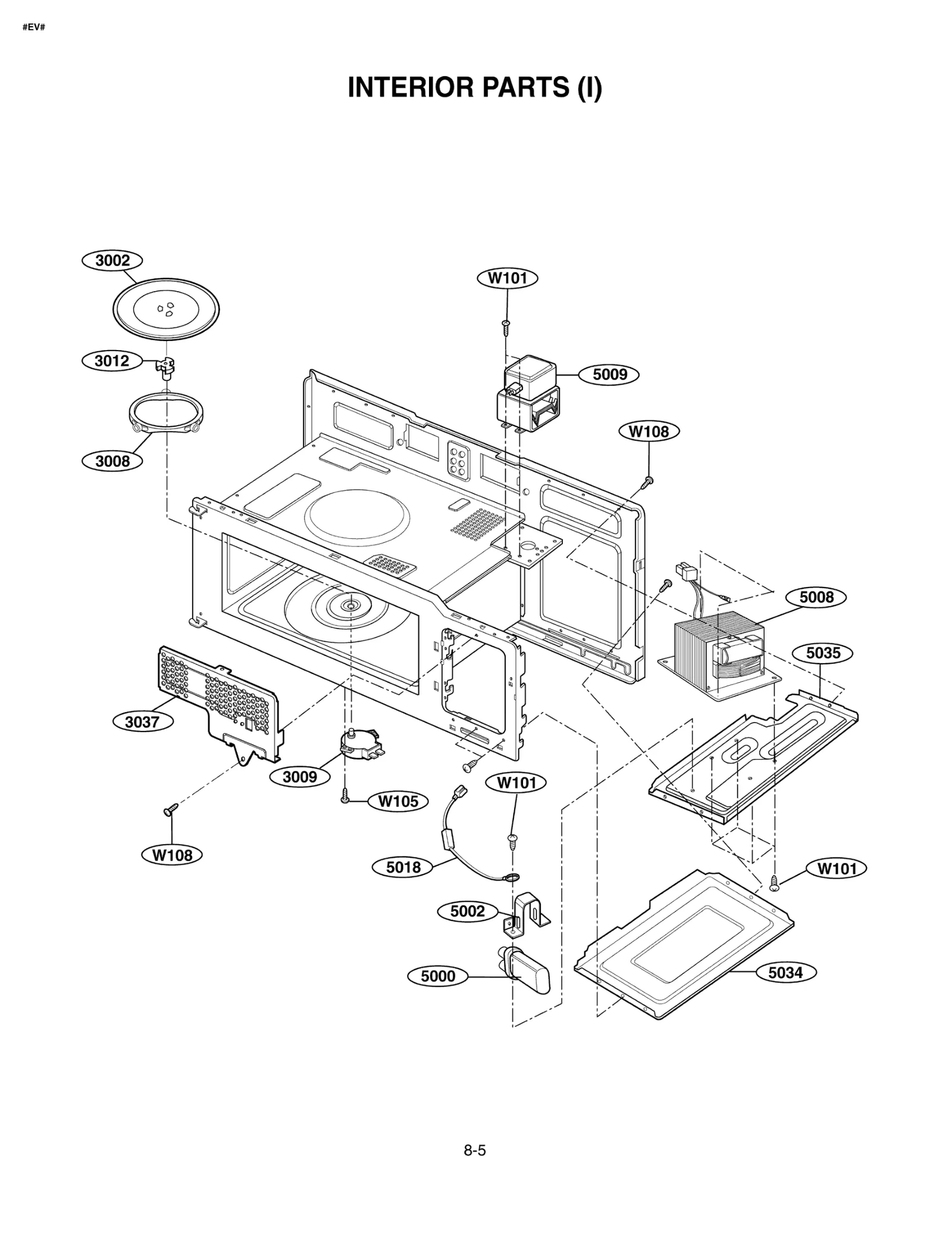

Diagram 4

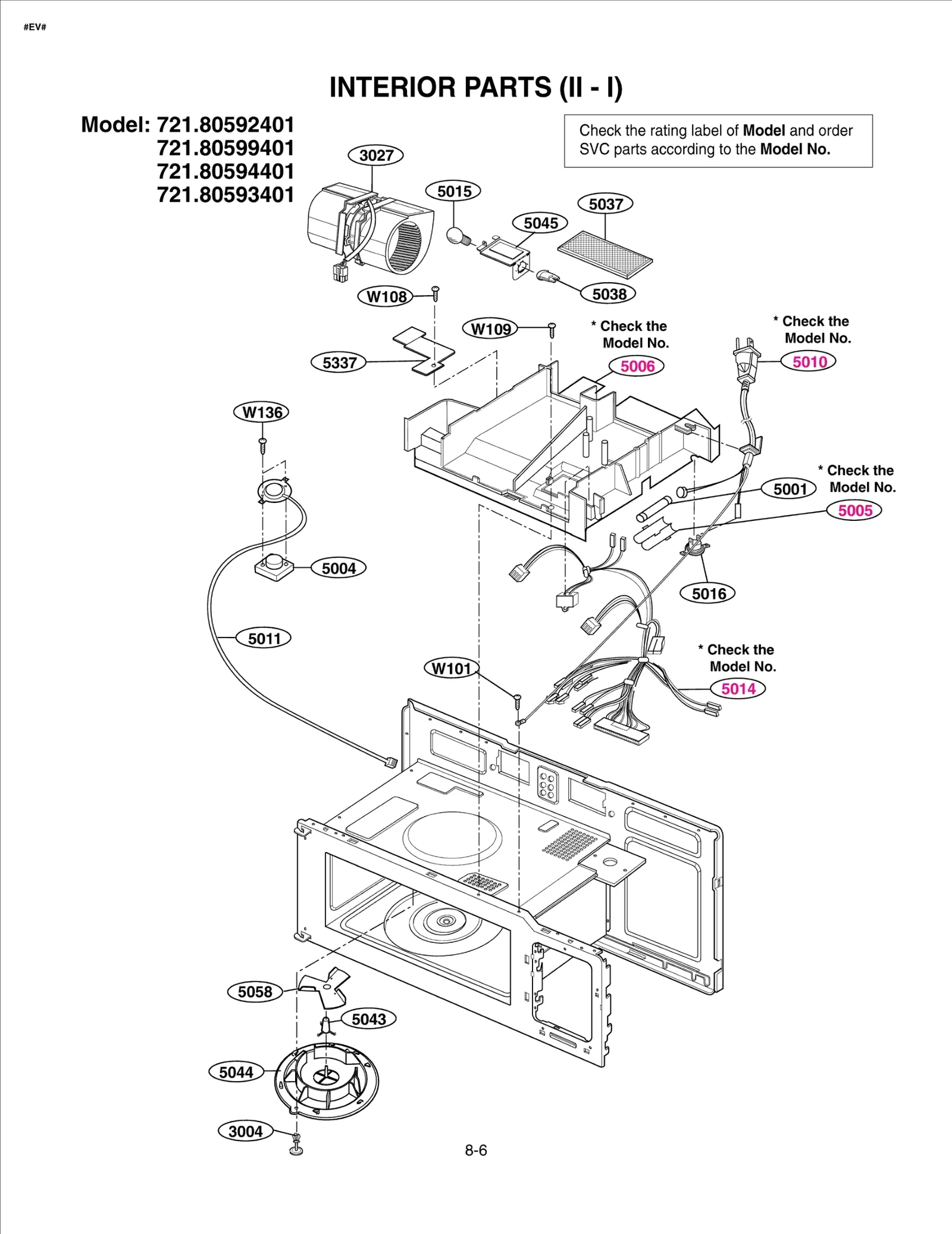

Diagram 5

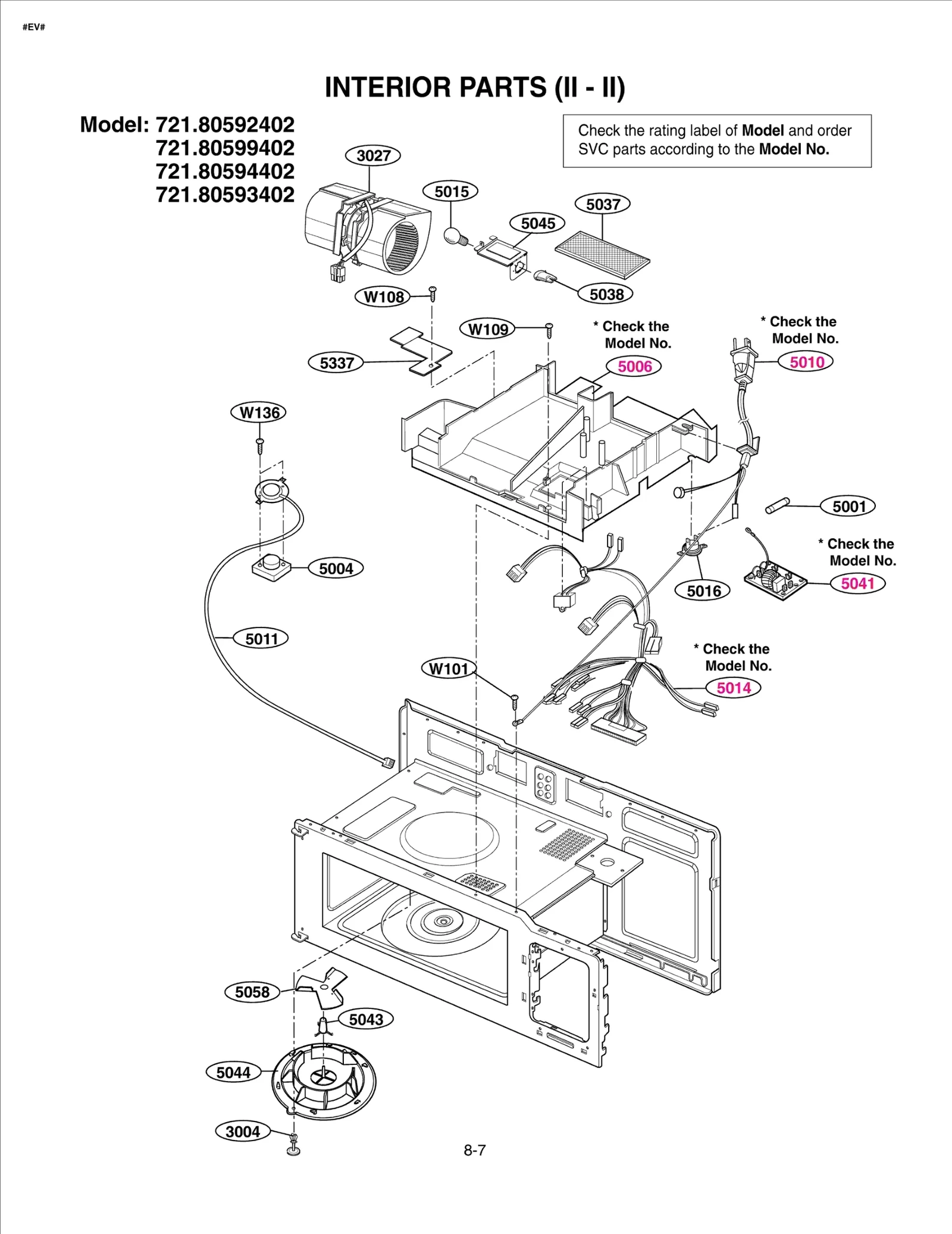

Diagram 6

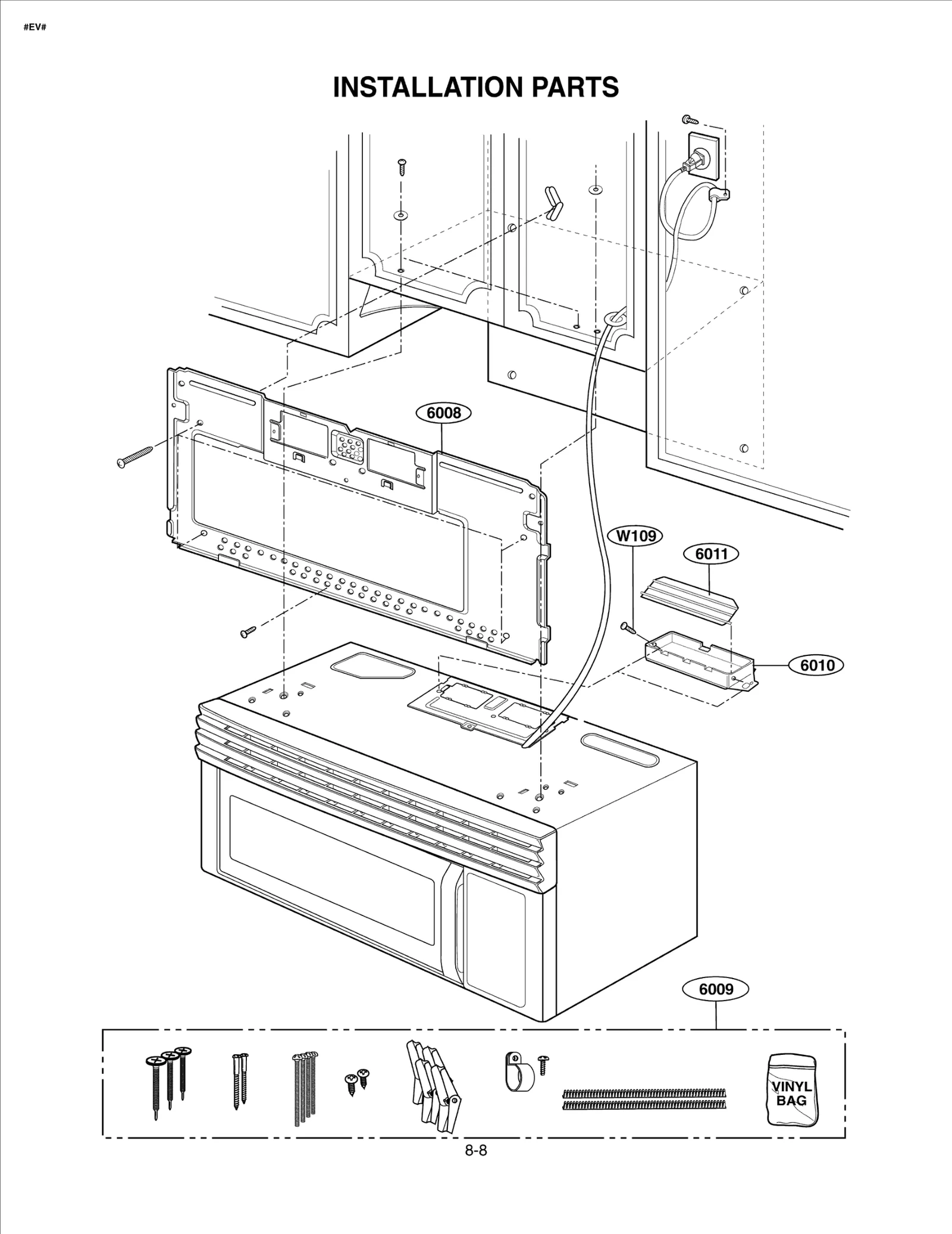

Diagram 7
Diagram 8
Common parts from model LG 80592 MWO-OTR
*01
MANUAL,OWNERS LGE 3828W5A4218 Contact Us For Availability
*02
MANUAL,SERVICE LGE 3828W5S2370 Contact Us For Availability
*05
LABEL,COOKING GUIDE LGE 3850W1D069B Contact Us For Availability
*06
TEMPLATE LGE 4922W5A046A Contact Us For Availability
*07
CARD,TECHNICAL LGE 3840W1T006A Contact Us For Availability
*10
LGE 3890W3Y875D LGE 3890W3Y875D Contact Us For Availability
3008
ROTATING RING ASSEMBLY LGE 5889W2A012D Contact Us For Availability
3027
MOTOR(CIRC),VENTILATION LGE 6549W1V008A Contact Us For Availability
3029
BRACKET MOUNT LGE 4810W3G062A Contact Us For Availability
3037
PROTECTOR (MECH) LGE 3740W1A005B Contact Us For Availability
4004
LEVER-SWITCH MH6110XBBO W/POOL LGE 4510W4A005A Contact Us For Availability
5002
BRACKET HVC MV-1320,SECC 0.5T LGE 4810W3C002A Contact Us For Availability
5004
BRACKET,SENSOR LGE 4810W1A065A Contact Us For Availability
5005
FUSE CAP NATURAL MA-1554M MW LGE 5006WRA002A Contact Us For Availability
5006
DUCT LGE 5208W0A006A Contact Us For Availability
5010
POWER CORD ASSEMBLY LGE 6411W1A010U Contact Us For Availability
5014
HARNESS LGE 6877W1A401C Contact Us For Availability
5015
OVEN LAMP 125V 30W E17, ER-71 LGE 3B70067A Contact Us For Availability
5034
PLATE,[BOTTOM PLATE] LGE 3300W1A003A Contact Us For Availability
5035
PLATE,BOTTOM LGE 3300W1A052A Contact Us For Availability
5037
FILTER(MECH),CHARCOAL LGE 5230W1A002A Contact Us For Availability
5038
LAMP HOLDER - ALL LGE 6804W3A001A Contact Us For Availability
5044
COVER,STIRRER FAN LGE 3550W1A126A Contact Us For Availability
5045
COVER ALL MV-1320,OVEN LAMP,SE LGE 3550W3A082A Contact Us For Availability
5337
PROTECTOR (MECH) LGE 3740W1A011A Contact Us For Availability
6008
PLATE,[MOUNTING PLATE] LGE 3300W0M003A Contact Us For Availability
6009
KIT ASSEMBLY LGE 2B72771G Contact Us For Availability
6011
EXHAUST DAMPER ER-841PV CBESE LGE 3B71432A Contact Us For Availability
AR1
RESISTOR ARRAY LGE 0RZ1503G610 Contact Us For Availability
C01
CAPACITOR,FIXED CERAMIC(High d LGE 0CK1040K948 Contact Us For Availability
C04
CAPACITOR ELECTROLYTIC LGE 0CE1076D638 Contact Us For Availability
C11
CAPACITOR ELECTROLYTIC 470UF S LGE 0CE4776J618 Contact Us For Availability
C16
CAPACITOR ELECTROLYTIC LGE 0CE1076K638 Contact Us For Availability
C21
CAPACITOR,FIXED CERAMIC(High d LGE 0CK2230K948 Contact Us For Availability
C85
CAPACITOR CERAMIC (HIGH DIELE) LGE 0CK2210K518 Contact Us For Availability
CR1
RESONATOR LGE 6212JB8001A Contact Us For Availability
D15
DIODE,RECTIFIERS LGE 0DRSB00093A Contact Us For Availability
D39
DIODE 1N4004TA(06220071)MV-100 LGE 0DD400409AA Contact Us For Availability
D60
DIODE,SWITCHING LGE 0DSSB00083A Contact Us For Availability
D96
DIODE,SWITCHING LGE 0DSSB00023A Contact Us For Availability
DP1
DIGITRON LGE 6302W5A023A Contact Us For Availability
PT1
POWER TRANS 120/60 UL,12V/277M LGE 6010W2P008A Contact Us For Availability
Q34
LGE 0TRAU90014A LGE 0TRAU90014A Contact Us For Availability
R01
Resistor,Carbon Film LGE 0RD5600F608 Contact Us For Availability
R02
Resistor,Carbon Film LGE 0RD1501F608 Contact Us For Availability
R1
ABSORBER LGE 3B71247D Contact Us For Availability
R13
RESISTOR FIXED CARBON FILM 100 LGE 0RD1003F608 Contact Us For Availability
R25
RESISTOR FIXED CARBON FILM 3.9 LGE 0RD3901F608 Contact Us For Availability
R30
Resistor,Carbon Film LGE 0RD5601F608 Contact Us For Availability
R35
Resistor,Carbon Film LGE 0RD1000F608 Contact Us For Availability
R38
LGE 0RD5601G608 LGE 0RD5601G608 Contact Us For Availability
R50
RESISTOR FIXED CARBON FILM 1.0 LGE 0RD1001G608 Contact Us For Availability
R51
RESISTOR FIXED CARBON FILM /R LGE 0RD1000G608 Contact Us For Availability
R55
FIXED CARBON FILM 1M-J *NSP LGE 0RD1004F608 Contact Us For Availability
R60
RESISTOR FIXED CARBON FILM 47K LGE 0RD4702F608 Contact Us For Availability
R61
Resistor,Carbon Film LGE 0RD1201F608 Contact Us For Availability
R62
LGE 0RN2003F408 LGE 0RN2003F408 Contact Us For Availability
R63
Resistor,Metal Film LGE 0RN1001F408 Contact Us For Availability
R68
LGE 0RN1002F408 LGE 0RN1002F408 Contact Us For Availability
R70
RESISTOR,FIXED CARBON FILM LGE 0RD6600H602 Contact Us For Availability
R71
LGE 0RD2004G608 LGE 0RD2004G608 Contact Us For Availability
R72
LGE 0RD1004G608 LGE 0RD1004G608 Contact Us For Availability
R73
LGE 0RD5103G608 LGE 0RD5103G608 Contact Us For Availability
R74
LGE 0RD3303G608 LGE 0RD3303G608 Contact Us For Availability
R75
LGE 0RD1503G608 LGE 0RD1503G608 Contact Us For Availability
R80
Resistor,Carbon Film LGE 0RD2202F608 Contact Us For Availability
R96
Resistor,Carbon Film LGE 0RD1002F608 Contact Us For Availability
RY2
RELAY LGE 6920W5A009A Contact Us For Availability
RY5
RELAY OJ-SS-112LM MA-693M MA-6 LGE 6920W2D010A Contact Us For Availability
RY6
RELAY LGE 6920WRD008A Contact Us For Availability
TC1
TRIAC LGE 6016W5A0002 Contact Us For Availability
U01
IC,DRAWING LGE 0IZZW5A182D Contact Us For Availability
VR1
VARISTOR LGE 6102W5V006A Contact Us For Availability
W121
TRUSS HEAD TP SCREW+2 CUT MV- LGE 1TTL0402422 Contact Us For Availability
× ![]()
