Model Maytag 7MWGD1602AW0 GAS DRYER – Common Parts & Diagrams

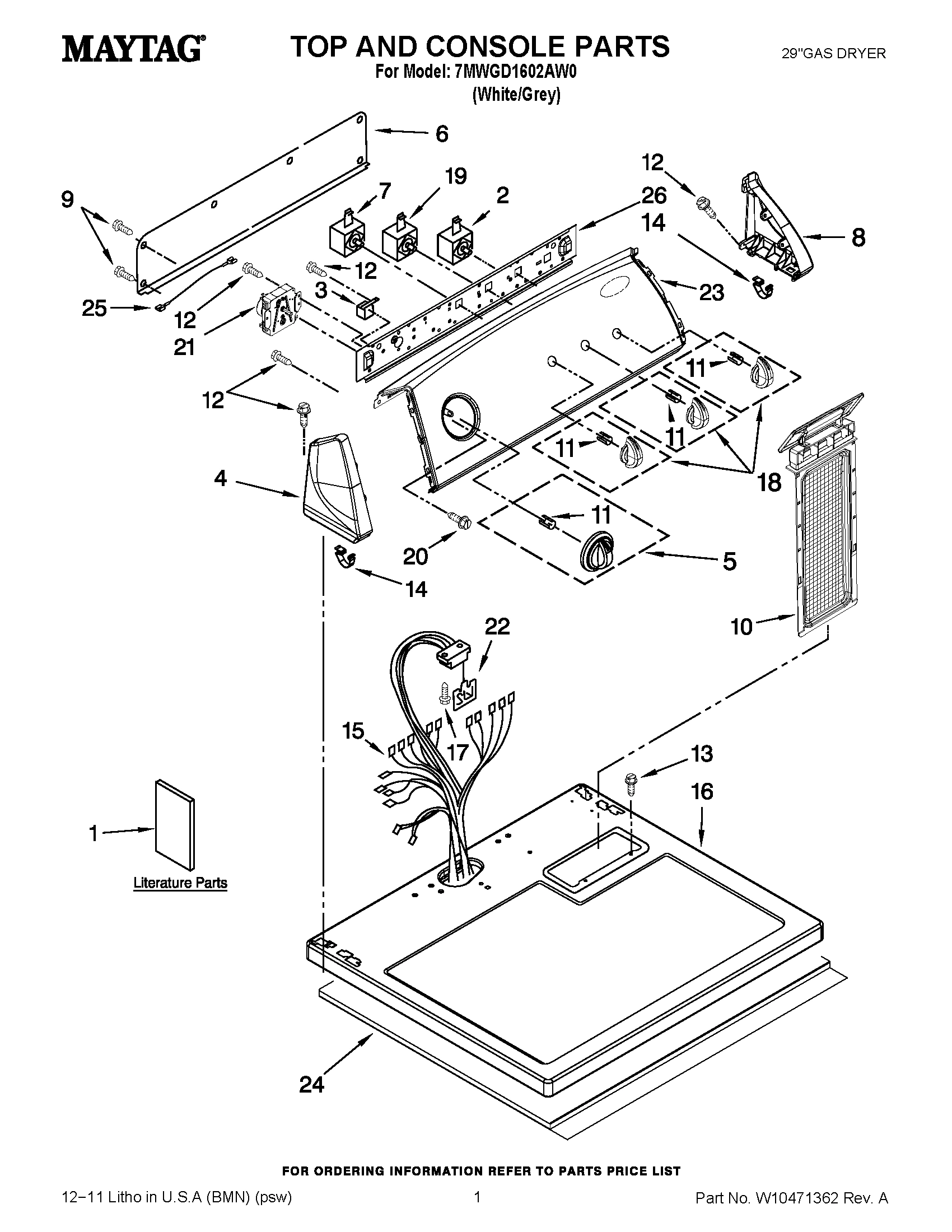

01 - TOP AND CONSOLE PARTS

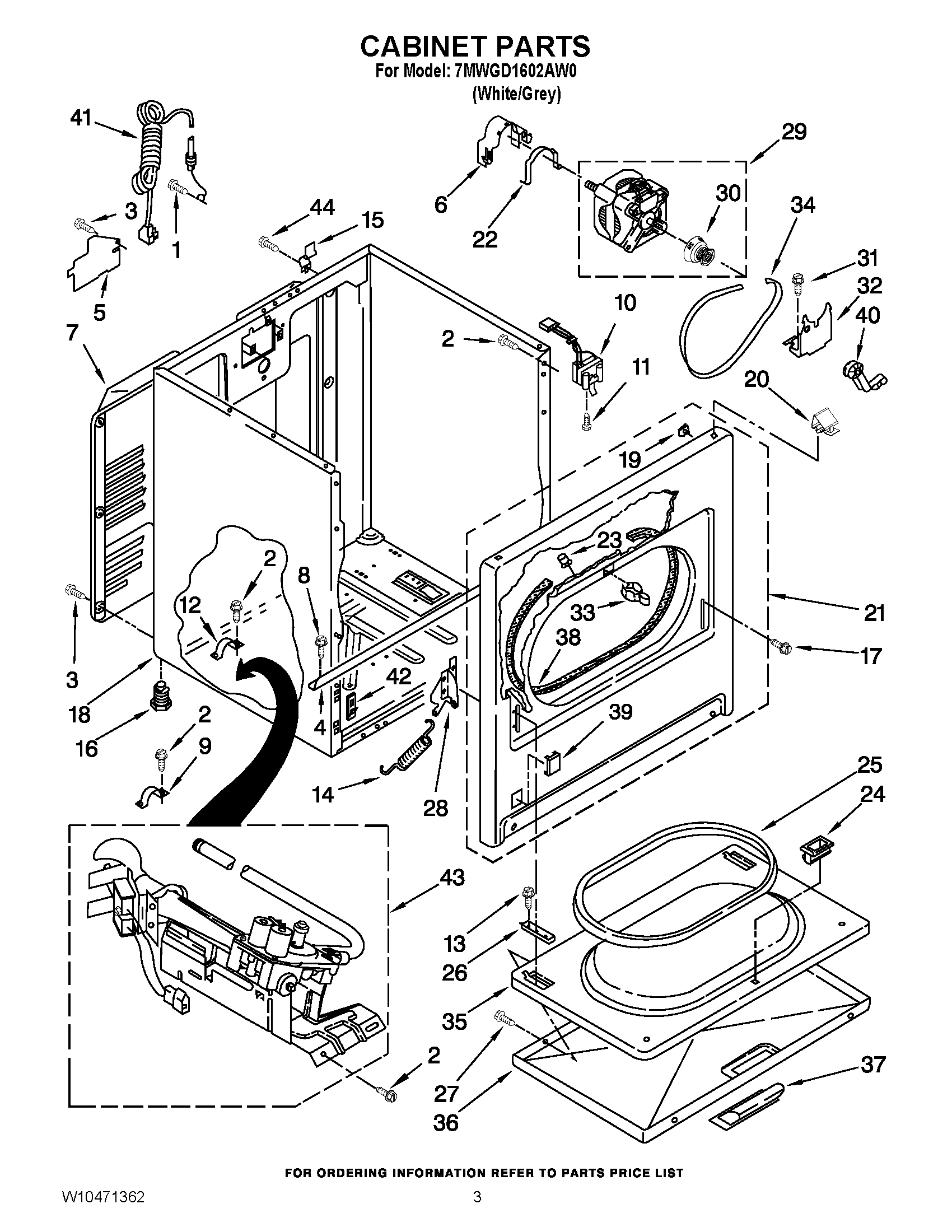

02 - CABINET PARTS
03 - BULKHEAD PARTS
04 - W10336852 BURNER ASSEMBLY
05 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag 7MWGD1602AW0 GAS DRYER
1
MAY 8578889 MAY 8578889 Contact Us For Availability
1
MAY W10329763 MAY W10329763 Contact Us For Availability
1
MAY W10454973 MAY W10454973 Contact Us For Availability
1
SCREW, 10-32 X 5/8 (EXTERNAL GROUND) MAY 8533974 Contact Us For Availability
1
BURNER ASSEMBLY 60 HZ. (TYPE 1 & 2) MAY W10336852 Contact Us For Availability
1
MAY 348368 MAY 348368 Contact Us For Availability
2
MAY W10117655 MAY W10117655 Contact Us For Availability
2
MAY 489463 MAY 489463 Contact Us For Availability
2
MAY 688617 MAY 688617 Contact Us For Availability
3
MAY 694419 MAY 694419 Contact Us For Availability
3
MAY 693995 MAY 693995 Contact Us For Availability
3
WASHER-SUPPORT MAY 3388703 Contact Us For Availability
3
MAY 694298 MAY 694298 Contact Us For Availability
4
CAP, END (L.H.) MAY 8566035 Contact Us For Availability
4
MAY W10236073 MAY W10236073 Contact Us For Availability
4
MAY 347139 MAY 347139 Contact Us For Availability
4
MAY 686590 MAY 686590 Contact Us For Availability
5
KNOB, TIMER ASSEMBLY MAY W10034750 Contact Us For Availability
5
MAY 3396795 MAY 3396795 Contact Us For Availability
5
SCREW,8-18 X 3/8 MAY 90767 Contact Us For Availability
5
MAY 3393909 MAY 3393909 Contact Us For Availability
6
MAY W10103406 MAY W10103406 Contact Us For Availability
6
MAY 343641 MAY 343641 Contact Us For Availability
6
MAY 3404162 MAY 3404162 Contact Us For Availability
6
MAY 90296 MAY 90296 Contact Us For Availability
7
MAY 8530169 MAY 8530169 Contact Us For Availability
7
MAY 3396805 MAY 3396805 Contact Us For Availability
7
THERMAL FUSE (91°C) MAY 3392519 Contact Us For Availability
7
MAY 693986 MAY 693986 Contact Us For Availability
8
CAP, END (R.H.) MAY 8566032 Contact Us For Availability
8
MAY 8066086 MAY 8066086 Contact Us For Availability
8
SCREW, 8-18 X 3/8 (3) MAY 3387057 Contact Us For Availability
9
MAY 3980175 MAY 3980175 Contact Us For Availability
9
Thermostat, Internal-Bias MAY 8318268 Contact Us For Availability
9
MAY 234826 MAY 234826 Contact Us For Availability
10
MAY 8557857 MAY 8557857 Contact Us For Availability
10
MAY 3406109 MAY 3406109 Contact Us For Availability
10
MAY 694089 MAY 694089 Contact Us For Availability
10
VALVE, GAS 60 HZ. (COMPLETE) (INCLUDES PIPE & MAY W10304604 Contact Us For Availability
11
CLIP, SPRING MAY 8536939 Contact Us For Availability
11
MAY 697773 MAY 697773 Contact Us For Availability
11
MAY 8577230 MAY 8577230 Contact Us For Availability
11
PLUG, PIPE MAY W10295523 Contact Us For Availability
12
SCREW, 8-18 X 5/16 MAY 3348629 Contact Us For Availability
12
MAY 341029 MAY 341029 Contact Us For Availability
12
Clip MAY 3398161 Contact Us For Availability
12
MAY 3389889 MAY 3389889 Contact Us For Availability
13
MAY 688983 MAY 688983 Contact Us For Availability
13
MAY 3357011 MAY 3357011 Contact Us For Availability
13
MAY W10328463 MAY W10328463 Contact Us For Availability
14
MAY 8312709 MAY 8312709 Contact Us For Availability
14
MAY W10041960 MAY W10041960 Contact Us For Availability
14
MAY 8530285 MAY 8530285 Contact Us For Availability
14
MAY 3978776 MAY 3978776 Contact Us For Availability
15
MAY W10450282 MAY W10450282 Contact Us For Availability
15
Hinge, Top MAY 8066217 Contact Us For Availability
15
THERMOSTAT, 180°F (82°C) MAY W10423382 Contact Us For Availability
15
SCREW, COIL MAY 326049536 Contact Us For Availability
16
TOP MAY 8559800 Contact Us For Availability
16
SCREW,8-18 X 1/2 MAY 3390647 Contact Us For Availability
16
MAY 3392100 MAY 3392100 Contact Us For Availability
16
MAY 696302 MAY 696302 Contact Us For Availability
17
Screw, 8-18 x 1/2 MAY 359625 Contact Us For Availability
17
Screw, 10-32 x 3/8 MAY 342043 Contact Us For Availability
17
MAY 339956 MAY 339956 Contact Us For Availability
18
KNOB, CONTROL (3) MAY W10034380 Contact Us For Availability
18
MAY 8530603 MAY 8530603 Contact Us For Availability
18
MAY 8066049 MAY 8066049 Contact Us For Availability
19
SWITCH, ROTARY (TWIST MOUNT) MAY 3405156 Contact Us For Availability
19
Clip, Ground MAY 98234 Contact Us For Availability
19
MAY 3976434 MAY 3976434 Contact Us For Availability
20
SCREW, GROUNDING MAY 3400818 Contact Us For Availability
20
MAY 8066092 MAY 8066092 Contact Us For Availability
20
Baffle, Drum MAY 692490 Contact Us For Availability
21
TIMER ASSEMBLY (60 HZ.) MAY 8566184 Contact Us For Availability
21
MAY 3395197 MAY 3395197 Contact Us For Availability
21
MAY 3403636 MAY 3403636 Contact Us For Availability
22
MAY 8558178 MAY 8558178 Contact Us For Availability
22
MAY W10121316 MAY W10121316 Contact Us For Availability
22
MAY 695587 MAY 695587 Contact Us For Availability
23
MAY W10452090 MAY W10452090 Contact Us For Availability
23
Clip, Felt Pad MAY 685203 Contact Us For Availability
23
MAY 3406022 MAY 3406022 Contact Us For Availability
24
PANEL, DAMPENING MAY W10123956 Contact Us For Availability
24
MAY 3389441 MAY 3389441 Contact Us For Availability
24
MAY W10352407 MAY W10352407 Contact Us For Availability
25
JUMPER, BUZZER MAY W10113080 Contact Us For Availability
25
MAY 3390731 MAY 3390731 Contact Us For Availability
25
MAY 280010 MAY 280010 Contact Us For Availability
26
BRACKET,CONTROL MAY 8566052 Contact Us For Availability
26
MAY 337189 MAY 337189 Contact Us For Availability
26
WIRE JUMPER MAY 3401707 Contact Us For Availability
27
SCREW, 8-18 X 5/8 MAY 342055 Contact Us For Availability
27
MAY 3976479 MAY 3976479 Contact Us For Availability
28
Hinge, R.H. MAY 8066056 Contact Us For Availability
28
Hinge, L.H. MAY 8066057 Contact Us For Availability
28
MAY 690997 MAY 690997 Contact Us For Availability
29
MAY 8066206 MAY 8066206 Contact Us For Availability
29
SHAFT, L.H. MAY W10359270 Contact Us For Availability
30
PULLEY, 60 HZ. MAY 8066184 Contact Us For Availability
30
SHAFT, R.H. MAY W10359269 Contact Us For Availability
31
MAY 3400500 MAY 3400500 Contact Us For Availability
31
MAY 3397590 MAY 3397590 Contact Us For Availability
32
MAY 348780 MAY 348780 Contact Us For Availability
32
MAY 348197 MAY 348197 Contact Us For Availability
33
Strike, Panel MAY 696144 Contact Us For Availability
33
NUT, 3/8-16 MAY W10298789 Contact Us For Availability
34
MAY W10131364 MAY W10131364 Contact Us For Availability
34
MAY 3403410 MAY 3403410 Contact Us For Availability
35
MAY 695737 MAY 695737 Contact Us For Availability
35
MAY 338906 MAY 338906 Contact Us For Availability
36
MAY 3393549 MAY 3393549 Contact Us For Availability
36
SCREW, 8-16X 1/2 MAY W10219342 Contact Us For Availability
37
MAY W10095180 MAY W10095180 Contact Us For Availability
37
MAY 692526 MAY 692526 Contact Us For Availability
38
MAY 3406129 MAY 3406129 Contact Us For Availability
39
Plug, Front Panel MAY 8564457 Contact Us For Availability
40
MAY 691366 MAY 691366 Contact Us For Availability
41
MAY W10440460 MAY W10440460 Contact Us For Availability
42
MAY 3394083 MAY 3394083 Contact Us For Availability
44
MAY 3390631 MAY 3390631 Contact Us For Availability
NI
MAY 279810 MAY 279810 Contact Us For Availability
NI
MAY 49572A MAY 49572A Contact Us For Availability
NI
MAY 279948 MAY 279948 Contact Us For Availability
NI
Dry Rack MAY 3406839 Contact Us For Availability
NI
Kit, Hold-Down (Gas Dryer Mobile Home Install MAY 346764 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 oz.) (Primer, Gr MAY 350938 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
MAY 8522199 MAY 8522199 Contact Us For Availability
NI
MAY W10071550A MAY W10071550A Contact Us For Availability
× ![]()
