Model Maytag 7MMVWH450DW1 LAUNDRY, WASHER – Common Parts & Diagrams
01 - COVER SHEET

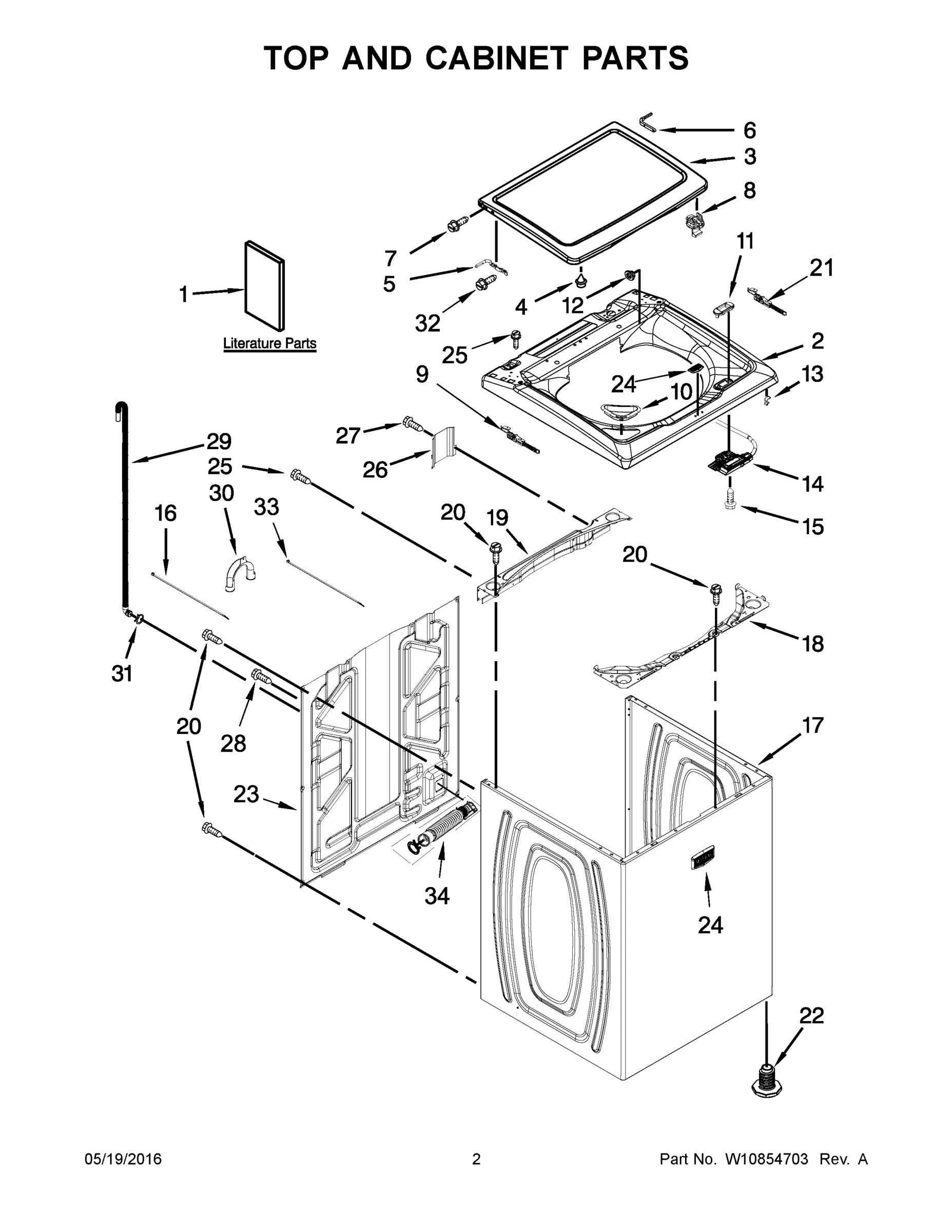

02 - TOP AND CABINET PARTS

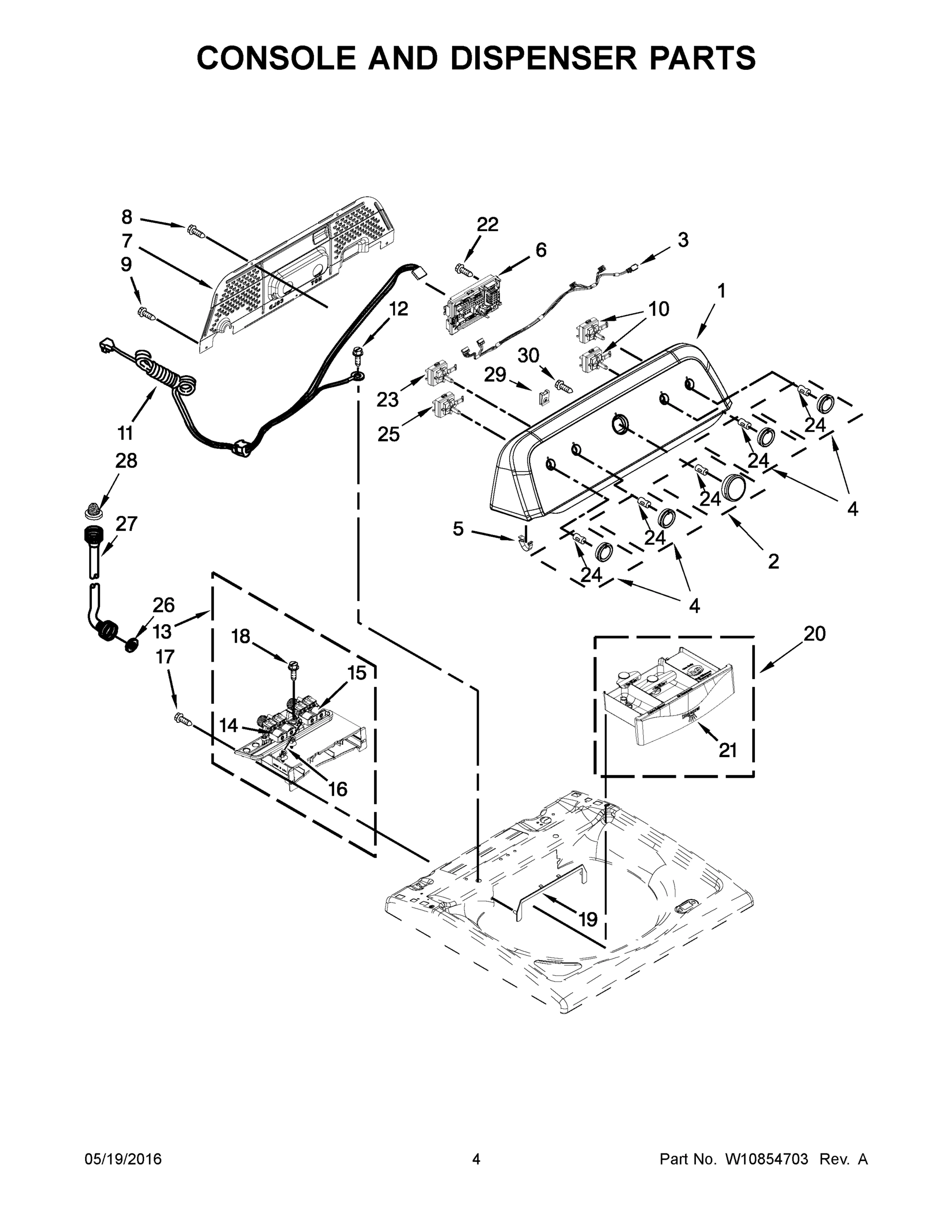

03 - CONSOLE AND DISPENSER PARTS

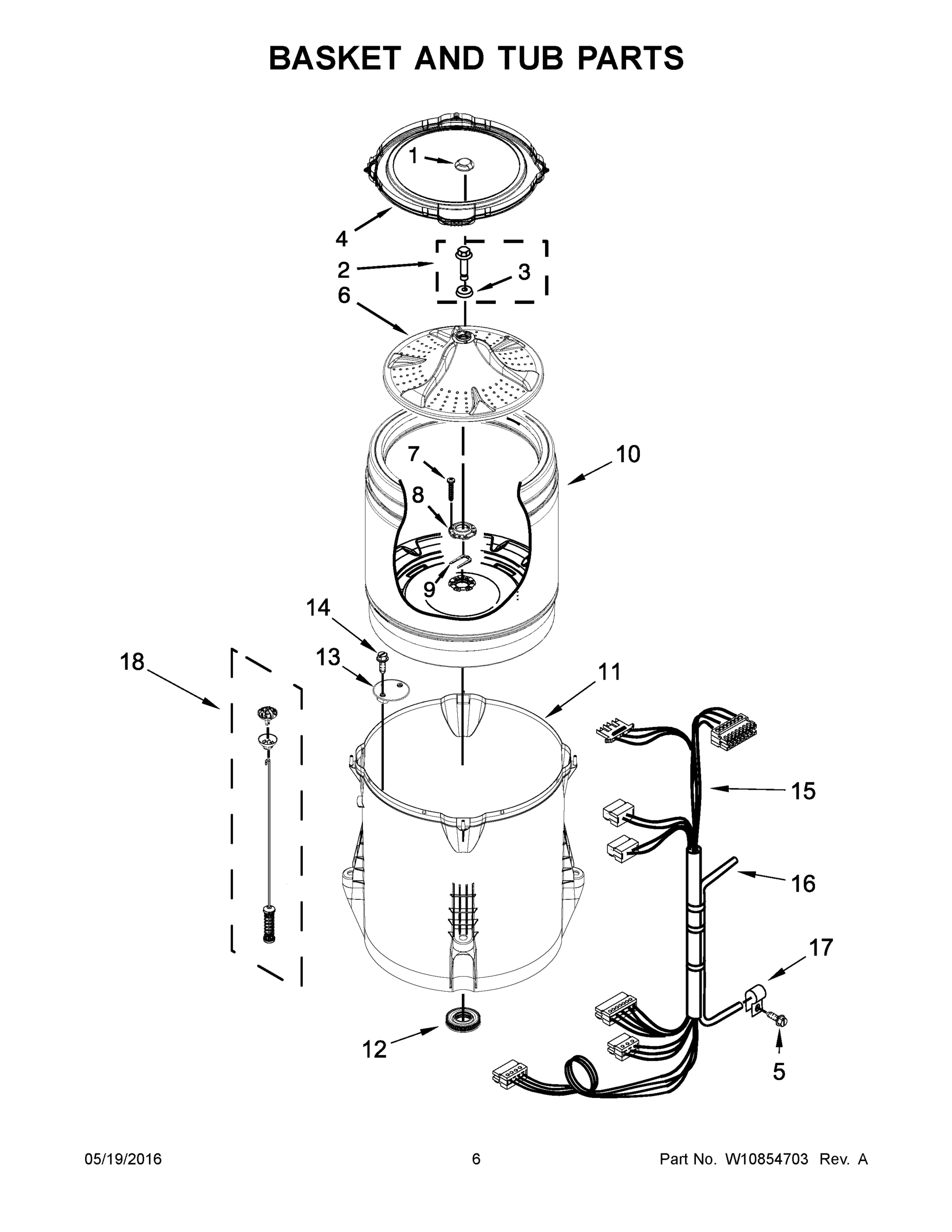

04 - BASKET AND TUB PARTS
05 - GEARCASE, MOTOR AND PUMP PARTS
06 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag 7MMVWH450DW1 LAUNDRY, WASHER
1
MAY W10658637 MAY W10658637 Contact Us For Availability
1
MAY W10652291 MAY W10652291 Contact Us For Availability
1
MAY W10305251 MAY W10305251 Contact Us For Availability
1
MAY W10465543 MAY W10465543 Contact Us For Availability
1A
MAY W10655233 MAY W10655233 Contact Us For Availability
1B
MAY W10468342 MAY W10468342 Contact Us For Availability
1C
MAY W10658022 MAY W10658022 Contact Us For Availability
2
TOP (WHITE) MAY W10238290 Contact Us For Availability
2
MAY W10558463 MAY W10558463 Contact Us For Availability
2
SCREW AND WASHER MAY W10003790 Contact Us For Availability
2
SCREW MAY W10004910 Contact Us For Availability
3
ASSEMBLY, LID AND BUMPER (WHITE) MAY W10427124 Contact Us For Availability
3
MAY W10579238 MAY W10579238 Contact Us For Availability
3
MAY 3949550 MAY 3949550 Contact Us For Availability
3
MAY W10763078 MAY W10763078 Contact Us For Availability
4
BUMPER, LID MAY 9724509 Contact Us For Availability
4
MAY W10562155 MAY W10562155 Contact Us For Availability
4
MAY W10556325 MAY W10556325 Contact Us For Availability
4
MAY 8317496 MAY 8317496 Contact Us For Availability
5
HINGE, WIRE (LEFT) MAY 8563965 Contact Us For Availability
5
MAY 8312709 MAY 8312709 Contact Us For Availability
5
SCREW MAY 8533943 Contact Us For Availability
5
MAY W10795114 MAY W10795114 Contact Us For Availability
6
HINGE, WIRE (RIGHT) MAY 8572974 Contact Us For Availability
6
MAY W10723779 MAY W10723779 Contact Us For Availability
6
MAY W10553968 MAY W10553968 Contact Us For Availability
6
SCREW MAY W10249633 Contact Us For Availability
7
SCREW MAY 693995 Contact Us For Availability
7
MAY W10420984 MAY W10420984 Contact Us For Availability
7
SCREW MAY 8533953 Contact Us For Availability
7
MAY W10677719 MAY W10677719 Contact Us For Availability
8
STRIKE, LID LOCK (WHITE) MAY W10239968 Contact Us For Availability
8
SCREW MAY 3390647 Contact Us For Availability
8
MAY W10396887 MAY W10396887 Contact Us For Availability
8
SCREW MAY W10094780 Contact Us For Availability
9
HINGE, LID (LEFT) MAY W10270398 Contact Us For Availability
9
MAY 1157158 MAY 1157158 Contact Us For Availability
9
MAY W10402178 MAY W10402178 Contact Us For Availability
9
MAY W10721967 MAY W10721967 Contact Us For Availability
10
BEZEL, BLEACH DISPENSER (WHITE) MAY W10240977 Contact Us For Availability
10
MAY W10584420 MAY W10584420 Contact Us For Availability
10
MAY W10521298 MAY W10521298 Contact Us For Availability
10
MAY W10006384 MAY W10006384 Contact Us For Availability
11
BEZEL, LID LOCK (WHITE) MAY W10392041 Contact Us For Availability
11
MAY W10621620 MAY W10621620 Contact Us For Availability
11
TUB MAY W10238301 Contact Us For Availability
11
MAY W10597177 MAY W10597177 Contact Us For Availability
12
BEARING, LID HINGE (LEFT HAND) MAY W10293653 Contact Us For Availability
12
SCREW MAY 3400076 Contact Us For Availability
12
MAY W10006371 MAY W10006371 Contact Us For Availability
12A
BEARING, LID HINGE (RIGHT HAND) MAY W10293293 Contact Us For Availability
13
MAY 90016 MAY 90016 Contact Us For Availability
13
MAY W10601447 MAY W10601447 Contact Us For Availability
13
MAY W10215093 MAY W10215093 Contact Us For Availability
13
MAY W10625046 MAY W10625046 Contact Us For Availability
14
MAY W10744659 MAY W10744659 Contact Us For Availability
14
MAY W10500742 MAY W10500742 Contact Us For Availability
14
SCREW MAY 8533928 Contact Us For Availability
14
SCREW MAY 357640 Contact Us For Availability
15
SCREW (STAINLESS) MAY 8281163 Contact Us For Availability
15
MAY W10500739 MAY W10500739 Contact Us For Availability
15
HARNESS, LOWER (INCLUDES PRESSURE SWITCH HOSE MAY W10610081 Contact Us For Availability
15
MAY W10550173 MAY W10550173 Contact Us For Availability
16
TIE, CABLE MAY W10339879 Contact Us For Availability
16
MAY W10601130 MAY W10601130 Contact Us For Availability
16
MAY W10236981 MAY W10236981 Contact Us For Availability
16
SCREW MAY 9741052 Contact Us For Availability
17
MAY W10478060 MAY W10478060 Contact Us For Availability
17
SCREW MAY W10339706 Contact Us For Availability
17
CLAMP, CABLE MAY W10005430 Contact Us For Availability
18
MAY W10215098 MAY W10215098 Contact Us For Availability
18
SCREW MAY 97787 Contact Us For Availability
18
MAY W10748954 MAY W10748954 Contact Us For Availability
19
BRACE, CABINET TOP - REAR MAY W10512626 Contact Us For Availability
19
MAY W10240946 MAY W10240946 Contact Us For Availability
20
MAY W10658444 MAY W10658444 Contact Us For Availability
21
HINGE, LID (RIGHT) MAY W10270399 Contact Us For Availability
21
MAY W10287478 MAY W10287478 Contact Us For Availability
22
MAY W10556332 MAY W10556332 Contact Us For Availability
22
SCREW MAY 9740848 Contact Us For Availability
23
PANEL, REAR MAY W10250884 Contact Us For Availability
23
MAY W10584423 MAY W10584423 Contact Us For Availability
24
MAY W10492808 MAY W10492808 Contact Us For Availability
24
CLIP, SPRING MAY 688805 Contact Us For Availability
25
MAY W10567155 MAY W10567155 Contact Us For Availability
25
MAY W10584422 MAY W10584422 Contact Us For Availability
26
MAY W10676061 MAY W10676061 Contact Us For Availability
26
WASHER, HOSE MAY W10242307 Contact Us For Availability
27
MAY W10194210 MAY W10194210 Contact Us For Availability
27A
MAY W10194211 MAY W10194211 Contact Us For Availability
28
WASHER, INLET HOSE MAY 3976300 Contact Us For Availability
29
HOSE, OUTER DRAIN ASSEMBLY MAY W10221546 Contact Us For Availability
29
MAY W10298336 MAY W10298336 Contact Us For Availability
30
MAY W10280024 MAY W10280024 Contact Us For Availability
30
SCREW MAY 3400061 Contact Us For Availability
31
MAY 356138 MAY 356138 Contact Us For Availability
32
SCREW MAY 311932 Contact Us For Availability
33
MAY W10267532 MAY W10267532 Contact Us For Availability
34
MAY W10444123 MAY W10444123 Contact Us For Availability
NI
SEALER, GASKET (.20 FL. OZ.) (6ML) MAY 285195 Contact Us For Availability
NI
ACCESSORY PARTS, HOSE WASHERS (PACKAGE OF 4) MAY 285448A Contact Us For Availability
NI
ACCESSORY PARTS, HOSE SCREEN (PACKAGE OF 2) MAY 285452A Contact Us For Availability
NI
MAY 285834 MAY 285834 Contact Us For Availability
NI
WATER SYSTEM PARTS, ADAPTER, STANDPIPE 2" DIA MAY 3363920 Contact Us For Availability
NI
MAY 350930 MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. GRAY PRIMER) MAY 350938 Contact Us For Availability
NI
COUPLING, HOSE EXTENSION KIT MAY 384496 Contact Us For Availability
NI
MAY 72017 MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
ACCESSORY PARTS, NO LONGER US IN RPL'S. USE 8 MAY 8212487RP Contact Us For Availability
NI
ACCESSORY PARTS, WASHER, DRIP TRAY MAY 8212526 Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 5 FT. (ONE RED MAY 8212545RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 4 FT. (TWO BLAC MAY 8212546RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 6 FT. (TWO BLAC MAY 8212637RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 6 FT. (TWO BRAI MAY 8212638RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 5 FT. (TWO BLAC MAY 8212641RP Contact Us For Availability
NI
WATER SYSTEM PARTS, DRAIN HOSE EXTENSION KIT MAY DRNEXT4 Contact Us For Availability
NI
ACCESSORY PARTS, AFFRESH ODOR REMOVER MAY W10135699 Contact Us For Availability
NI
ACCESSORY PAR MAY W10355010 Contact Us For Availability
× ![]()
