Model Maytag 7MMVWB850WL0 WASHER – Common Parts & Diagrams

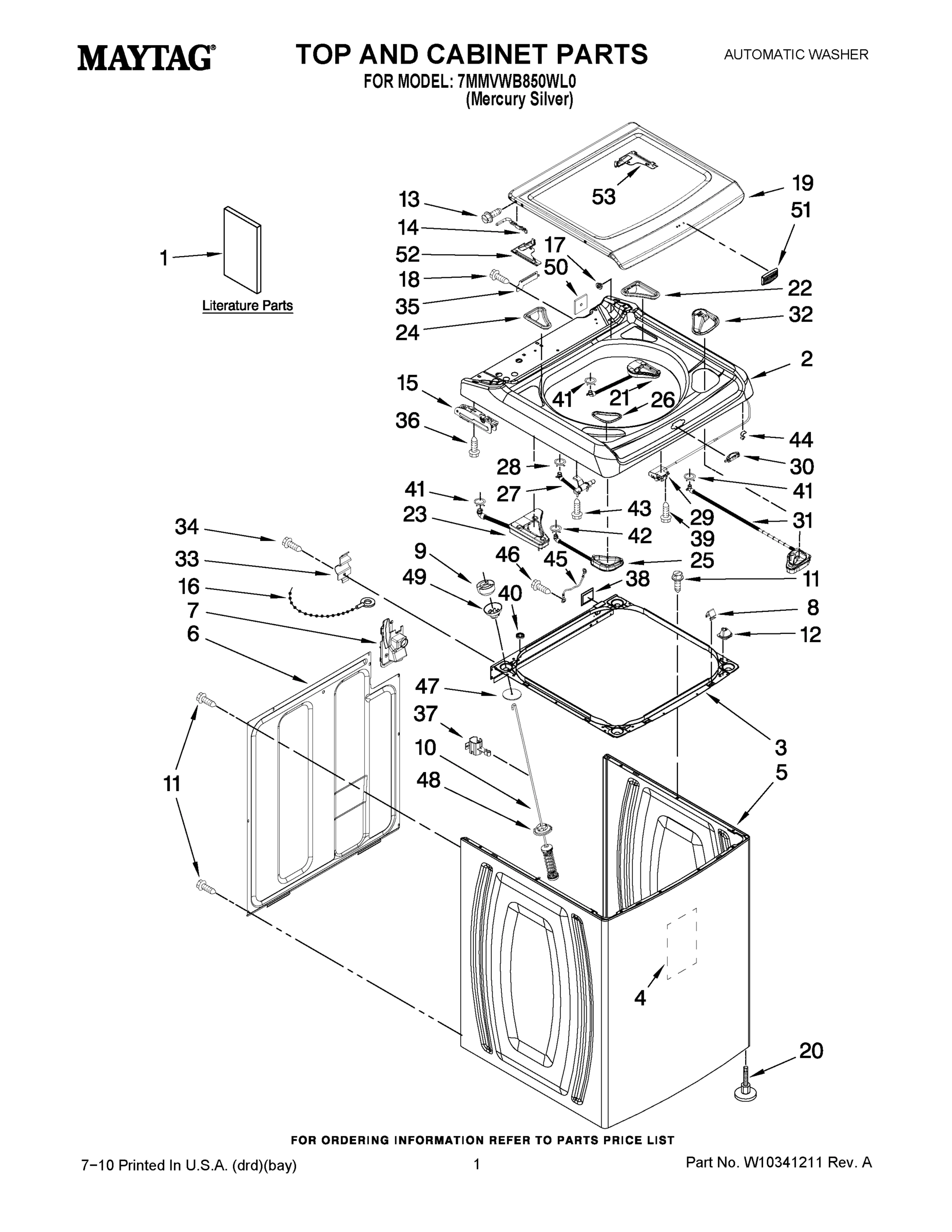

01 - TOP AND CABINET PARTS

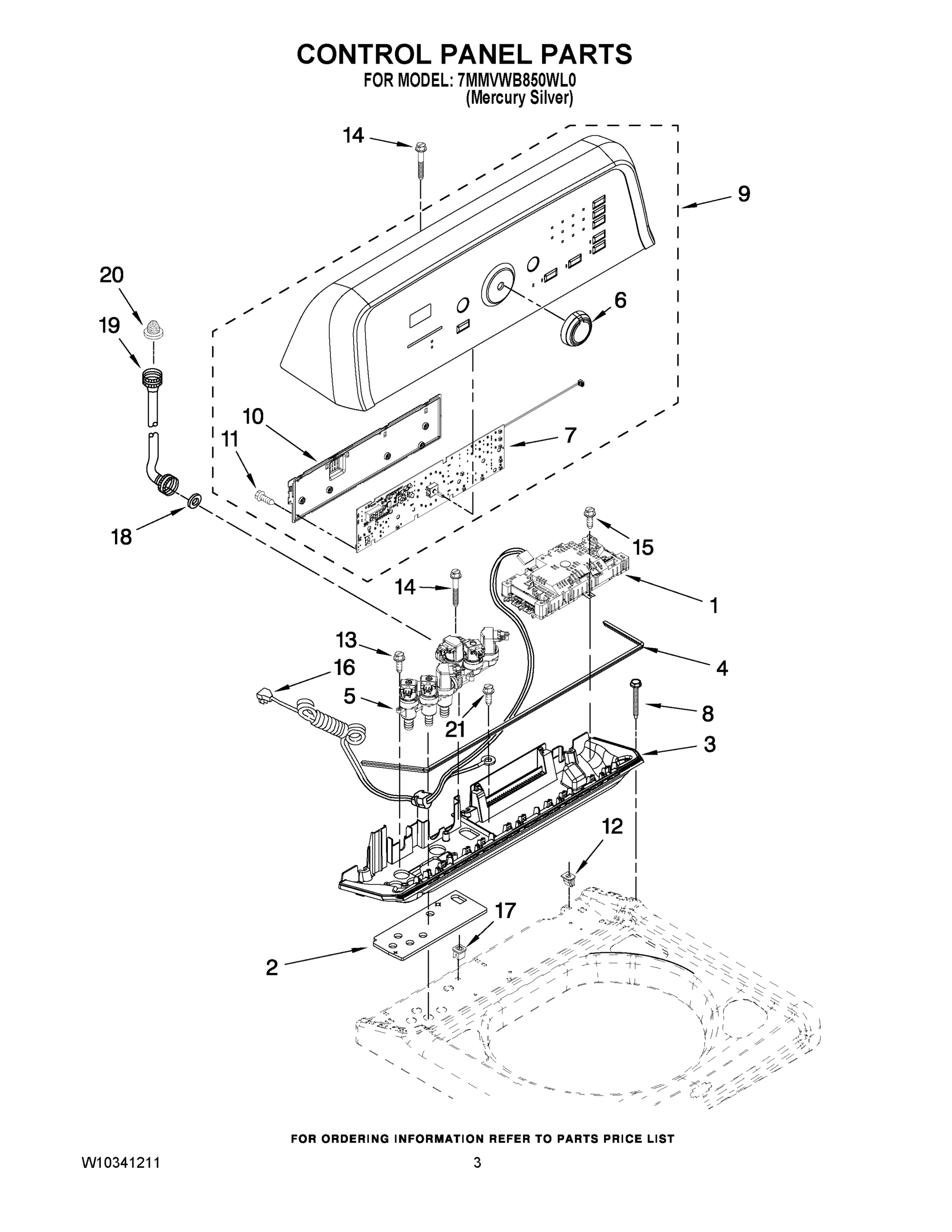

02 - CONTROL PANEL PARTS

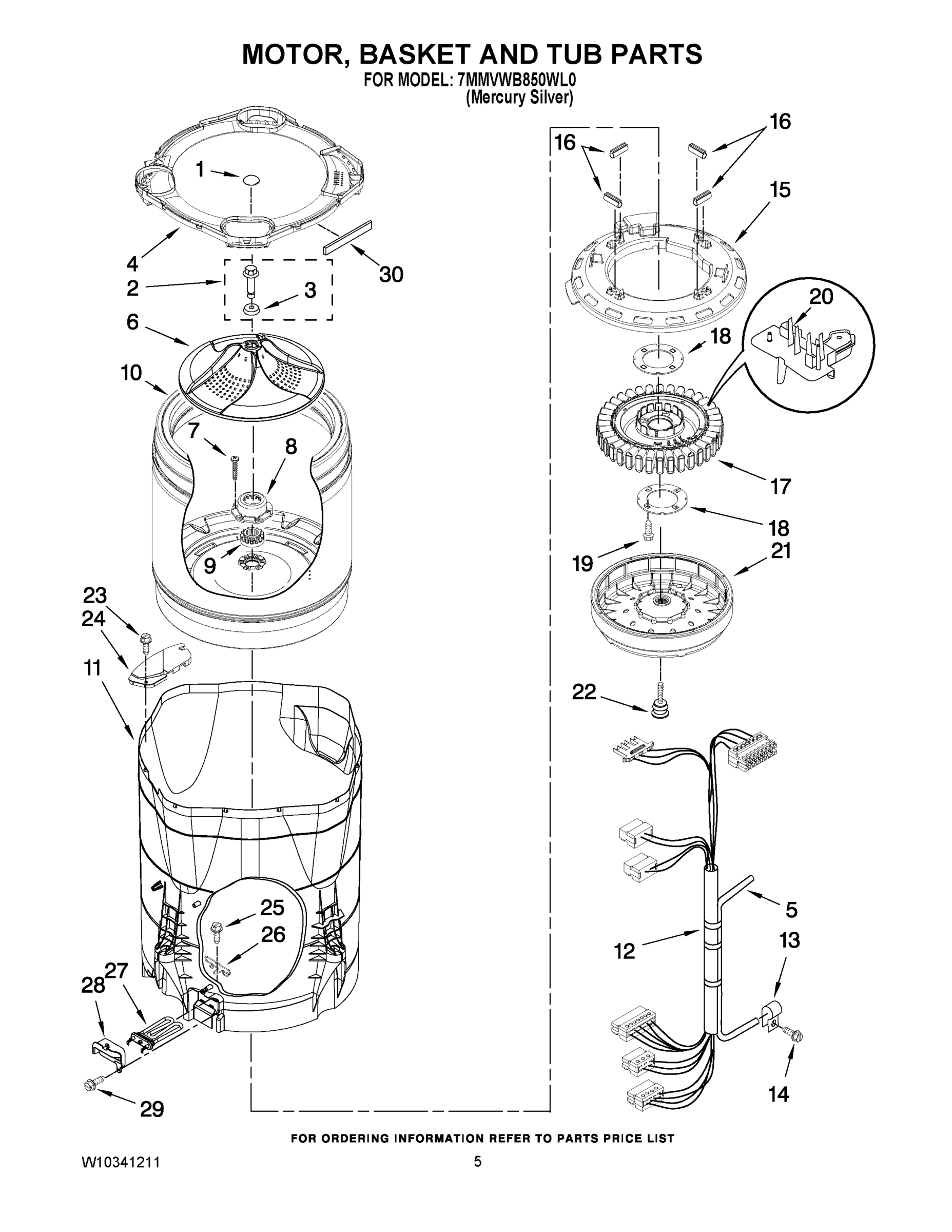

03 - MOTOR, BASKET AND TUB PARTS

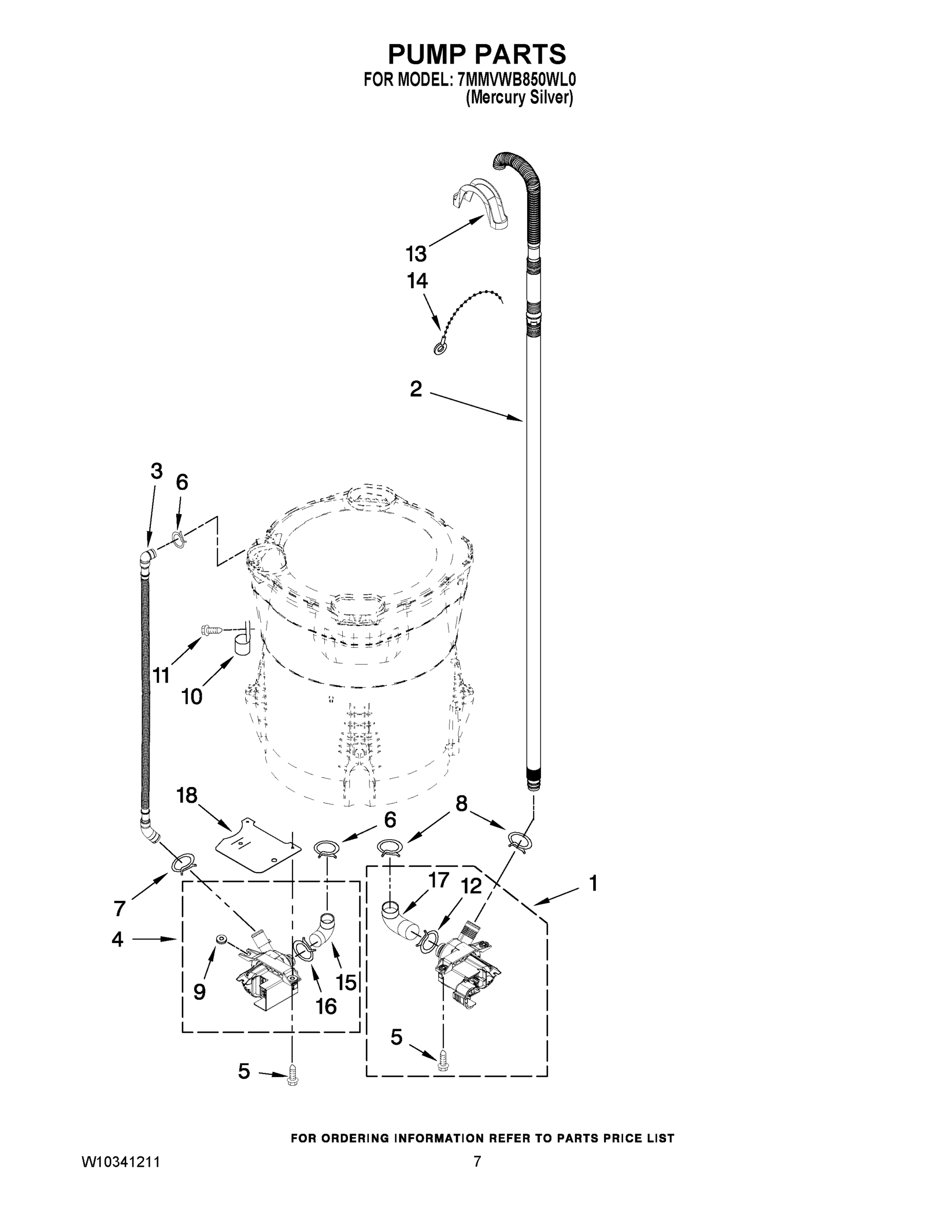

04 - PUMP PARTS
05 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag 7MMVWB850WL0 WASHER
1
MAY W10092818 MAY W10092818 Contact Us For Availability
1
MAY W10313093 MAY W10313093 Contact Us For Availability
1
MAY W10322035 MAY W10322035 Contact Us For Availability
1
MAY W10322041 MAY W10322041 Contact Us For Availability
1
MAY W10322043 MAY W10322043 Contact Us For Availability
1
MAY W10335055 MAY W10335055 Contact Us For Availability
1
MAY W10149460 MAY W10149460 Contact Us For Availability
1
MAY W10281682 MAY W10281682 Contact Us For Availability
2
MAY W10093800 MAY W10093800 Contact Us For Availability
2
MAY W10141695 MAY W10141695 Contact Us For Availability
2
MAY W10076270 MAY W10076270 Contact Us For Availability
2
MAY W10236686 MAY W10236686 Contact Us For Availability
3
FRAME ASSEMBLY, CABINET TOP (INCLUDES ITEM 38 MAY W10162604 Contact Us For Availability
3
MAY W10110846 MAY W10110846 Contact Us For Availability
3
MAY W10076260 MAY W10076260 Contact Us For Availability
3
MAY 8543774 MAY 8543774 Contact Us For Availability
4
Sound Absorber, Cabinet MAY W10177046 Contact Us For Availability
4
MAY W10141693 MAY W10141693 Contact Us For Availability
4
MAY W10251271 MAY W10251271 Contact Us For Availability
4
PUMP ASSEMBLY, DRAIN RECIRC MAY W10049400 Contact Us For Availability
5
CABINET MAY W10093798 Contact Us For Availability
5
MAY W10291036 MAY W10291036 Contact Us For Availability
5
MAY 8572540 MAY 8572540 Contact Us For Availability
5
Screw, 12-16 x 1-1/8 MAY W10004910 Contact Us For Availability
6
MAY 8566090 MAY 8566090 Contact Us For Availability
6
Knob, Control MAY W10051126 Contact Us For Availability
6
MAY W10141017 MAY W10141017 Contact Us For Availability
6
MAY 370449 MAY 370449 Contact Us For Availability
7
MAY W10160572 MAY W10160572 Contact Us For Availability
7
MAY W10260184 MAY W10260184 Contact Us For Availability
7
MAY 8533953 MAY 8533953 Contact Us For Availability
7
MAY 8269146 MAY 8269146 Contact Us For Availability
8
LOCK, TOP-FRONT MAY 8563785 Contact Us For Availability
8
MAY W10004990 MAY W10004990 Contact Us For Availability
8
Hub, Basket-Driven (Includes Item 9) MAY W10118114 Contact Us For Availability
8
MAY 8317496 MAY 8317496 Contact Us For Availability
9
BALL, SUSPENSION (SET OF 4 - (INCLUDES ITEM 4 MAY W10111536 Contact Us For Availability
9
MAY W10090761 MAY W10090761 Contact Us For Availability
9
Hub, Basket-Driver (Includes Item 8) MAY 8545953 Contact Us For Availability
9
MAY 8182771 MAY 8182771 Contact Us For Availability
10
DAMPER ASSEMBLY, TUB SUSPENSION (SET OF 4-INC MAY W10256514 Contact Us For Availability
10
COVER, REAR-USER INTERFACE MAY W10051124 Contact Us For Availability
10
MAY W10321442 MAY W10321442 Contact Us For Availability
10
MAY 8534021 MAY 8534021 Contact Us For Availability
11
Screw, 8-18 X 3/8 MAY 1157158 Contact Us For Availability
11
SCREW, 6-19 X 1/2 MAY W10003770 Contact Us For Availability
11
MAY W10157673 MAY W10157673 Contact Us For Availability
11
MAY 8533943 MAY 8533943 Contact Us For Availability
12
MAY W10042120 MAY W10042120 Contact Us For Availability
12
NUT, PUSH IN MAY W10022060 Contact Us For Availability
12
MAY W10300443 MAY W10300443 Contact Us For Availability
12
MAY 8182768 MAY 8182768 Contact Us For Availability
13
SCREW, LID HINGE MOUNTING MAY W10119828 Contact Us For Availability
13
MAY W10052600 MAY W10052600 Contact Us For Availability
13
MAY W10005430 MAY W10005430 Contact Us For Availability
13
MAY 8576642 MAY 8576642 Contact Us For Availability
14
MAY 8563964 MAY 8563964 Contact Us For Availability
14
MAY 8565324 MAY 8565324 Contact Us For Availability
14
MAY 8533957 MAY 8533957 Contact Us For Availability
14
MAY 3347868 MAY 3347868 Contact Us For Availability
15
MAY W10141681 MAY W10141681 Contact Us For Availability
15
MAY W10141682 MAY W10141682 Contact Us For Availability
15
Screw, 8-18 x 3/4 MAY 8281136 Contact Us For Availability
15
MAY W10137698 MAY W10137698 Contact Us For Availability
15
MAY 8182769 MAY 8182769 Contact Us For Availability
16
MAY W10155270 MAY W10155270 Contact Us For Availability
16
MAY W10299984 MAY W10299984 Contact Us For Availability
16
MAY 8565172 MAY 8565172 Contact Us For Availability
16
MAY 8182770 MAY 8182770 Contact Us For Availability
17
MAY W10315174 MAY W10315174 Contact Us For Availability
17
MAY 8565170 MAY 8565170 Contact Us For Availability
17
MAY 8182767 MAY 8182767 Contact Us For Availability
18
SCREW,8-18 X 1/2 MAY 3390647 Contact Us For Availability
18
MAY 8557836 MAY 8557836 Contact Us For Availability
18
MAY 8578572 MAY 8578572 Contact Us For Availability
19
MAY W10093817 MAY W10093817 Contact Us For Availability
19
HOSE, WATER INLET (COLD WATER) MAY 98460 Contact Us For Availability
19
HOSE, WATER INLET (HOT WATER) MAY W10242307 Contact Us For Availability
19
MAY 8534042 MAY 8534042 Contact Us For Availability
20
MAY W10240448 MAY W10240448 Contact Us For Availability
20
MAY 353362 MAY 353362 Contact Us For Availability
20
MAY W10178988 MAY W10178988 Contact Us For Availability
21
MAY W10172146 MAY W10172146 Contact Us For Availability
21
Screw, Power Cord Ground MAY 3351614 Contact Us For Availability
21
MAY 8565177 MAY 8565177 Contact Us For Availability
22
MAY W10093807 MAY W10093807 Contact Us For Availability
22
BOLT, ROTOR ASSEMBLY NON-SERVICEABLE (SUPPLIE MAY N/P Contact Us For Availability
23
Dispenser, Bleach MAY W10170353 Contact Us For Availability
23
MAY 8533928 MAY 8533928 Contact Us For Availability
24
MAY W10093808 MAY W10093808 Contact Us For Availability
24
MAY W10222008 MAY W10222008 Contact Us For Availability
25
MAY W10172154 MAY W10172154 Contact Us For Availability
25
Screw, 8-18 x 3/4 MAY W10119266 Contact Us For Availability
26
MAY W10093809 MAY W10093809 Contact Us For Availability
26
Clip, Tub Heater MAY W10134571 Contact Us For Availability
27
MAY W10106990 MAY W10106990 Contact Us For Availability
27
MAY W10121071 MAY W10121071 Contact Us For Availability
28
MAY W10140727 MAY W10140727 Contact Us For Availability
29
MAY W10059230 MAY W10059230 Contact Us For Availability
30
MAY W10093806 MAY W10093806 Contact Us For Availability
30
MAY W10205824 MAY W10205824 Contact Us For Availability
31
MAY W10170964 MAY W10170964 Contact Us For Availability
32
MAY W10093810 MAY W10093810 Contact Us For Availability
33
MAY 8564456 MAY 8564456 Contact Us For Availability
34
MAY 343641 MAY 343641 Contact Us For Availability
35
MAY 8563941 MAY 8563941 Contact Us For Availability
36
SCREW,8-18 X 3/8 MAY 693995 Contact Us For Availability
37
MAY 8543784 MAY 8543784 Contact Us For Availability
38
MAY 8578386 MAY 8578386 Contact Us For Availability
40
MAY 8576476 MAY 8576476 Contact Us For Availability
41
MAY 370451 MAY 370451 Contact Us For Availability
42
MAY 371503 MAY 371503 Contact Us For Availability
43
Screw, 10-16 x 9/16 MAY 3400061 Contact Us For Availability
44
MAY 90016 MAY 90016 Contact Us For Availability
45
MAY 8281736 MAY 8281736 Contact Us For Availability
46
Screw, 10-32 x 5/8 MAY 3400076 Contact Us For Availability
47
MAY 8577896 MAY 8577896 Contact Us For Availability
48
MAY 8564017 MAY 8564017 Contact Us For Availability
49
MAY W10167599 MAY W10167599 Contact Us For Availability
50
TOP, FOAM SEAL MAY W10161707 Contact Us For Availability
51
MEDALLION MAY W10323735 Contact Us For Availability
52
MAY W10093814 MAY W10093814 Contact Us For Availability
53
MAY W10093813 MAY W10093813 Contact Us For Availability
NI
MAY 1903WH MAY 1903WH Contact Us For Availability
NI
SEALER, GASKET (.20 FL. OZ.) (6ML) MAY 285195 Contact Us For Availability
NI
WATER SYSTEM PARTS (SIPHON BREAK KIT) MAY 285320 Contact Us For Availability
NI
WATER SYSTEM PARTS (SLEEVE KIT, (CONTAINS 2 S MAY 285321 Contact Us For Availability
NI
WATER SYSTEM PARTS (CONNECTOR KIT, PLASTIC DR MAY 285442 Contact Us For Availability
NI
MAY 285448A MAY 285448A Contact Us For Availability
NI
MAY 285452A MAY 285452A Contact Us For Availability
NI
ALL PURPOSE APPLIANCE CLEANER MAY 31682 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 oz.) (Primer, Gr MAY 350938 Contact Us For Availability
NI
WATER SYSTEM PARTS, DRAIN PROTECTOR MAY 367031 Contact Us For Availability
NI
MAY 384496 MAY 384496 Contact Us For Availability
NI
Inlet Hoses, 5 Ft. (Two Braided Hoses W/Strai MAY 8212487RP Contact Us For Availability
NI
WASHER DRIP TRAY MAY 8212526 Contact Us For Availability
NI
INLET HOSES, 5 FT. (ONE RED HOSE & ONE BLUE H MAY 8212545RP Contact Us For Availability
NI
MAY 8212546RP MAY 8212546RP Contact Us For Availability
NI
INLET HOSES, 6 FT. (TWO BLACK HOSES W/ ONE ST MAY 8212637RP Contact Us For Availability
NI
INLET HOSES, 6 FT. (TWO BRAIDED HOSES W/ ONE MAY 8212638RP Contact Us For Availability
NI
Inlet Hoses, 5 Ft. (Two Black Hoses W/Straigh MAY 8212641RP Contact Us For Availability
NI
MAY W10135699 MAY W10135699 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (MERCURY SILVER) MAY W10268217 Contact Us For Availability
× ![]()
