Model Maytag 7MMTM0300WQ0 WASHER – Common Parts & Diagrams
01 - TOP AND CABINET PARTS
02 - CONTROLS AND REAR PANEL PARTS

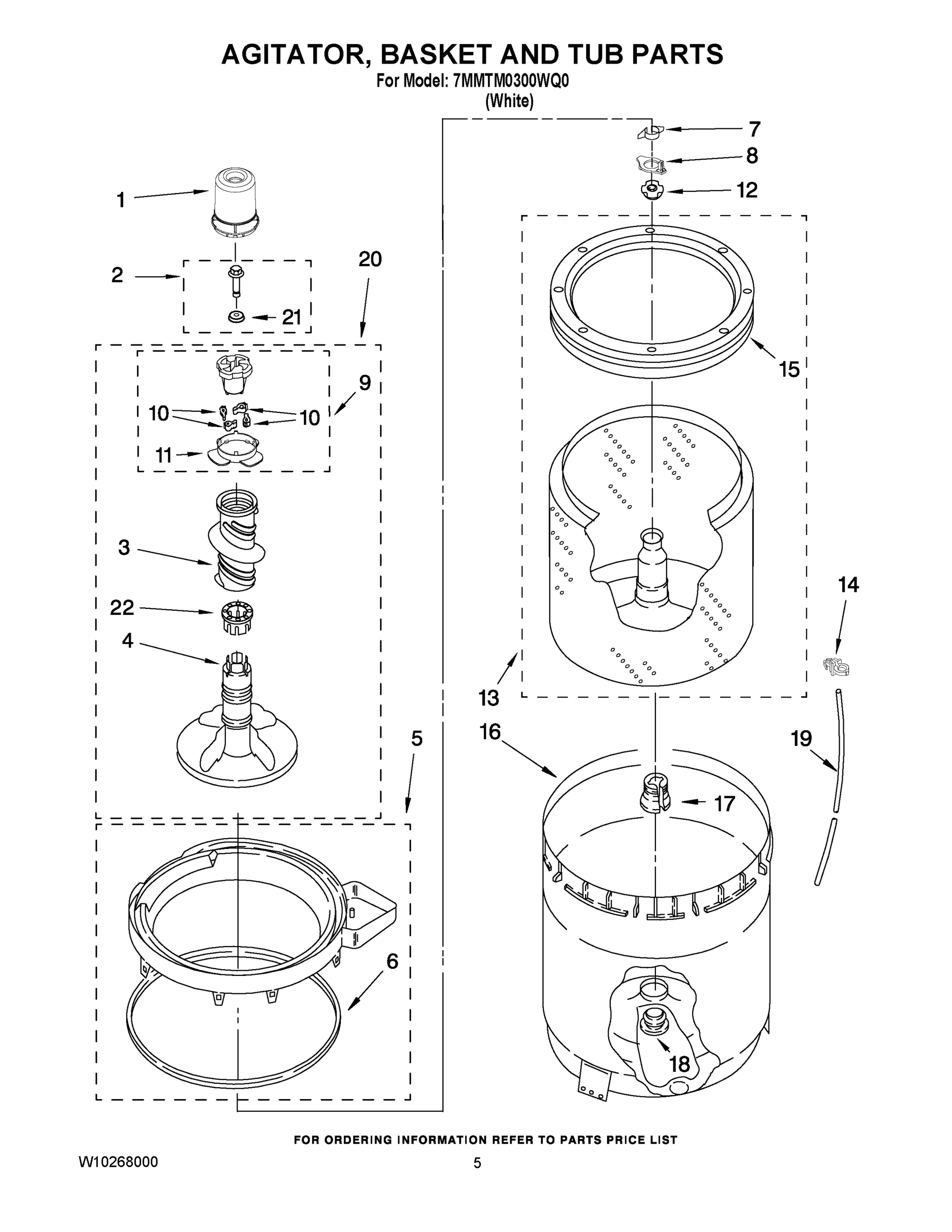

03 - AGITATOR, BASKET AND TUB PARTS

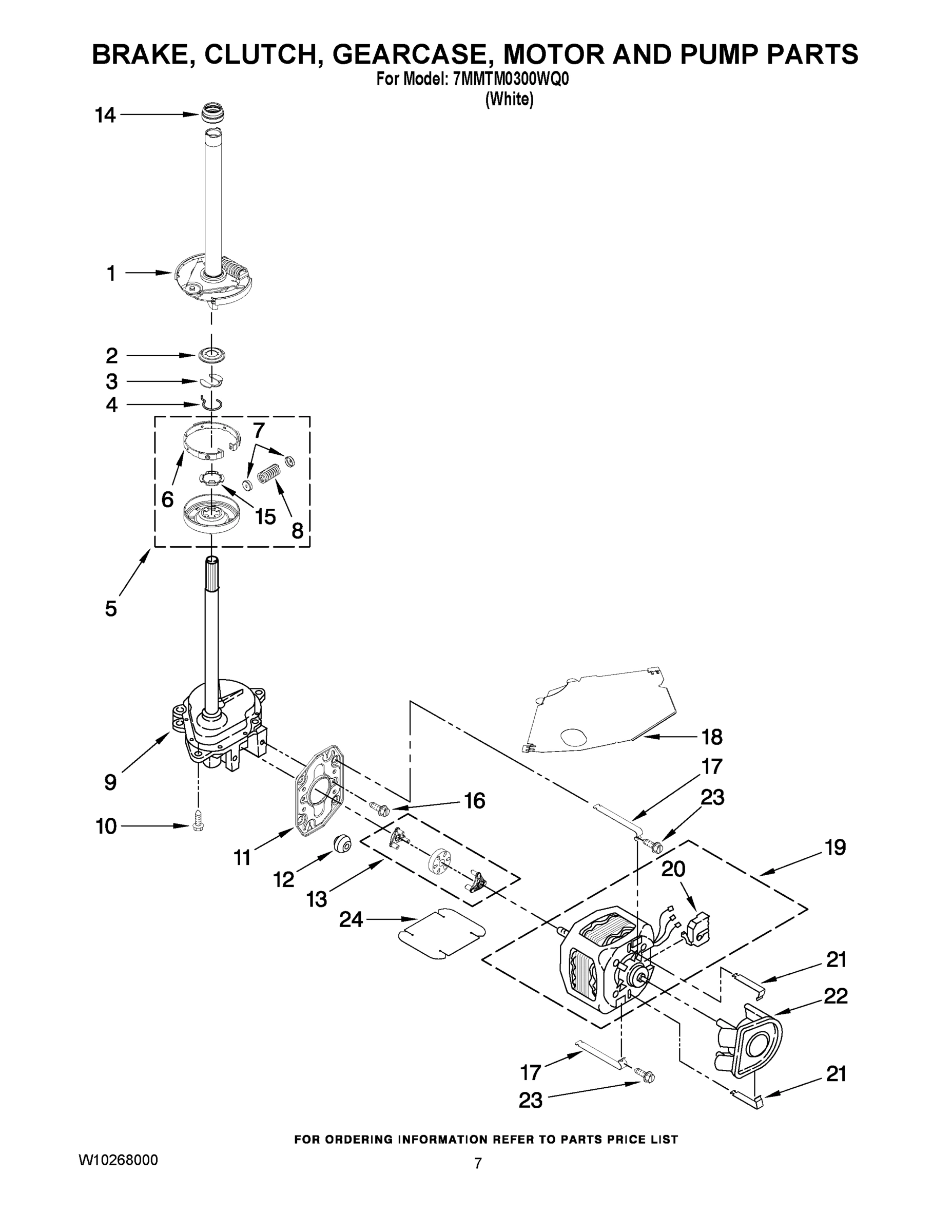

04 - BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP PARTS

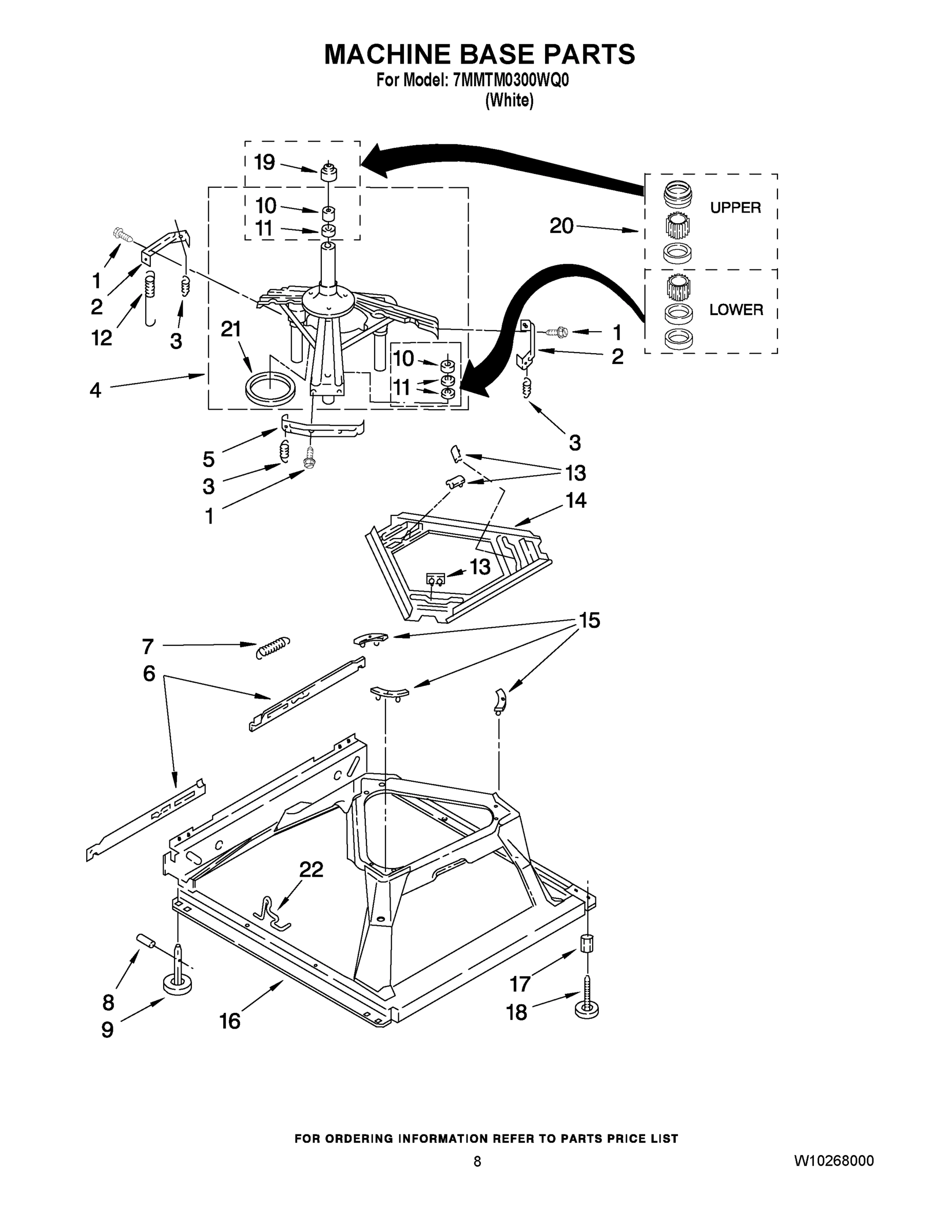

05 - MACHINE BASE PARTS

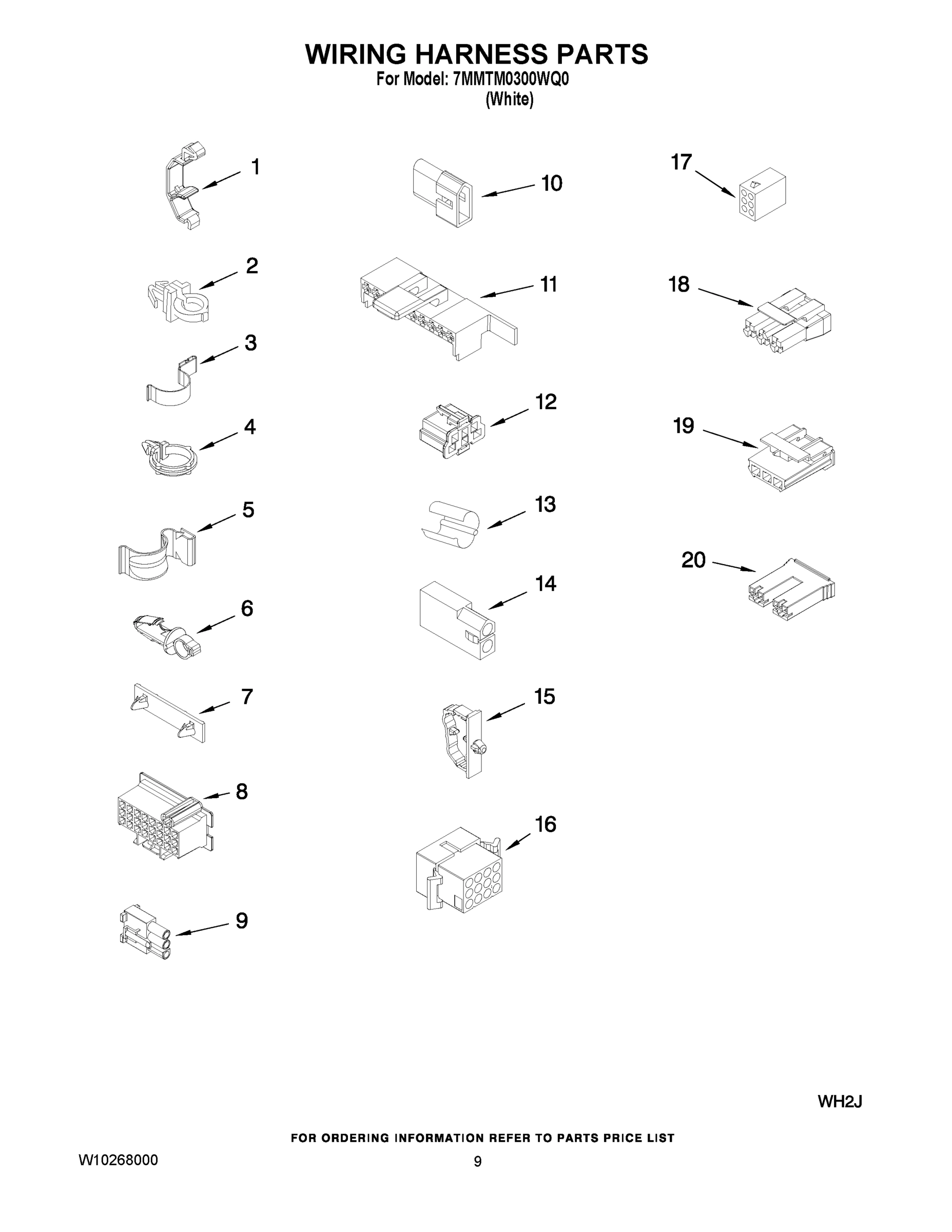

06 - WIRING HARNESS PARTS

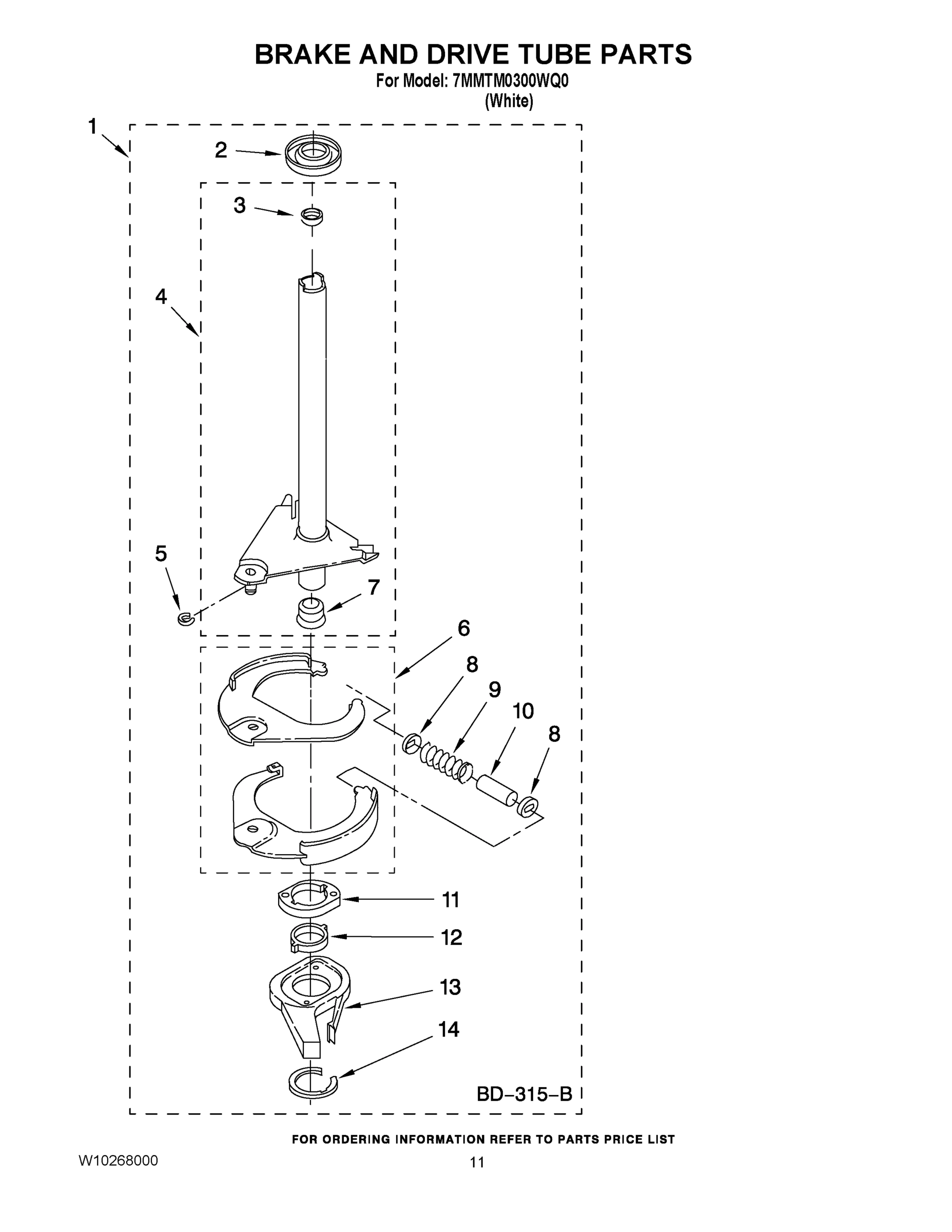

07 - BRAKE AND DRIVE TUBE PARTS

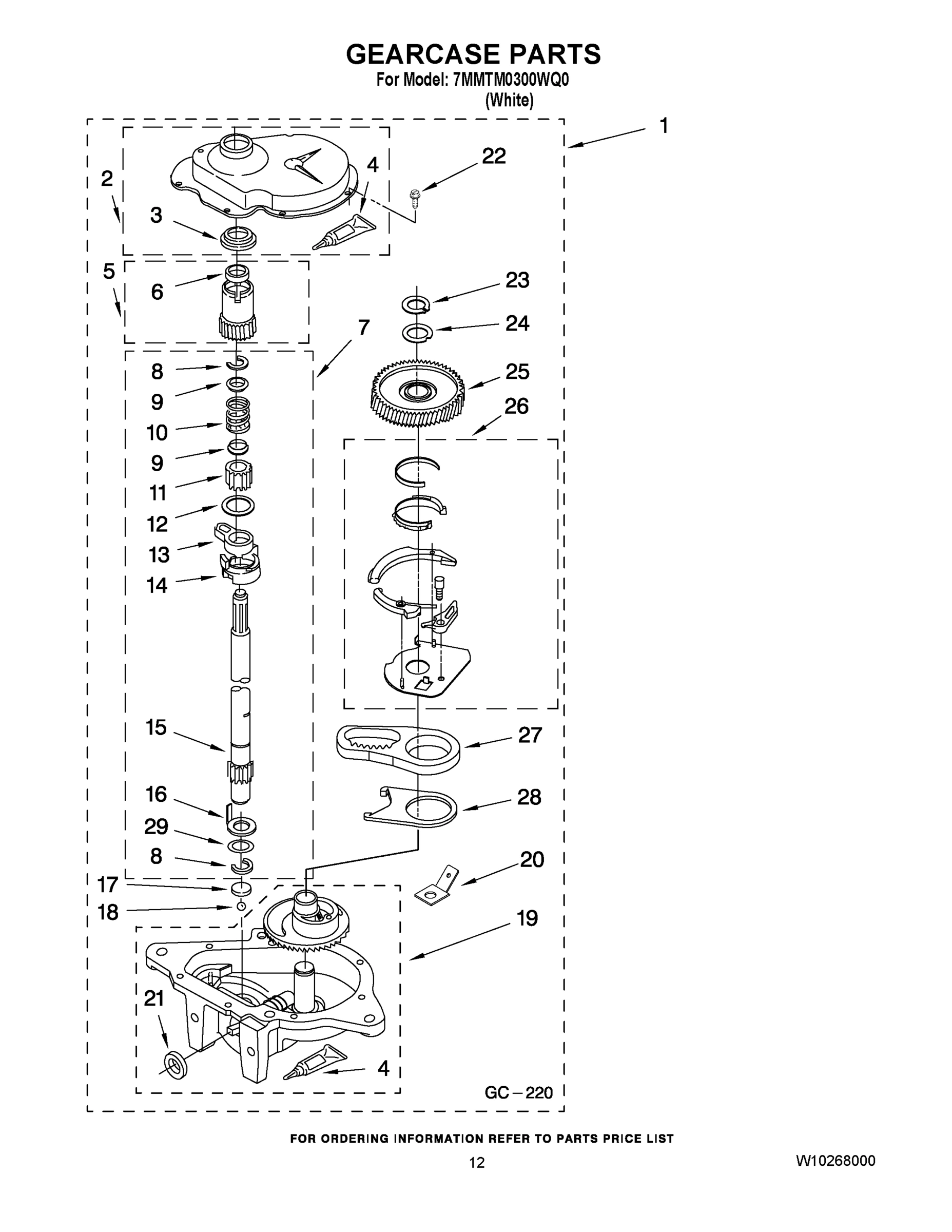

08 - GEARCASE PARTS
09 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag 7MMTM0300WQ0 WASHER
1
MAY W10155456 MAY W10155456 Contact Us For Availability
1
MAY W10243944 MAY W10243944 Contact Us For Availability
1
MAY W10245768 MAY W10245768 Contact Us For Availability
1
MAY W10252085 MAY W10252085 Contact Us For Availability
1
Washer, Water Inlet Hose (4) (1-1/16 x 5/8) MAY W10242307 Contact Us For Availability
1
MAY 8533251 MAY 8533251 Contact Us For Availability
1
Brake And Drive Tube (Complete) MAY 388952 Contact Us For Availability
1
Gearcase (Complete) MAY 8532118 Contact Us For Availability
1
MAY 3400076 MAY 3400076 Contact Us For Availability
1
Retainer, Harness MAY 3349557 Contact Us For Availability
2
MAY W10172707 MAY W10172707 Contact Us For Availability
2
MAY 3400073 MAY 3400073 Contact Us For Availability
2
Screw & Washer (5/16-24 x 1) MAY 358237 Contact Us For Availability
2
MAY 63292 MAY 63292 Contact Us For Availability
2
MAY 64067 MAY 64067 Contact Us For Availability
2
MAY 388498 MAY 388498 Contact Us For Availability
2
MAY 62658 MAY 62658 Contact Us For Availability
2
MAY 285202 MAY 285202 Contact Us For Availability
3
MAY 9724509 MAY 9724509 Contact Us For Availability
3
Hose, Water Inlet (2) (Cold Water) MAY W10194210 Contact Us For Availability
3
Hose, Water Inlet (2) (Hot Water) MAY W10196191 Contact Us For Availability
3
MAY 3360824 MAY 3360824 Contact Us For Availability
3
MAY 62697 MAY 62697 Contact Us For Availability
3
SPRING, SUSPENSION(3) MAY 63907 Contact Us For Availability
3
MAY 3347812 MAY 3347812 Contact Us For Availability
3
MAY 3349985 MAY 3349985 Contact Us For Availability
4
MAY W10119828 MAY W10119828 Contact Us For Availability
4
MAY 9740848 MAY 9740848 Contact Us For Availability
4
MAY 389386 MAY 389386 Contact Us For Availability
4
MAY 63283 MAY 63283 Contact Us For Availability
4
MAY 8575214 MAY 8575214 Contact Us For Availability
4
Clip, Harness (Push-In) MAY 3352501 Contact Us For Availability
4
MAY 64027 MAY 64027 Contact Us For Availability
5
MAY W10225136 MAY W10225136 Contact Us For Availability
5
Strap, Console (2) MAY 8568314 Contact Us For Availability
5
MAY 8528150 MAY 8528150 Contact Us For Availability
5
MAY 3951311 MAY 3951311 Contact Us For Availability
5
MAY 64065 MAY 64065 Contact Us For Availability
5
Clip, Harness (Half-Harness) MAY 90016 Contact Us For Availability
5
MAY 64035 MAY 64035 Contact Us For Availability
5
Pinion, Spin (Includes Illus. 25) MAY 63320 Contact Us For Availability
6
HINGE, LID R.H. MAY 54583 Contact Us For Availability
6
MAY W10194450 MAY W10194450 Contact Us For Availability
6
MAY 3976308 MAY 3976308 Contact Us For Availability
6
Band & Lining, Clutch (Includes Items 7 & 8) MAY 3951308 Contact Us For Availability
6
MAY 63466 MAY 63466 Contact Us For Availability
6
MAY 3390496 MAY 3390496 Contact Us For Availability
6
Seal, Spin Pinion MAY 356427 Contact Us For Availability
6
MAY 64232 MAY 64232 Contact Us For Availability
7
MAY 19119 MAY 19119 Contact Us For Availability
7
MAY 62747 MAY 62747 Contact Us For Availability
7
MAY 3354845 MAY 3354845 Contact Us For Availability
7
MAY 62646 MAY 62646 Contact Us For Availability
7
MAY 62597 MAY 62597 Contact Us For Availability
7
Retainer, Harness MAY 389379 Contact Us For Availability
7
MAY 62703 MAY 62703 Contact Us For Availability
7
MAY 389387 MAY 389387 Contact Us For Availability
8
MAY 62780 MAY 62780 Contact Us For Availability
8
MAY W10189267 MAY W10189267 Contact Us For Availability
8
MAY 8543666 MAY 8543666 Contact Us For Availability
8
MAY 3946792 MAY 3946792 Contact Us For Availability
8
MAY 62837 MAY 62837 Contact Us For Availability
8
MAY 352089 MAY 352089 Contact Us For Availability
8
Timer, Block Disconnect (Natural) MAY 3948614 Contact Us For Availability
8
MAY 3353956 MAY 3353956 Contact Us For Availability
8
MAY 90369 MAY 90369 Contact Us For Availability
9
MAY W10192089 MAY W10192089 Contact Us For Availability
9
MAY W10175553 MAY W10175553 Contact Us For Availability
9
Cam, Driven MAY 3363662 Contact Us For Availability
9
MAY 62596 MAY 62596 Contact Us For Availability
9
Receptacle, Terminal (3-Way) MAY 62889 Contact Us For Availability
9
MAY 387806 MAY 387806 Contact Us For Availability
9
Retainer, Spring (2) MAY 62677 Contact Us For Availability
10
MAY 3366877 MAY 3366877 Contact Us For Availability
10
MAY 3357334 MAY 3357334 Contact Us For Availability
10
MAY 8546455 MAY 8546455 Contact Us For Availability
10
Plug, Terminal (3-Way) MAY 353424 Contact Us For Availability
10
MAY 3355360 MAY 3355360 Contact Us For Availability
10
MAY 62676 MAY 62676 Contact Us For Availability
11
MAY 8318084 MAY 8318084 Contact Us For Availability
11
SCREW,8-18 X 3/8 MAY 90767 Contact Us For Availability
11
BEARING, DRIVEN CAM MAY 3363661 Contact Us For Availability
11
MAY 62611 MAY 62611 Contact Us For Availability
11
MAY 357409 MAY 357409 Contact Us For Availability
11
LOCK, DISCONNECT (MOTOR 2 BSPEED) MAY 62505 Contact Us For Availability
11
MAY 661516 MAY 661516 Contact Us For Availability
11
Gear, Agitate (Includes 15 & 29) MAY 63273 Contact Us For Availability
12
MAY W10203530 MAY W10203530 Contact Us For Availability
12
MAY 8577844 MAY 8577844 Contact Us For Availability
12
MAY 21366 MAY 21366 Contact Us For Availability
12
MAY 62691 MAY 62691 Contact Us For Availability
12
MAY 388492 MAY 388492 Contact Us For Availability
12
Block, Disconnect MAY 3347243 Contact Us For Availability
12
MAY 63022 MAY 63022 Contact Us For Availability
12
MAY 62619 MAY 62619 Contact Us For Availability
13
MAY 8319539 MAY 8319539 Contact Us For Availability
13
MAY 8559504 MAY 8559504 Contact Us For Availability
13
MAY 8526016 MAY 8526016 Contact Us For Availability
13
Coupling, Motor & Isolation MAY 3364003 Contact Us For Availability
13
MAY 62568 MAY 62568 Contact Us For Availability
13
MAY 63523 MAY 63523 Contact Us For Availability
13
MAY 64194 MAY 64194 Contact Us For Availability
13
MAY 62580 MAY 62580 Contact Us For Availability
14
MAY 8533959 MAY 8533959 Contact Us For Availability
14
MAY W10115689 MAY W10115689 Contact Us For Availability
14
MAY 2219077 MAY 2219077 Contact Us For Availability
14
MAY 8577374 MAY 8577374 Contact Us For Availability
14
Plate, Suspension (Includes Item 13) MAY 3946509 Contact Us For Availability
14
Connector (2-Way) MAY 717252 Contact Us For Availability
14
MAY 90368 MAY 90368 Contact Us For Availability
14
MAY 62581 MAY 62581 Contact Us For Availability
15
MAY 62750 MAY 62750 Contact Us For Availability
15
MAY 3952821 MAY 3952821 Contact Us For Availability
15
MAY 387240 MAY 387240 Contact Us For Availability
15
MAY 3355454 MAY 3355454 Contact Us For Availability
15
MAY 3363660 MAY 3363660 Contact Us For Availability
15
MAY 3352944 MAY 3352944 Contact Us For Availability
15
Shaft, Agitator (Includes 11 & 29) MAY 285509 Contact Us For Availability
16
Cabinet MAY 63424 Contact Us For Availability
16
CAP, END (L.H.) (INCLUDES ITEM 26) MAY 8559502 Contact Us For Availability
16
MAY 63849 MAY 63849 Contact Us For Availability
16
MAY 3400516 MAY 3400516 Contact Us For Availability
16
Base Assembly (Includes Items 6, 7, 8, 9, 13, MAY 3946512 Contact Us For Availability
16
Block, Disconnect (12-Way) MAY 3390423 Contact Us For Availability
16
MAY 62618 MAY 62618 Contact Us For Availability
17
MAY W10165554 MAY W10165554 Contact Us For Availability
17
CAP, END (R.H.) (INCLUDES ITEM 26) MAY 8559501 Contact Us For Availability
17
MAY 389140 MAY 389140 Contact Us For Availability
17
MAY W10086010 MAY W10086010 Contact Us For Availability
17
MAY 3359452 MAY 3359452 Contact Us For Availability
17
Receptacle (6-Way) MAY 3347730 Contact Us For Availability
17
Bearing, Thrust (Includes 18) MAY 16018 Contact Us For Availability
18
MAY W10278652 MAY W10278652 Contact Us For Availability
18
MAY 383727 MAY 383727 Contact Us For Availability
18
MAY 3362089 MAY 3362089 Contact Us For Availability
18
MAY W10001130 MAY W10001130 Contact Us For Availability
18
Connector (T.P.A.) (3-Circuit) MAY 3948617 Contact Us For Availability
18
Ball, Bearing (Includes 17) MAY 85529 Contact Us For Availability
19
MAY 8541668 MAY 8541668 Contact Us For Availability
19
MAY 3347780 MAY 3347780 Contact Us For Availability
19
MAY 8528157 MAY 8528157 Contact Us For Availability
19
MAY 8577376 MAY 8577376 Contact Us For Availability
19
Plug (T.P.A) (3-Circuit) (Pressure Switch) MAY 3360056 Contact Us For Availability
19
MAY 389230 MAY 389230 Contact Us For Availability
20
MAY 8318046 MAY 8318046 Contact Us For Availability
20
AGITATOR, COMPLETE MAY 3361598 Contact Us For Availability
20
MAY 3952056 MAY 3952056 Contact Us For Availability
20
Centerpost Bearing Kit (Includes Items 10, 11 MAY 285203 Contact Us For Availability
20
Block, Connector (Natural) MAY 3354925 Contact Us For Availability
20
Block, Connector (Red) MAY 3354926 Contact Us For Availability
20
MAY 3949116 MAY 3949116 Contact Us For Availability
21
MAY 3956786 MAY 3956786 Contact Us For Availability
21
MAY 3949550 MAY 3949550 Contact Us For Availability
21
MAY 8546127 MAY 8546127 Contact Us For Availability
21
MAY 63134 MAY 63134 Contact Us For Availability
21
MAY 285352 MAY 285352 Contact Us For Availability
22
SCREW, GEARCASE COVER, MOUNTING (8) (10-24 X MAY 3351614 Contact Us For Availability
22
MAY 8559524 MAY 8559524 Contact Us For Availability
22
Spacer, Thrust MAY 3350389 Contact Us For Availability
22
MAY 3363394 MAY 3363394 Contact Us For Availability
22
MAY W10145155 MAY W10145155 Contact Us For Availability
23
MAY 3956788 MAY 3956788 Contact Us For Availability
23
MAY 3387485 MAY 3387485 Contact Us For Availability
23
MAY 3362552 MAY 3362552 Contact Us For Availability
24
MAY 8536939 MAY 8536939 Contact Us For Availability
24
MAY 3946532 MAY 3946532 Contact Us For Availability
24
MAY 285735 MAY 285735 Contact Us For Availability
25
MAY W10000080 MAY W10000080 Contact Us For Availability
25
MAY 62570 MAY 62570 Contact Us For Availability
26
Clip-Console (2) MAY 8312709 Contact Us For Availability
26
MAY 388253 MAY 388253 Contact Us For Availability
27
MAY 694419 MAY 694419 Contact Us For Availability
27
MAY 3349296 MAY 3349296 Contact Us For Availability
28
MAY 8572717 MAY 8572717 Contact Us For Availability
28
MAY 62621 MAY 62621 Contact Us For Availability
29
MAY 8519200 MAY 8519200 Contact Us For Availability
29
MAY 388815 MAY 388815 Contact Us For Availability
30
MAY 3363366 MAY 3363366 Contact Us For Availability
31
MAY 8317496 MAY 8317496 Contact Us For Availability
32
Hose, Pump To Tub (Includes Item 30) MAY 3951449 Contact Us For Availability
33
MAY 8055003 MAY 8055003 Contact Us For Availability
34
MAY 3347868 MAY 3347868 Contact Us For Availability
35
MAY 62863 MAY 62863 Contact Us For Availability
36
MAY 3400818 MAY 3400818 Contact Us For Availability
37
MAY 8577378 MAY 8577378 Contact Us For Availability
38
Badge Assembly MAY W10153170 Contact Us For Availability
39
MAY W10244053 MAY W10244053 Contact Us For Availability
40
MAY W10243989 MAY W10243989 Contact Us For Availability
41
MAY 661614 MAY 661614 Contact Us For Availability
42
Switch, Rotary MAY 3949180 Contact Us For Availability
NI
Lubricant (Use Only in Brake Shoe Assembly On MAY 285208 Contact Us For Availability
NI
SEALER, GASKET (.20 FL. OZ.) (6ML) MAY 285195 Contact Us For Availability
NI
MAY 280129 MAY 280129 Contact Us For Availability
NI
MAY 280130 MAY 280130 Contact Us For Availability
NI
MAY 280131 MAY 280131 Contact Us For Availability
NI
MAY 350572 MAY 350572 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 oz.) (Primer, Gr MAY 350938 Contact Us For Availability
NI
Drain Protector MAY 367031 Contact Us For Availability
NI
Fabric Dispenser MAY 63580 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
× ![]()
