Model 7MMMS0100VW1 – Common Parts & Diagrams

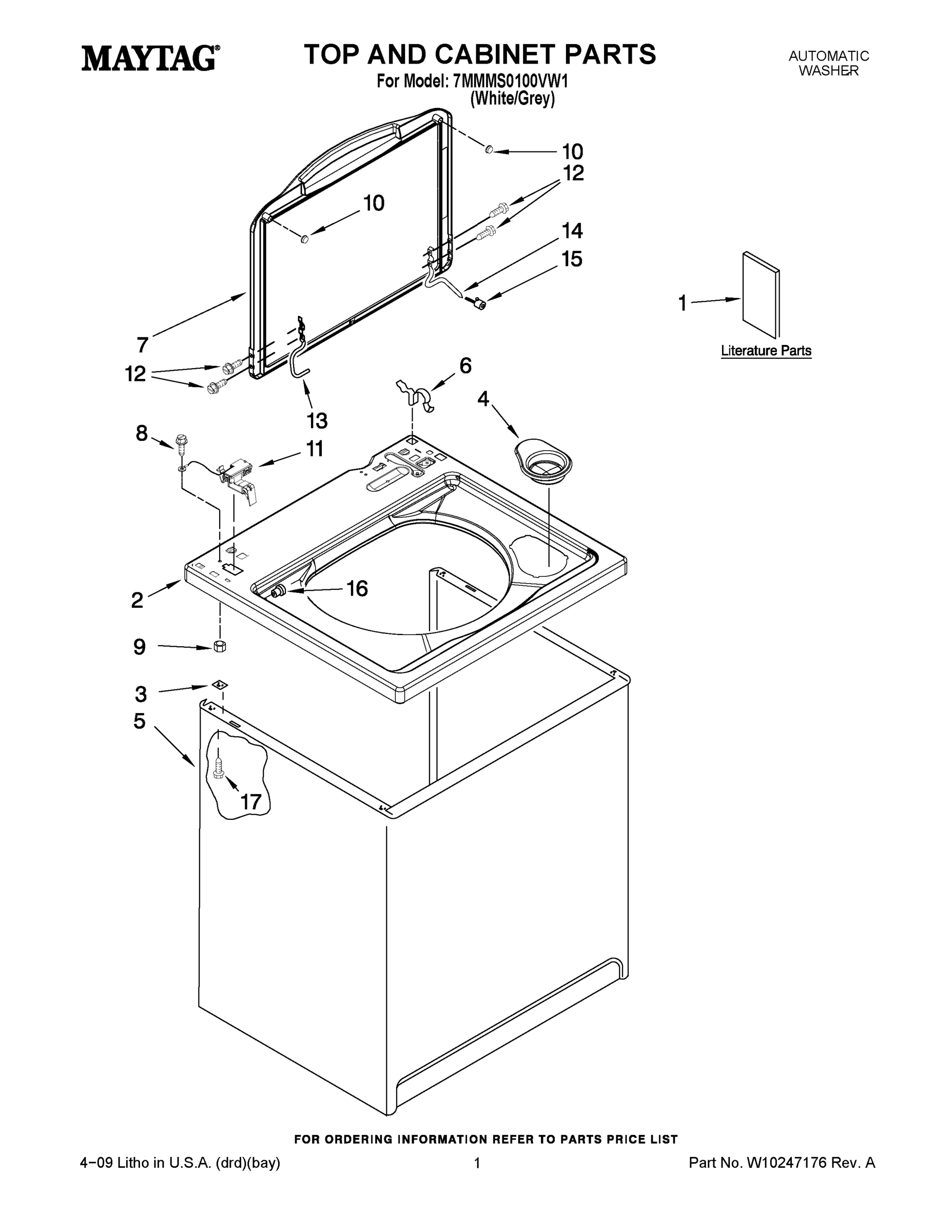

01 - TOP AND CABINET PARTS

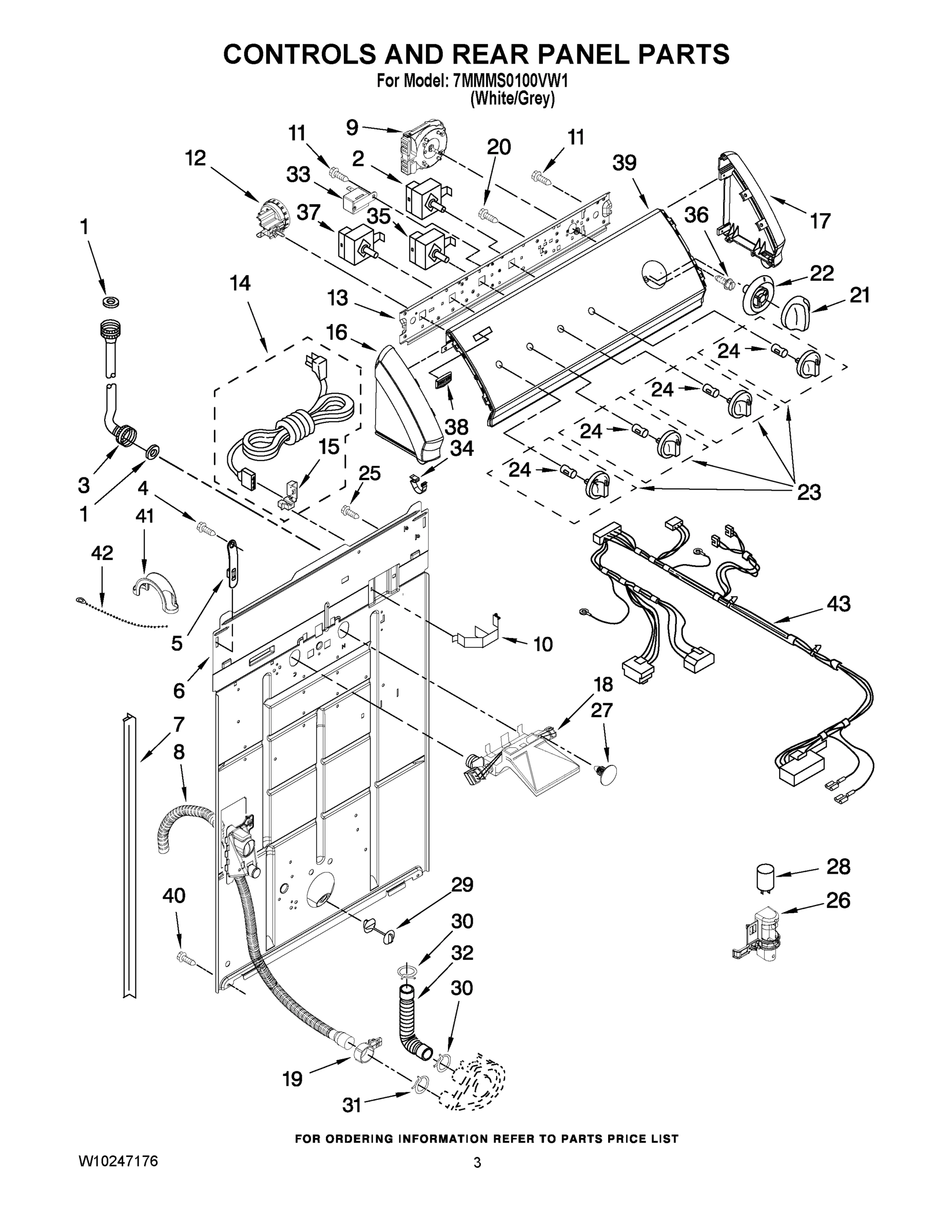

02 - CONTROLS AND REAR PANEL PARTS

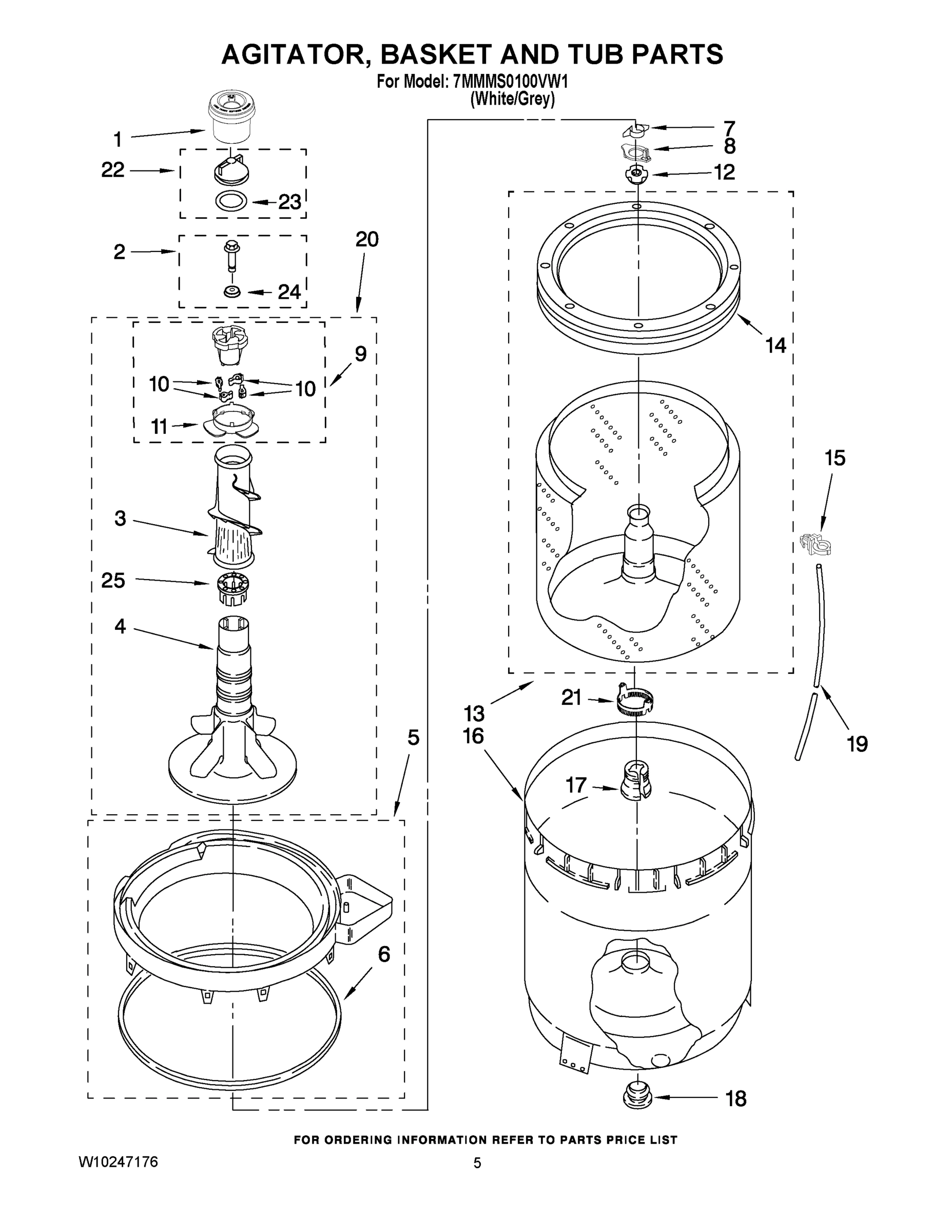

03 - AGITATOR, BASKET AND TUB PARTS

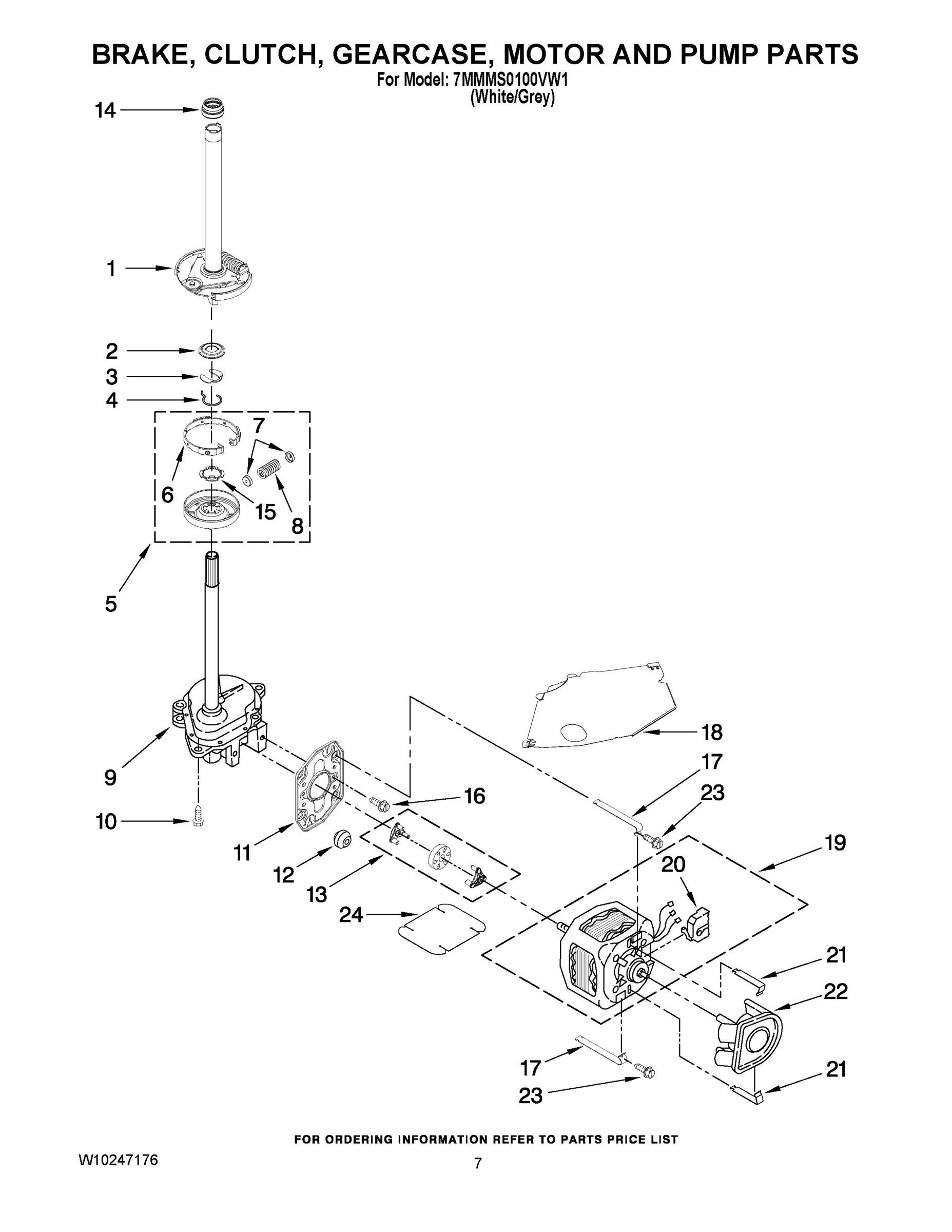

04 - BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP PARTS

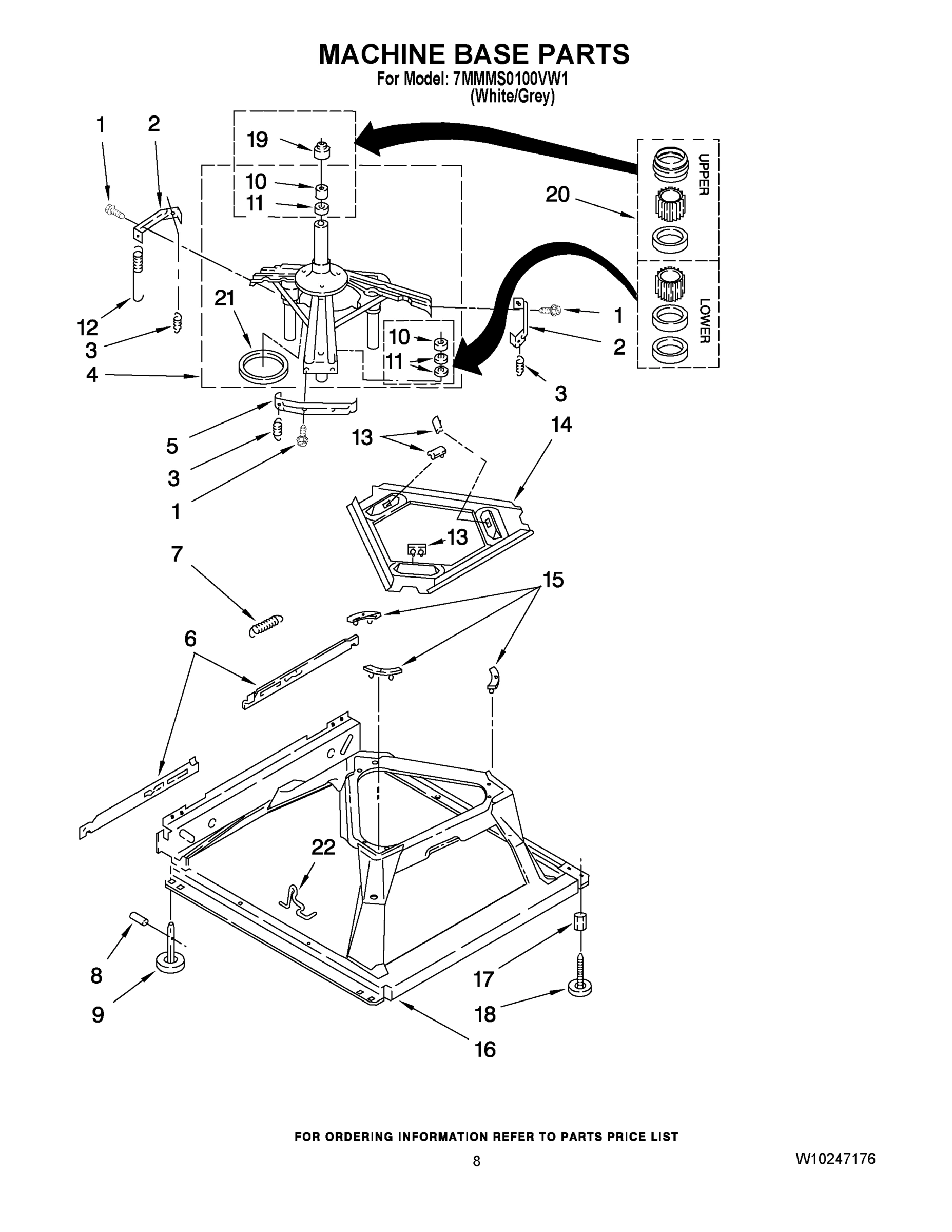

05 - MACHINE BASE PARTS

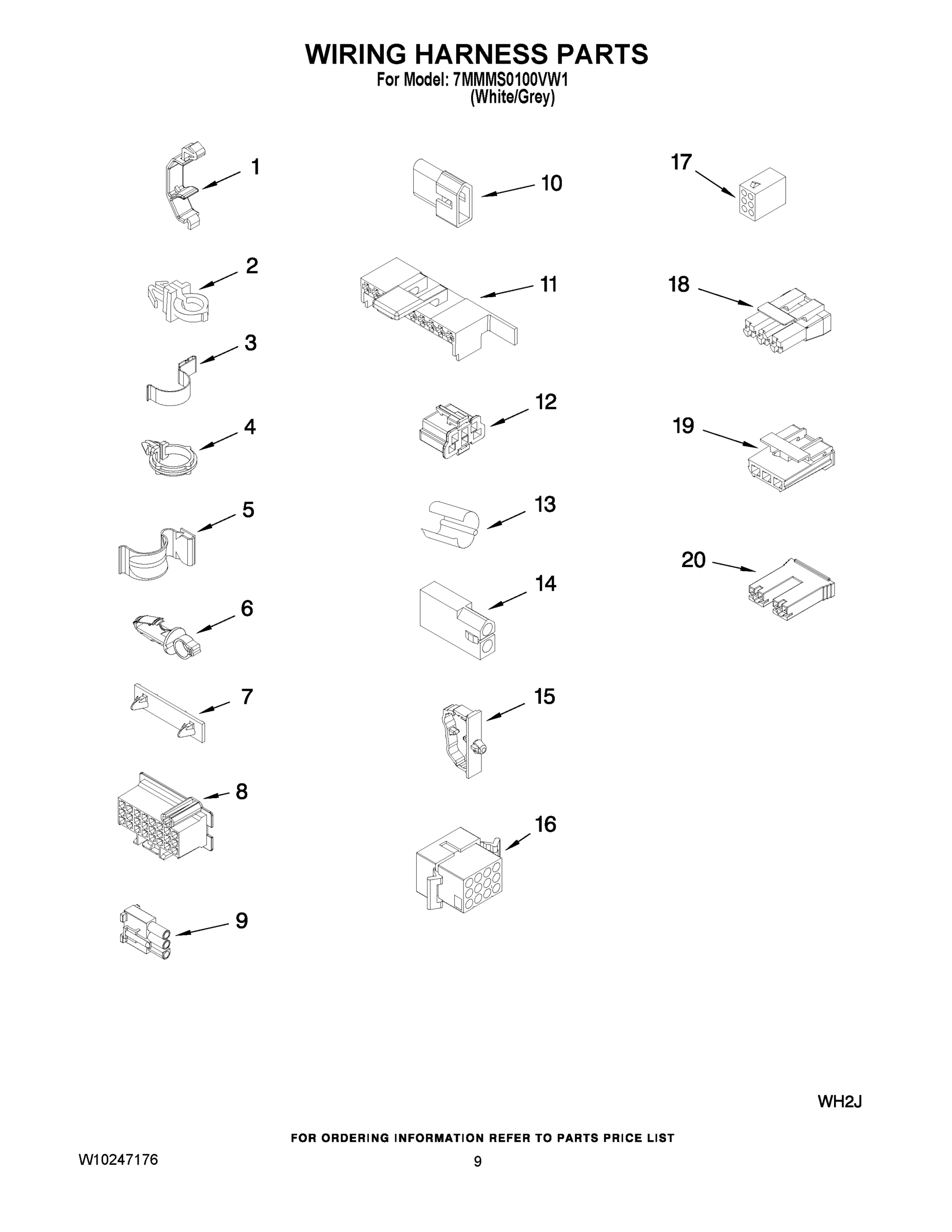

06 - WIRING HARNESS PARTS

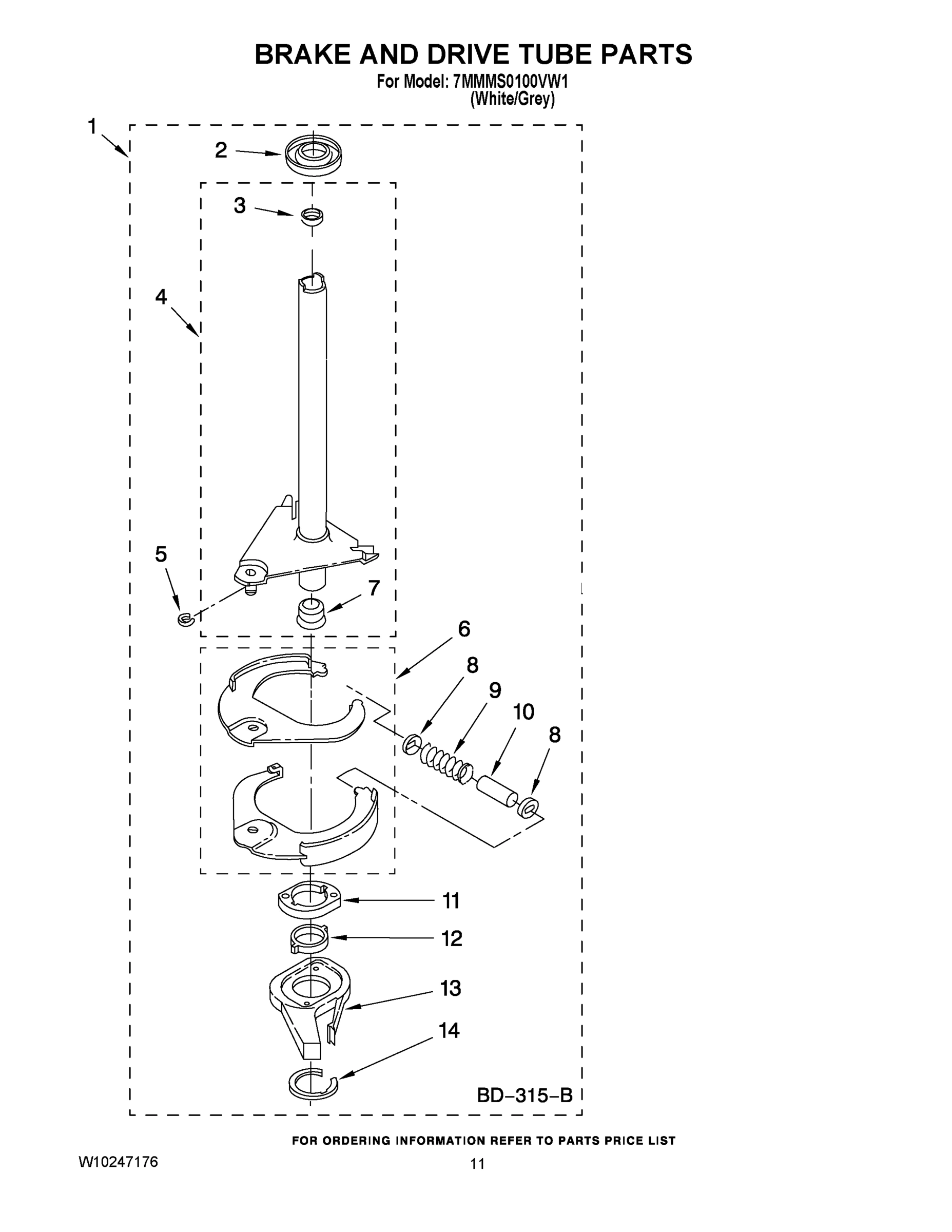

07 - BRAKE AND DRIVE TUBE PARTS

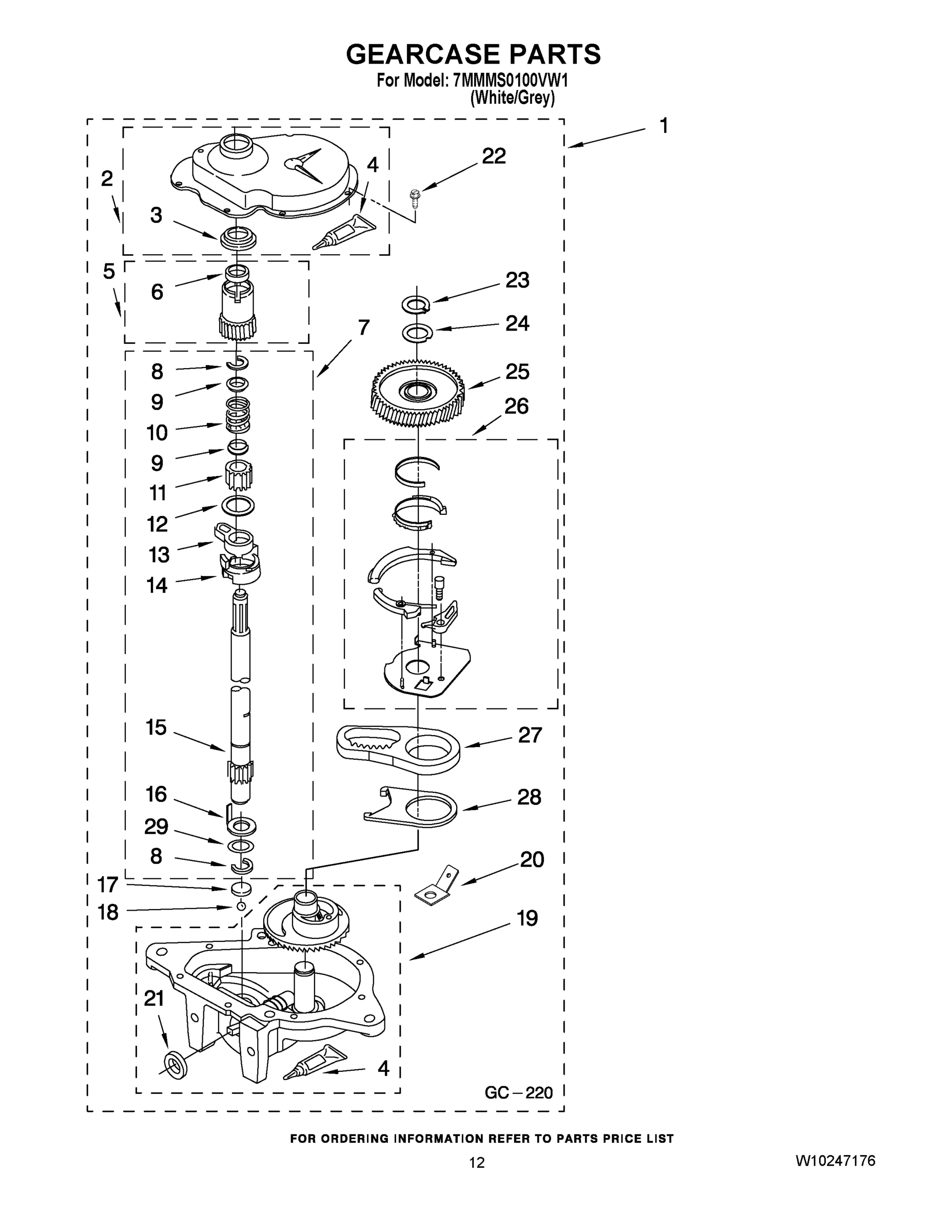

08 - GEARCASE PARTS
09 - OPTIONAL PARTS (NOT INCLUDED)
