Model Maytag 7MMGDC300YW3 GAS DRYER – Common Parts & Diagrams
01 - TOP AND CONSOLE PARTS
02 - CABINET PARTS

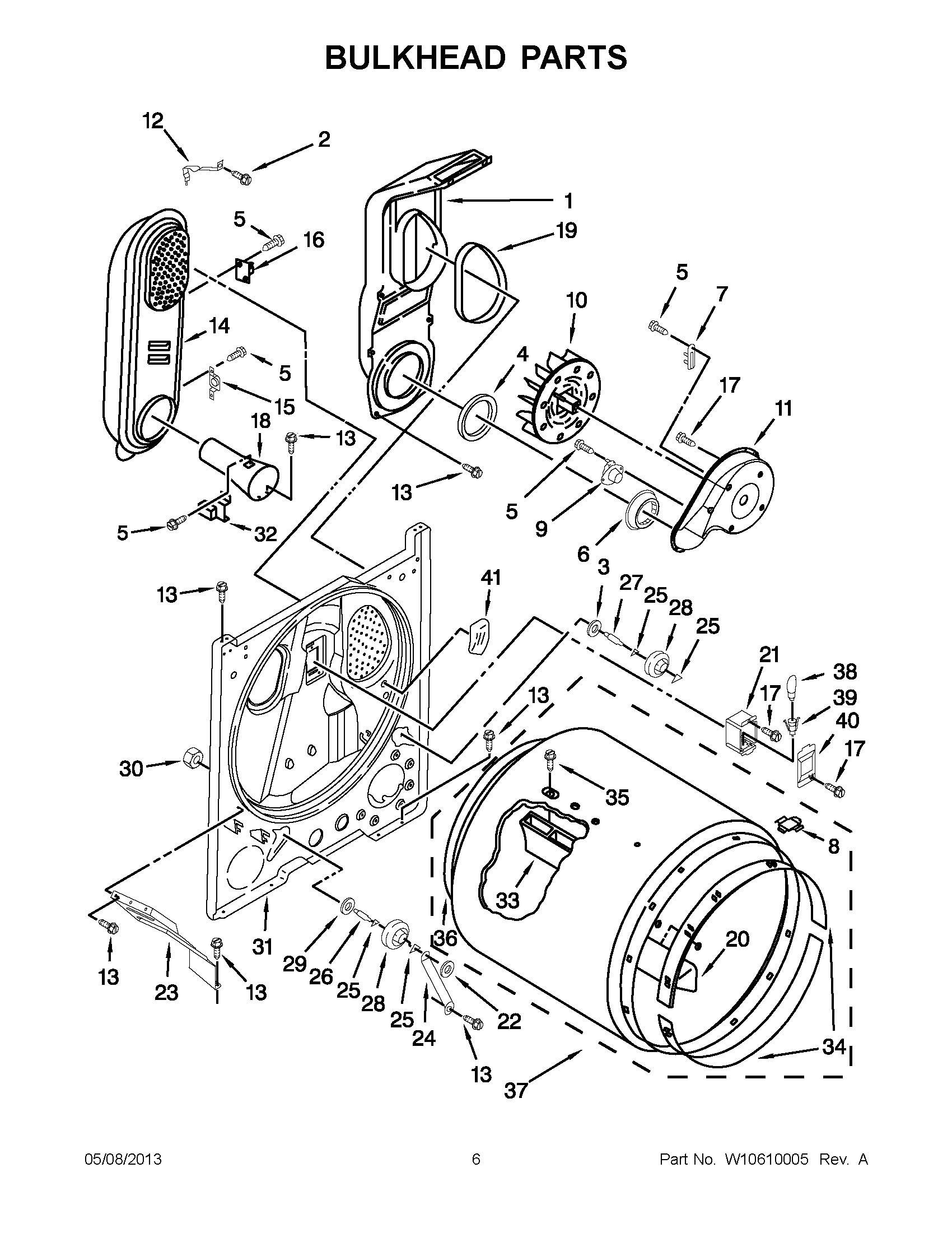

03 - BULKHEAD PARTS

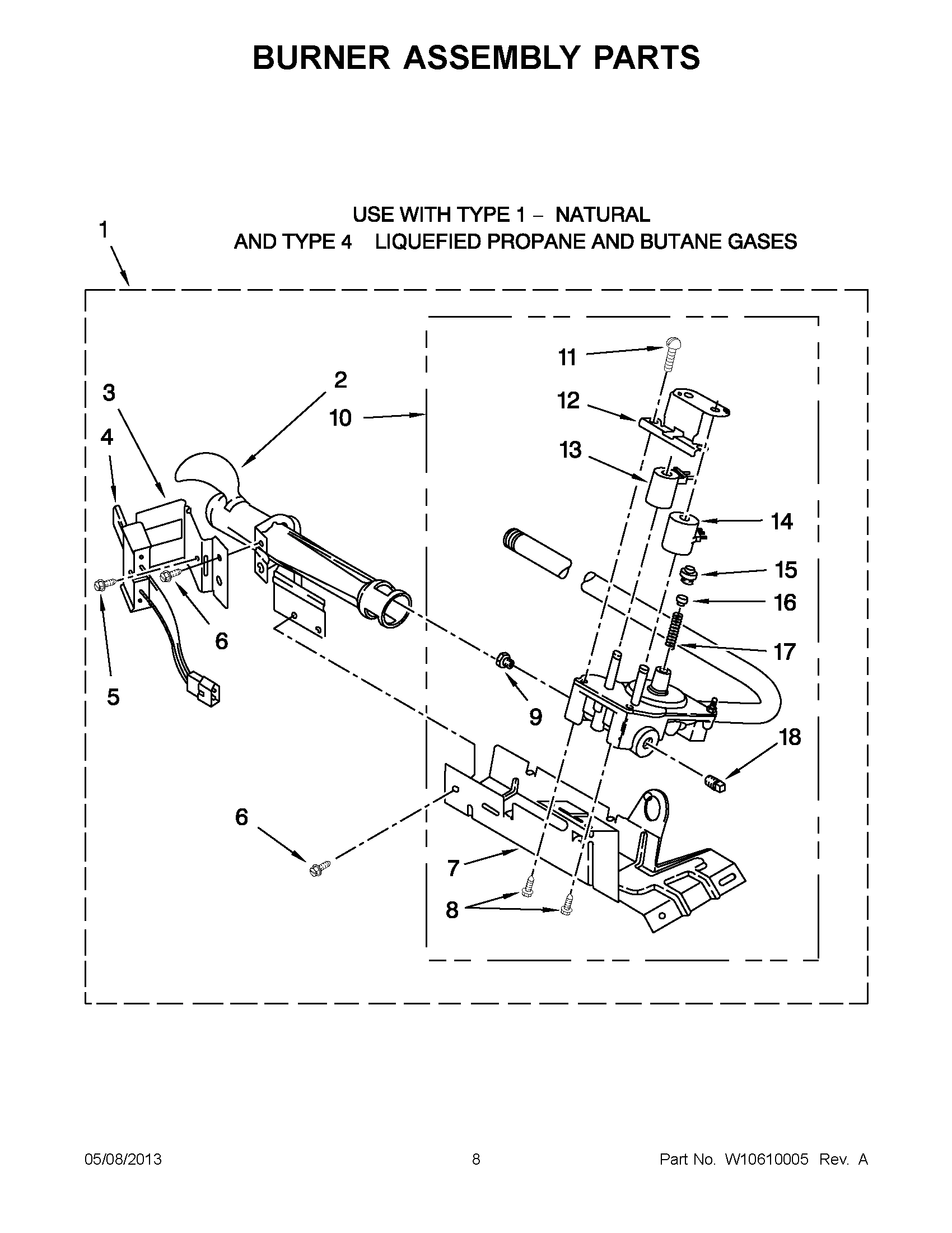

04 - BURNER ASSEMBLY PARTS
05 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag 7MMGDC300YW3 GAS DRYER
1
MAY W10329763 MAY W10329763 Contact Us For Availability
1
MAY W10337814 MAY W10337814 Contact Us For Availability
1
USE AND CARE GUIDE MAY W10368976 Contact Us For Availability
1
SCREW MAY 3390631 Contact Us For Availability
1
Burner Assembly 60 Hz. (Type 1) (White Rodger MAY 8318272 Contact Us For Availability
1
ASSEMBLY, LINT CHUTE MAY 348368 Contact Us For Availability
2
ENDCAP ASSEMBLY, RIGHT HAND (WHITE) MAY W10251355 Contact Us For Availability
2
Screw MAY 489463 Contact Us For Availability
2
MAY 688617 MAY 688617 Contact Us For Availability
3
MAY 694419 MAY 694419 Contact Us For Availability
3
Screw MAY 693995 Contact Us For Availability
3
WASHER MAY 3388703 Contact Us For Availability
3
MAY 694298 MAY 694298 Contact Us For Availability
4
ENDCAP ASSEMBLY, LEFT HAND (WHITE) MAY W10251358 Contact Us For Availability
4
MAY W10236073 MAY W10236073 Contact Us For Availability
4
MAY 347139 MAY 347139 Contact Us For Availability
4
MAY 686590 MAY 686590 Contact Us For Availability
5
MAY W10476828 MAY W10476828 Contact Us For Availability
5
Cover, Terminal Block MAY 3396795 Contact Us For Availability
5
SCREW MAY 90767 Contact Us For Availability
5
MAY W10366705 MAY W10366705 Contact Us For Availability
6
PANEL, REAR MAY 8274261 Contact Us For Availability
6
SCREW MAY 343641 Contact Us For Availability
6
Clamp, Motor (With Shield) MAY 3404162 Contact Us For Availability
6
MAY W10389567 MAY W10389567 Contact Us For Availability
7
MAY W10328032 MAY W10328032 Contact Us For Availability
7
MAY W10571724 MAY W10571724 Contact Us For Availability
7
Fuse, Thermal (91 C) MAY 3392519 Contact Us For Availability
7
MAY 693986 MAY 693986 Contact Us For Availability
8
MAY 8312709 MAY 8312709 Contact Us For Availability
8
MAY W10567345 MAY W10567345 Contact Us For Availability
8
Plug, Drum Hole MAY 8066086 Contact Us For Availability
8
SCREW MAY 3387057 Contact Us For Availability
9
MAY 3980175 MAY 3980175 Contact Us For Availability
9
MAY 8318268 MAY 8318268 Contact Us For Availability
9
MAY 229742 MAY 229742 Contact Us For Availability
9
ORIFICE, BURNER TYPE 1 (NATURAL) MAY 234826 Contact Us For Availability
9
MAY 234868 MAY 234868 Contact Us For Availability
10
Screen, Lint MAY 8565972 Contact Us For Availability
10
Switch, Door MAY 3406107 Contact Us For Availability
10
Wheel, Blower MAY 694089 Contact Us For Availability
10
VALVE, GAS (60 HZ) MAY 8318277 Contact Us For Availability
11
CLIP, SPRING MAY 8536939 Contact Us For Availability
11
SCREW MAY 697773 Contact Us For Availability
11
MAY 8577230 MAY 8577230 Contact Us For Availability
11
SCREW, COIL MAY 694421 Contact Us For Availability
12
MAY W10199708 MAY W10199708 Contact Us For Availability
12
MAY W10440460 MAY W10440460 Contact Us For Availability
12
Clip, Heater Box MAY 8066155 Contact Us For Availability
12
MAY 694538 MAY 694538 Contact Us For Availability
13
SCREW MAY 688983 Contact Us For Availability
13
MAY 341029 MAY 341029 Contact Us For Availability
13
MAY 694540 MAY 694540 Contact Us For Availability
14
MAY W10327523 MAY W10327523 Contact Us For Availability
14
PLUG, HOLE MAY 3404413 Contact Us For Availability
14
BOX, HEATER (96~C) MAY 8530285 Contact Us For Availability
14
COIL, 60 HZ (SPLIT) (3TERMINAL) (PILOT POSITI MAY 694539 Contact Us For Availability
15
MAY 3348629 MAY 3348629 Contact Us For Availability
15
MAY 3394083 MAY 3394083 Contact Us For Availability
15
THERMOSTAT H.L SPST (180F) MAY W10423382 Contact Us For Availability
15
MAY 694424 MAY 694424 Contact Us For Availability
16
MAY W10225059 MAY W10225059 Contact Us For Availability
16
MAY 3392100 MAY 3392100 Contact Us For Availability
16
KIT, THERMAL CUT - OFF (INCLUDES ITEM 15) MAY W10480709 Contact Us For Availability
16
MAY 694423 MAY 694423 Contact Us For Availability
17
MAY W10316616 MAY W10316616 Contact Us For Availability
17
CLAMP, MOTOR MOUNT MAY W10121316 Contact Us For Availability
17
SCREW MAY 3390647 Contact Us For Availability
17
MAY 694422 MAY 694422 Contact Us For Availability
18
MAY W10327522 MAY W10327522 Contact Us For Availability
18
MAY W10224934 MAY W10224934 Contact Us For Availability
18
FUNNEL, BURNER LIGHT MAY 8066049 Contact Us For Availability
18
MAY 239822 MAY 239822 Contact Us For Availability
19
MAY W10117655 MAY W10117655 Contact Us For Availability
19
Clip, Ground MAY 98234 Contact Us For Availability
19
MAY 339956 MAY 339956 Contact Us For Availability
20
CONSOLE PANEL AND BRACKET ASSEMBLY MAY W10354027 Contact Us For Availability
20
MAY 8066092 MAY 8066092 Contact Us For Availability
20
BAFFLE, DRUM (SHORT) MAY 3403636 Contact Us For Availability
21
MAY W10337521 MAY W10337521 Contact Us For Availability
21
PANEL FRONT (WHITE) MAY W10224855 Contact Us For Availability
21
MAY 3977373 MAY 3977373 Contact Us For Availability
22
Switch, Temperature MAY 3399639 Contact Us For Availability
22
Hinge, Top MAY 8066217 Contact Us For Availability
22
NUT, PUSH ON MAY 90296 Contact Us For Availability
23
MAY 3405156 MAY 3405156 Contact Us For Availability
23
Clip, Felt Pad MAY 685203 Contact Us For Availability
23
BRACKET, BULKHEAD CHUTE MAY 3406022 Contact Us For Availability
24
SCREW MAY 3400818 Contact Us For Availability
24
MAY W10529190 MAY W10529190 Contact Us For Availability
24
MAY 3976434 MAY 3976434 Contact Us For Availability
25
MAY W10389572 MAY W10389572 Contact Us For Availability
25
MAY W10512946 MAY W10512946 Contact Us For Availability
26
ASSEMBLY, IDLER MAY 691366 Contact Us For Availability
26
MAY W10359270 MAY W10359270 Contact Us For Availability
27
MAY 342055 MAY 342055 Contact Us For Availability
27
MAY W10359269 MAY W10359269 Contact Us For Availability
28
ASSEMBLY, HINGE & PIN MAY W10362431 Contact Us For Availability
28
MAY W10314171 MAY W10314171 Contact Us For Availability
29
MAY W10396032 MAY W10396032 Contact Us For Availability
29
WASHER MAY 348197 Contact Us For Availability
30
Pulley, Motor MAY 8066184 Contact Us For Availability
30
MAY W10298789 MAY W10298789 Contact Us For Availability
31
MAY W10198086 MAY W10198086 Contact Us For Availability
31
MAY 3403494 MAY 3403494 Contact Us For Availability
32
BOLT MAY 3400500 Contact Us For Availability
32
MAY 338906 MAY 338906 Contact Us For Availability
33
Strike, Door MAY 3403431 Contact Us For Availability
33
BAFFLE, DRUM (LONG) MAY 692490 Contact Us For Availability
34
MAY 348780 MAY 348780 Contact Us For Availability
34
Bearing, Ring MAY 692526 Contact Us For Availability
35
MAY W10463967 MAY W10463967 Contact Us For Availability
35
MAY W10219342 MAY W10219342 Contact Us For Availability
36
DOOR, OUTER (WHITE) MAY 3402335 Contact Us For Availability
36
MAY W10389561 MAY W10389561 Contact Us For Availability
37
MAY 8565970 MAY 8565970 Contact Us For Availability
37
MAY W10389436 MAY W10389436 Contact Us For Availability
38
MAY W10568603 MAY W10568603 Contact Us For Availability
38
MAY 3406124 MAY 3406124 Contact Us For Availability
39
Plug, Front Panel (White) MAY 8564457 Contact Us For Availability
39
MAY W10214261 MAY W10214261 Contact Us For Availability
40
MAY 3402841 MAY 3402841 Contact Us For Availability
41
MAY W10316529 MAY W10316529 Contact Us For Availability
41
MAY 3976479 MAY 3976479 Contact Us For Availability
42
MAY W10316619 MAY W10316619 Contact Us For Availability
44
MAY W10567977 MAY W10567977 Contact Us For Availability
45
MAY W10532676 MAY W10532676 Contact Us For Availability
46
MAY W10529198 MAY W10529198 Contact Us For Availability
47
MAY W10529197 MAY W10529197 Contact Us For Availability
48
MAY 8533974 MAY 8533974 Contact Us For Availability
NI
MAY 279810 MAY 279810 Contact Us For Availability
NI
CONVERSION KIT (TYPE 1 AND 2) TO TYPE (4) L.P MAY 694572 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED, MAY N/P Contact Us For Availability
NI
ACCESSORY PARTS, KIT, DRYER REPAIR MAY 279948 Contact Us For Availability
NI
ACCESSORY PARTS KIT, HOLD DOWN MAY 346764 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (GRAY PRIME MAY 350938 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (White) MAY 799344 Contact Us For Availability
NI
ACCESSORY PARTS (KIT, DRYER VENT TESTING) MAY 8522199 Contact Us For Availability
NI
ACCESSORY PARTS, DRYER RACK MAY W10071550A Contact Us For Availability
× ![]()
