Model Maytag 7MMGDC300YW1 GAS DRYER – Common Parts & Diagrams
01 - TOP AND CONSOLE PARTS
02 - CABINET PARTS

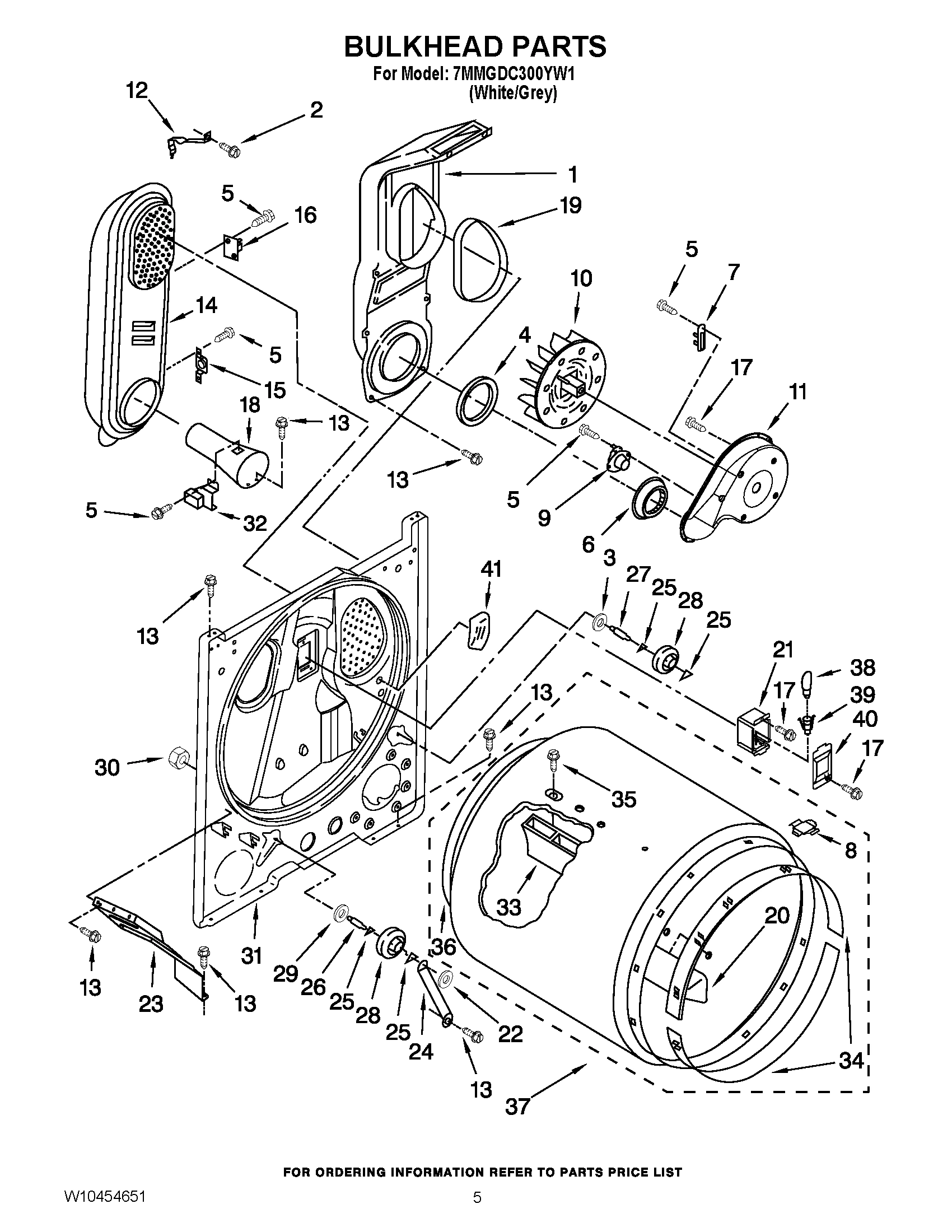

03 - BULKHEAD PARTS

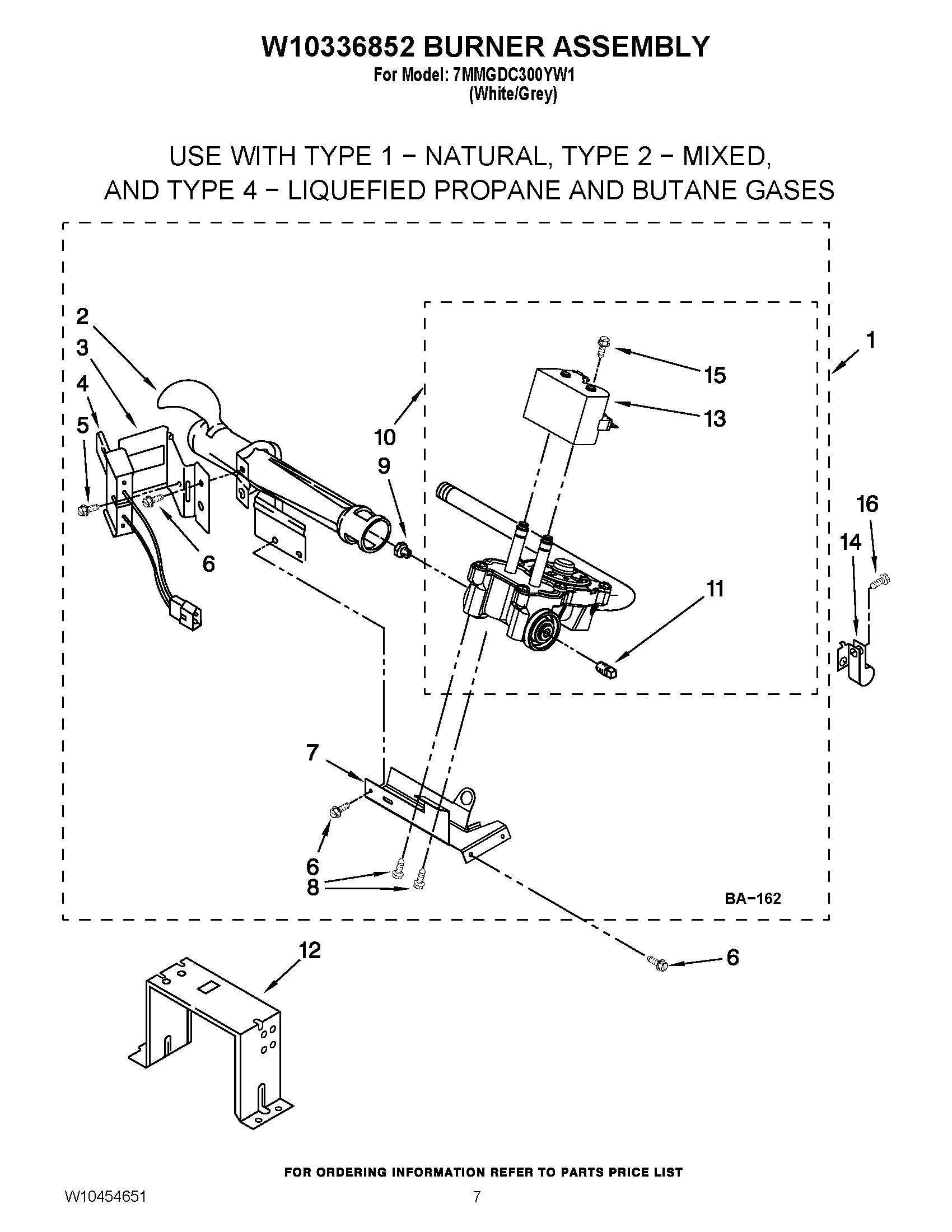

04 - W10336852 BURNER ASSEMBLY
05 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag 7MMGDC300YW1 GAS DRYER
1
INSTALLATION, INSTRUCTION MAY W10329763 Contact Us For Availability
1
MAY W10337814 MAY W10337814 Contact Us For Availability
1
MAY W10368976 MAY W10368976 Contact Us For Availability
1
SCREW, 10-16 X 3/8 (EXTERNAL GROUND) MAY 3390631 Contact Us For Availability
1
BURNER ASSEMBLY 60 HZ. (TYPE 1 & 2) MAY W10336852 Contact Us For Availability
1
MAY 348368 MAY 348368 Contact Us For Availability
2
ENDCAP (R.H.) MAY W10251355 Contact Us For Availability
2
MAY 489463 MAY 489463 Contact Us For Availability
2
MAY 688617 MAY 688617 Contact Us For Availability
3
MAY 694419 MAY 694419 Contact Us For Availability
3
SCREW,8-18 X 3/8 MAY 693995 Contact Us For Availability
3
WASHER-SUPPORT MAY 3388703 Contact Us For Availability
3
MAY 694298 MAY 694298 Contact Us For Availability
4
ENDCAP (L.H.) MAY W10251358 Contact Us For Availability
4
MAY W10236073 MAY W10236073 Contact Us For Availability
4
MAY 347139 MAY 347139 Contact Us For Availability
4
MAY 686590 MAY 686590 Contact Us For Availability
5
C-VERSION CONTROL MAY 8558178 Contact Us For Availability
5
MAY 3396795 MAY 3396795 Contact Us For Availability
5
SCREW,8-18 X 3/8 MAY 90767 Contact Us For Availability
5
MAY 3393909 MAY 3393909 Contact Us For Availability
6
MAY 8274261 MAY 8274261 Contact Us For Availability
6
MAY 343641 MAY 343641 Contact Us For Availability
6
MAY 3404162 MAY 3404162 Contact Us For Availability
6
MAY 696302 MAY 696302 Contact Us For Availability
7
MAY W10328032 MAY W10328032 Contact Us For Availability
7
MAY 3396805 MAY 3396805 Contact Us For Availability
7
THERMAL FUSE (91°C) MAY 3392519 Contact Us For Availability
7
MAY 693986 MAY 693986 Contact Us For Availability
8
MAY 8312709 MAY 8312709 Contact Us For Availability
8
Clip, MAY 3403630 Contact Us For Availability
8
MAY 8066086 MAY 8066086 Contact Us For Availability
8
SCREW, 8-18 X 3/8 (3) MAY 3387057 Contact Us For Availability
9
MAY 3980175 MAY 3980175 Contact Us For Availability
9
Thermostat, Internal-Bias MAY 8318268 Contact Us For Availability
9
MAY 234826 MAY 234826 Contact Us For Availability
10
Screen, Lint MAY 8565972 Contact Us For Availability
10
MAY 3406107 MAY 3406107 Contact Us For Availability
10
Wheel, Blower MAY 694089 Contact Us For Availability
10
VALVE, GAS 60 HZ. (COMPLETE) (INCLUDES PIPE & MAY W10304604 Contact Us For Availability
11
CLIP, SPRING MAY 8536939 Contact Us For Availability
11
MAY 697773 MAY 697773 Contact Us For Availability
11
MAY 8577230 MAY 8577230 Contact Us For Availability
11
PLUG, PIPE MAY W10295523 Contact Us For Availability
12
BADGE, MAYTAG MAY W10199708 Contact Us For Availability
12
MAY W10440460 MAY W10440460 Contact Us For Availability
12
MAY 8066155 MAY 8066155 Contact Us For Availability
12
MAY 3389889 MAY 3389889 Contact Us For Availability
13
MAY 688983 MAY 688983 Contact Us For Availability
13
MAY 341029 MAY 341029 Contact Us For Availability
13
MAY W10328463 MAY W10328463 Contact Us For Availability
14
MAY W10192636 MAY W10192636 Contact Us For Availability
14
PLUG, HOLE MAY 3404413 Contact Us For Availability
14
MAY 8530285 MAY 8530285 Contact Us For Availability
14
MAY 3978776 MAY 3978776 Contact Us For Availability
15
SCREW, 8-18 X 3/8 MAY 3348629 Contact Us For Availability
15
MAY 3394083 MAY 3394083 Contact Us For Availability
15
THERMOSTAT, 205° F (96° C) MAY W10423382 Contact Us For Availability
15
SCREW, COIL MAY 326049536 Contact Us For Availability
16
Top & Seal Assembly MAY W10225059 Contact Us For Availability
16
MAY 3392100 MAY 3392100 Contact Us For Availability
16
SCREW,8-18 X 1/2 MAY 3390647 Contact Us For Availability
16
MAY 280010 MAY 280010 Contact Us For Availability
17
FOAM SEAL MAY W10316616 Contact Us For Availability
17
MAY W10121316 MAY W10121316 Contact Us For Availability
18
MAY W10169851 MAY W10169851 Contact Us For Availability
18
CABINET (INCLUDES ILLUS. 4) MAY W10224934 Contact Us For Availability
18
MAY 8066049 MAY 8066049 Contact Us For Availability
19
MAY W10117655 MAY W10117655 Contact Us For Availability
19
Clip, Ground MAY 98234 Contact Us For Availability
19
MAY 339956 MAY 339956 Contact Us For Availability
20
CONSOLE PANEL & BRACKET ASSEMBLY MAY W10354027 Contact Us For Availability
20
LOCK, FRONT TOP MAY 690363 Contact Us For Availability
20
Baffle, Drum MAY 3403636 Contact Us For Availability
21
MAY W10337521 MAY W10337521 Contact Us For Availability
21
MAY W10224857 MAY W10224857 Contact Us For Availability
21
BRACKET, LIGHT MAY 3977373 Contact Us For Availability
22
SWITCH, ROTARY TEMPERATURE MAY 3399639 Contact Us For Availability
22
Hinge, Top MAY 8066217 Contact Us For Availability
22
MAY 90296 MAY 90296 Contact Us For Availability
23
Switch, Rotary MAY 3405156 Contact Us For Availability
23
Clip, Felt Pad MAY 685203 Contact Us For Availability
23
MAY 3406022 MAY 3406022 Contact Us For Availability
24
MAY 3389441 MAY 3389441 Contact Us For Availability
24
MAY 3976434 MAY 3976434 Contact Us For Availability
25
MAY 3405246 MAY 3405246 Contact Us For Availability
25
TRI-RING MAY 690997 Contact Us For Availability
26
MAY 691366 MAY 691366 Contact Us For Availability
26
SHAFT, DRUM ROLLER (L.H.) THREADS MAY W10359270 Contact Us For Availability
27
Screw, 8-18 x 1/2 MAY 342055 Contact Us For Availability
27
SHAFT, DRUM ROLLER (R.H.) THREADS MAY W10359269 Contact Us For Availability
28
HINGE, DOOR MAY W10362431 Contact Us For Availability
28
MAY W10314171 MAY W10314171 Contact Us For Availability
29
Motor Assembly MAY 8066206 Contact Us For Availability
29
MAY 348197 MAY 348197 Contact Us For Availability
30
PULLEY, 60 HZ. MAY 8066184 Contact Us For Availability
30
NUT, 3/8-16 MAY W10298789 Contact Us For Availability
31
MAY W10198086 MAY W10198086 Contact Us For Availability
31
MAY 3403494 MAY 3403494 Contact Us For Availability
32
MAY 3400500 MAY 3400500 Contact Us For Availability
32
MAY 338906 MAY 338906 Contact Us For Availability
33
Strike, Panel MAY 3403431 Contact Us For Availability
33
Baffle, Drum MAY 692490 Contact Us For Availability
34
MAY 348780 MAY 348780 Contact Us For Availability
34
MAY 692526 MAY 692526 Contact Us For Availability
35
Door, Rear MAY 3402341 Contact Us For Availability
35
Screw, 8-16 X 3/4 MAY W10219342 Contact Us For Availability
36
DOOR FRONT MAY 3402335 Contact Us For Availability
36
MAY W10352407 MAY W10352407 Contact Us For Availability
37
Handle, Door MAY 8565970 Contact Us For Availability
37
MAY 695587 MAY 695587 Contact Us For Availability
38
MAY 3406129 MAY 3406129 Contact Us For Availability
38
MAY 3406124 MAY 3406124 Contact Us For Availability
39
Plug, Front Panel MAY 8564457 Contact Us For Availability
39
SOCKET ASSEMBLY LIGHT MAY W10214261 Contact Us For Availability
40
MAY 3402841 MAY 3402841 Contact Us For Availability
41
MAY W10316529 MAY W10316529 Contact Us For Availability
41
MAY 3976479 MAY 3976479 Contact Us For Availability
42
SEAL, FOAM MAY W10316619 Contact Us For Availability
NI
MAY 279810 MAY 279810 Contact Us For Availability
NI
MAY 49572A MAY 49572A Contact Us For Availability
NI
MAY 279948 MAY 279948 Contact Us For Availability
NI
Kit, Hold-Down (Gas Dryer Mobile Home Install MAY 346764 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 oz.) (Primer, Gr MAY 350938 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
MAY 8522199 MAY 8522199 Contact Us For Availability
NI
MAY W10071550A MAY W10071550A Contact Us For Availability
× ![]()
