Model Maytag 7MMGDC300DW4 LAUNDRY, RESIDENTIAL, GAS DRYER, 29 INCH – Common Parts & Diagrams
01 - COVER SHEET
02 - TOP AND CONSOLE PARTS
03 - CABINET PARTS

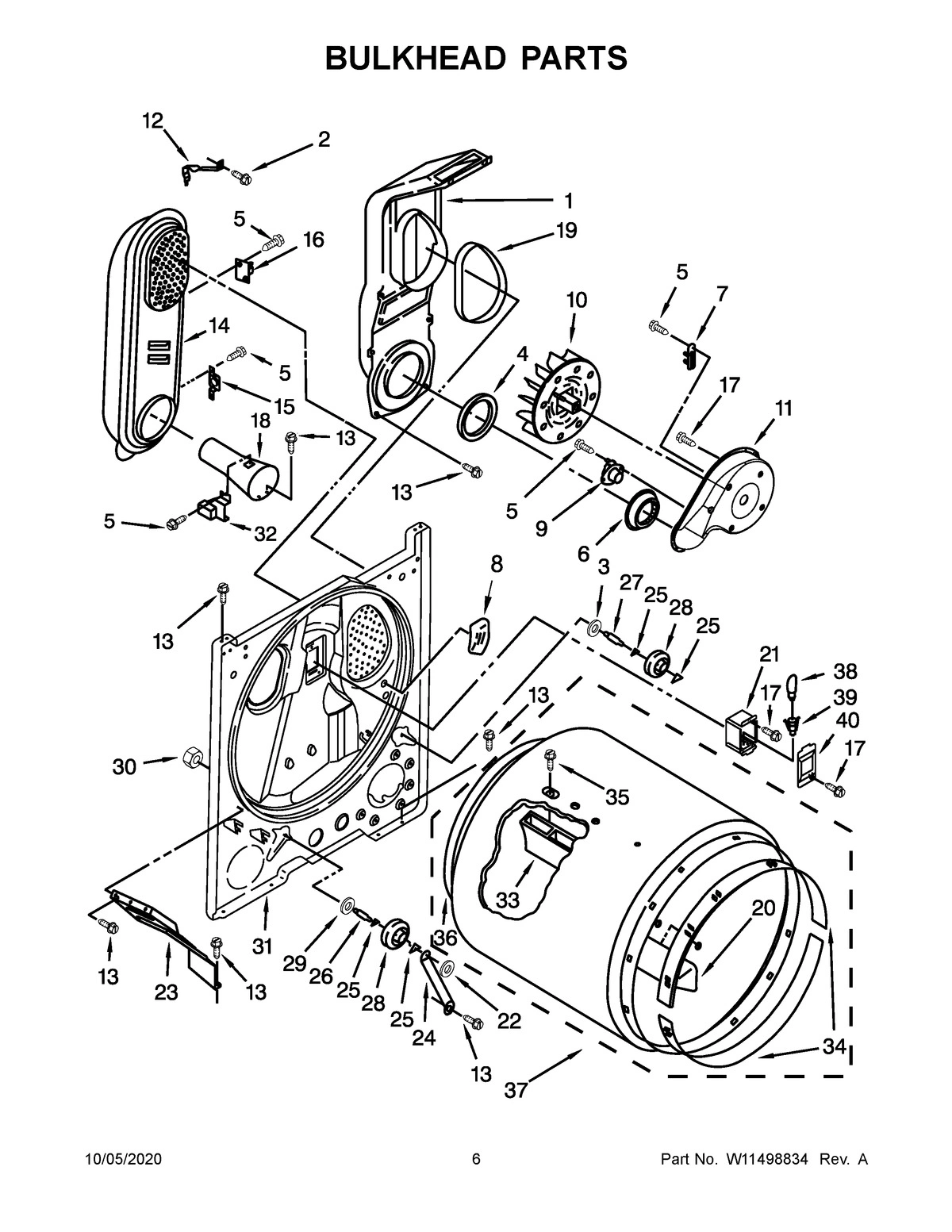

04 - BULKHEAD PARTS

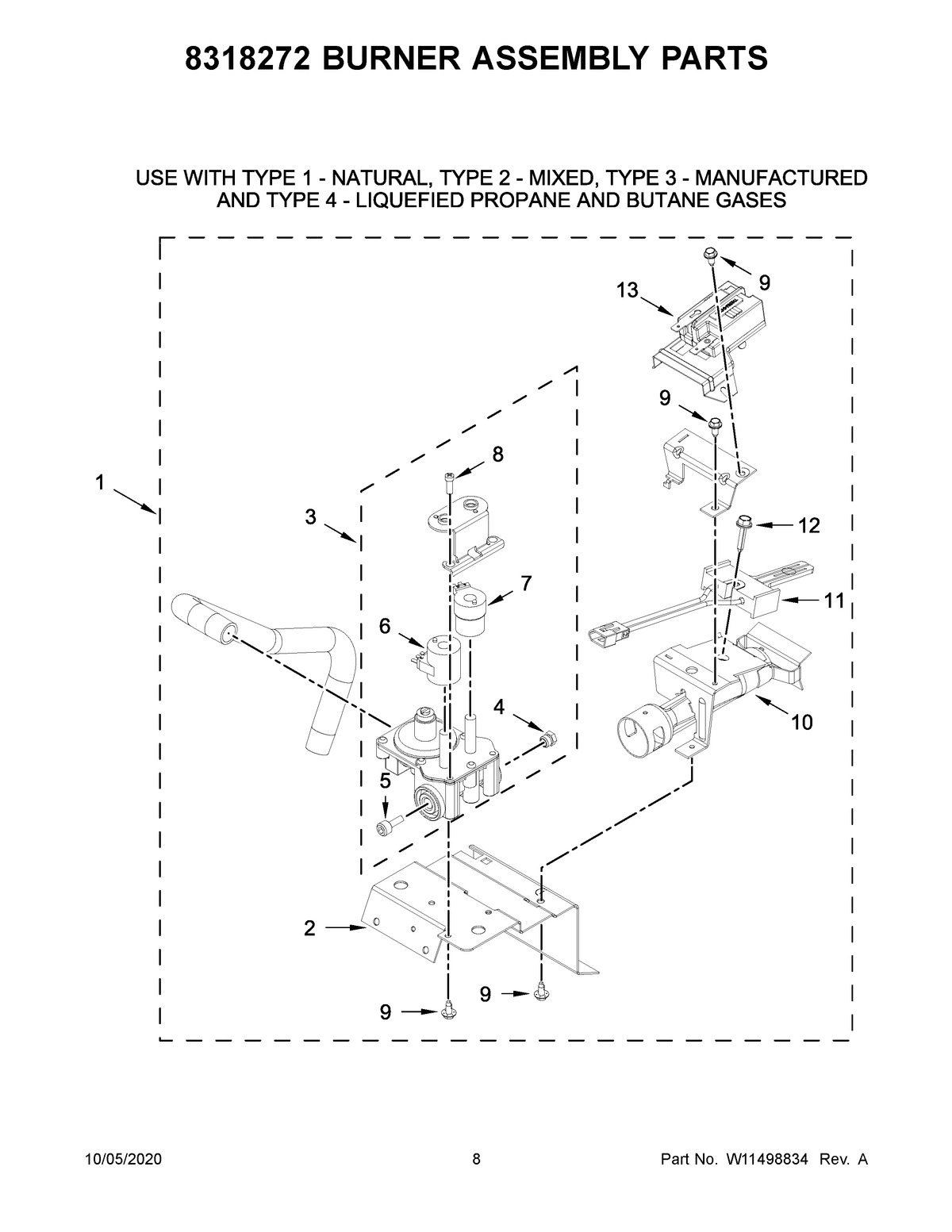

05 - BURNER ASSEMBLY PARTS
06 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag 7MMGDC300DW4 LAUNDRY, RESIDENTIAL, GAS DRYER, 29 INCH
1
USE AND CARE GUIDE MAY W10652554 Contact Us For Availability
1
SCREW MAY 3390631 Contact Us For Availability
1
BURNER ASSEMBLY (60 HZ) (TYPE 1) (WHITE RODGE MAY 8318272 Contact Us For Availability
1
ASSEMBLY, LINT CHUTE MAY W10798023 Contact Us For Availability
1A
INSTALLATION INSTRUCTIONS MAY W10658640 Contact Us For Availability
1B
WIRING DIAGRAM MAY W10118081 Contact Us For Availability
2
END CAP (RIGHT) (WHITE) MAY W10193821 Contact Us For Availability
2
SCREW MAY 489463 Contact Us For Availability
2
TUBE, BURNER MAY 688617 Contact Us For Availability
3
BUZZER, MINI MAY 694419 Contact Us For Availability
3
SCREW MAY 693995 Contact Us For Availability
3
WASHER MAY 3388703 Contact Us For Availability
3
BRACKET, IGNITOR MAY 694298 Contact Us For Availability
4
END CAP (LEFT) (WHITE) MAY W10193824 Contact Us For Availability
4
BRACKET, CABINET MAY W10236073 Contact Us For Availability
4
SEAL, LINT CHUTE MAY 347139 Contact Us For Availability
4
IGNITOR MAY 686590 Contact Us For Availability
5
CONTROL, ELECTRONIC MAY W10476828 Contact Us For Availability
5
COVER, TERMINAL BLOCK MAY 3396795 Contact Us For Availability
5
SCREW MAY 90767 Contact Us For Availability
5
SCREW MAY W10366705 Contact Us For Availability
6
PANEL, REAR (CONSOLE) MAY W10103406 Contact Us For Availability
6
SCREW MAY 343641 Contact Us For Availability
6
CLAMP, MOTOR MOUNT MAY W10121316 Contact Us For Availability
6
SHIELD, EXHAUST MAY W10389567 Contact Us For Availability
7
HARNESS, WIRING MAY W10865740 Contact Us For Availability
7
PANEL, REAR MAY W10571724 Contact Us For Availability
7
FUSE, THERMAL (91C) MAY 3392519 Contact Us For Availability
7
BASE, BURNER MAY 693986 Contact Us For Availability
8
CLIP, CONSOLE MAY 8312709 Contact Us For Availability
8
PLUG, STRIKE MAY W10567345 Contact Us For Availability
8
PAD, SENSOR MAY W10681051 Contact Us For Availability
8
SCREW MAY 3387057 Contact Us For Availability
9
COVER, DOOR CATCH MAY W10529198 Contact Us For Availability
9
THERMOSTAT MAY 8318268 Contact Us For Availability
9
ORIFICE, BURNER (TYPE 1 (NATURAL)) MAY 234826 Contact Us For Availability
9A
ORIFICE, BURNER (TYPE 4 (BUTANE)) MAY 229742 Contact Us For Availability
9B
ORIFICE, BURNER (TYPE 4 (PROPANE)) MAY 234868 Contact Us For Availability
10
WHITE MAY W10717210 Contact Us For Availability
10
SWITCH, DOOR MAY W10569603 Contact Us For Availability
10
WHEEL, BLOWER MAY 694089 Contact Us For Availability
10
VALVE, GAS (60 HZ) MAY 8318277 Contact Us For Availability
11
SWITCH, ROTARY (2 POS) MAY 3405156 Contact Us For Availability
11
SCREW MAY 697773 Contact Us For Availability
11
HOUSING, BLOWER MAY 8577230 Contact Us For Availability
11
SCREW, COIL MAY 694421 Contact Us For Availability
12
SCREW MAY 8533971 Contact Us For Availability
12
CORD, POWER MAY W10869141 Contact Us For Availability
12
CLIP, HEATER BOX MAY 3398161 Contact Us For Availability
12
BRACKET, COIL MAY 694538 Contact Us For Availability
13
SCREW MAY 688983 Contact Us For Availability
13
CLAMP, PIPE MAY 341029 Contact Us For Availability
13
COIL, 60 HZ. (2 TERMINAL) (MAIN) MAY 694540 Contact Us For Availability
14
ASSEMBLY, CONTROL KNOB (GREY) MAY W10562155 Contact Us For Availability
14
WHITE MAY 3404413 Contact Us For Availability
14
BOX, HEATER (96C) MAY 8530285 Contact Us For Availability
14
COIL, 60 HZ (SPLIT) (3 TERMINAL) (PILOT POSIT MAY 694539 Contact Us For Availability
15
SCREW MAY 3348629 Contact Us For Availability
15
CLIP, FRONT PANEL MAY W10775448 Contact Us For Availability
15
THERMOSTAT, HIGH LIMIT SPST (180F) MAY W10754607 Contact Us For Availability
15
LEAK, LIMITER MAY 694424 Contact Us For Availability
16
TOP (WHITE) MAY W10225059 Contact Us For Availability
16
FOOT, DRYER MAY W10561321 Contact Us For Availability
16
THERMAL CUT-OFF MAY 3977394 Contact Us For Availability
16
SCREW, REGULATOR ADJUSTMENT MAY 694423 Contact Us For Availability
17
CLAMP, MOTOR (WITH SHIELD) MAY 3404162 Contact Us For Availability
17
SCREW MAY 3390647 Contact Us For Availability
17
SPRING, REGULATOR MAY 694422 Contact Us For Availability
18
ASSEMBLY, TIMER KNOB (GREY) MAY W10558463 Contact Us For Availability
18
"NO LONGER SERVICE CAB WITH FOAM. SERVICE CAB MAY W10224934 Contact Us For Availability
18
FUNNEL, BURNER MAY 8066049 Contact Us For Availability
18
PLUG, PIPE MAY 239822 Contact Us For Availability
19
SWITCH, PUSH TO START MAY W10117655 Contact Us For Availability
19
CLIP, GROUND MAY 98234 Contact Us For Availability
19
SEAL MAY 339956 Contact Us For Availability
20
CONSOLE (WHITE) MAY W10643298 Contact Us For Availability
20
LOCK, FRONT TOP MAY 8066092 Contact Us For Availability
20
BAFFLE, DRUM (SHORT) MAY 3403636 Contact Us For Availability
21
TIMER ASSEMBLY (60 HZ.) MAY W10185992 Contact Us For Availability
21
PANEL, FRONT (WHITE) MAY W10664698 Contact Us For Availability
21
BRACKET, DRUM LIGHT MAY 8578825 Contact Us For Availability
22
SWITCH, ROTARY TEMPERATURE MAY 8530169 Contact Us For Availability
22
HINGE, TOP MAY 8066217 Contact Us For Availability
22
NUT, PUSH ON MAY 90296 Contact Us For Availability
23
BADGE MAY W10199708 Contact Us For Availability
23
CLIP, FELT PAD MAY 685203 Contact Us For Availability
23
BRACKET, BULKHEAD CHUTE MAY 3406022 Contact Us For Availability
24
ASSEMBLY, DOOR CATCH MAY W11224630 Contact Us For Availability
24
BRACKET, SUPPORT MAY W11032820 Contact Us For Availability
25
SEAL, DOOR MAY W10730752 Contact Us For Availability
25
WASHER, TRI RING MAY W10512946 Contact Us For Availability
26
ASSEMBLY, PULLEY & BEARING MAY 691362 Contact Us For Availability
26
SHAFT, DRUM ROLLER - LEFT HAND THREAD MAY W10359270 Contact Us For Availability
27
SCREW MAY 342055 Contact Us For Availability
27
SHAFT, DRUM ROLLER - RIGHT HAND THREAD MAY W10359269 Contact Us For Availability
28
ASSEMBLY, HINGE AND PIN MAY W10362431 Contact Us For Availability
28
ROLLER, SUPPORT MAY W10756057 Contact Us For Availability
29
ASSEMBLY, MOTOR MAY W10396032 Contact Us For Availability
29
WASHER MAY 348197 Contact Us For Availability
30
PULLEY, MOTOR MAY 8066184 Contact Us For Availability
30
NUT, HEX MAY W10298789 Contact Us For Availability
31
BELT, DRIVE MAY W10198086 Contact Us For Availability
31
BULKHEAD MAY W10714469 Contact Us For Availability
32
BOLT MAY 3400500 Contact Us For Availability
32
SENSOR, RADIANT MAY 338906 Contact Us For Availability
33
STRIKE, DOOR MAY 3403431 Contact Us For Availability
33
BAFFLE, DRUM (LONG) MAY 692490 Contact Us For Availability
34
BASE, MOTOR MAY 348780 Contact Us For Availability
34
BEARING, RING MAY 692526 Contact Us For Availability
35
DOOR, INNER MAY W10463967 Contact Us For Availability
35
SCREW MAY W10219342 Contact Us For Availability
36
DOOR, FRONT (WHITE) MAY W10714510 Contact Us For Availability
36
SEAL, REAR DRUM MAY W10856781 Contact Us For Availability
37
HANDLE, DOOR (WHITE) MAY W10714516 Contact Us For Availability
37
ASSEMBLY, DRUM (COMPLETE) MAY W10757750 Contact Us For Availability
38
ASSEMBLY, SEAL AND BEARING MAY W10803476 Contact Us For Availability
38
BULB, LIGHT MAY 3406124 Contact Us For Availability
39
PLUG, FRONT PANEL (WHITE) MAY 8564457 Contact Us For Availability
39
SOCKET, LIGHT MAY W10214261 Contact Us For Availability
40
LENS, DRUM LIGHT MAY 3402841 Contact Us For Availability
41
SEAL, FOAM MAY W10316529 Contact Us For Availability
42
SEAL, SPILL GUARD MAY W10316619 Contact Us For Availability
44
BEZEL, DOOR CATCH MAY W10529197 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, DRYER REPAIR MAY 279948 Contact Us For Availability
NI
ACCESSORY PARTS, DRY RACK MAY 3406839 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, HOLD DOWN MAY 346764 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. GRAY PRIMER) MAY 350938 Contact Us For Availability
NI
ACCESSORY PARTS, WASHER, INLET HOSE MAY 3976300 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, DRYER VENT TESTING MAY 8522199 Contact Us For Availability
NI
ACCESSORY PARTS, CONNECTOR, HOSE -"Y" MAY W10336486 Contact Us For Availability
NI
ACCESSORY PARTS, HOSE, INLET (2') MAY W10439655 Contact Us For Availability
× ![]()
