Model Whirlpool 7KFCC150S0 COMPACTOR – Common Parts & Diagrams

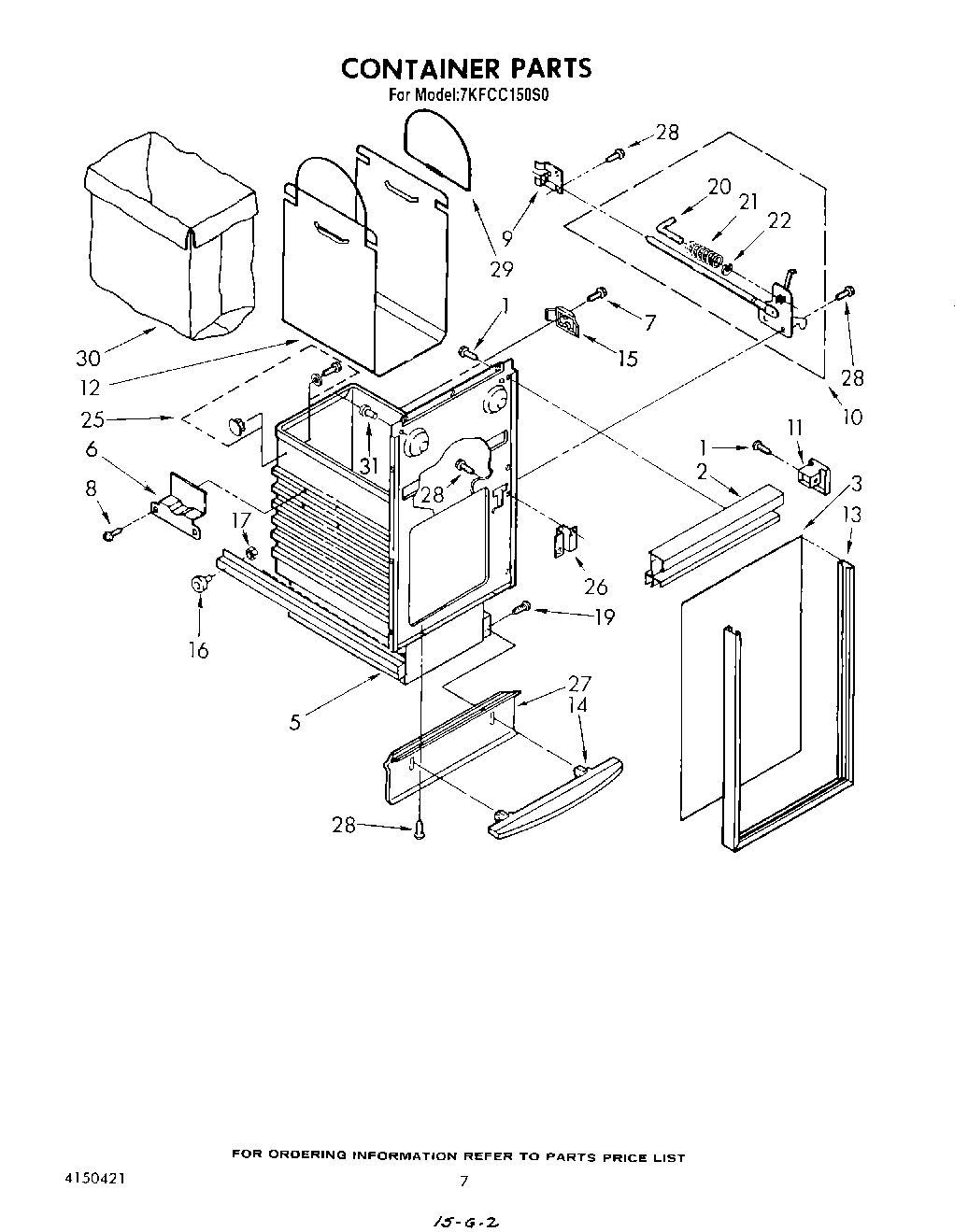

06 - CONTAINER

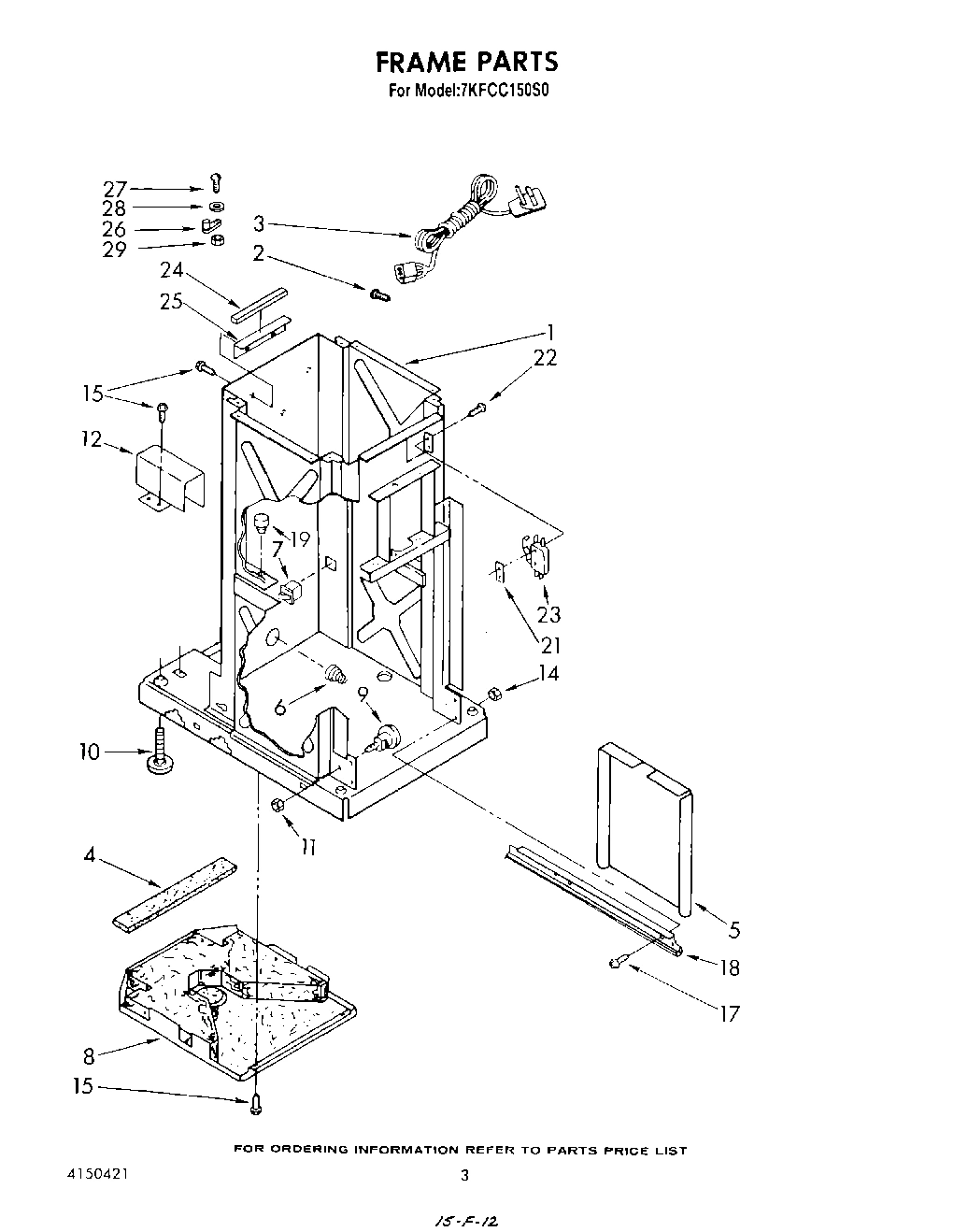

03 - FRAME
05 - POWERSCREW AND RAM
07 - LIT/OPTIONAL
02 - MOTOR AND DRIVE , LIT/OPTIONAL
04 - CABINET AND CONTROL
Common parts from model Whirlpool 7KFCC150S0 COMPACTOR
Guide, Use and Care WPL LIT4150371 Contact Us For Availability
List, Repair Parts WPL LIT4150372 Contact Us For Availability
Sheet, Tech (Service Information) WPL LIT780486 Contact Us For Availability
1
Screw, Power Complete Assembly (2) WPL 777876 Contact Us For Availability
1
Panel, Container Front (White & Copper Hi-Lit WPL 608438 Contact Us For Availability
1
Panel, Contianer Front (Brushed Chrome) WPL 675378 Contact Us For Availability
1
Panel, Container Front (Coffee & Harvest Gold WPL 777714 Contact Us For Availability
1
Panel, Contianer Front (White & New Avocado) WPL 777761 Contact Us For Availability
1
Panel, Container Front (Almond & Harvest Gold WPL 777762 Contact Us For Availability
1
panel, container front (coffee & avocado) WPL 777912 Contact Us For Availability
1
Panel, Container Front (Black & White) WPL 777941 Contact Us For Availability
1
Panel, Container Front (Platinum & Toast) WPL 780280 Contact Us For Availability
1
Cabinet WPL 780439 Contact Us For Availability
2
Screw, Power (Available Only As Complete Asse WPL ARI17633A1 Contact Us For Availability
2
Bag, Trash (96 Pack (Paper)) WPL 675350 Contact Us For Availability
2
Bag, Trash (48 Pack (Paper)) WPL 675882 Contact Us For Availability
2
Motor, Drive (Includes Illus. 1) WPL 4150475 Contact Us For Availability
3
Deodorizer, Solid Stick-Ups (2-Pack) WPL 777635 Contact Us For Availability
3
Screw. 1/4-20 x 1/2 (4) WPL 776593 Contact Us For Availability
3
Plate, Power Cord WPL 608336 Contact Us For Availability
4
Trash, Container (Reusable) WPL 882653 Contact Us For Availability
4
Clip, Toe Mount WPL 776017 Contact Us For Availability
5
Plate, Bag Storage WPL 780438 Contact Us For Availability
6
Cam, Spray Actuator (2) WPL 776523 Contact Us For Availability
6
Barrier, Glass WPL 776780 Contact Us For Availability
7
Compartment, Air Flow WPL 777642 Contact Us For Availability
8
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
8
Cover, Air Flow WPL 4147744 Contact Us For Availability
9
Dail, Air Flow WPL 608782 Contact Us For Availability
10
Screw, 1/4-20 x 3/4 (4) WPL 775071 Contact Us For Availability
10
Paint, Touch-Up 1/2 Oz. (Stanfor WPL 72106 Contact Us For Availability
10
WPL 72108 WPL 72108 Contact Us For Availability
10
WPL 72112 WPL 72112 Contact Us For Availability
10
Clamp, Wire WPL 777035 Contact Us For Availability
11
Ram Assembly WPL 780019 Contact Us For Availability
11
WPL 261886 WPL 261886 Contact Us For Availability
11
WPL 261888 WPL 261888 Contact Us For Availability
11
WPL 261890 WPL 261890 Contact Us For Availability
11
WPL 285365 WPL 285365 Contact Us For Availability
11
WPL 285366 WPL 285366 Contact Us For Availability
11
WPL 675167 WPL 675167 Contact Us For Availability
11
WPL 978726 WPL 978726 Contact Us For Availability
11
Top, Cabinet WPL 608720 Contact Us For Availability
12
Pad, Ram (8) WPL 777758 Contact Us For Availability
12
Lid, Bag Storage WPL 780081 Contact Us For Availability
13
Plate, Doubler (2) WPL 608733 Contact Us For Availability
13
Switch, Drawer Tilt WPL 780421 Contact Us For Availability
14
Retainer, Nut (2) WPL 780036 Contact Us For Availability
15
Screw, 6-20 x 3/8AB WPL 776559 Contact Us For Availability
16
Escutcheon, Control WPL 4150373 Contact Us For Availability
17
Cover, Ram WPL 608723 Contact Us For Availability
17
End Cap, Escutcheon (L.H.) WPL 780179 Contact Us For Availability
17
End Cap, Escutcheon R.H. WPL 780180 Contact Us For Availability
18
Wiper, Ram WPL 780021 Contact Us For Availability
20
Block, Container Stop WPL 777691 Contact Us For Availability
21
Plate, Nut WPL 777850 Contact Us For Availability
22
Protector, Powerscrew (2) WPL 780413 Contact Us For Availability
22
Bushing, Power Cord WPL 776519 Contact Us For Availability
24
Pad, Top Support WPL 776715 Contact Us For Availability
25
Retainer, Bag (Contains 5 Each) WPL 4163646 Contact Us For Availability
25
Angle, Top Support WPL 608038 Contact Us For Availability
25
Harness, Wiring (Complete Assembly) WPL 4150275 Contact Us For Availability
25
Screw, 8-18 x 1/2 WPL 776493 Contact Us For Availability
26
Lug, Grounding WPL 236278 Contact Us For Availability
27
Screw, 10-24 x 1 WPL 776516 Contact Us For Availability
28
Washer WPL 138479 Contact Us For Availability
29
Nut WPL 776515 Contact Us For Availability
× ![]()
