Model Whirlpool 7KCCC150T1 COMPACTOR – Common Parts & Diagrams
06 - CONTAINER
02 - MOTOR AND DRIVE

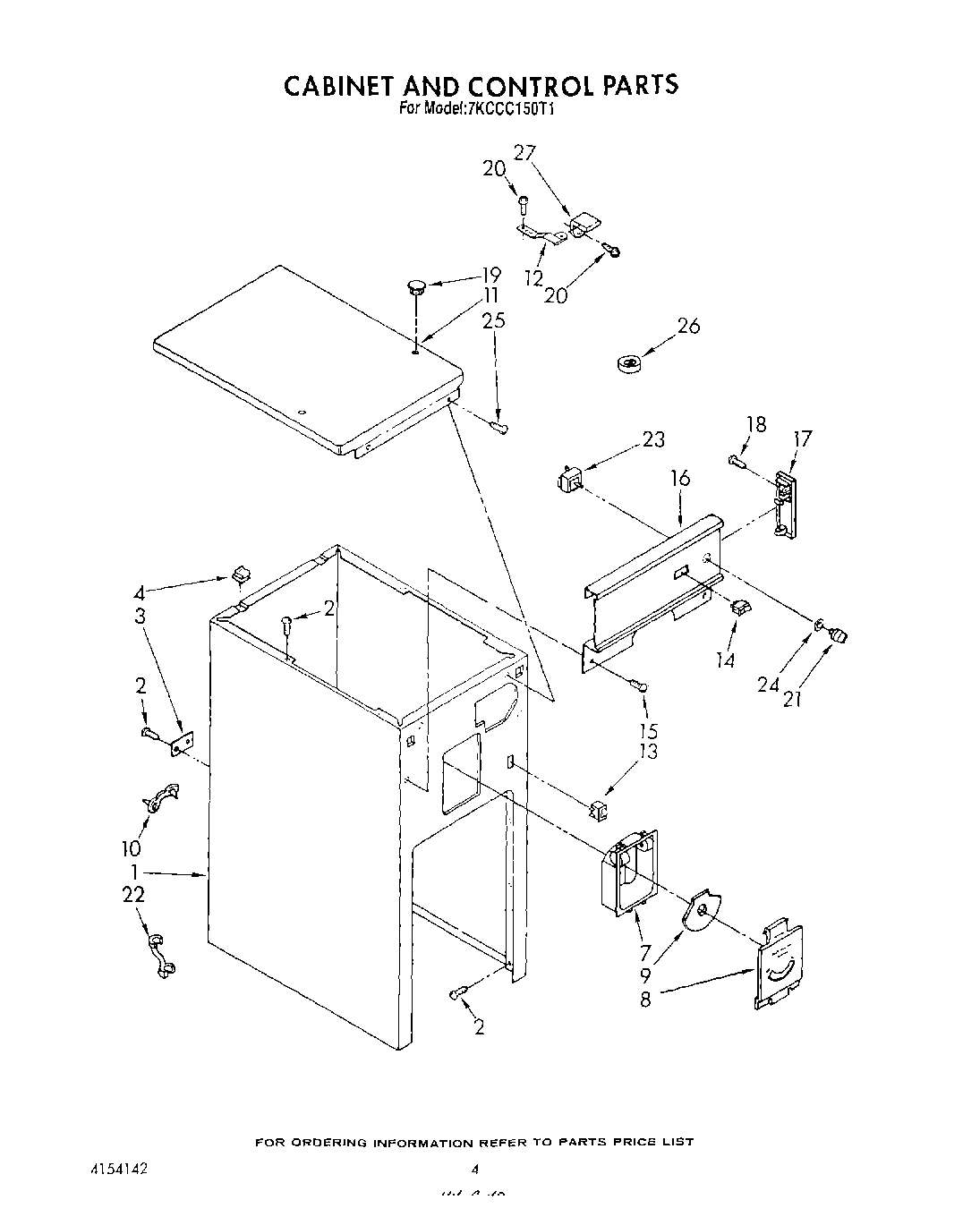

04 - CABINET AND CONTROL

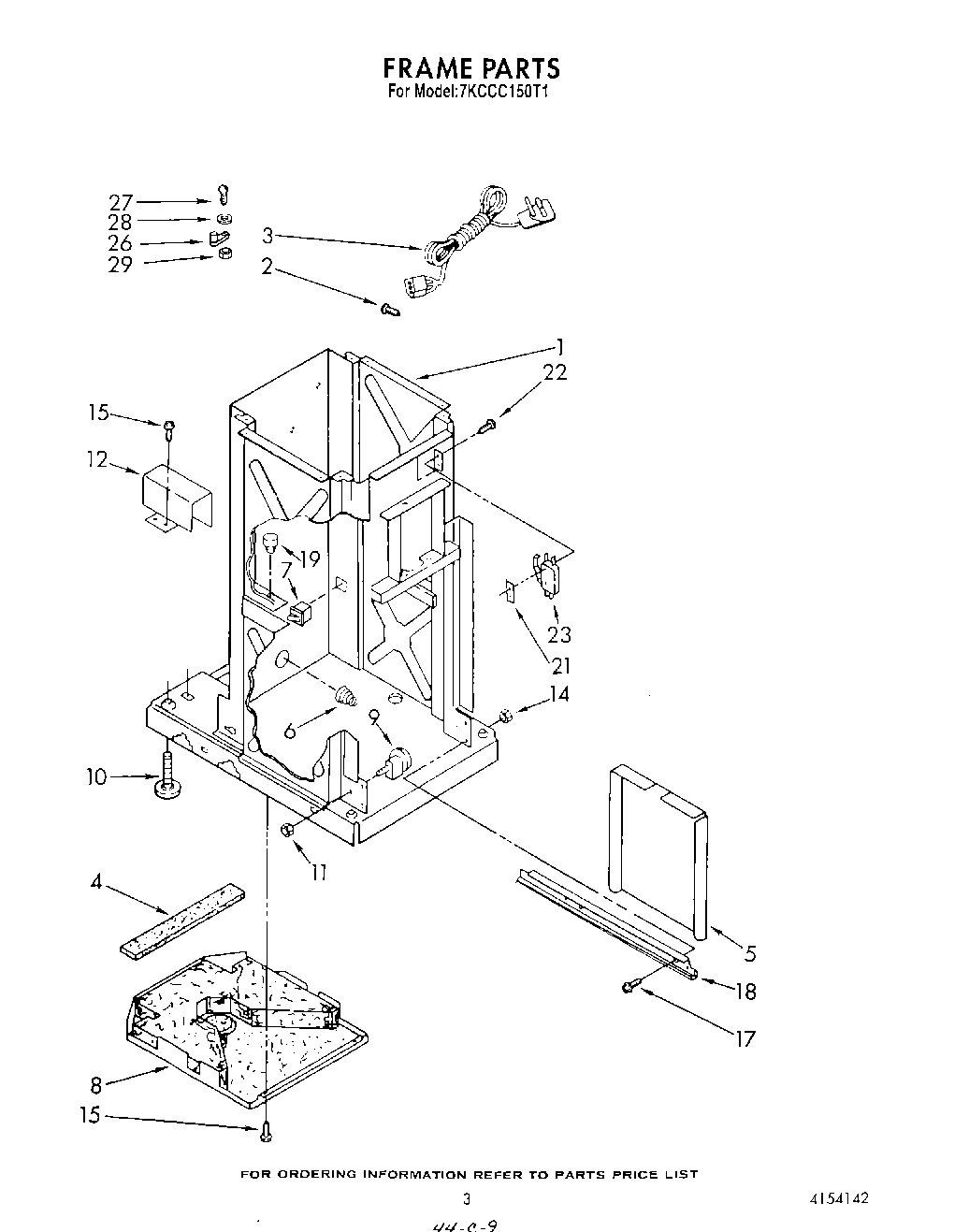

03 - FRAME

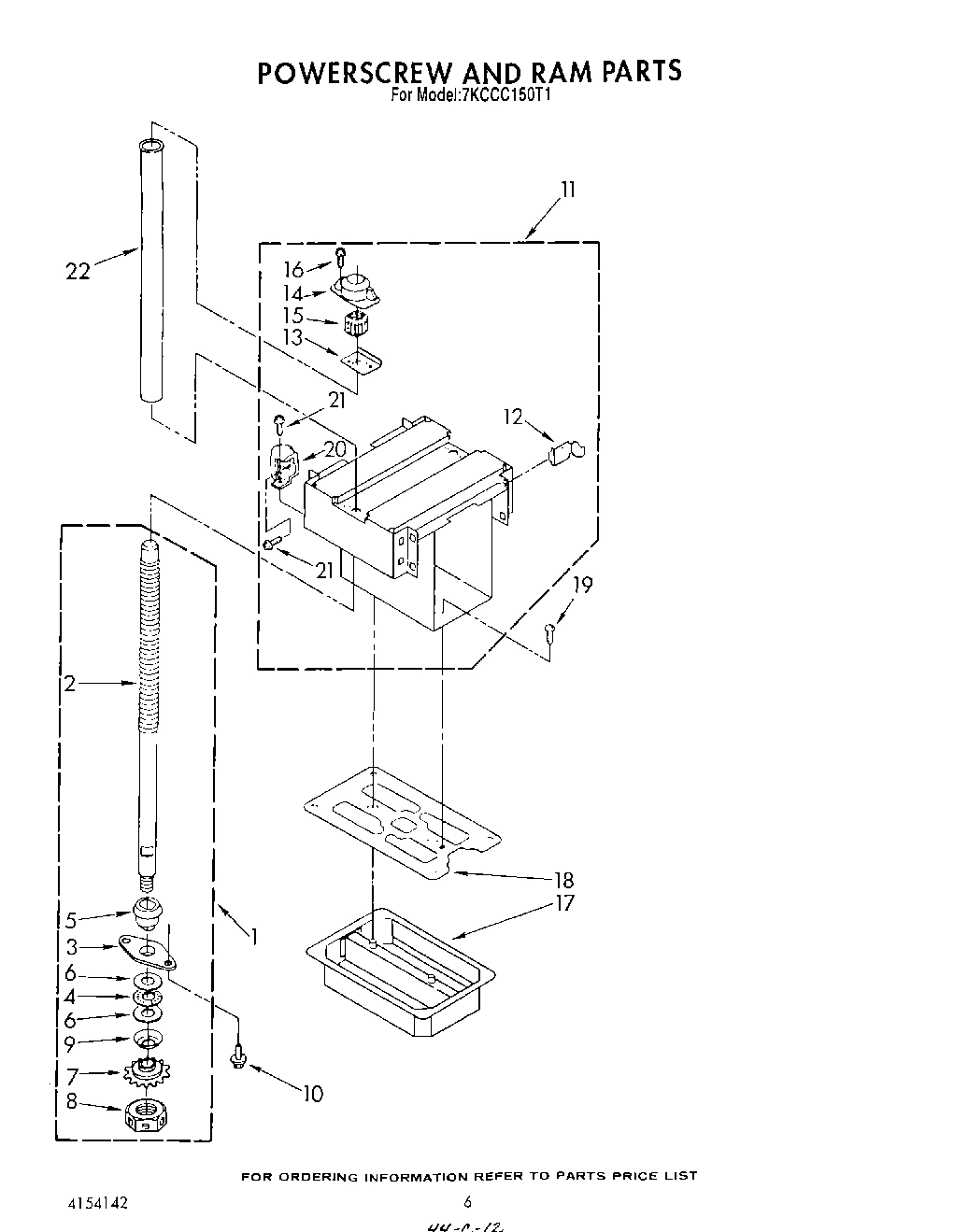

05 - POWER SCREW AND RAM

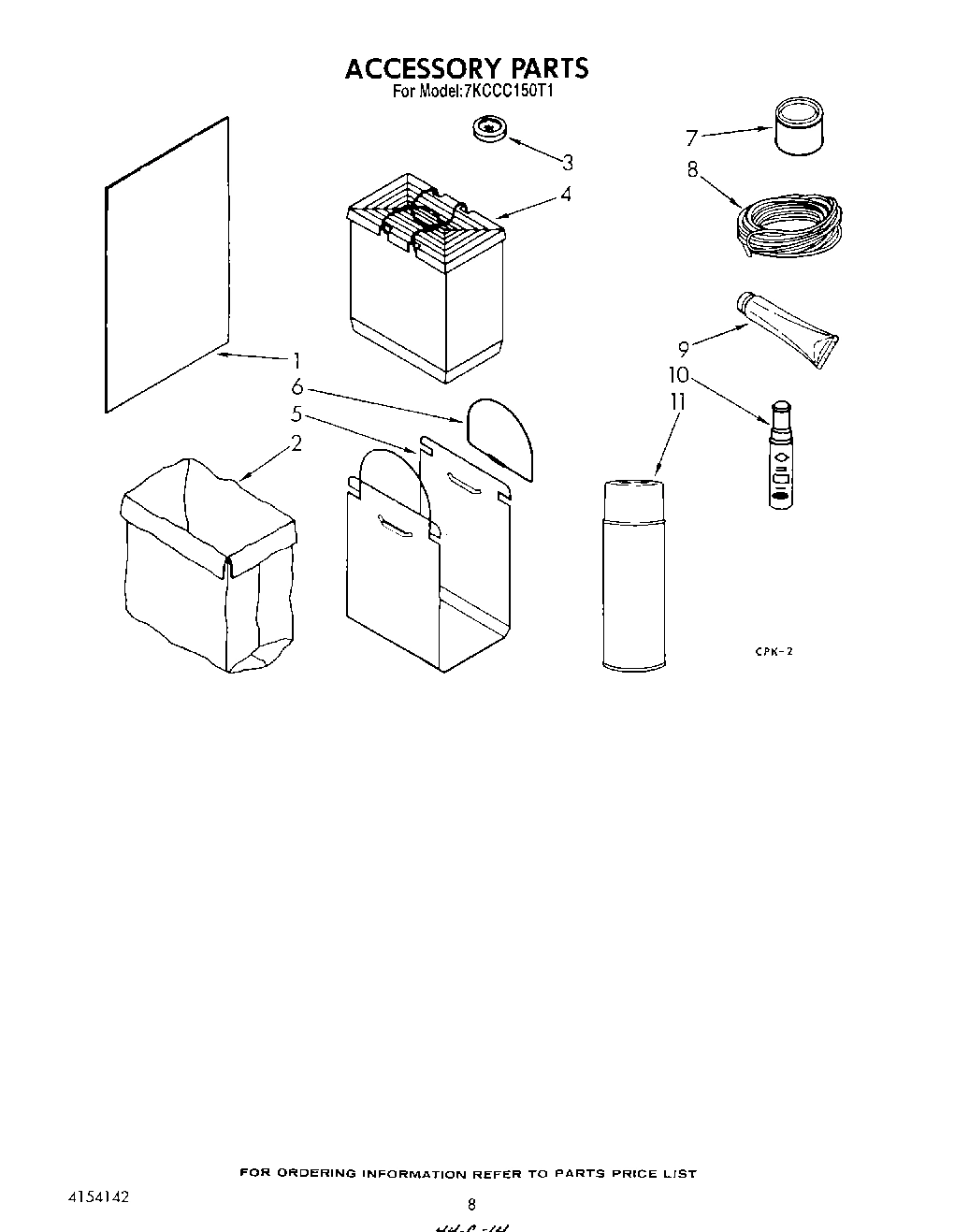

07 - ACCESSORY
Common parts from model Whirlpool 7KCCC150T1 COMPACTOR
1
Frame (Not a Serviceable Part) WPL ARI17630A7 Contact Us For Availability
1
Screw, Power Complete Assembly (2) WPL 777876 Contact Us For Availability
1
Panel, Container Front (White & Copper Hi-Lit WPL 608438 Contact Us For Availability
1
Panel, Contianer Front (Brushed Chrome) WPL 675378 Contact Us For Availability
1
Panel, Container Front (Coffee & Harvest Gold WPL 777714 Contact Us For Availability
1
Panel, Contianer Front (White & New Avocado) WPL 777761 Contact Us For Availability
1
Panel, Container Front (Almond & Harvest Gold WPL 777762 Contact Us For Availability
1
panel, container front (coffee & avocado) WPL 777912 Contact Us For Availability
1
Panel, Container Front (Black & White) WPL 777941 Contact Us For Availability
1
Panel, Container Front (Platinum & Toast) WPL 780280 Contact Us For Availability
1
Panel, Container Front (Almond & Black) WPL 780334 Contact Us For Availability
2
Screw, Power (Available Only As Complete Asse WPL ARI17631A9 Contact Us For Availability
3
Deodorizer, Solid Stick-Ups (2-Pack) WPL 777635 Contact Us For Availability
3
Cord, Power WPL 778583 Contact Us For Availability
4
Barrier, Glass WPL 776780 Contact Us For Availability
4
Trash, Container (Reusable) WPL 882653 Contact Us For Availability
5
Insulation, Inner Panel WPL 780412 Contact Us For Availability
6
Cam, Spray Actuator (2) WPL 776523 Contact Us For Availability
8
Cover, Air Flow WPL 4147744 Contact Us For Availability
8
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
9
Dail, Air Flow WPL 608782 Contact Us For Availability
10
Screw, 1/4-20 x 3/4 (4) WPL 775071 Contact Us For Availability
10
WPL 72112 WPL 72112 Contact Us For Availability
11
Top, Cabinet WPL 4152350 Contact Us For Availability
11
Ram Assembly WPL 780019 Contact Us For Availability
11
WPL 261890 WPL 261890 Contact Us For Availability
11
WPL 285365 WPL 285365 Contact Us For Availability
11
WPL 285366 WPL 285366 Contact Us For Availability
12
Shield, Slide Track (2) WPL 608375 Contact Us For Availability
12
Pad, Ram (8) WPL 777758 Contact Us For Availability
13
Plate, Doubler (2) WPL 608733 Contact Us For Availability
14
Nut, 6-32 WPL 776188 Contact Us For Availability
14
Retainer, Nut (2) WPL 780036 Contact Us For Availability
15
Screw, 6-20 x 3/8AB WPL 776559 Contact Us For Availability
16
Escutcheon, Control WPL 4152344 Contact Us For Availability
17
End Cap, Escutcheon (L.H.) WPL 780179 Contact Us For Availability
17
End Cap, Escutcheon R.H. WPL 780180 Contact Us For Availability
17
Cover, Ram WPL 608723 Contact Us For Availability
18
Wiper, Ram WPL 780021 Contact Us For Availability
19
Plug, Hole WPL 4152349 Contact Us For Availability
19
Bumper, Ram (4) WPL 775643 Contact Us For Availability
20
Block, Container Stop WPL 777691 Contact Us For Availability
21
Plate, Nut WPL 777850 Contact Us For Availability
22
Bushing, Power Cord WPL 776519 Contact Us For Availability
22
Protector, Powerscrew (2) WPL 780413 Contact Us For Availability
25
Retainer, Bag (Contains 5 Each) WPL 4163646 Contact Us For Availability
25
Screw, 8-18 x 1/2 WPL 776493 Contact Us For Availability
26
Lug, Grounding WPL 236278 Contact Us For Availability
27
Screw, 10-24 x 1 WPL 776516 Contact Us For Availability
28
Washer WPL 138479 Contact Us For Availability
29
Nut WPL 776515 Contact Us For Availability
× ![]()
