Model Whirlpool 7EV187NYRV05 VERTICAL FREEZER – Common Parts &amp; Diagrams

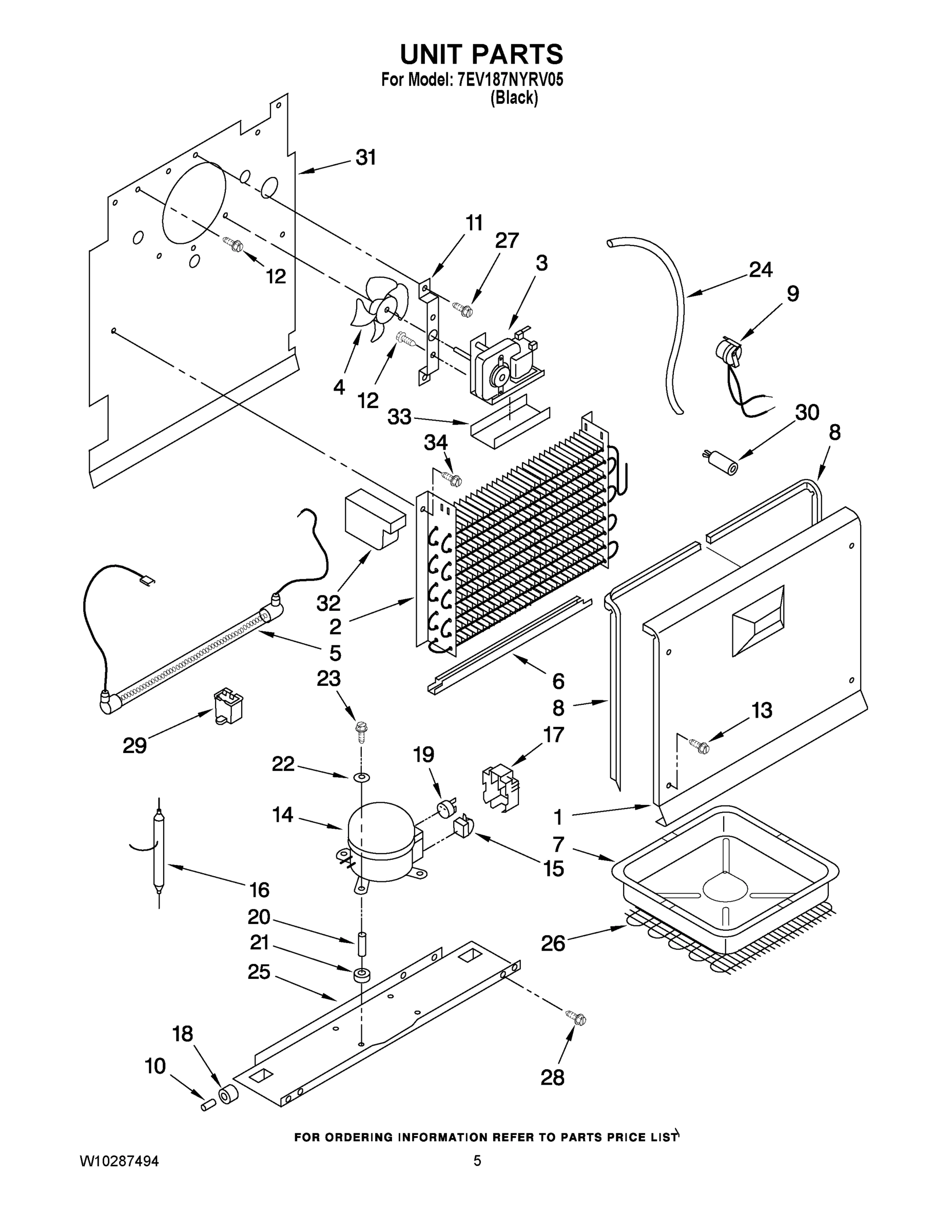

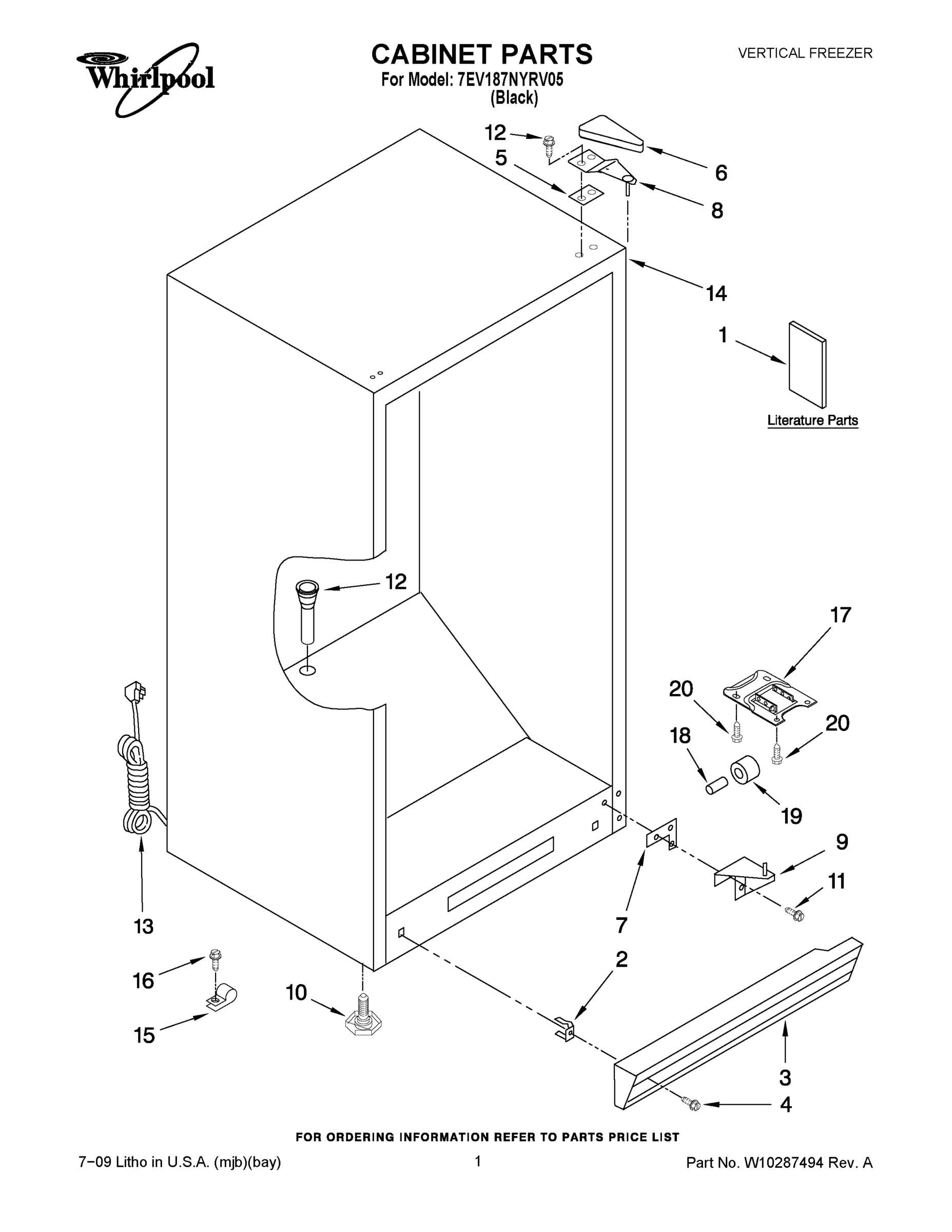

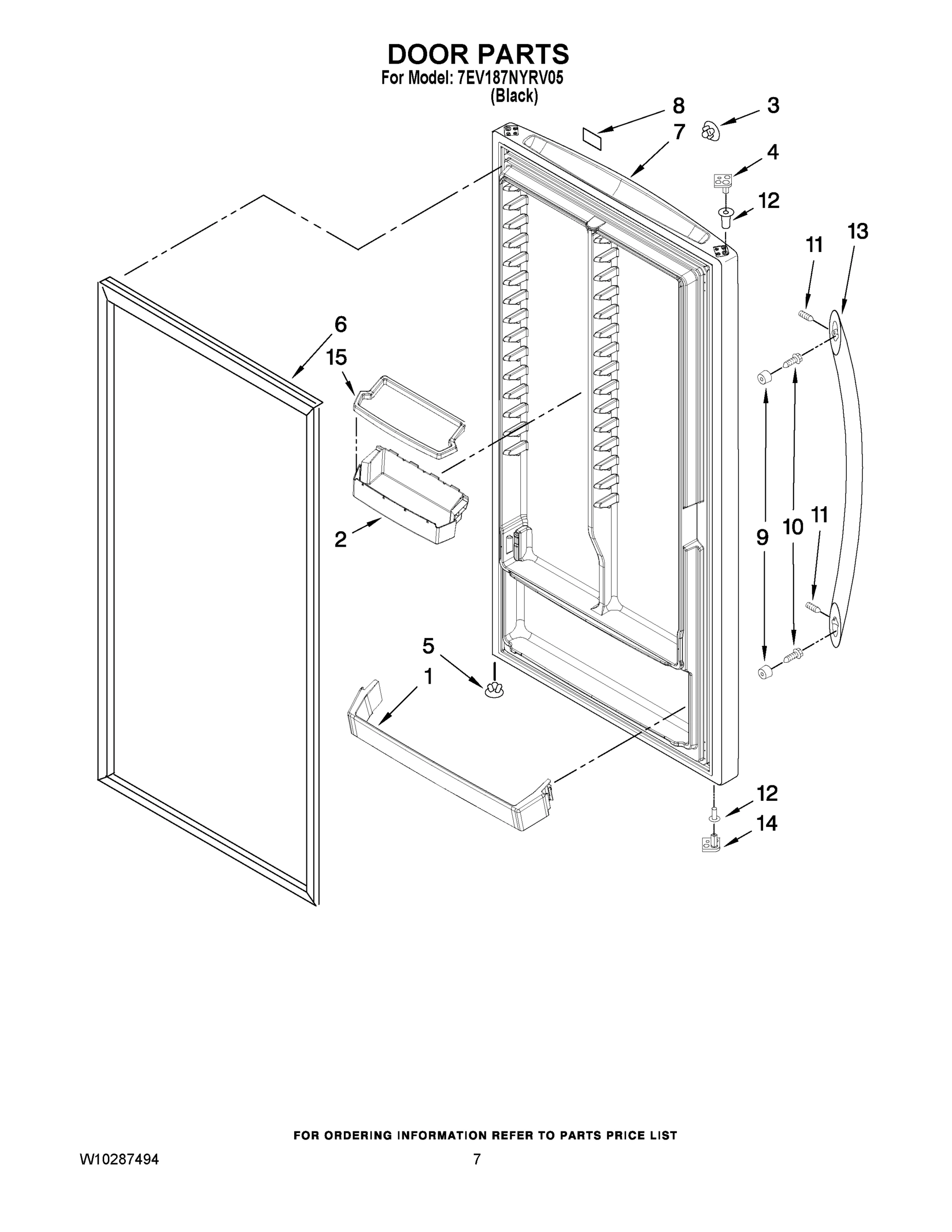

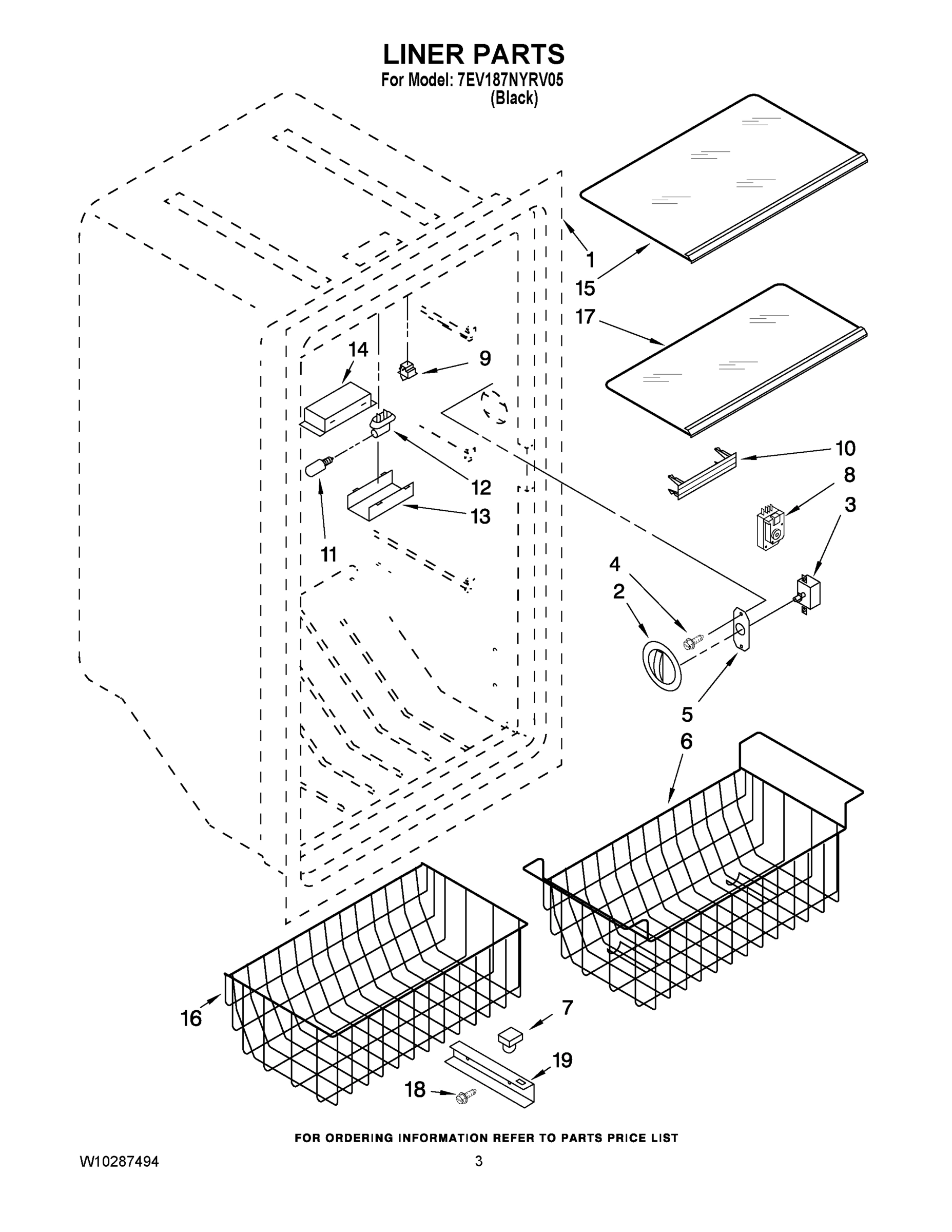

1

LINER (NOT A SERVICEABLE PART) WPL NP Contact Us For Availability

1

Owners Manual WPL W10206097 Contact Us For Availability

1

Energy Label/Tag WPL W10206098 Contact Us For Availability

2

1-80247-101 Whirlpool Refrigerator Clip Backorder WPL 1-80247-101 $4.63

2

Bin, Door (6) WPL W10179592 Contact Us For Availability

2

Knob, Control WPL 4390619 Contact Us For Availability

3

WP2189000 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189000 $3.70

3

WP4-83053-003 Whirlpool Refrigerator Thermost Backorder WPL WP4-83053-003 $111.23

3

Grille WPL 8210294 Contact Us For Availability

4

8210402 Whirlpool Door Stop Backorder WPL 8210402 $53.27

4

WPW10068250 Whirlpool Dishwasher Screw Backorder WPL WPW10068250 $2.91

4

Screw WPL 8210262 Contact Us For Availability

5

3-24898-007 Whirlpool Refrigerator Vent Plug Backorder WPL 3-24898-007 $4.72

5

Thermostat Plate WPL 4357049 Contact Us For Availability

6

8210343 Whirlpool Refrigerator Door Gasket Backorder WPL 8210343 $183.23

6

Cover, Hinge WPL 4390763 Contact Us For Availability

6

Basket, Wire Lower WPL 4390621 Contact Us For Availability

7

4390489 Whirlpool Refrigerator Shim Backorder WPL 4390489 $3.70

7

Door Assembly (Includes Interior Door Liner) WPL 8210368 Contact Us For Availability

7

Stop, Basket WPL W10179590 Contact Us For Availability

8

8210251 Whirlpool Refrigerator Door Hinge Backorder WPL 8210251 $56.83

8

WP2213265 Whirlpool Refrigerator Nameplate Backorder WPL WP2213265 $37.83

8

WP3-81329 Whirlpool Refrigerator Defrost Time In Stock WPL WP3-81329 $67.95

9

8210235 Whirlpool Refrigerator Door Hinge Backorder WPL 8210235 $67.78

9

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

9

WPW10170540 Whirlpool Screw In Stock WPL WPW10170540 $4.58

10

W11117769 Whirlpool Refrigerator Leveler In Stock WPL W11117769 $6.97

10

WP3-80414-103 Whirlpool Refrigerator Vent Plu Backorder WPL WP3-80414-103 $5.84

10

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

11

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

11

Screw WPL 8533976 Contact Us For Availability

11

Screw WPL W10204670 Contact Us For Availability

12

WP3-82393-001 Whirlpool Refrigerator Socket Backorder WPL WP3-82393-001 $38.12

12

Bushing (Black) WPL 4390869 Contact Us For Availability

12

Grommet, Drain WPL W10164544 Contact Us For Availability

13

Handle Assembly (Includes Item 11) WPL W10202711 Contact Us For Availability

13

CORD, POWER (W/WIRING HARNESS) WPL W10268662 Contact Us For Availability

13

Shield, Light WPL 4390743 Contact Us For Availability

14

2-81124-001 Whirlpool Refrigerator Door Stop Backorder WPL 2-81124-001 $13.05

14

HOUSING, LIGHT WPL W10135693 Contact Us For Availability

Relay WPL 4356738 Contact Us For Availability

Cover, Bin WPL 8210383 Contact Us For Availability

Clamp, Tube WPL 4357268 Contact Us For Availability

Shelf, Top WPL 4390816 Contact Us For Availability

16

SCREW WPL 8210266 Contact Us For Availability

16

BASKET WIRE WPL W10287493 Contact Us For Availability

17

Bracket, Roller WPL 8210265 Contact Us For Availability

17

Shelf, Middle WPL 4390817 Contact Us For Availability

WP489491 Whirlpool Refrigerator Screw In Stock WPL WP489491 $2.51

Roller, Back WPL 8210210 Contact Us For Availability

Axle, Front WPL 4390755 Contact Us For Availability

Screw (1 1/2``) WPL 4390822 Contact Us For Availability

2-34286-021 Whirlpool Refrigerator Overload R Backorder WPL 2-34286-021 $56.13

3-60315-001 Whirlpool Refrigerator CAB Roller Backorder WPL 3-60315-001 $11.03

4-60222-002 Whirlpool Refrigerator Rail Backorder WPL 4-60222-002 $30.43

Rail, Basket (Left) WPL 4390820 Contact Us For Availability

20

4356846 Whirlpool Refrigerator Sleeve Backorder WPL 4356846 $8.73

20

WP3-24838-048 Whirlpool Refrigerator Screw Backorder WPL WP3-24838-048 $2.51

21

Grommet, Compressor WPL 4356335 Contact Us For Availability

22

Washer WPL 4356847 Contact Us For Availability

23

8210220 Whirlpool Bolt Backorder WPL 8210220 $42.60

24

Exchanger, Heat WPL 4357263 Contact Us For Availability

25

PAN, COMPRESSOR WPL W1026546 Contact Us For Availability

26

W10451951 Whirlpool Refrigerator Condenser Backorder WPL W10451951 $110.79

28

SCREW WPL W10134902 Contact Us For Availability

29

3-35956-013 Whirlpool Refrigerator Capacitor Backorder WPL 3-35956-013 $49.59

30

Grommet WPL 4357020 Contact Us For Availability

31

Plate, Evaporator Mount WPL 4357123 Contact Us For Availability

32

1-80252-101 Whirlpool Refrigerator Evaporator Backorder WPL 1-80252-101 $4.34

33

4357128 Whirlpool Refrigerator Motor Bracket Backorder WPL 4357128 $40.53

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $96.00

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
