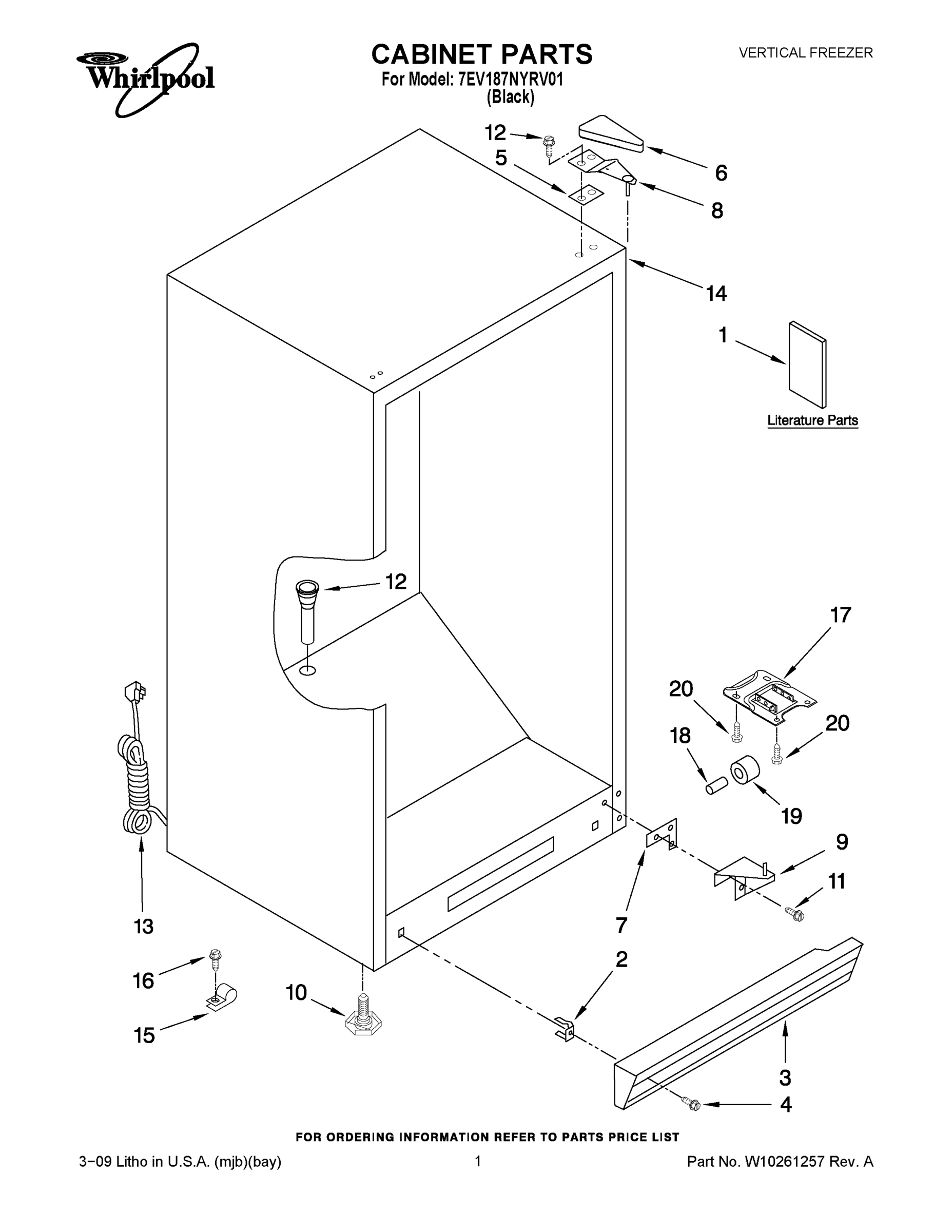

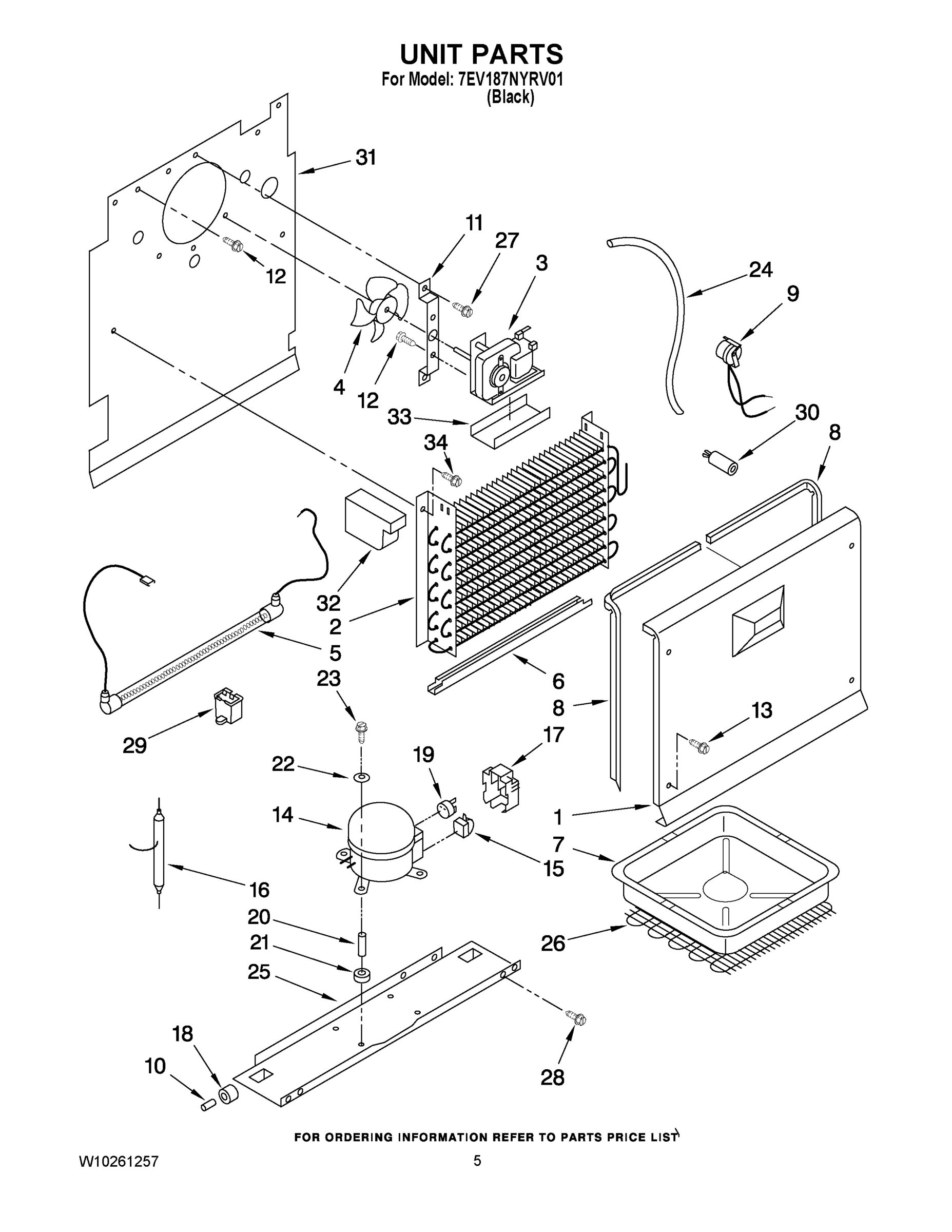

Model Whirlpool 7EV187NYRV01 VERTICAL FREEZER – Common Parts &amp; Diagrams

1

Cover, Evaporator WPL 4390662 Contact Us For Availability

1

Liner (Not A Serviceable Part) WPL ARI16918A4 Contact Us For Availability

2

WP4-81546 Whirlpool Refrigerator Evaporator Backorder WPL WP4-81546 $217.68

2

Knob, Control WPL 4390619 Contact Us For Availability

2

Bin, Door (6) WPL W10179592 Contact Us For Availability

3

WP2189000 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189000 $3.70

3

WP4-83053-003 Whirlpool Freezer Thermostat Backorder WPL WP4-83053-003 $111.23

3

Grille WPL 8210294 Contact Us For Availability

3

Motor, Fan WPL 4357004 Contact Us For Availability

4

8210402 Whirlpool Door Stop Backorder WPL 8210402 $55.33

4

WPW10068250 Whirlpool Dishwasher Screw Backorder WPL WPW10068250 $2.91

4

WPW10445742 Whirlpool Refrigerator Fan Blade In Stock WPL WPW10445742 $5.89

5

3-24898-007 Whirlpool Refrigerator Vent Plug Backorder WPL 3-24898-007 $4.72

5

W11175809 Whirlpool Refrigerator Heater In Stock WPL W11175809 $95.37

5

Thermostat Plate WPL 4357049 Contact Us For Availability

6

8210343 Whirlpool Refrigerator Door Gasket Backorder WPL 8210343 $183.23

6

Shield, Heater WPL W10164624 Contact Us For Availability

6

Basket, Wire Lower WPL 4390621 Contact Us For Availability

7

4390489 Whirlpool Refrigerator Shim Backorder WPL 4390489 $3.70

7

WP4390675 Whirlpool Refrigerator Drip Pan Backorder WPL WP4390675 $124.19

7

Stop, Basket WPL 4390823 Contact Us For Availability

7

Door Assembly (Includes Interior Door Liner) WPL 8210368 Contact Us For Availability

8

4390663 Whirlpool Refrigerator Gasket Backorder WPL 4390663 $105.92

8

4390664 Whirlpool Refrigerator Gasket Backorder WPL 4390664 $54.59

8

WP2213265 Whirlpool Refrigerator Nameplate Backorder WPL WP2213265 $39.71

8

WP3-81329 Whirlpool Refrigerator Defrost Time In Stock WPL WP3-81329 $68.18

9

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $13.32

9

WP1-81801-001 Whirlpool Refrigerator Bimetall In Stock WPL WP1-81801-001 $43.08

9

WPW10170540 Whirlpool Screw In Stock WPL WPW10170540 $4.58

W11117769 Whirlpool Refrigerator Leveler In Stock WPL W11117769 $6.97

WP3-80414-103 Whirlpool Refrigerator Vent Plu Backorder WPL WP3-80414-103 $5.84

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

Axle, Back WPL 8210211 Contact Us For Availability

11

2-80028-101 Whirlpool Refrigerator Motor Brac Backorder WPL 2-80028-101 $54.24

11

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.89

11

Screw WPL 8533976 Contact Us For Availability

12

60001022 Whirlpool Oven Screw Backorder WPL 60001022 $32.52

12

WP3-82393-001 Whirlpool Refrigerator Socket Backorder WPL WP3-82393-001 $40.02

12

Bushing (Black) WPL 4390869 Contact Us For Availability

13

WP3-24004-109 Whirlpool Refrigerator Screw Backorder WPL WP3-24004-109 $2.51

13

Shield, Light WPL 4390743 Contact Us For Availability

13

Handle Assembly (Includes Item 11) WPL W10202711 Contact Us For Availability

14

2-81124-001 Whirlpool Refrigerator Door Stop Backorder WPL 2-81124-001 $13.05

14

W10309994 Whirlpool Refrigerator Compressor In Stock WPL W10309994 $312.36

14

HOUSING, LIGHT WPL W10135693 Contact Us For Availability

15

Relay WPL 4356738 Contact Us For Availability

15

Shelf, Top WPL 4390816 Contact Us For Availability

15

Cover, Bin WPL 8210383 Contact Us For Availability

16

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $38.32

16

Basket, Wire WPL 4390818 Contact Us For Availability

17

4356777 Whirlpool Term Cover Backorder WPL 4356777 $51.48

17

Shelf, Middle WPL 4390817 Contact Us For Availability

18

WP489491 Whirlpool Refrigerator Screw Backorder WPL WP489491 $2.51

18

Roller, Back WPL 8210210 Contact Us For Availability

18

Screw (1 1/2``) WPL 4390822 Contact Us For Availability

19

2-34286-021 Whirlpool Refrigerator Overload R Backorder WPL 2-34286-021 $58.93

19

Rail, Basket (Right) WPL 4390819 Contact Us For Availability

19

Rail, Basket (Left) WPL 4390820 Contact Us For Availability

20

4356846 Whirlpool Refrigerator Sleeve Backorder WPL 4356846 $8.73

21

Grommet, Compressor WPL 4356335 Contact Us For Availability

22

Washer WPL 4356847 Contact Us For Availability

23

8210220 Whirlpool Bolt Backorder WPL 8210220 $44.73

24

Exchanger, Heat WPL 4357263 Contact Us For Availability

25

Pan, Compressor WPL 8210202 Contact Us For Availability

26

W10451951 Whirlpool Refrigerator Condenser Backorder WPL W10451951 $116.32

28

SCREW WPL W10134902 Contact Us For Availability

29

3-35956-013 Whirlpool Refrigerator Capacitor Backorder WPL 3-35956-013 $52.08

30

Grommet WPL 4357020 Contact Us For Availability

31

Plate, Evaporator Mount WPL 4357123 Contact Us For Availability

32

1-80252-101 Whirlpool Refrigerator Evaporator Backorder WPL 1-80252-101 $4.34

33

4357128 Whirlpool Refrigerator Motor Bracket Backorder WPL 4357128 $42.57

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $28.53

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $100.80

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

REFINISHING MATERIAL (ENAMEL, WHITE (1 QT. UN WPL 799344 Contact Us For Availability

REFRIGERANT CHARGE 6.2 oz. (R-134A) WPL ARI16919A9 Contact Us For Availability
