Model LG 79UF9500 – Common Parts & Diagrams

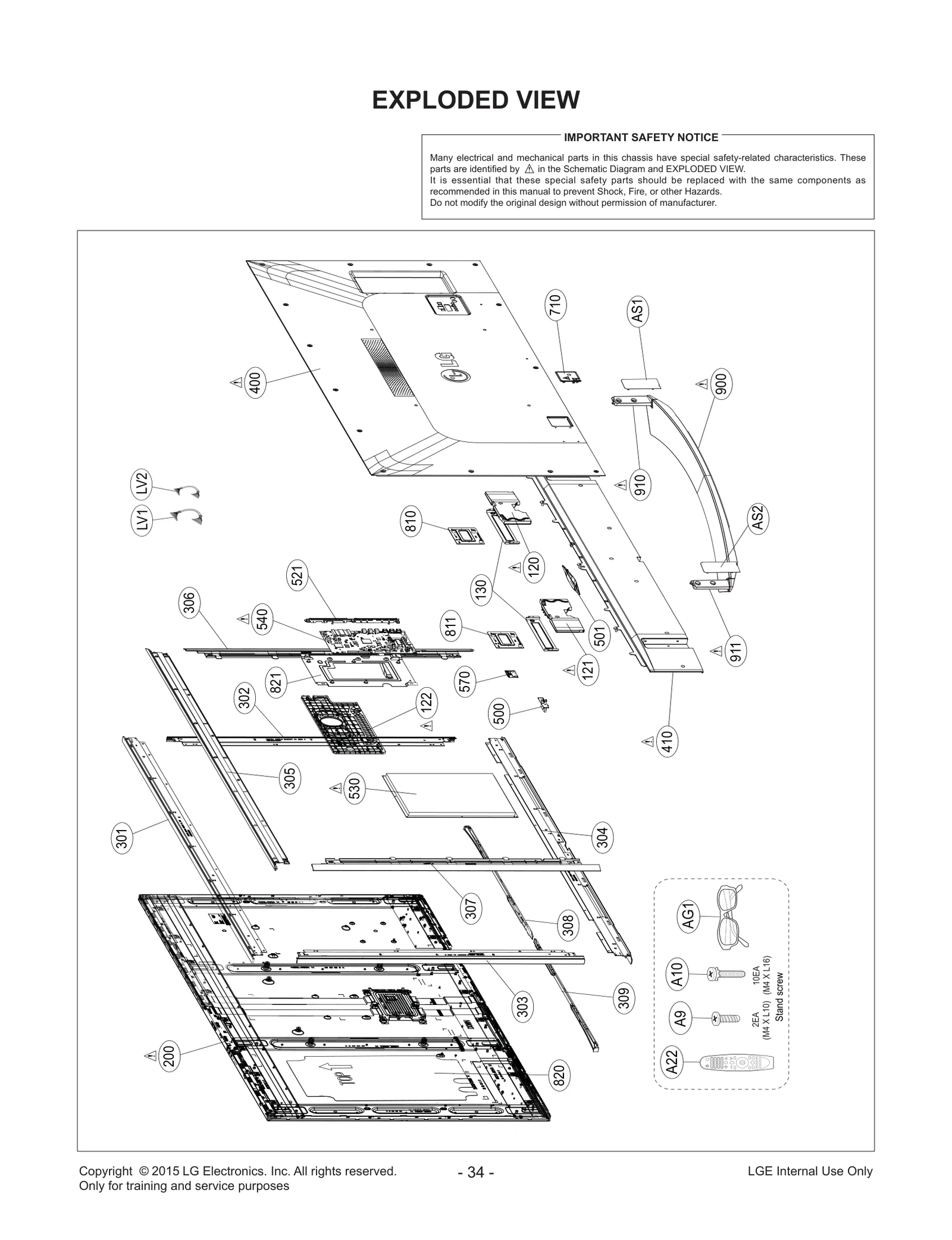

Diagram 0
Diagram 1
Common parts from model LG 79UF9500
121
Speaker Assembly LGE EAB63688302 Contact Us For Availability
130
Supporter LGE MJH63716902 Contact Us For Availability
301
Cabinet LGE MBH63563604 Contact Us For Availability
302
Cabinet LGE MBH63642307 Contact Us For Availability
303
Cabinet LGE MBH63642308 Contact Us For Availability
304
Cabinet LGE MBH63543104 Contact Us For Availability
305
Cover,Rear LGE MCK68517502 Contact Us For Availability
306
Cover,Rear LGE MCK68534304 Contact Us For Availability
307
Cover,Rear LGE MCK68534303 Contact Us For Availability
308
Bracket LGE MAZ64590303 Contact Us For Availability
309
Bracket LGE MAZ64590304 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ87820002 Contact Us For Availability
410
Cover LGE MCK68534002 Contact Us For Availability
500
PCB Assembly,Sub LGE EBR79943102 Contact Us For Availability
501
Bracket LGE MAZ64571102 Contact Us For Availability
521
Bracket LGE MAZ64546107 Contact Us For Availability
540
Chassis Assembly LGE EBT64037203 Contact Us For Availability
710
Bracket LGE MAZ62827614 Contact Us For Availability
810
Supporter LGE MJH63776703 Contact Us For Availability
811
Supporter LGE MJH63776704 Contact Us For Availability
821
Plate,Shield LGE MGJ64367002 Contact Us For Availability
910
Base Assembly LGE AAN75228702 Contact Us For Availability
911
Base Assembly LGE AAN75228802 Contact Us For Availability
A9
Screw,Taptite LGE FAB31639801 Contact Us For Availability
A22
Remocon kit,Package Assembly LGE AGF77840201 Contact Us For Availability
AG1
AG-F310---3D Glasses LGE EBX61668501 Contact Us For Availability
AM
Manual Assembly LGE AFN76832102 Contact Us For Availability
AM1
Manual,Owners LGE MFL68741502 Contact Us For Availability
AR100
Resistor,Array LGE EBC62582701 Contact Us For Availability
AR418
Resistor,Array LGE EBC39283301 Contact Us For Availability
AR3000
Resistor,Array LGE EBC62582702 Contact Us For Availability
AR4102
Resistor,Array LGE EBC62582706 Contact Us For Availability
AR7100
Resistor,Array LGE EBC62582704 Contact Us For Availability
AR8102
Resistor,Array LGE EBC32260501 Contact Us For Availability
AR8104
Resistor,Array LGE EBC32260401 Contact Us For Availability
AR13112
Resistor,Array LGE EBC32260601 Contact Us For Availability
AS1
Base LGE MAM63625303 Contact Us For Availability
AS2
Base LGE MAM63625304 Contact Us For Availability
C212
Capacitor,Ceramic,Ch LGE EAE30281301 Contact Us For Availability
C230
Capacitor,Ceramic,Ch LGE EAE30281901 Contact Us For Availability
C471
Capacitor,Ceramic,Chip LGE EAE58112401 Contact Us For Availability
C601
Capacitor,Ceramic,Chip LGE EAE62303301 Contact Us For Availability
C606
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C630
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C2148
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C2306
Capacitor,Ceramic,Chip LGE 0CK682BKK6A Contact Us For Availability
C2320
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C2325
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C2334
Capacitor,TA,Polymer LGE EAE62987401 Contact Us For Availability
C2337
Capacitor,Ceramic,Ch LGE 0CH5470K618 Contact Us For Availability
C2357
Capacitor,Ceramic,Chip LGE 0CC820BKFAA Contact Us For Availability
C2502
CAPACITOR,FIXED CERA LGE 0CK333CK56A Contact Us For Availability
C3001
Capacitor,Ceramic,Chip LGE 0CH1474K562 Contact Us For Availability
C3003
Capacitor,Ceramic,Ch LGE 0CC120BK4AA Contact Us For Availability
C3800
Capacitor,Ceramic,Ch LGE 0CC180BKFAA Contact Us For Availability
C3815
Capacitor,Ceramic,Ch LGE 0CC100BKF1A Contact Us For Availability
C3817
Capacitor,Ceramic,Chip LGE 0CH1224K512 Contact Us For Availability
C5804
Capacitor,Ceramic,Ch LGE 0CZZB00035A Contact Us For Availability
C5914
Capacitor,Ceramic,Ch LGE EAE32166601 Contact Us For Availability
C5917
Capacitor,Ceramic,Ch LGE 0CK474DK56A Contact Us For Availability
C5920
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C6103
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C6707
Capacitor,Ceramic,Chip LGE 0CK102EY48A Contact Us For Availability
C7205
Capacitor,Ceramic,Ch LGE 0CK104BH56A Contact Us For Availability
C13115
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C13313
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C13414
Capacitor,Ceramic,Chip LGE EAE61081701 Contact Us For Availability
C13444
Capacitor,Ceramic,Chip LGE 0CK331BKFDA Contact Us For Availability
C13446
Capacitor,Ceramic,Chip LGE 0CK222BKG6A Contact Us For Availability
CA1
Harness,Single LGE EAD62732504 Contact Us For Availability
CA2
Harness,Multi LGE EAD63305308 Contact Us For Availability
CA3
Harness,Multi LGE EAD63005002 Contact Us For Availability
CA4
Harness,Multi LGE EAD62847623 Contact Us For Availability
CA5
Harness,Multi LGE EAD63286709 Contact Us For Availability
D1900
Diode,Switching LGE 0DSGD00038A Contact Us For Availability
D3000
Diode,Schottky LGE EAH61433701 Contact Us For Availability
D3309
Diode,Switching LGE EAH61714301 Contact Us For Availability
D4302
Diode,TVS LGE EAH61515101 Contact Us For Availability
D4305
Diode,TVS LGE EAH61232601 Contact Us For Availability
IC200
IC,Analog Switch LGE EAN62658501 Contact Us For Availability
IC404
IC,DDR3 SDRAM LGE EAN63053202 Contact Us For Availability
IC405
IC,DDR3 SDRAM LGE EAN63648701 Contact Us For Availability
IC1901
IC,Serial Flash Memory LGE EAN62459301 Contact Us For Availability
IC1901
IC,Serial Flash Memory LGE EAN62459501 Contact Us For Availability
IC2301
IC,LDO Voltage Regulator LGE EAN62868801 Contact Us For Availability
IC2302
IC,DC,DC Converter LGE EAN62653301 Contact Us For Availability
IC2305
IC,DC,DC Converter LGE EAN62911501 Contact Us For Availability
IC2309
FET LGE EBK61313102 Contact Us For Availability
IC2500
Display SOC,Digital TV LGE EAN63010001 Contact Us For Availability
IC4100
IC,Analog Switch LGE EAN63047601 Contact Us For Availability
IC4300
IC,Analog Switch LGE EAN62871401 Contact Us For Availability
IC5900
IC,Audio Amplifier LGE EAN62886102 Contact Us For Availability
IC6100
IC,Audio Amplifier LGE EAN62668301 Contact Us For Availability
IC13100
IC,LDO Voltage Regulator LGE EAN63492401 Contact Us For Availability
IC13403
IC,DC,DC Converter LGE EAN63530101 Contact Us For Availability
IC13408
IC,DC,DC Converter LGE EAN63530201 Contact Us For Availability
JK3800
Jack,Fiber Optic LGE EAG37842001 Contact Us For Availability
JK3802
Jack,RCA LGE EAG60968213 Contact Us For Availability
JK4302
Connector,USB LGE EAG62571101 Contact Us For Availability
JK5000
Jack,Modular LGE EAG35781015 Contact Us For Availability
L2313
Inductor,Wire Wound,Chip LGE EAP62506410 Contact Us For Availability
L2321
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
L2500
Inductor,Wire Wound,Chip LGE EAP62886505 Contact Us For Availability
L5900
Filter,Bead LGE EAM38769505 Contact Us For Availability
L5905
Inductor,Wire Wound,Chip LGE EAP61607101 Contact Us For Availability
L6501
Filter,Bead LGE EAM61130602 Contact Us For Availability
LV1
Cable,FFC LGE EAD63285706 Contact Us For Availability
LV2
Cable,FFC LGE EAD63285603 Contact Us For Availability
M4104
Gasket LGE MDS62110217 Contact Us For Availability
M4112
Gasket LGE MDS62110225 Contact Us For Availability
M4113
Gasket LGE MDS62110209 Contact Us For Availability
M13502
Connector,BtoB LGE EAG64250901 Contact Us For Availability
P4100
Connector,Wafer LGE EAG63590901 Contact Us For Availability
P5900
WAFER LGE 6602T25009C Contact Us For Availability
P7200
Connector,FFC/FPC/PIC LGE EAG64329802 Contact Us For Availability
P7203
Connector,Wafer LGE 6630VK19605 Contact Us For Availability
Q3301
TR,Bipolar LGE 0TRKE80046A Contact Us For Availability
Q6502
TR,Bipolar LGE 0TR390609DC Contact Us For Availability
Q7100
FET LGE EBK62072501 Contact Us For Availability
R141
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R145
Resistor,Chip LGE 0RJ0472C678 Contact Us For Availability
R175
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R404
Resistor,Chip LGE 0RJ2400C478 Contact Us For Availability
R428
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R611
Resistor,Chip LGE EBC35273701 Contact Us For Availability
R627
Resistor,Chip LGE 0RJ0682C678 Contact Us For Availability
R630
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R1925
Resistor,Chip LGE 0RJ1004C478 Contact Us For Availability
R1939
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R2305
Resistor,Chip LGE EBC42830501 Contact Us For Availability
R2308
Resistor,Chip LGE 0RJ0332C478 Contact Us For Availability
R2309
Resistor,Chip LGE 0RJ0101C678 Contact Us For Availability
R2317
RESISTOR,METAL GLAZE LGE 0RJ2002C478 Contact Us For Availability
R2318
Resistor,Chip LGE 0RJ2003C478 Contact Us For Availability
R2322
Resistor,Chip LGE 0RJ2202C478 Contact Us For Availability
R2324
Resistor,Chip LGE 0RJ6801C478 Contact Us For Availability
R2332
Resistor,Chip LGE 0RJ1502C478 Contact Us For Availability
R2333
Resistor,Chip LGE 0RJ1302C478 Contact Us For Availability
R2336
Resistor,Chip LGE 0RJ1201C478 Contact Us For Availability
R2342
Resistor,Chip LGE 0RJ1503C478 Contact Us For Availability
R2349
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R2352
Resistor,Chip LGE 0RJ5102C478 Contact Us For Availability
R2506
Resistor,Chip LGE 0RJ1202C478 Contact Us For Availability
R2508
Resistor,Chip LGE 0RJ1003C478 Contact Us For Availability
R2518
Resistor,Chip LGE 0RJ1203C478 Contact Us For Availability
R3033
Resistor,Chip LGE 0RJ2702C478 Contact Us For Availability
R3335
Resistor,Chip LGE 0RJ3301C478 Contact Us For Availability
R3800
Resistor,Chip LGE 0RJ4703C678 Contact Us For Availability
R3808
Resistor,Chip LGE EBC01890805 Contact Us For Availability
R3817
Resistor,Chip LGE 0RJ0752C478 Contact Us For Availability
R3823
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R3831
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R4306
Resistor,Chip LGE 0RJ1402C478 Contact Us For Availability
R5809
RESISTOR,METAL GLAZE LGE 0RJ0331D677 Contact Us For Availability
R6105
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R6517
Resistor,Chip LGE 0RJ2000D677 Contact Us For Availability
R13103
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R13119
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R13413
RESISTOR,METAL GLAZE LGE 0RJ2203D677 Contact Us For Availability
R13421
Resistor,Chip LGE 0RJ1802C478 Contact Us For Availability
R13422
Resistor,Chip LGE 0RJ4701C478 Contact Us For Availability
R13425
Resistor,Chip LGE 0RH3903D622 Contact Us For Availability
SW3000
SWITCH,TACT LGE 6600R00004C Contact Us For Availability
TU6705
Tuner,Analog/Digital LGE EBL61540001 Contact Us For Availability
VA3307
Varistor LGE EAF61530301 Contact Us For Availability
VA3805
Varistor LGE EAF61630101 Contact Us For Availability
VA3808
Varistor LGE EAF61530101 Contact Us For Availability
VA5003
Varistor LGE EAF61530201 Contact Us For Availability
ZD2500
Diode,TVS LGE EAH62134701 Contact Us For Availability
× ![]()
Login and Registration Form
