LG 795.75283401 Bottom-Mount Refrigerator (Kenmore 79575283401) Parts List

106B

4J00382C LG Washer Common Backorder LGE 4J00382C $6.62

View on Model

120B

5209JJ1002A LG Refrigerator Multi-Duct Air Di Backorder LGE 5209JJ1002A $199.76

View on Model

128A

4975JJ2002A LG Refrigerator Right Side Drawer Backorder LGE 4975JJ2002A $24.91

View on Model

128B

4975JJ2002B LG Refrigerator Left Side Drawer Backorder LGE 4975JJ2002B $24.91

View on Model

128D

3550JJ1043A LG Freezer Right Connector Cover In Stock LGE 3550JJ1043A $69.11

View on Model

128E

3550JJ1043B LG Connector Cover Backorder LGE 3550JJ1043B $69.11

View on Model

131A

5075JJ1001A LG Refrigerator Ice Bank Assembly Backorder LGE 5075JJ1001A $114.35

View on Model

136A

Refrigerator Freezer Drawer LGE 3391JJ1011B Contact Us For Availability

View on Model

136F

Refrigerator Tray LGE 3391JJ1033B Contact Us For Availability

View on Model

145C

Rail Holder LGE 4930JJ1009B Contact Us For Availability

View on Model

145D

Refrigerator Ice Bin Guide, Left LGE 4974JJ1012A Contact Us For Availability

View on Model

145E

4974JJ1022B LG Guide Rail Backorder LGE 4974JJ1022B $53.34

View on Model

145F

Refrigerator Guide LGE 4974JJ1013A Contact Us For Availability

View on Model

145G

Refrigerator Guide Assembly LGE 4975JJ2005A Contact Us For Availability

View on Model

145J

Refrigerator Connector LGE 4932JJ1003B Contact Us For Availability

View on Model

145K

Refrigerator Connector LGE 4932JJ1004B Contact Us For Availability

View on Model

151C

4940JJ2003A LG Knob Shutter Backorder LGE 4940JJ2003A $15.77

View on Model

158A

3550JJ1040A LG Refrigerator Lamp Lens Cover Backorder LGE 3550JJ1040A $39.18

View on Model

168A

3550JJ1035A LG Magic Room Refrigerator Cover Backorder LGE 3550JJ1035A $77.79

View on Model

170A

3391JJ2004H LG Meat Tray Assembly Backorder LGE 3391JJ2004H $109.92

View on Model

200A

Refrigerator Door Assembly LGE 3581JJ8048B Contact Us For Availability

View on Model

201A

Refrigerator Door Foam LGE 5433JJ0058B Contact Us For Availability

View on Model

203A

4987JJ1004E LG Door Gasket Assembly Backorder LGE 4987JJ1004E $90.01

View on Model

205A

Refrigerator Freezer Door Wire Tilt Basket LGE 5004JJ1042B Contact Us For Availability

View on Model

205B

Refrigerator Door Bin LGE 5004JJ2005B Contact Us For Availability

View on Model

205C

Refrigerator Freezer Door Wire Basket LGE 5004JJ2005A Contact Us For Availability

View on Model

212A

Refrigerator Handle LGE 3650JJ1031B Contact Us For Availability

View on Model

212B

Refrigerator Door Handle Assembly LGE 3650JJ1030B Contact Us For Availability

View on Model

212G

Refrigerator Nameplate LGE 4140JL2001C Contact Us For Availability

View on Model

230A

Refrigerator Door Assembly LGE 3581JJ8047B Contact Us For Availability

View on Model

231A

Refrigerator Door Foam LGE 5433JJ0019N Contact Us For Availability

View on Model

233A

4987JJ1004F LG Door Gasket Assembly Backorder LGE 4987JJ1004F $40.42

View on Model

237A

Refrigerator Guide LGE 4974JJ2021A Contact Us For Availability

View on Model

237C

4974JJ1021A LG Refrigerator Drawer Guide Backorder LGE 4974JJ1021A $86.64

View on Model

241A

Refrigerator Dairy Bin Cover LGE 3550JJ1015A Contact Us For Availability

View on Model

241B

Refrigerator Door Bin LGE 5004JJ1021A Contact Us For Availability

View on Model

241C

5005JJ2017A LG Refrigerator Door Basket Assem Backorder LGE 5005JJ2017A $86.64

View on Model

241D

Refrigerator Door Bin, Lower LGE 5005JJ2001A Contact Us For Availability

View on Model

241E

5005JJ2018A LG Refrigerator Door Shelf Basket Backorder LGE 5005JJ2018A $97.22

View on Model

243A

Refrigerator Door Stop LGE 4620JJ3006C Contact Us For Availability

View on Model

244E

5006JJ3016C LG Handle Cap Backorder LGE 5006JJ3016C $6.62

View on Model

248A

5218JJ2010A LG Slide Rail Backorder LGE 5218JJ2010A $45.66

View on Model

248C

5218JJ2009A LG Slide Rail Backorder LGE 5218JJ2009A $139.04

View on Model

248F

Refrigerator Supporter LGE 4980JJ2005A Contact Us For Availability

View on Model

248G

Refrigerator Freezer Door Slide Rail Assembly LGE 5219JJ2002A Contact Us For Availability

View on Model

248H

5219JJ2002B LG Slide Rail Assembly Backorder LGE 5219JJ2002B $202.47

View on Model

248J

Refrigerator Rail Assembly LGE 5219JJ2003A Contact Us For Availability

View on Model

248K

Refrigerator Rail Assembly LGE 5219JJ2003B Contact Us For Availability

View on Model

249A

LG Refrigerator Connector LGE 4932JJ1002B Contact Us For Availability

View on Model

249B

Refrigerator Connector LGE 4932JJ1001B Contact Us For Availability

View on Model

249C

Rail Holder LGE 4930JJ1005C Contact Us For Availability

View on Model

249D

Rail Holder LGE 4930JJ1005D Contact Us For Availability

View on Model

281B

Refrigerator Door Hinge LGE 4775JJ2003B Contact Us For Availability

View on Model

281D

Refrigerator Connector LGE 4932JJ2001B Contact Us For Availability

View on Model

281E

Refrigerator Hinge Cap LGE 5006JJ3008C Contact Us For Availability

View on Model

301A

5421JJ1001B LG Refrigerator Evaporator Assemb Backorder LGE 5421JJ1001B $375.67

View on Model

304A

3551JJ2008B LG Refrigerator Cover Assembly Backorder LGE 3551JJ2008B $133.22

View on Model

305B

4580JJ3001A LG Refrigerator Tray Roller Backorder LGE 4580JJ3001A $19.31

View on Model

305C

4J04238A LG Common Pin Backorder LGE 4J04238A $6.62

View on Model

307A

Refrigerator Compressor LGE 2521JJ8007A Contact Us For Availability

View on Model

308A

Ptc Asm LGE 6749C-0008D Contact Us For Availability

View on Model

309A

6750C-0004S LG Refrigerator Compressor Overlo Backorder LGE 6750C-0004S $24.91

View on Model

310A

Refrigerator Compressor Relay Cover LGE 3550JA2042A Contact Us For Availability

View on Model

312A

5040JA3031A LG Refrigerator Compressor Damper Backorder LGE 5040JA3031A $6.62

View on Model

314A

4620JA3009A LG Compressor Stopper Backorder LGE 4620JA3009A $6.62

View on Model

315A

Refrigerator Complete Base LGE 3103JJ1001A Contact Us For Availability

View on Model

317A

Refrigerator Drier Assembly LGE 5851JJ2002B Contact Us For Availability

View on Model

318A

4930JJ3002A LG Holder Backorder LGE 4930JJ3002A $6.62

View on Model

319A

3390JJ0003A LG Refrigerator Drip Tray Backorder LGE 3390JJ0003A $86.64

View on Model

319C

4974JJ1009A LG Fan Guide Backorder LGE 4974JJ1009A $39.18

View on Model

323A

Refrigerator Condenser LGE 5403JJ1004A Contact Us For Availability

View on Model

328A

Refrigerator Rubber LGE 5040JJ3002A Contact Us For Availability

View on Model

329A

5901JJ1005A LG Fan Assembly Backorder LGE 5901JJ1005A $19.31

View on Model

329C

5901JJ1004B LG Refrigerator Compressor Conden Backorder LGE 5901JJ1004B $19.31

View on Model

332A

Refrigerator Grille Assembly LGE 3531JJ1004A Contact Us For Availability

View on Model

401A

6615JB2005C LG Refrigerator Defrost Control A Backorder LGE 6615JB2005C $39.18

View on Model

404A

Refrigerator Evaporator Fan Motor LGE 4680JK1002B Contact Us For Availability

View on Model

405A

Refrigerator Motor Bracket Assembly LGE 4811JJ2002B Contact Us For Availability

View on Model

405B

Refrigerator Bracket LGE 4810JJ3005A Contact Us For Availability

View on Model

405C

J756-00008B LG Refrigerator Damper Motor Supp Backorder LGE J756-00008B $6.62

View on Model

406B

6600JB1010A LG Refrigerator Push Button Door In Stock LGE 6600JB1010A $10.36

View on Model

409B

Refrigerator Lamp (White) LGE 6912JB2004C Contact Us For Availability

View on Model

409C

Refrigerator Lamp LGE 6912JK2002A Contact Us For Availability

View on Model

410A

Refrigerator Light Socket LGE 6621JK2002D Contact Us For Availability

View on Model

410G

Refrigerator Run Capacitor LGE 0CZZJB2003H Contact Us For Availability

View on Model

411A

EAD61445204 LG Refrigerator Power Cord Assemb Backorder LGE EAD61445204 $69.11

View on Model

418A

5300JB1100J LG Refrigerator Defrost Heater El Backorder LGE 5300JB1100J $103.57

View on Model

420A

4680JK1001B LG AC Motor Backorder LGE 4680JK1001B $114.35

View on Model

501A

Refrigerator Main PCB LGE 6871JB1215A Contact Us For Availability

View on Model

501F

Refrigerator Electronic Control Board Cover LGE 3550JJ1042B Contact Us For Availability

View on Model

503B

Refrigerator Light Reflector LGE 3034JJ1002A Contact Us For Availability

View on Model

503F

Refrigerator Display Control Board and Housin LGE 3111JJ1001F Contact Us For Availability

View on Model

600A

Refrigerator Ice Maker Assembly LGE 5989JA0002E Contact Us For Availability

View on Model

602A

Refrigerator Holder LGE 4930JA3037A Contact Us For Availability

View on Model

610A

Refrigerator Cover LGE 3550JL2004A Contact Us For Availability

View on Model

616D

5210JA3005W LG Refrigerator Plastic Water Lin Backorder LGE 5210JA3005W $10.52

View on Model

616E

5210JJ3002A LG Inlet Tube Backorder LGE 5210JJ3002A $2.65

View on Model

618A

5210JJ3005B LG Refrigerator Ice Maker Injecti Backorder LGE 5210JJ3005B $39.18

View on Model

619A

5220JA2009D LG Refrigerator Water Inlet Fill Backorder LGE 5220JA2009D $86.64

View on Model

623A

4770JA3001A LG Refrigerator Band Backorder LGE 4770JA3001A $6.62

View on Model

700B

Refrigerator Door Handle Assembly LGE 3651JJ2015B Contact Us For Availability

View on Model

700C

Refrigerator Handle Assembly LGE 3651JJ2016B Contact Us For Availability

View on Model

903A

Refrigerator Toe Grille LGE 3550JJ0006C Contact Us For Availability

View on Model

903B

Refrigerator Toe Grille Clip LGE 4930JJ2021A No Longer Available

View on Model

903D

6500JB2001B LG Refrigerator Humidity Sensor T In Stock LGE 6500JB2001B $24.91

View on Model

903E

6500JB2002T LG Refrigerator Freezer Temperatu Backorder LGE 6500JB2002T $17.20

View on Model

NI

Refrigerator Service Manual LGE 3840JL8097A Contact Us For Availability

View on Model

S22

Refrigerator Crisper Shelf Frame Screw LGE 3J05696C Contact Us For Availability

View on Model

S29

1SZZJA3009A LG Refrigerator Customized Screw Backorder LGE 1SZZJA3009A $6.62

View on Model

S30

4J00415D LG Refrigerator Customized Screw Backorder LGE 4J00415D $6.62

View on Model

S31

Refrigerator Machine Screw LGE 1MTC0402618 Contact Us For Availability

View on Model

S38

4000W4A003A LG Refrigerator Customized Screw Backorder LGE 4000W4A003A $6.11

View on Model

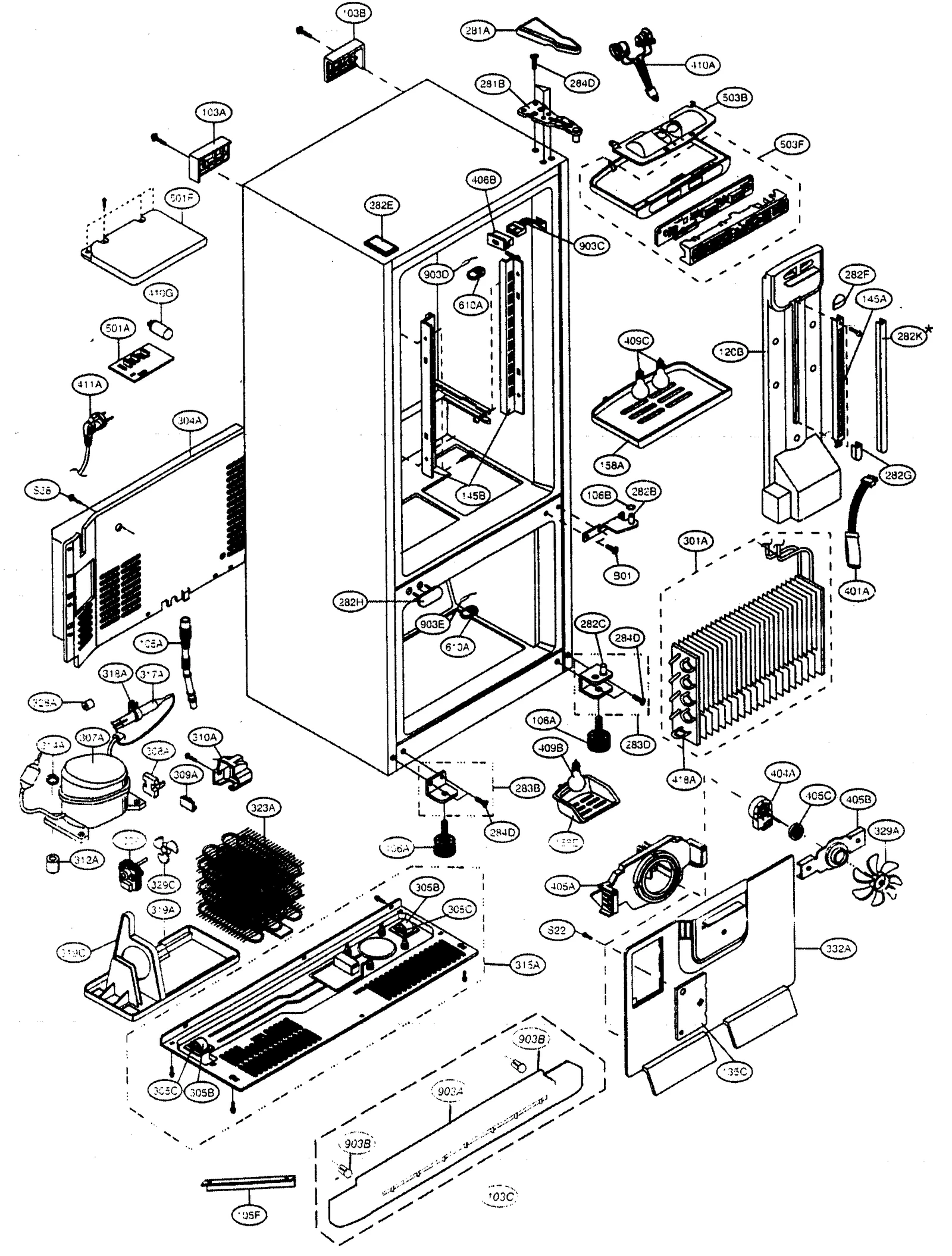

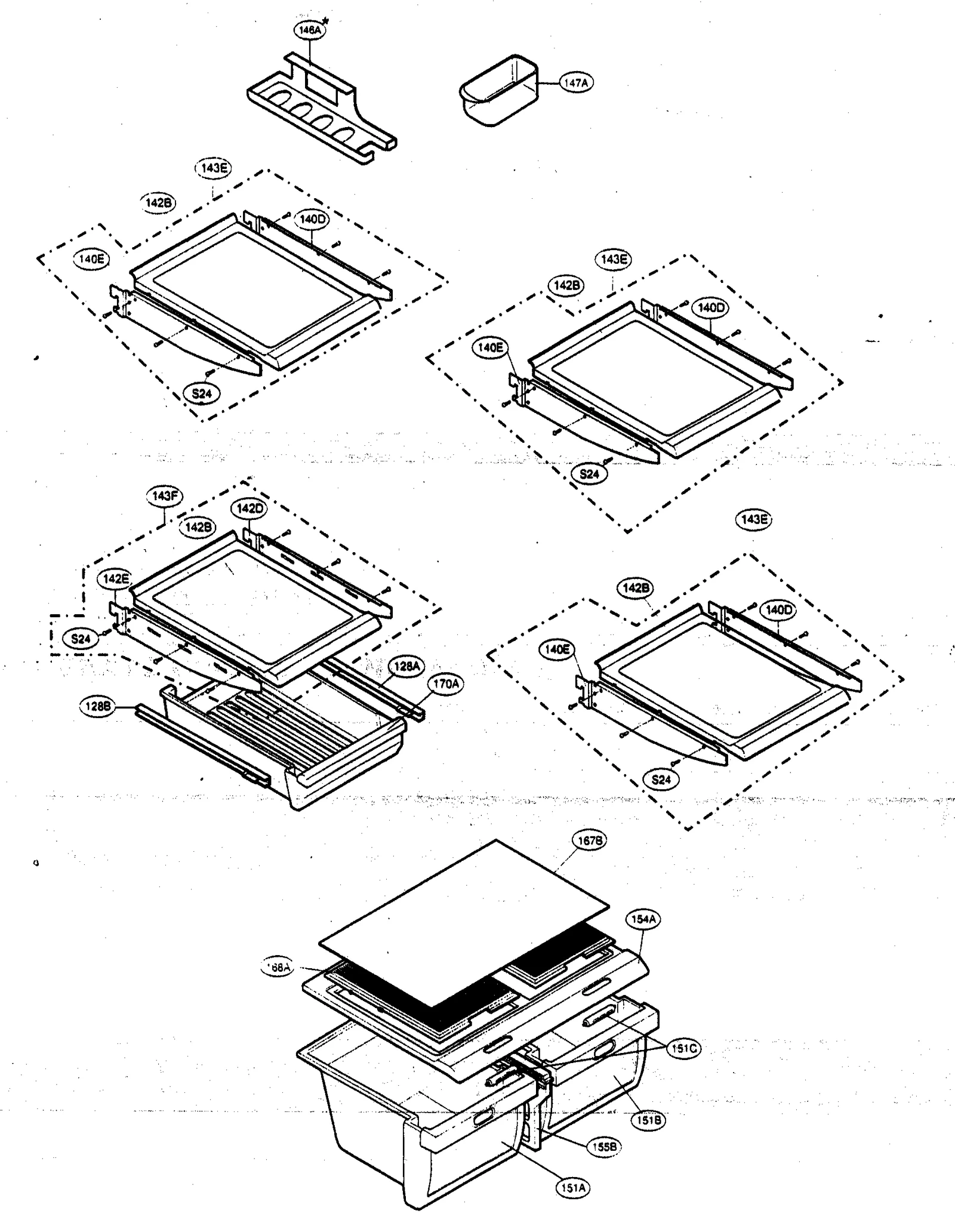

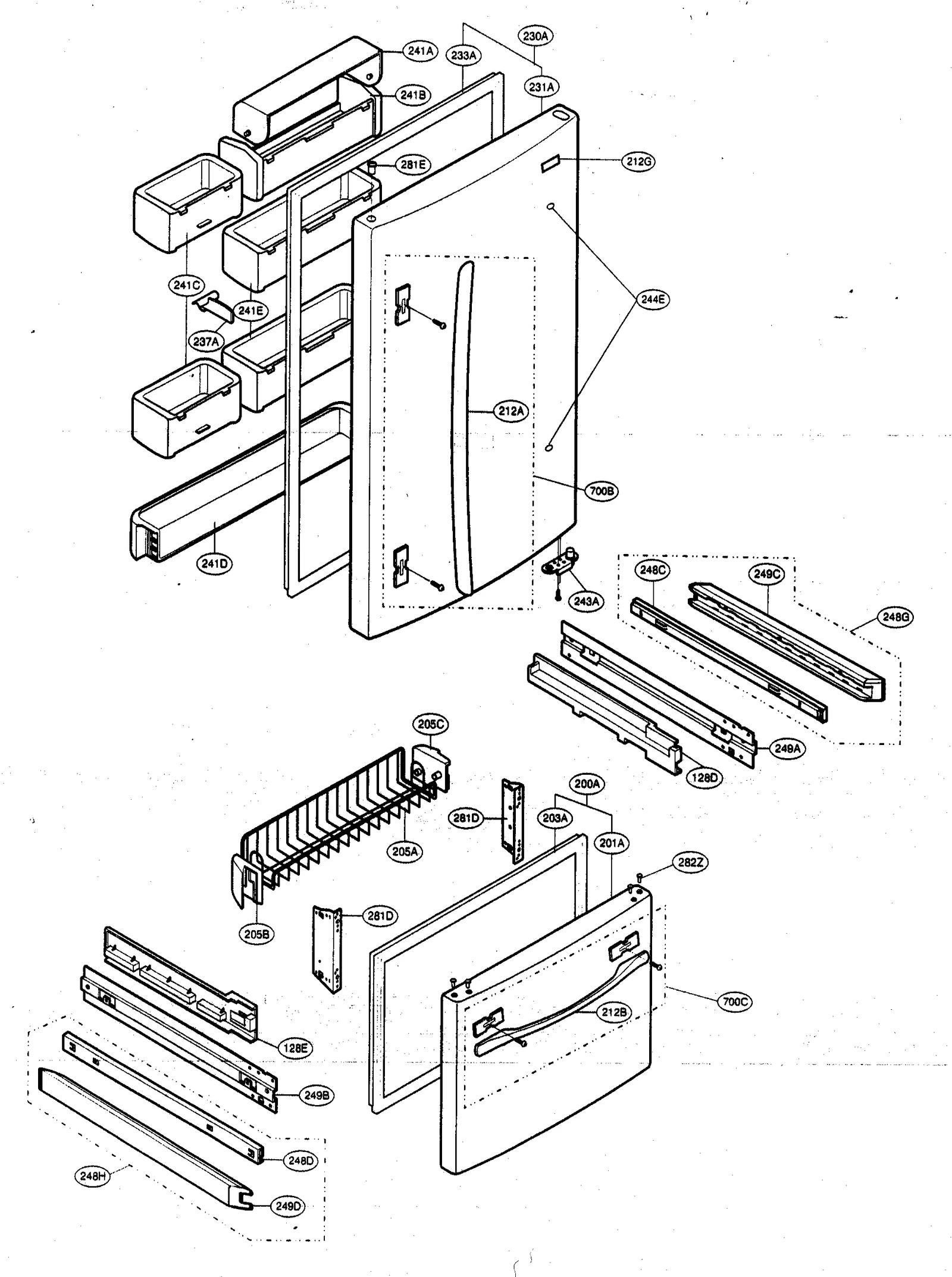

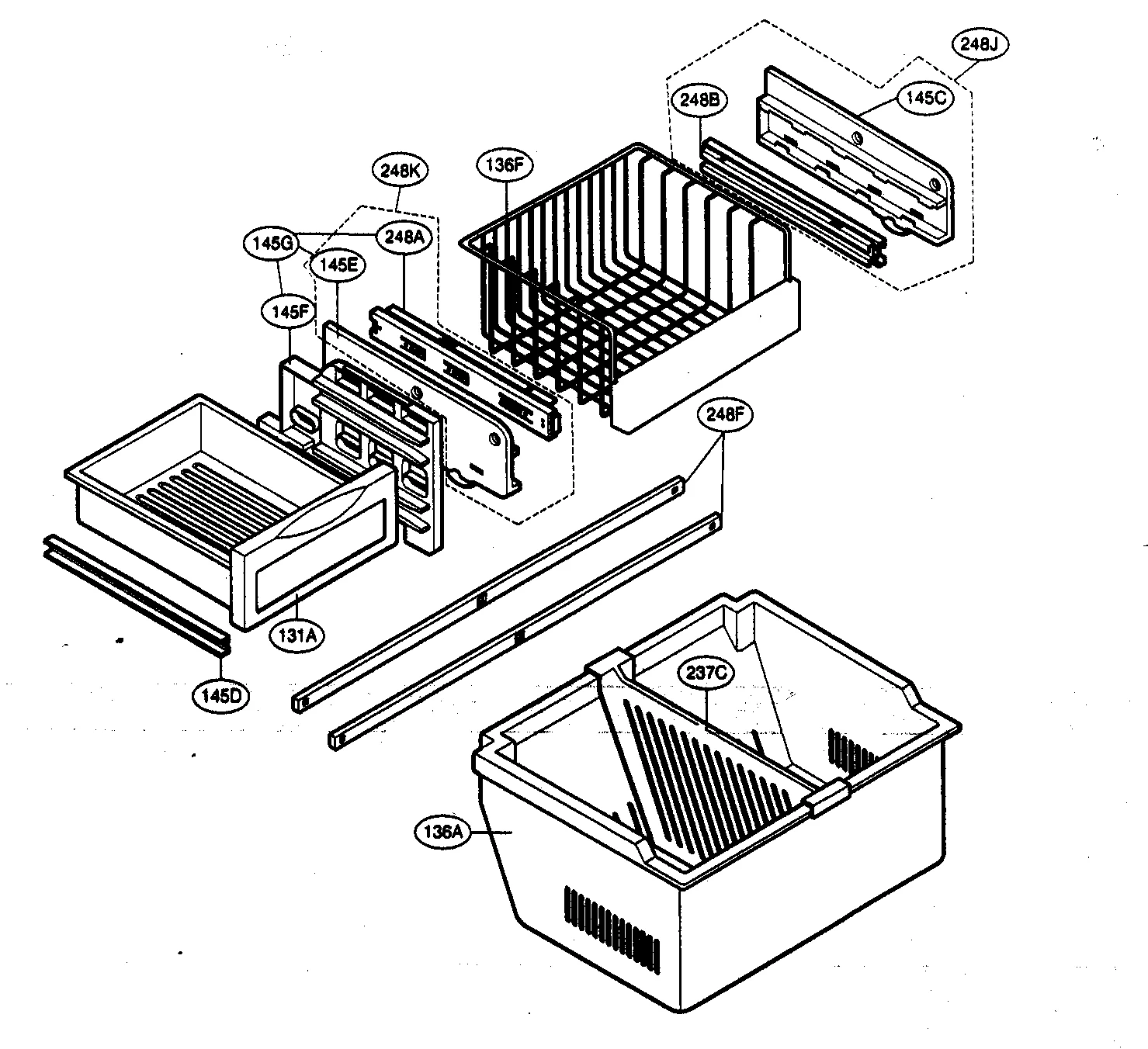

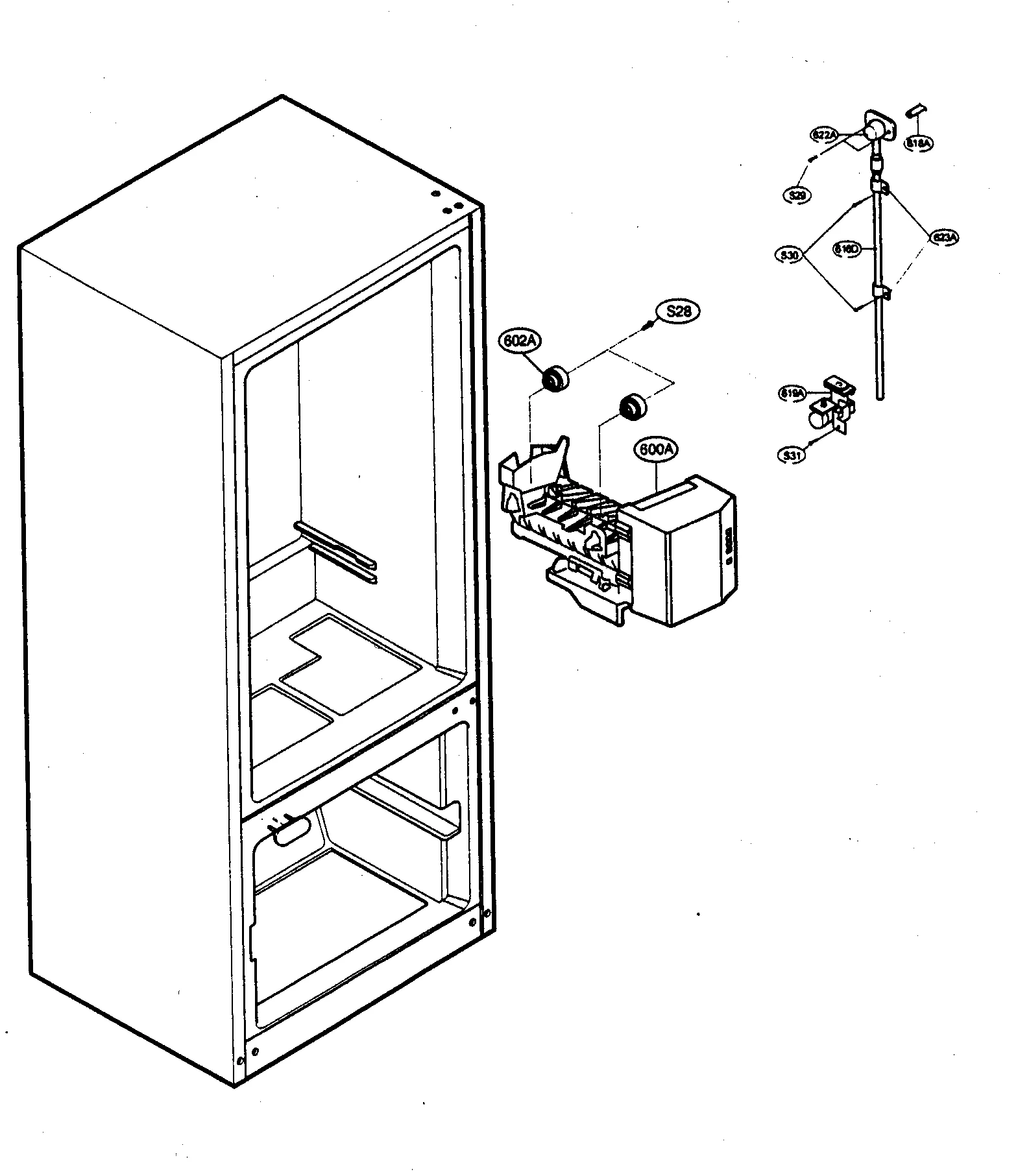

Model LG 795.75283401 Bottom-Mount Refrigerator (Kenmore 79575283401) – Common Parts & Diagrams

Common parts from model LG 795.75283401 Bottom-Mount Refrigerator (Kenmore 79575283401)
