LG 795.75219401 Bottom-Mount Refrigerator (Kenmore 79575219401) Parts List

106B

4J00382C LG Washer Common Backorder LGE 4J00382C $6.62

View on Model

120B

5209JJ1002A LG Refrigerator Multi-Duct Air Di Backorder LGE 5209JJ1002A $199.76

View on Model

128A

4975JJ2002A LG Refrigerator Right Side Drawer Backorder LGE 4975JJ2002A $24.91

View on Model

128B

4975JJ2002B LG Refrigerator Left Side Drawer Backorder LGE 4975JJ2002B $24.91

View on Model

131A

Refrigerator Ice Bin LGE 5074JJ1017A Contact Us For Availability

View on Model

136C

Refrigerator Drawer Tray LGE 3390JJ1057A Contact Us For Availability

View on Model

140B

Refrigerator Shelf Top Assembly LGE 5027JJ2007B Contact Us For Availability

View on Model

140D

5026JJ2001G LG Net Shelf In Stock LGE 5026JJ2001G $60.38

View on Model

140E

5026JJ2001H LG Shelf Net Backorder LGE 5026JJ2001H $53.07

View on Model

142D

5026JJ2001L LG Shelf Net Backorder LGE 5026JJ2001L $60.38

View on Model

142E

5026JJ2001M LG Net Shelf Backorder LGE 5026JJ2001M $60.38

View on Model

143A

Refrigerator Shelf LGE 5027JJ1028B Contact Us For Availability

View on Model

143B

Refrigerator Shelf LGE 5027JJ1015B Contact Us For Availability

View on Model

143E

5027JJ1008B LG Shelf Backorder LGE 5027JJ1008B $150.20

View on Model

143F

AHT72996103 LG Refrigerator Shelf Assembly Backorder LGE AHT72996103 $172.59

View on Model

146A

Refrigerator Storage LGE 5047JJ1001A Contact Us For Availability

View on Model

149A

5026JJ1026A LG Freezer Shelf Backorder LGE 5026JJ1026A $101.69

View on Model

151A

3391JJ1020D LG Refrigerator Vegetable Tray As In Stock LGE 3391JJ1020D $152.39

View on Model

151C

4940JJ2003A LG Knob Shutter Backorder LGE 4940JJ2003A $15.77

View on Model

154A

Refrigerator Crisper Drawer Cover Frame LGE 3550JL2001H Contact Us For Availability

View on Model

155B

4981JJ2001B LG Tray Cover Assembly Supporter Backorder LGE 4981JJ2001B $19.45

View on Model

158A

3550JJ1040A LG Refrigerator Lamp Lens Cover Backorder LGE 3550JJ1040A $39.18

View on Model

158E

Refrigerator Light Cover LGE 3550JJ1051A Contact Us For Availability

View on Model

167B

Refrigerator Crisper Shelf LGE 4890JL1002H Contact Us For Availability

View on Model

170A

3391JJ2004H LG Meat Tray Assembly Backorder LGE 3391JJ2004H $109.92

View on Model

241C

Refrigerator Door Bin LGE 5004JJ1031A Contact Us For Availability

View on Model

241D

Refrigerator Door Bin LGE 5004JJ0001A Contact Us For Availability

View on Model

241E

5004JJ1029A LG Refrigerator Door Basket Assem Backorder LGE 5004JJ1029A $94.66

View on Model

243A

Refrigerator Door Stop LGE 4620JJ3006C Contact Us For Availability

View on Model

281A

3550JJ2013C LG Hinge Cover Backorder LGE 3550JJ2013C $31.90

View on Model

281B

Refrigerator Door Hinge LGE 4775JJ2003B Contact Us For Availability

View on Model

282B

Refrigerator Door Hinge LGE 4775JJ8002E Contact Us For Availability

View on Model

282C

Refrigerator Door Hinge Pin LGE 1PZZJJ3002F Contact Us For Availability

View on Model

282E

Refrigerator Top Door Hinge Hole Cover LGE 5006JJ2001F Contact Us For Availability

View on Model

282F

Duct Deco LGE 3806JL2006D Contact Us For Availability

View on Model

282G

Refrigerator Duct Cap LGE 5006JJ3011A Contact Us For Availability

View on Model

282H

Refrigerator Center Hinge Hole Plug LGE 5006JJ3004E Contact Us For Availability

View on Model

282K

Refrigerator Duct Cap LGE 5006JJ2006A Contact Us For Availability

View on Model

283B

Refrigerator Hinge, Left LGE 4774JJ3001A Contact Us For Availability

View on Model

283D

Hinge Left LGE 4774JJ2002A Contact Us For Availability

View on Model

284D

1STZJA3004F LG Customized Screw In Stock LGE 1STZJA3004F $6.62

View on Model

301A

5421JJ1001B LG Refrigerator Evaporator Assemb Backorder LGE 5421JJ1001B $375.67

View on Model

304A

3551JJ2008B LG Refrigerator Cover Assembly Backorder LGE 3551JJ2008B $133.22

View on Model

305B

4580JJ3001A LG Refrigerator Tray Roller Backorder LGE 4580JJ3001A $19.31

View on Model

305C

4J04238A LG Common Pin Backorder LGE 4J04238A $6.62

View on Model

307A

Refrigerator Compressor LGE 2521JJ8007A Contact Us For Availability

View on Model

308A

Ptc Asm LGE 6749C-0008D Contact Us For Availability

View on Model

309A

6750C-0004S LG Refrigerator Compressor Overlo Backorder LGE 6750C-0004S $24.91

View on Model

310A

Refrigerator Compressor Relay Cover LGE 3550JA2042A Contact Us For Availability

View on Model

312A

5040JA3031A LG Refrigerator Compressor Damper Backorder LGE 5040JA3031A $6.62

View on Model

314A

4620JA3009A LG Compressor Stopper Backorder LGE 4620JA3009A $6.62

View on Model

315A

Refrigerator Complete Base LGE 3103JJ1001A Contact Us For Availability

View on Model

317A

Refrigerator Drier Assembly LGE 5851JJ2002B Contact Us For Availability

View on Model

318A

4930JJ3002A LG Holder Backorder LGE 4930JJ3002A $6.62

View on Model

319A

3390JJ0003A LG Refrigerator Drip Tray Backorder LGE 3390JJ0003A $86.64

View on Model

319C

4974JJ1009A LG Fan Guide Backorder LGE 4974JJ1009A $39.18

View on Model

323A

Refrigerator Condenser LGE 5403JJ1004A Contact Us For Availability

View on Model

328A

Refrigerator Rubber LGE 5040JJ3002A Contact Us For Availability

View on Model

329A

5901JJ1005A LG Fan Assembly Backorder LGE 5901JJ1005A $19.31

View on Model

329C

5901JJ1004B LG Refrigerator Compressor Conden Backorder LGE 5901JJ1004B $19.31

View on Model

332A

Refrigerator Grille Assembly LGE 3531JJ1004A Contact Us For Availability

View on Model

401A

6615JB2005C LG Refrigerator Defrost Control A Backorder LGE 6615JB2005C $39.18

View on Model

404A

Refrigerator Evaporator Fan Motor LGE 4680JK1002B Contact Us For Availability

View on Model

405A

Refrigerator Motor Bracket Assembly LGE 4811JJ2002B Contact Us For Availability

View on Model

405B

Refrigerator Bracket LGE 4810JJ3005A Contact Us For Availability

View on Model

405C

J756-00008B LG Refrigerator Damper Motor Supp Backorder LGE J756-00008B $6.62

View on Model

406B

6600JB1010A LG Refrigerator Push Button Door In Stock LGE 6600JB1010A $10.36

View on Model

409B

Refrigerator Lamp (White) LGE 6912JB2004C Contact Us For Availability

View on Model

409C

Refrigerator Lamp LGE 6912JK2002A Contact Us For Availability

View on Model

410A

Refrigerator Light Socket LGE 6621JK2002D Contact Us For Availability

View on Model

410G

Refrigerator Run Capacitor LGE 0CZZJB2003H Contact Us For Availability

View on Model

411A

EAD61445204 LG Refrigerator Power Cord Assemb Backorder LGE EAD61445204 $69.11

View on Model

418A

5300JB1100J LG Refrigerator Defrost Heater El Backorder LGE 5300JB1100J $103.57

View on Model

420A

4680JK1001B LG AC Motor Backorder LGE 4680JK1001B $114.35

View on Model

501A

Refrigerator Main PCB LGE 6871JB1215A Contact Us For Availability

View on Model

501F

Refrigerator Electronic Control Board Cover LGE 3550JJ1042B Contact Us For Availability

View on Model

503B

Refrigerator Light Reflector LGE 3034JJ1002A Contact Us For Availability

View on Model

503F

Refrigerator Display Control Board and Housin LGE 3111JJ1001F Contact Us For Availability

View on Model

610A

Refrigerator Cover LGE 3550JL2004A Contact Us For Availability

View on Model

616D

5210JA3005W LG Refrigerator Plastic Water Lin Backorder LGE 5210JA3005W $10.52

View on Model

618A

5210JJ3005B LG Refrigerator Ice Maker Injecti Backorder LGE 5210JJ3005B $39.18

View on Model

619A

5220JA2009D LG Refrigerator Water Inlet Fill Backorder LGE 5220JA2009D $86.64

View on Model

623A

4770JA3001A LG Refrigerator Band Backorder LGE 4770JA3001A $6.62

View on Model

903A

Refrigerator Toe Grille LGE 3550JJ0006C Contact Us For Availability

View on Model

903B

Refrigerator Toe Grille Clip LGE 4930JJ2021A No Longer Available

View on Model

903D

6500JB2001B LG Refrigerator Humidity Sensor T In Stock LGE 6500JB2001B $24.91

View on Model

903E

6500JB2002T LG Refrigerator Freezer Temperatu Backorder LGE 6500JB2002T $17.20

View on Model

NI

Refrigerator Parts List LGE 3840JL8027C Contact Us For Availability

View on Model

NI

Refrigerator Service Manual LGE 3840JL8097A Contact Us For Availability

View on Model

S24

Refrigerator Crisper Shelf Frame Screw LGE 3J05696C Contact Us For Availability

View on Model

S30

4J00415D LG Refrigerator Customized Screw Backorder LGE 4J00415D $6.62

View on Model

S38

4000W4A003A LG Refrigerator Customized Screw Backorder LGE 4000W4A003A $6.11

View on Model

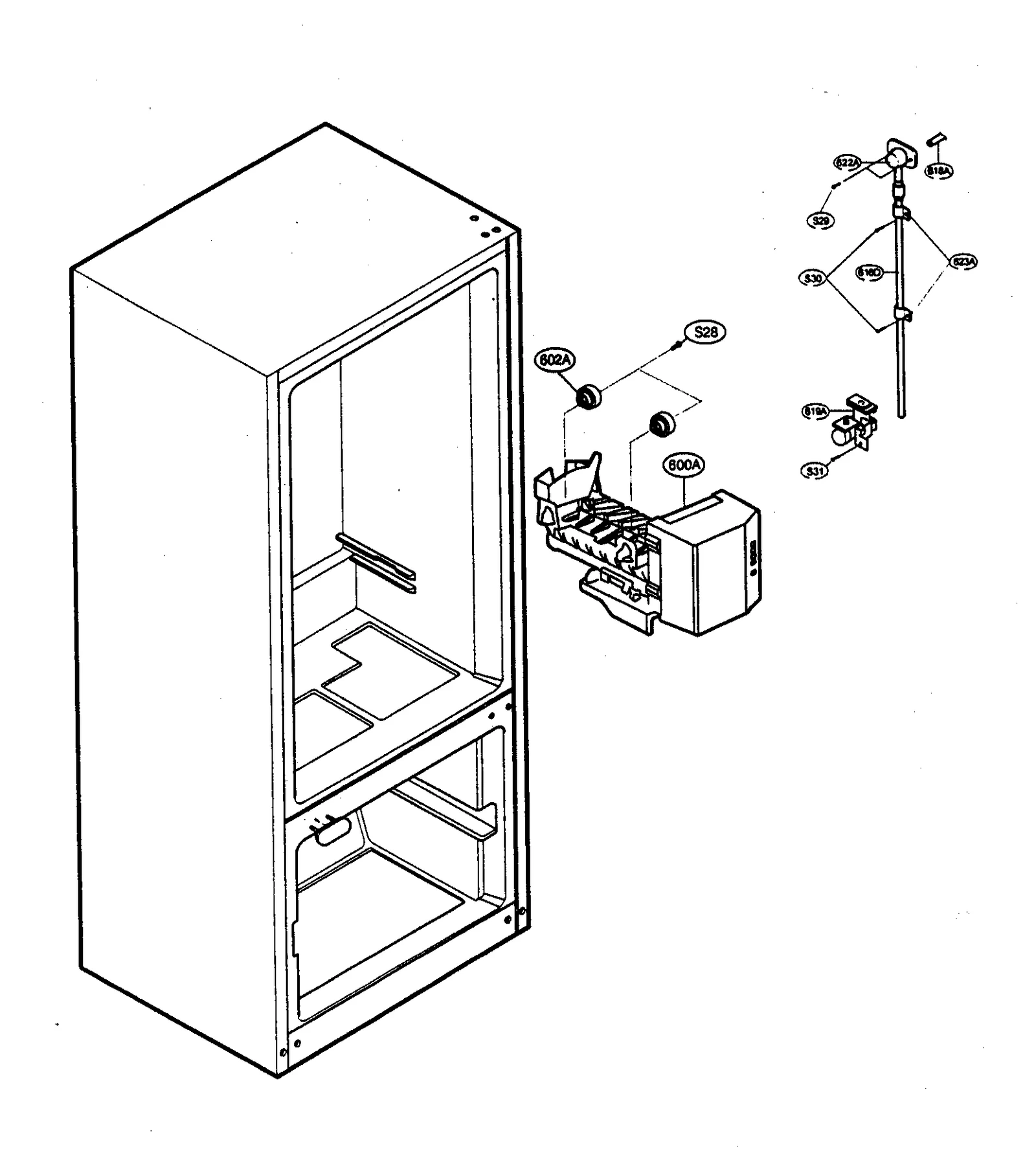

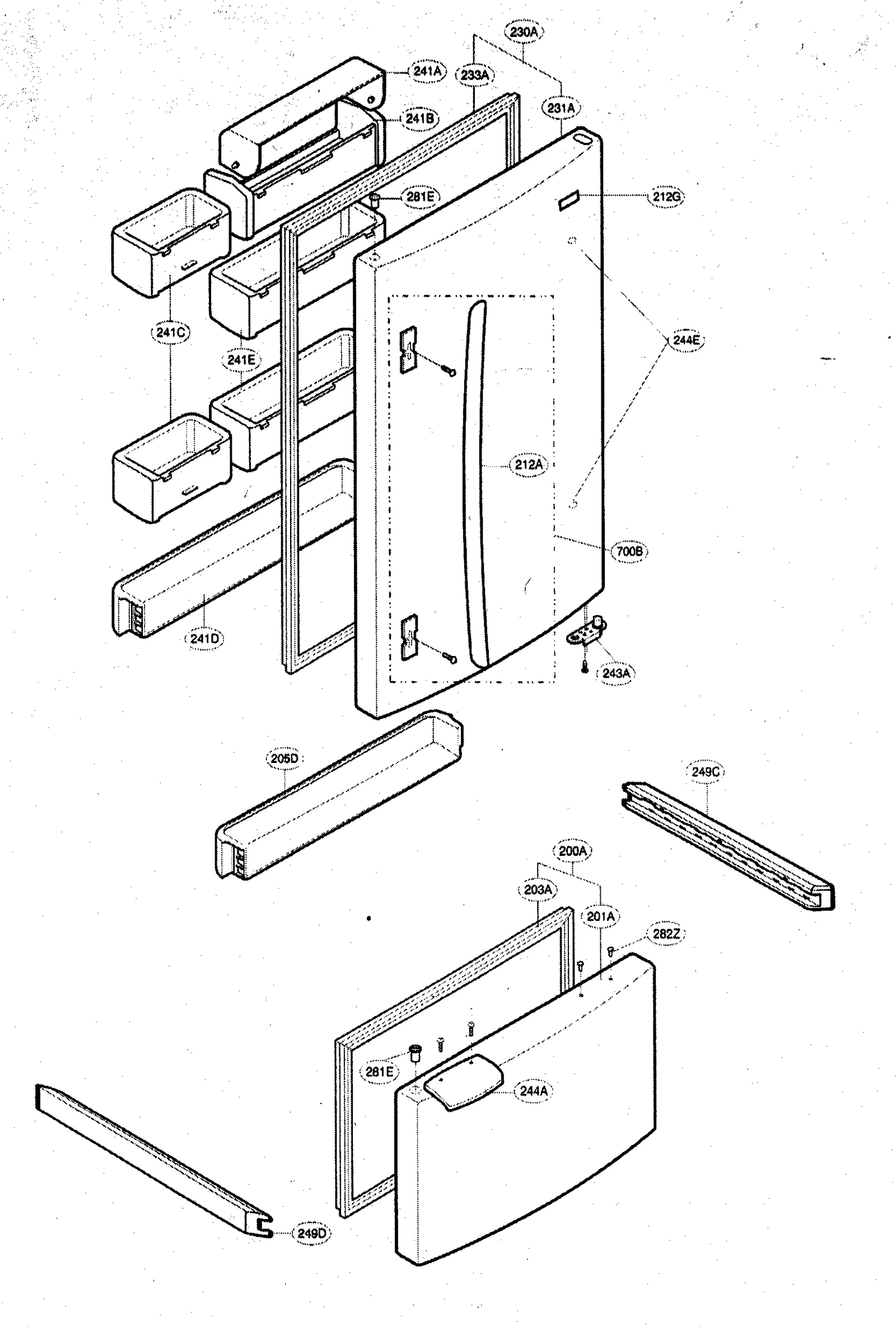

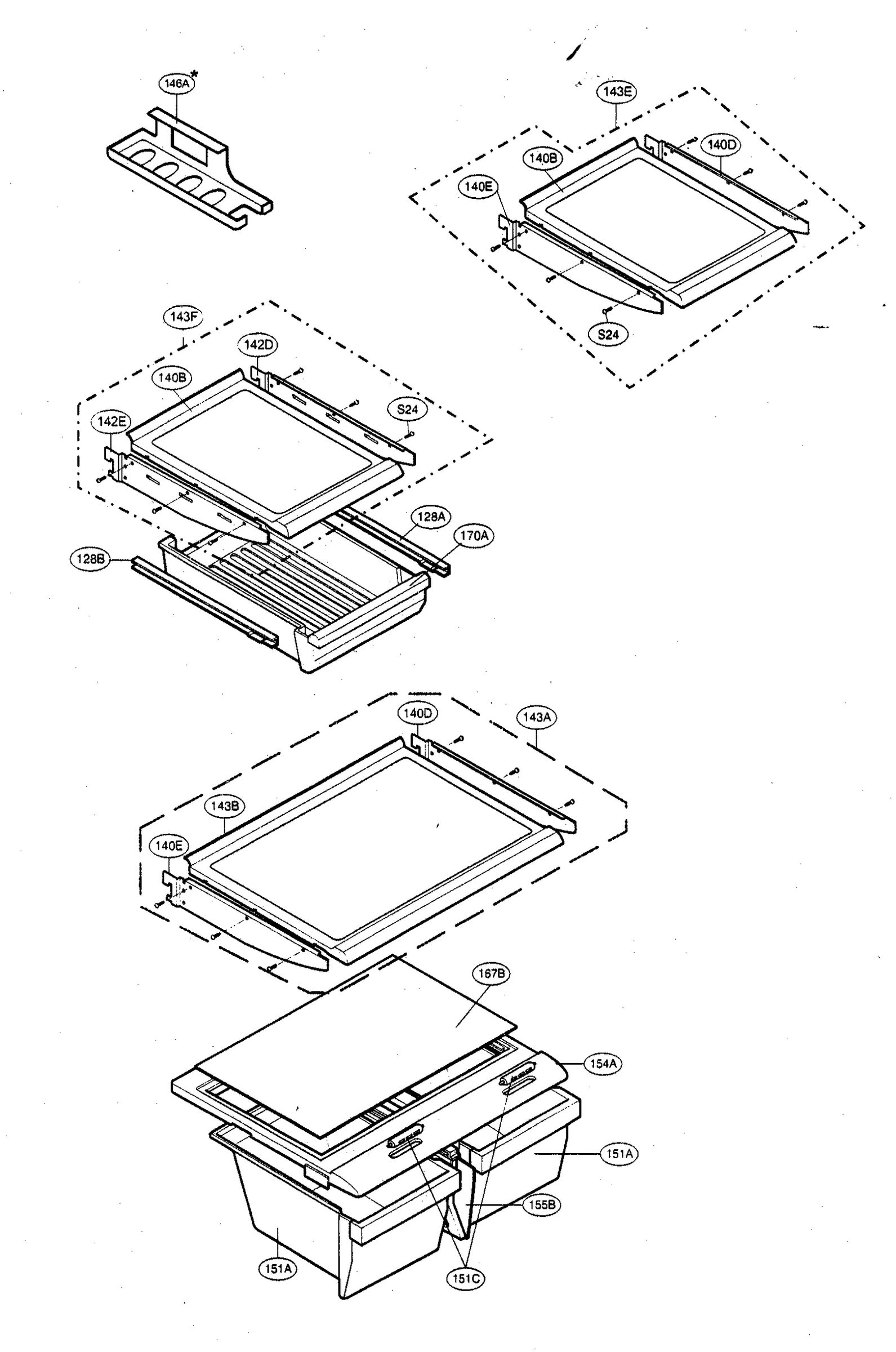

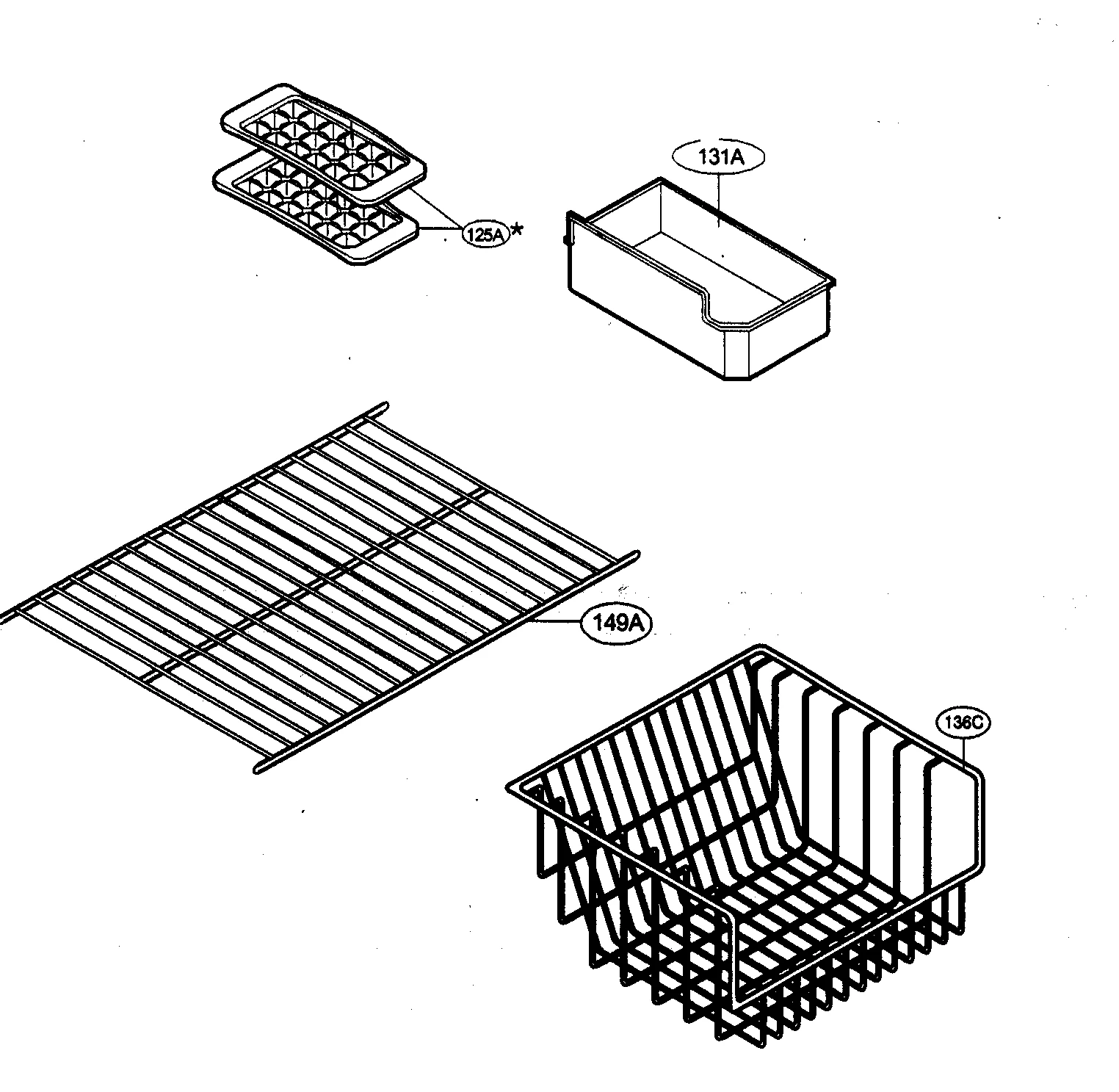

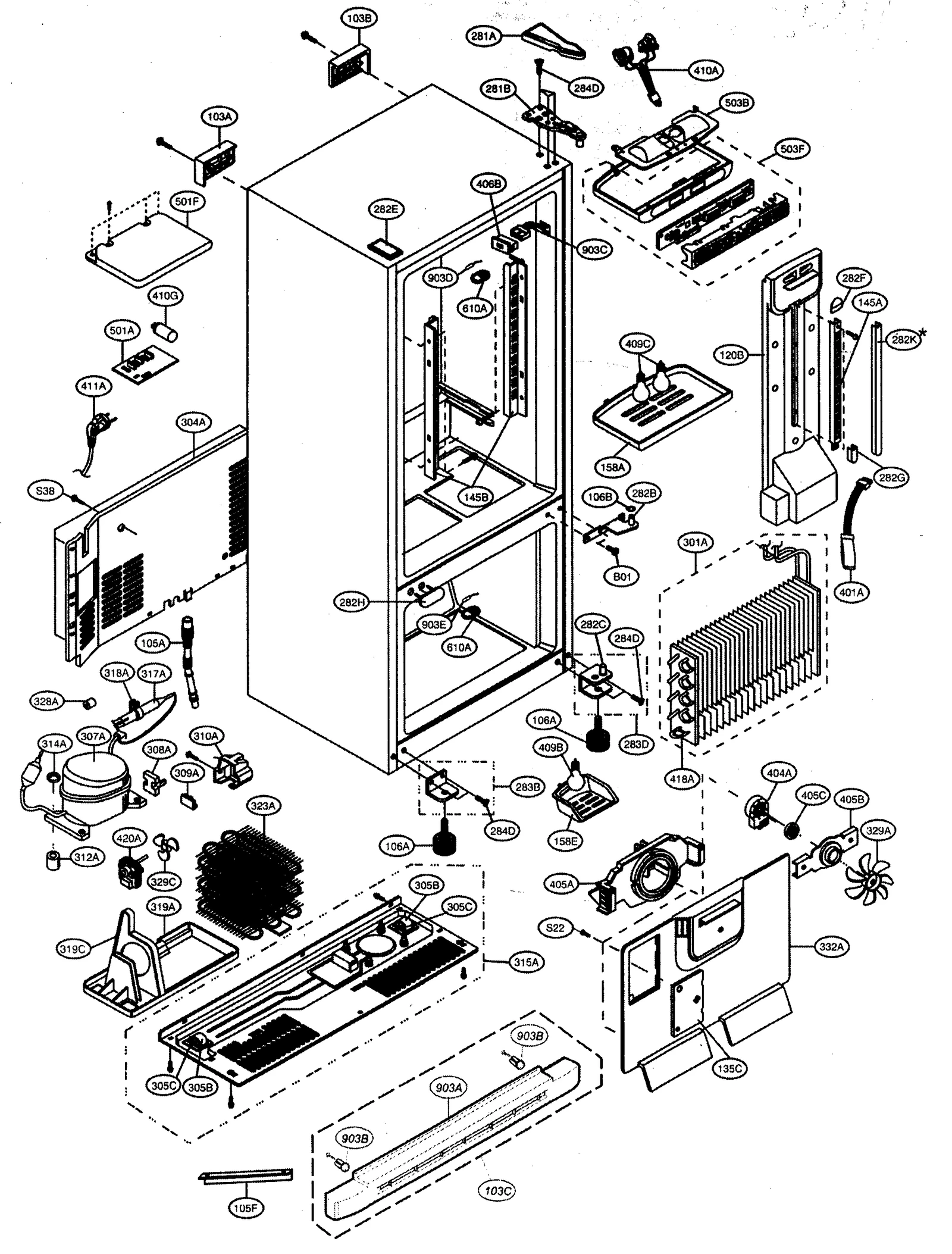

Model LG 795.75219401 Bottom-Mount Refrigerator (Kenmore 79575219401) – Common Parts & Diagrams

Common parts from model LG 795.75219401 Bottom-Mount Refrigerator (Kenmore 79575219401)
