LG 795.58819901 Refrigerator (Kenmore 79558819901) Parts List

103A

Refrigerator Handle, Rear LGE 3650JA3041Y Contact Us For Availability

View on Model

103B

Refrigerator Handle, Rear LGE 3650JA3041Z Contact Us For Availability

View on Model

105A

AJR75805401 LG Drain Tube Assembly Backorder LGE AJR75805401 $16.03

View on Model

105F

Refrigerator Lower Skirt LGE 5070JJ3004C Contact Us For Availability

View on Model

106A

4779JA3001E LG Refrigerator Leg Assembly In Stock LGE 4779JA3001E $10.70

View on Model

110B

4974JA3028A LG Refrigerator Guide Backorder LGE 4974JA3028A $6.73

View on Model

113E

4970JA3011C LG Refrigerator Lever Spring In Stock LGE 4970JA3011C $6.73

View on Model

113F

4930JA3043A LG Refrigerator Holder Lever Backorder LGE 4930JA3043A $6.73

View on Model

120B

5209JJ1013B LG Insulation Duct Assembly Backorder LGE 5209JJ1013B $134.75

View on Model

125A

3390JA1150A LG Refrigerator Freezer Ice Cube In Stock LGE 3390JA1150A $6.73

View on Model

128A

4975JA1021A LG Refrigerator Rail Guide Backorder LGE 4975JA1021A $19.62

View on Model

128B

4975JA1021B LG Refrigerator Left-Hand Bottom/ Backorder LGE 4975JA1021B $25.31

View on Model

128E

Refrigerator Freezer Drawer Slide Rail, Right LGE 4975JA1018B Contact Us For Availability

View on Model

128F

Refrigerator Freezer Drawer Slide Rail, Left LGE 4975JA1018A Contact Us For Availability

View on Model

128G

MEA40002601 LG Refrigerator Snack Drawer Rail Backorder LGE MEA40002601 $32.42

View on Model

128H

MEA40002602 LG Refrigerator Snack (Crisper) D Backorder LGE MEA40002602 $32.42

View on Model

128J

4975JA1022A LG Refrigerator Rail Guide Assemb Backorder LGE 4975JA1022A $17.06

View on Model

131A

5075JJ1003C LG Ice Bucket Assembly Backorder LGE 5075JJ1003C $413.65

View on Model

149A

Refrigerator Freezer Shelf LGE MHL48126402 Contact Us For Availability

View on Model

151A

3391JJ1041D LG Refrigerator Vegetable Tray As Backorder LGE 3391JJ1041D $180.11

View on Model

151B

Refrigerator Crisper Drawer LGE 3391JJ1042D Contact Us For Availability

View on Model

158A

MCK34620601 LG Lamp Cover Backorder LGE MCK34620601 $70.25

View on Model

158C

MCK35849501 LG Lamp Cover Backorder LGE MCK35849501 $41.25

View on Model

161C

3550JJ2074A LG Refrigerator Ice Tray Cover Backorder LGE 3550JJ2074A $19.62

View on Model

203A

Refrigerator Freezer Door Gasket LGE 4987JJ1010J Contact Us For Availability

View on Model

233A

Refrigerator Door Gasket LGE 4987JJ1010K Contact Us For Availability

View on Model

241D

Refrigerator Door Bin LGE AAP34518101 Contact Us For Availability

View on Model

241F

Refrigerator Freezer Door Bin LGE MAN39969001 Contact Us For Availability

View on Model

243B

4621JA3002H LG Door Stopper Assembly Backorder LGE 4621JA3002H $19.62

View on Model

271B

4510JA3004A LG Refrigerator Hinge Lever Backorder LGE 4510JA3004A $6.73

View on Model

276B

Refrigerator Dispenser Lever LGE 5020JA2040K Contact Us For Availability

View on Model

278A

ADW34028002 LG Refrigerator Funnel Assembly Backorder LGE ADW34028002 $88.08

View on Model

281G

4775JA2113A LG Refrigerator Lower Bottom Door In Stock LGE 4775JA2113A $32.42

View on Model

304A

Refrigerator Cover Assembly LGE 3551JA1071A Contact Us For Availability

View on Model

305B

4580JA3024B LG Roller Backorder LGE 4580JA3024B $16.03

View on Model

305C

1PZZJA3013A LG Common Pin Backorder LGE 1PZZJA3013A $6.73

View on Model

307A

Refrigerator Compressor LGE TCA32241801 Contact Us For Availability

View on Model

307B

Refrigerator Compressor LGE ACF67062308 Contact Us For Availability

View on Model

309B

EBG44336202 LG Thermistor PTC Assembly Backorder LGE EBG44336202 $112.26

View on Model

310A

Refrigerator Cover Bracket LGE 4810JJ3033B Contact Us For Availability

View on Model

312A

5040JA3031A LG Refrigerator Compressor Damper Backorder LGE 5040JA3031A $6.73

View on Model

314A

MJB61877901 LG Compressor Stopper Backorder LGE MJB61877901 $9.04

View on Model

315A

3103JJ1004B LG Compressor Base Assembly Backorder LGE 3103JJ1004B $199.84

View on Model

316A

5072JA3003F LG Refrigerator Damper Backorder LGE 5072JA3003F $6.73

View on Model

317A

ADH73150210 LG Dryer Assembly In Stock LGE ADH73150210 $78.76

View on Model

318A

4930JA3034A LG Dryer Holder Backorder LGE 4930JA3034A $6.73

View on Model

319A

3390JJ1109A LG Refrigerator Drip Tray Backorder LGE 3390JJ1109A $88.08

View on Model

319C

4974JJ1053A LG Refrigerator Fan Guide Backorder LGE 4974JJ1053A $39.82

View on Model

319E

Refrigerator Motor Cover LGE 3550JA2147A Contact Us For Availability

View on Model

323B

Refrigerator Condenser Coil LGE 5403JA1003A Contact Us For Availability

View on Model

328A

4J03020A LG Refrigerator Damper Pipe Backorder LGE 4J03020A $6.73

View on Model

329A

5901JA1022A LG Refrigerator Evaporator Fan Bl Backorder LGE 5901JA1022A $16.03

View on Model

329C

5901JJ1019A LG Fan Assembly Backorder LGE 5901JJ1019A $25.31

View on Model

330B

Refrigerator Freezer Shroud Assembly LGE 4999JA2025B Contact Us For Availability

View on Model

332A

Refrigerator Fan Grille Assembly LGE 3531JJ1010A Contact Us For Availability

View on Model

332B

Refrigerator Fan Grille Assembly LGE 3531JJ1011B Contact Us For Availability

View on Model

401A

6615JB2002R LG Refrigerator Temperature Senso Backorder LGE 6615JB2002R $39.82

View on Model

404A

4681JB1029A LG Refrigerator Evaporator Fan Mo In Stock LGE 4681JB1029A $80.63

View on Model

404B

4681JB1029B LG Refrigerator Condenser Fan Mot Backorder LGE 4681JB1029B $96.23

View on Model

405A

Refrigerator Evaporator Fan Motor Bracket LGE 4811JA2009B Contact Us For Availability

View on Model

405C

5040JA2004A LG Refrigerator Motor Support Dam Backorder LGE 5040JA2004A $6.73

View on Model

405F

5040JA2009A LG Damper Motor Support Backorder LGE 5040JA2009A $6.73

View on Model

405G

5040JA2004B LG Refrigerator Motor Rubber Grom Backorder LGE 5040JA2004B $6.73

View on Model

406A

6600JB3007E LG Refrigerator Push Button Switc Backorder LGE 6600JB3007E $19.62

View on Model

409A

Refrigerator Light Bulb LGE 6912JK2002E Contact Us For Availability

View on Model

409B

Refrigerator Light Bulb LGE 6912JB2002G Contact Us For Availability

View on Model

410G

0CZZJB2014G LG Refrigerator Electric Capacito Backorder LGE 0CZZJB2014G $39.82

View on Model

411A

Refrigerator Power Cord LGE EAD56779001 Contact Us For Availability

View on Model

412A

6877JB3019F LG Harness Assembly Backorder LGE 6877JB3019F $47.47

View on Model

412D

EAD37941001 LG Harness Assembly Backorder LGE EAD37941001 $39.28

View on Model

418A

Refrigerator Defrost Heater LGE 5300JB1102D Contact Us For Availability

View on Model

419A

5200JA1019A LG Pipe Joint Backorder LGE 5200JA1019A $53.94

View on Model

419B

Pipe Joint LGE MGE58810302 Contact Us For Availability

View on Model

501A

6871JB1410P LG Refrigerator Main PCB Assembly Backorder LGE 6871JB1410P $446.64

View on Model

501B

Refrigerator User Interface Board LGE 6871JB1391B Contact Us For Availability

View on Model

501F

Refrigerator Electronic Control Board Cover LGE 3551JA1110D Contact Us For Availability

View on Model

501K

Refrigerator Electronic Control Board Housing LGE 3110JA1071A Contact Us For Availability

View on Model

602A

Refrigerator Ice Maker Bracket LGE 4810JA0005A Contact Us For Availability

View on Model

606A

Refrigerator Auger Motor LGE 4681JJ1001B Contact Us For Availability

View on Model

610A

3550JA3095A LG Refrigerator Cover Sensor Backorder LGE 3550JA3095A $10.70

View on Model

610E

Refrigerator Freezer Temperature Sensor Cover LGE 3550JA2035D Contact Us For Availability

View on Model

611B

ADQ72911001 LG Filter Assembly Head Backorder LGE ADQ72911001 $79.08

View on Model

614A

Refrigerator Ice Dispenser Solenoid LGE 6421JA3001Y Contact Us For Availability

View on Model

616D

5210JA3005A LG Refrigerator Plastic Water Tub Backorder LGE 5210JA3005A $10.70

View on Model

616E

5210JA2006B LG Refrigerator Injector Tube In Stock LGE 5210JA2006B $16.03

View on Model

622B

5040JA2015A LG Refrigerator Rubber Injector S Backorder LGE 5040JA2015A $19.62

View on Model

627A

4930JA3054A LG Pipe Holder Backorder LGE 4930JA3054A $6.73

View on Model

627D

MEG42758601 LG Pipe Holder Backorder LGE MEG42758601 $6.73

View on Model

903E

6500JB2002T LG Refrigerator Freezer Temperatu Backorder LGE 6500JB2002T $18.70

View on Model

S15

4J00415D LG Refrigerator Customized Screw Backorder LGE 4J00415D $6.73

View on Model

S38

4000W4A003A LG Refrigerator Customized Screw Backorder LGE 4000W4A003A $6.21

View on Model

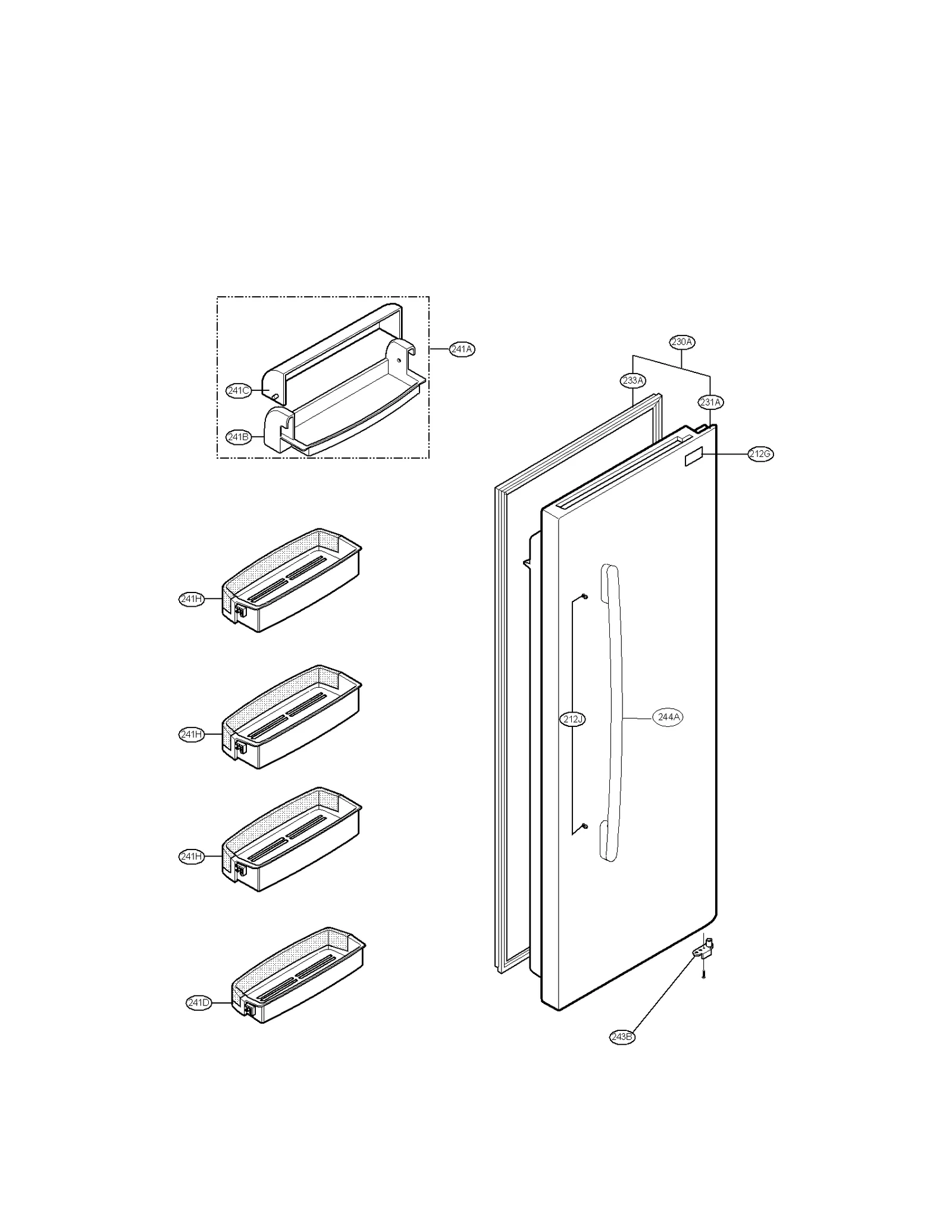

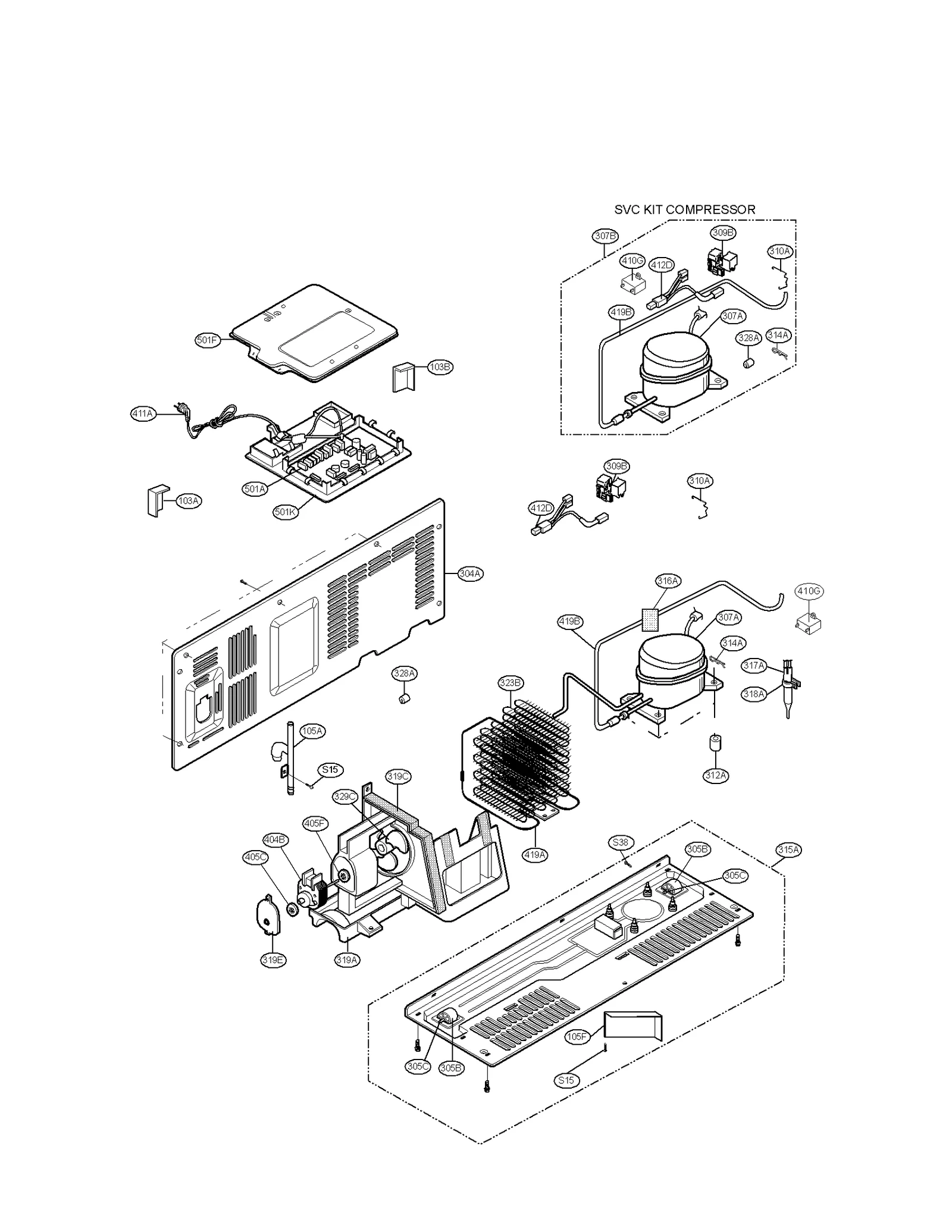

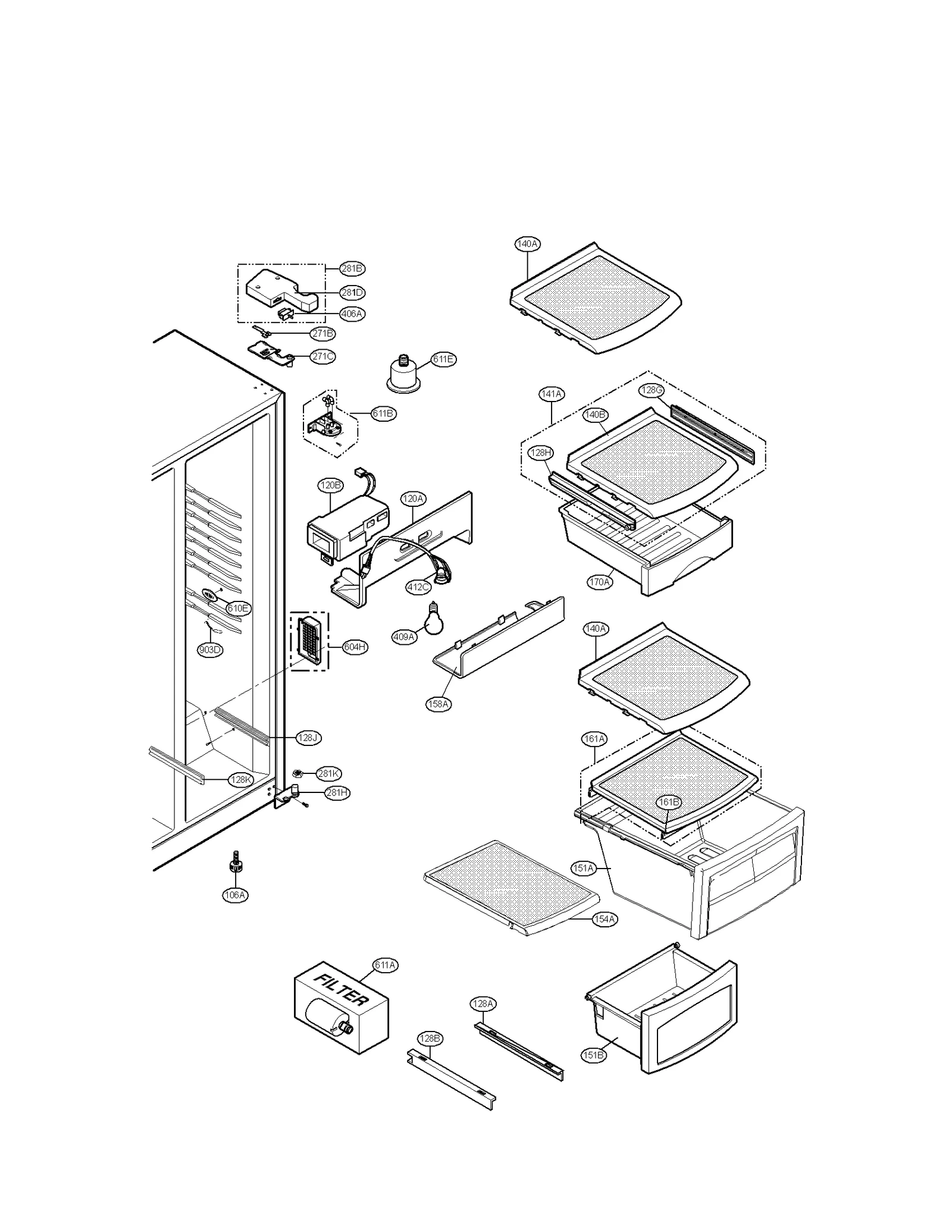

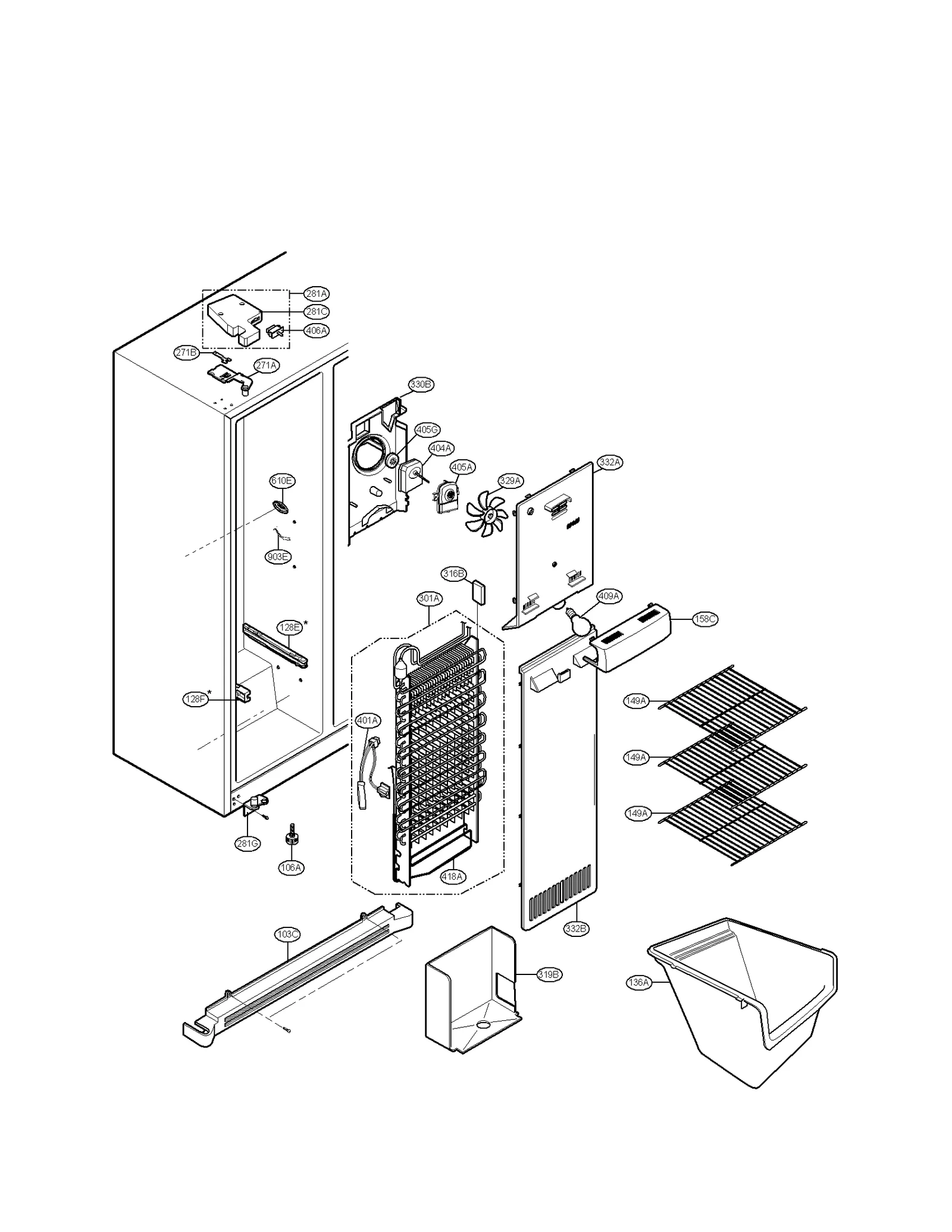

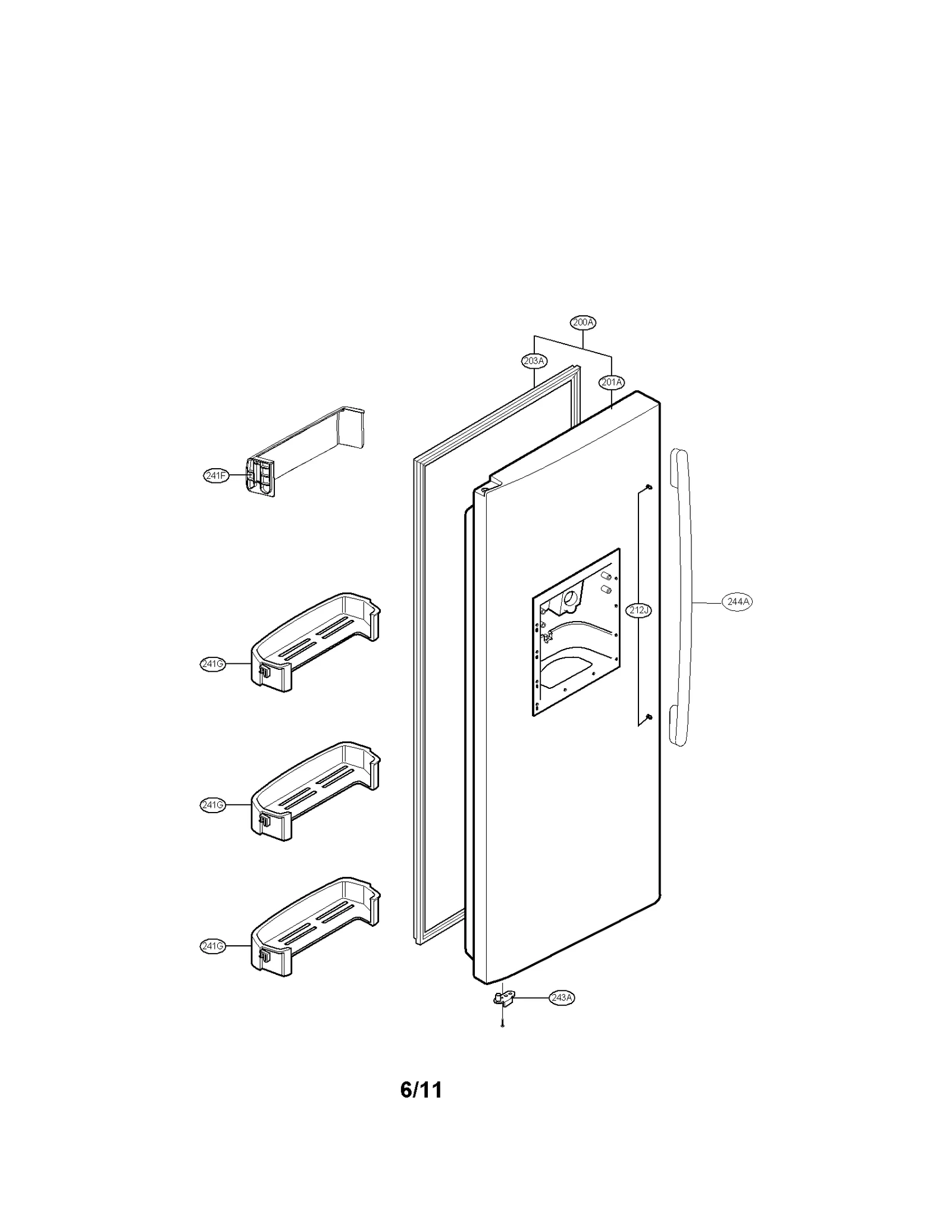

Model LG 795.58819901 Refrigerator (Kenmore 79558819901) – Common Parts & Diagrams

Common parts from model LG 795.58819901 Refrigerator (Kenmore 79558819901)
