Model Kenmore 79060031100 RANGE – Common Parts & Diagrams

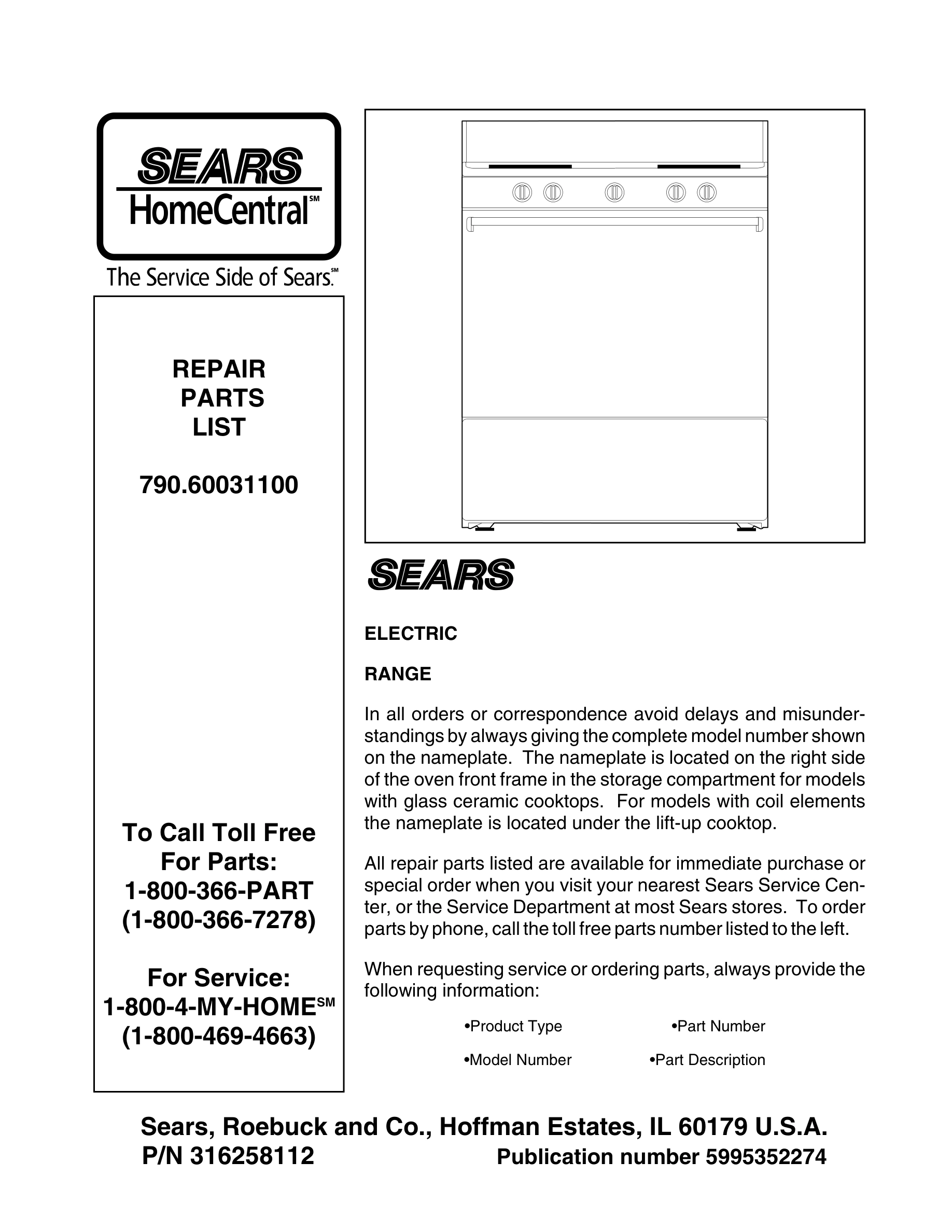

01 - COVER

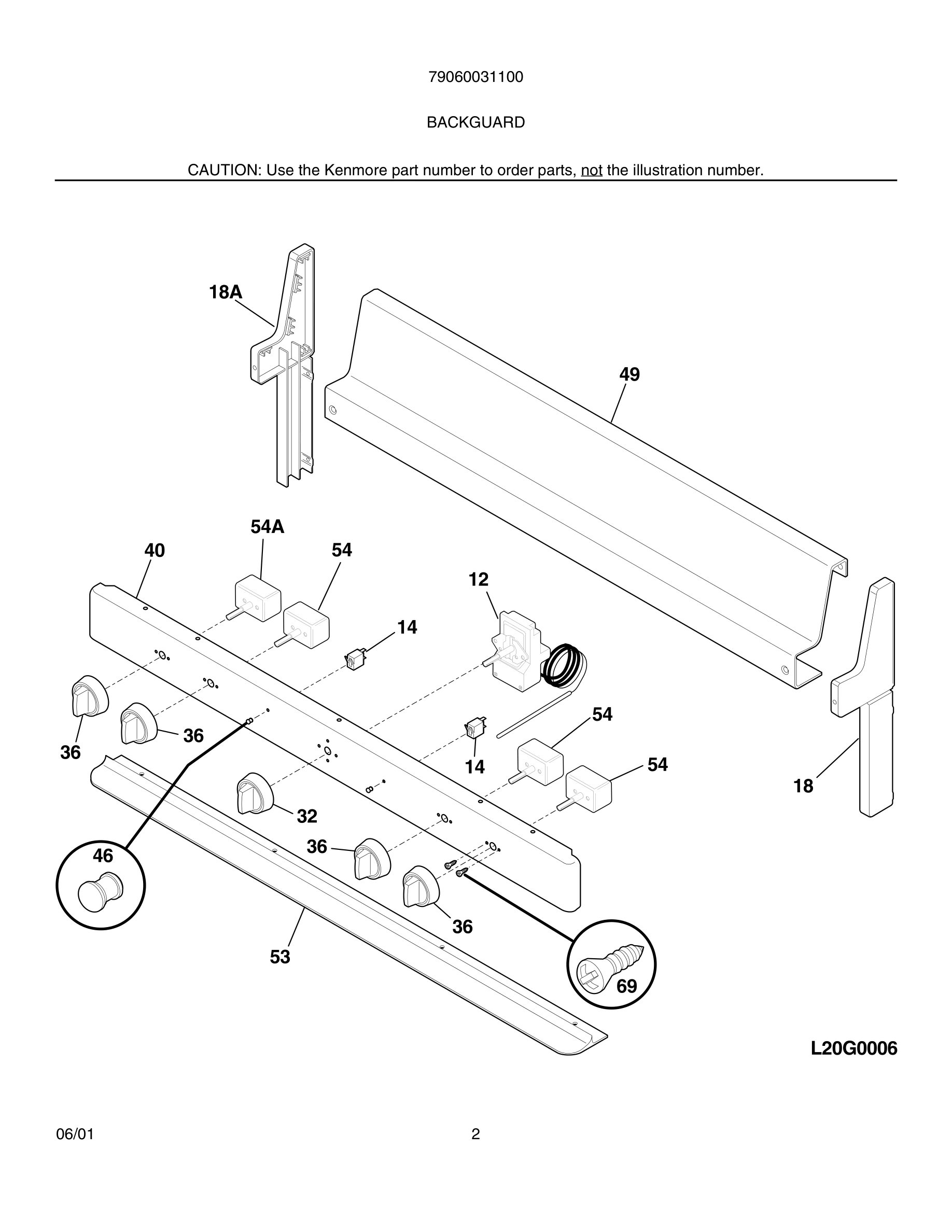

03 - BACKGUARD

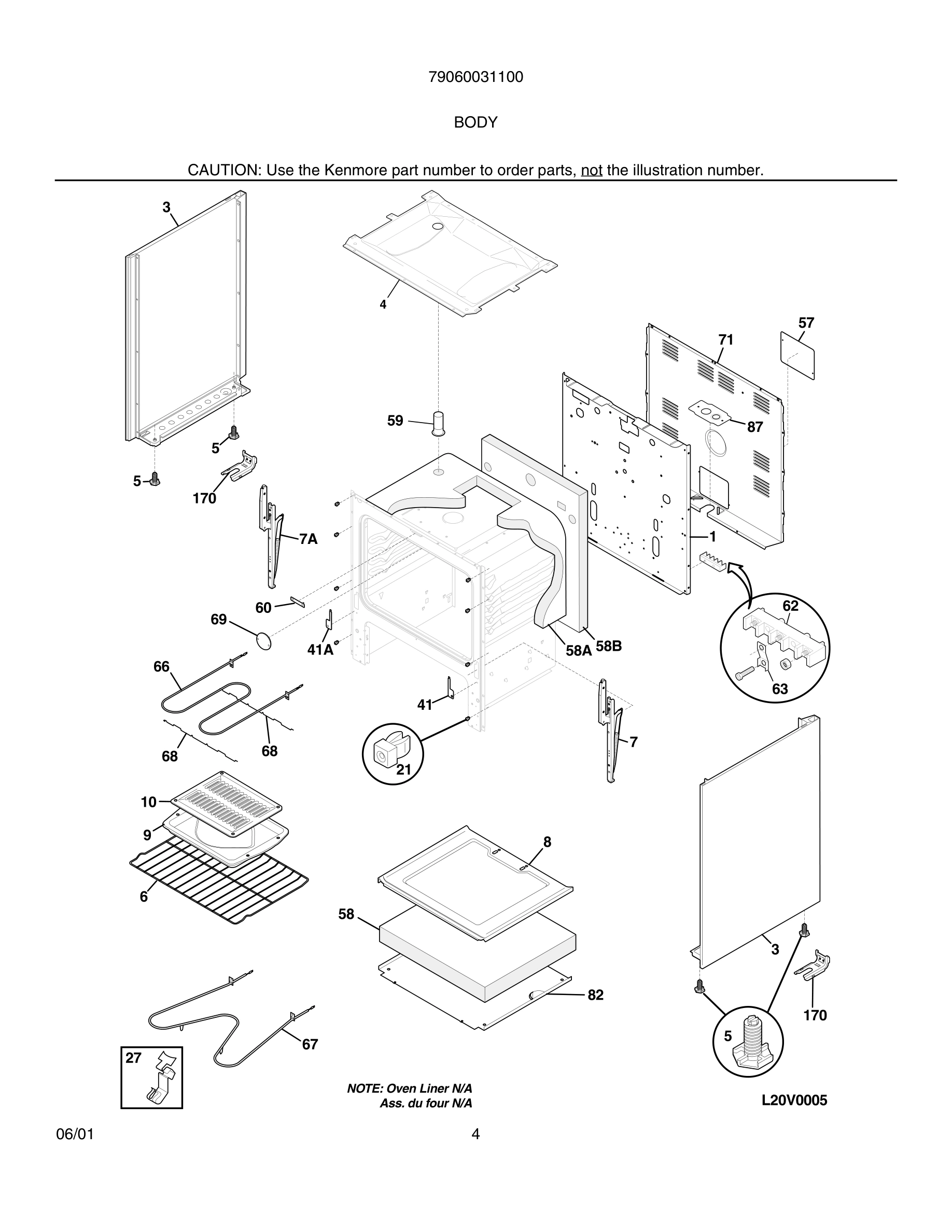

05 - BODY

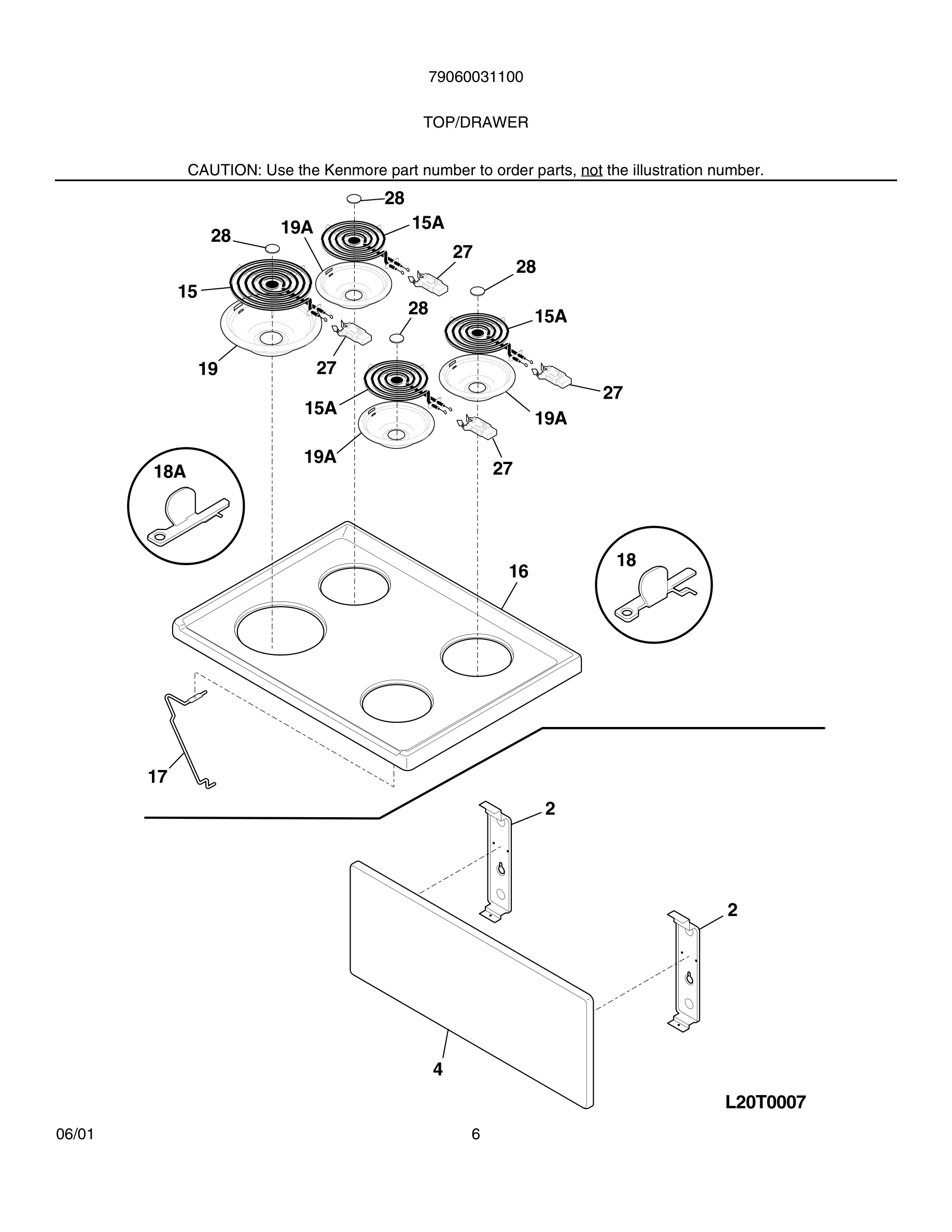

07 - TOP/DRAWER

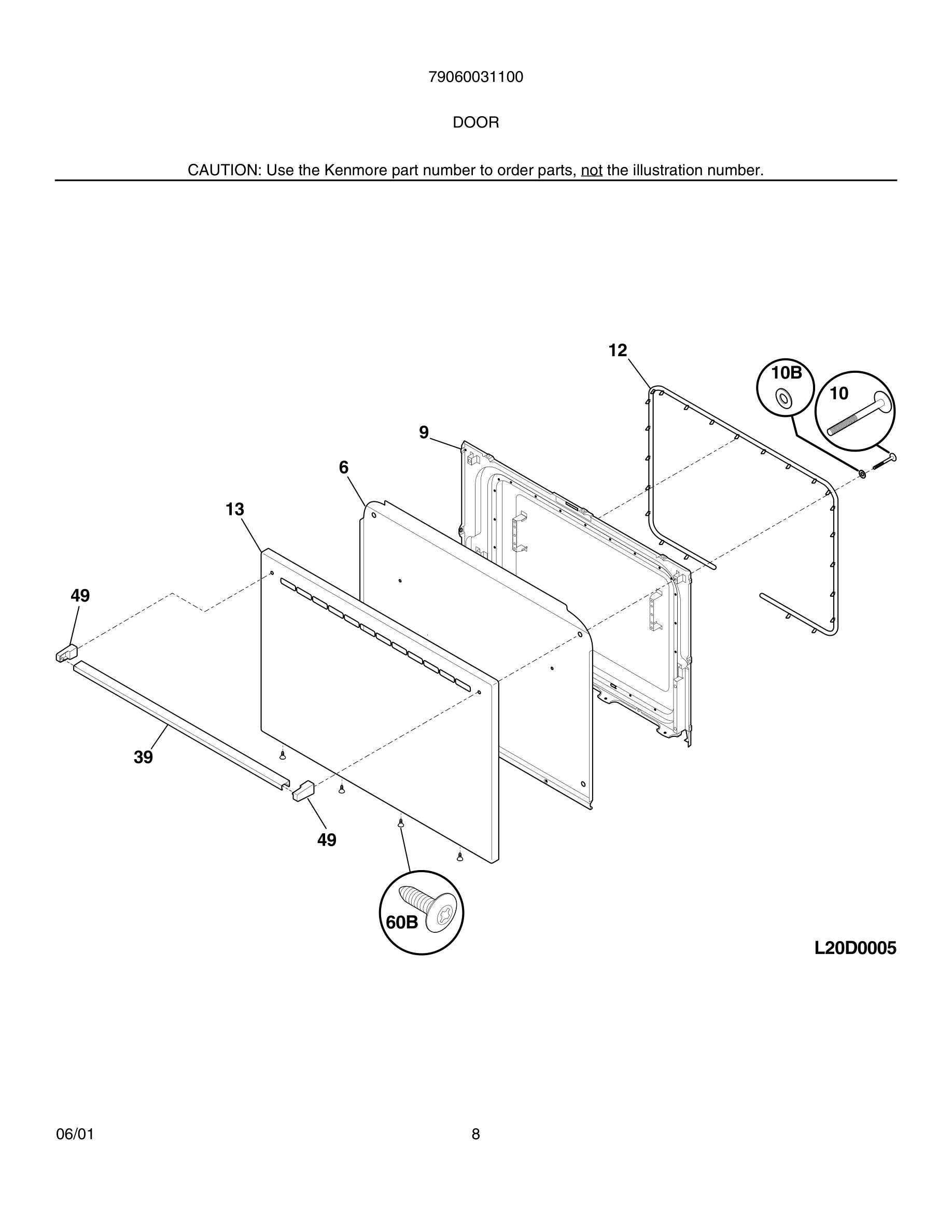

09 - DOOR

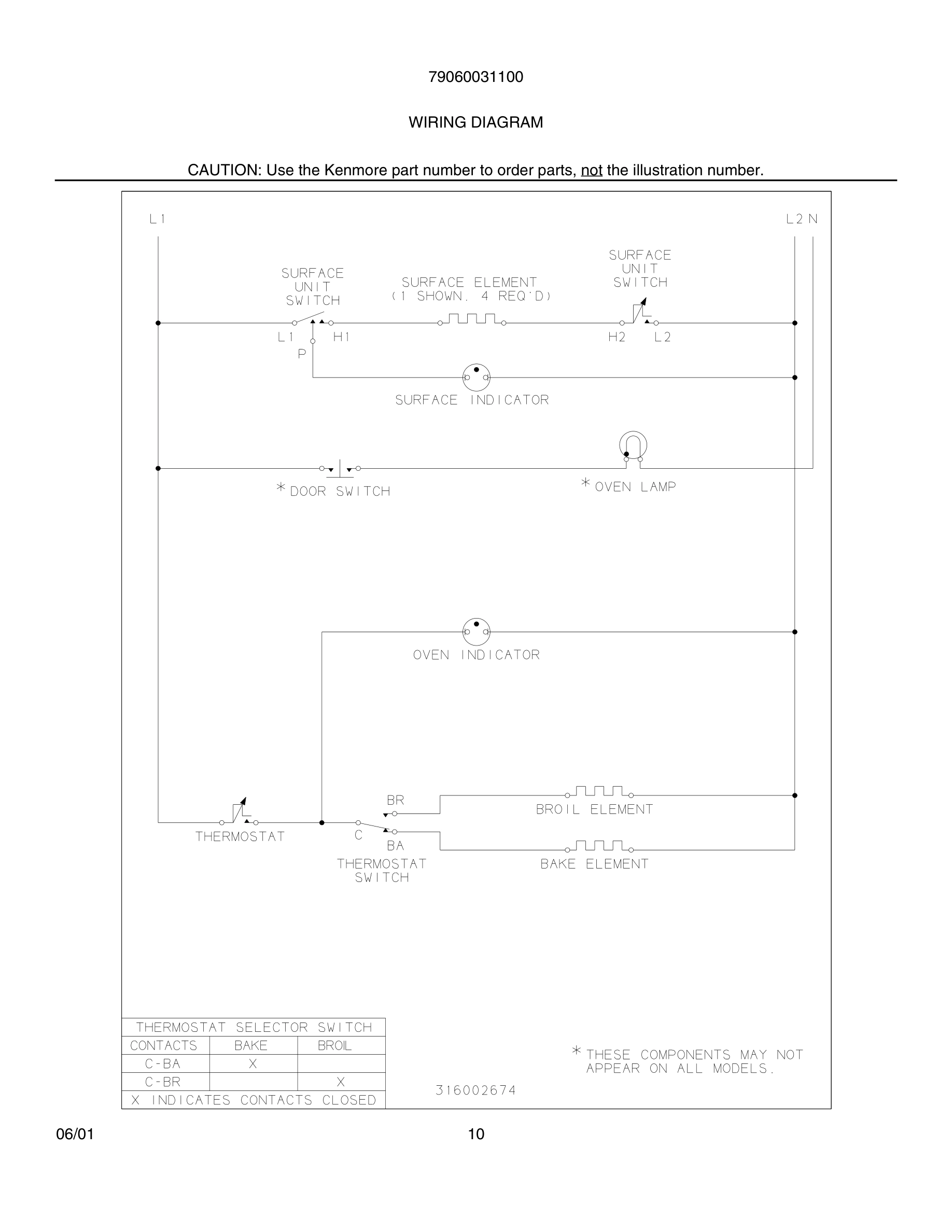

10 - WIRING DIAGRAM
Common parts from model Kenmore 79060031100 RANGE
*
Screw,cup pt ,8-18 x 0.375 ,chrome WCI 316021108 Contact Us For Availability
*
Plug-button,oven probe WCI 316246400 Contact Us For Availability
*
Screw,wafer hd sq dr ,10-32 x 0.312 WCI 5303280311 Contact Us For Availability
*
Label,anti-tip WCI 316071606 Contact Us For Availability
4
Panel-drawer,dummy ,white WCI 316231216 Contact Us For Availability
5
Screw-leveling,plastic ,with stop WCI 316129200 Contact Us For Availability
6
Shield-wool,oven door WCI 316222705 Contact Us For Availability
9
Pan-broiler WCI 316081900 Contact Us For Availability
9
Liner-door,oven WCI 316230603 Contact Us For Availability
10
Insert-broiler pan WCI 316082000 Contact Us For Availability
12#
Thermostat WCI 316114600 Contact Us For Availability
13
Panel-oven door,white WCI 316202603 Contact Us For Availability
16
Main Top,white WCI 316245406 Contact Us For Availability
17
Rod-maintop support WCI 316066900 Contact Us For Availability
18
End Cap,black ,RH WCI 3202802 Contact Us For Availability
18
Bracket,hinge ,main top RH WCI 08067747 Contact Us For Availability
18A
End Cap,black ,LH WCI 3202801 Contact Us For Availability
18A
Bracket,hinge ,main top LH WCI 08067746 Contact Us For Availability
19#
Pan-surface element,large ,chrome ,w/clip WCI 318067055 Contact Us For Availability
21
Spacer-bodyside WCI 3014099 Contact Us For Availability
39
Handle-door,black ,oven WCI 316020204 Contact Us For Availability
41
Cover-hinge,cutout ,RH WCI 316233400 Contact Us For Availability
× ![]()
