Model Electrolux 790.98043900 Electric Range (Kenmore 79098043900) – Common Parts & Diagrams
BODY

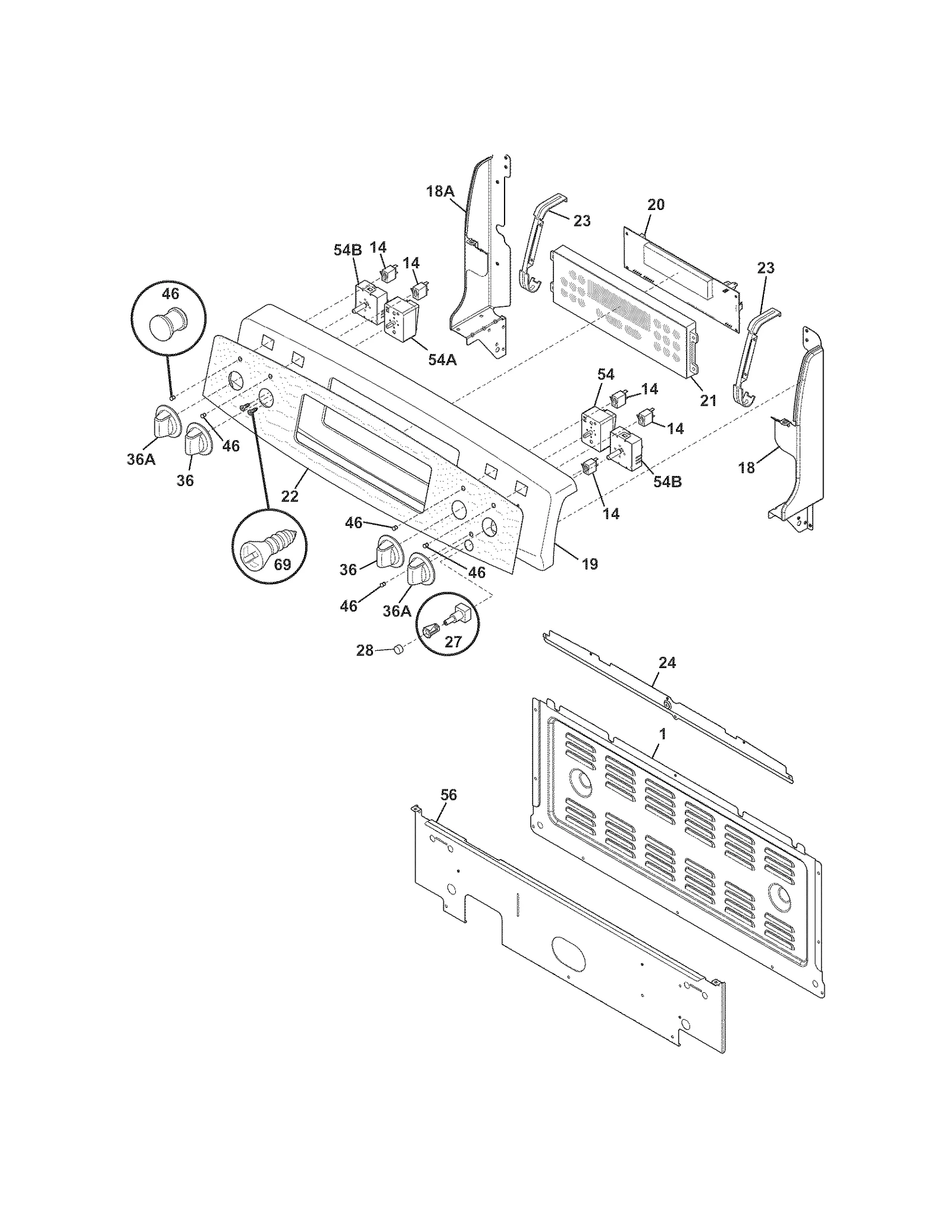

BACKGUARD
DOORS
MAINTOP
Common parts from model Electrolux 790.98043900 Electric Range (Kenmore 79098043900)
1
Panel WCI 318314110 Contact Us For Availability
3
Range Oven Door Lower Trim (Black) WCI 318301412 Contact Us For Availability
3A
Range Trim WCI 318301422 Contact Us For Availability
5
Range Leveling Leg WCI 318175503 Contact Us For Availability
6
**baffle Doo WCI 318260522 Contact Us For Availability
6A
Baffle WCI 318260524 Contact Us For Availability
9
Oven Liner WCI 318360106 Contact Us For Availability
9A
Liner WCI 318259664 Contact Us For Availability
10
Screw WCI 5304465875 Contact Us For Availability
11
Range Oven Rack Ladder WCI 318603810 Contact Us For Availability
12A
Range Oven Door Seal, Upper WCI 318053152 Contact Us For Availability
13
Range Lower Oven Outer Door Panel WCI 318187995 Contact Us For Availability
13A
Range Panel WCI 318187988 Contact Us For Availability
15C
Element WCI 318415300 Contact Us For Availability
16
Range Oven Door Inner Glass WCI 318212210 Contact Us For Availability
16
Range Main Top Assembly WCI 318394208 Contact Us For Availability
16A
Range Oven Door Inner Glass, Upper WCI 318212211 Contact Us For Availability
16B
Range Oven Door Inner Glass WCI 318212212 Contact Us For Availability
17
Wall Oven Light Lens Retainer WCI 5304400195 Contact Us For Availability
18
Range Oven Light Housing WCI 318222400 Contact Us For Availability
18
Range Oven Door Hinge Support Bracket WCI 316436600 Contact Us For Availability
18
Oven End Cap WCI 318311944 Contact Us For Availability
18A
Oven End Cap WCI 318311945 Contact Us For Availability
19
Panel WCI 318319816 Contact Us For Availability
20
Plate WCI 318389400 Contact Us For Availability
20
Range Oven Control Board WCI 316443849 Contact Us For Availability
21
Timer WCI 318566011 Contact Us For Availability
22
Overlay WCI 318566100 Contact Us For Availability
23
Range Oven Control Bracket WCI 316441500 Contact Us For Availability
23
Oven Door Hinge WCI 318567106 Contact Us For Availability
23A
Hinge WCI 318024753 Contact Us For Availability
24
Trim WCI 318566201 Contact Us For Availability
26
Bracket WCI 318410902 Contact Us For Availability
26A
Bracket WCI 318405701 Contact Us For Availability
26B
Range Radiant Element Support Bracket, Front WCI 316214202 Contact Us For Availability
27
Range Simmer Select Switch (Black) WCI 5303935316 Contact Us For Availability
28
Range Simmer Select Switch Button (Black) WCI 316219301 Contact Us For Availability
36
Range Knob WCI 316553605 Contact Us For Availability
36A
Range Knob WCI 316553614 Contact Us For Availability
39
Handle WCI 318930002 Contact Us For Availability
41
Range Oven Door Hinge Cut-Out Trim WCI 5303310526 Contact Us For Availability
55
Cooking Appliance Element Spacer WCI 5303317178 Contact Us For Availability
56
Range Surface Element Screw WCI 5303317179 Contact Us For Availability
56
Shield WCI 318534912 Contact Us For Availability
58A
Insulation WCI 318362141 Contact Us For Availability
81
Wall Oven Rear Shield Spring Clip WCI 318192400 Contact Us For Availability
86A
Range Oven Door Hinge Receiver WCI 318342400 Contact Us For Availability
107
Range Convection Fan Cover WCI 318219405 Contact Us For Availability
108
Range Convection Fan Motor Support Bracket WCI 318251300 Contact Us For Availability
127
Adapter WCI 318357001 Contact Us For Availability
NI
Range Oven Rack Ladder Bracket Rivet WCI 5304456367 Contact Us For Availability
NI
Appliance Cleaning Pad WCI 316459400 Contact Us For Availability
NI
Washer WCI 318142100 Contact Us For Availability
NI
SCREW, HOUSING, 8 X 1/2", UPPER OVEN (NOT SHO WCI 08011122 Contact Us For Availability
NI
Insulation WCI 318346050 Contact Us For Availability
NI
Oven Seal WCI 318368501 Contact Us For Availability
NI
Wiring Harness WCI 318370378 Contact Us For Availability
NI
Wall Oven Wire Harness WCI 318532135 Contact Us For Availability
NI
Range Wire Harness WCI 318532187 Contact Us For Availability
NI
Spacer WCI 5304455945 Contact Us For Availability
NI
Wiring Diagram WCI 318046136 Contact Us For Availability
NI
Service Data Sheet WCI 318204810 Contact Us For Availability
NI
Range Owner's Manual WCI 318205202 Contact Us For Availability
NI
Harness WCI 318532188 Contact Us For Availability
NI
Harness WCI 318532189 Contact Us For Availability
NI
Range Oven Door Handle Spacer WCI 5303310504 Contact Us For Availability
NI
Range Screw, #10 x 1/2-in WCI 5303317975 Contact Us For Availability
NI
Range Screw WCI 5304454881 Contact Us For Availability
NI
Repair Parts List WCI 5995547899 Contact Us For Availability
NI
Electrolux Appliance Stainless Steel Cleaner, WCI 316136900 Contact Us For Availability
NI
Screw WCI 08016432 Contact Us For Availability
NI
Cleaner-cook WCI 316112100 Contact Us For Availability
NI
Harness WCI 318199392 Contact Us For Availability
× ![]()
