Model Electrolux 790.95924303 Electric Range (Kenmore 79095924303) – Common Parts & Diagrams

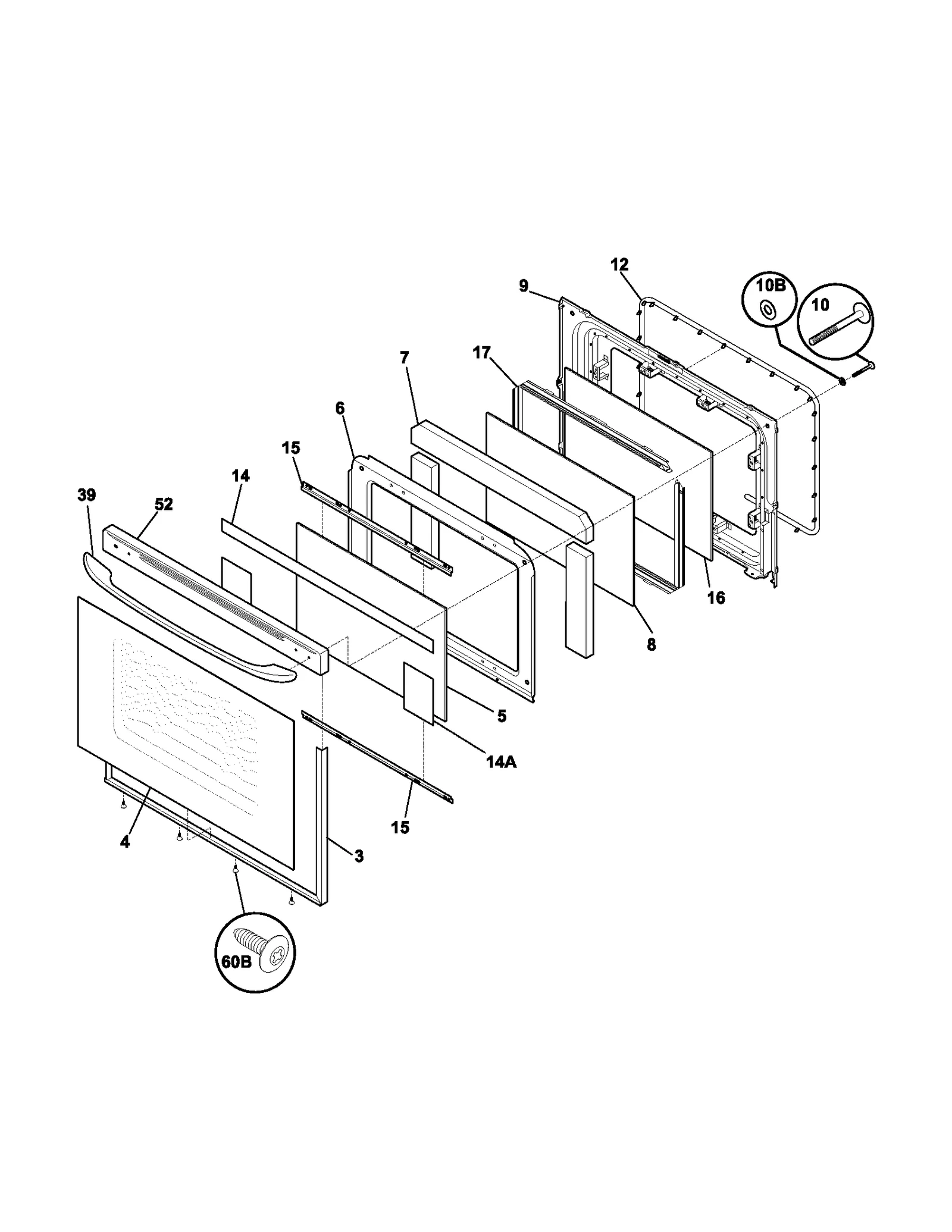

DOOR

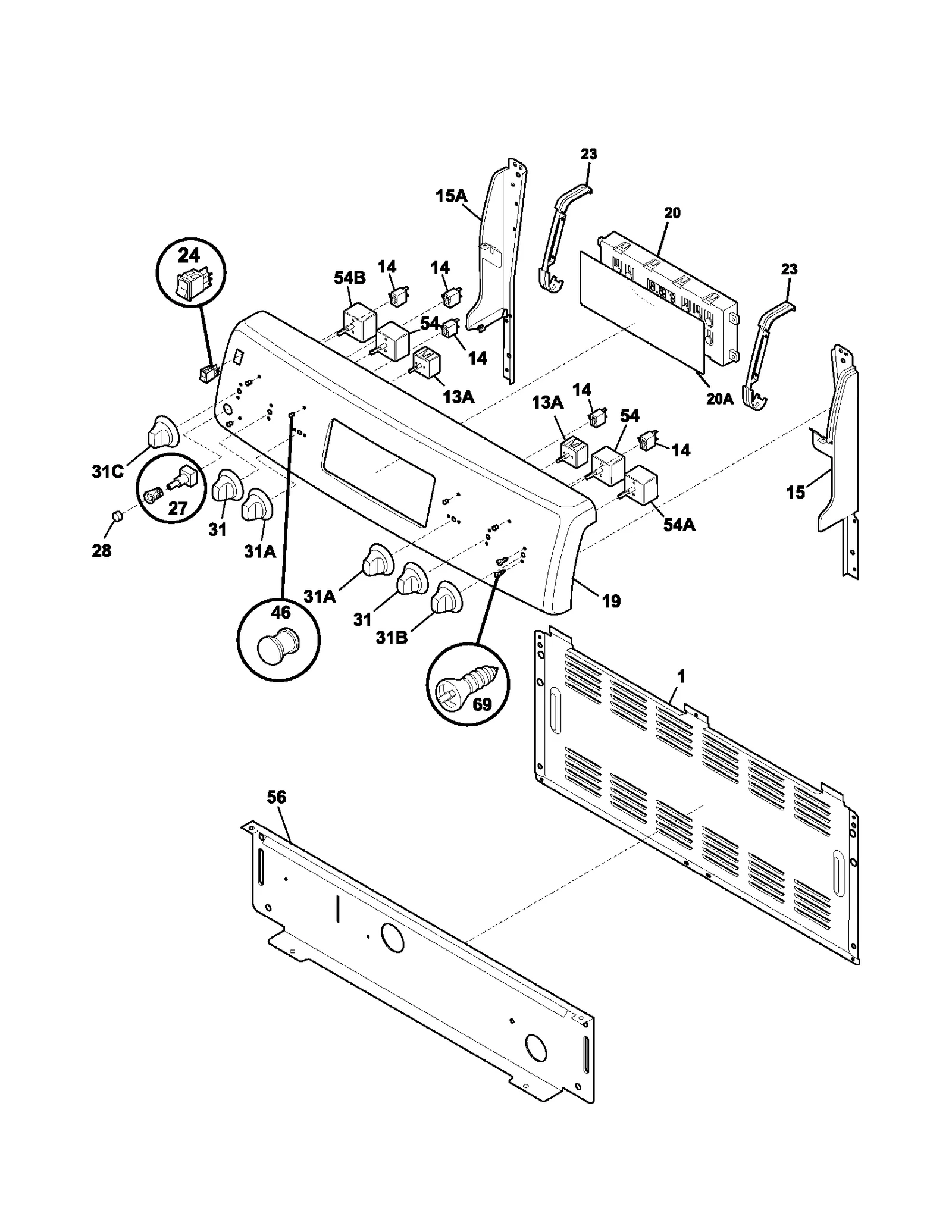

BACKGUARD
BODY
TOP/DRAWER
Common parts from model Electrolux 790.95924303 Electric Range (Kenmore 79095924303)
1
Warming Drawer WCI 316115901 Contact Us For Availability
2
Liner WCI 316231503 Contact Us For Availability
3
Range Oven Door Trim Kit WCI 5303935191 Contact Us For Availability
3
Range Oven Door Trim Kit (White) WCI 5303935192 Contact Us For Availability
4
Range Oven Door Outer Panel and Foil Tape (Bl WCI 5303935216 Contact Us For Availability
4
Drawer Panel WCI 316231301 Contact Us For Availability
4
Drawer Panel WCI 316231302 Contact Us For Availability
4
Drawer Panel WCI 316231308 Contact Us For Availability
5
Range Leveling Leg WCI 316129200 Contact Us For Availability
7
Range Oven Door Insulation WCI 316236700 Contact Us For Availability
7A
Range Oven Door Hinge, Left WCI 316216501 Contact Us For Availability
8
Range Oven Bottom Panel WCI 316201501 Contact Us For Availability
9
Range Broil Pan WCI 316081900 Contact Us For Availability
10
Range Broil Pan Insert WCI 316082000 Contact Us For Availability
12
Range Oven Door Switch WCI 316209903 Contact Us For Availability
13
Drawer Glide WCI 316231700 Contact Us For Availability
13A
Drawer Glide WCI 316231701 Contact Us For Availability
15
Support WCI 316220214 Contact Us For Availability
15C
Cooktop Element WCI 318198804 Contact Us For Availability
16
Range Oven Door Inner Glass WCI 316117501 Contact Us For Availability
16
Wht Main Top WCI 316251956 Contact Us For Availability
16
Range Main Top (Black) WCI 316251958 Contact Us For Availability
16
Bisq Maintop WCI 316251960 Contact Us For Availability
17
Glass Spacer WCI 316117701 Contact Us For Availability
18
Range Oven Door Latch WCI 316213900 Contact Us For Availability
18
Hinge Main WCI 316235900 Contact Us For Availability
18A
Hinge Main WCI 316235901 Contact Us For Availability
20
Range Oven Control Board WCI 316207620 Contact Us For Availability
20A
Range Oven Control Overlay WCI 316243317 Contact Us For Availability
26A
Bracket WCI 316099202 Contact Us For Availability
26B
Bracket Support WCI 316214200 Contact Us For Availability
27
Range Simmer Select Switch and Bezel (Black) WCI 5303935218 Contact Us For Availability
27
Range Simmer Select Switch and Bezel (White) WCI 5303935217 Contact Us For Availability
27
Range Simmer Select Switch and Bezel WCI 5303935219 Contact Us For Availability
28
Range Simmer Select Switch Button (Black) WCI 316219301 Contact Us For Availability
31
Range Surface Burner Knob WCI 316208100 Contact Us For Availability
31
Range Surface Burner Knob WCI 316208102 Contact Us For Availability
31A
Range Warming Drawer Knob WCI 316208104 Contact Us For Availability
31A
Range Warming Drawer Knob WCI 316208103 Contact Us For Availability
31A
Range Warming Drawer Knob (Bisque) WCI 316208105 Contact Us For Availability
31B
Range Surface Burner Knob WCI 316208110 Contact Us For Availability
31B
Range Surface Burner Knob WCI 316208111 Contact Us For Availability
31C
Range Surface Burner Knob WCI 316208106 Contact Us For Availability
31C
Range Surface Element Knob WCI 316208107 Contact Us For Availability
39
Range Warming Drawer Handle (Black) WCI 316235406 Contact Us For Availability
39
Range Warming Drawer Handle (White) WCI 316235407 Contact Us For Availability
39
Range Broil Drawer Handle (Bisque) WCI 316235408 Contact Us For Availability
41
Range Oven Door Hinge Cover, Right WCI 316233400 Contact Us For Availability
44
Door Spacer WCI 316246500 Contact Us For Availability
52
Range Radiant Element Mounting Clip WCI 316278300 Contact Us For Availability
58A
Range Oven Insulation WCI 316047708 Contact Us For Availability
82
Range Warming Drawer Element Mounting Bracket WCI 316093200 Contact Us For Availability
83
Terminal Shield WCI 316093300 Contact Us For Availability
84
Range Warming Drawer Safety Thermostat WCI 316093501 Contact Us For Availability
86
Range Warming Drawer Element Bracket WCI 316095800 Contact Us For Availability
87
Range Warming Drawer Base Panel WCI 316091900 Contact Us For Availability
96
Lock Clip WCI 316122000 Contact Us For Availability
97
Range Screw WCI 316003802 Contact Us For Availability
108
Range Convection Fan Motor WCI 316136300 Contact Us For Availability
NI
Bisq Paint WCI 5304414035 Contact Us For Availability
NI
Range Screw WCI 316021108 Contact Us For Availability
NI
Range Screw WCI 5303280311 Contact Us For Availability
NI
Electronic Harness WCI 316269525 Contact Us For Availability
NI
Range Warming Drawer Wire Harness WCI 316001917 Contact Us For Availability
NI
Cleaner-cook WCI 316112100 Contact Us For Availability
NI
Electronic Harness WCI 316253532 Contact Us For Availability
NI
Range Warming Drawer Wire Harness WCI 316253603 Contact Us For Availability
× ![]()
