Model Electrolux 790.95889301 Electric Range (Kenmore 79095889301) – Common Parts & Diagrams
TOP/DRAWER
BODY
DOOR

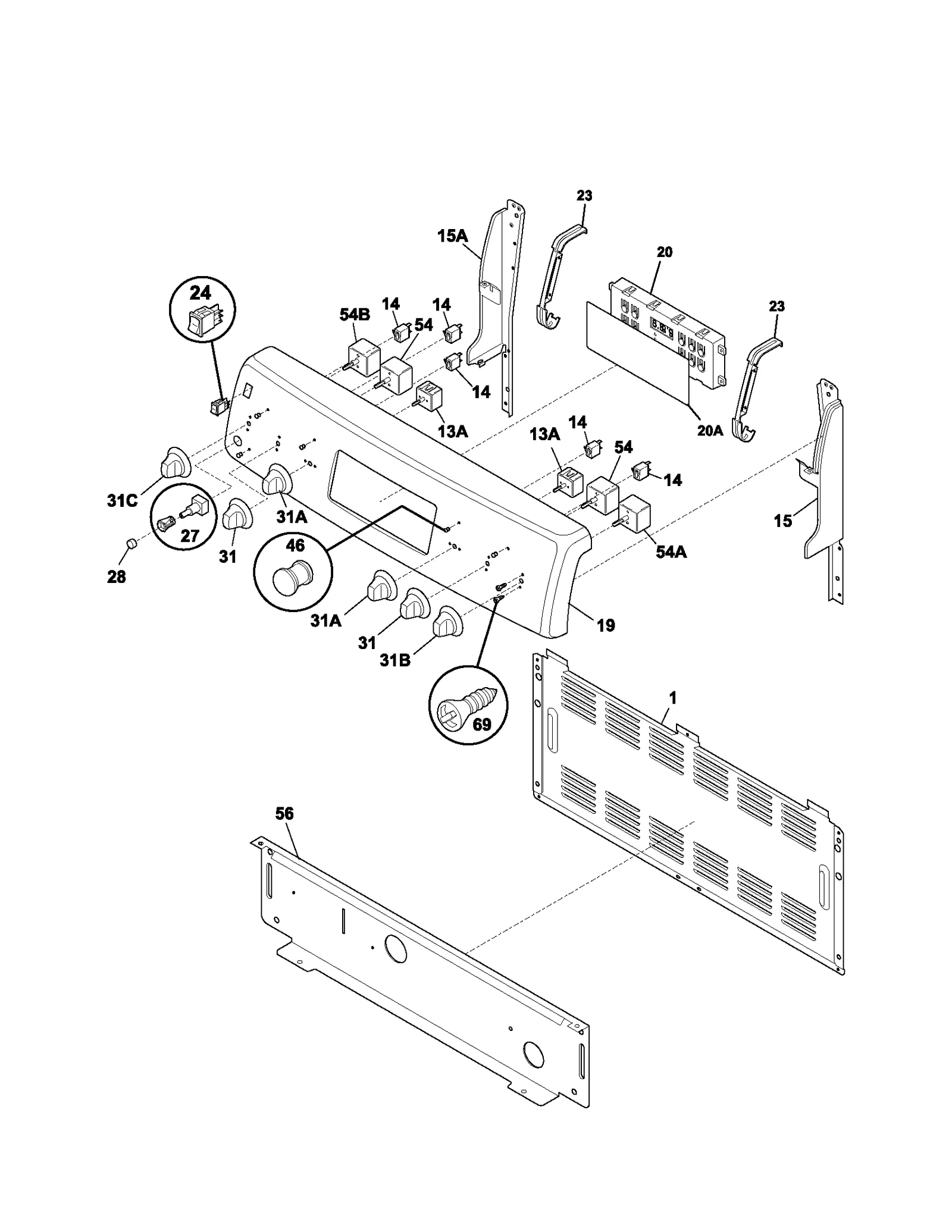

BACKGUARD
Common parts from model Electrolux 790.95889301 Electric Range (Kenmore 79095889301)
1
Range Control Panel Back Shield WCI 316239900 Contact Us For Availability
3
Range Oven Door Trim Kit WCI 5303935191 Contact Us For Availability
3
Range Oven Door Trim Kit (White) WCI 5303935192 Contact Us For Availability
4
Range Oven Door Outer Panel and Foil Tape (Bl WCI 5303935216 Contact Us For Availability
5
Range Leveling Leg WCI 316129200 Contact Us For Availability
7
Range Oven Door Insulation WCI 316236700 Contact Us For Availability
7A
Range Oven Door Hinge, Left WCI 316216501 Contact Us For Availability
8
Range Oven Bottom Panel WCI 316201501 Contact Us For Availability
9
Range Broil Pan WCI 316081900 Contact Us For Availability
10
Range Broil Pan Insert WCI 316082000 Contact Us For Availability
12
Range Oven Door Switch WCI 316209901 Contact Us For Availability
13
Drawer Glide WCI 316231700 Contact Us For Availability
13A
Drawer Glide WCI 316231701 Contact Us For Availability
14A
Range Oven Door Foil Tape, 4 x 5-1/2-in WCI 316102202 Contact Us For Availability
15
Support WCI 316220214 Contact Us For Availability
15
Glass Bracket WCI 316237201 Contact Us For Availability
15
Range Backguard Support Bracket, Right WCI 316220216 Contact Us For Availability
15
Support WCI 316220218 Contact Us For Availability
15A
Range Backguard Support Bracket, Left (White) WCI 316220215 Contact Us For Availability
15A
Range Control Panel Support, Left WCI 316220217 Contact Us For Availability
15A
Support WCI 316220219 Contact Us For Availability
15C
Range Warmer Zone Surface Element WCI 316098202 Contact Us For Availability
16
Range Oven Door Inner Glass WCI 316117501 Contact Us For Availability
17
Glass Spacer WCI 316117701 Contact Us For Availability
18
Range Oven Door Latch WCI 316213900 Contact Us For Availability
19
Range Control Panel (White) WCI 316218606 Contact Us For Availability
19
Control Panel WCI 316218607 Contact Us For Availability
19
Cntrl Pnl/bl WCI 316218608 Contact Us For Availability
20
Frigidaire Range Oven Control Board WCI 316207511 Contact Us For Availability
21
Range Screw Anchor WCI 3014099 Contact Us For Availability
23
Bracket WCI 316233200 Contact Us For Availability
24
Oven Switch WCI 316118104 Contact Us For Availability
27
Range Simmer Select Switch and Bezel (Black) WCI 5303935218 Contact Us For Availability
27
Range Simmer Select Switch and Bezel (White) WCI 5303935217 Contact Us For Availability
27
Range Simmer Select Switch and Bezel WCI 5303935219 Contact Us For Availability
28
Range Simmer Select Switch Button (Black) WCI 316219301 Contact Us For Availability
28
Range Simmer Selector Switch Button (White) WCI 316219300 Contact Us For Availability
28
Button WCI 316219302 Contact Us For Availability
31
Range Surface Burner Knob WCI 316208100 Contact Us For Availability
31
Range Surface Burner Knob WCI 316208102 Contact Us For Availability
31A
Range Warming Drawer Knob WCI 316208104 Contact Us For Availability
31A
Range Warming Drawer Knob WCI 316208103 Contact Us For Availability
31A
Range Warming Drawer Knob (Bisque) WCI 316208105 Contact Us For Availability
31B
Range Surface Burner Knob WCI 316208110 Contact Us For Availability
31B
Range Surface Burner Knob WCI 316208111 Contact Us For Availability
31B
Range Knob WCI 316208109 Contact Us For Availability
31C
Range Surface Burner Knob WCI 316208106 Contact Us For Availability
31C
Range Surface Element Knob WCI 316208107 Contact Us For Availability
31C
Range Surface Element Control Knob WCI 316208108 Contact Us For Availability
39
Oven Handle WCI 316209701 Contact Us For Availability
39
Oven Door Handle WCI 316209702 Contact Us For Availability
41
Range Oven Door Hinge Cover, Right WCI 316233400 Contact Us For Availability
44
Door Spacer WCI 316246500 Contact Us For Availability
52
Range Surface Element Mounting Spring WCI 316099400 Contact Us For Availability
52
Cap-door T WCI 316201003 Contact Us For Availability
52
Cap-door T WCI 316201005 Contact Us For Availability
52
Cap-door T WCI 316201009 Contact Us For Availability
56
Shield-bac WCI 316234001 Contact Us For Availability
56
Shield-bac WCI 316234004 Contact Us For Availability
58A
Range Oven Insulation WCI 316047708 Contact Us For Availability
84
Range Warming Drawer Safety Thermostat WCI 316093501 Contact Us For Availability
NI
Bisq Paint WCI 5304414035 Contact Us For Availability
NI
Range Screw WCI 316021108 Contact Us For Availability
NI
Range Screw WCI 5303280311 Contact Us For Availability
NI
Range Anti-Tip Decal WCI 316221000 Contact Us For Availability
NI
Range Technical Data Sheet WCI 316218513 Contact Us For Availability
NI
Wiring Diagram WCI 316255322 Contact Us For Availability
NI
Range Owner's Manual WCI 316259200 Contact Us For Availability
NI
Parts List WCI 5995392908 Contact Us For Availability
× ![]()
