Model Electrolux 790.95751990 Electric Range (Kenmore 79095751990) – Common Parts & Diagrams
BODY
All Parts

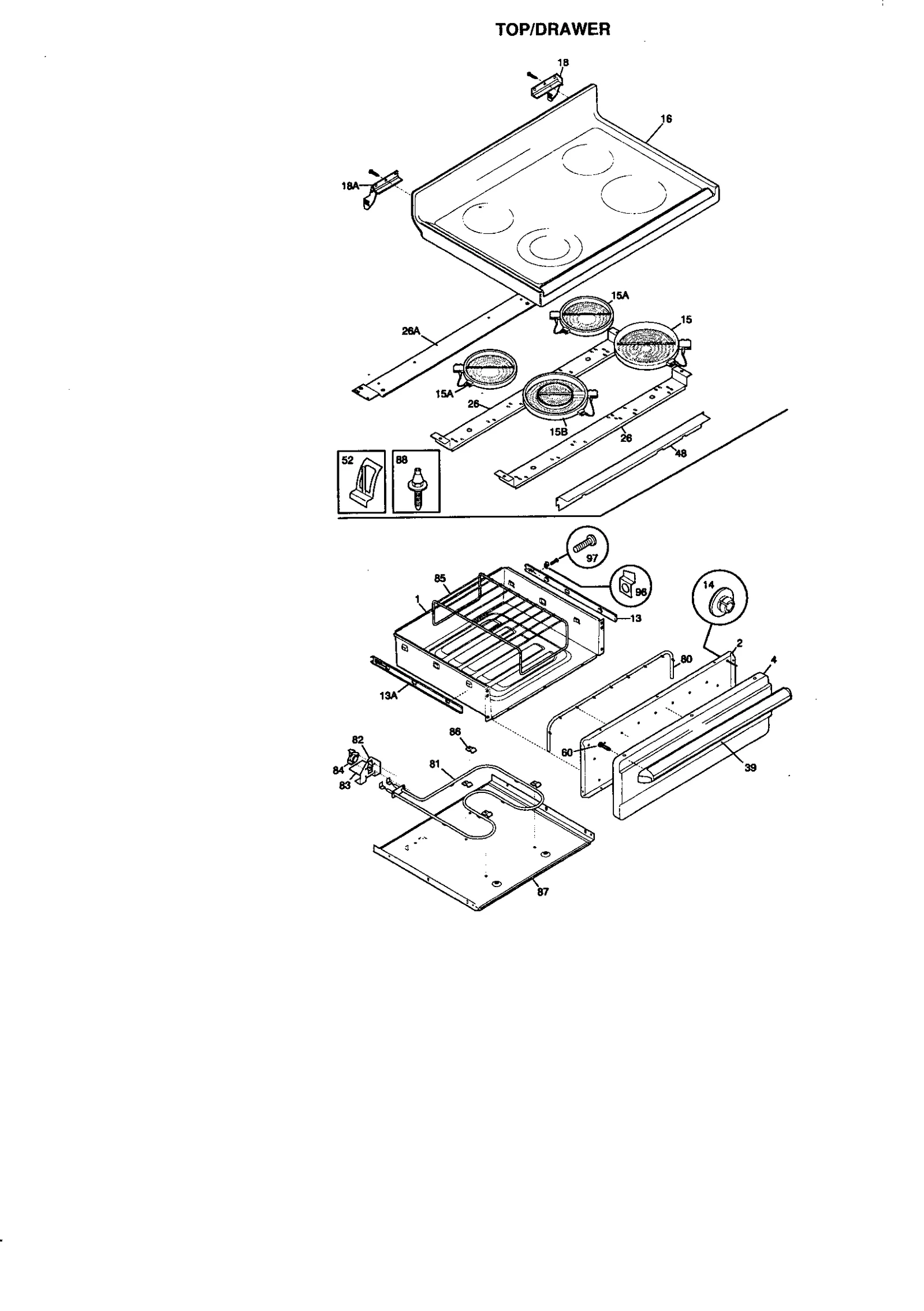

TOP/DRAWER
BACKGUARD

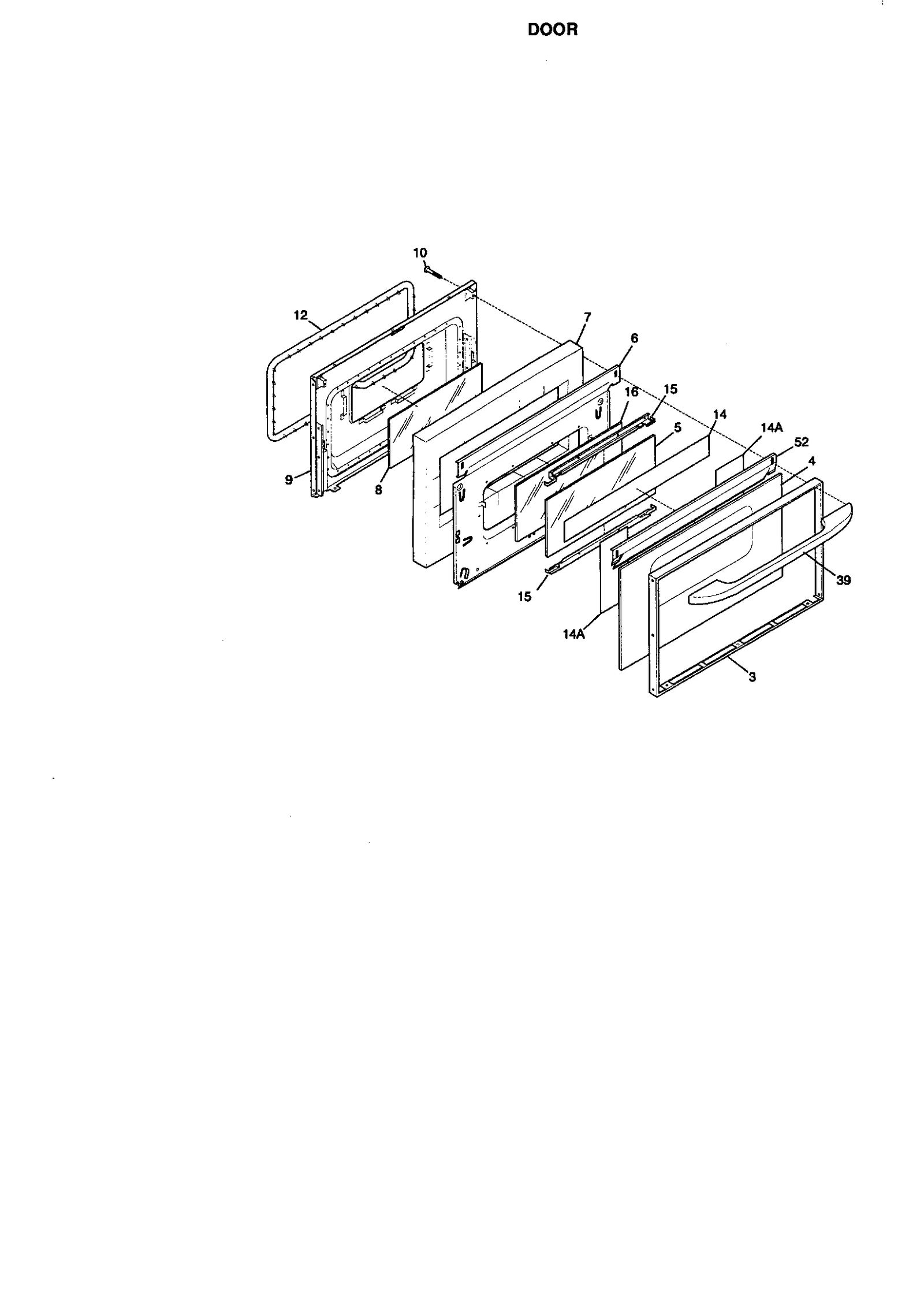

DOOR
Common parts from model Electrolux 790.95751990 Electric Range (Kenmore 79095751990)
1
Warming Drawer WCI 316115901 Contact Us For Availability
1
Plate WCI 316081601 Contact Us For Availability
2
Liner WCI 316092901 Contact Us For Availability
2
Backing Shield WCI 316015905 Contact Us For Availability
3
Trim WCI 316067802 Contact Us For Availability
4
Drawer Panel WCI 316056201 Contact Us For Availability
4
Glass-oven D WCI 316089000 Contact Us For Availability
4A
Drawer Panel WCI 316056202 Contact Us For Availability
5
Range Oven Door Inner Glass WCI 316088700 Contact Us For Availability
6
Shield WCI 316088401 Contact Us For Availability
7
Range Oven Door Hinge WCI 316007002 Contact Us For Availability
7
Insulation WCI 316076403 Contact Us For Availability
8
Range Oven Door Inner Glass WCI 316088600 Contact Us For Availability
9
Oven Door Inner Liner WCI 316066610 Contact Us For Availability
10
Range Wafer Head Screw, #10-24 x 1-4/5-in WCI 316001002 Contact Us For Availability
11
Wrapper Trim WCI 316083719 Contact Us For Availability
14
Glide Button WCI 3206216 Contact Us For Availability
14
Glass WCI 5303208656 Contact Us For Availability
15
Support WCI 316023108 Contact Us For Availability
15
Glass Bracket WCI 316081403 Contact Us For Availability
15A
Support WCI 316023109 Contact Us For Availability
16
Range Oven Door Middle Glass WCI 316085701 Contact Us For Availability
16
Wh Glass Top WCI 316098149 Contact Us For Availability
16A
Main Top Ald WCI 316098150 Contact Us For Availability
18
Hinge Asy Rh WCI 5303273062 Contact Us For Availability
18A
Hinge Asy Lh WCI 5303273063 Contact Us For Availability
19
Control Panel WCI 316100553 Contact Us For Availability
20
Range Oven Control Board WCI 316101001 Contact Us For Availability
20A
Range Oven Control Overlay WCI 316101514 Contact Us For Availability
21
Range Screw Anchor WCI 3014099 Contact Us For Availability
23
Bracket Clock WCI 316100300 Contact Us For Availability
26
Channel Support WCI 316099101 Contact Us For Availability
26A
Bracket Support WCI 316099201 Contact Us For Availability
31A
Range Warming Drawer Knob WCI 316109102 Contact Us For Availability
36
Range Surface Burner Knob WCI 316108902 Contact Us For Availability
39
Warmer Handle WCI 316026106 Contact Us For Availability
39
Blk Dr Handl WCI 316108802 Contact Us For Availability
39A
Drawer Handle WCI 316026107 Contact Us For Availability
39B
Range Warming Drawer Handle (Black) WCI 316026105 Contact Us For Availability
40
Manifold Panel WCI 316025800 Contact Us For Availability
41
Range Oven Door Hinge Cut-Out Cover WCI 3131570 Contact Us For Availability
48
Range Surface Element Wire Harness Shield WCI 316100200 Contact Us For Availability
52
Range Surface Element Mounting Spring WCI 316099400 Contact Us For Availability
52
Oven Shield WCI 316081303 Contact Us For Availability
58A
Range Oven Insulation WCI 316047708 Contact Us For Availability
69
Screw WCI 5303292005 Contact Us For Availability
80
Oven Door Seal WCI 316109700 Contact Us For Availability
81
Range Warming Drawer Element WCI 316093100 Contact Us For Availability
82
Shield Insert WCI 5303289913 Contact Us For Availability
82
Range Warming Drawer Element Mounting Bracket WCI 316093200 Contact Us For Availability
83
Terminal Shield WCI 316093300 Contact Us For Availability
84
Thermostat Disc WCI 316093500 Contact Us For Availability
86
Range Warming Drawer Element Bracket WCI 316095800 Contact Us For Availability
87
Range Warming Drawer Base Panel WCI 316091900 Contact Us For Availability
88
Latch Rod WCI 316026400 Contact Us For Availability
89
Latch Motor WCI 316028107 Contact Us For Availability
96
Lock Clip WCI 316122000 Contact Us For Availability
97
Range Screw WCI 316003802 Contact Us For Availability
155
Drawer Shield WCI 316095201 Contact Us For Availability
NI
Range Screw WCI 316021108 Contact Us For Availability
NI
Range Screw WCI 5303280311 Contact Us For Availability
NI
Owner's Manual WCI 316000950 Contact Us For Availability
NI
Range Warming Drawer Wire Harness WCI 316001917 Contact Us For Availability
NI
Wire Harness WCI 316001918 Contact Us For Availability
NI
Wiring Diagram WCI 316002680 Contact Us For Availability
NI
Range Installation WCI 316003025 Contact Us For Availability
NI
Repair Parts List WCI 316003483 Contact Us For Availability
NI
Wire Clip WCI 316045000 Contact Us For Availability
NI
Warming Plate WCI 316065304 Contact Us For Availability
NI
Edge Gasket WCI 316071902 Contact Us For Availability
NI
Range Terminal Block Insulator WCI 316085600 Contact Us For Availability
NI
Vent Shield WCI 316101600 Contact Us For Availability
NI
Cleaner-cook WCI 316112100 Contact Us For Availability
NI
Rivet WCI 3203618 Contact Us For Availability
NI
SCREW, WAFER HD SQ DR, 8-18AB X 1/2 WCI 530327164B Contact Us For Availability
× ![]()
