Model Electrolux 790.95746890 Electric Range (Kenmore 79095746890) – Common Parts & Diagrams

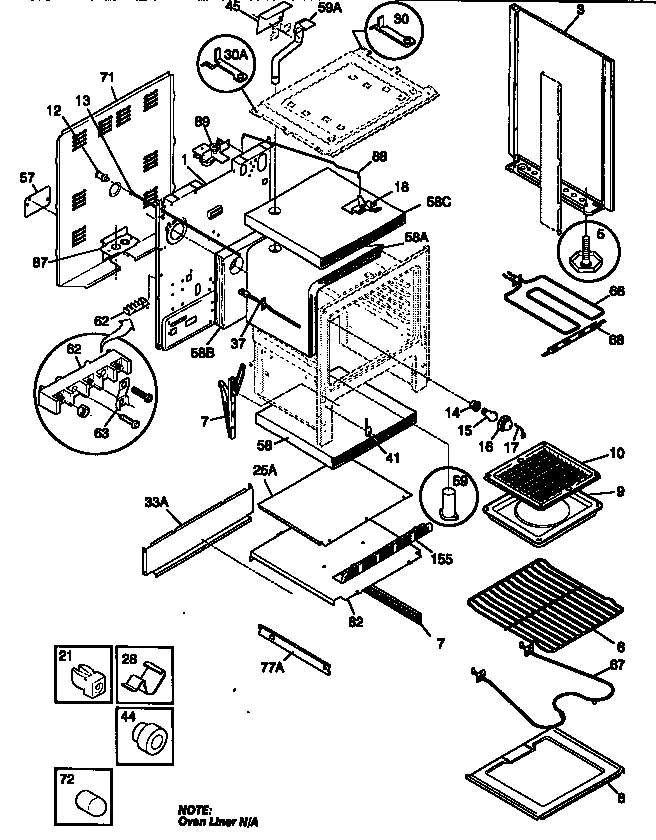

BODY

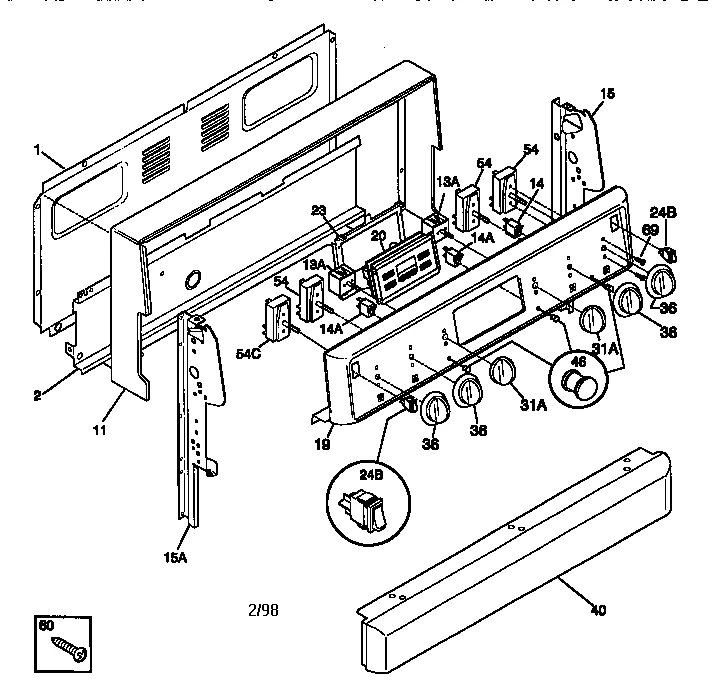

BACKGUARD
TOP/DRAWER
DOOR
All Parts
Common parts from model Electrolux 790.95746890 Electric Range (Kenmore 79095746890)
1
Plate WCI 316081601 Contact Us For Availability
1
Warming Drawer WCI 316094601 Contact Us For Availability
2
Backing Shield WCI 316015905 Contact Us For Availability
2
Liner WCI 316092901 Contact Us For Availability
3
Drive Trim WCI 316067804 Contact Us For Availability
4
Drawer Panel WCI 316056201 Contact Us For Availability
4
Glass-oven D WCI 316089005 Contact Us For Availability
5
Range Oven Door Inner Glass WCI 316088700 Contact Us For Availability
5A
Anti-Tip Kit WCI 3934058 Contact Us For Availability
6
SHIELD-WOOL WCI 316188401 Contact Us For Availability
7
Range Oven Door Hinge WCI 316007002 Contact Us For Availability
7
Insulation WCI 316076403 Contact Us For Availability
8
Range Oven Door Inner Glass WCI 316088600 Contact Us For Availability
9
LINER-OVEN DOOR WCI 31606610 Contact Us For Availability
10
Handle Screw WCI 316001008 Contact Us For Availability
11
Wrapper Trim WCI 316083700 Contact Us For Availability
11A
Trim Backguard WCI 316083701 Contact Us For Availability
13
Glide Rh WCI 316105600 Contact Us For Availability
14
Glide Button WCI 3206216 Contact Us For Availability
14
Aluminum Foil WCI 3131361 Contact Us For Availability
15
Support WCI 316023108 Contact Us For Availability
15
Glass Bracket WCI 316081401 Contact Us For Availability
15A
Support WCI 316023109 Contact Us For Availability
15B
Surface Element WCI 316049702 Contact Us For Availability
15C
Warming Element WCI 316098200 Contact Us For Availability
16
Almond Top WCI 316098135 Contact Us For Availability
16
Glass-oven D WCI 316085700 Contact Us For Availability
18
Hinge Asy Rh WCI 5303273062 Contact Us For Availability
18A
Hinge Asy Lh WCI 5303273063 Contact Us For Availability
19
PANEL-CONTROL, WHITE WCI 316100517 Contact Us For Availability
19A
PANEL-CONTROL, ALMOND WCI 31600518 Contact Us For Availability
20
Range Oven Control Board WCI 316101001 Contact Us For Availability
20A
Range Oven Control Overlay WCI 316101515 Contact Us For Availability
20B
Range Selection Button Overlay WCI 316101516 Contact Us For Availability
21
Range Screw Anchor WCI 3014099 Contact Us For Availability
23
Bracket Clock WCI 316100300 Contact Us For Availability
24B
Rocker Switch WCI 316086901 Contact Us For Availability
24BA
Rocker Switch WCI 316086902 Contact Us For Availability
26
Channel Support WCI 316099101 Contact Us For Availability
26A
Bracket Support WCI 316099201 Contact Us For Availability
31A
Oven Knob WCI 316109100 Contact Us For Availability
31AA
Range Warming Drawer Knob WCI 316109101 Contact Us For Availability
36
Range Surface Burner Knob WCI 316108900 Contact Us For Availability
36A
Range Surface Burner Knob WCI 316108901 Contact Us For Availability
39
Warmer Handle WCI 316026106 Contact Us For Availability
39
Oven Door Handle (White) WCI 316108800 Contact Us For Availability
40
Manifold Panel WCI 316025808 Contact Us For Availability
40A
Manifold Panel WCI 316025809 Contact Us For Availability
41
Range Oven Door Hinge Cut-Out Cover WCI 3131570 Contact Us For Availability
48
Range Surface Element Wire Harness Shield WCI 316100200 Contact Us For Availability
51
Indicate Lgt WCI 316105200 Contact Us For Availability
52
Range Surface Element Mounting Spring WCI 316099400 Contact Us For Availability
52
Oven Shield WCI 316081301 Contact Us For Availability
58A
Range Oven Insulation WCI 316047708 Contact Us For Availability
69
Screw WCI 5303292005 Contact Us For Availability
71
Wire Shield WCI 316015805 Contact Us For Availability
72
Light Cover WCI 5303285692 Contact Us For Availability
77
Drawer Rail WCI 316094900 Contact Us For Availability
77A
Drawer Rail WCI 316094901 Contact Us For Availability
80
Oven Door Seal WCI 316109700 Contact Us For Availability
81
Range Warming Drawer Element WCI 316093100 Contact Us For Availability
82
Shield Insert WCI 5303289913 Contact Us For Availability
82
Range Warming Drawer Element Mounting Bracket WCI 316093200 Contact Us For Availability
83
Terminal Shield WCI 316093300 Contact Us For Availability
84
Thermostat Disc WCI 316093500 Contact Us For Availability
86
Range Warming Drawer Element Bracket WCI 316095800 Contact Us For Availability
87
Range Warming Drawer Base Panel WCI 316091900 Contact Us For Availability
88
Latch Rod WCI 316026400 Contact Us For Availability
89
Latch Motor WCI 316028103 Contact Us For Availability
155
Drawer Shield WCI 316095201 Contact Us For Availability
NI
Range Screw WCI 316021108 Contact Us For Availability
NI
Range Screw WCI 5303280311 Contact Us For Availability
NI
Owner's Manual WCI 316000932 Contact Us For Availability
NI
Harness WCI 316001745 Contact Us For Availability
NI
Wiring Diagram WCI 316002642 Contact Us For Availability
NI
Installation Manual WCI 316003018 Contact Us For Availability
NI
Wire Clip WCI 316045000 Contact Us For Availability
NI
Warming Plate WCI 316065304 Contact Us For Availability
NI
Rivet WCI 3203618 Contact Us For Availability
NI
Range Screw, #8-32 x 1-in WCI 5303212671 Contact Us For Availability
NI
Screw WCI 5303288574 Contact Us For Availability
NI
Fastener WCI 5303290288 Contact Us For Availability
NI
SCREW, WAF HD SDR, 10-32 X 5/16, (2) WCI 530380311 Contact Us For Availability
NI
Cooktop Cleaner WCI 5309951550 Contact Us For Availability
NI
Parts Catalog WCI 5995303277 Contact Us For Availability
× ![]()
