Model Electrolux 790.95660100 Electric Range (Kenmore 79095660100) – Common Parts & Diagrams
DOOR

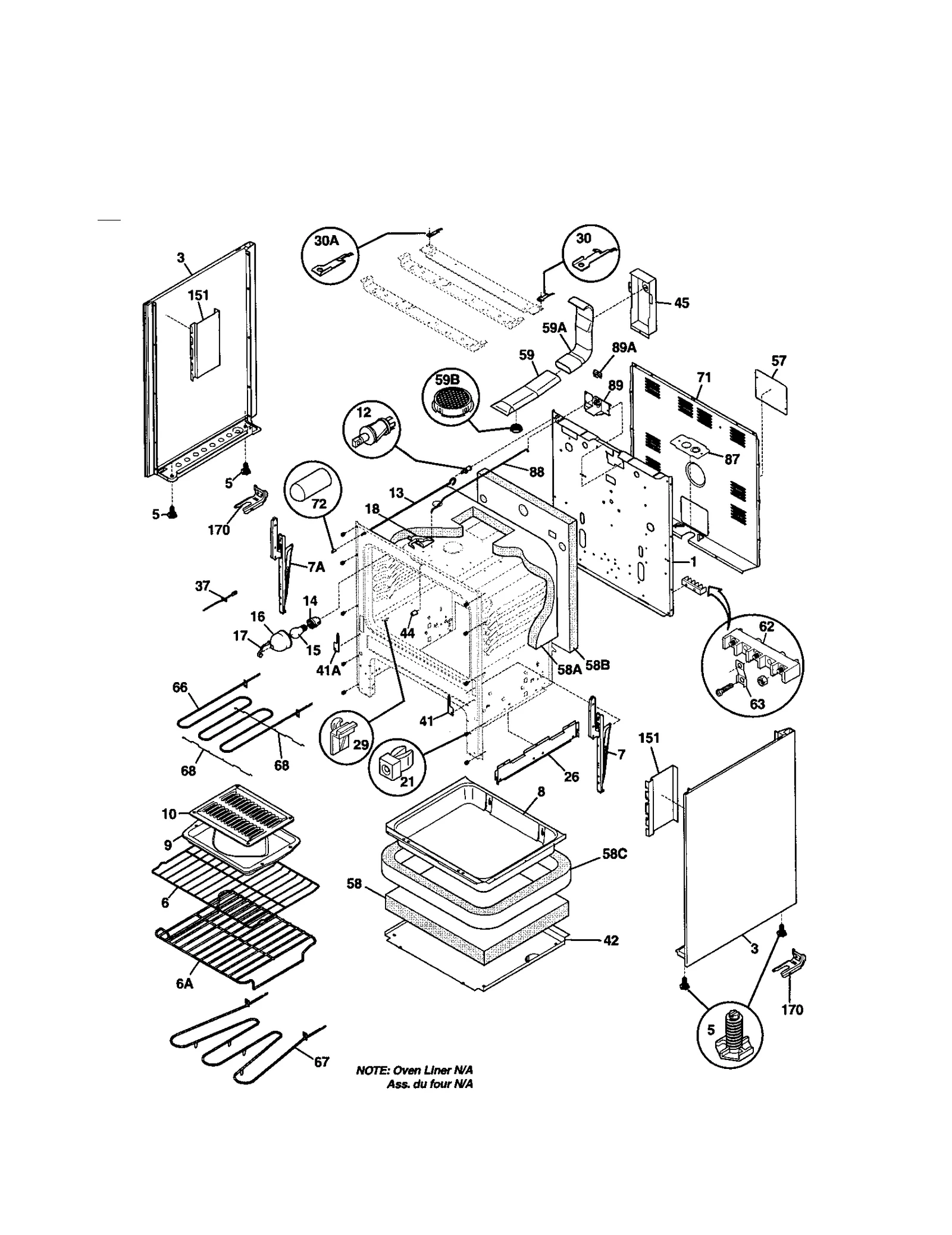

BODY

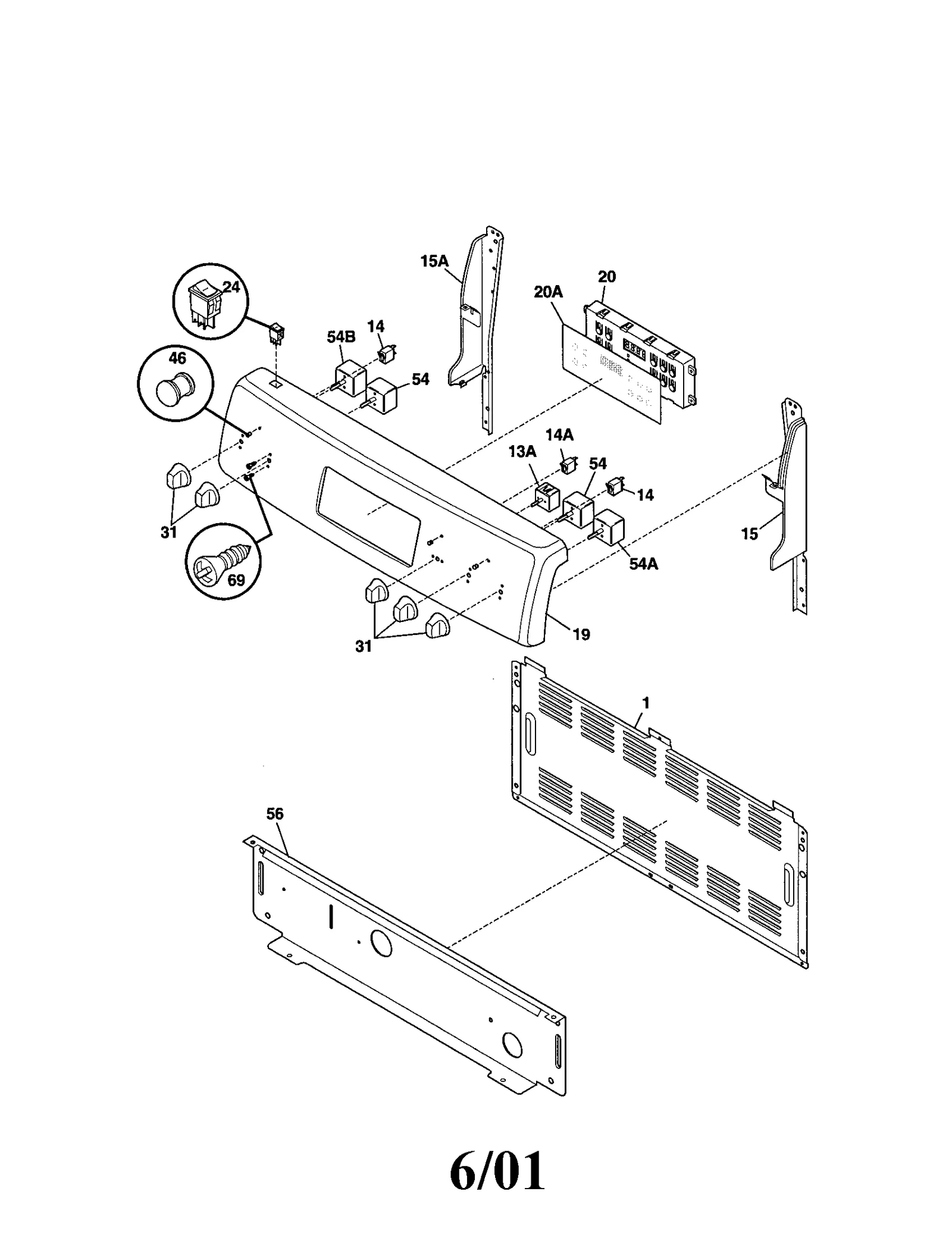

BACKGUARD

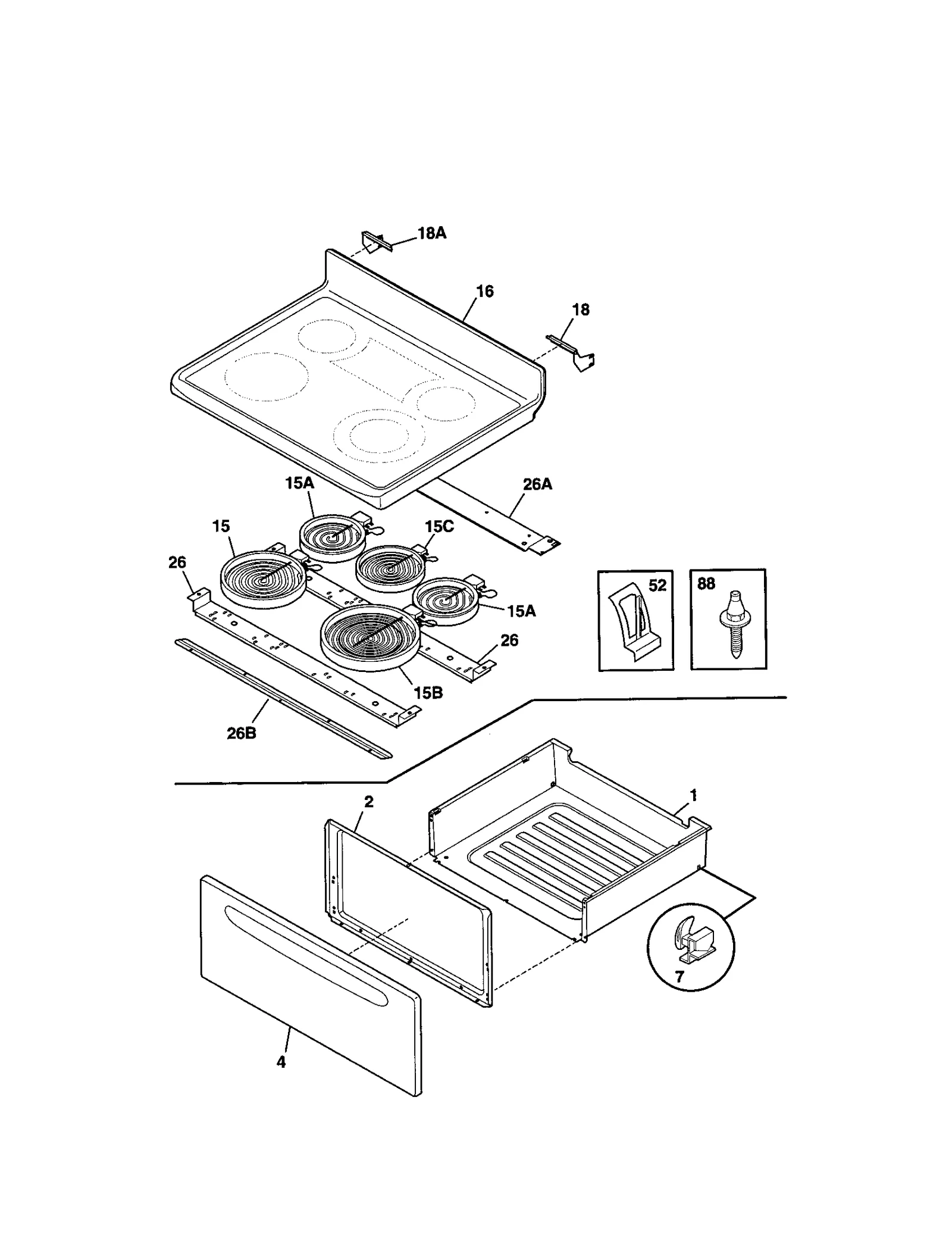

TOP/DRAWER
BODY
All Parts
Common parts from model Electrolux 790.95660100 Electric Range (Kenmore 79095660100)
1
Range Storage Drawer Assembly WCI 316011503 Contact Us For Availability
1
Main Back WCI 316201300 Contact Us For Availability
3
Range Oven Door Trim Kit WCI 5303935191 Contact Us For Availability
3
Body Panel WCI 316230108 Contact Us For Availability
3A
Range Oven Door Trim Kit (White) WCI 5303935192 Contact Us For Availability
3A
Body Panel WCI 316230109 Contact Us For Availability
3B
Body Panel WCI 316230102 Contact Us For Availability
3C
Body Panel WCI 316230103 Contact Us For Availability
3D
Body Panel WCI 316230104 Contact Us For Availability
3E
Body Panel WCI 316230105 Contact Us For Availability
4
Range Storage Drawer Front Panel (Black) WCI 316231306 Contact Us For Availability
4A
Range Storage Drawer Front Panel WCI 316231305 Contact Us For Availability
4A
Range Oven Door Outer Panel and Foil Tape (Wh WCI 5303935201 Contact Us For Availability
4B
Oven Door Glass WCI 5303935202 Contact Us For Availability
5
Range Leveling Leg WCI 316129200 Contact Us For Availability
6A
Oven Rack WCI 316214401 Contact Us For Availability
7
Range Oven Door Insulation WCI 316236700 Contact Us For Availability
8
Range Oven Bottom Panel WCI 316201501 Contact Us For Availability
9
Range Broil Pan WCI 316081900 Contact Us For Availability
10
Range Broil Pan Insert WCI 316082000 Contact Us For Availability
12
Range Oven Door Seal WCI 316230900 Contact Us For Availability
12
Oven Switch WCI 316027701 Contact Us For Availability
13
Light Rod WCI 316238800 Contact Us For Availability
15C
Range Warmer Zone Surface Element WCI 316098202 Contact Us For Availability
17
Glass Spacer WCI 316117701 Contact Us For Availability
18
Range Oven Door Latch WCI 316213900 Contact Us For Availability
18A
Hinge Main WCI 316235901 Contact Us For Availability
21
Range Screw Anchor WCI 3014099 Contact Us For Availability
26
Main Shield WCI 316211800 Contact Us For Availability
26A
BRACKET, CHASSIS SUPPORT, REAR WCI 316099200 Contact Us For Availability
26B
Bracket Support WCI 316214200 Contact Us For Availability
30
Range Main Top Right Hinge Pin WCI 316217700 Contact Us For Availability
30A
Range High Bracket WCI 316217701 Contact Us For Availability
31A
Range Surface Burner Knob (White) WCI 316240800 Contact Us For Availability
31B
Range Surface Burner Knob WCI 316240803 Contact Us For Availability
41
Range Oven Door Hinge Cover, Right WCI 316233400 Contact Us For Availability
41A
Range Oven Door Hinge Cover, Left WCI 316233500 Contact Us For Availability
42
Wool Cover Shield WCI 316206200 Contact Us For Availability
44
Door Spacer WCI 316246500 Contact Us For Availability
52
Range Surface Burner Cap WCI 316468601 Contact Us For Availability
52
Range Surface Element Mounting Spring WCI 316099400 Contact Us For Availability
54B
Range Surface Element Control Switch WCI 316132601 Contact Us For Availability
57
Access Cover WCI 316081100 Contact Us For Availability
58
Insulation WCI 316240300 Contact Us For Availability
58A
Range Oven Insulation WCI 316047708 Contact Us For Availability
58C
Insulation WCI 316240400 Contact Us For Availability
NI
Range Screw WCI 316021108 Contact Us For Availability
NI
Range Screw WCI 5303280311 Contact Us For Availability
NI
Warming Plate WCI 316065304 Contact Us For Availability
NI
Cleaner-cook WCI 316112100 Contact Us For Availability
NI
Wiring Harness WCI 316253212 Contact Us For Availability
NI
Range Cooktop Wire Harness WCI 316253504 Contact Us For Availability
NI
Wiring Diagram WCI 316255116 Contact Us For Availability
NI
Range Owner's Manual WCI 316257909 Contact Us For Availability
NI
Range Owner's Manual WCI 316259200 Contact Us For Availability
NI
Rivet WCI 3203618 Contact Us For Availability
NI
Parts List WCI 5995352209 Contact Us For Availability
× ![]()
