Model Electrolux 790.95657000 Electric Range (Kenmore 79095657000) – Common Parts & Diagrams

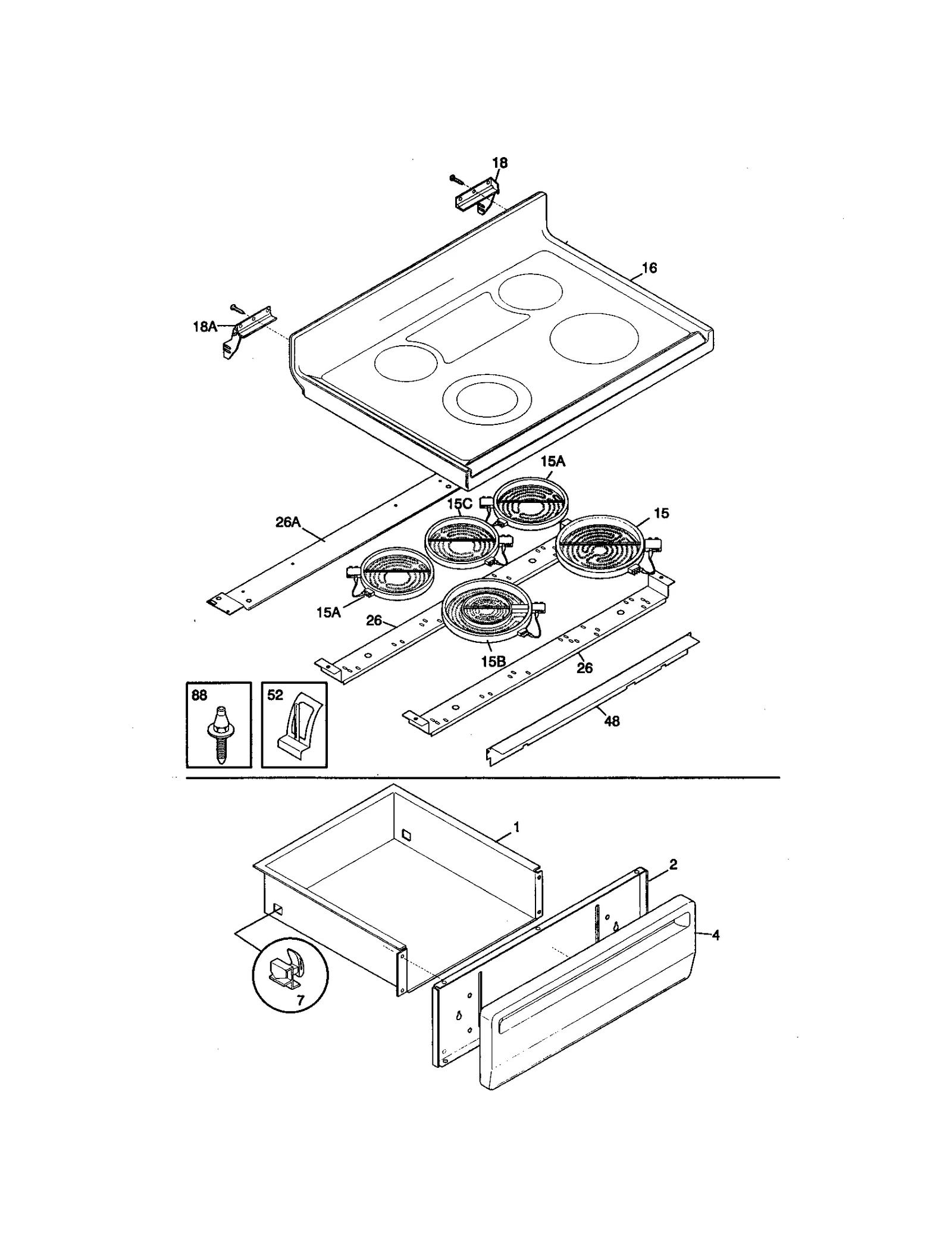

TOP/DRAWER

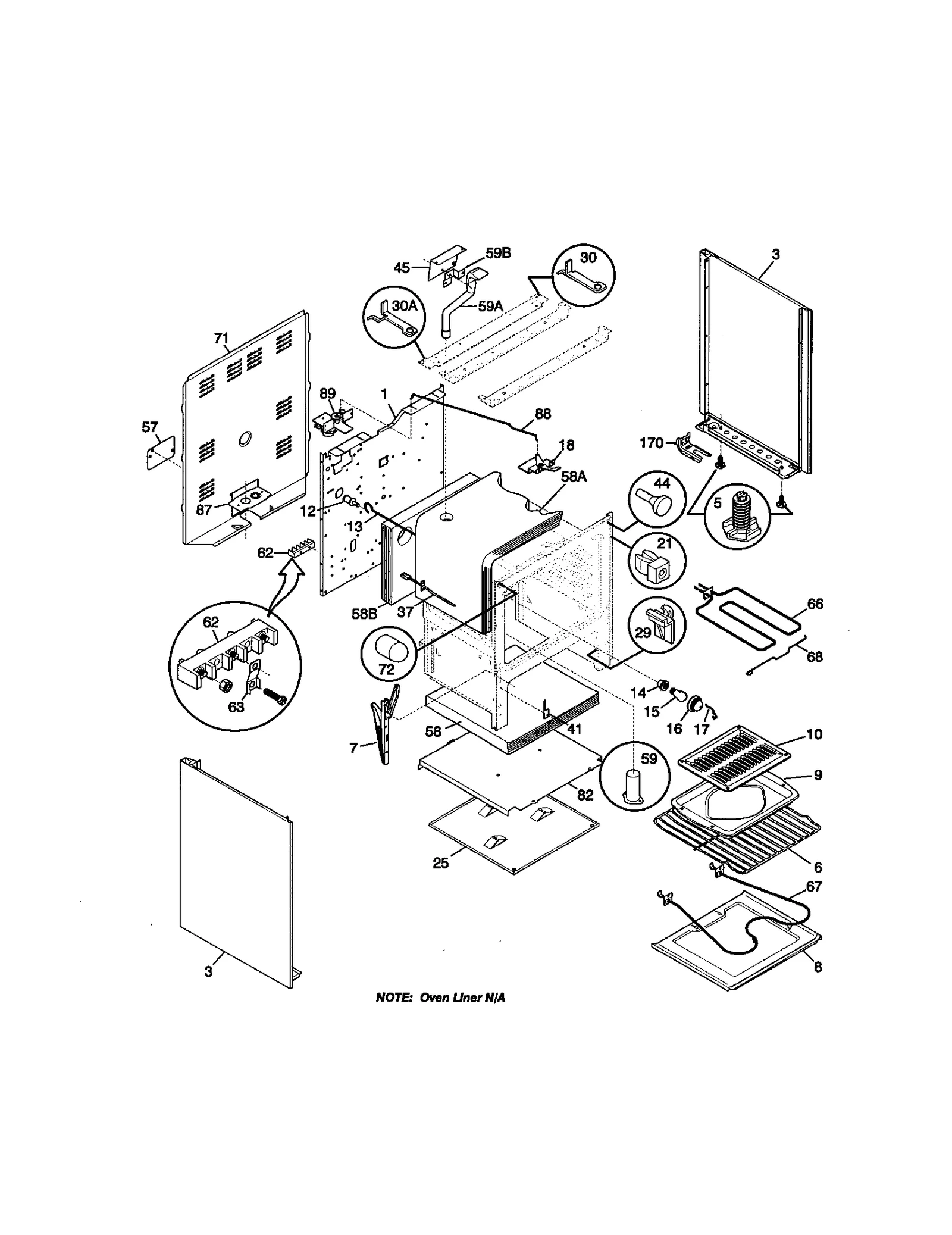

BODY

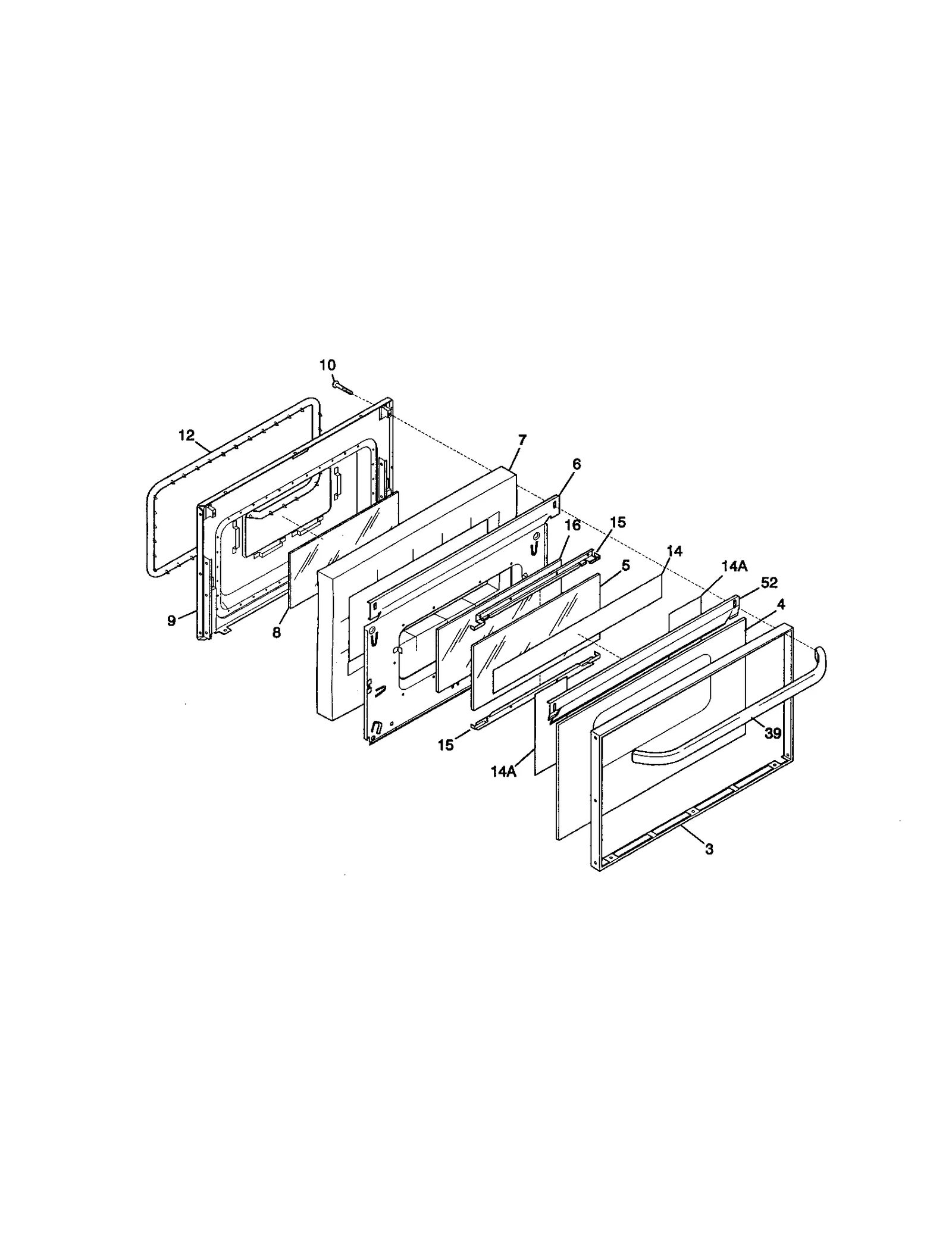

DOOR
All Parts

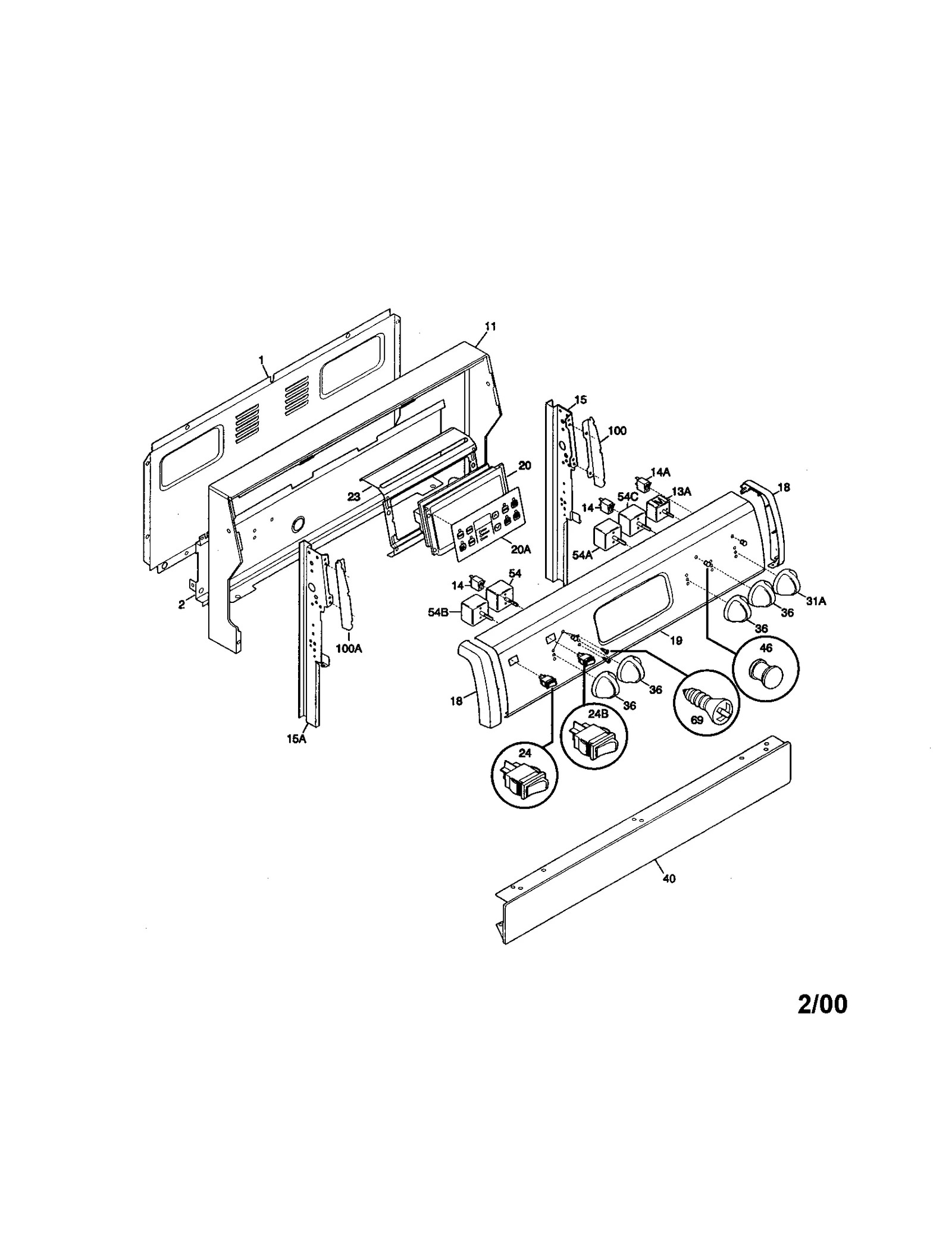

BACKGUARD
Common parts from model Electrolux 790.95657000 Electric Range (Kenmore 79095657000)
1
Plate WCI 316081601 Contact Us For Availability
2
Backing Shield WCI 316015905 Contact Us For Availability
3
Trim WCI 316067802 Contact Us For Availability
3A
Oven Door Trim WCI 316067803 Contact Us For Availability
3B
Drive Trim WCI 316067804 Contact Us For Availability
4
Glass-oven D WCI 316089000 Contact Us For Availability
4A
Oven Door Glass WCI 316089004 Contact Us For Availability
4B
Glass-oven D WCI 316089005 Contact Us For Availability
4C
Screw WCI 08067785 Contact Us For Availability
5
Range Oven Door Inner Glass WCI 316088700 Contact Us For Availability
6
Shield WCI 316088401 Contact Us For Availability
7
Range Oven Door Hinge WCI 316007002 Contact Us For Availability
7
Insulation WCI 316076403 Contact Us For Availability
8
Range Oven Door Inner Glass WCI 316088600 Contact Us For Availability
9
Range Broil Pan WCI 316081900 Contact Us For Availability
9
Oven Door Inner Liner WCI 316066610 Contact Us For Availability
10
Range Broil Pan Insert WCI 316082000 Contact Us For Availability
11
TRIM-WRAPPER, TEXTURED, BLACK WCI 316001851 Contact Us For Availability
11A
Trim Wrap/wh WCI 316001852 Contact Us For Availability
11B
TRIM-WRAPPER ELE W/HOLE, ALMOND WCI 316001853 Contact Us For Availability
13A
Switch WCI 31609550 Contact Us For Availability
14
Glass WCI 5303208656 Contact Us For Availability
14C
Aluminum Foil WCI 3131361 Contact Us For Availability
15
Glass Bracket WCI 316081403 Contact Us For Availability
15
Support WCI 316023108 Contact Us For Availability
15A
Support WCI 316023109 Contact Us For Availability
16
Range Oven Door Middle Glass WCI 316085701 Contact Us For Availability
18
Range Control Panel End Cap Set WCI 5303935174 Contact Us For Availability
18A
End Cap WCI 5303935172 Contact Us For Availability
18B
Oven End Cap WCI 5303935173 Contact Us For Availability
19
Control Panel WCI 316123619 Contact Us For Availability
19A
Wh Panel Cnt WCI 316123620 Contact Us For Availability
19B
Al Cntrl Pnl WCI 316123621 Contact Us For Availability
20
Range Oven Control Board WCI 316101001 Contact Us For Availability
20A
Range Oven Control Overlay WCI 316101514 Contact Us For Availability
20AB
Range Oven Control Overlay WCI 316101515 Contact Us For Availability
20AC
Range Selection Button Overlay WCI 316101516 Contact Us For Availability
21
Range Screw Anchor WCI 3014099 Contact Us For Availability
23
Bracket-time WCI 316131501 Contact Us For Availability
24BA
Rocker Switch WCI 316086901 Contact Us For Availability
24BB
Rocker Switch WCI 316086902 Contact Us For Availability
24C
Rocker Switch WCI 316005608 Contact Us For Availability
31A
Range Warming Drawer Knob WCI 316109102 Contact Us For Availability
31AA
Oven Knob WCI 316109100 Contact Us For Availability
31AB
Range Warming Drawer Knob WCI 316109101 Contact Us For Availability
39
Blk Dr Handl WCI 316108802 Contact Us For Availability
39A
Oven Door Handle (White) WCI 316108800 Contact Us For Availability
39B
Range Oven Door Handle WCI 316108801 Contact Us For Availability
40
Manifold Panel WCI 316025800 Contact Us For Availability
40A
Manifold Panel WCI 316025808 Contact Us For Availability
40B
Manifold Panel WCI 316025809 Contact Us For Availability
41
Range Oven Door Hinge Cut-Out Cover WCI 3131570 Contact Us For Availability
52
Range Surface Element Mounting Spring WCI 316099400 Contact Us For Availability
52
Oven Shield WCI 316081303 Contact Us For Availability
52A
Oven Shield WCI 316081301 Contact Us For Availability
52B
Oven Shield WCI 316081302 Contact Us For Availability
54C
Switch-simme WCI 316132600 Contact Us For Availability
58A
Range Oven Insulation WCI 316047708 Contact Us For Availability
71
Wire Shield WCI 316015805 Contact Us For Availability
72
Light Cover WCI 5303285692 Contact Us For Availability
82
Shield Insert WCI 5303289913 Contact Us For Availability
88
Latch Rod WCI 316026400 Contact Us For Availability
89
Latch Motor WCI 316028101 Contact Us For Availability
100
Backing Shield WCI 316128300 Contact Us For Availability
100A
Backing Shield WCI 316128301 Contact Us For Availability
NI
Range Screw WCI 316021108 Contact Us For Availability
NI
Range Screw WCI 5303280311 Contact Us For Availability
NI
Range Cooktop Wire Harness WCI 316001762 Contact Us For Availability
NI
Wiring Diagram WCI 316002698 Contact Us For Availability
NI
Range Installation WCI 316003025 Contact Us For Availability
NI
Wire Clip WCI 316045000 Contact Us For Availability
NI
Warming Plate WCI 316065304 Contact Us For Availability
NI
Edge Gasket WCI 316071902 Contact Us For Availability
NI
Range Terminal Block Insulator WCI 316085600 Contact Us For Availability
NI
Handle Spacer WCI 316089600 Contact Us For Availability
NI
Vent Shield WCI 316101600 Contact Us For Availability
NI
Cleaner-cook WCI 316112100 Contact Us For Availability
NI
Rivet WCI 3203618 Contact Us For Availability
NI
Screw WCI 5303292005 Contact Us For Availability
NI
Sears Repa WCI 5995331146 Contact Us For Availability
× ![]()
